PQY 2-Port Baffled Oil Catch Can — Black 6061 Aluminum, 50‑Micron Bronze Filter & Drain Valve

This universal oil separator is designed to sit in tight engine bays while protecting intake and intercooler systems from oily vapors and particulate contamination. Constructed from black-coated 6061 aluminum with M16 x 1.5 inlet and outlet threads, the PQY catch can provides a durable, serviceable solution for engines that suffer from crankcase ventilation oil carryover. The baffled interior and bronze filter work together to condense and collect oil before it reaches sensitive components, helping maintain cleaner intake surfaces and more consistent combustion conditions.

How does this catch can reduce oil contamination in the intake?

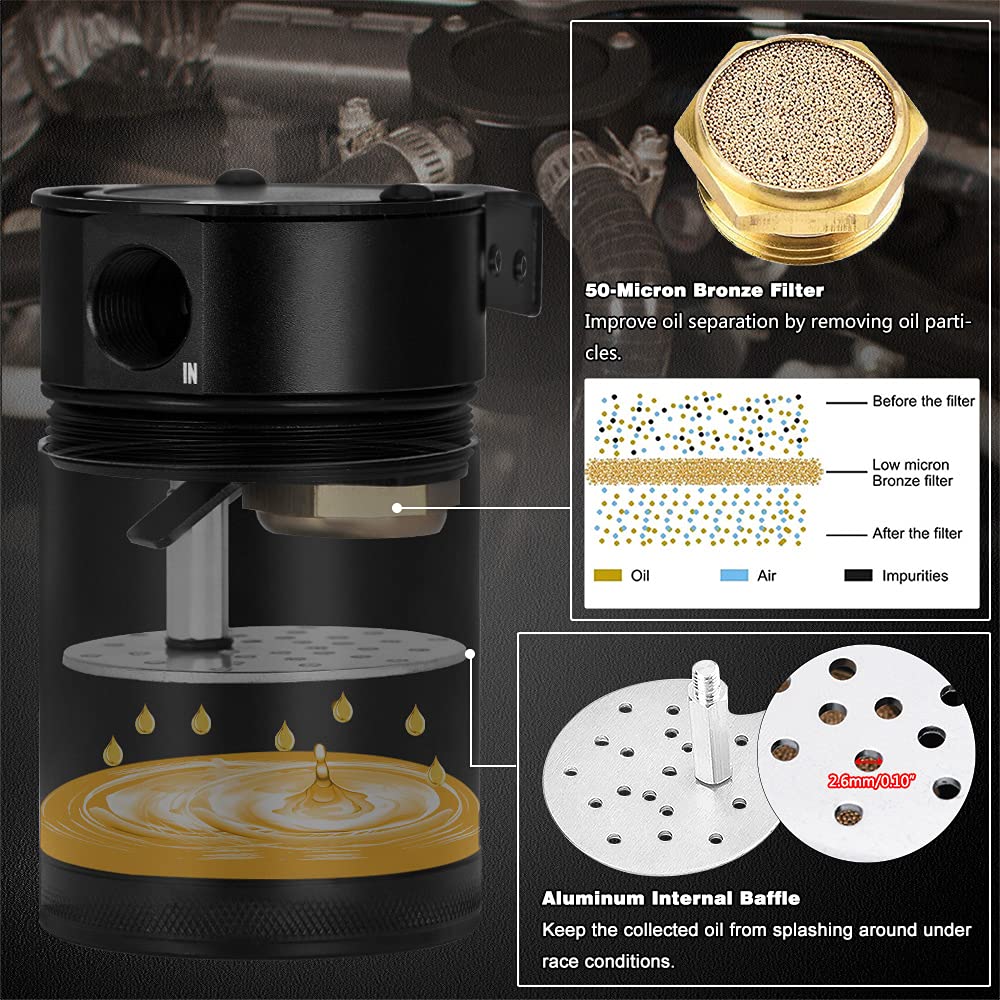

The unit forces vapors through a baffled chamber and a 50‑micron bronze filter that separates oil droplets from the airflow. Collected oil accumulates in the lower reservoir instead of entering the intake, keeping intercoolers and intake valves cleaner over time.

• Baffle geometry slows and separates oil-laden vapors.
• 50‑micron bronze element traps fine oil particles.
• Sealed body routes cleaned crankcase ventilation back to intake or atmosphere as needed.

Is the PQY catch can easy to install and service?

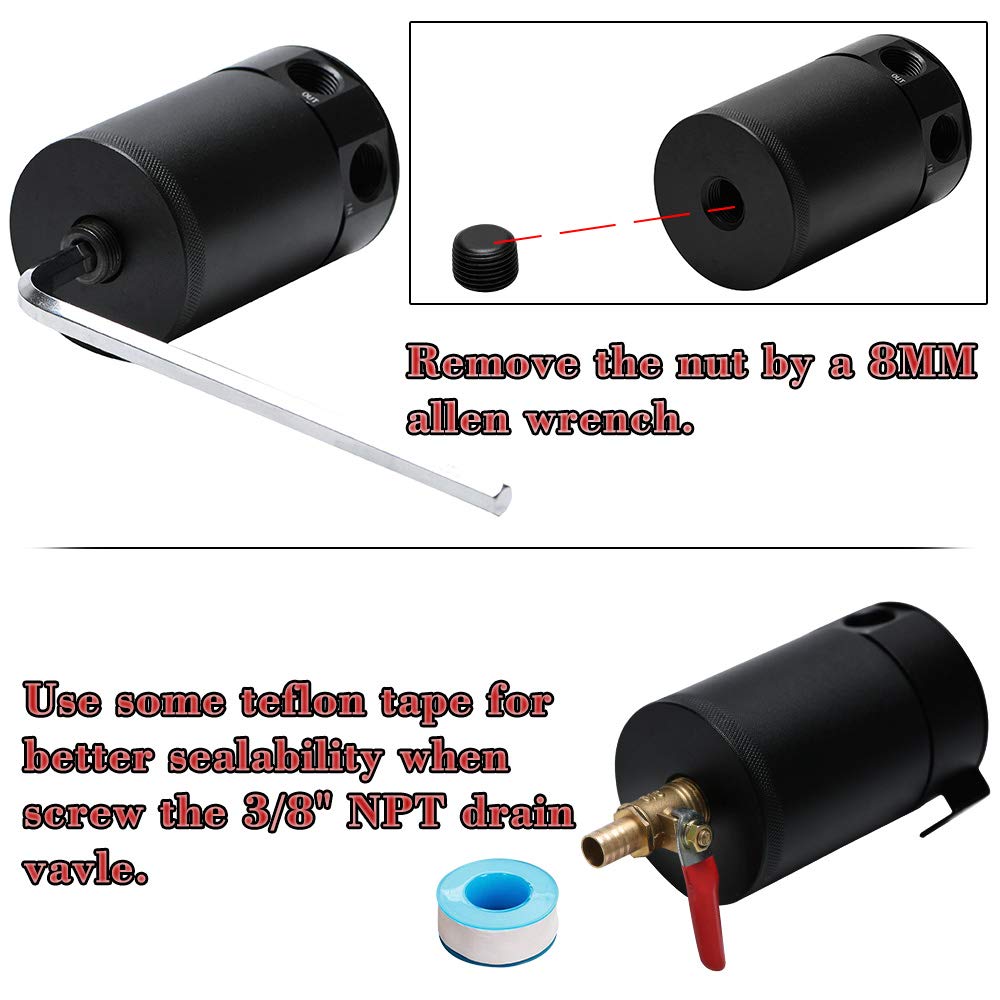

Yes. The compact cylinder and standard M16 x 1.5 inlet/outlet threads make it compatible with many factory PCV systems and simple to mount in constrained spaces. Routine servicing is straightforward thanks to the drain valve that lets you remove collected fluid without disassembling the tank.

• Universal two-port layout fits most orientation requirements.
• M16 x 1.5 threaded connections work with common fittings and hoses.
• Bottom-mounted drain valve allows quick oil removal.

What materials and construction give this catch can lasting value?

Built from 6061 aluminum with a protective black coating, the reservoir resists corrosion and sustains vibration and heat typical under the hood. The internal bronze filter is durable and serviceable, providing mechanical filtration of oil mists without clogging prematurely.

• 6061 aluminum body for strength and corrosion resistance.
• Black protective finish to reduce oxidation and glare.
• Bronze filtering element rated at 50 microns for reliable separation.

How will this catch can affect daily driving and maintenance?

Once installed, the system runs passively and requires only periodic draining of accumulated oil. It does not alter engine tune; instead it helps keep intake surfaces cleaner, which may reduce the frequency of intake or throttle body cleaning.

• Passive operation with no electrical connections needed.
• Simple maintenance: open drain valve to remove fluid.
• Low-profile design minimizes interference with other engine components.

Who is this for: The PQY baffled oil catch can kit is suited to enthusiasts and DIY mechanics who want a compact, durable way to limit oil blow-by reaching intakes and intercoolers. It fits many vehicles that have space for a small inline reservoir and are compatible with M16 x 1.5 fittings. Ideal for turbocharged and high-mileage engines where oil vapors are a concern, this kit appeals to owners who prefer a straightforward, serviceable solution rather than complex filtration setups.
