PQY Outboard Trim & Tilt Pin Wrench Set — 3-Piece MT0004/MT0006/MT0009, Hardened Steel for Yamaha Suzuki

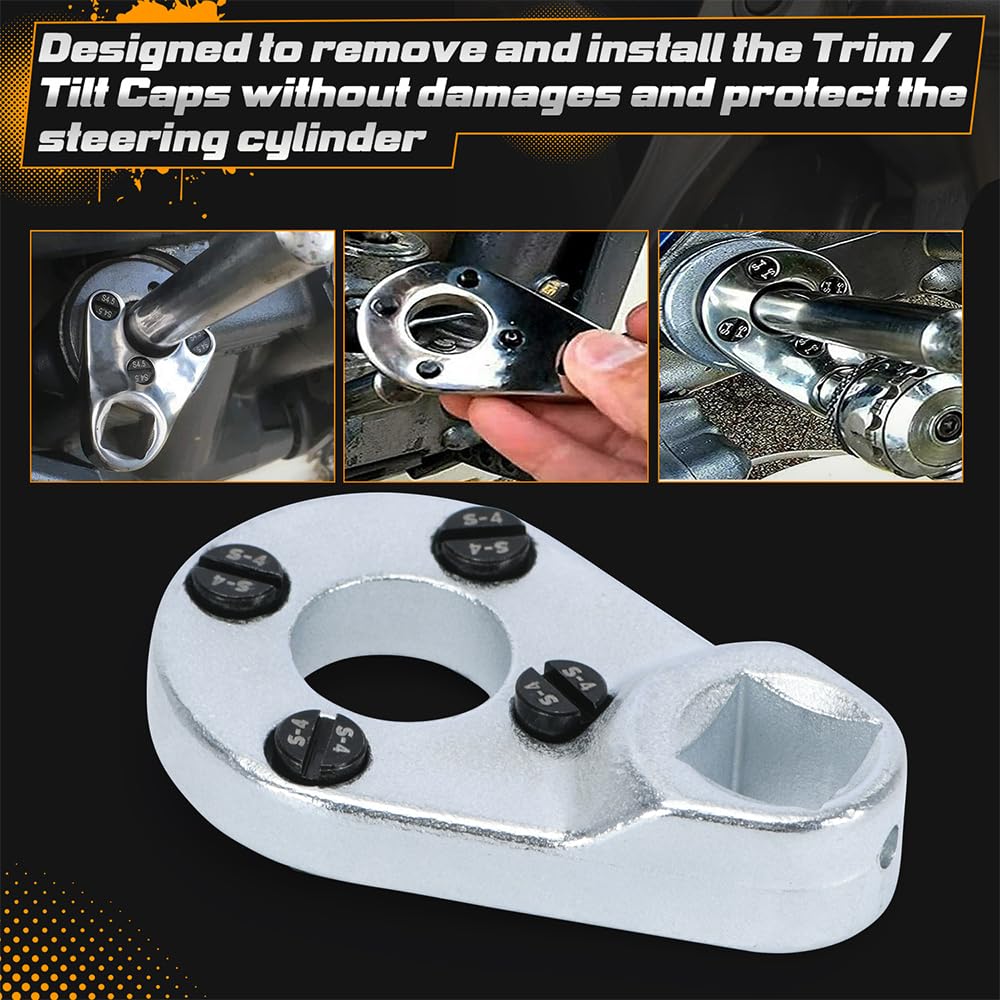

PQY's three-piece outboard trim and tilt pin wrench set (MT0004, MT0006, MT0009) is a hardened steel tool kit made to remove and install hydraulic trim/tilt and steering end caps on Yamaha, Suzuki, Johnson and Evinrude outboards without damage.

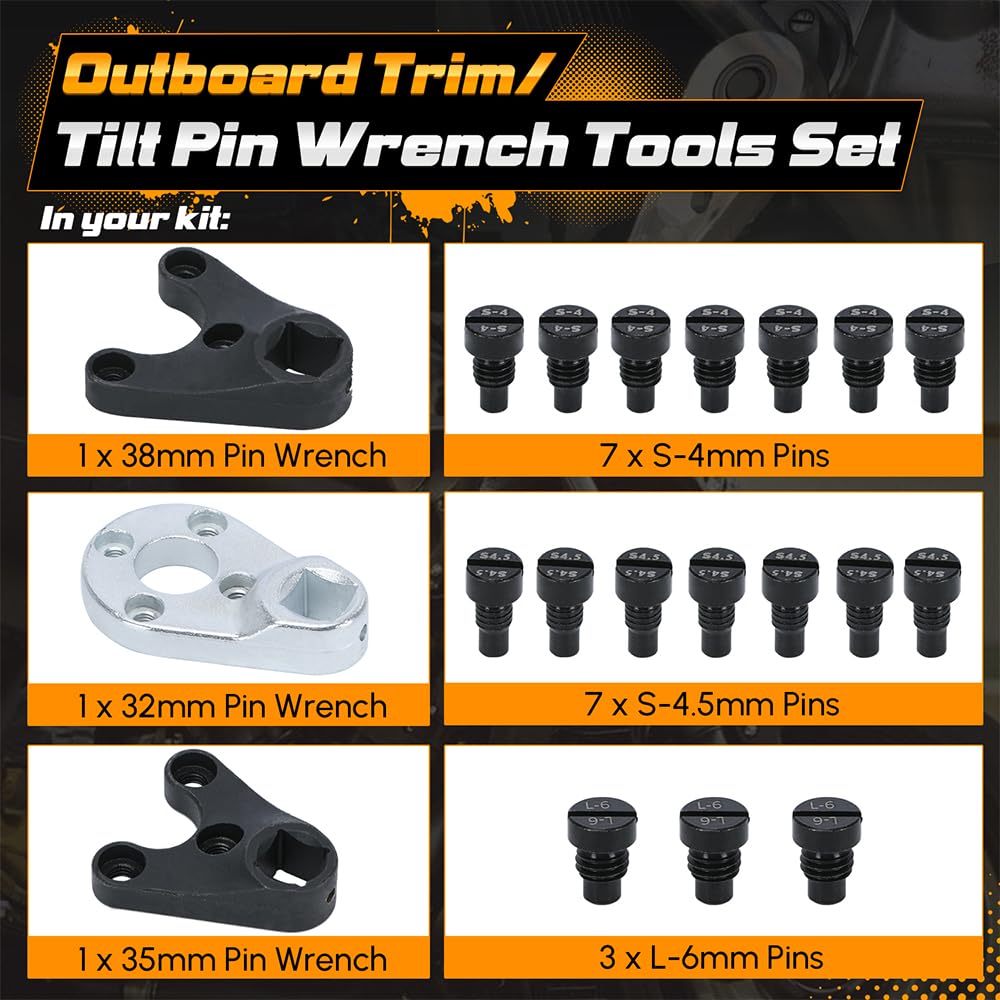

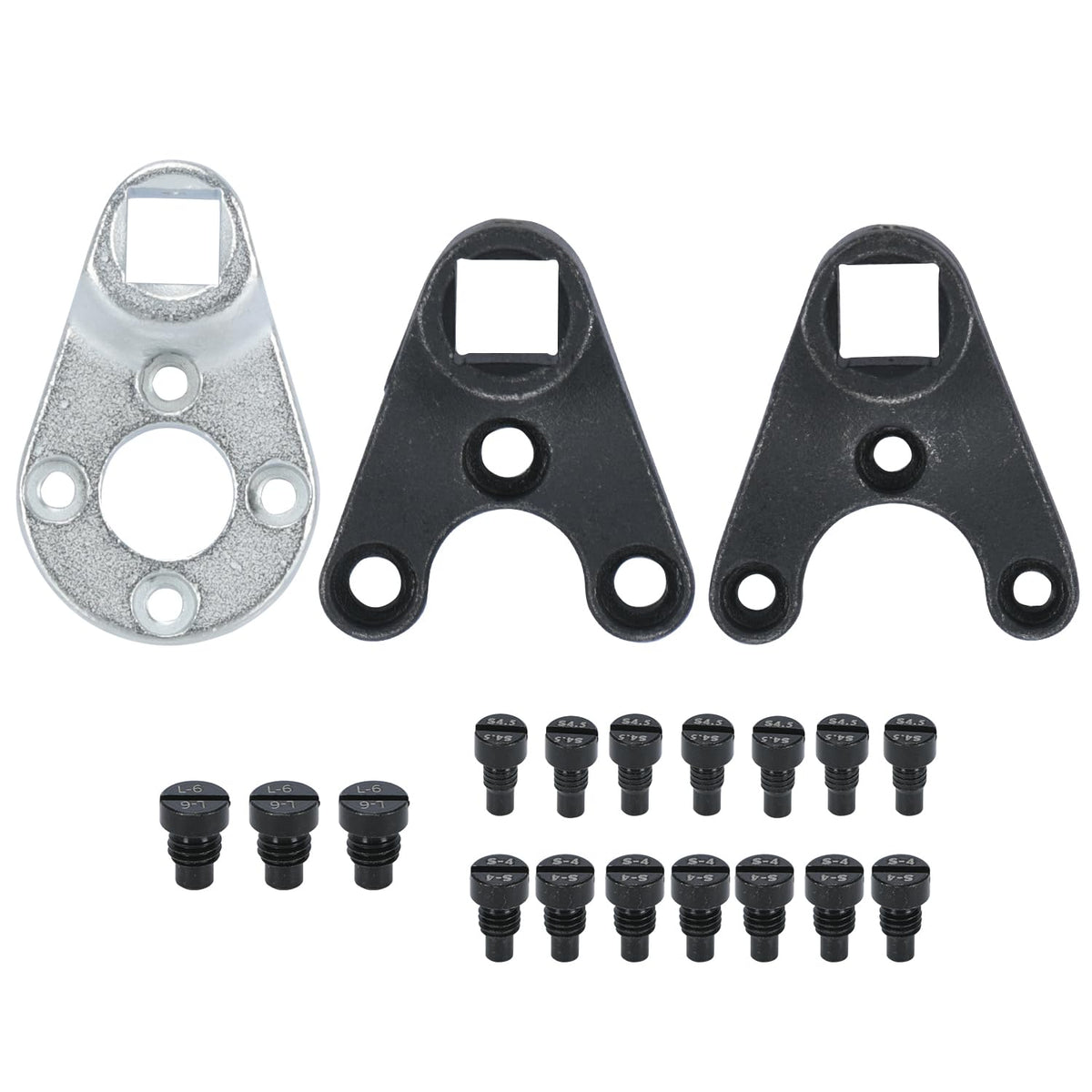

This compact tool trio replaces fragile factory tools and gives you the correct pin engagement, material strength and drive compatibility to service hydraulic trim/tilt caps and Seastar steering end caps. Each wrench is CNC machined from hardened steel, finished to resist corrosion, and sized to fit common OEM cap configurations. The set includes three pin wrenches sized for different cap diameters and pin layouts, designed to be used with a 1/2" drive socket and a torque wrench for safe, controlled tightening and removal.

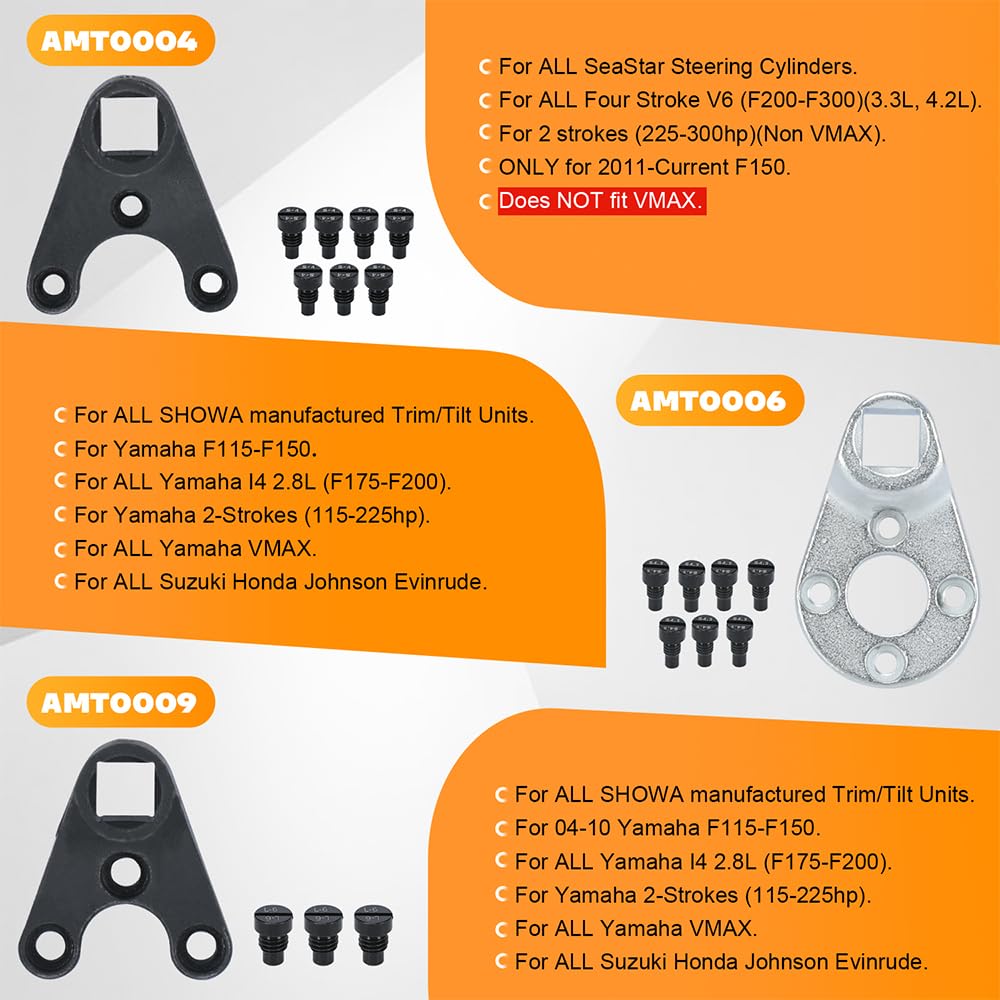

Which engines and caps will these wrenches work with?

The PQY wrenches are made to fit hydraulic trim/tilt end caps found on popular outboard brands including Yamaha, Suzuki, Johnson and Evinrude, and they also work with many Seastar hydraulic steering end caps. They replace common OEM tool part numbers used for cap service.

• Compatible with Yamaha, Suzuki, Johnson, Evinrude hydraulic trim/tilt end caps
• Fits many Seastar hydraulic steering end caps
• Replaces OEM tools like YB-06175-2B, YB-06175-1A, YB-06548

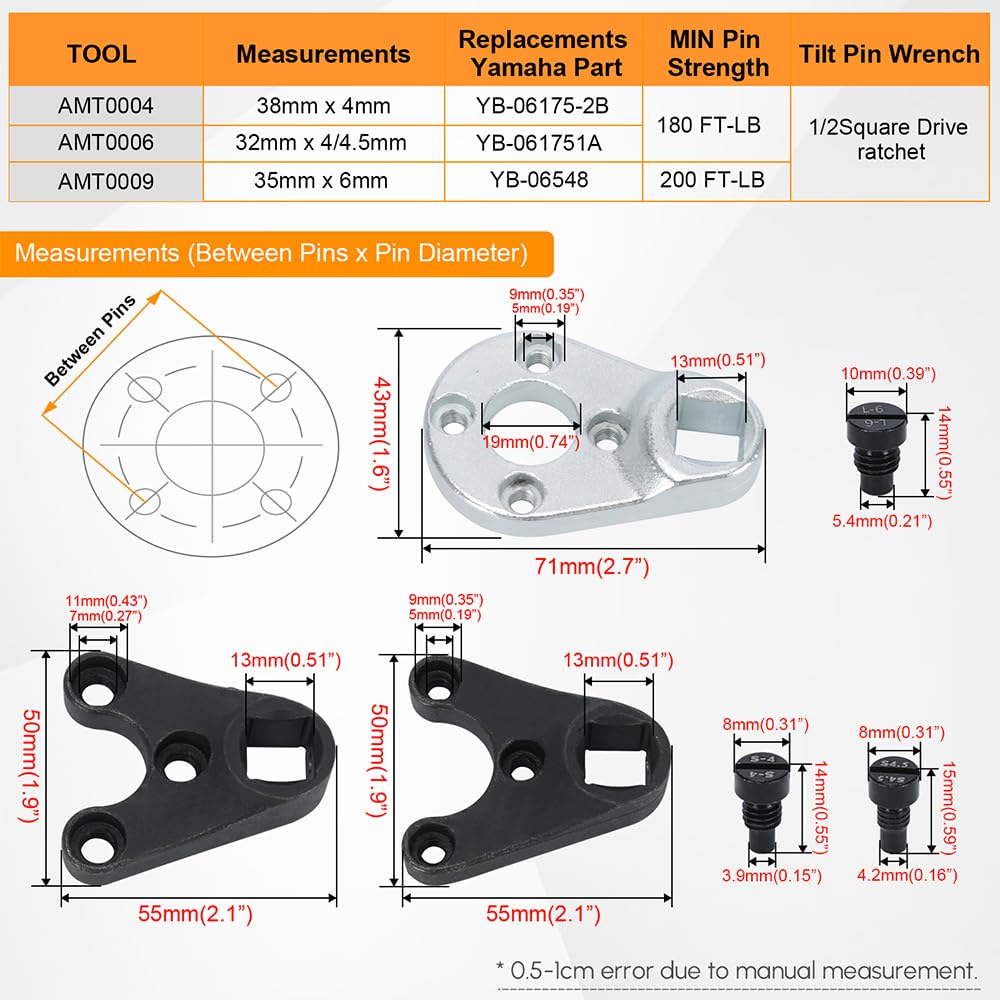

How are the MT0004, MT0006 and MT0009 different?

Each wrench is sized for a specific cap diameter and pin thickness so you get full engagement without slipping. MT0004, MT0006 and MT0009 have distinct pin arrangements and rated strengths for heavy-duty use.

• MT0004 — 38 mm face with 4 mm pins, rated minimum 180 ft-lb pin strength
• MT0006 — 32 mm face with 4 mm or 4.5 mm options, rated minimum 180 ft-lb pin strength
• MT0009 — 35 mm face with 6 mm pins, rated minimum 200 ft-lb pin strength

What materials and construction ensure durability?

PQY manufactures these wrenches from CNC-machined hardened steel and applies an anti-corrosion finish so the tools withstand marine environments and resist breakage under load. The precise machining ensures a snug fit that protects caps from scoring or deformation during service.

• Hardened steel core for torsional strength
• CNC machining for accurate pin placement and fit
• Anti-corrosion finish suited to saltwater exposure

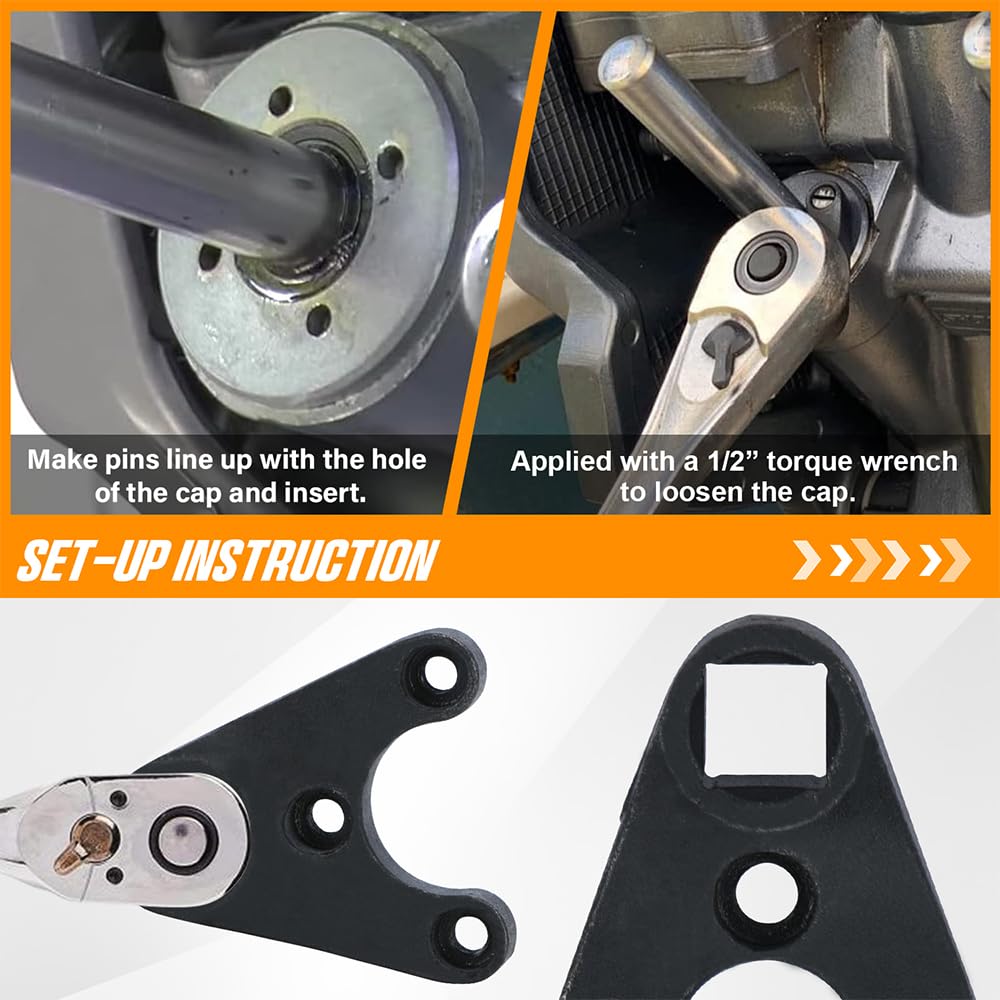

How should I use this set for safe, reliable service?

Use the correct-sized wrench for the cap you’re servicing, and pair the wrench with a 1/2" drive socket and a calibrated torque wrench to control applied force. Proper pin engagement and controlled torque reduce the chance of leaks, damaged end caps, or stripped fittings.

• Match wrench size to cap diameter and pin pattern before use
• Attach to a 1/2" drive socket and use a torque wrench for installation/removal
• Check pins for wear before reuse and replace tool if pins deform

Who is this for: This PQY trim and tilt pin wrench set is intended for marine technicians, boat owners who perform their own maintenance, and repair shops that service outboard hydraulic trim/tilt systems and steering cylinders. It’s useful for anyone needing a durable, OEM-compatible solution to remove and install hydraulic end caps without causing damage or leaks.
