PQY Spark Plug Gap Tool — Universal 32-Blade Aluminum Gapper Blue for 10–16mm Plugs, Precise Ignition Adjustment

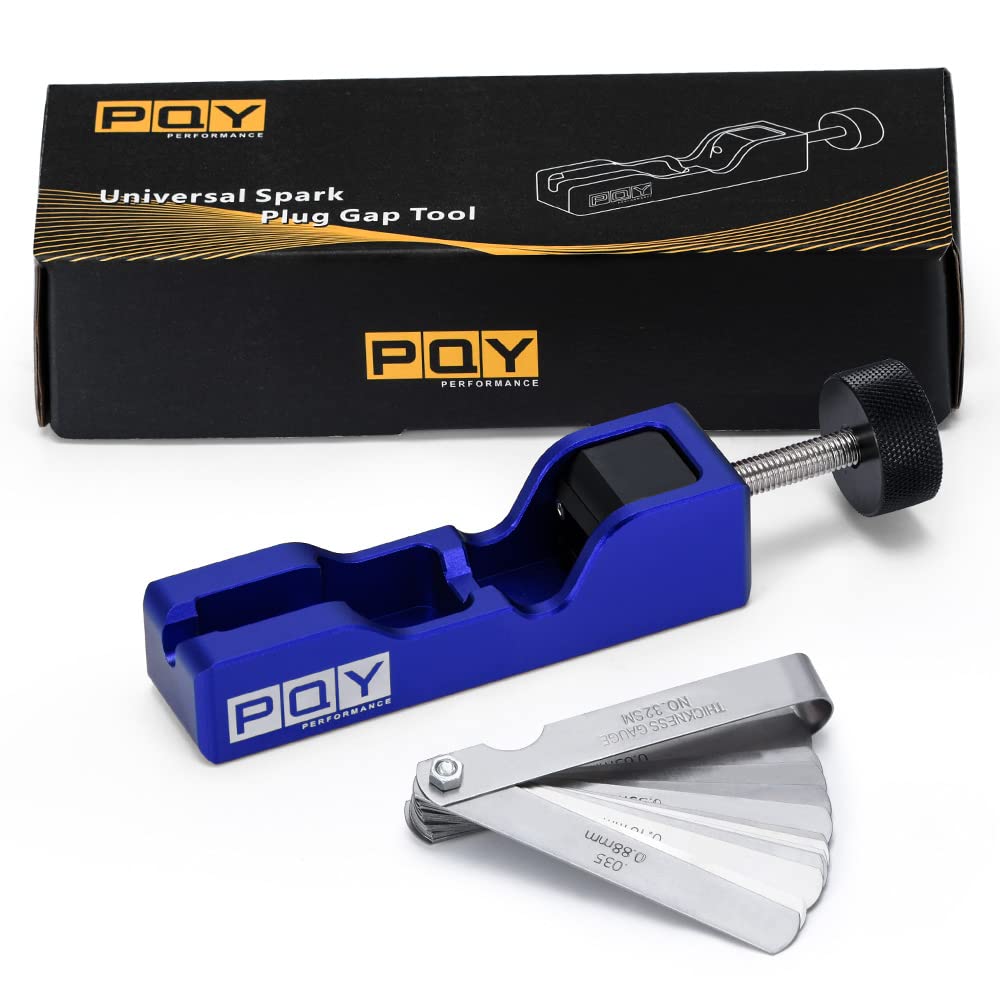

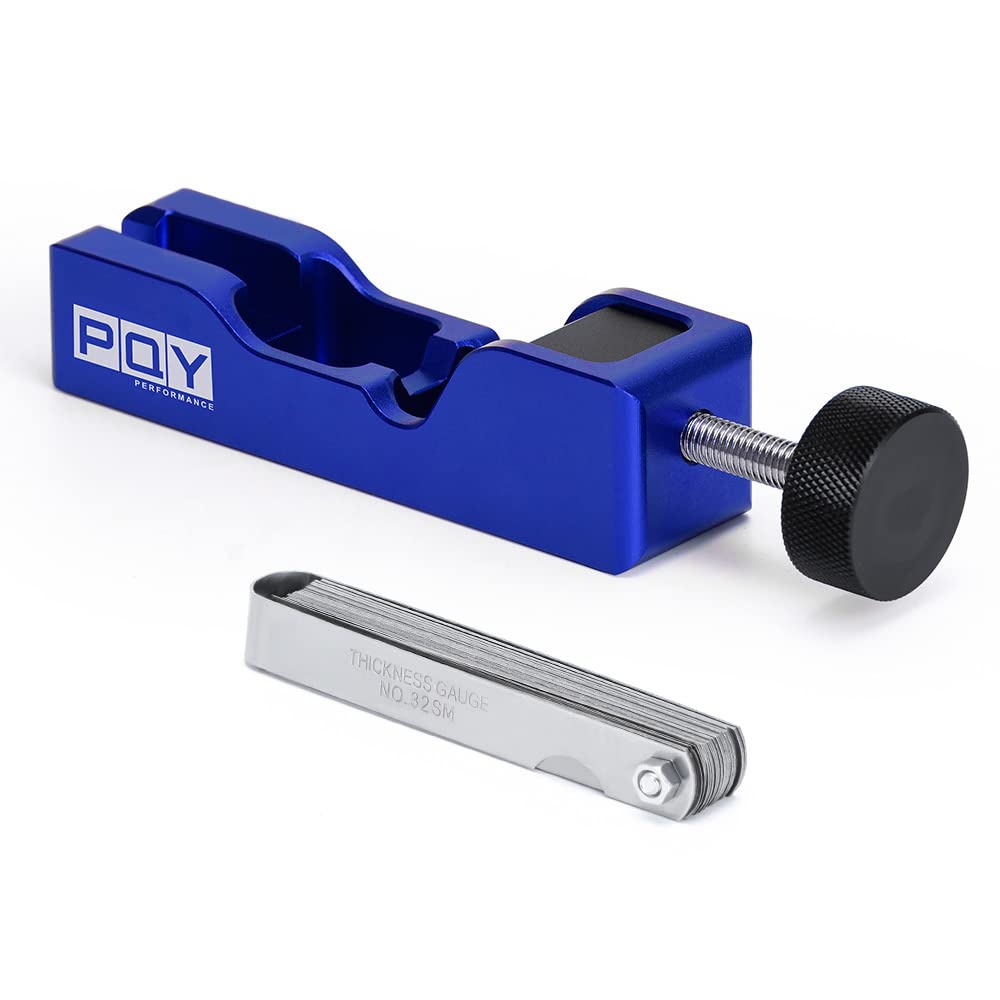

The PQY Universal Spark Plug Gap Gapping Tool is a compact aluminum gapper with a 32-blade feeler gauge designed to set accurate spark plug gaps for most 10mm–16mm threaded plugs.

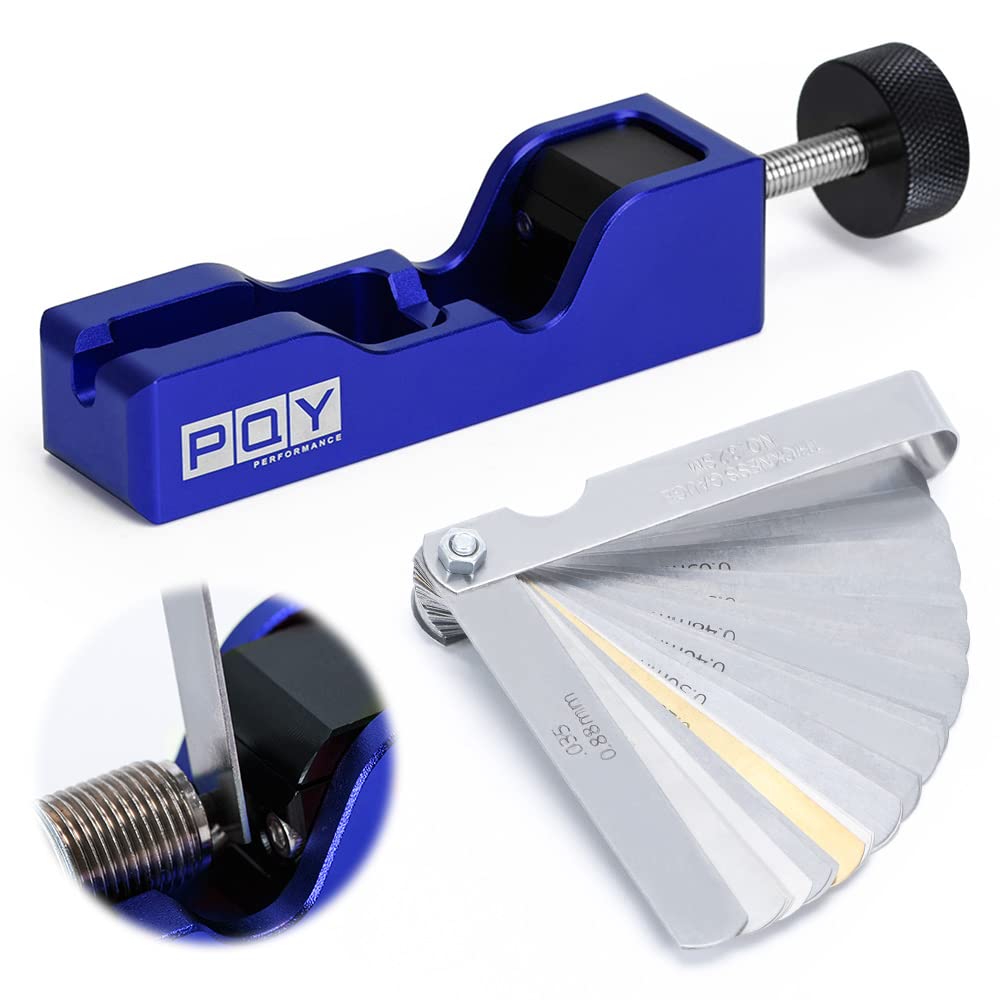

Whether you’re tuning a car, motorcycle, lawn mower, or small engine, consistent spark plug gaps are essential for reliable ignition performance. PQY’s gapping tool combines a lightweight matte-anodized aluminum body with a full set of manganese-steel feeler blades so you can measure and adjust electrode spacing precisely. It’s intended for standard reach spark plugs (10mm, 12mm, 14mm, 16mm threads) and includes a brass blade for electronic ignition systems; it does not fit 18mm-thread, long-reach, or short-reach specialty plugs.

How do I use the PQY gap tool to adjust a plug quickly?

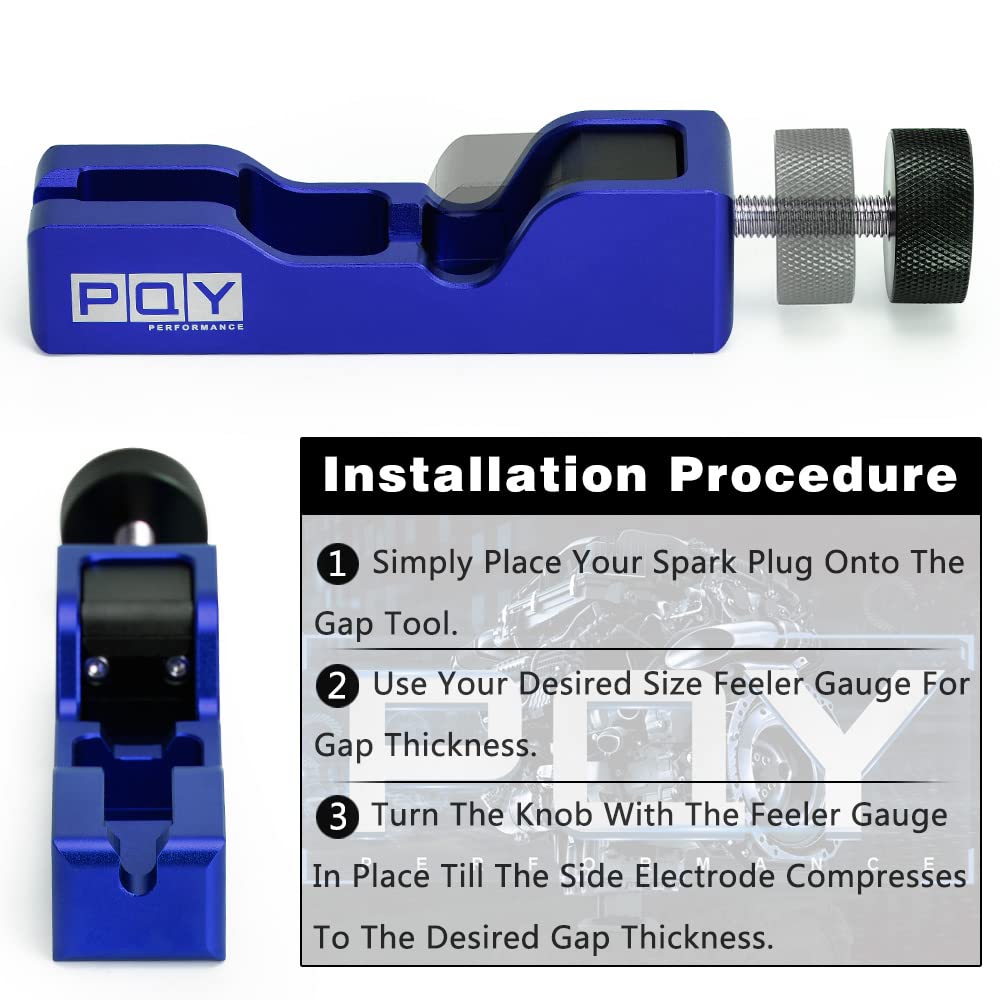

Place the spark plug into the tool’s saddle, insert the chosen feeler blade between the electrodes, then tighten the knob until the electrode contacts the blade. Back off or reinsert a different thickness if the fit isn’t exact, and recheck after releasing to allow for any spring-back.

• Select the blade matching your target gap (reads from 0.04mm to 0.88mm).
• Seat the plug in the tool and insert blade flush against the electrode.
• Screw the adjustment knob slowly until the electrode meets the blade.
• If electrode springs back, use a slightly thinner blade and re-measure.

What gap sizes and blade types are included with this gauge?

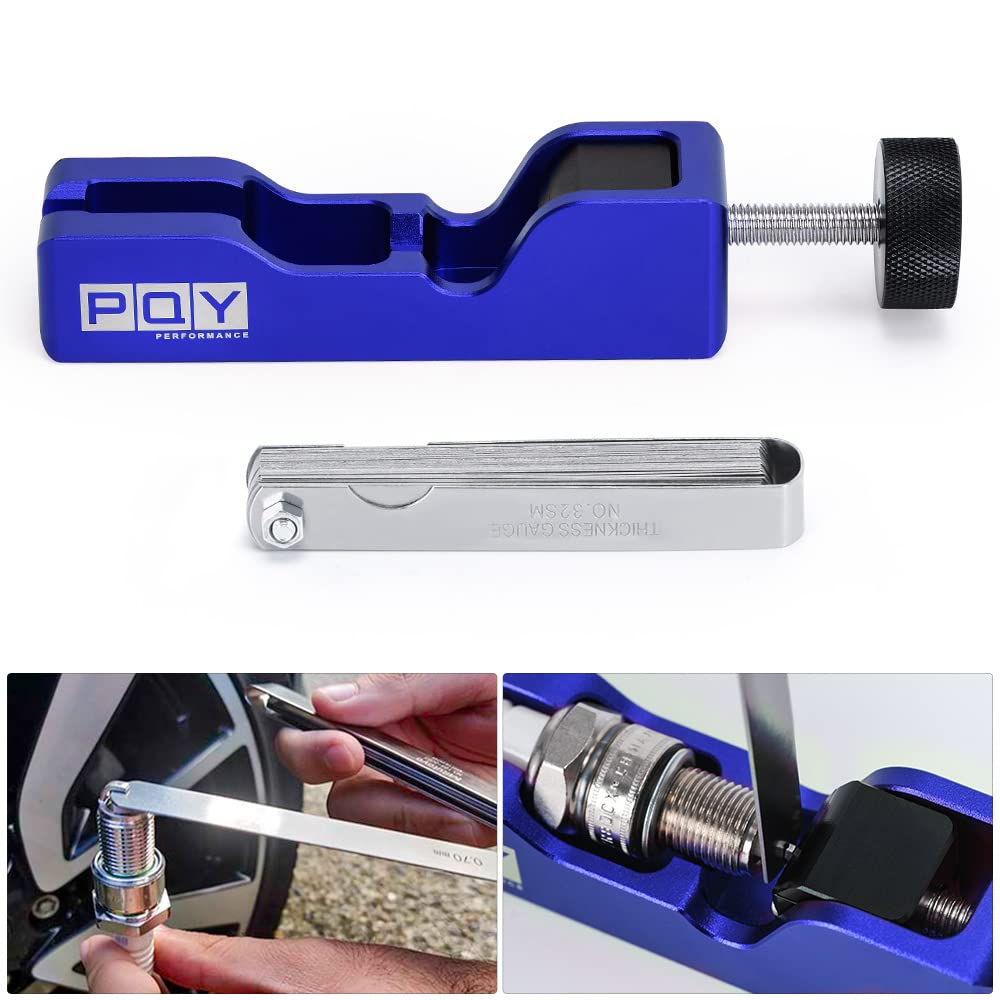

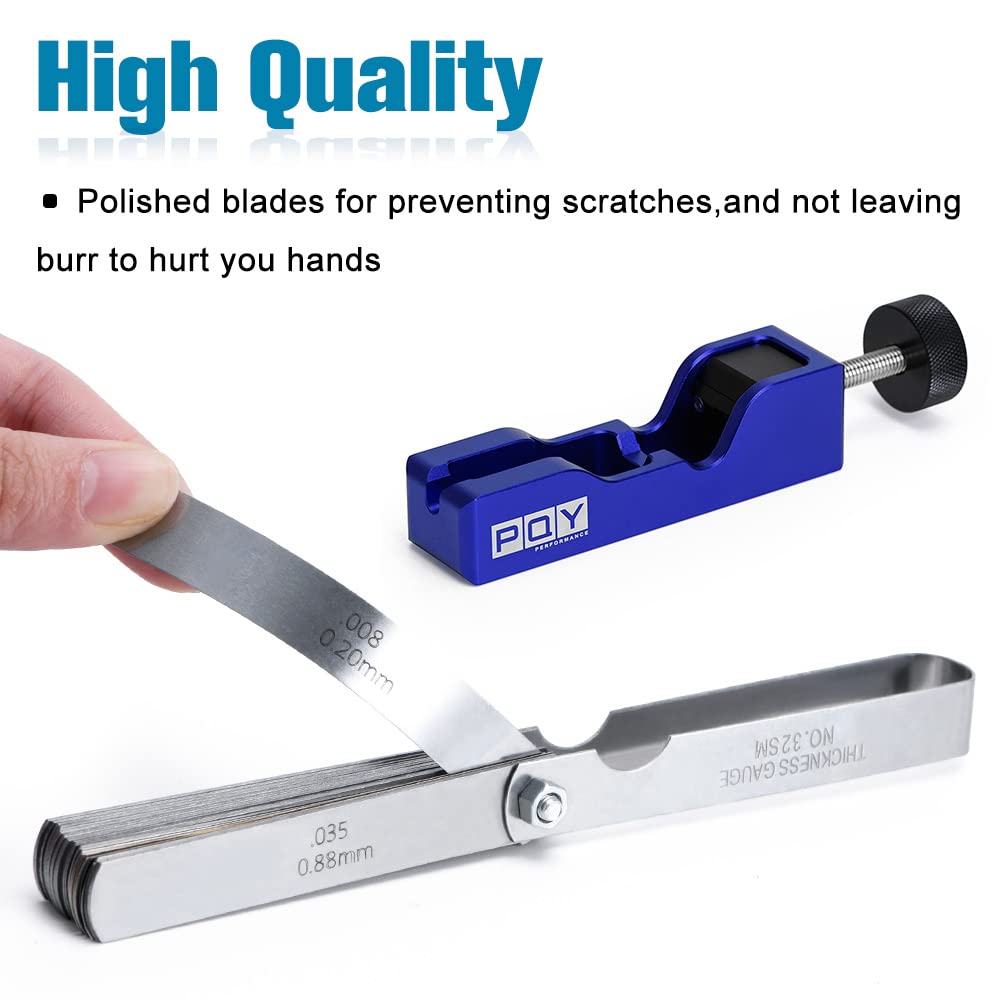

The kit contains 32 individual manganese-steel feeler blades ranging from 0.0015" (0.04mm) to 0.035" (0.88mm), plus one 0.010" (0.25mm) brass blade for use with electronic ignition systems. The range covers common automotive and motorcycle specifications, giving you fine control from very tight to wider gaps.

• 32 blades for incremental adjustments across the 0.04–0.88mm span.
• One brass 0.010" blade suited for sensitive electronic ignitions.
• Manganese-steel construction for wear resistance and accurate thickness.

Will this tool work with my engine’s spark plugs?

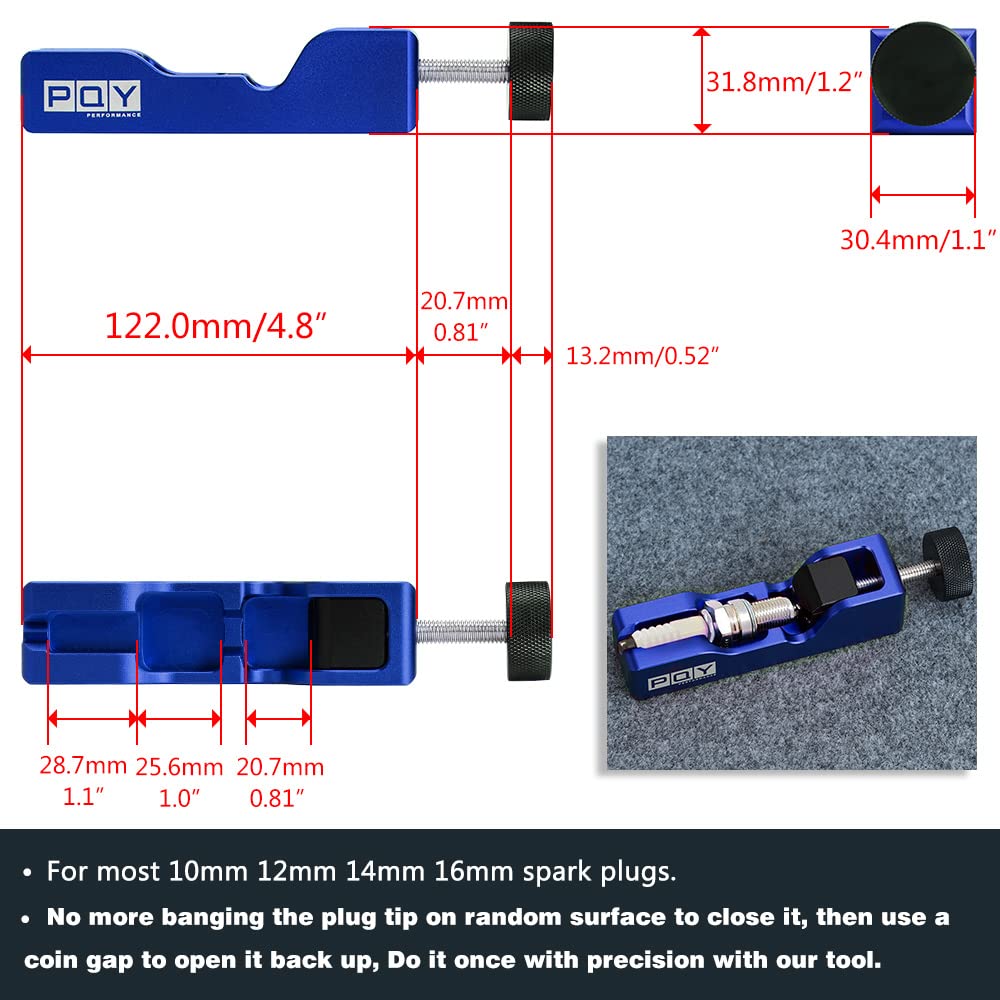

This PQY gapper fits most standard-thread spark plugs in 10mm, 12mm, 14mm, and 16mm sizes; it is not compatible with 18mm-thread plugs or specialized long- or short-reach plugs. Always check your spark plug thread size and reach before purchase to ensure proper fit and avoid damage.

• Compatible: standard 10mm–16mm thread spark plugs.
• Not compatible: 18mm-thread, long-reach, or short-reach specialty plugs.
• Ideal for cars, bikes, small engines, and general maintenance tasks.

How should I compensate for electrode spring-back when setting gaps?

Electrodes can flex and spring back slightly after adjustment. If your target gap is, for example, 0.44mm, it’s practical to set the tool to a marginally smaller thickness (such as 0.42mm) so the electrode returns to the intended spacing when released.

• Estimate spring-back and choose a slightly thinner feeler blade.
• Re-check gap after releasing the tool to confirm final measurement.
• Repeat adjustments incrementally rather than forcing a single large change.

Who this is for: The PQY Universal Spark Plug Gap Gapping Tool is aimed at DIY mechanics, professional technicians, motorcycle riders, and small-engine hobbyists who need an accurate, portable solution for setting spark plug gaps. If you work with standard-thread plugs and want a durable aluminum tool plus a full feeler-blade set for precise measurements, this kit provides a practical, workshop-ready option. If you use 18mm-thread or specialty reach plugs, look for a tool designed for those sizes instead.
