PSEQT 10" 3-Color LED Trailer Tail Light Bar — Amber Red White, IP67 Waterproof, Sequential Turn

PSEQT 3-color 10-inch LED tail light bars combine running, braking, turn signaling and reverse illumination into a single waterproof strip designed for trailers, trucks and utility vehicles.

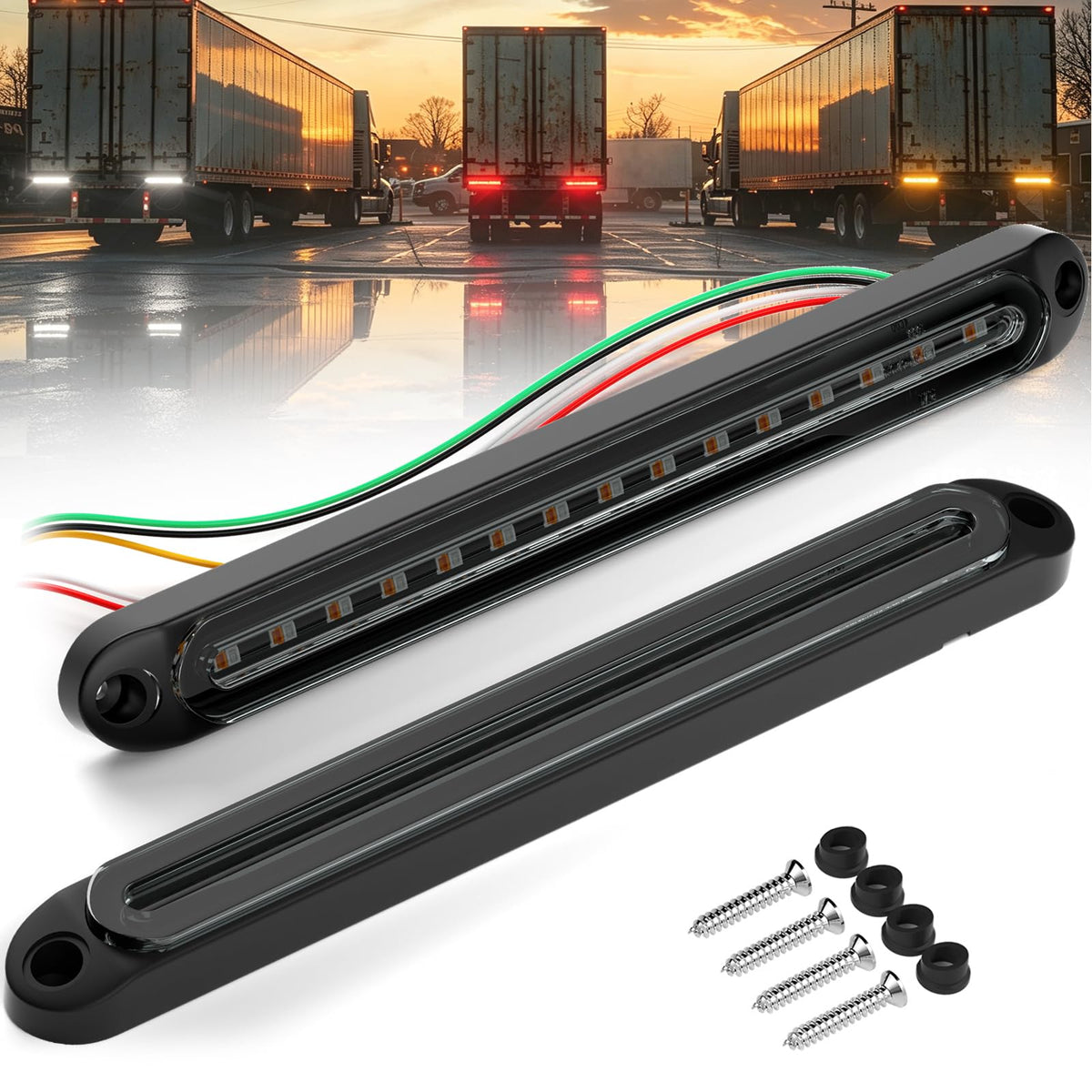

These ultra-thin dual tail lights replace multiple fixtures with one compact assembly that mounts on the rear of trailers, pickups, RVs and off-road rigs. Each 10" bar houses separate red, amber and white LED zones so the same unit provides low-intensity running lights, bright brake illumination, sequential amber turn signals and white reverse lights. Built with an impact-resistant housing and an IP67 seal, the bars are made to withstand road grime, moisture and vibration while operating across 10–30V electrical systems.

How do these lights cover multiple functions with a single strip?

The PSEQT bar separates light duties into color-specific LED channels within one lens, so one physical unit performs as running, brake, turn and reverse lighting. Internal circuitry and individually wired leads let your vehicle command each function independently, while the bar’s layout keeps each signal distinct and visible.

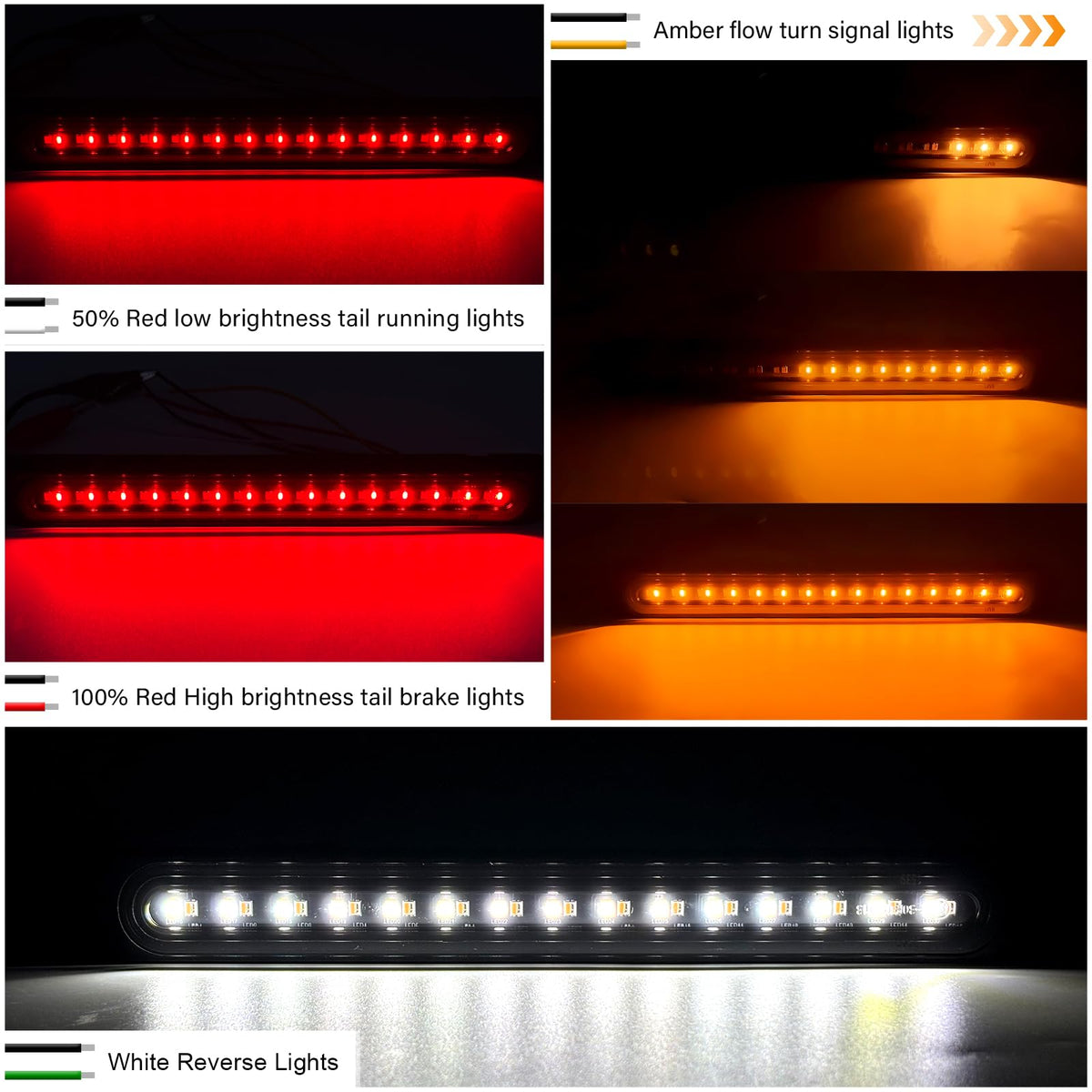

• Three-color design: low-brightness red running, high-brightness red brake, amber sequential turn, white reverse
• Five-wire hookup for separate control of each function (ground, running, brake, turn, reverse)
• Works on 10–30V DC systems common to trailers and trucks
• Sequential amber pattern improves directional clarity for other drivers

Are these LED bars durable enough for outdoor and heavy-duty use?

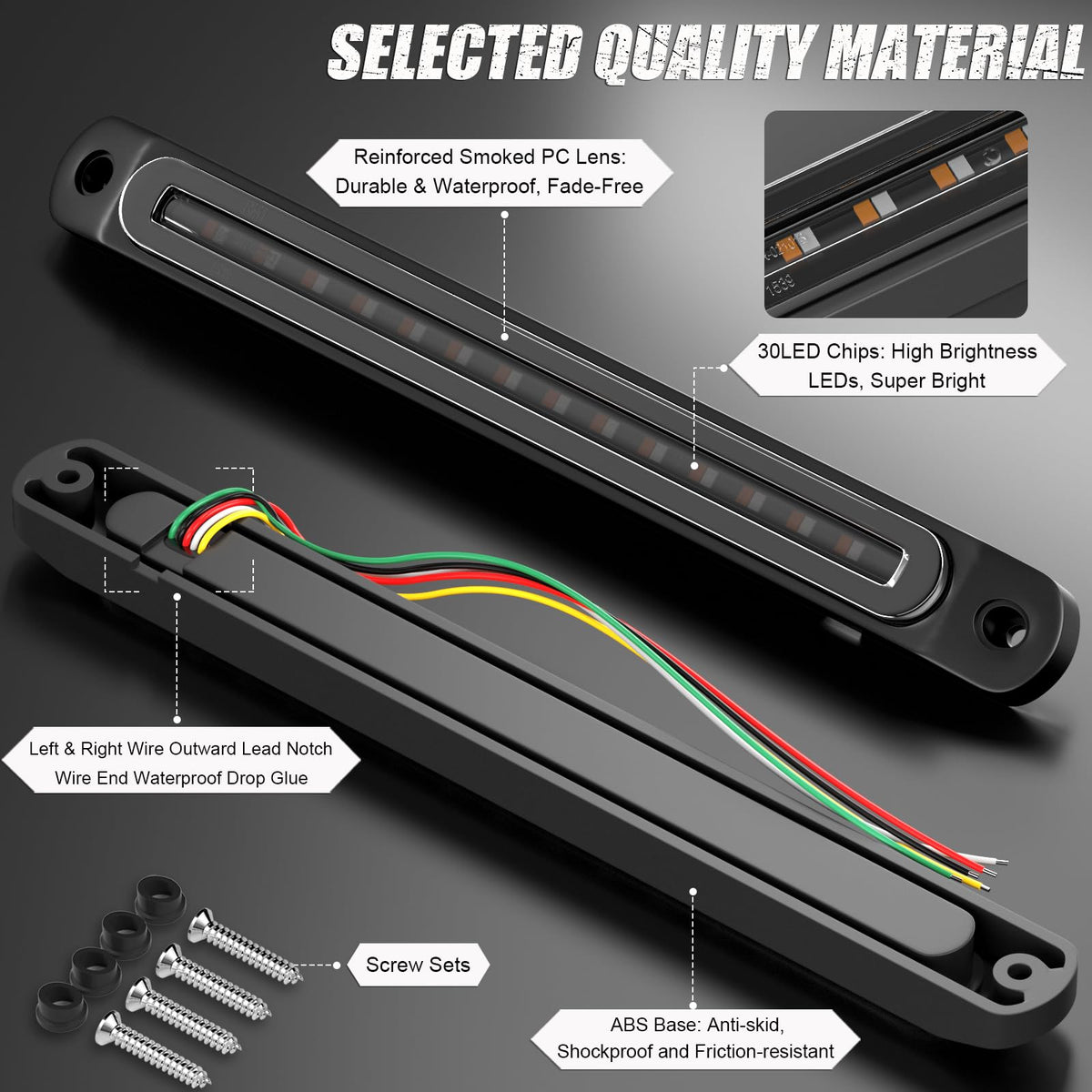

Yes—each strip is built with a high-impact ABS housing and a sealed polycarbonate lens to resist chips and cracks. The IP67 rating means the assembly is protected from dust and can withstand temporary immersion, while the LED array and heat-distribution design improve longevity under continuous operation.

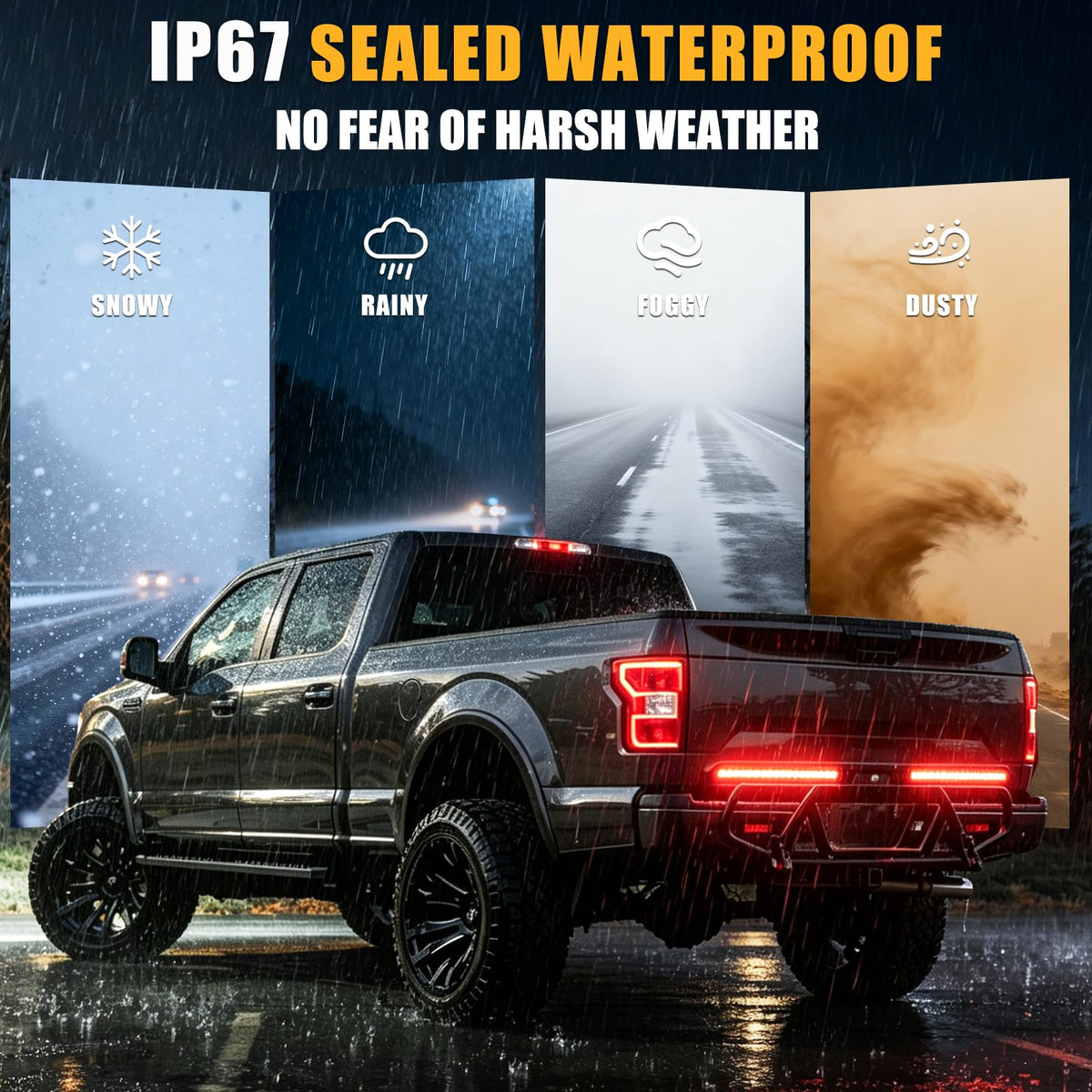

• IP67 waterproof and dustproof construction for wet and dusty environments
• ABS housing and sealed polycarbonate lens for impact resistance
• Thermal management across 30 diodes to reduce hotspot wear
• Surface-mount design with screw fixation for secure installation

How simple is installation and wiring for a typical trailer or truck?

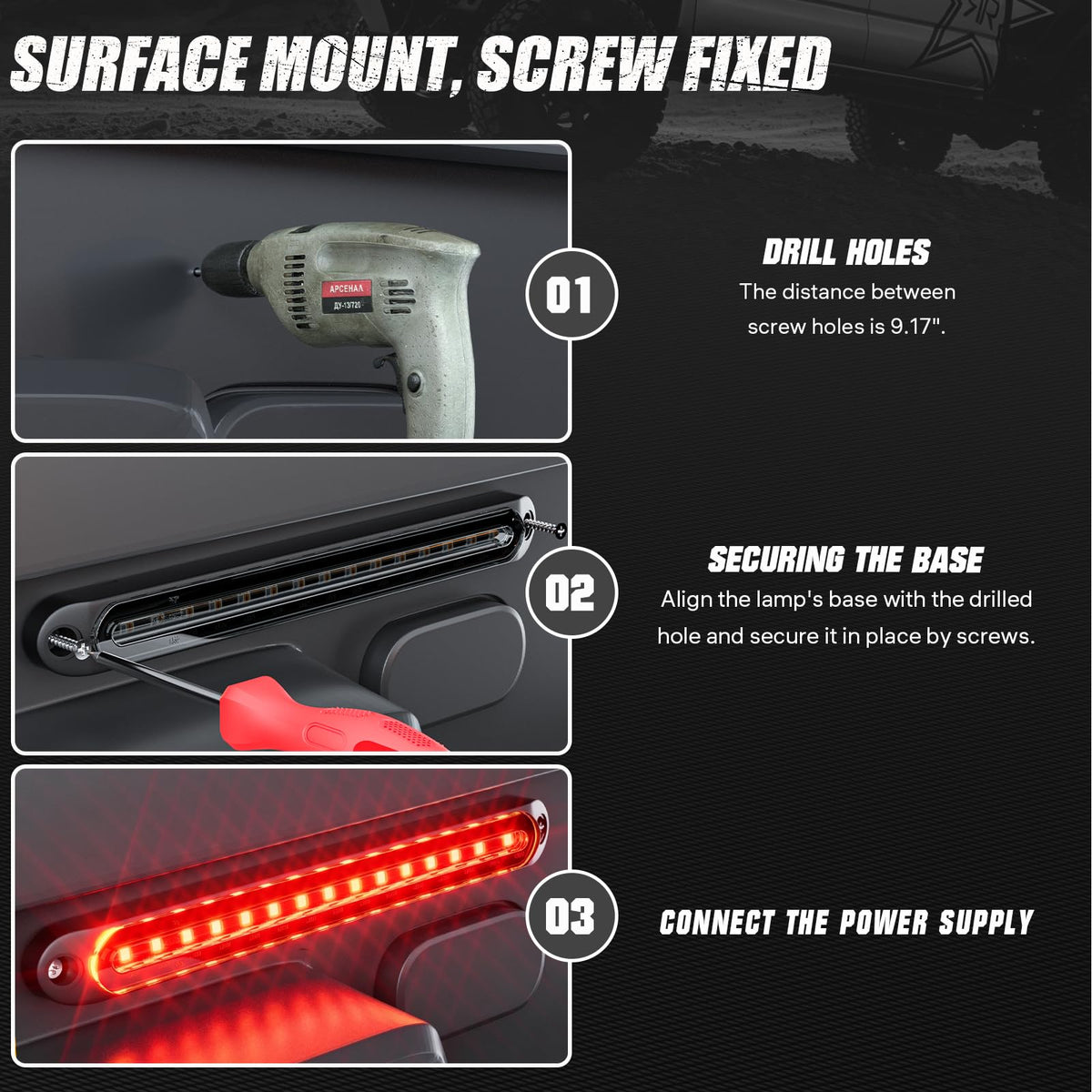

Installation is straightforward for anyone comfortable with basic trailer electrical work: surface-mount the bar with the included screw points and connect the five wires to the corresponding circuits. The product’s outward lead-wire notch and glued outlet prevent exposed wiring and reduce the need for extra grommets or body modifications.

• Surface-mounted with screw holes—no recessed pocket required
• Outward lead-wire notch reduces drilling and protects cables
• Wire color code: black = ground, white = running, red = brake, yellow = turn, green = reverse

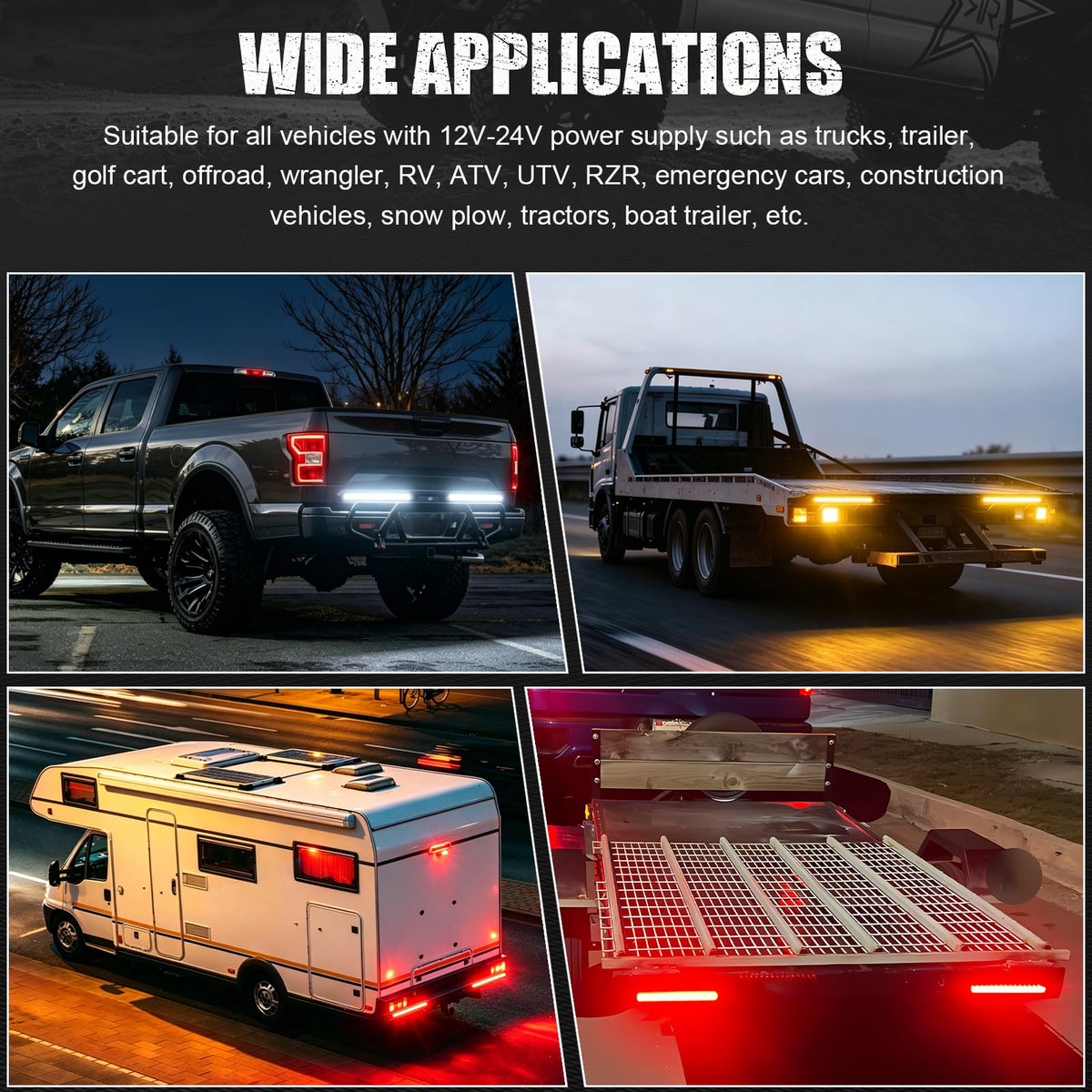

• Compatible with trailers, trucks, RVs and utility vehicles using standard 12–24V systems

Will these meet DOT-style visibility needs for road use?

The combination of distinct color zones and high-brightness LEDs provides clear, recognizable signals in daytime and nighttime conditions. While the light bar is engineered for identification and signaling, confirm local regulations for exact mounting locations and required lens colorations to ensure compliance.

• Distinct red/amber/white zones for compliant signaling visibility
• High-brightness brake LEDs for immediate recognition by following drivers
• Low-intensity running LEDs enhance nighttime presence without glare
• Check local DOT rules for spacing and placement requirements

Who this is for: The PSEQT 3-color 10" LED tail bars are made for trailer owners, commercial drivers, overlanders and anyone upgrading rear signaling on pickups, RVs, ATVs, UTVs and heavy-duty rigs. They suit customers who want a slim, all-in-one lighting solution with clear multi-function signaling, rugged weather resistance and a simple surface-mount installation. If you need consolidated rear lights that reduce clutter and improve visibility without cutting or reshaping your vehicle body, these bars offer a practical upgrade.
