PSEQT 10" LED Trailer Tail Light Bar – Smoked Lens, Sequential Amber Turn & Red Brake/Tail

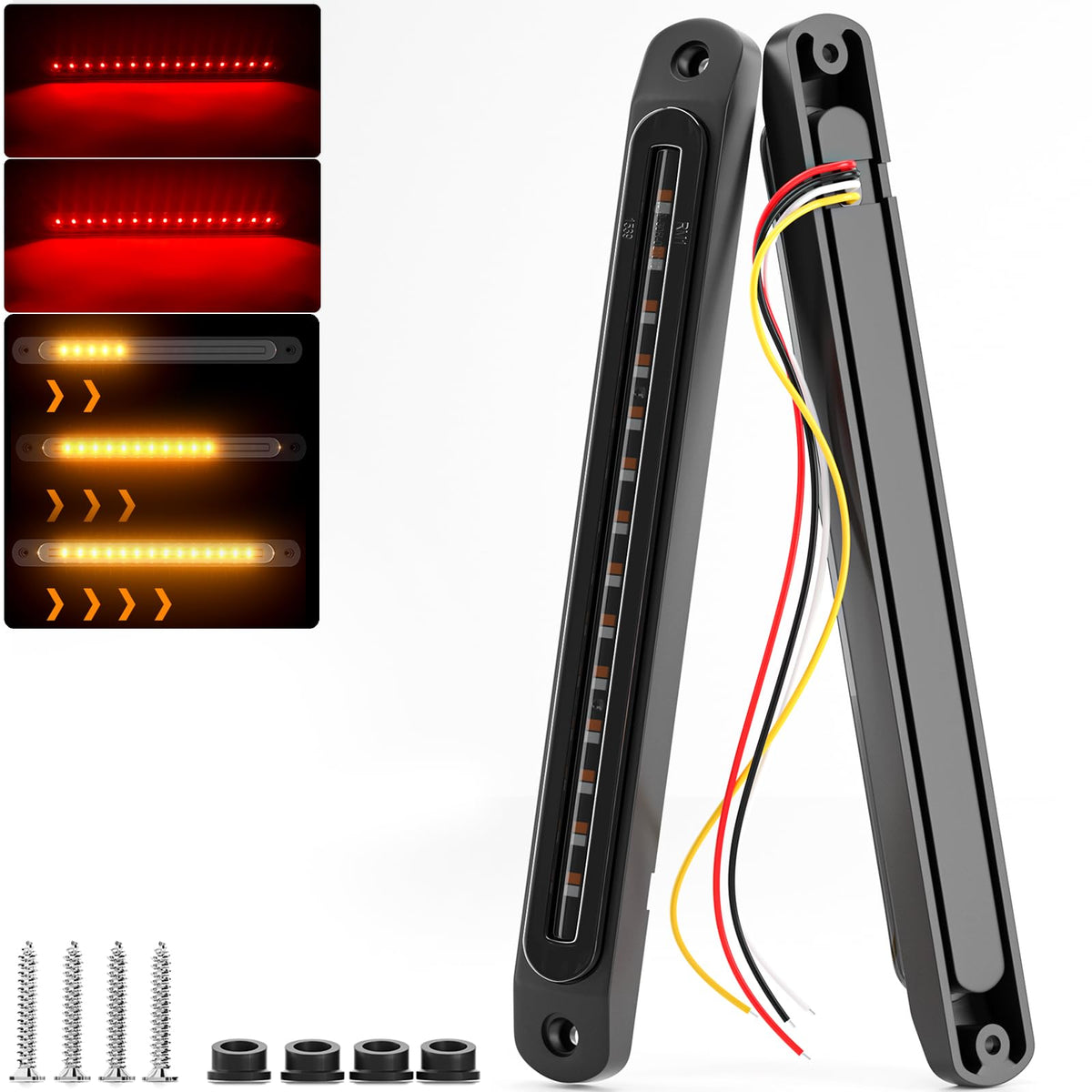

PSEQT's 10-inch LED tail light bar is a slim, dual-color lamp strip that combines brake, tail, and sequential amber turn signals in a single waterproof housing. PSEQT engineered this 10" LED light bar to replace multiple individual fixtures with one unified, low-profile assembly. It is a two-piece set designed for 10–30V systems, offering both high- and low-brightness red output plus a sequential amber turn pattern in a smoked, impact-resistant lens. Built to meet the demands of trailers, trucks, RVs and off-road vehicles, the lamp balances visibility and a streamlined aesthetic while minimizing installation complexity.

How does this light bar handle braking, tail illumination and signaling?

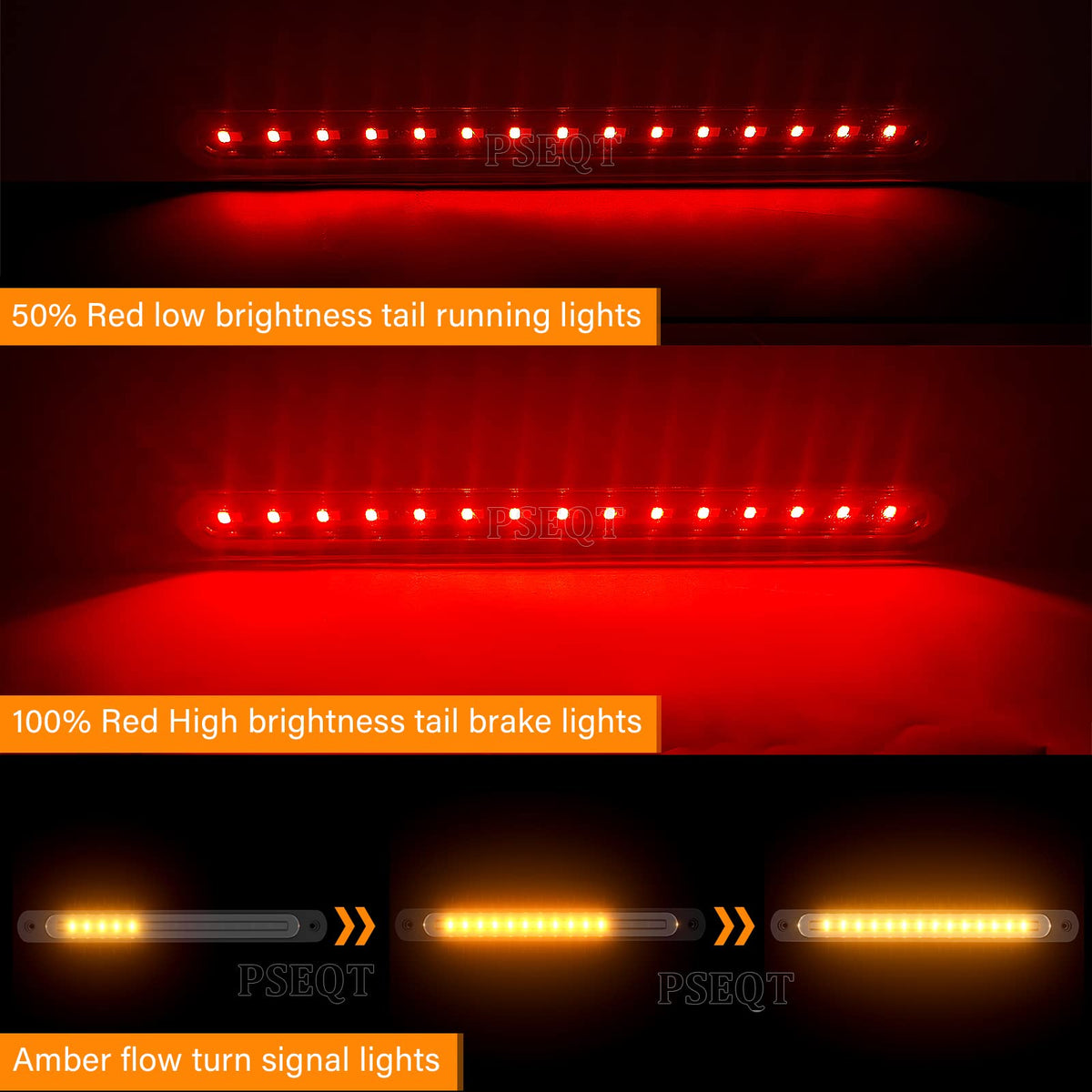

The assembly integrates three distinct light behaviors in a single strip: low-level red for tail/DRL, brighter red for brake/stop, and a flowing amber sequence for turn signals. Each behavior is wired separately so functions won’t conflict and can be connected to standard vehicle circuits.

• High- and low-brightness red LEDs for tail and brake functions
• Sequential amber flow for clear, eye-catching turn indication
• Four-wire hookup keeps each lighting mode separately controlled

Will it survive outdoor use on heavy equipment and marine trailers?

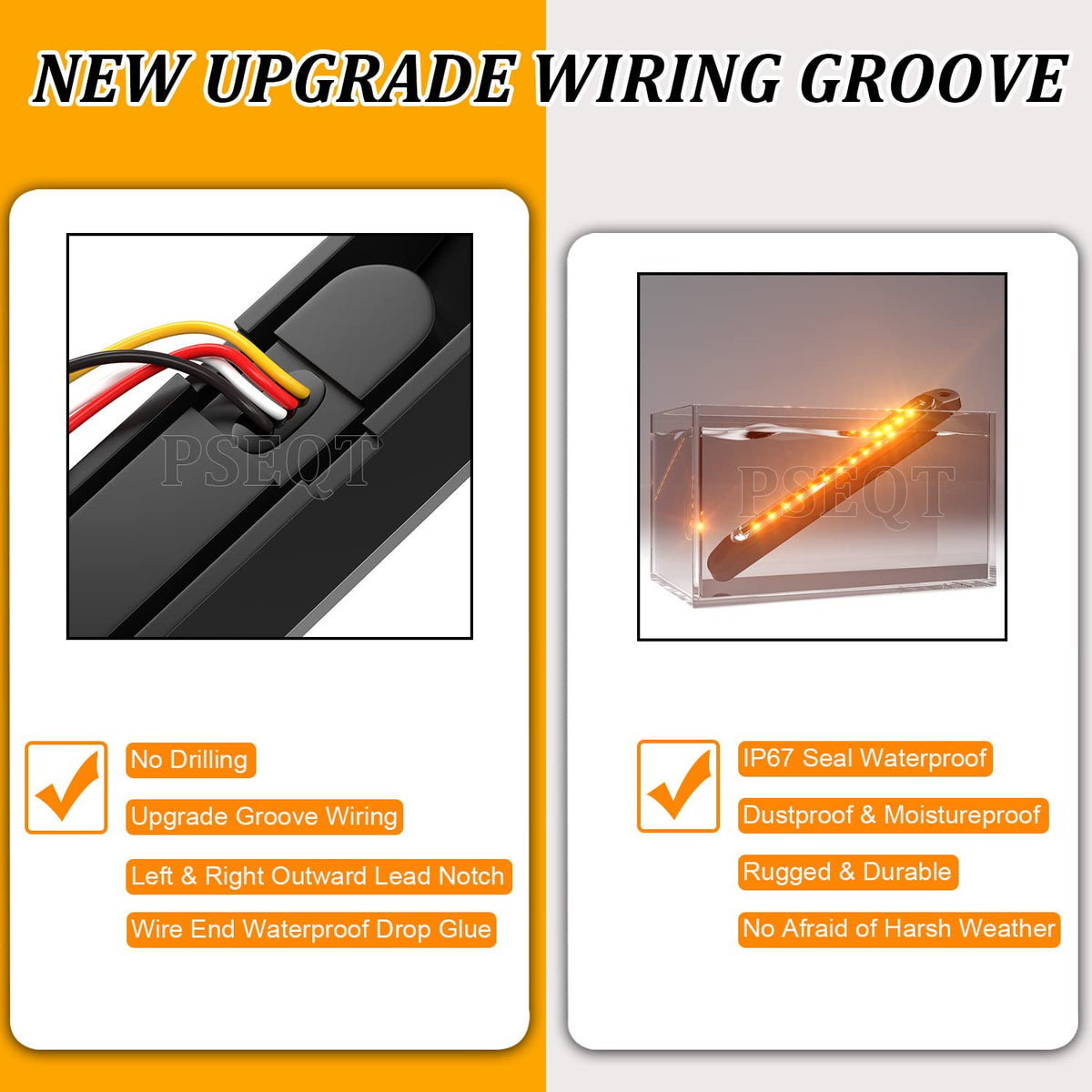

The bar is built with a sealed, smoked polycarbonate lens and a robust ABS housing to resist impacts and road debris. With an IP67 rating, it is designed to tolerate dust ingress and temporary submersion, making it suitable for many exposed applications.

• IP67-rated waterproof and dustproof enclosure
• High-impact ABS housing and sealed polycarbonate lens
• LED array with improved heat distribution for longer life

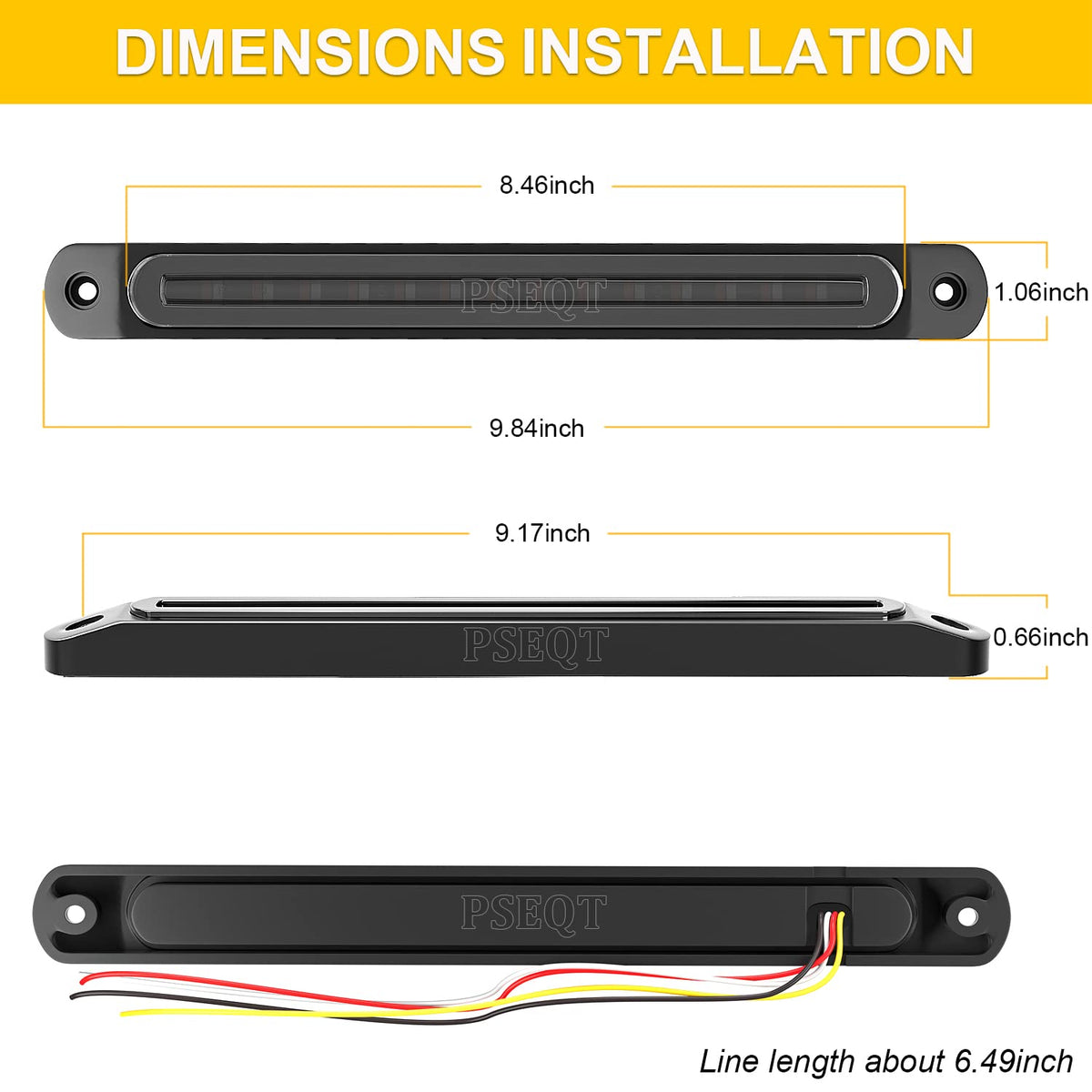

How easy is the installation and what wiring do I need?

Installation is straightforward: screw-mount the bar in place and make four wire connections. Color-coded leads give clear function mapping so most installers can finish the job with basic hand tools and wiring supplies.

• Screw-fixed mounting points for secure attachment

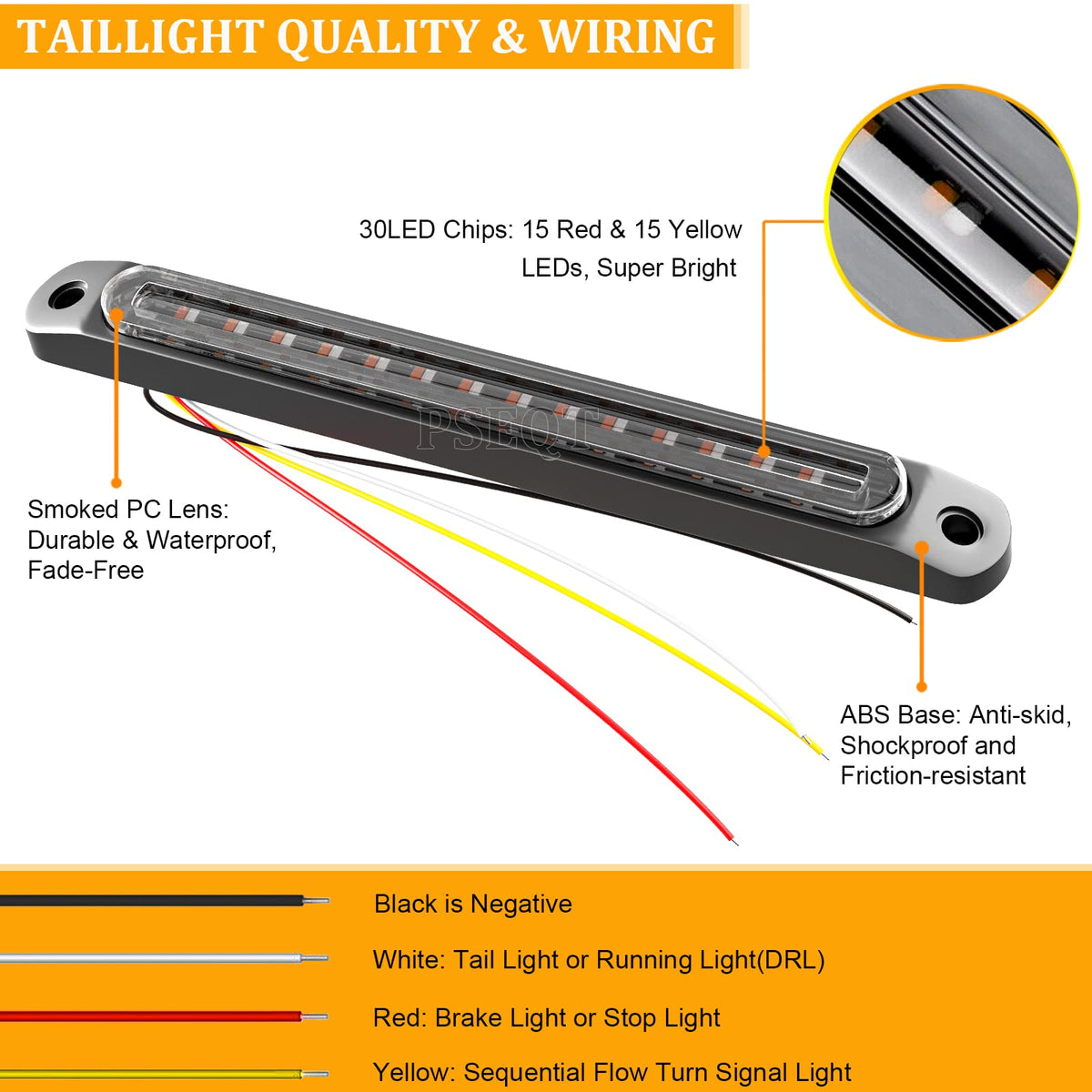

• Four-wire system: black negative, white tail/DRL (low red), red brake (high red), yellow sequential turn
• Compatible with 10V–30V DC electrical systems found on trailers, trucks, and RVs

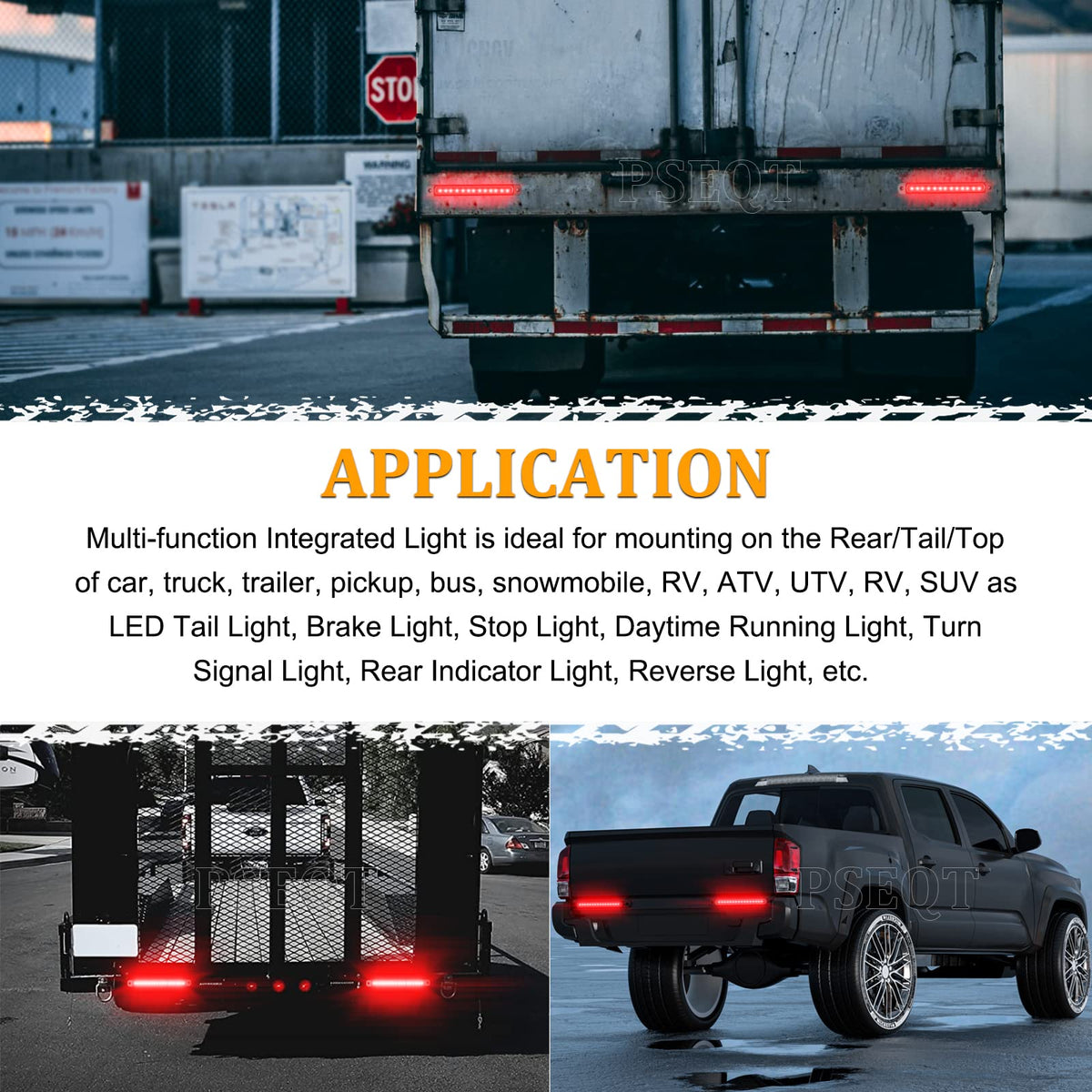

What vehicles and setups is this light bar best suited for?

This 10" strip is versatile for many platforms that require compact combined lighting—especially where a slim profile or smoked lens are preferred. It fits both wide and narrow overhangs and can replace multiple separate lights to tidy up the rear of a vehicle or trailer.

• Trailer and semi-trailer marker, tail and ID light replacement
• Pickup, RV, UTV, ATV, golf cart and work vehicle applications
• Commonly used on Peterbilt, Freightliner, Kenworth, Mack and other heavy-duty trucks

Who is this for If you maintain trailers, fleet trucks, off-road rigs or recreational vehicles and need a compact, multi-function rear lamp, this PSEQT 10" LED bar is a practical upgrade. It appeals to owners who want combined brake/tail and sequential turn functionality in a low-profile, durable package and prefer a smoked lens for a modern, less-obtrusive look. Professional installers and DIYers will appreciate the clear wire mapping and straightforward screw-mount installation.

FAQ

Q: Is this light bar waterproof?

A: Yes. The PSEQT light bar has an IP67 rating, offering dust protection and temporary submersion resistance.

Q: What voltage systems does it support?

A: It works with 10–30V DC systems, compatible with most trailers, trucks, RVs and utility vehicles.
