PVerandio 15.5" Red LED Stop/Turn/Tail Light Bar — Sealed IP67, DOT-Style Brake & Tail Lamp

PVerandio 15.5" Red LED stop, turn and tail light bar is a sealed, DOT-friendly LED lamp that combines brake, tail and turn/signal functions in a slim 15.5-inch housing.

This low-profile LED bar is built for trailers, heavy-duty trucks and wide vehicles that need a durable center or marker light. Housed in hard plastic with a clear lens over red LEDs, the bar is IP67 waterproof and contains 11 high-output LEDs per unit. It’s designed to mount on flat or slightly curved surfaces and provides three lighting modes via simple three-wire wiring: ground, low-brightness tail, and high-brightness stop/turn.

How bright and visible is the 15.5" PVerandio light bar?

The bar uses 11 red LEDs to deliver concentrated, easy-to-see illumination for brake, tail and turn signals. Its clear lens and sealed housing help preserve brightness in wet or dusty conditions, improving visibility at distance and in low light.

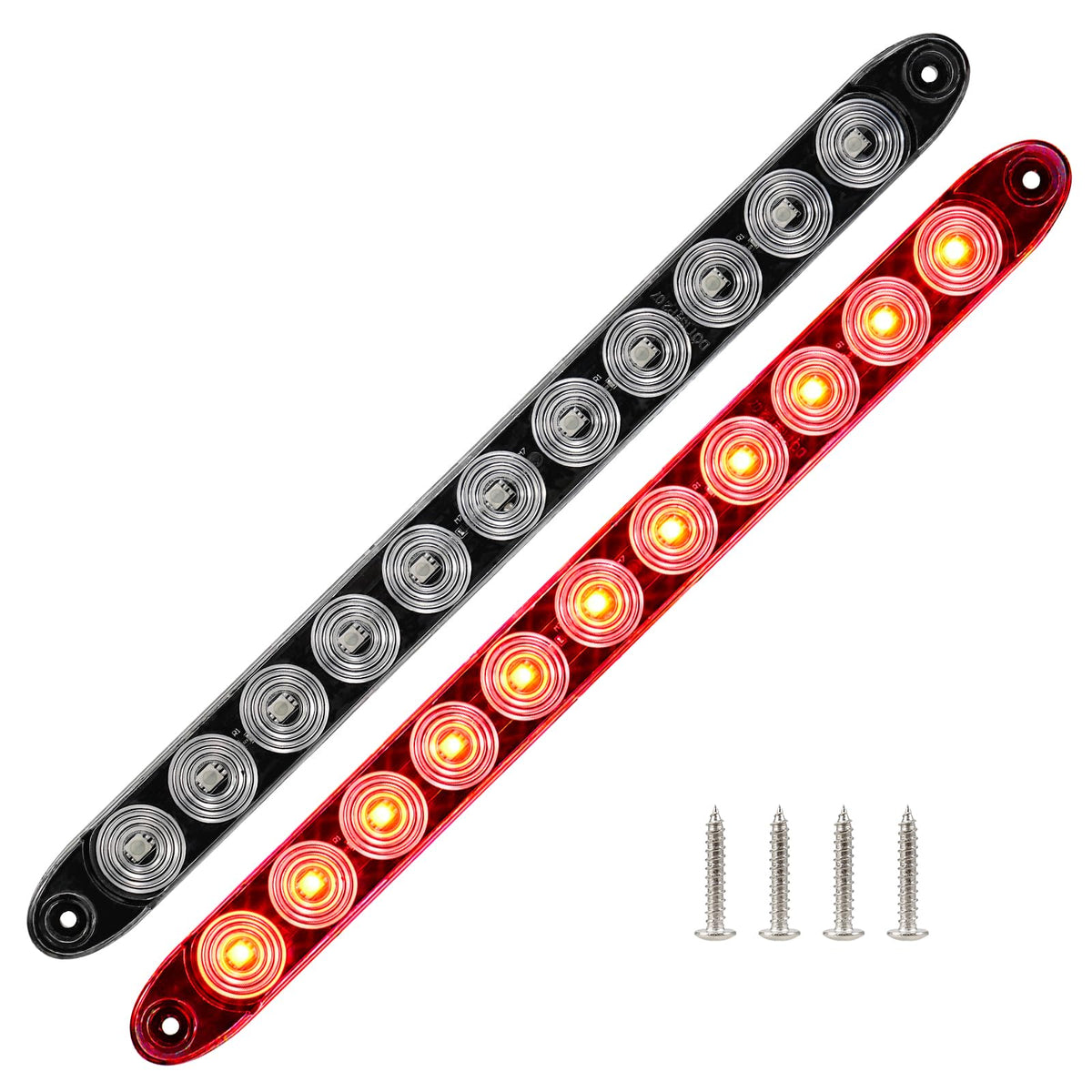

• 11 LEDs per bar for consistent, even light output
• Clear lens over red LEDs maximizes visibility

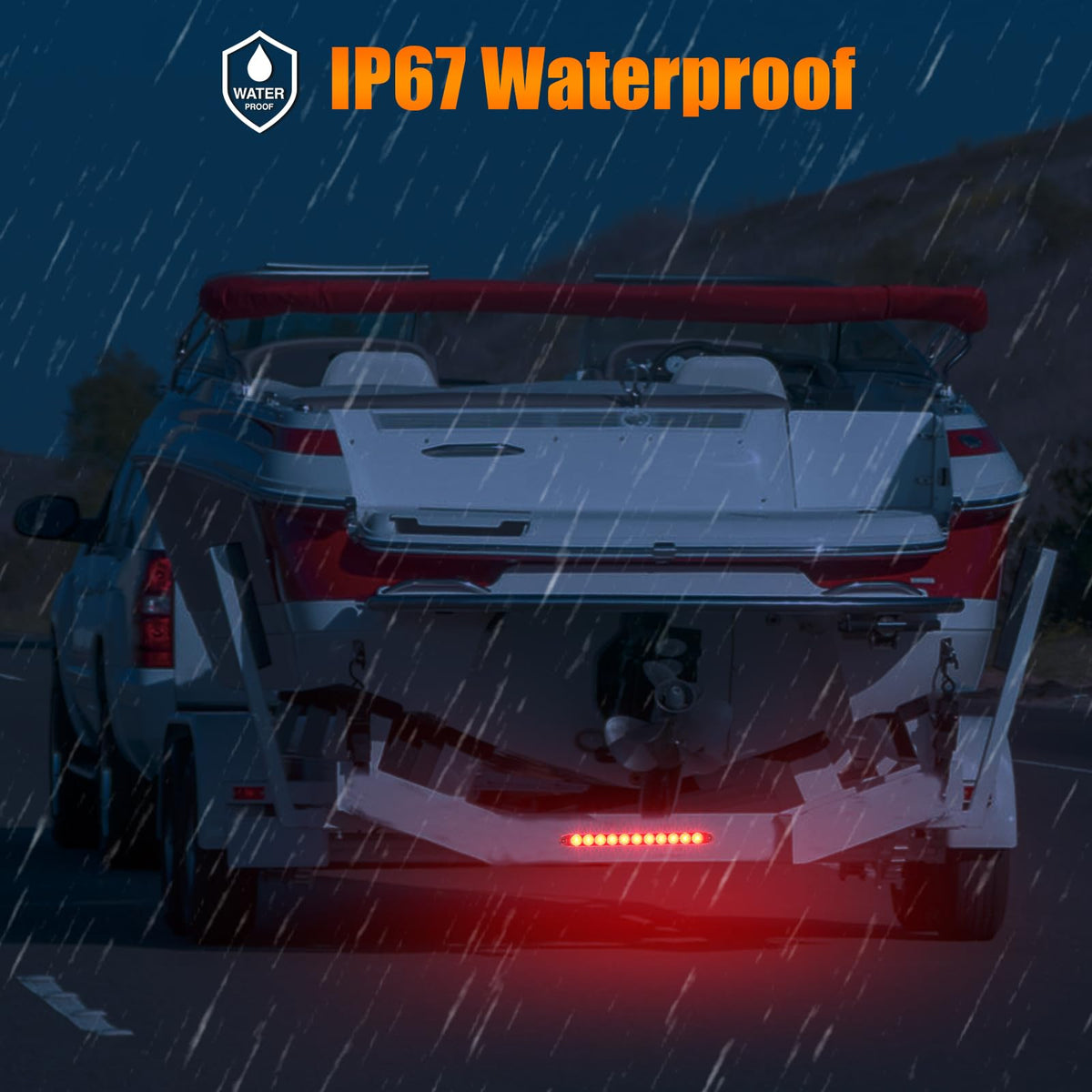

• IP67 waterproof rating keeps LEDs bright in rain and road spray

What are the size and mounting details I need to know?

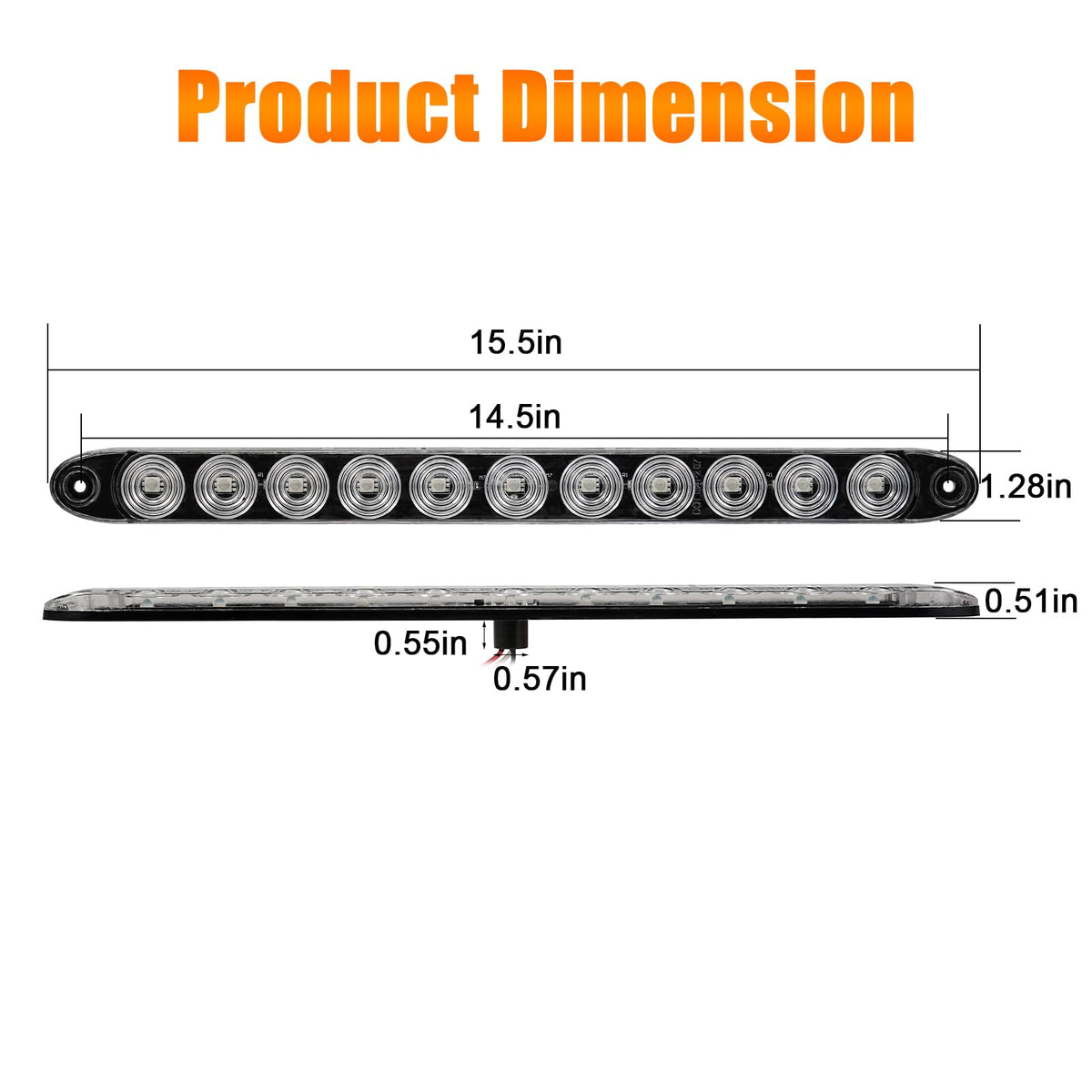

The bar measures 15.5" x 1.25" x 0.5" with a hole center-to-center spacing of about 14.5". Its slim profile fits most flat or slightly contoured mounting locations, though the wiring exit knob may require a small access hole for flush installation.

• Overall length: 15.5 inches; thickness ~0.5 inches
• Hole center-to-center: approx. 14.5 inches for mounting bolts
• Wiring knob ~0.59" diameter — allow clearance or cut access hole

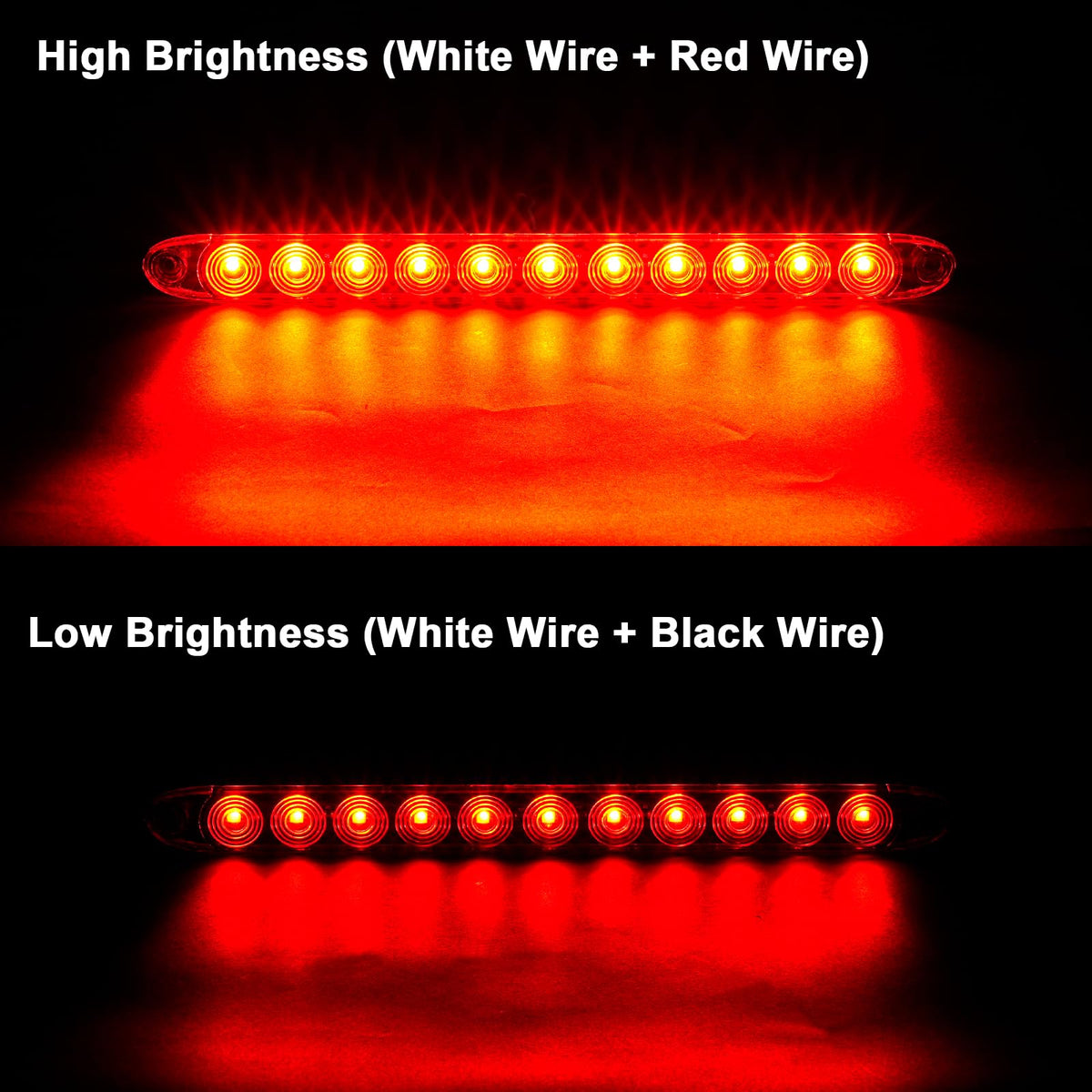

How do I wire this LED stop/turn/tail light correctly?

Wiring is straightforward: three conductors control ground, low-brightness tail mode and high-brightness stop/turn mode. Follow vehicle wiring conventions and fuse the stop/turn circuit as required by your vehicle or trailer wiring setup.

• White wire = ground/negative
• Black wire = low-brightness tail/run light
• Red wire = high-brightness stop, brake or turn signal

Will this light work on my trailer or truck model?

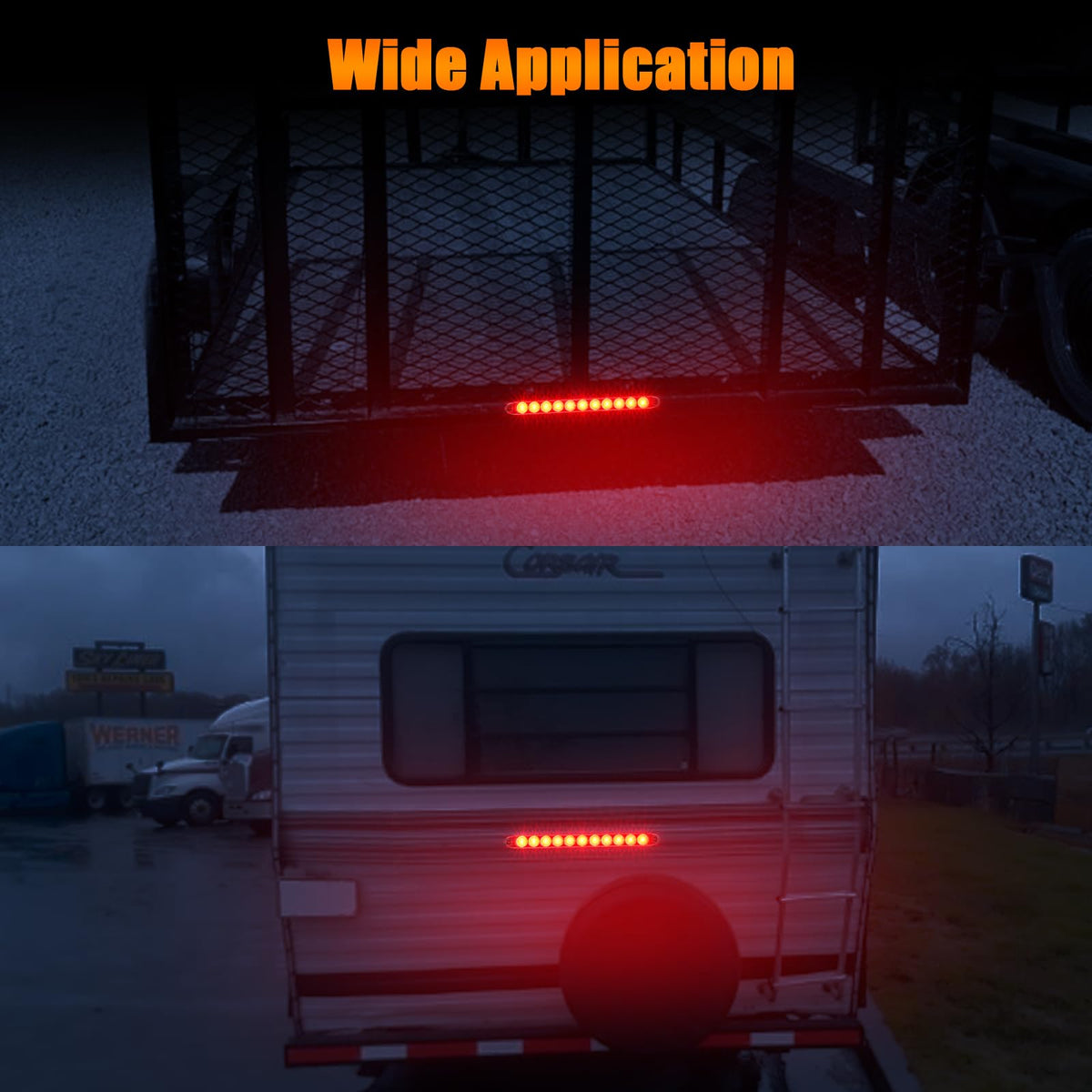

Yes — the PVerandio 15.5" bar is made for a wide range of heavy-duty and trailer applications. Its sealed construction and DOT-style output make it suitable for semi trailers, cargo and boat trailers, work trucks and full-size heavy rigs that require marker or center third brake lighting.

• Common fit for semi trailers and cargo trailers over 80" wide
• Compatible with heavy trucks like Peterbilt, Kenworth, Freightliner, Mack and Western Star

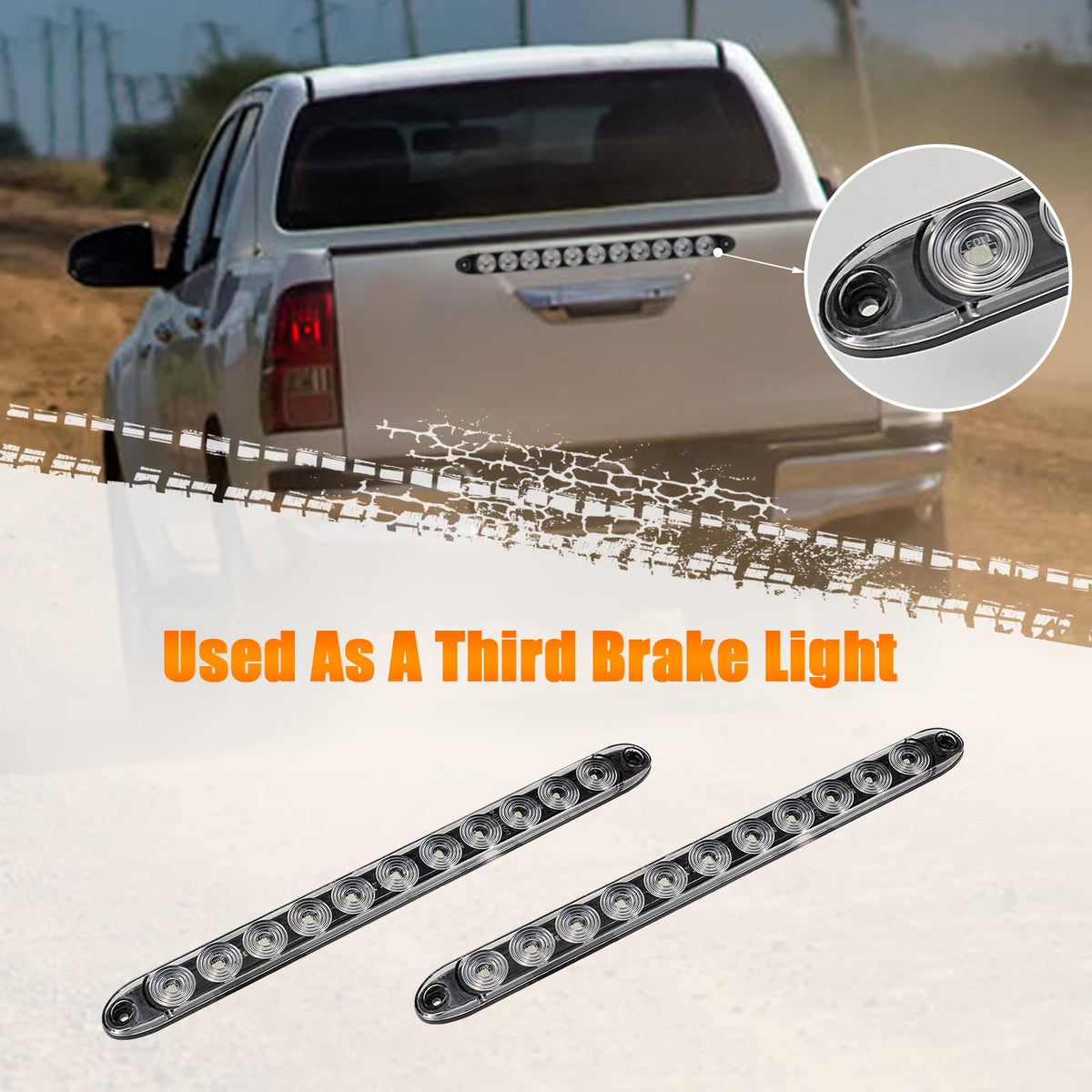

• Usable as third brake light, clearance, ID or marker light bar

Who is this for? This LED light bar is aimed at fleet managers, trailer owners and truck operators who need a compact, weatherproof combined stop/turn/tail lamp for wider vehicles. It suits anyone replacing worn marker lights, upgrading to LEDs for lower maintenance and higher visibility, or adding a center-mounted third brake light on trailers and heavy equipment. Installers and DIYers will appreciate the simple three-wire hook-up and slim footprint, while professionals will value the rugged IP67-rated construction and DOT-style performance.
