PYXGLAQ RV Propane Regulator Kit, 2-Stage Auto Changeover with Dual 18" Braided Hoses & Gauge

Designed for campers, trailers, and other mobile propane systems, this kit combines a CSA-certified 2-stage regulator with two 18" stainless-steel braided pigtail hoses and a glow-in-the-dark tank gauge. All fittings are solid brass for long-term corrosion resistance, and safety features such as excess-flow protection and an automatic shutoff are built in to reduce leak and overpressure risk.

How does the auto changeover keep my appliances running?

The regulator monitors the primary tank and automatically switches to the reserve tank when pressure drops, so appliances stay lit while you swap or refill cylinders. A visual indicator changes color when a tank is depleted, making status checks quick and obvious.

• Automatic primary-to-reserve transfer without manual valves.

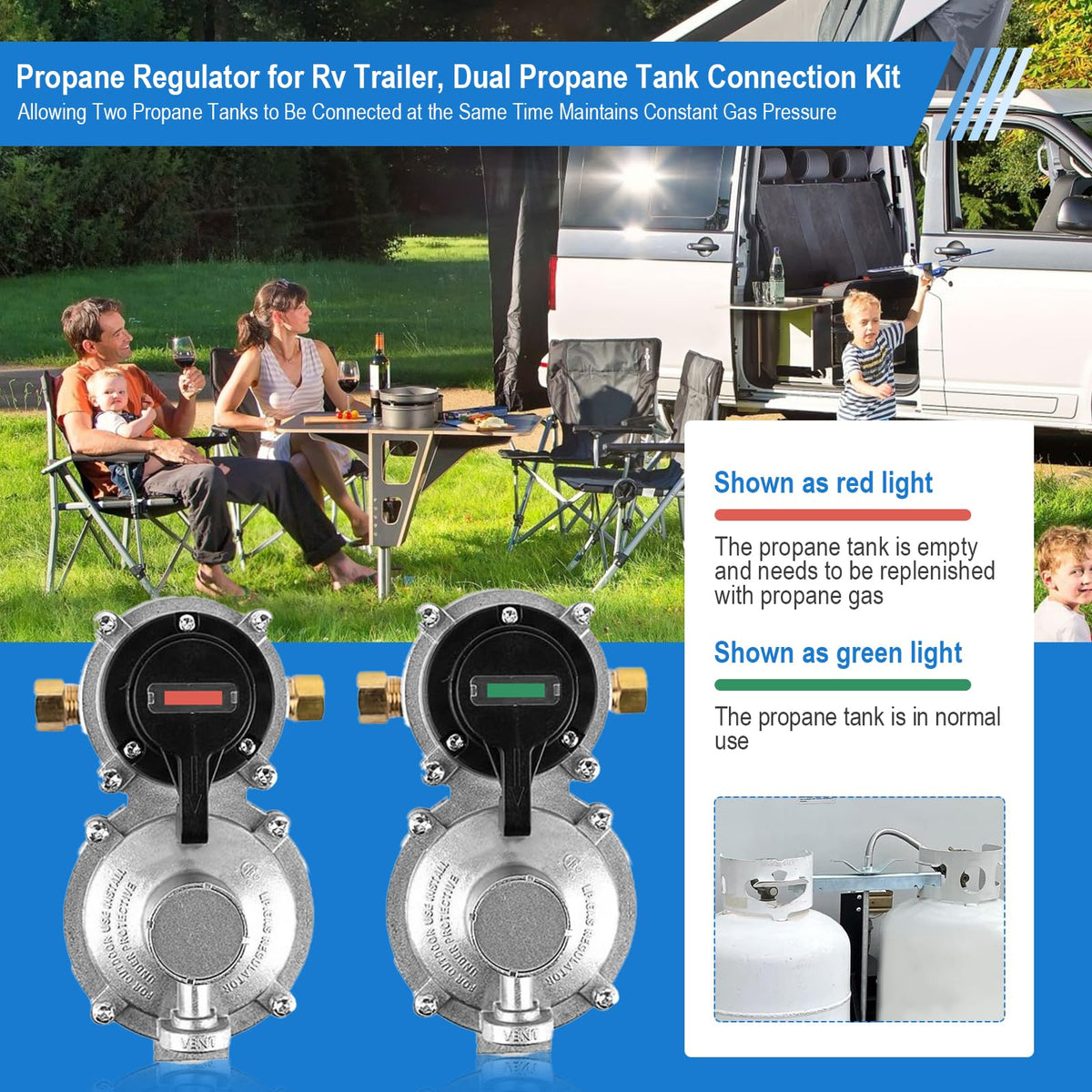

• Visual color indicator shows which tank needs refilling.
• Two-stage regulation keeps outlet pressure steady for appliances.
• Maintains supply while replacing an empty tank.

What safety features protect my RV’s gas system?

This kit includes multiple built-in protections: an excess-flow valve to reduce large leaks, an automatic shutoff to stop flow during faults, and robust brass connectors that resist corrosion. The braided hoses are rated for heat and weather exposure to prevent premature failure.

• Excess-flow protection minimizes severe leaks.
• Automatic shutoff adds an extra layer of safety during faults.
• CSA-certified regulator meets industry standards.
• Stainless braided hoses deliver flexibility, heat resistance, and durability.

Which fittings and performance specs are included?

The kit provides the connections and performance numbers needed for most RV installations: 1/4" SAE inverted flare inlets for each cylinder, a 3/8" NPT female outlet, and rated BTU capacities for master and reserve cylinders. The hoses use QCC1 1/4" inverted male flare fittings for common LP tank valves.

• Master cylinder capacity: 210,000 BTU/hour; reserve: 130,000 BTU/hour.

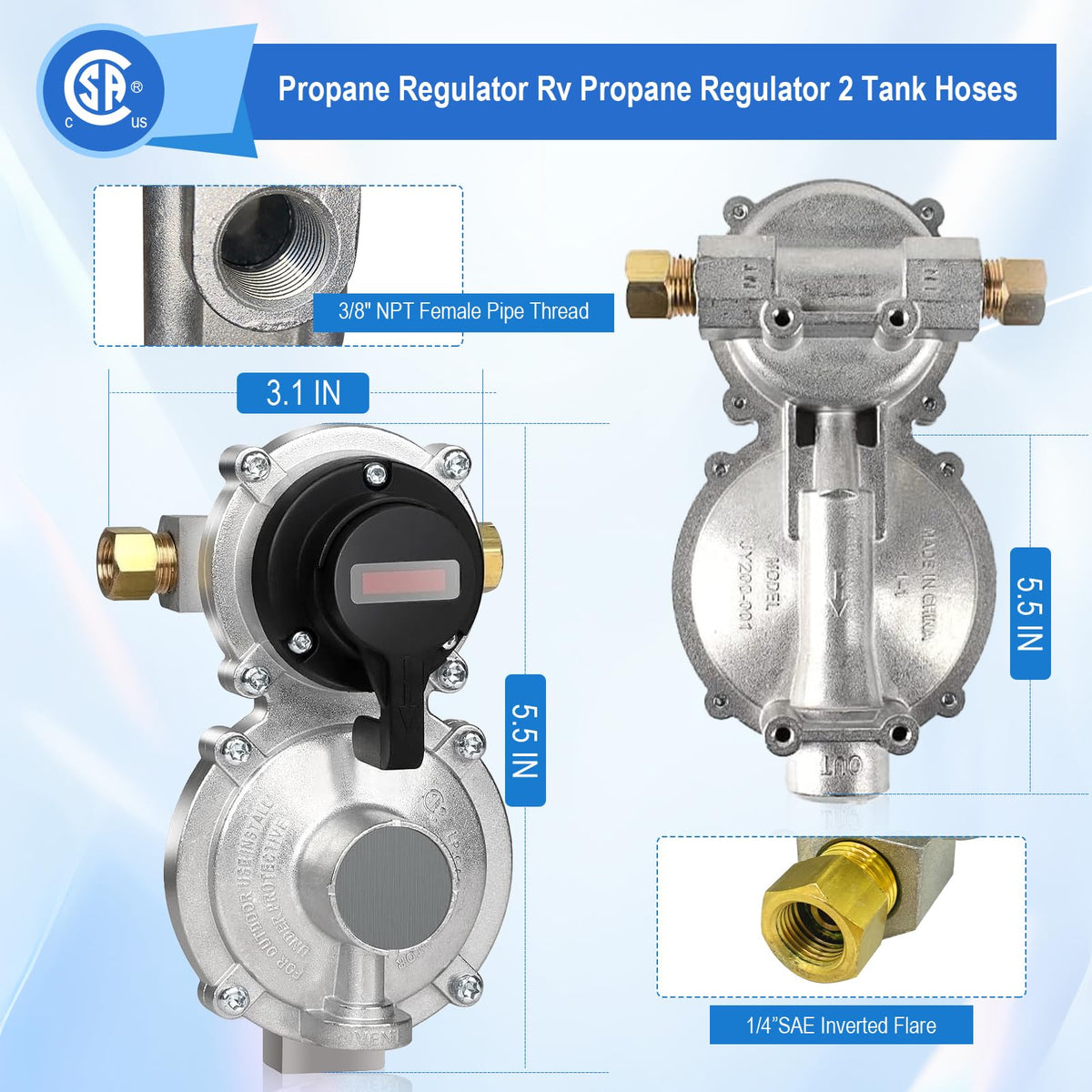

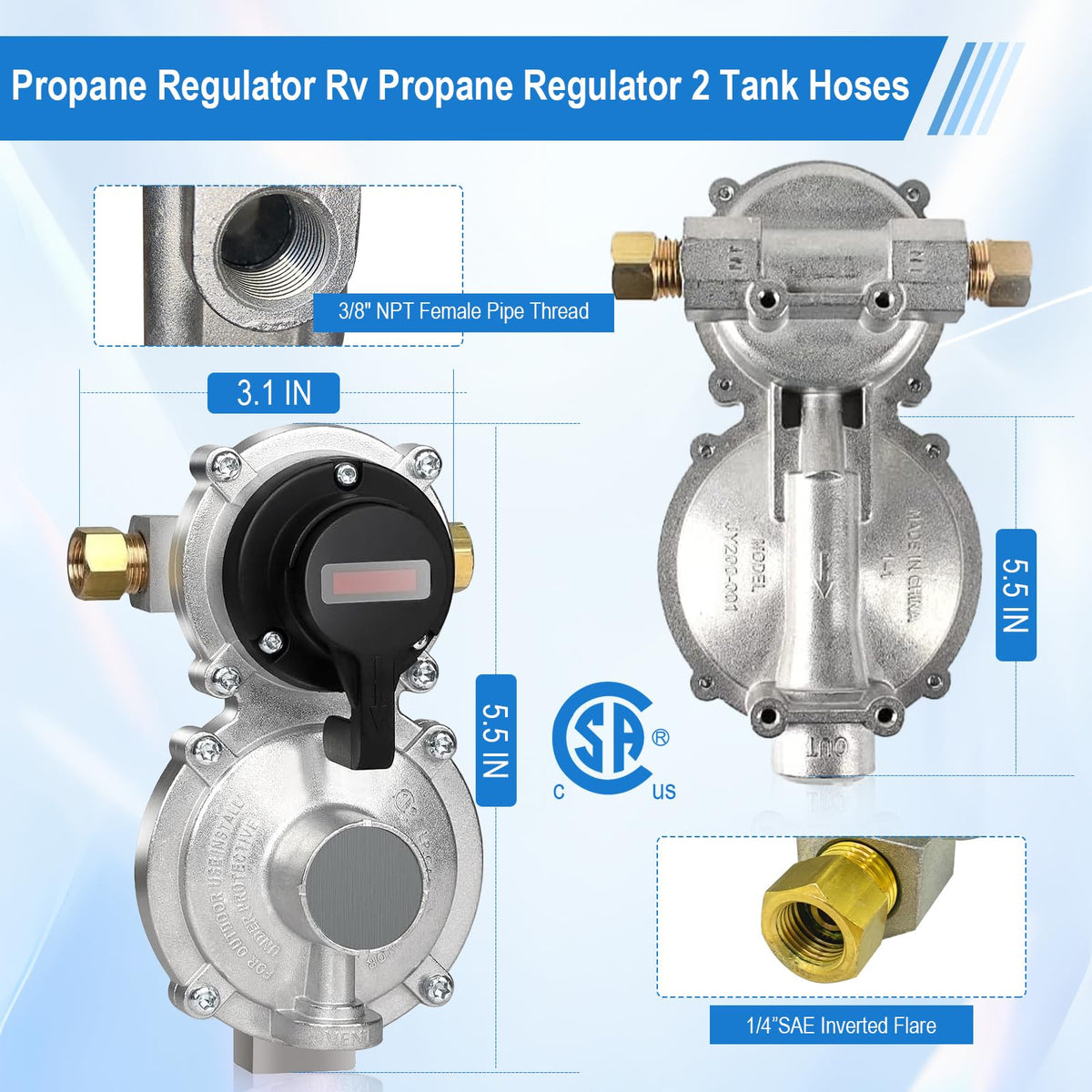

• Inlets: 1/4" SAE inverted flare; outlet: 3/8" NPT female pipe thread.

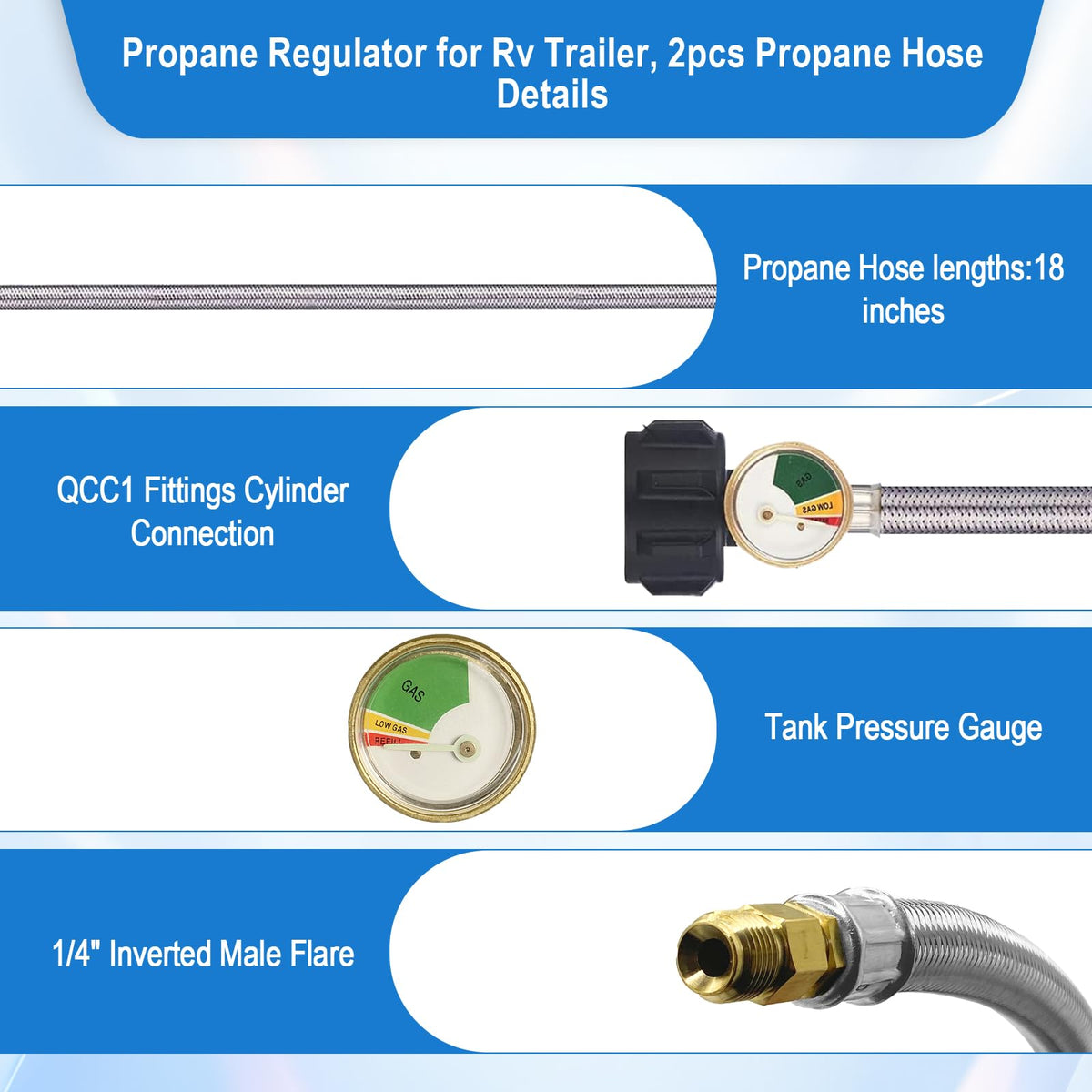

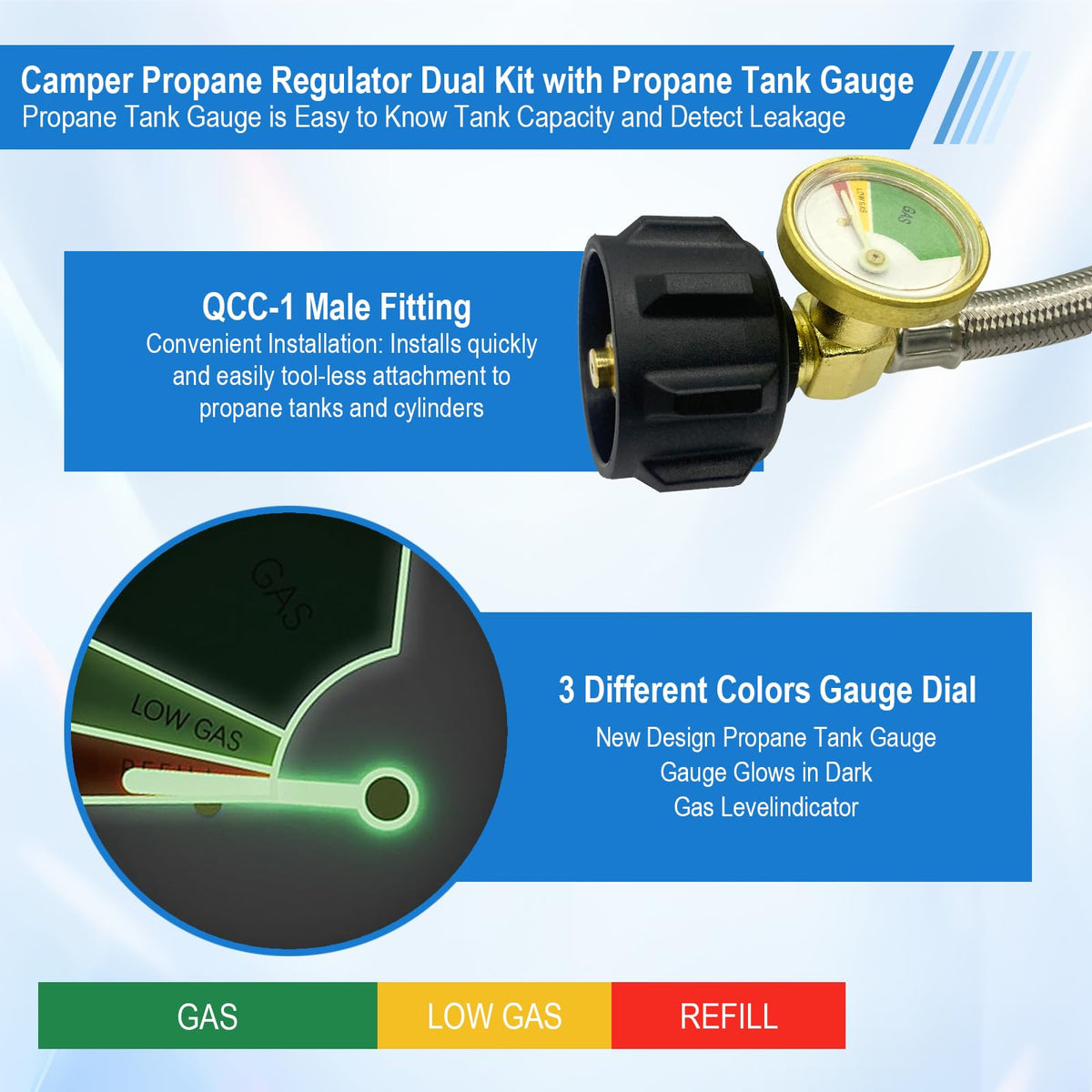

• Includes two 18" stainless braided QCC1 pigtails with gauges.
• All connectors made from 100% solid brass for corrosion resistance.

How do I install and maintain this changeover regulator?

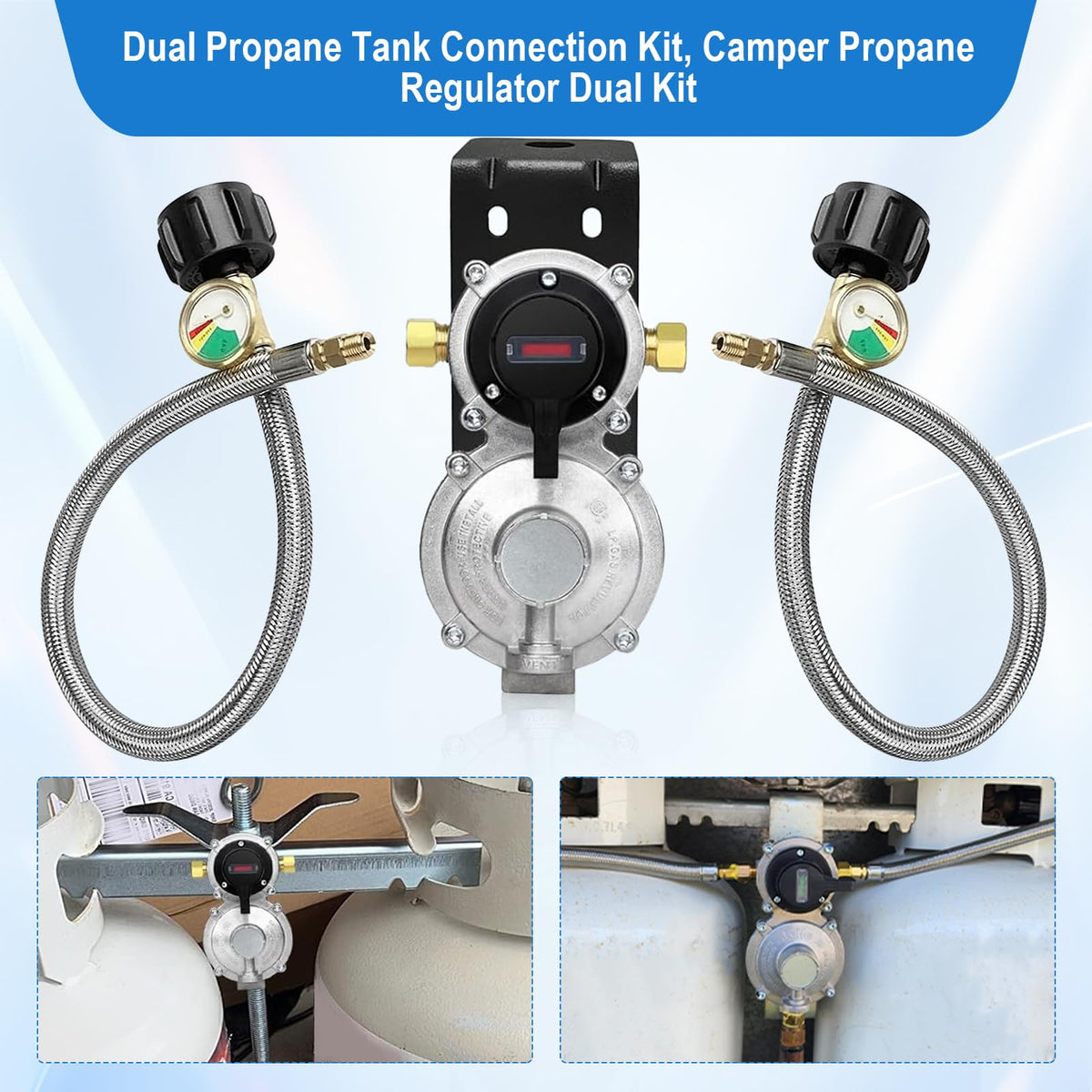

Installation is straightforward for anyone familiar with RV gas plumbing: attach each braided pigtail to its tank valve, connect the regulator outlet to your RV gas inlet, and use the supplied wrench and gas-rated Teflon tape to ensure leak-free joints. Periodic visual inspections and checking the glow-in-the-dark gauge will keep the system reliable.

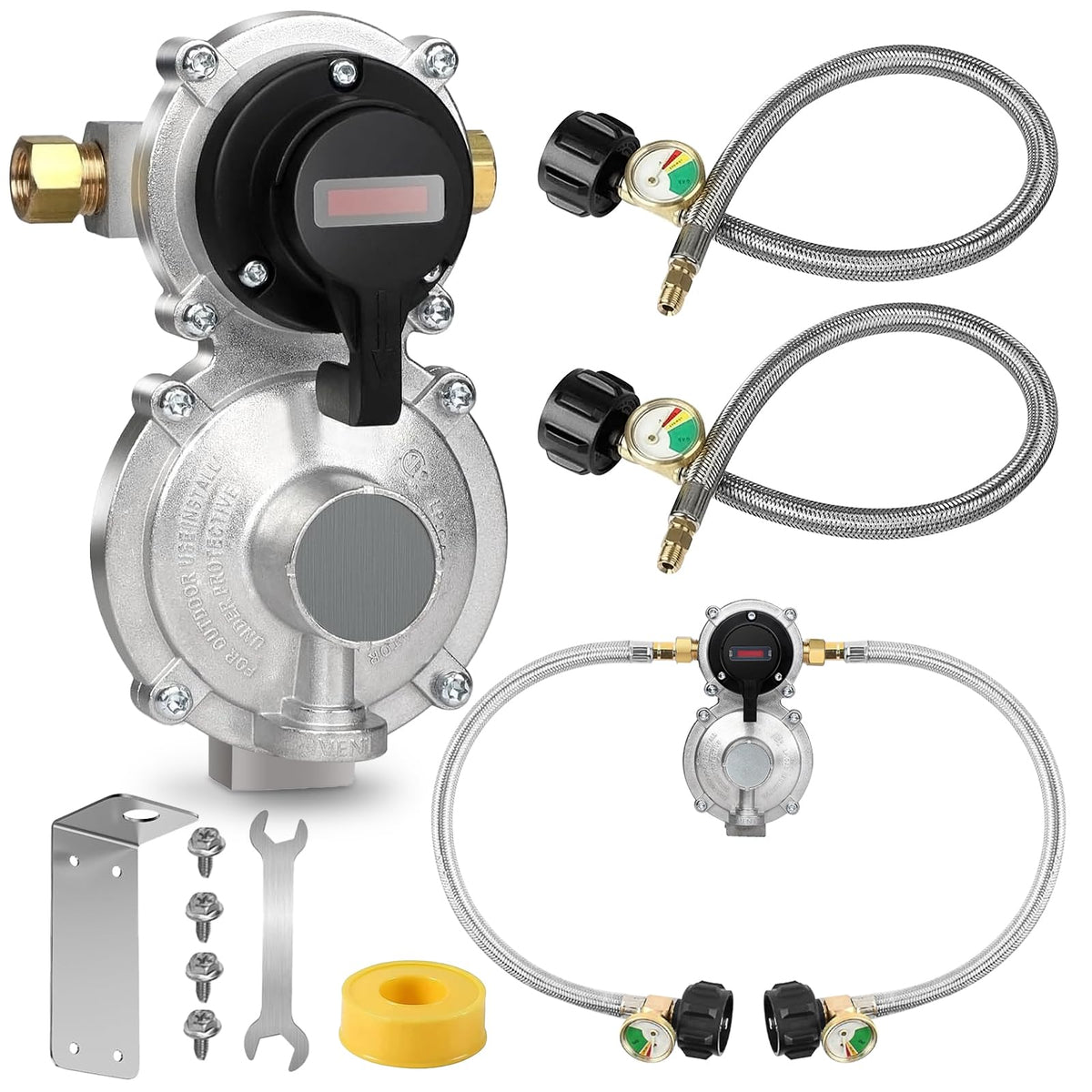

• Includes regulator, two 18" braided hoses, Teflon tape, and wrench.
• Use supplied tape and wrench for secure, leak-resistant connections.
• Inspect hoses and fittings seasonally and test for leaks when installed.
• PYXGLAQ customer support responds via email within 12 hours for assistance.

Who is this for? The PYXGLAQ Dual Tank Propane Regulator Kit is aimed at RV owners, camper van builders, and trailer users who want uninterrupted propane delivery and increased safety. It suits weekend campers, full-time RV travelers, and anyone replacing a single-stage regulator with a more reliable two-stage, auto-changeover solution. If you need a robust, CSA-certified kit with clear tank-status indication and durable construction for outdoor use, this kit is built for that job.
