QPKING Motorcycle Diagnostic Tool M3-A — Handheld Multi-System Scanner for Honda Kawasaki Yamaha

The QPKING M3-A is a handheld motorcycle diagnostic scanner that reads and clears fault codes, displays live data and runs active tests for many Honda, Kawasaki and Yamaha models.

If you work on motorcycles or need a reliable shop-grade scan tool without a phone or laptop, the M3-A delivers multi-system diagnostics and service functions in a standalone unit. It includes manufacturer-specific cables for common Japanese bikes, a color screen for live readings, and memory for snapshots and updates—useful for troubleshooting, routine maintenance and component checks.

Which motorcycles and connectors will the QPKING M3-A work with?

The M3-A ships with a selection of OEM-style lead sets to cover many Honda, Kawasaki and Yamaha diagnostic ports. Compatibility depends on the vehicle make, model year and the diagnostic port type, so confirm those details before buying.

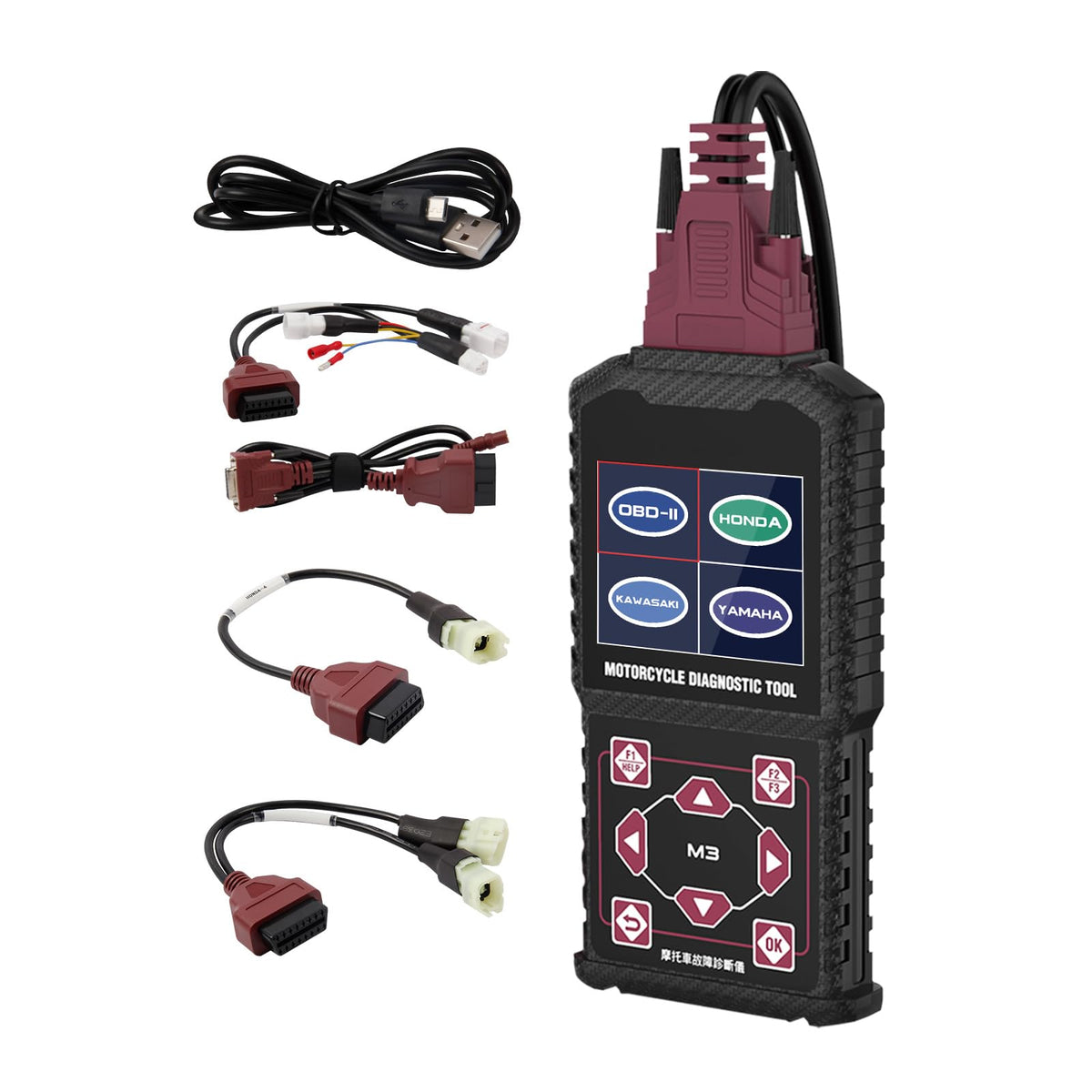

• Included: Honda 4-pin, Kawasaki 4-pin and 6-pin, Yamaha 2/3/4-pin adapters
• Check: port location, pin count and ECU support for specific functions
• Note: matching connector does not guarantee every diagnostic function

What diagnostic functions and systems can it access?

The tool communicates with multiple onboard systems where supported, allowing basic and advanced troubleshooting. You can read/erase DTCs, view live parameters, capture freeze frames and retrieve ECU IDs across supported modules.

• Systems: engine, ABS, body, instrument cluster and immobilizer (model-dependent)
• Data: live data streaming, freeze frames and ECU information

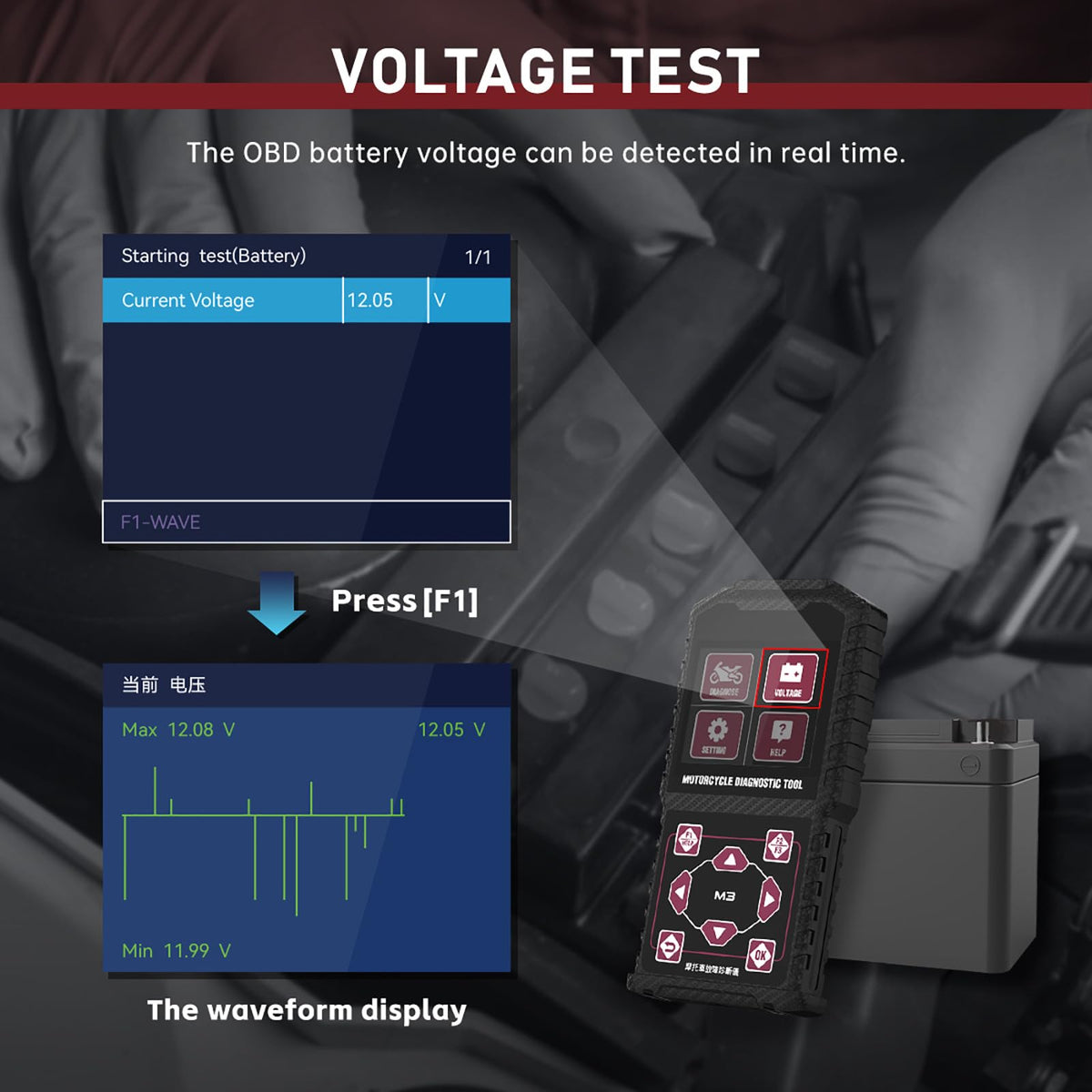

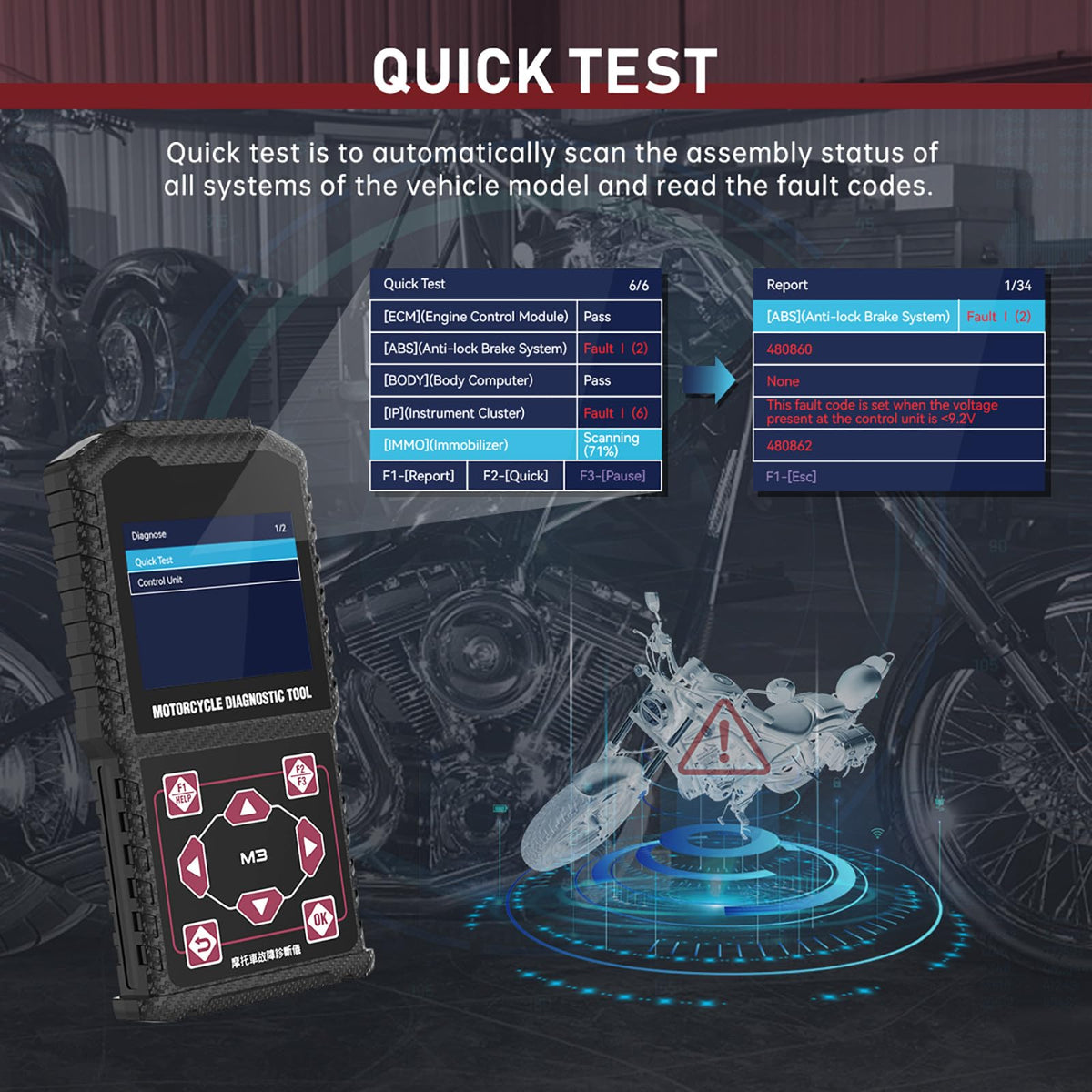

• Tests: Quick Test routines, voltage waveform monitoring and code clearing

Can the M3-A perform service resets and active component tests?

Yes—when the motorcycle’s ECU supports those commands. The tool can run active tests and service procedures like throttle or idle adjustments, ABS bleeding and actuator checks, but availability varies by year and ECU features.

• Resets and learn: throttle learning, idle relearn and supported service resets
• Active tests: fan, fuel pump, injectors and warning lamp activation where permitted
• ABS work: bleeding and ABS-related tests on compatible models

Does it work with cars and what are the limitations?

There is an OBD-II 16-pin cable for basic car engine code reading and clearing, but car support is limited to engine fault codes only. Full automotive diagnostics, live-streaming across all systems and special resets are not supported on cars.

• Car capability: read/clear engine codes via OBD-II 16-pin cable
• Not supported for cars: live data across multiple systems, active tests or ABS bleeding
• Best use: motorcycle multi-system diagnostics; car use is basic only

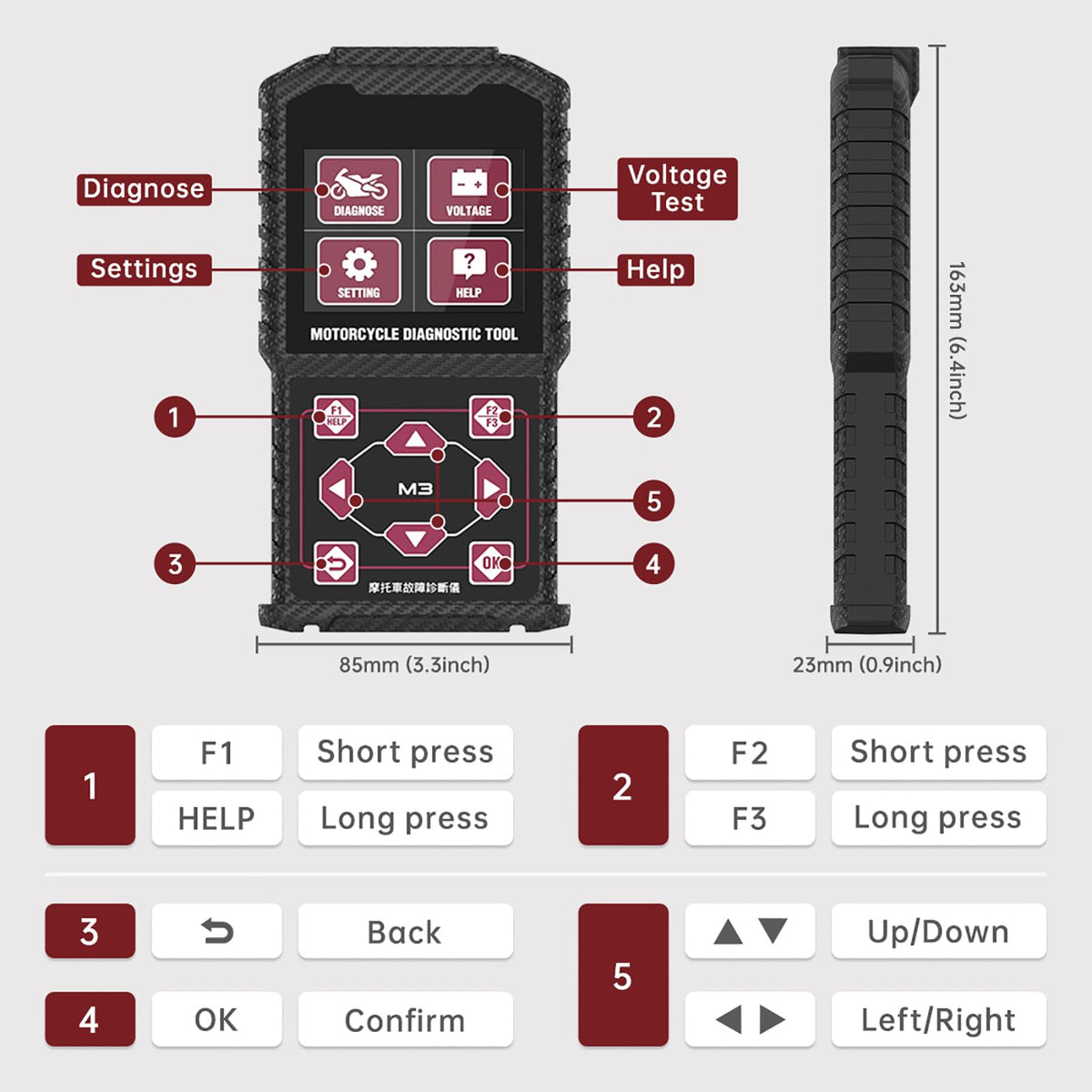

The M3-A is designed as a self-contained, shop-ready handheld: it has a 3.2-inch color screen, supports 12 languages, uses vehicle power (no internal battery), and includes a 32 GB memory card plus USB update capability. A three-year warranty adds owner protection.

If you’re a motorcycle technician, serious DIYer, or a small workshop servicing Japanese bikes, the QPKING M3-A gives targeted diagnostic power without a PC or mobile app. It’s best suited for users who first confirm connector and ECU compatibility for the specific year and model they intend to service.
