RACOONA Ball Joint Removal Tool Kit with 4x4 Adapters — Forged-Steel C-Frame Press for 2WD/4WD Cars & Light Trucks

RACOONA Ball Joint Removal Tool Kit is a complete forged-steel press and adapter set engineered to remove and install ball joints, U-joints, and brake pins on most 2WD and 4WD cars and light trucks.

This kit gathers the core tools technicians and home mechanics need to tackle stubborn press-fit suspension and driveline parts without relying on makeshift methods. Built from heat-treated forged steel with a protective finish and packaged in a durable blow-molded case, the set includes receiver tubes, adapters, press screws, and cups sized to cover a wide range of domestic and imported vehicles. The components work together to compress, push, and extract press-fit parts while reducing the risk of damage to control arms and hubs.

How does this kit remove stuck ball joints and U-joints?

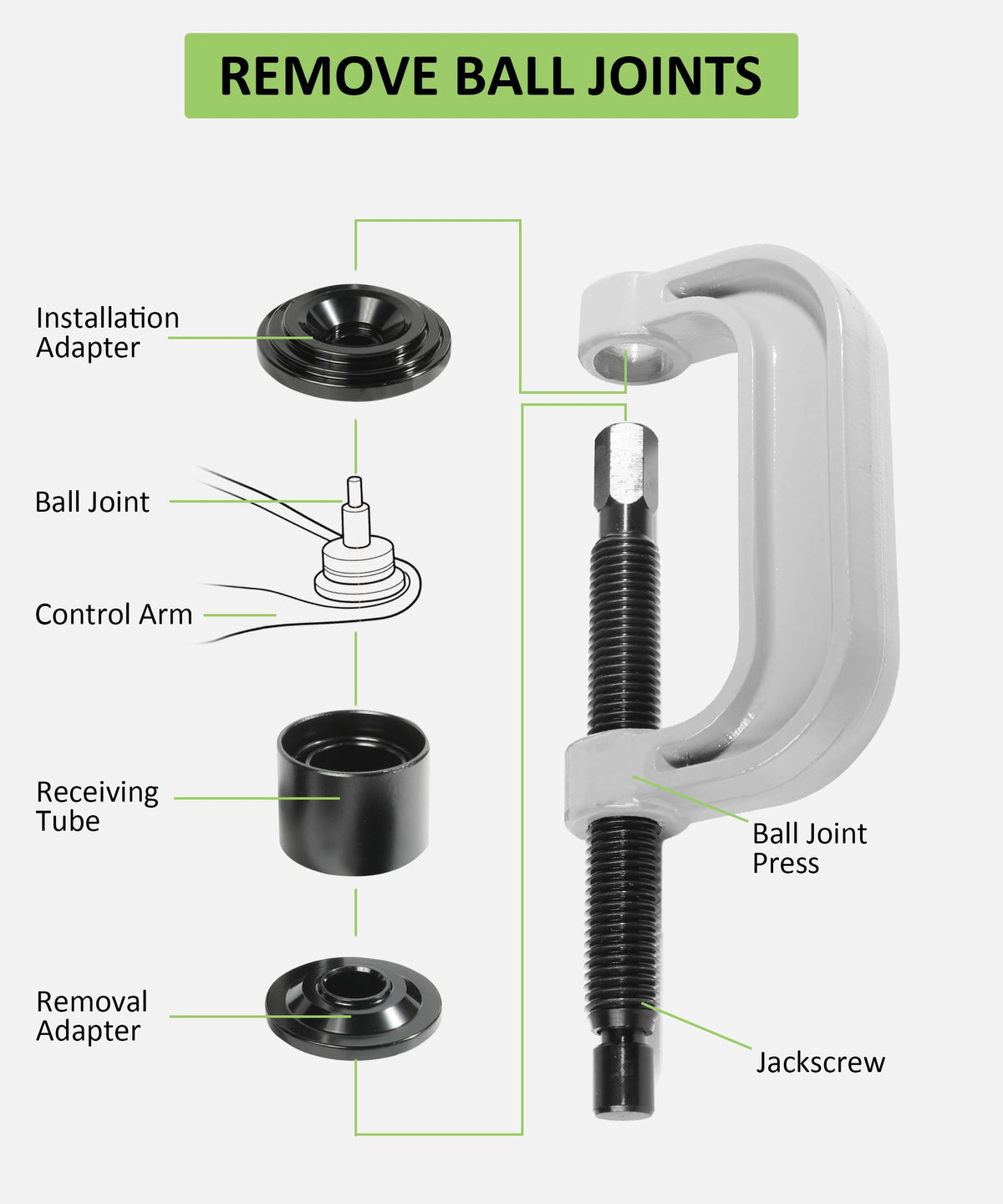

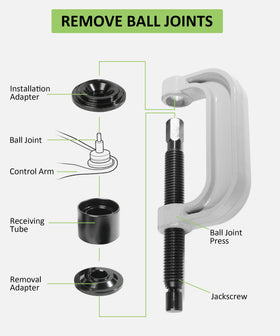

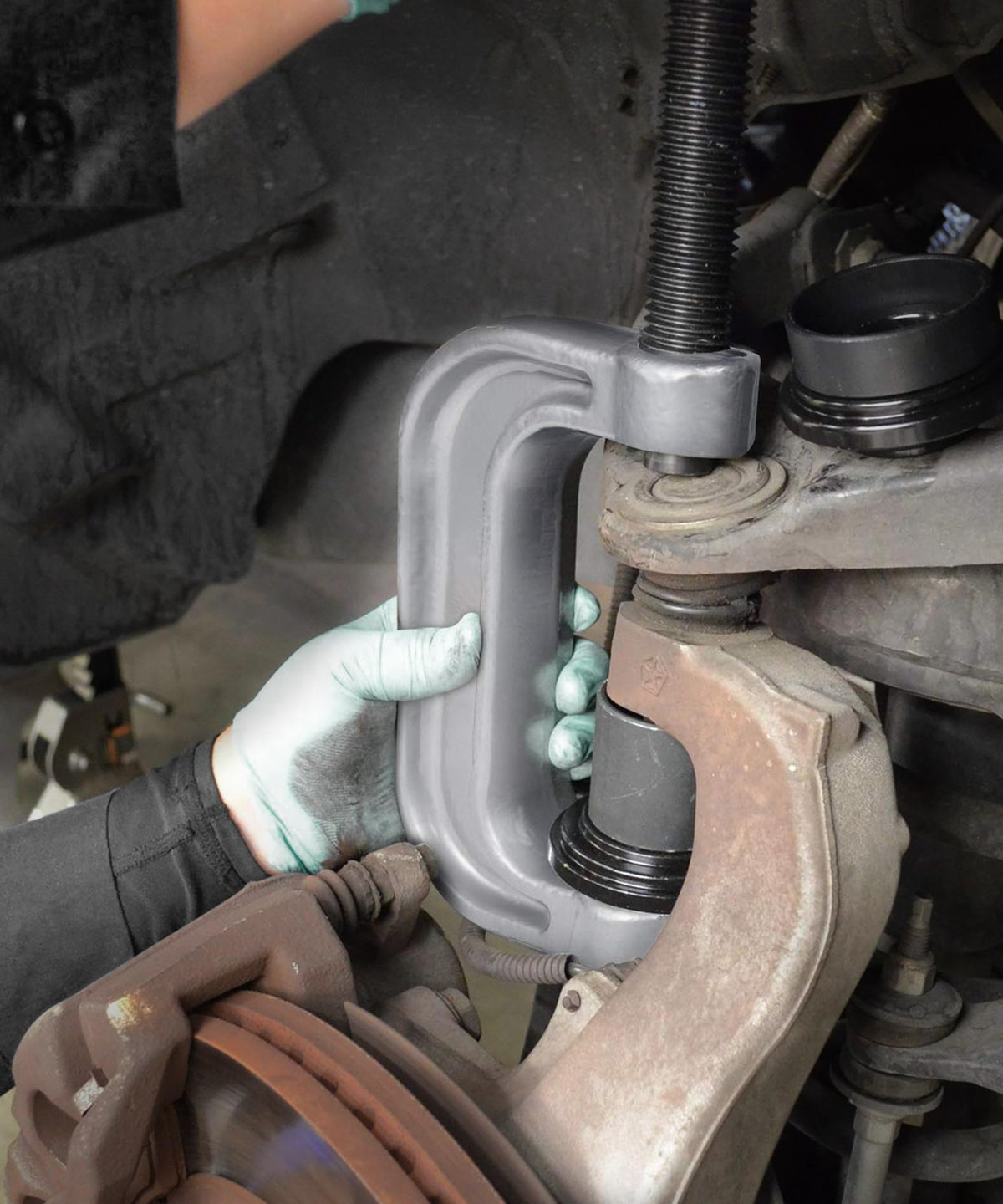

The kit uses a C-frame press action: line the matching receiver tube and adapter around the joint, then tighten the press screw to apply controlled force. This concentrates pressure on the joint pivot, allowing the ball joint or U-joint to be pushed free without hammering or heating.

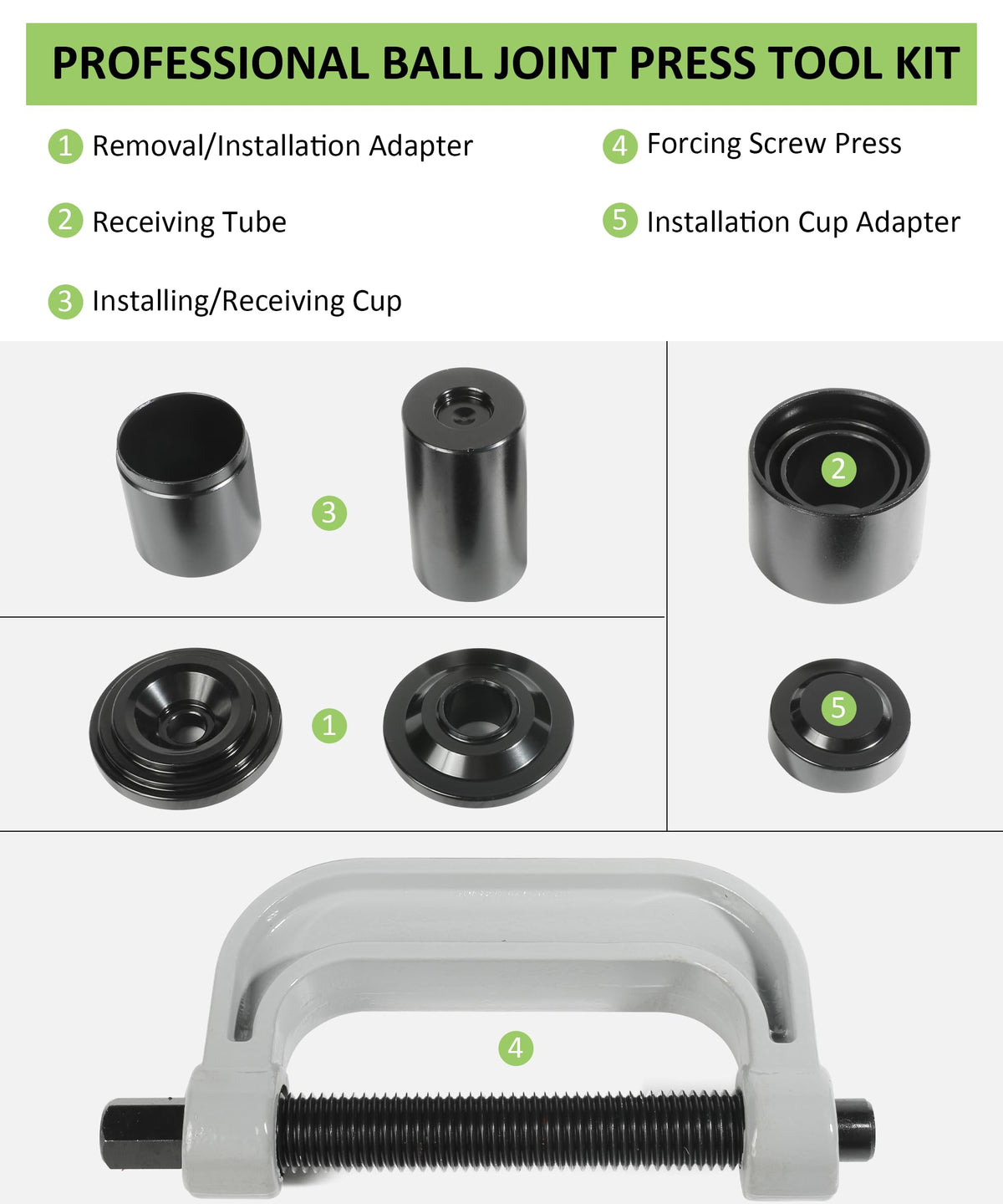

• Three receiver tubes for different diameters to fit varied suspension layouts.
• Disassembly and installation adapters to guide the joint smoothly out or in.
• Pressurized screw machine (C-frame screw) delivers steady mechanical force.
• Cup and receiving pieces protect surrounding components from damage.

What parts and vehicles will it work on?

Designed for common press-fit tasks, the set handles upper and lower ball joints, U-joints, and brake anchor or guide pins on many 2WD and 4WD passenger cars and light trucks. Coverage includes most domestic and imported models found in the U.S., though extremely large commercial or specialized off-road joints may require heavy shop presses.

• Upper and lower ball joint removal and installation on typical passenger vehicles.
• Universal joint disassembly and reassembly for drive shafts.

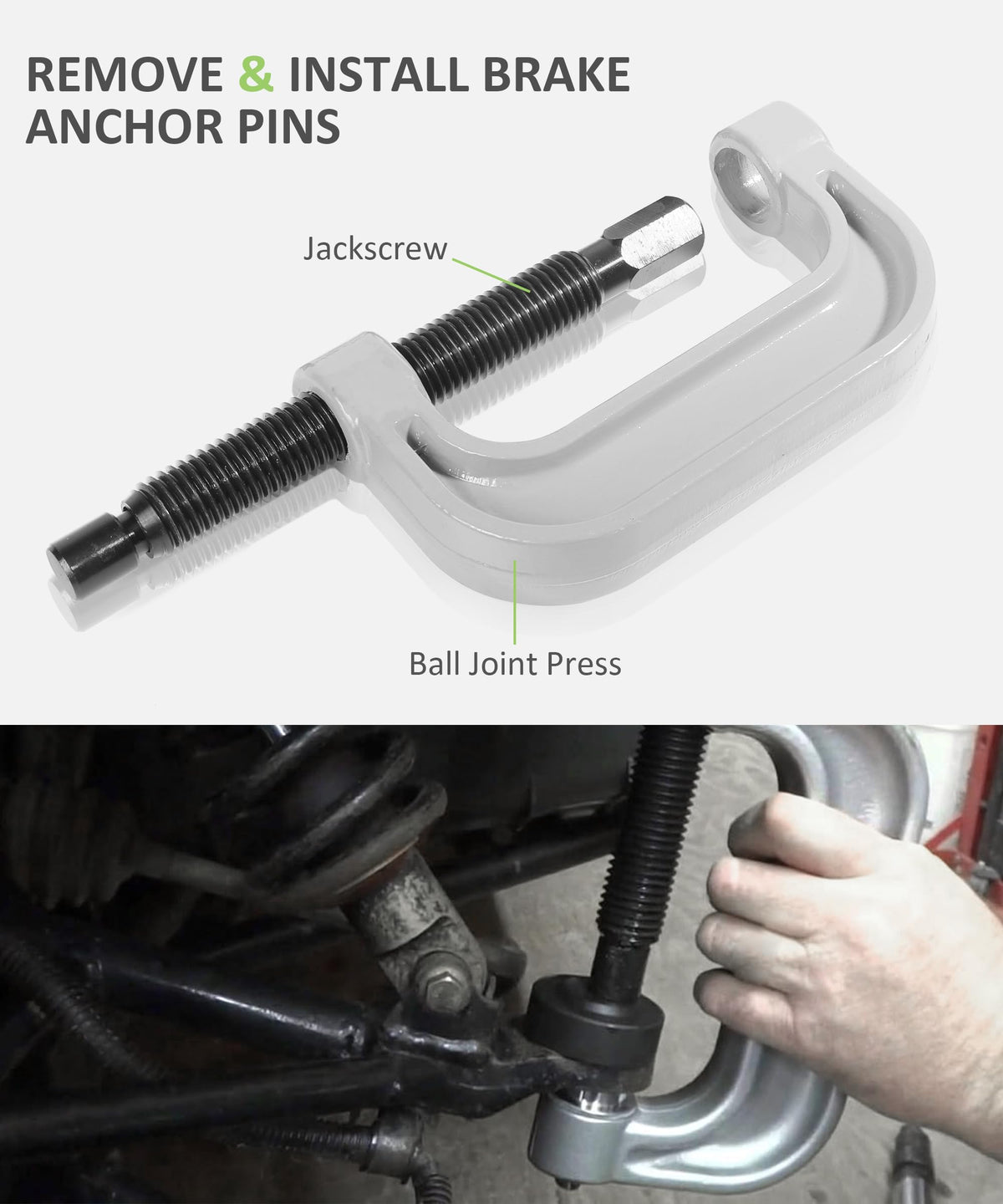

• Brake fixing pin removal where press-fit pins are used.
• Compatible with most domestic and import light trucks and SUVs.

What materials and build quality should I expect?

• Heavy-duty forged steel construction for main adapters and tubes.
• Black oxide or protective finish to reduce corrosion on working surfaces.
• Robust press screw engineered for repeated high-load tightening.
• Hard plastic blow-molded case keeps pieces organized and protected.

How do I store and organize the kit between jobs?

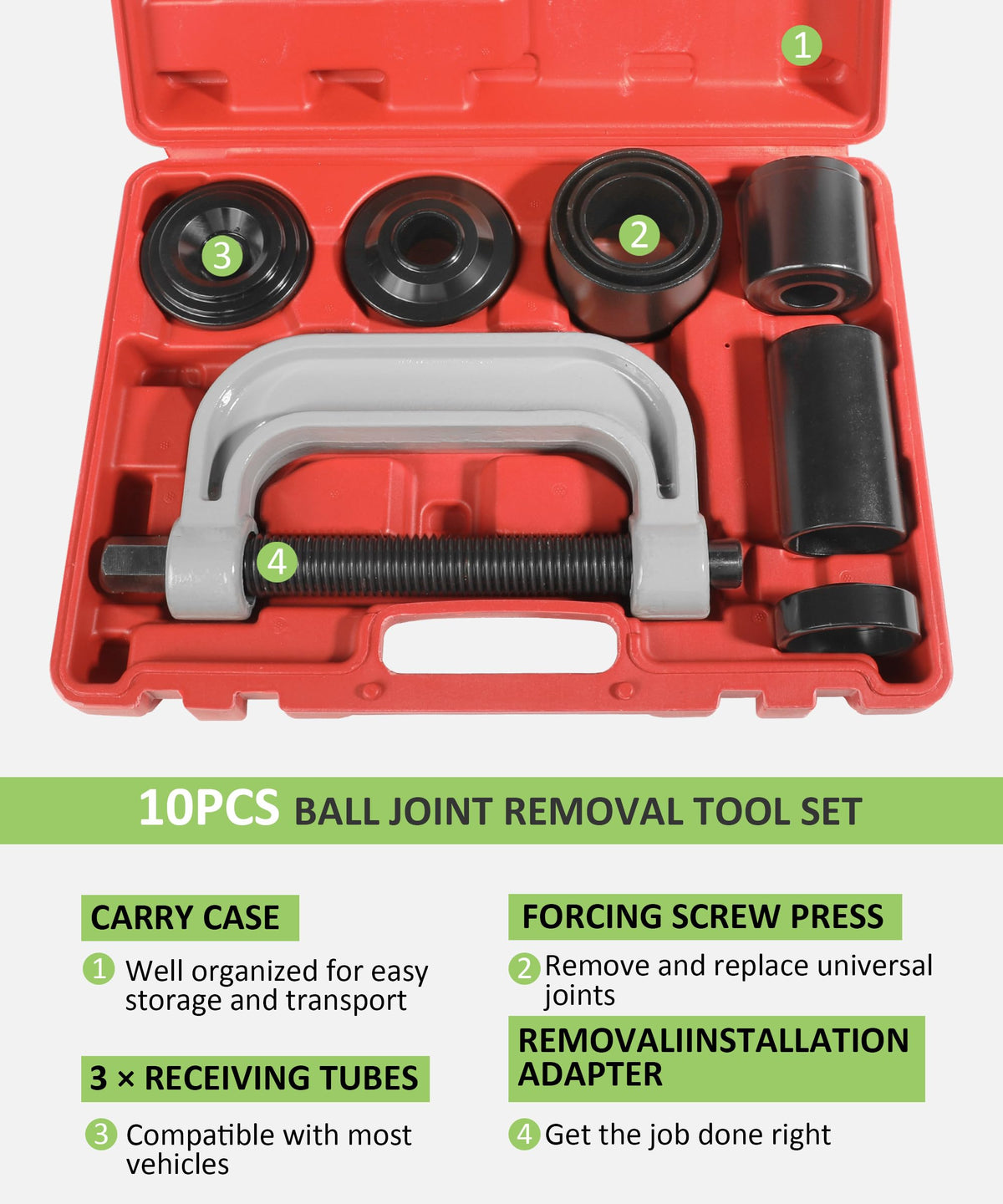

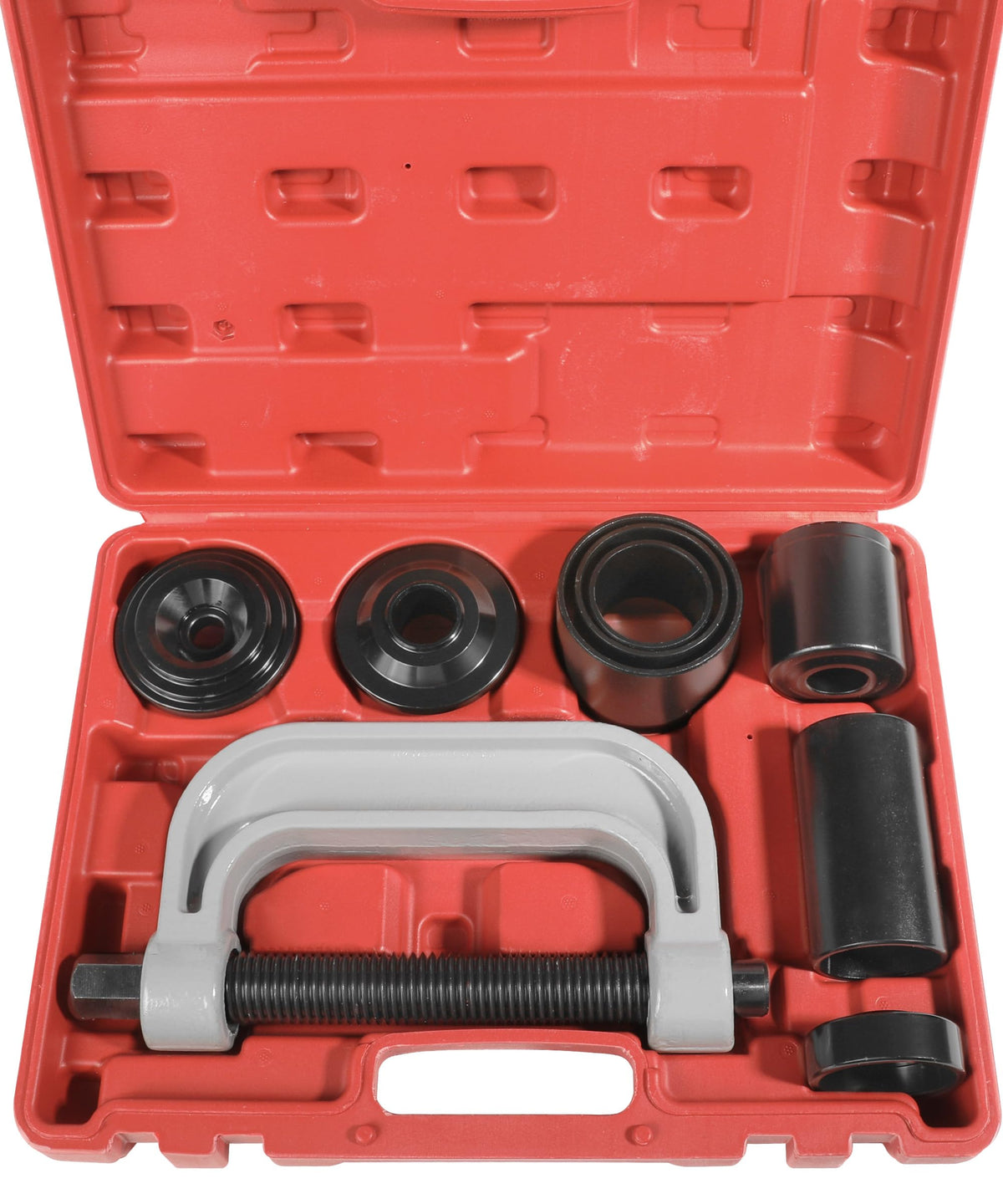

• Compact heavy-duty plastic case with integrated handle for portability.
• Molded interior slots for receiver tubes, adapters, and screw components.
• Secure closure keeps parts from shifting during transport.
• Case dimensions suited to garage shelving or vehicle trunks.

Who is this for: The RACOONA Ball Joint Removal Tool Kit is aimed at professional mechanics, mobile technicians, and DIY enthusiasts who service suspension and driveline components on cars, SUVs, and light trucks. If you regularly remove or install press-fit ball joints, U-joints, or brake pins and want a durable, portable set that reduces reliance on hammers or improvised tools, this kit provides the adapters and press hardware to get those jobs done safely and efficiently. It is not intended for very large commercial vehicle joints or specialty industrial presses.
