RARAYC 4L60E 4L65E 4L70E Deep pan Transmission Filter Kit

RARAYC’s complete deep-pan transmission filter kit replaces OE# 24208576/TF156 to restore filtration and sealing for 4L60E/4L65E/4L70E GM transmissions.

This kit is a ready-to-install replacement set engineered for GM 4L60E-family transmissions used across many Chevrolet, GMC and Cadillac trucks and SUVs. It combines a deep-pan-specific filter and a precision-cut gasket so you can service the transmission quickly while preserving correct fluid flow and sealing. Components are designed to match original equipment fit and withstand normal operating temperatures and pressures.

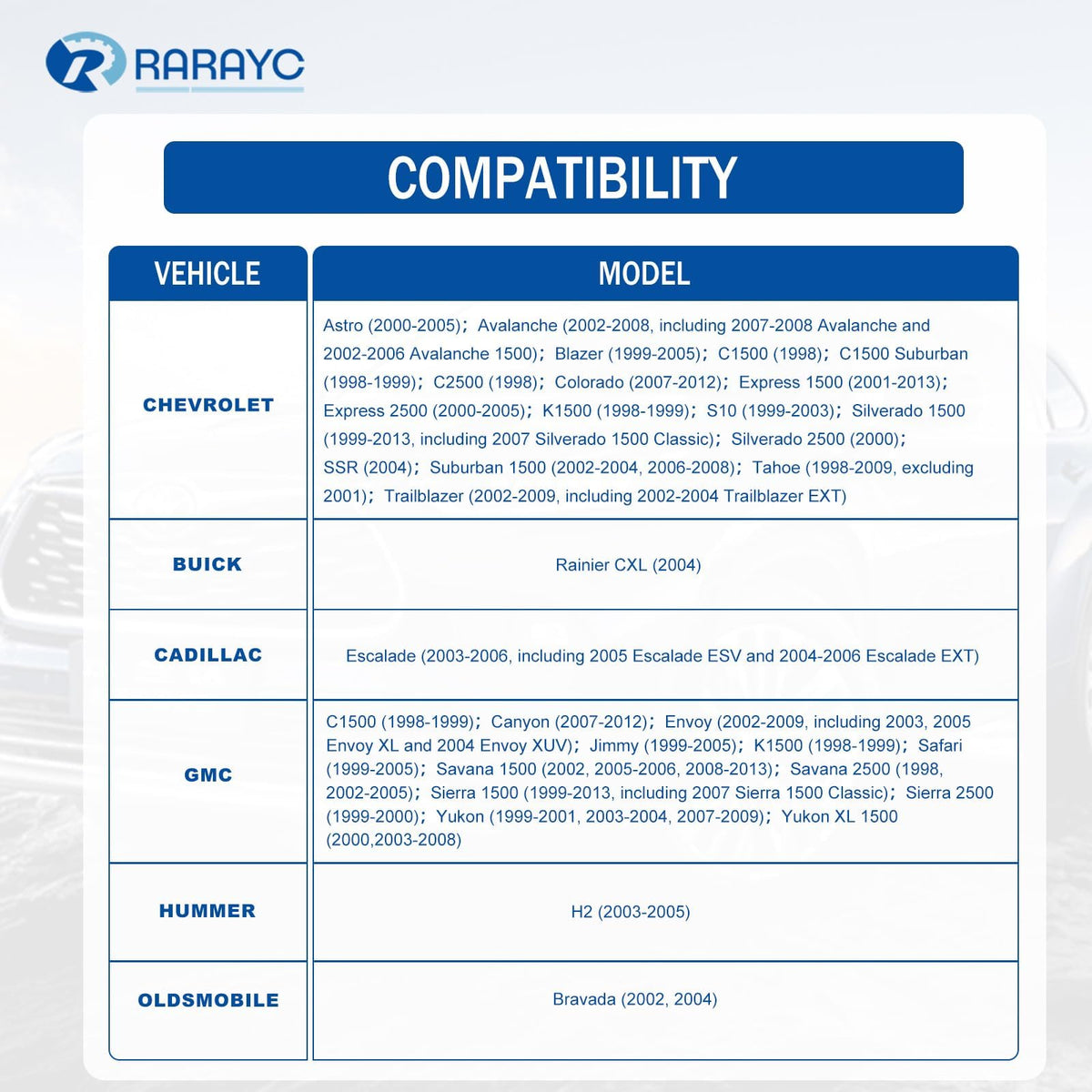

What vehicles and transmissions will this kit fit?

The RARAYC kit is designed for 4L60-E and 4L65-E family transmissions commonly found in GM trucks and SUVs from the late 1990s through early 2010s. Verify compatibility by matching your vehicle’s transmission model and the OE cross-reference numbers for a confident fit.

• Fits: 4L60E, 4L65E, and compatible applications in 4L70E variants
• Typical vehicles: Chevy Silverado, Tahoe, Suburban; GMC Sierra, Yukon; Cadillac Escalade; Buick Rainier

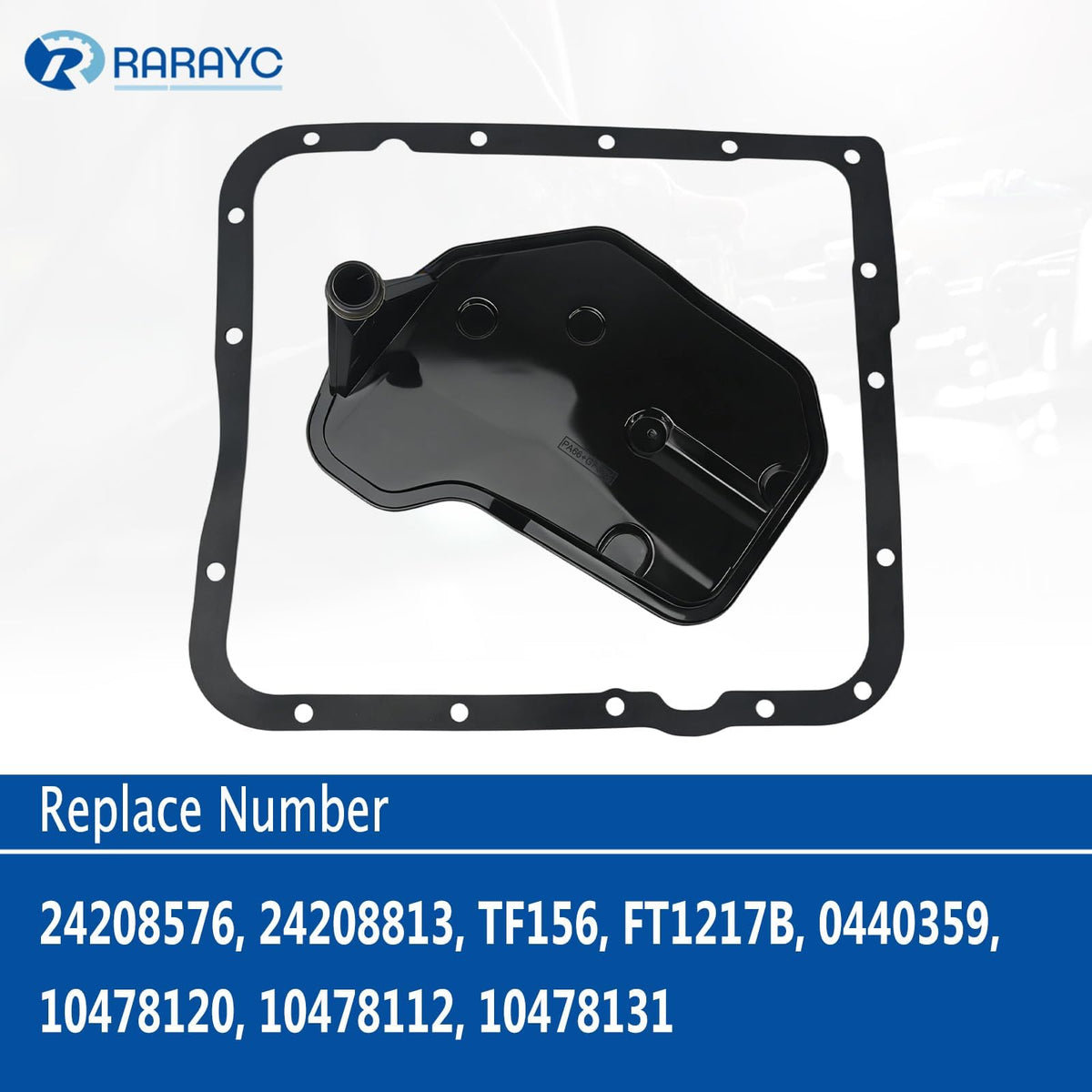

• OE cross-references: replaces 24208576, TF156, FT1217B, 0440359, 10478120

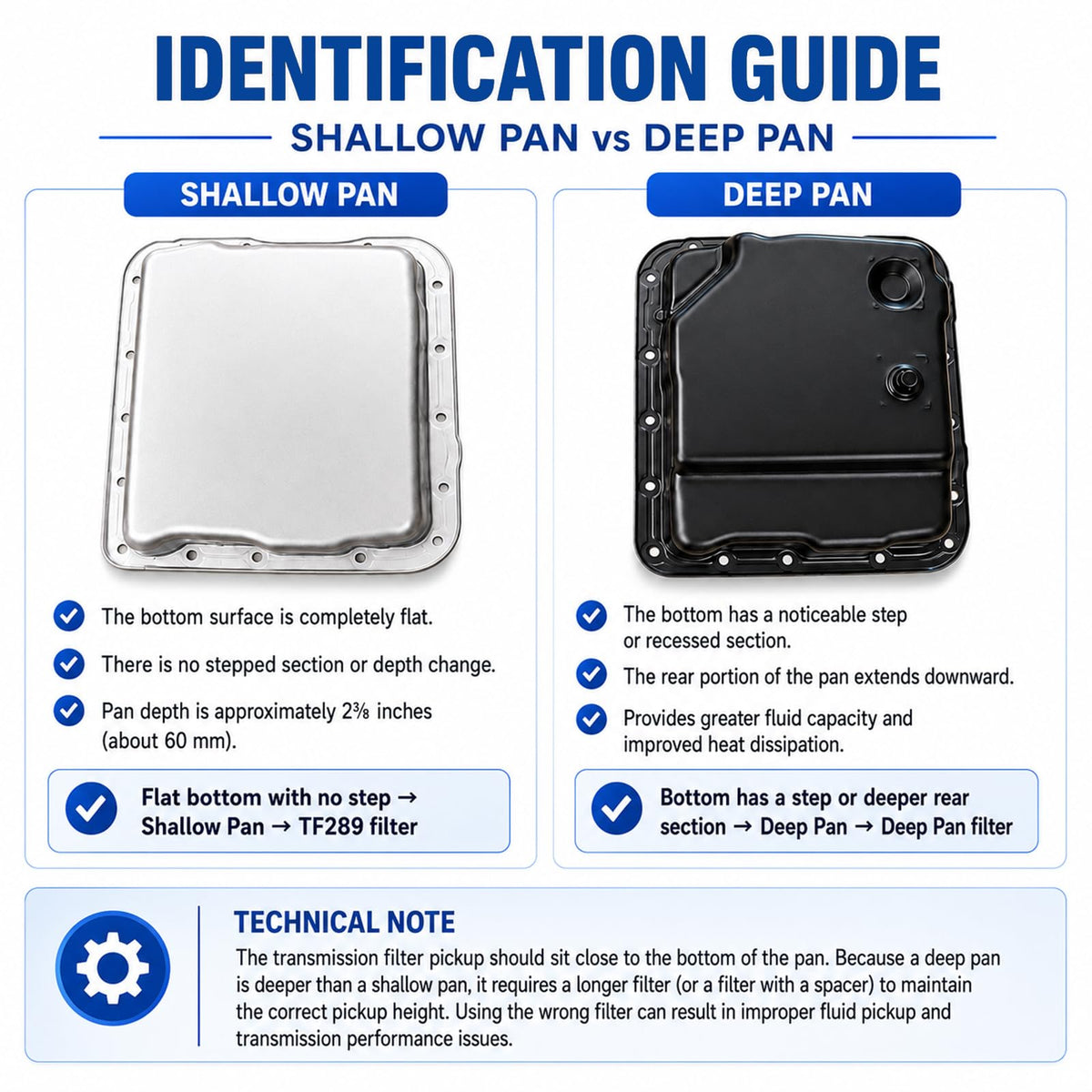

• Designed for vehicles with a 76.6mm deep transmission pan

How does this filter and gasket kit protect my transmission?

The kit’s multi-layer filtration captures contaminants and fine metal particles that accumulate in automatic transmission fluid, reducing the risk of abrasive wear on valve bodies and clutch packs. The included gasket restores a secure seal at the pan interface to prevent leaks and maintain proper fluid levels.

• Multi-layer media traps dirt, clutch material, and metal shavings
• Rigid metal housing and ABS composite backing resist pressure and heat
• Precision gasket contours maintain consistent pan sealing
• Helps preserve fluid cleanliness between services

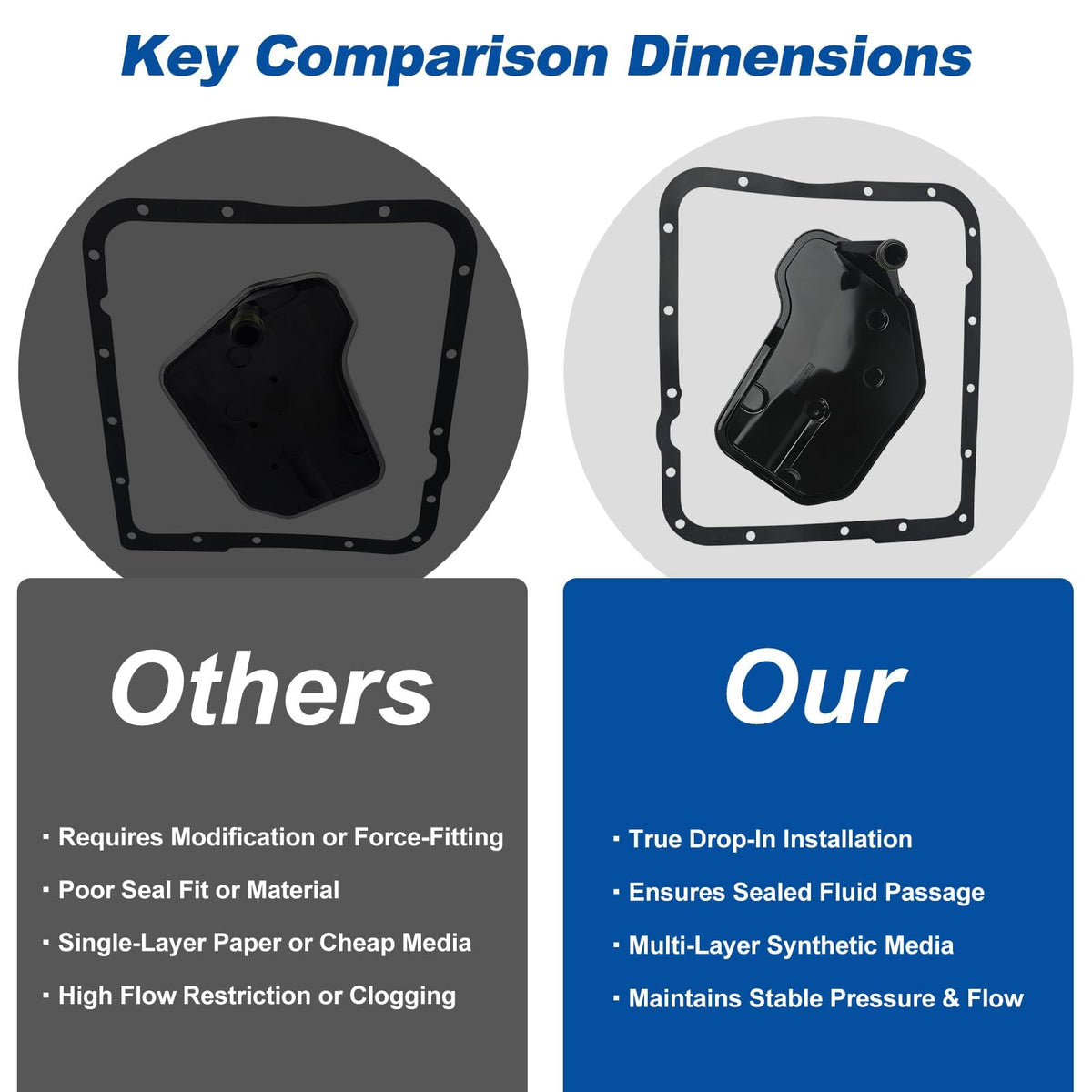

What makes this kit an OE-style replacement?

Parts are engineered to match original equipment dimensions and performance characteristics to ensure straightforward installation and correct operation. That includes the filter length and inlet/outlet alignment for deep-pan applications and a gasket profile that mirrors factory sealing surfaces.

• Direct-fit geometry for fast, no-modification install
• Material selection for durability under normal operating stress
• Replaces specific OE numbers for simple cross-reference checks

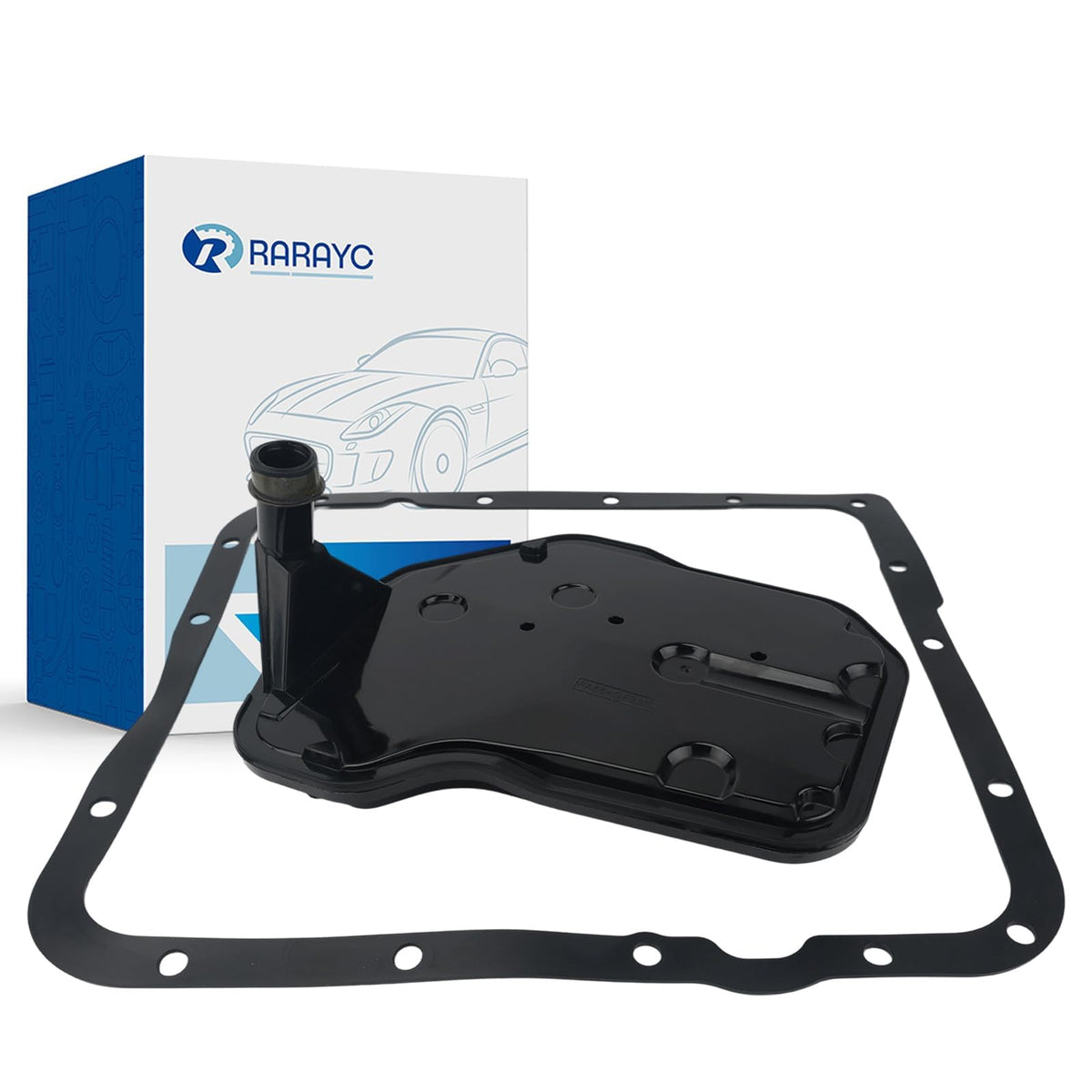

• Supplies both filter and gasket for a complete service job

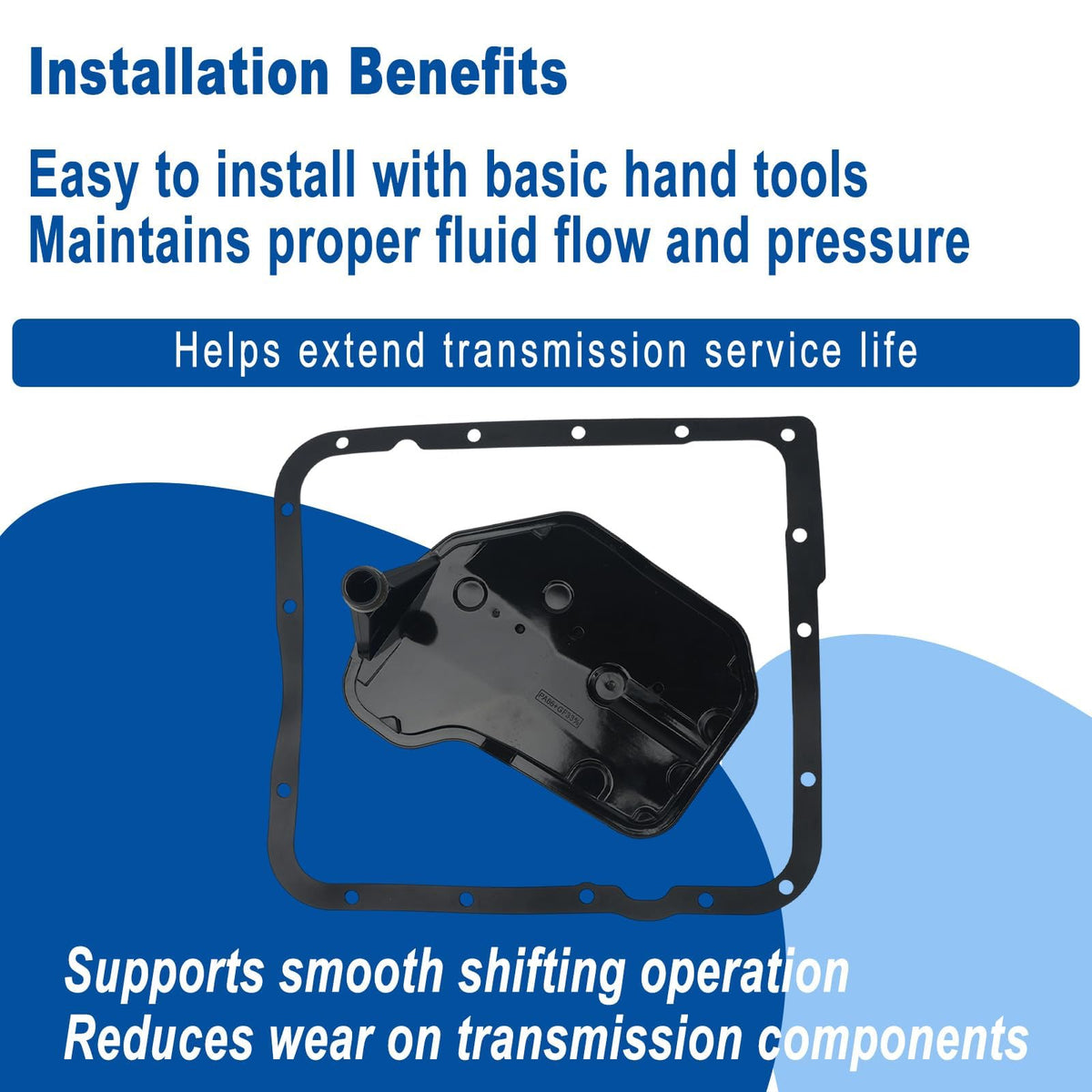

How do I install the RARAYC deep pan filter kit?

Installation is a typical transmission pan service: drain fluid, remove pan, replace the old filter and gasket, then refill with the recommended ATF. Follow vehicle-specific torque specs and fluid quantities; if you’re not comfortable, have a trained technician perform the service.

• Drain transmission fluid and remove deep pan
• Unbolt and remove the old filter; clean mounting surfaces
• Install the new RARAYC filter and gasket, torque pan bolts to spec
• Refill with manufacturer-recommended fluid and check for leaks

Who is this for: The RARAYC 4L60E/4L65E/4L70E deep-pan transmission filter kit is aimed at DIYers and professional technicians servicing GM trucks and SUVs that require a 76.6mm deep pan replacement filter. It’s ideal for owners who want an OE-dimensioned replacement kit that includes both filter and gasket for a complete transmission pan service—especially when addressing fluid contamination or performing scheduled maintenance.
