Recmod Fuel Gas Gauge Assembly for Arctic Cat ATVs — 0470-444 / 0570-086, Stainless Steel Float & Seal

Recmod's fuel gauge assembly with seal (0470-444 / 0570-086) is a direct-fit replacement that restores accurate fuel reading and a leak-resistant tank connection on compatible Arctic Cat ATVs.

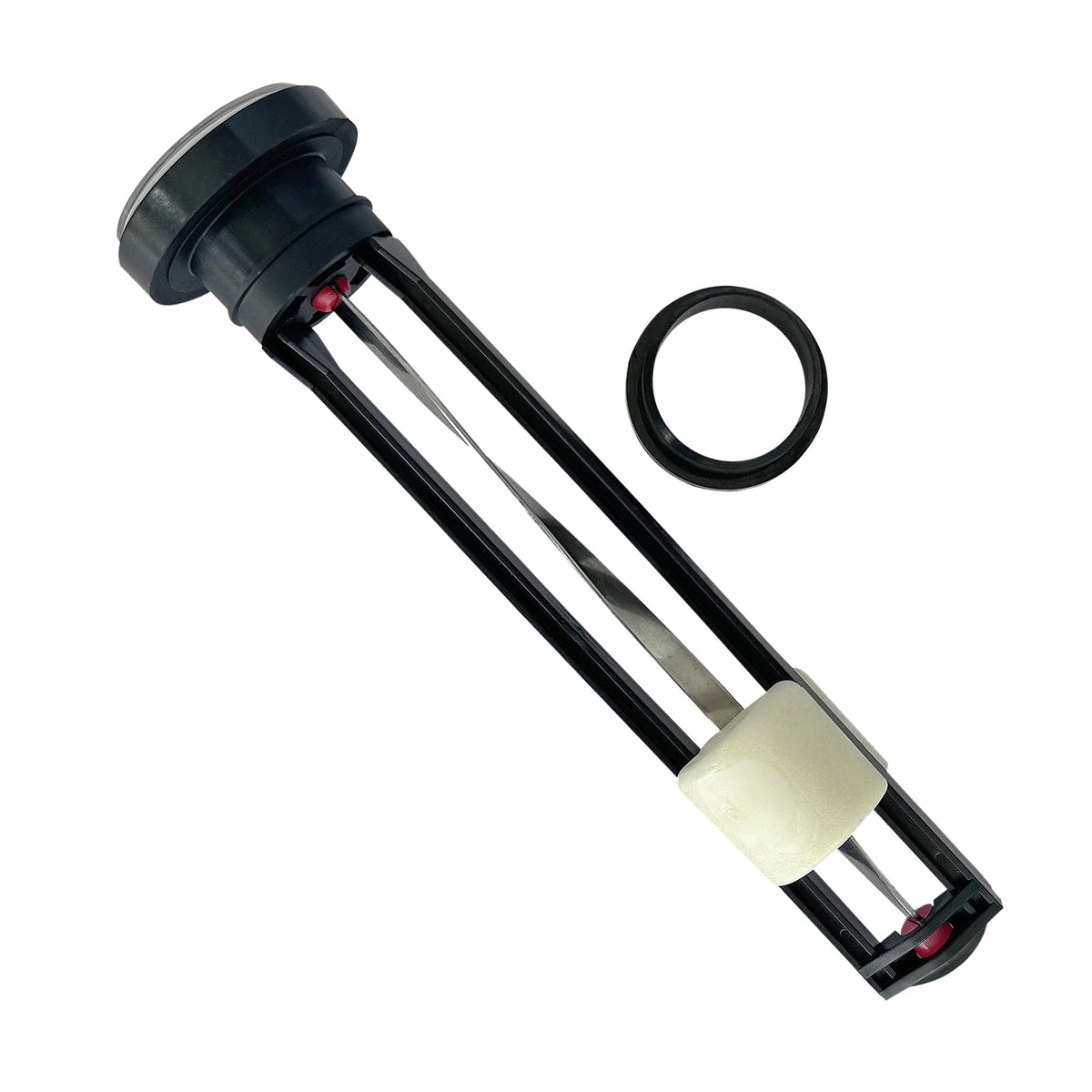

When an aging fuel sender or cracked seal causes unreliable readings or fuel seepage, this Recmod kit offers a straightforward repair. Designed to match factory dimensions for Arctic Cat models including 250, 300, 375, 400 (except DVX), and 500 from the early 2000s, the assembly combines stainless steel, a precision float, and an upgraded rubber seal to resist corrosion and aging. The unit also includes venting to reduce internal fogging so the gauge maintains clear performance.

How does this replacement improve fuel reading accuracy?

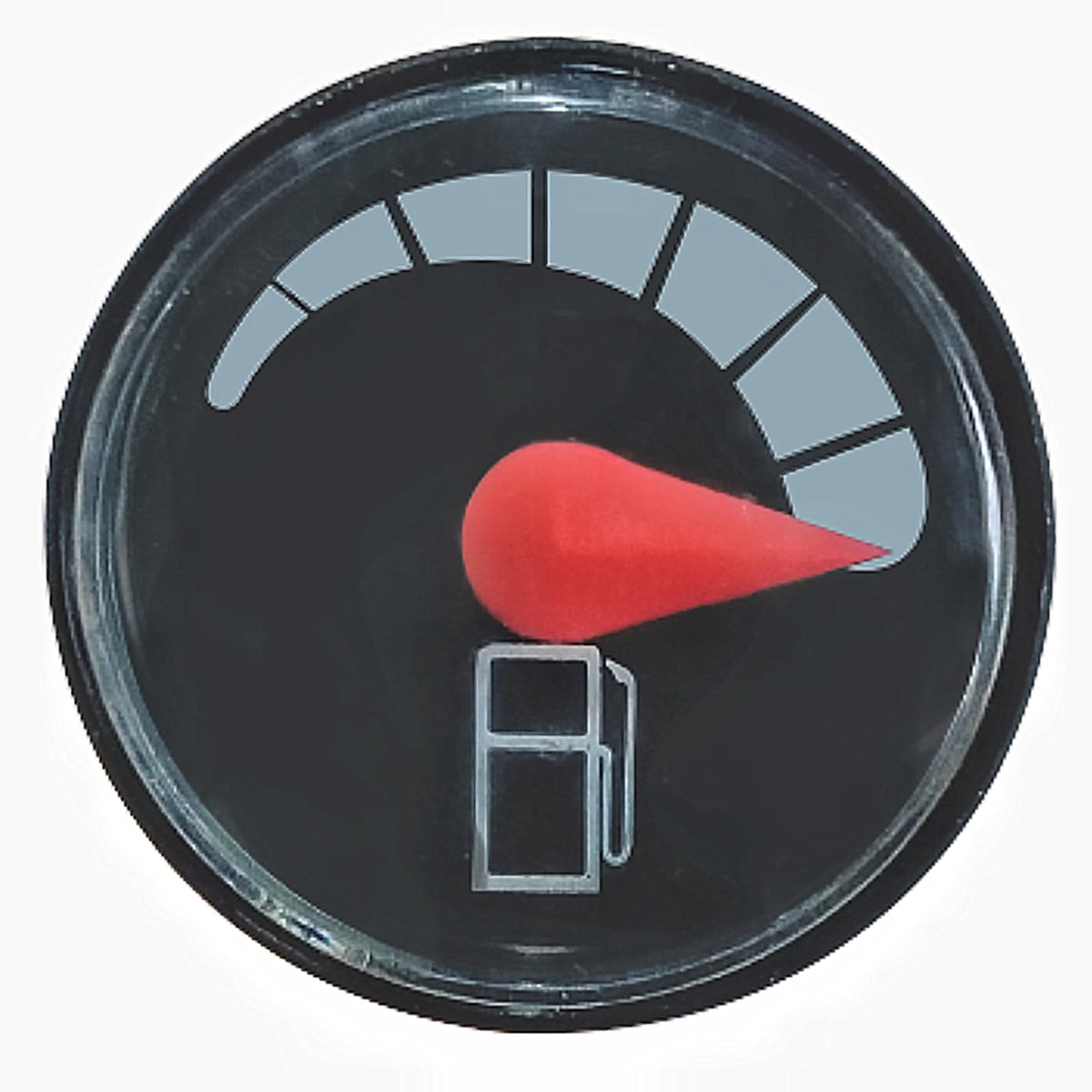

The Recmod gauge uses a precisely engineered float and linkage that mimics OEM motion, delivering repeatable position feedback to the instrument cluster. Less slop in the mechanism means fewer false lows or highs while riding over rough terrain. The included air vent prevents internal condensation which can interfere with readings.

• Precision float and gauge geometry for consistent movement
• Stainless-steel components reduce wear that causes drift
• Integrated vent hole minimizes fogging inside the assembly

Will the part fit my Arctic Cat ATV model and years?

This assembly is supplied as part numbers 0470-444 and 0570-086 and is intended as a direct replacement for specific Arctic Cat ATV fuel gauges. Verify compatibility with your model and year to ensure fitment. It fits 250 (2001–2005), 300 (2001–2005), 375 (2002), 400 (2001–2006, excluding DVX edition), and 500 (2001–2005).

• Confirm your ATV model and year against the listed compatibility
• Not intended for Arctic Cat DVX edition 400 models
• Part numbers provided for cross-referencing with service manuals

How do I install the Recmod fuel gauge and seal correctly?

Installation is simple and requires basic hand tools. Start by seating the supplied rubber seal into the tank opening, ensuring it lies evenly. Then press the fuel gauge assembly into the seal until fully engaged; double-check for even compression to prevent leaks.

• Insert the rubber seal into the tank aperture first
• Push the gauge into the seal until it seats fully and evenly
• Inspect for gaps and test for leaks before reusing the ATV

What materials and durability features are built into this unit?

Recmod designed this assembly to withstand fuel exposure and outdoor conditions common to ATVs. Stainless steel resists rust on metal parts, while an upgraded anti-aging rubber seal blocks fuel and slows material breakdown. These choices extend service life compared with brittle or corroded originals.

• Stainless-steel structural parts to prevent corrosion
• Enhanced rubber seal formulated for fuel resistance and longevity
• Vent design reduces internal moisture buildup over time

Who is this for? If you own a compatible Arctic Cat ATV experiencing erratic fuel gauge readings, fuel seepage at the sender, or visible wear on the original sender and seal, this Recmod assembly is a practical OEM-form repair option. It's aimed at DIY owners and technicians wanting a like-for-like replacement that restores reliable fuel level reporting and a secure, leak-resistant tank connection.
