RECOIL in-line Mini ANL Fuse Holder 2-Pack (ZMFH11-2) — 2×100A, zinc die-cast, marine-grade, heat-resistant

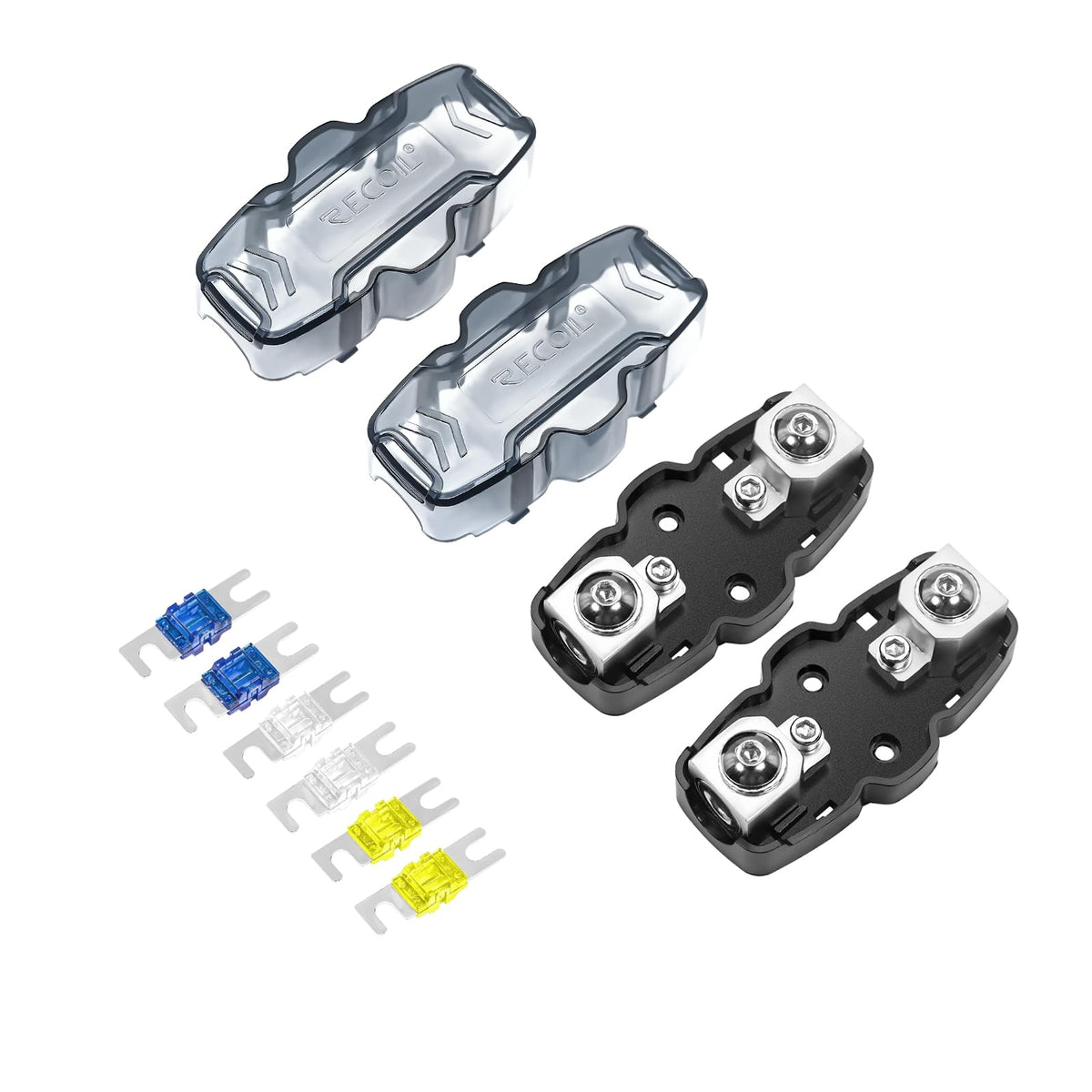

RECOIL ZMFH11-2 is a heavy-duty in-line mini ANL/ANL fuse holder sold as a 2-pack with options for 2×60A, 2×80A, or 2×100A fuses for high-current automotive and marine systems.

Built to handle demanding electrical loads, the ZMFH11-2 fuse holders combine die-cast zinc construction, marine-grade finishes, and heat-resistant insulating components to protect wiring runs and help maintain consistent power delivery. Each kit routes one larger gauge input to two smaller gauge outputs and is supplied with matched ANL/mini-ANL fuses. The pair format gives you two protected circuits right out of the box for amplifiers, battery banks, or accessory feeds.

What materials and finishes protect the fuse holder from corrosion and heat?

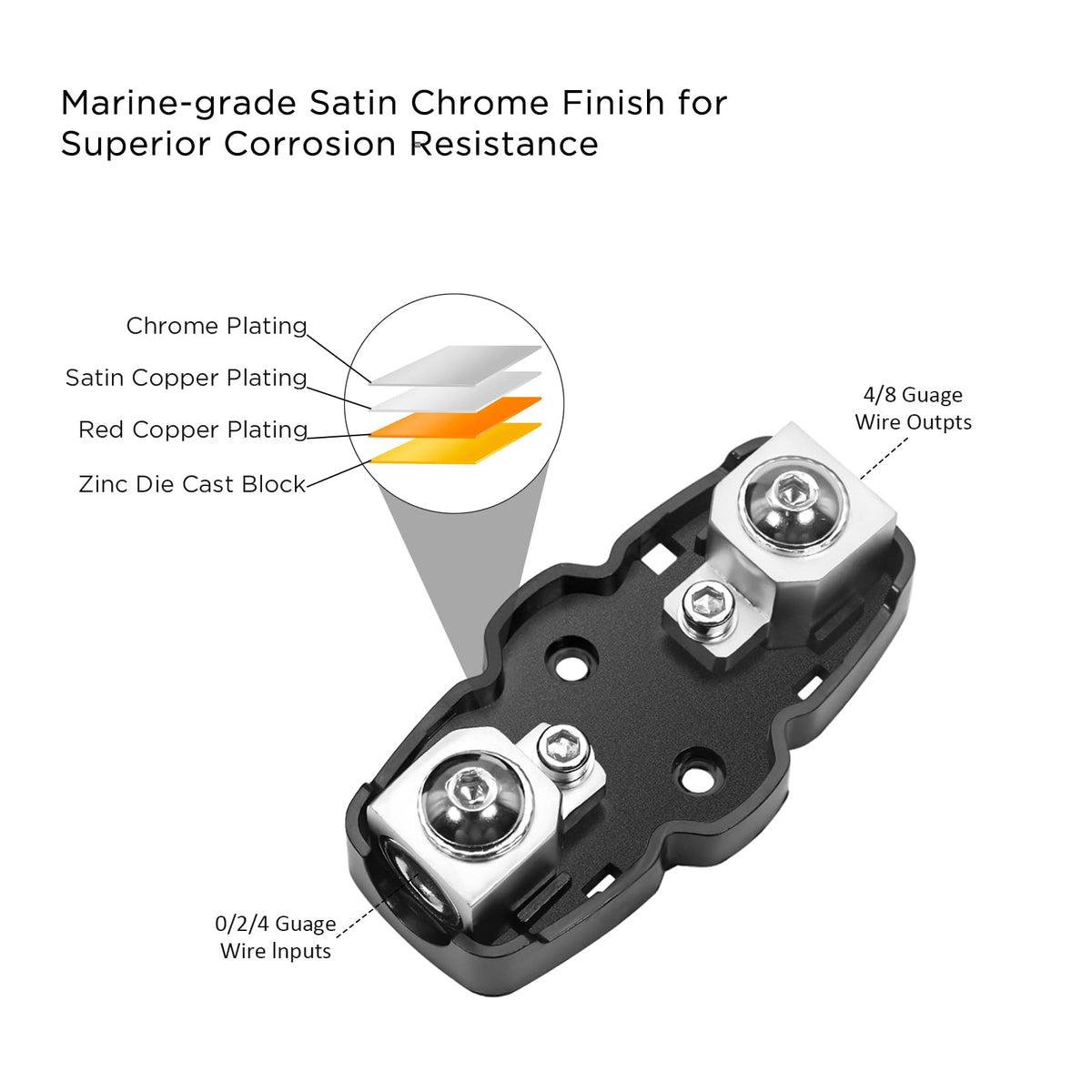

The ZMFH11-2 uses zinc die-cast housing and a marine-grade satin chrome finish to resist salt and moisture. Internal components sit on a high-temperature polycarbonate base and under a clear polycarbonate cover for electrical insulation and flame resistance.

• Zinc die-cast body for solid electrical contact and durability
• Marine-grade satin chrome coating minimizes oxidation
• High-temperature polycarbonate base and cover for thermal stability
• Sealed design reduces exposure to contaminants in marine/vehicle environments

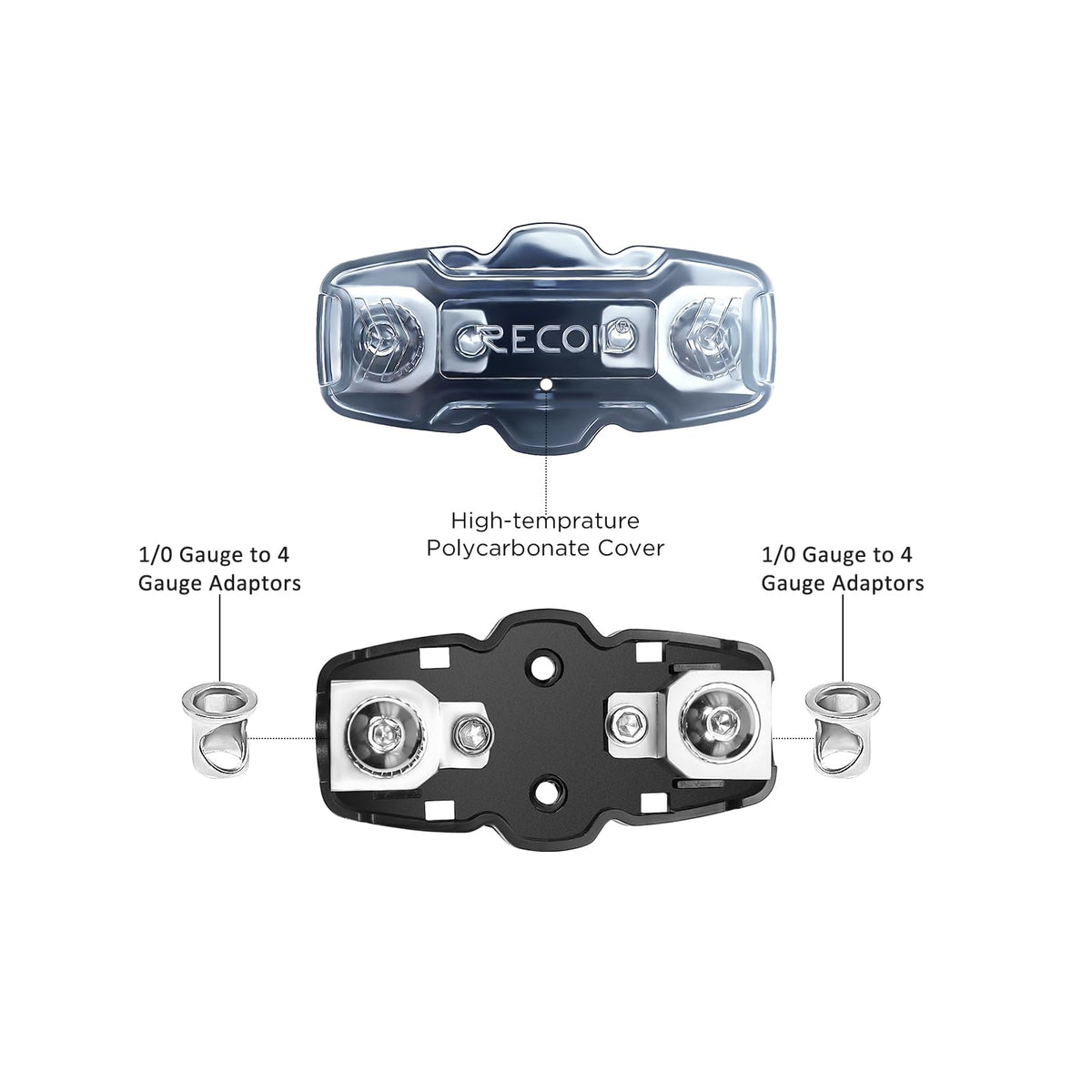

How does the wiring configuration accommodate different gauge cables?

This holder accepts one larger input cable (0, 2 or 4 gauge) and provides two smaller output terminals suitable for 4 or 8 gauge wiring. That layout lets you feed two downstream devices from a single battery or distribution point while keeping each circuit individually fused.

• Input options: 0, 2, or 4 AWG for high-current feed
• Outputs: two 4 or 8 AWG terminals for amplifier or accessory lines
• Clear labeling on terminals to prevent wiring errors during installation
• Robust terminal hardware ensures firm clamping and low resistance

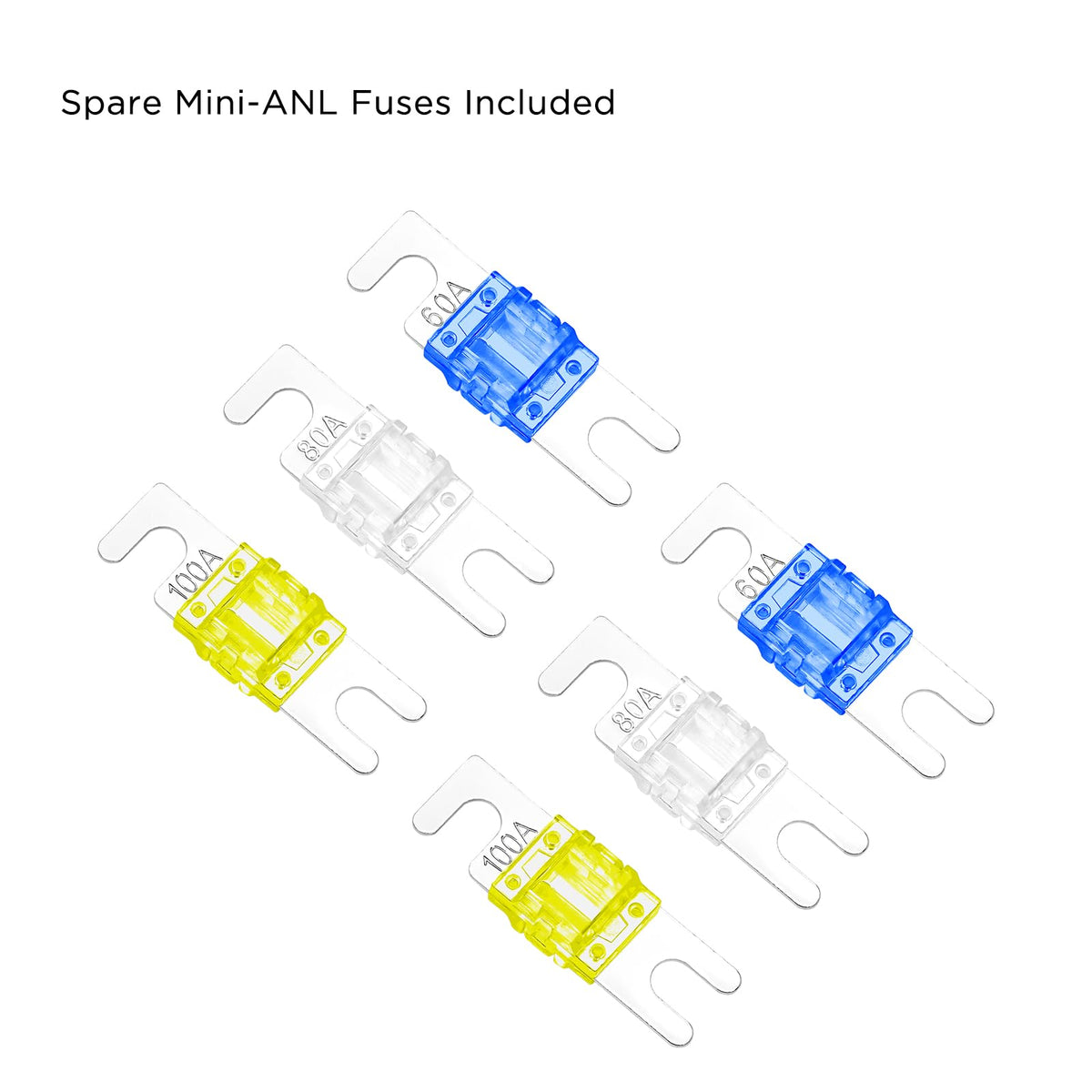

Which fuse ratings come with the 2-pack and when would you choose each rating?

The ZMFH11-2 is offered with matched sets of 2×60A, 2×80A, or 2×100A ANL or mini-ANL fuses. Choose a rating based on the continuous current draw and any headroom needed for inrush currents from amplifiers, winches, or other heavy loads.

• 60A: suitable for moderate-power systems and smaller amplifiers
• 80A: good for mid-range audio or accessory loads with higher startup current
• 100A: intended for large amplifiers, battery isolators, or heavy accessory draws
• Pair format allows protecting two circuits independently from one feed

How simple is installation and what safety or performance details should installers note?

Installation is straightforward for anyone familiar with battery wiring: mount the holder, attach the input and outputs to the correct gauge cables, and torque the hardware to spec. Use the marine-grade finish and insulated cover to reduce corrosion and short risk, and always install fuses as close to the battery or power source as practical.

• Mount using the integrated base holes or secure bracket for vibration resistance
• Place fuses near the battery to protect the full length of the unprotected conductor
• Verify terminal torque and use ring terminals for secure connections
• Replace fuses with identical ANL/mini-ANL type and rating for safety

Who is this for: The RECOIL ZMFH11-2 suits installers, car audio enthusiasts, marine electricians, and DIYers who need to split a heavy feed into two fused circuits and require corrosion-resistant hardware for demanding environments. If you plan to run amplifiers, auxiliary battery feeds, or high-current accessories and want a compact, rugged, easy-to-install solution with clear thermal and corrosion protection, this two-pack offers cost-effective protection and tidy routing for multiple loads.
