Redodo LiFePO4 Battery Charger 14.6V 20A — Fast CC/CV Charging, Revives Discharged 12V Batteries

Redodo's 14.6V 20A LiFePO4 battery charger is a dedicated fast charger for 12V (12.8V) lithium iron phosphate batteries, delivering two-stage CC/CV charging up to 20A for rapid, safe recharge.

This single-channel charger is engineered specifically for LiFePO4 chemistry, offering a 14.6V charge profile, built-in protections, and the capacity to revive deeply discharged cells. With robust aluminum housing, international certifications, and LED status indicators, it balances speed and reliability for deep-cycle batteries used in RVs, marine systems, solar setups, and backup power banks.

How quickly will this charger recharge my 12V LiFePO4 battery?

The Redodo 14.6V 20A charger uses a high 20A maximum current to reduce charge time compared with typical 10A chargers. For example, it can bring a 12V 100Ah LiFePO4 battery to roughly 50% state of charge in about 2.5 hours under optimal conditions.

• Peak current: 20A for faster bulk charging.
• Typical 100Ah 12V LiFePO4: ~50% in 2.5 hours.
• Two-stage CC/CV algorithm for efficient charge completion.

What safety features protect my battery and equipment?

Safety is built into the charger with multiple hardware and software safeguards to minimize risk during charging. It supports reverse polarity protection, short-circuit and overvoltage protection, and battery isolation to prevent unstable conditions.

• Reverse polarity protection prevents damage from incorrect connections.
• Short-circuit and overvoltage protection reduce electrical hazards.
• Battery isolation and controlled cutoff prevent overcharging.

Can this charger revive a deeply discharged or 'dead' LiFePO4 battery?

The unit is capable of accepting and charging LiFePO4 cells down to 0V and includes reactivation logic for batteries that appear fully discharged. Certification and the automatic CC→CV→cutoff sequence help manage reconditioning attempts safely.

• Charges from 0V with reactivation protocol for deeply discharged packs.
• Automatic transition through CC and CV stages to stabilize cells.
• LED indicators show charging status and completion.

How is this charger suited to real-world installations and maintenance?

The Redodo charger’s aluminum case, status LEDs, and international CE & RoHS certifications make it practical for permanent or portable installations. It pairs well with solar, marine, RV, and off-grid battery banks where safe, repeatable fast charging is desired.

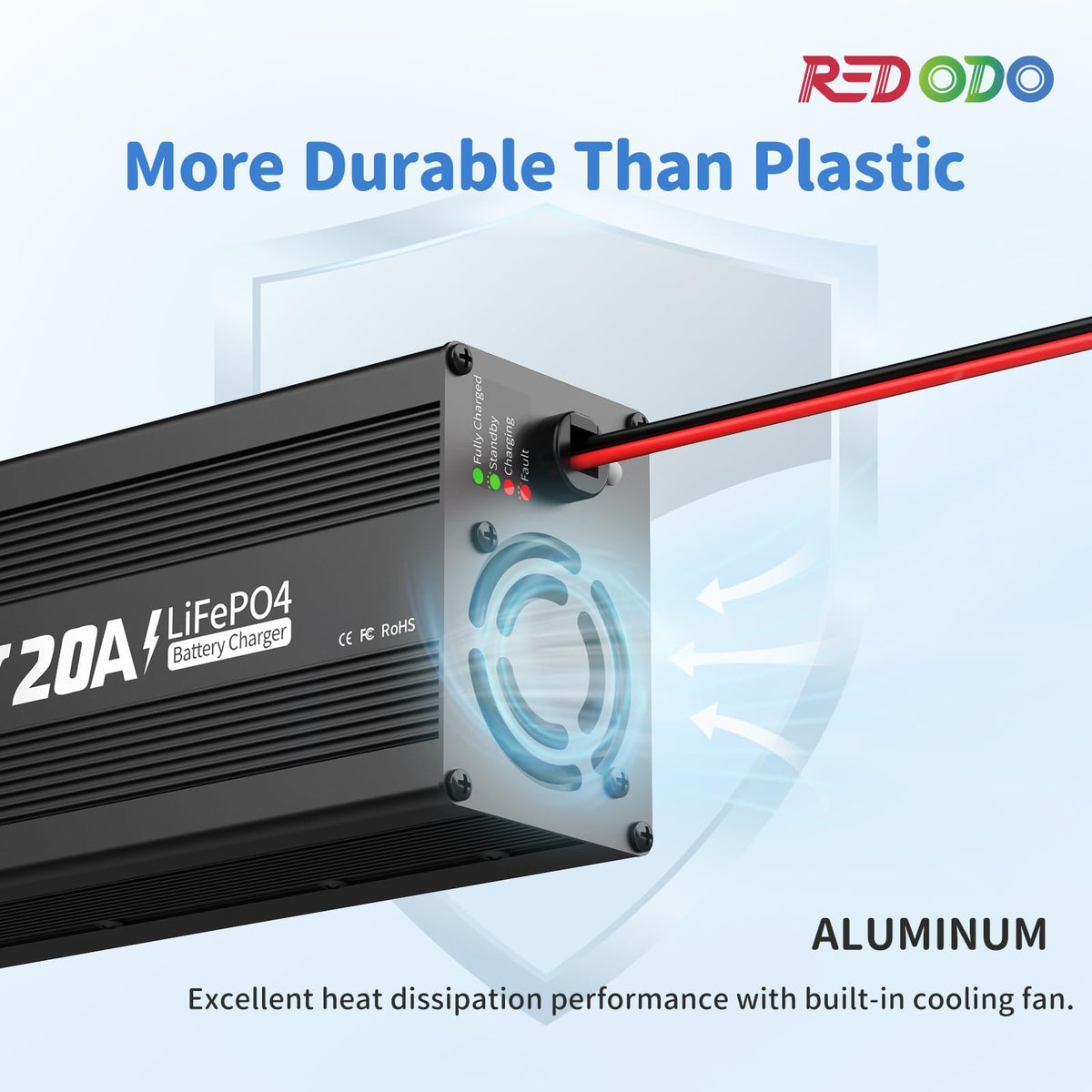

• Durable aluminum enclosure for heat dissipation and longevity.

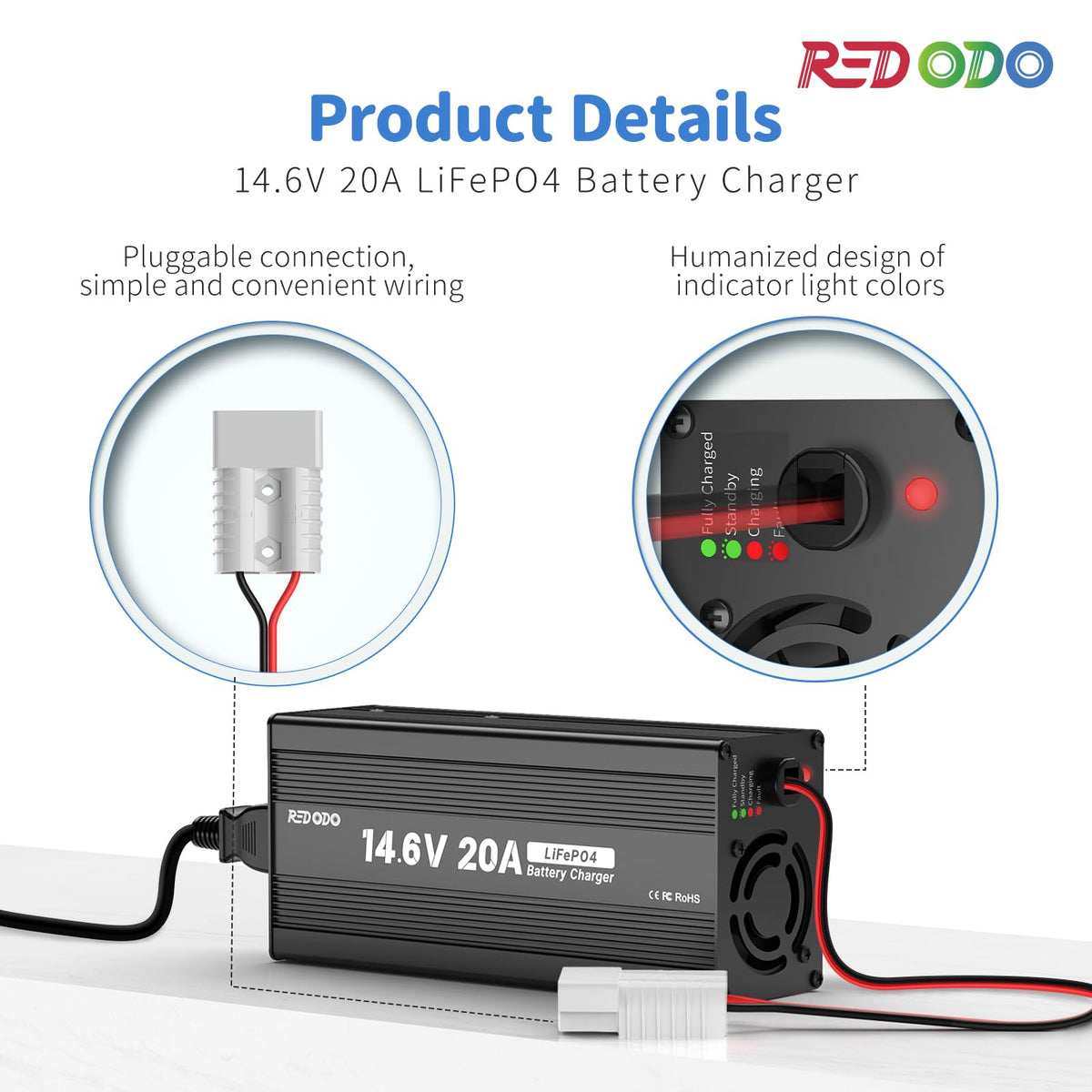

• Two LED indicators for simple status monitoring.

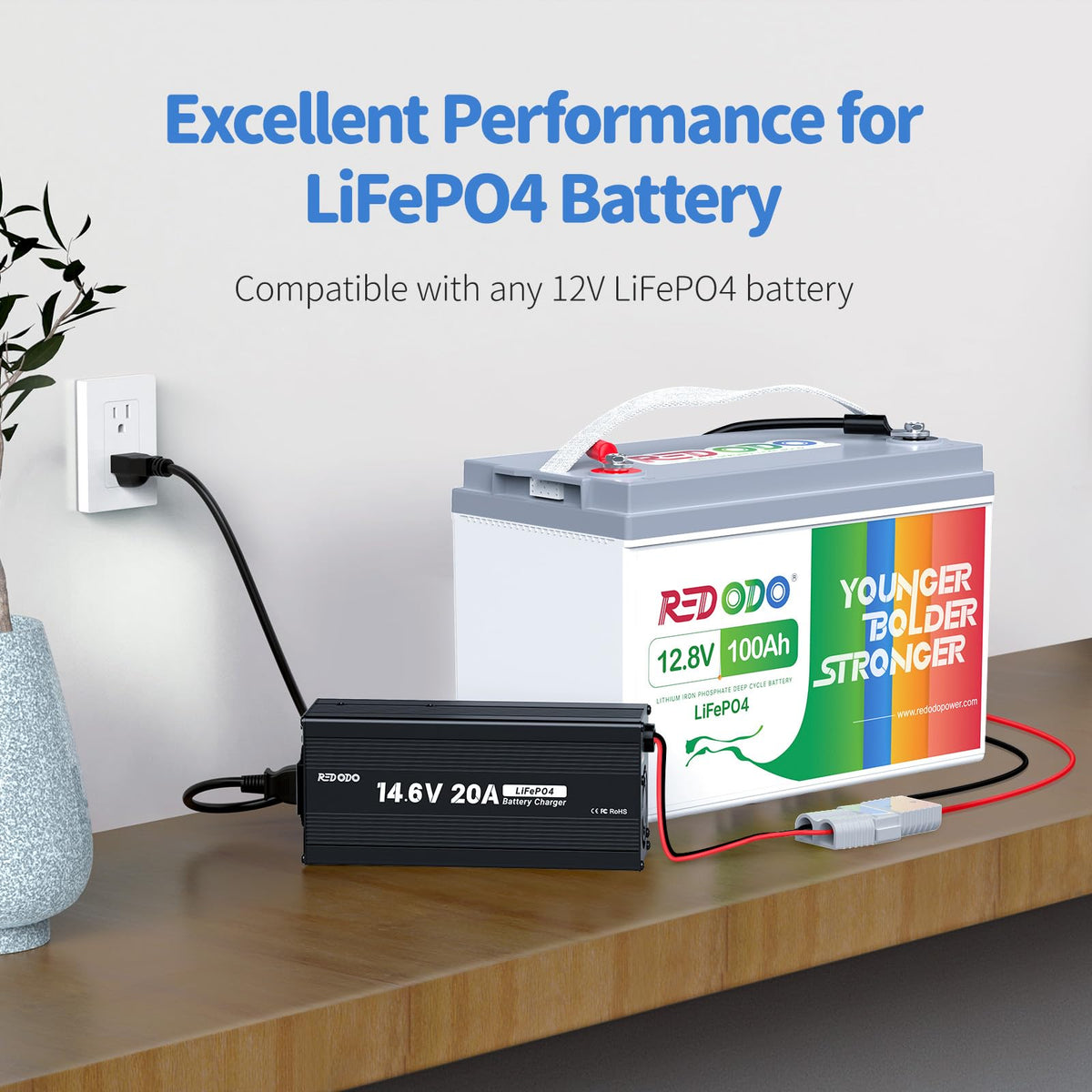

• Compatible with common 12V LiFePO4 systems and deep-cycle batteries.

Who is this for: The Redodo 14.6V 20A LiFePO4 charger is aimed at owners of 12V LiFePO4 battery systems who need quicker recharge times without sacrificing safety—RV and boat owners, solar system integrators, off-grid homeowners, and anyone maintaining deep-cycle LiFePO4 batteries. It’s a practical choice when you want a purpose-built LiFePO4 charging profile, solid protection features, and certification-backed reliability. For questions or installation guidance, Redodo offers technical support with timely responses.
