REDTEE Weld-On 2-Inch Hitch Receiver Tube, 9-Inch Length — Raw Steel with Anti-Rattle Bolt

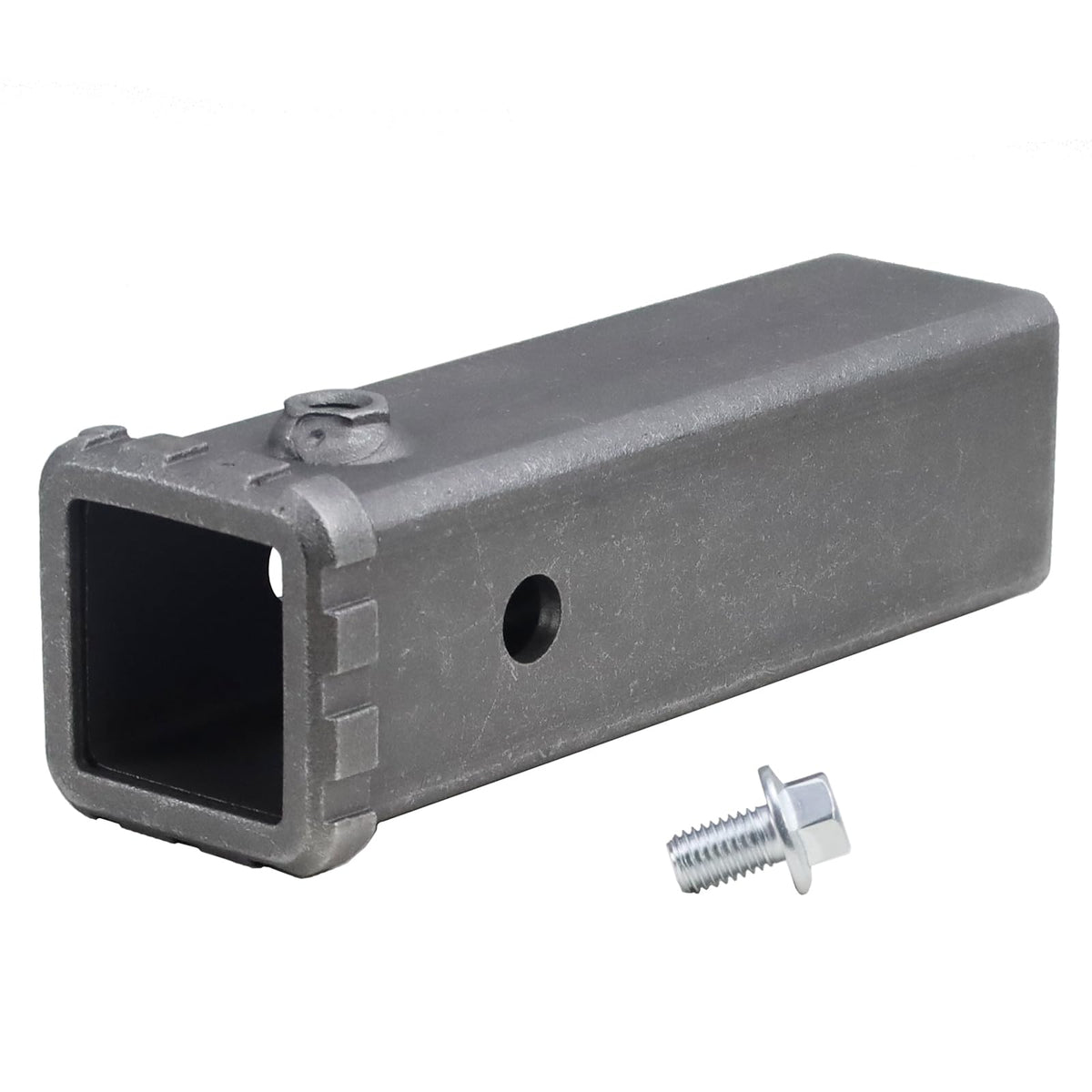

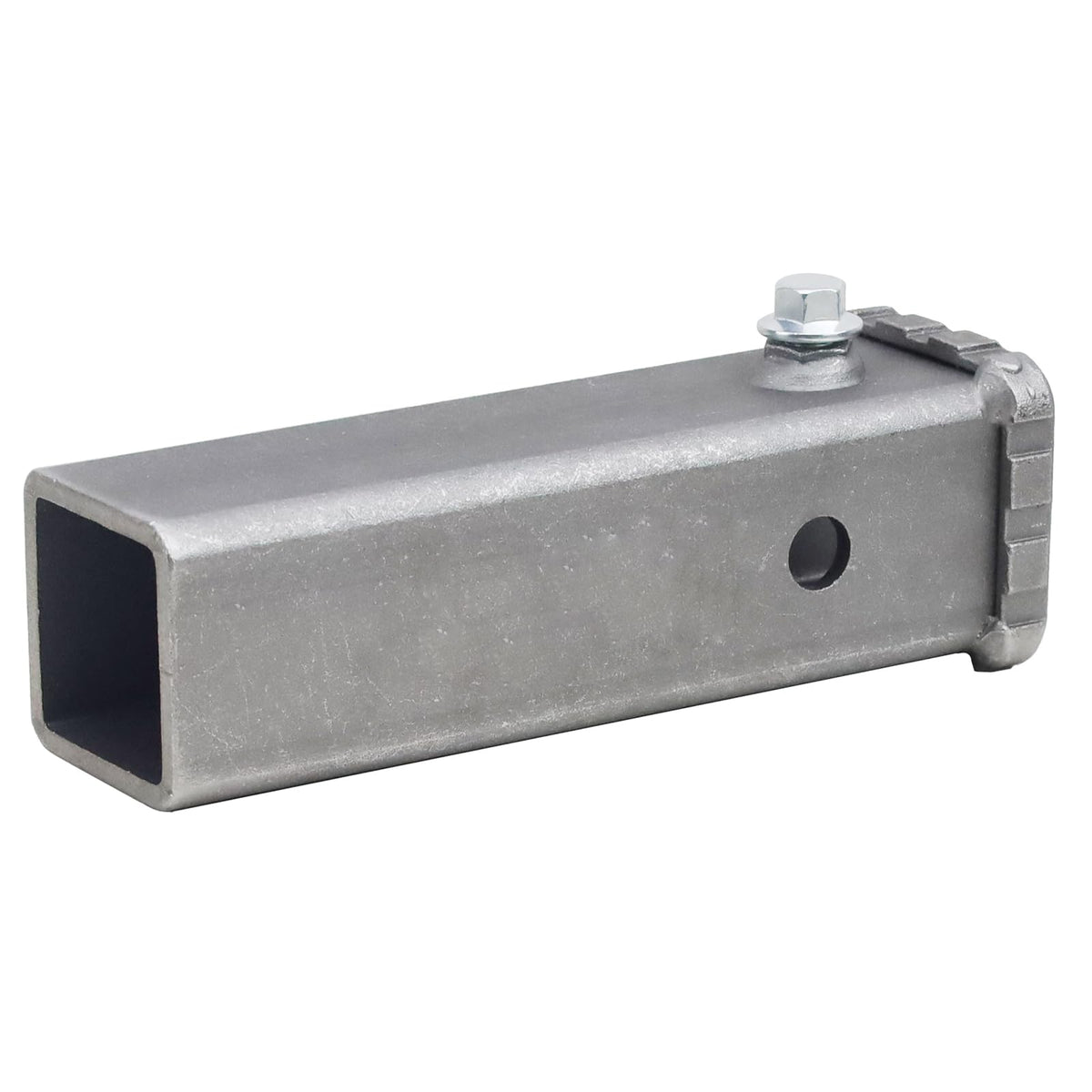

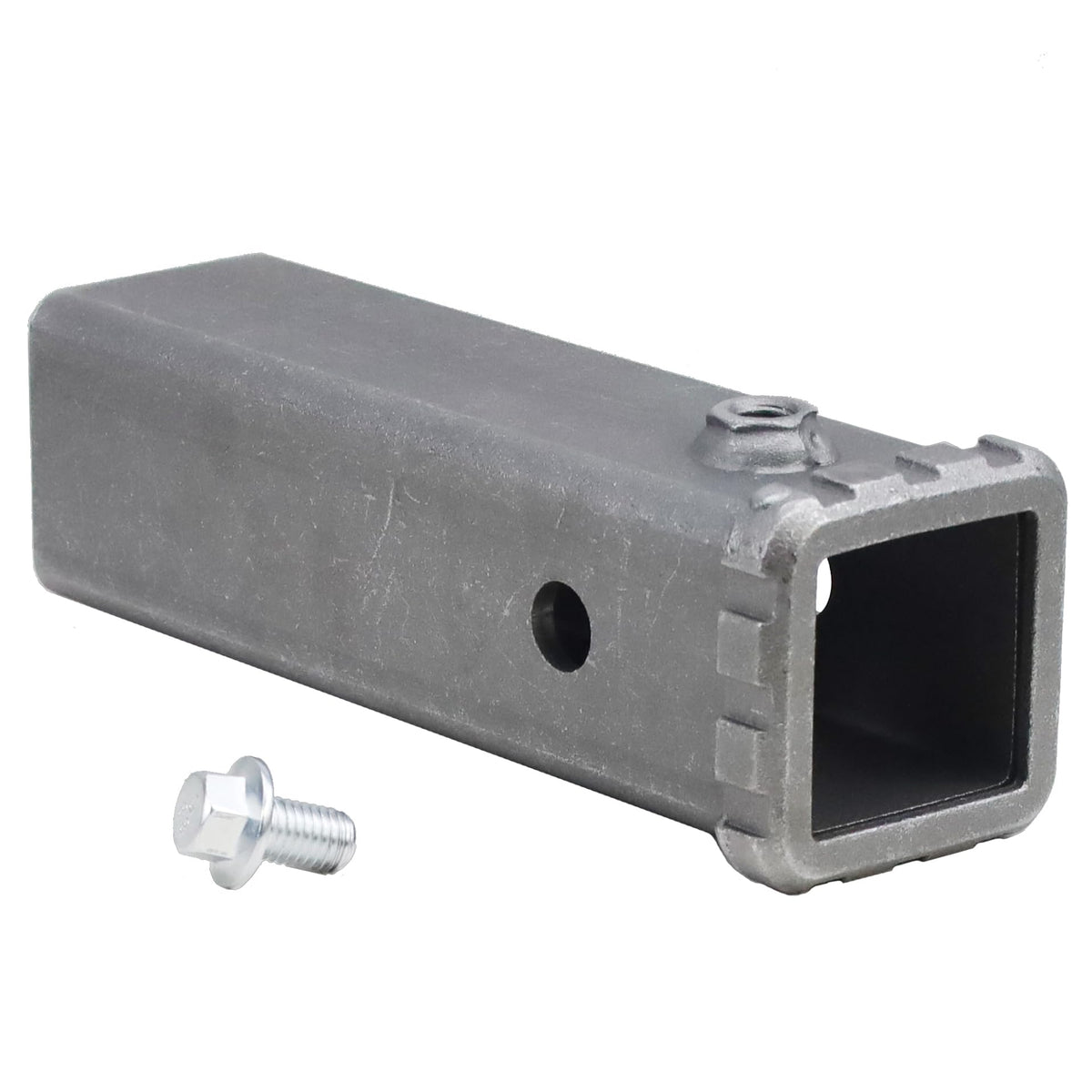

The REDTEE Weld-On Hitch Receiver Tube is a 2-inch, 9-inch-long raw steel receiver designed for welding into custom towing systems and fabrication projects.

If you build or modify trailers, custom racks, or vehicle frames, this weld-on receiver provides a sturdy, industry-standard 2" x 2" opening ready for permanent installation. It ships as raw steel so you can weld it directly to your substrate, and it includes an anti-rattle bolt and reinforced collar to improve fit and load stability. Confirm the 9" length and 5/8" hitch pin hole match your application before ordering.

How does this receiver fit standard accessories?

This hitch receiver uses the industry-standard 2" x 2" opening compatible with most ball mounts, shanks, and receiver-style accessories. Its precise dimensions make interchangeability straightforward for aftermarket towing gear.

• Accepts 2" receiver accessories such as ball mounts and bike racks
• 5/8" hitch pin hole fits common hitch pins and locking pins
• Standard 2" opening avoids adapter or shim requirements

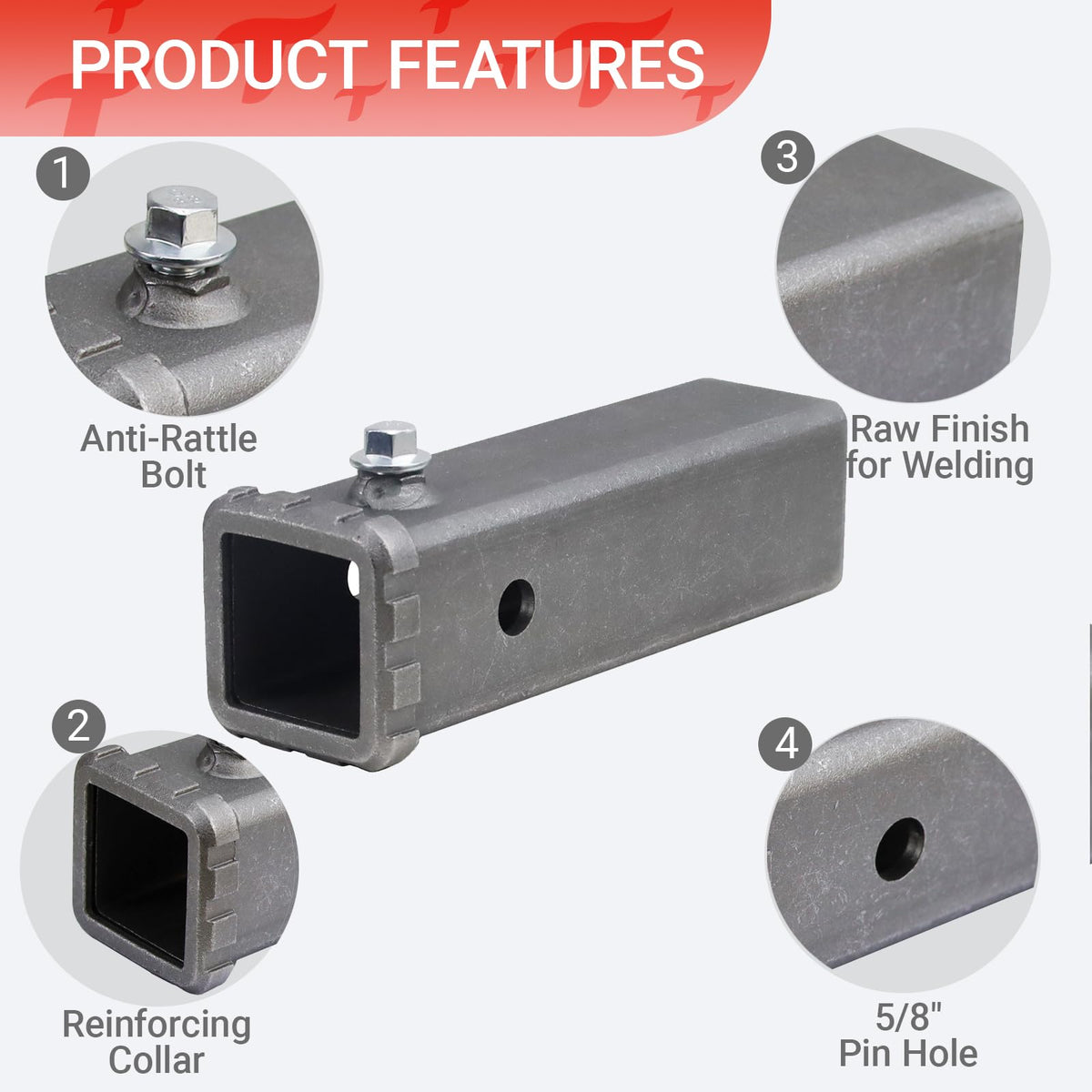

What features reduce movement and increase strength?

The tube includes a threaded anti-rattle bolt to remove play between the shank and receiver, plus a reinforced collar at the mouth to concentrate strength where loads are highest. These elements improve stability for towed loads and attached accessories.

• Anti-rattle bolt secures the shank and eliminates wobble
• Reinforced collar adds structural support at the opening
• Weld-on design removes weak points found in bolt-on adapters

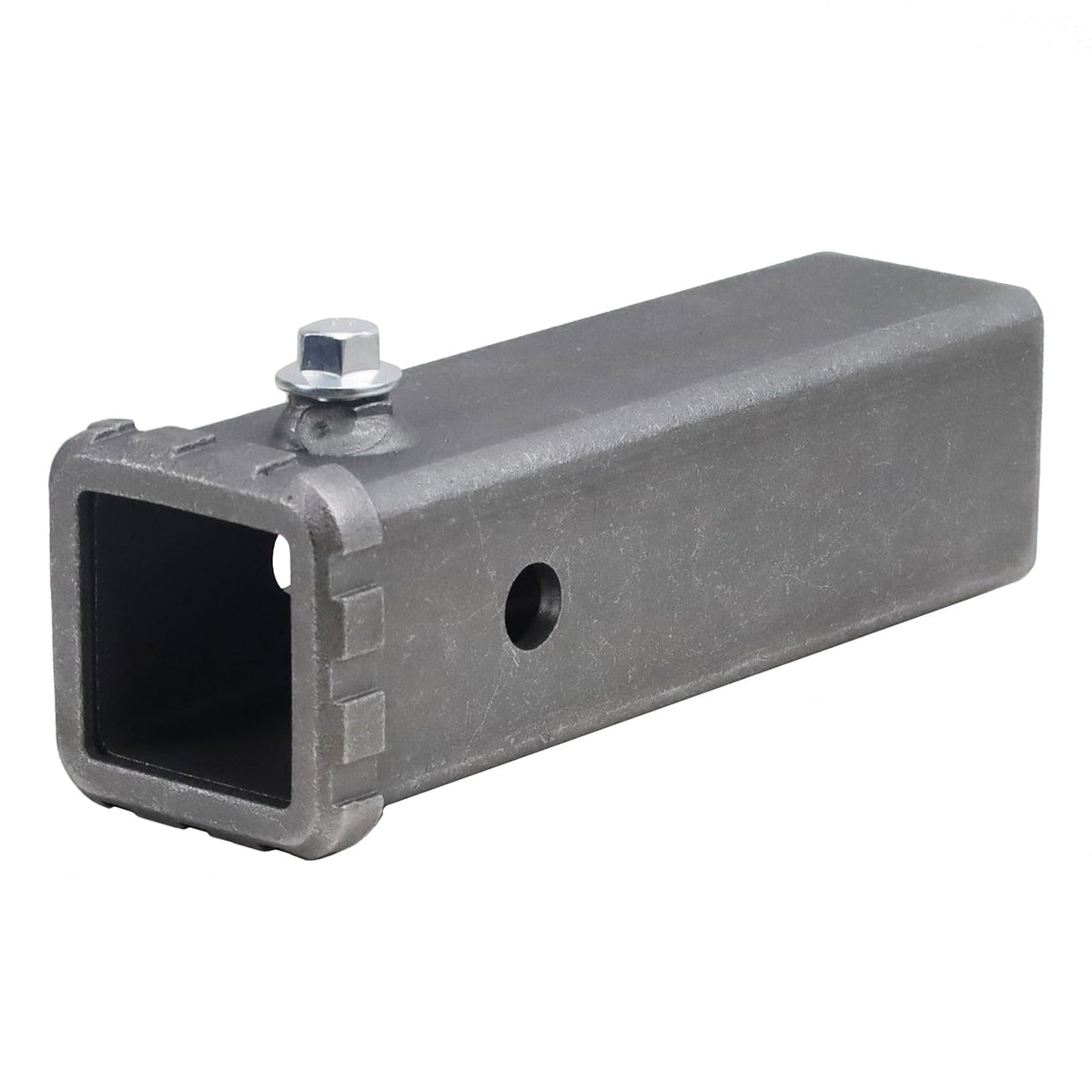

How is this receiver installed and what materials are used?

This product comes as raw steel to be welded directly into place by a qualified fabricator or welder. The bare-metal finish allows for a full-penetration weld; afterwards, you can prime and paint or coat it to match your frame and prevent corrosion.

• Raw steel construction for direct welding
• Designed for workshop or field fabrication projects
• Post-weld coating recommended for corrosion resistance

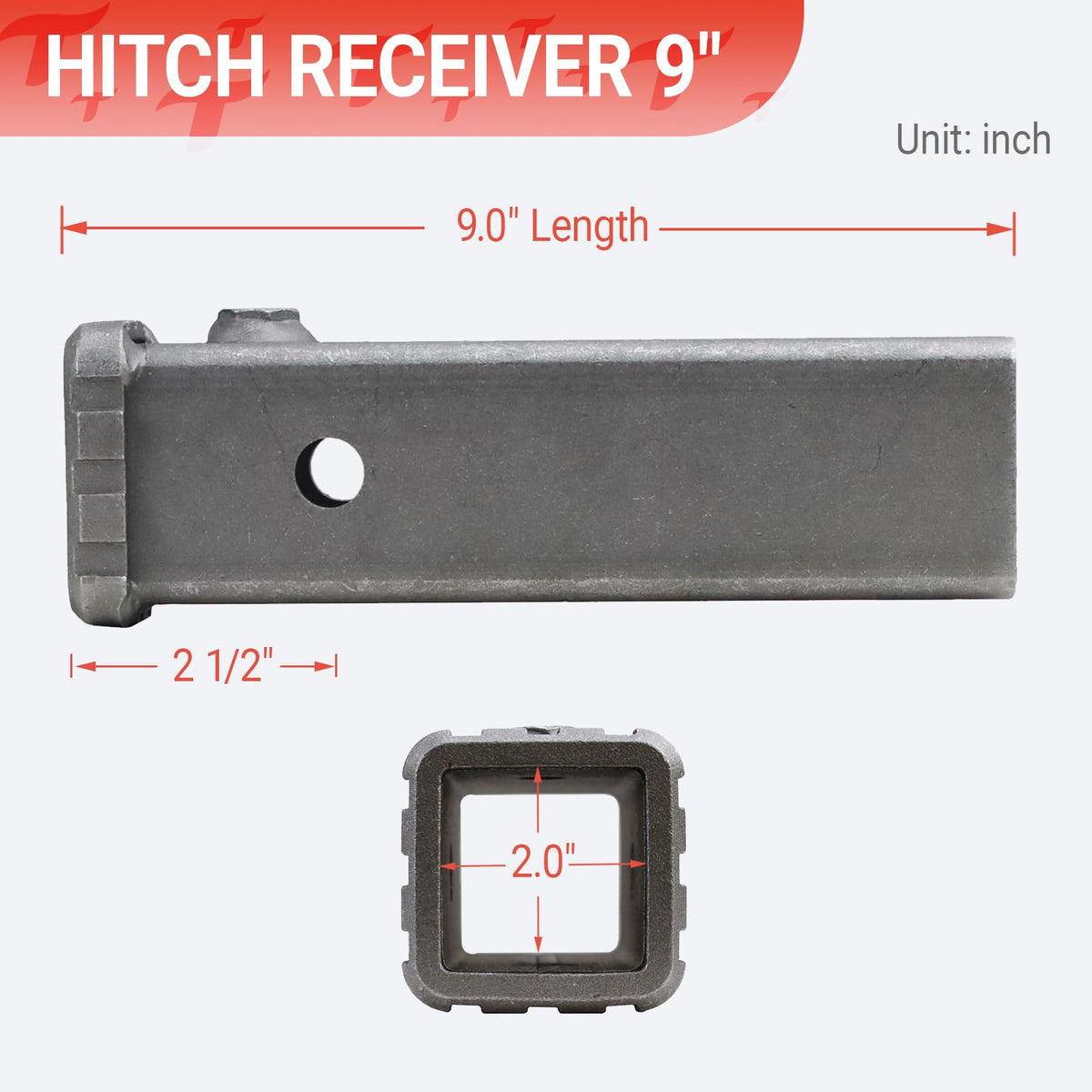

Will the 9" length work for my build?

The receiver tube measures 9 inches overall and is intended for applications where that length provides the correct offset or clearance. Measure your intended install area and compare the 9" dimension to existing components to ensure proper fit and pin alignment.

• 9" total length from end to end
• 5/8" hitch pin hole centered for common pin sizes
• Verify clearance behind mounting surface before welding

Who this is for: The REDTEE Weld-On Hitch Receiver Tube suits fabricators, custom trailer builders, commercial fleet technicians, and DIY enthusiasts who need a permanent, heavy-duty 2" receiver. Choose this part when you require a weldable, reinforced opening with anti-rattle hardware for secure towing or accessory use. If you prefer a removable install or a finished painted product, consider a bolt-on or powder-coated alternative; otherwise this raw-steel receiver is ideal for permanent, high-strength integrations.
