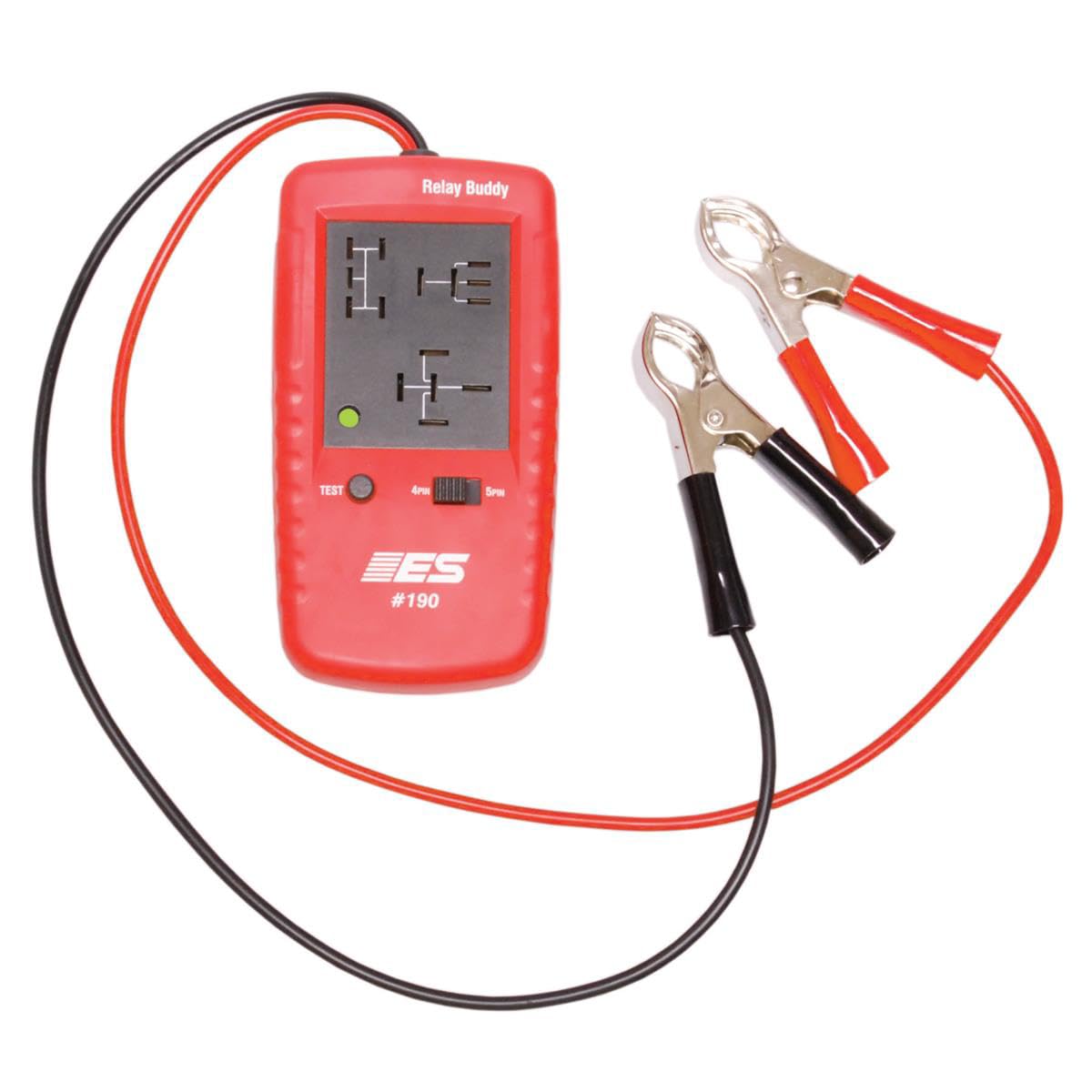

Relay Buddy automotive relay tester Model 190 — 3‑4‑5‑pin tester with LED pass/fail

Relay Buddy is a compact, plug-in automotive relay tester that quickly verifies coil and contact function for common 3-, 4- and 5-pin relays.

If you work on cars, trucks, or fleet vehicles, diagnosing a failing relay fast saves time and keeps repairs focused. The Electronic Specialties 190 Relay Buddy is a go/no-go device that uses the vehicle’s 12V battery to energize the relay coil and load the switch contacts while cycling the relay multiple times. A clear LED pass/fail result helps you decide whether to replace the relay or look elsewhere in the circuit.

How does Relay Buddy determine whether a relay is good or bad?

The tester applies power to the relay coil and monitors the contact behavior across several on/off cycles. If any cycle shows excessive resistance or a contact that does not switch properly, the device flags the relay as failed. Testing multiple cycles reduces false passes from intermittent faults.

• Applies vehicle 12V to the relay coil for real-world conditions
• Loads switch contacts to reveal high-resistance or pitting issues
• Runs several cycles and marks failure on any inconsistent cycle
• Single red/green LED clearly indicates pass or fail

Which relay types and pin configurations will Relay Buddy test?

Relay Buddy works with the most common automotive relays — especially standard 3-, 4- and 5-pin types used for lights, fans, horns, and many accessories. A simple selector lets you set the tester for 4- or 5-pin relays so it can exercise the contact paths that matter. It covers the three popular relay styles technicians encounter in everyday repairs.

• Compatible with standard 3-pin (coil/single-contact) relays
• Settable mode for 4-pin and 5-pin blade relays
• Designed for typical automotive relay footprints and terminals

What makes Relay Buddy reliable on the bench or under the hood?

Instead of just energizing the coil, Relay Buddy loads the relay contacts so you catch excessive contact resistance and early contact wear. The unit cycles relays repeatedly to reveal intermittent faults that one-shot tests miss. Because it uses the vehicle battery for power, the test reflects the relay’s behavior in actual operating voltage conditions.

• Contact loading uncovers high-resistance faults
• Multiple cycles detect intermittent or sticky contacts
• Vehicle 12V operation ensures realistic test conditions

How do you use Relay Buddy during diagnostics?

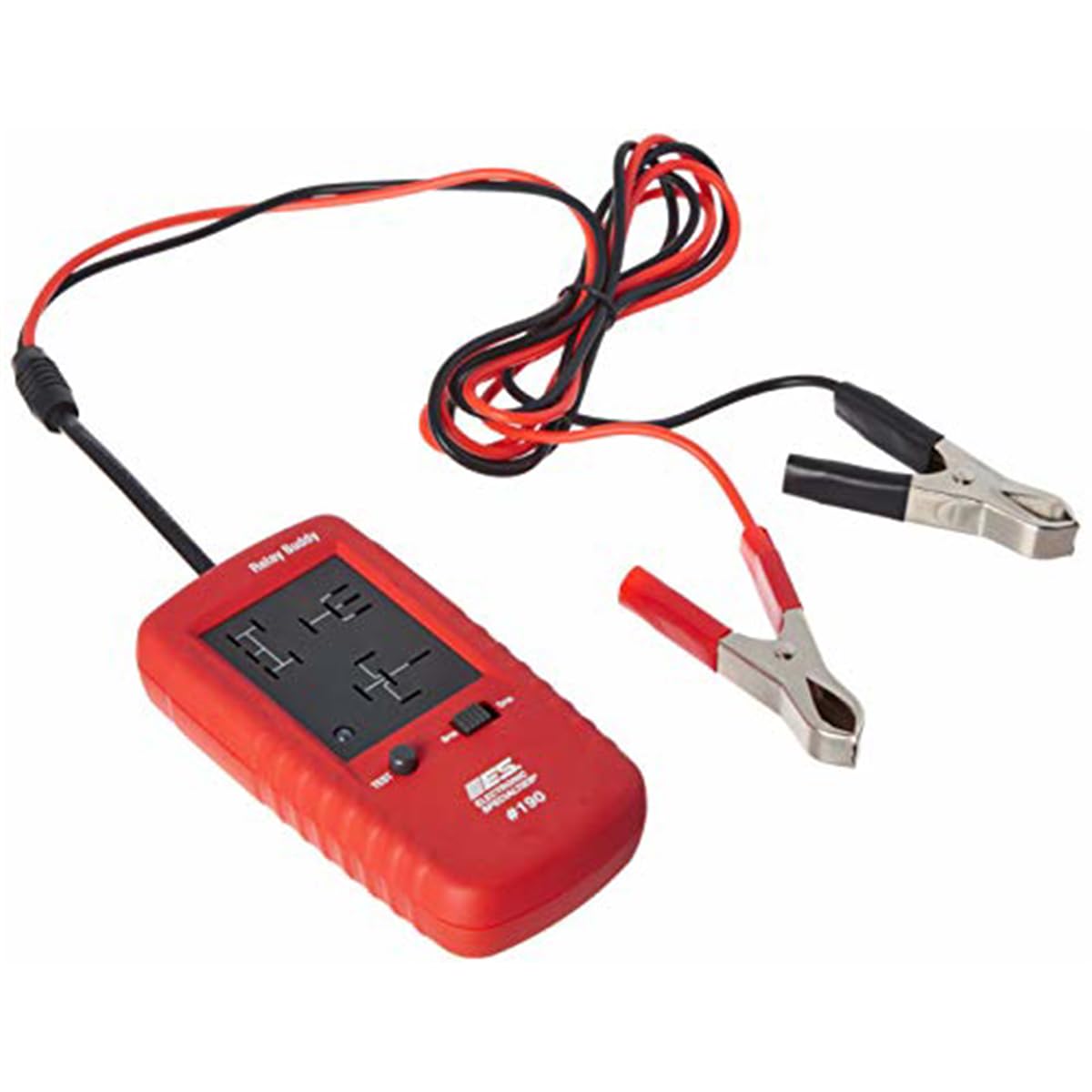

Testing is straightforward: plug the relay into the Relay Buddy socket, select the correct pin-mode if necessary, then observe the LED result after the automatic cycle sequence. A green LED indicates consistent successful operation; a red LED indicates a failure during one of the cycles. If it fails, replace the relay or continue electrical troubleshooting to find wiring or load issues.

• Insert relay into the tester socket securely
• Choose 4-pin or 5-pin mode when required
• Watch the LED — green for pass, red for fail
• Use a failed result to justify relay replacement or deeper circuit checks

Who is this for: Relay Buddy is built for professional mechanics, mobile technicians, fleet maintenance teams, and DIY enthusiasts who need a fast, reliable method to verify common automotive relays. It’s ideal when you want quick go/no-go answers without wiring harness back-probing or guesswork, helping you narrow down electrical faults and reduce diagnostic time.
