Renogy 500A Battery Monitor with Shunt — 20ft Cable, Backlit Display & 1% Accuracy

This compact monitoring system gives you real‑time insight into battery voltage, current draw, consumed ampere‑hours and remaining capacity across 12V–120V systems (up to 500A with the included shunt). Built for solar arrays, RVs, marine setups and off‑grid battery banks, the Renogy monitor combines a clear backlit display with one-percent accuracy and configurable alerts so you can protect and manage diverse battery types.

How accurate and responsive is the Renogy 500A monitor?

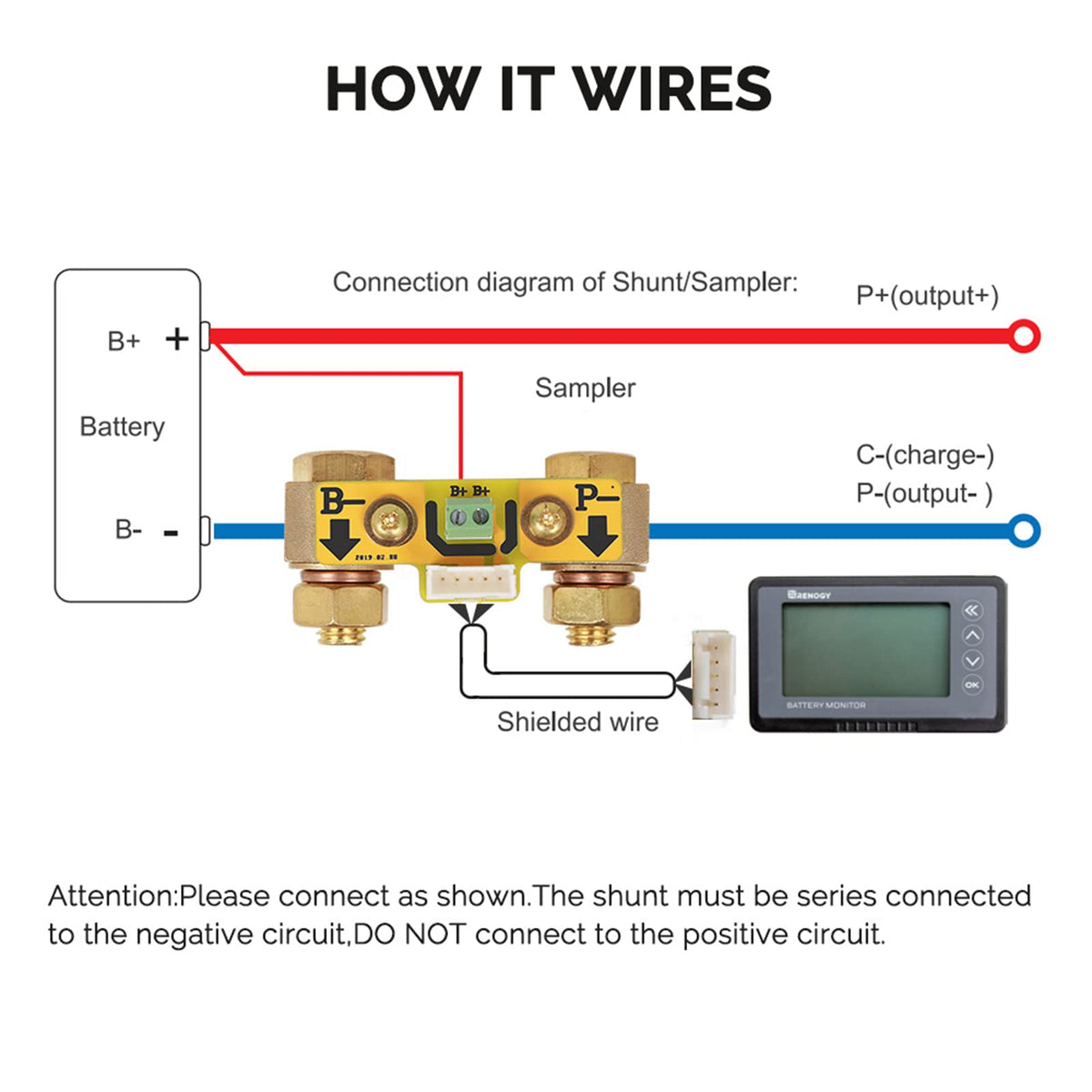

The monitor uses a dedicated shunt to measure current and a separate sensing circuit for voltage, yielding about 1% accuracy for most readings. Updates are frequent enough to show charging or discharging events in near real time, making it practical for performance checks and troubleshooting.

• Shunt‑based current sensing for precise ampere readings
• Separate voltage measurement circuit to avoid load interference
• High‑definition backlit display for clear visibility day or night

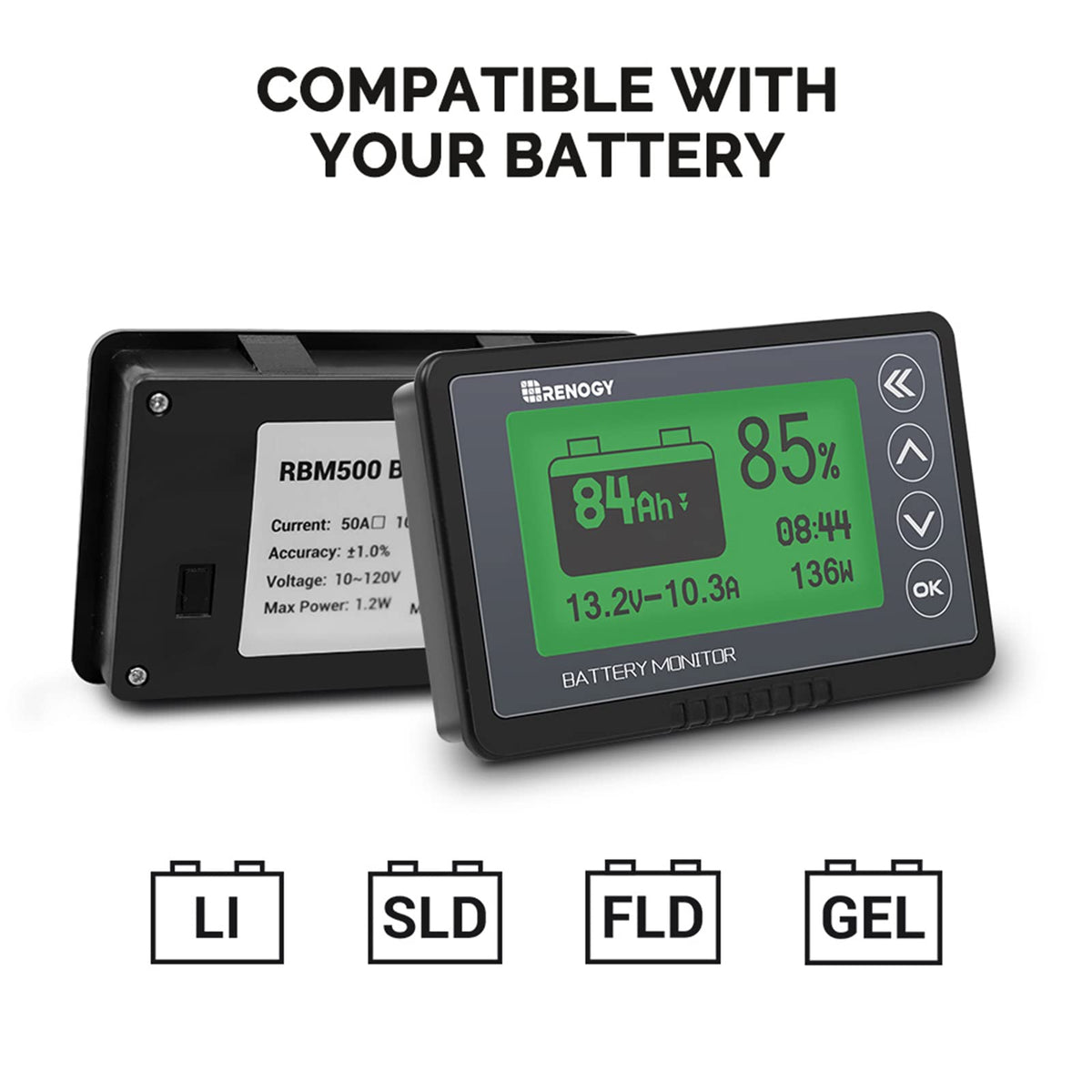

What battery types and voltages does it support?

This monitor is compatible with a wide range of chemistries, including sealed lead‑acid (AGM/GEL), flooded lead‑acid, LiFePO4 and other lithium configurations. It can read systems across typical nominal voltages and is programmable to match battery capacity and chemistry settings for more accurate capacity estimates.

• Works with 12V, 24V, 48V and higher nominal systems up to 120V sensor range
• Settings for different battery chemistries to refine state‑of‑charge estimates
• Programmable battery capacity and alarm thresholds

How do the alarm and protection features help preserve batteries?

You can program both high and low voltage alarms so the display will flash and sound when thresholds are breached, prompting action before damage occurs. The visual backlight and numeric value both flash during an alarm, making critical events hard to miss even from a distance.

• Adjustable high/low voltage alarms with audible alert
• Display backlight flashes to enhance alarm visibility
• Capacity tracking helps avoid deep discharge and extends usable life

Is installation and day‑to‑day use straightforward?

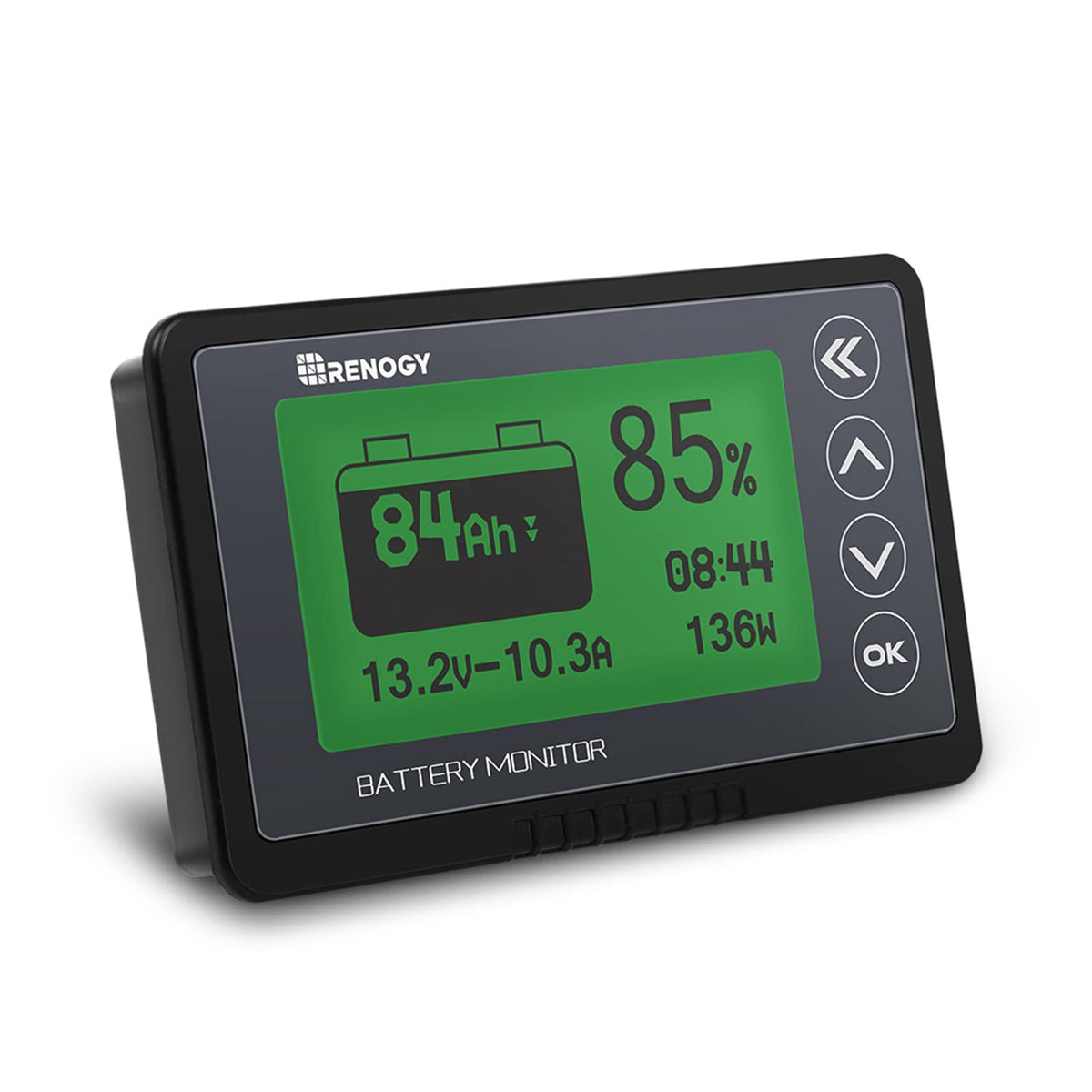

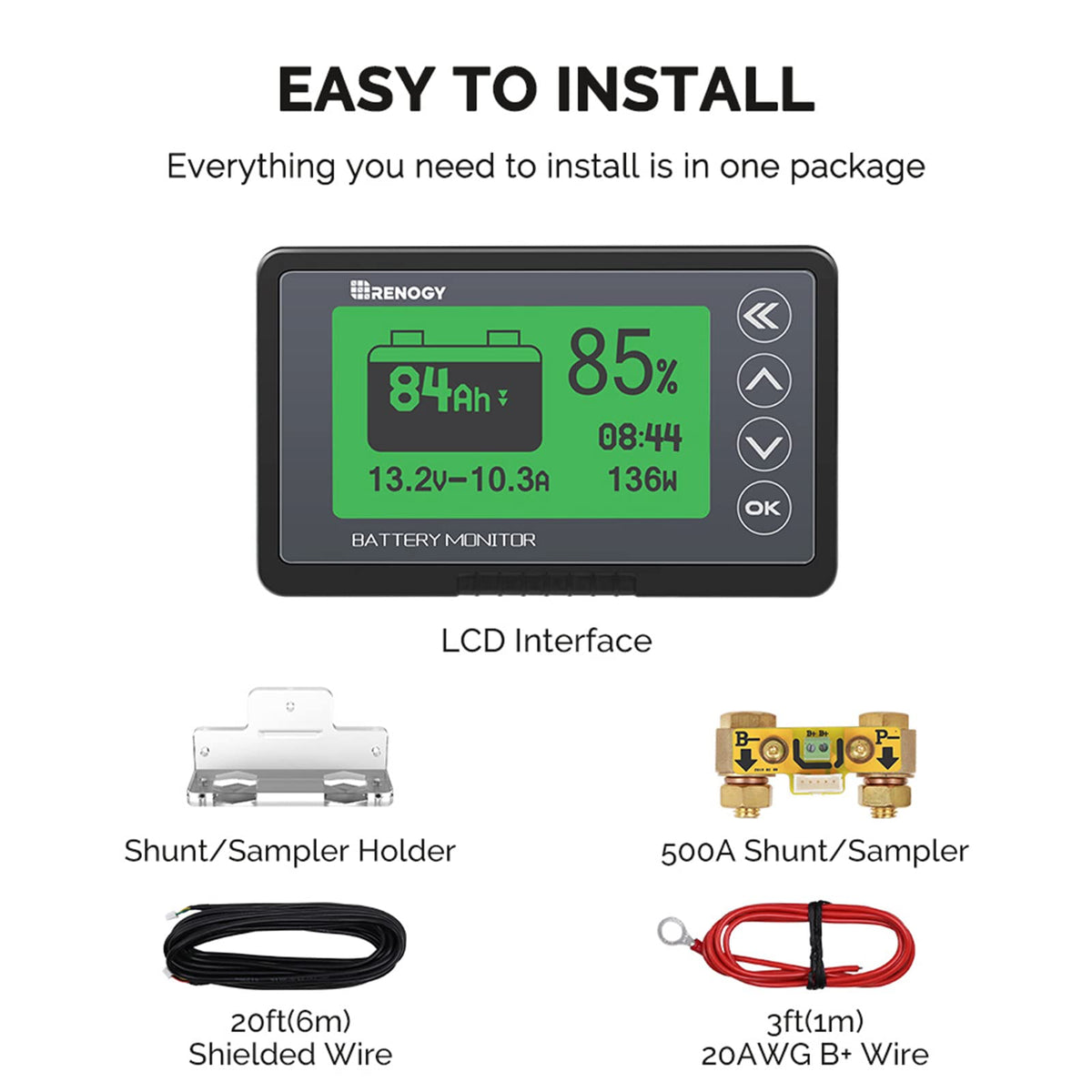

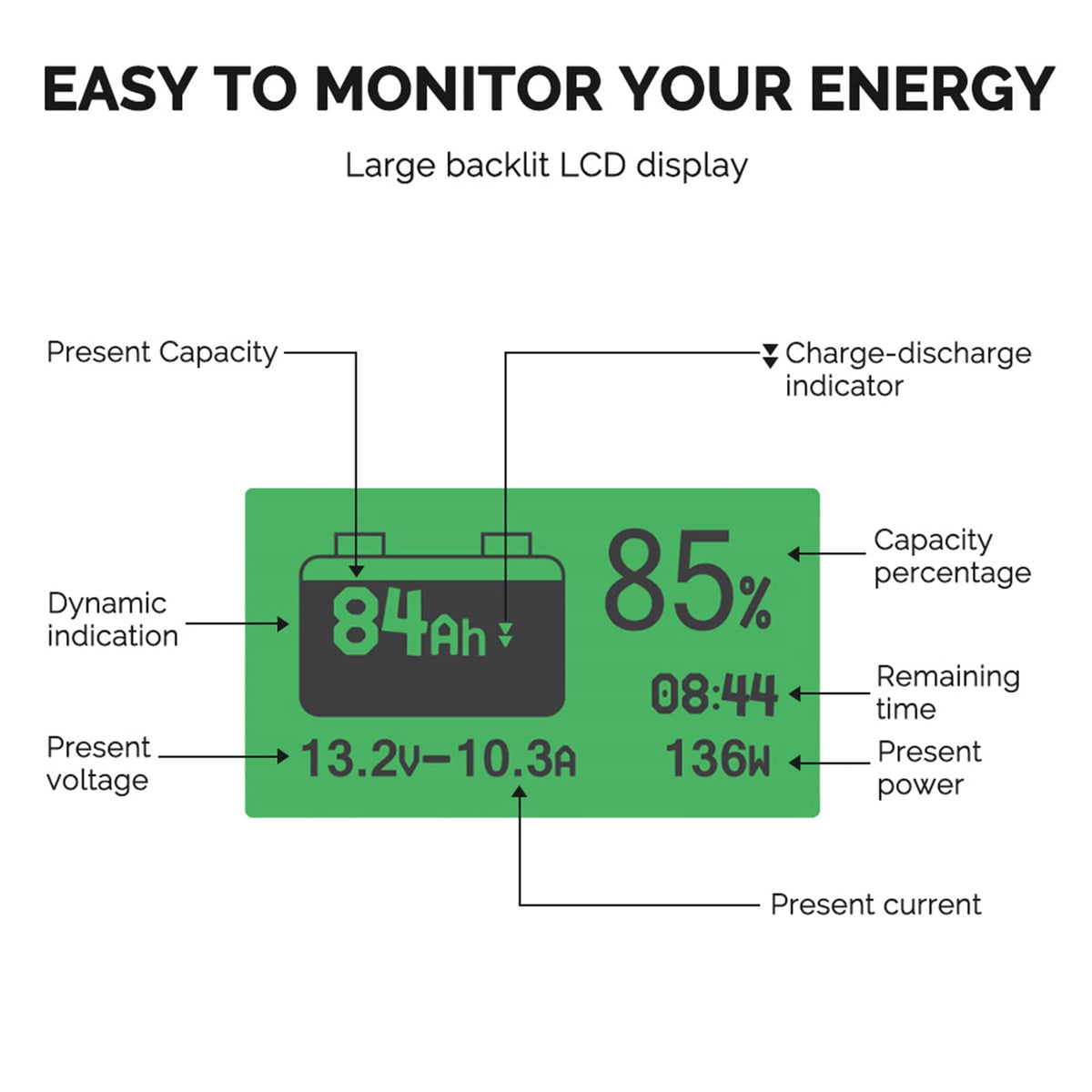

The monitor ships with a transparent shunt holder for easier mounting and a 20‑foot shielded cable so you can place the display where it’s convenient. The interface uses simple button controls and a readable screen to show voltage, current, consumed amp‑hours and remaining capacity at a glance.

• Transparent shunt holder for convenient mounting and inspection
• 20ft shielded cable allows remote panel placement up to a distance
• On‑screen readouts include current, voltage, amp‑hours and degradation rate

Who is this for? The Renogy 500A battery monitor is aimed at DIY solar integrators, RV and marine owners, and off‑grid system operators who need accurate, in‑line monitoring of battery banks up to 500A. It suits anyone who wants programmable alarms, long cable reach for flexible mounting, and compatibility with multiple battery chemistries to better manage capacity and prolong battery service life.
