Rfroad Lighting Wiring Harness 1-Lead for 12V LED Light Bar — 40A Relay, 30A Fuse, Nylon Jacket, Blue Rocker Switch

Rfroad Lighting Wiring Harness 1 Lead is a complete, single-light wiring kit that lets you add and safely control one 12V LED light bar or fog/work light with a 40A relay, 30A fuse and durable nylon jacket.

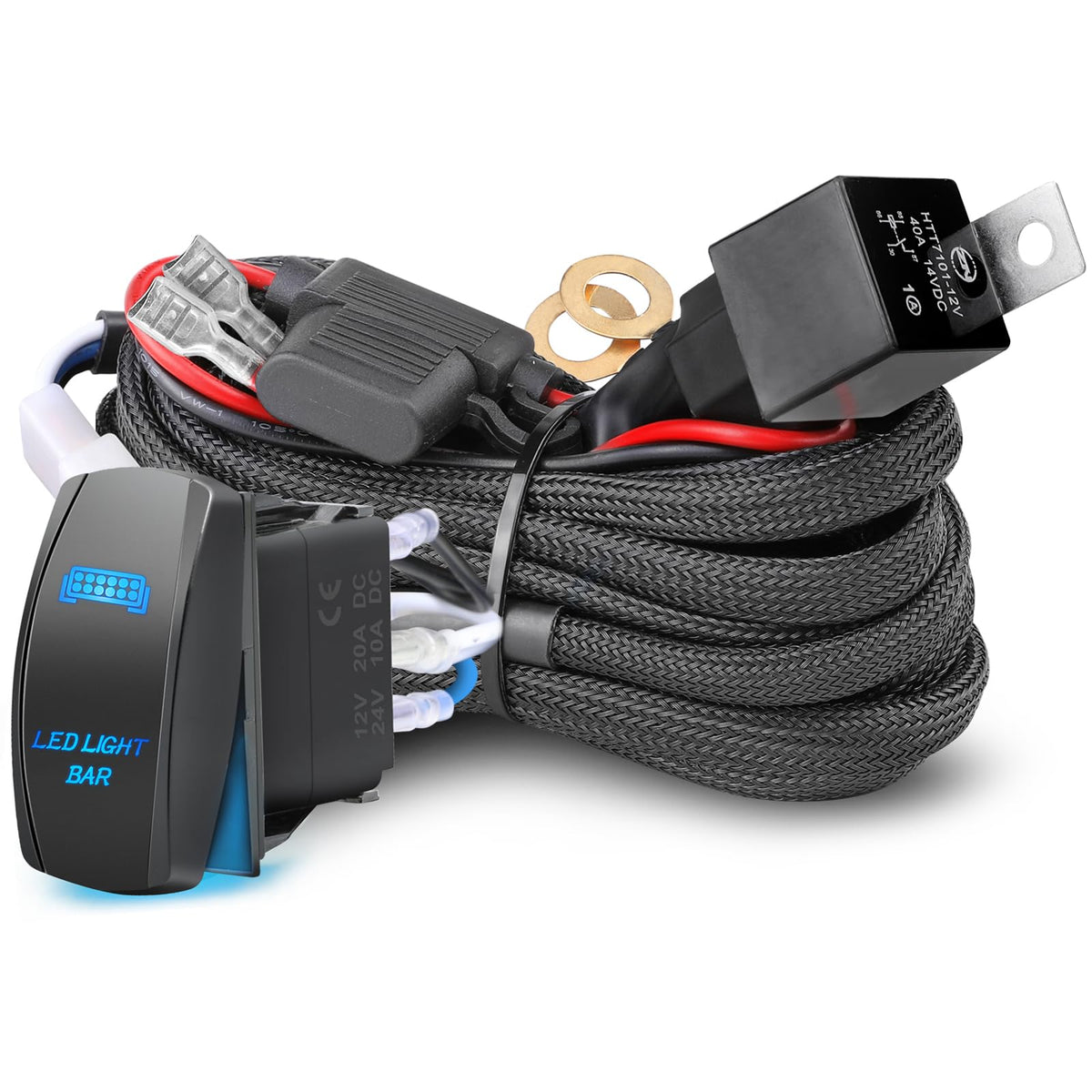

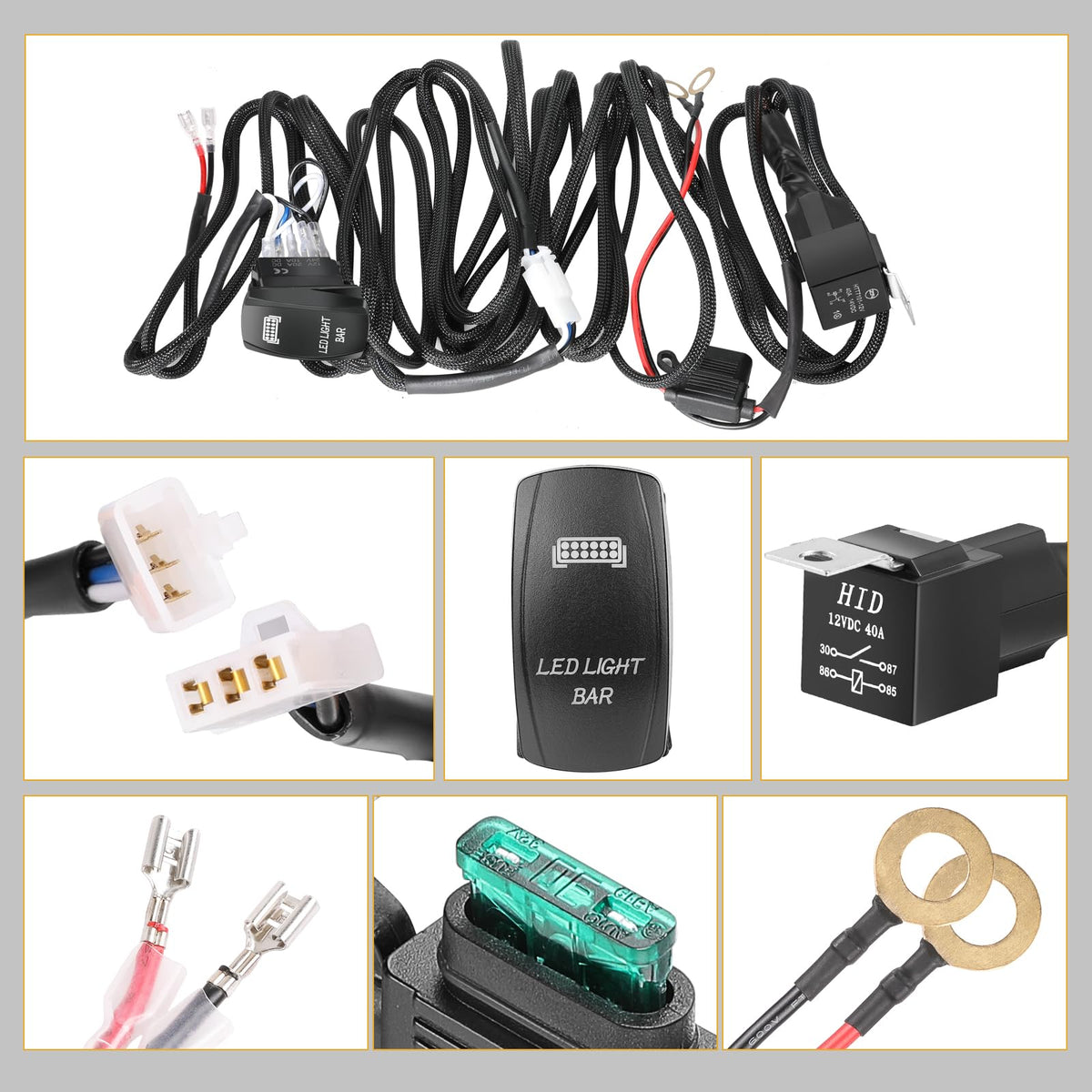

This plug-and-play wiring harness is built to power one 2"–30" LED light bar or a single fog/work lamp from any 12V vehicle source. It uses a heavy-duty 40A relay and a 30A blade fuse to protect the circuit, and the nylon-sheathed cable resists heat, dust and moisture for long service life. Included are connectors, heat-shrink tubing and a blue-indicator 5-pin rocker switch so you can mount and operate the light conveniently from the cabin.

How does this harness protect my vehicle’s electrical system?

The kit uses a dedicated 40A automotive relay and an inline 30A blade fuse to isolate and safeguard the factory wiring. This arrangement reduces voltage drop to the light, prevents overload of existing circuits and trips the fuse during a short or excess current event.

• 40A relay handles high-current draw without stressing switch contacts.
• 30A blade fuse provides primary overcurrent protection with rubber cap.
• Inline fuse location simplifies replacement and inspection.

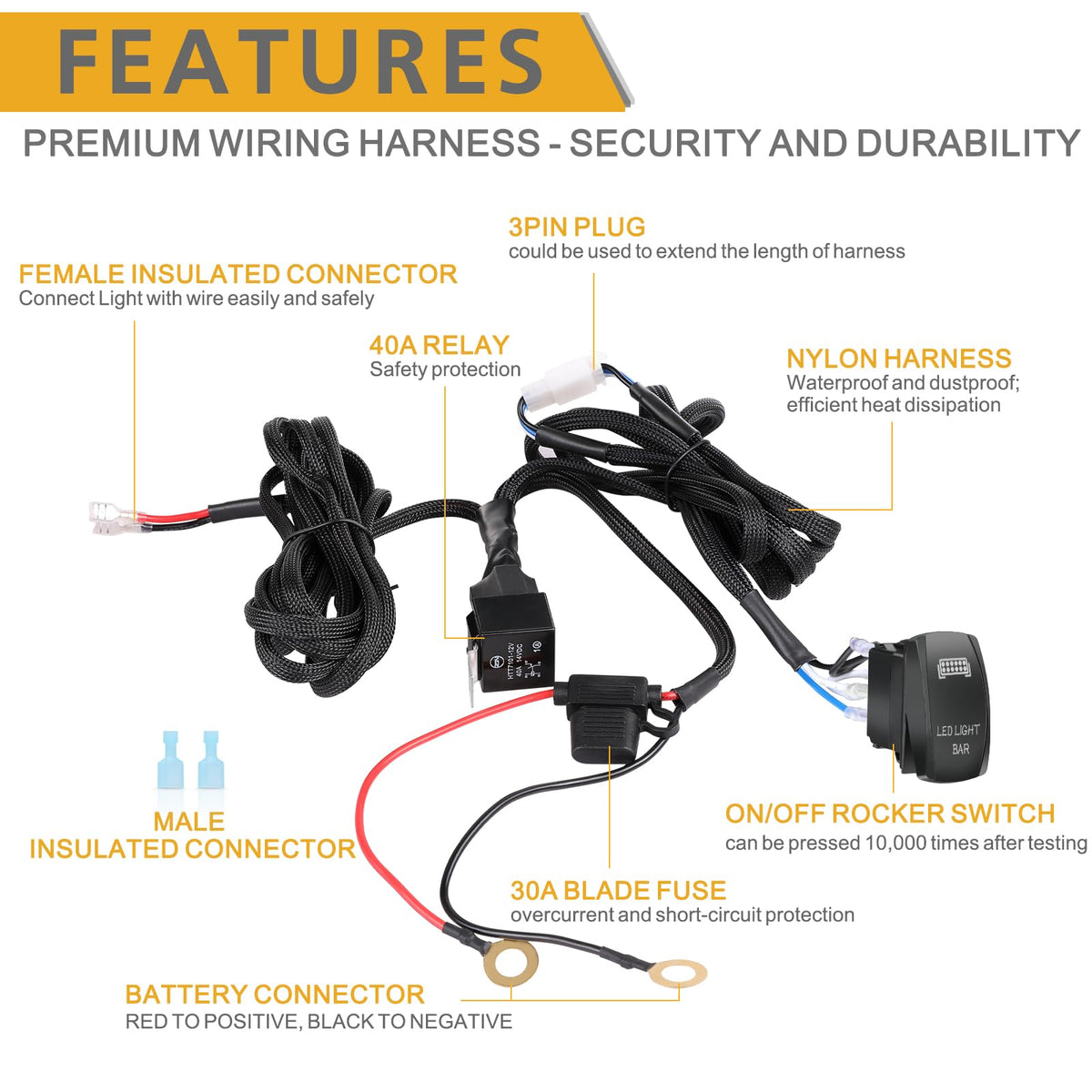

• Fully insulated male/female connectors reduce corrosion risk.

Will the nylon jacketed wire stand up to off-road conditions?

Yes—the harness jacket is made from nylon rather than standard PVC, giving better resistance to abrasion, heat and moisture. That makes it more durable when routed through engine bays, underbody areas or cluttered mounting points common in trucks, ATVs and boats.

• Nylon outer jacket resists high temperatures and sunlight exposure.
• Waterproof and dustproof characteristics for harsh environments.

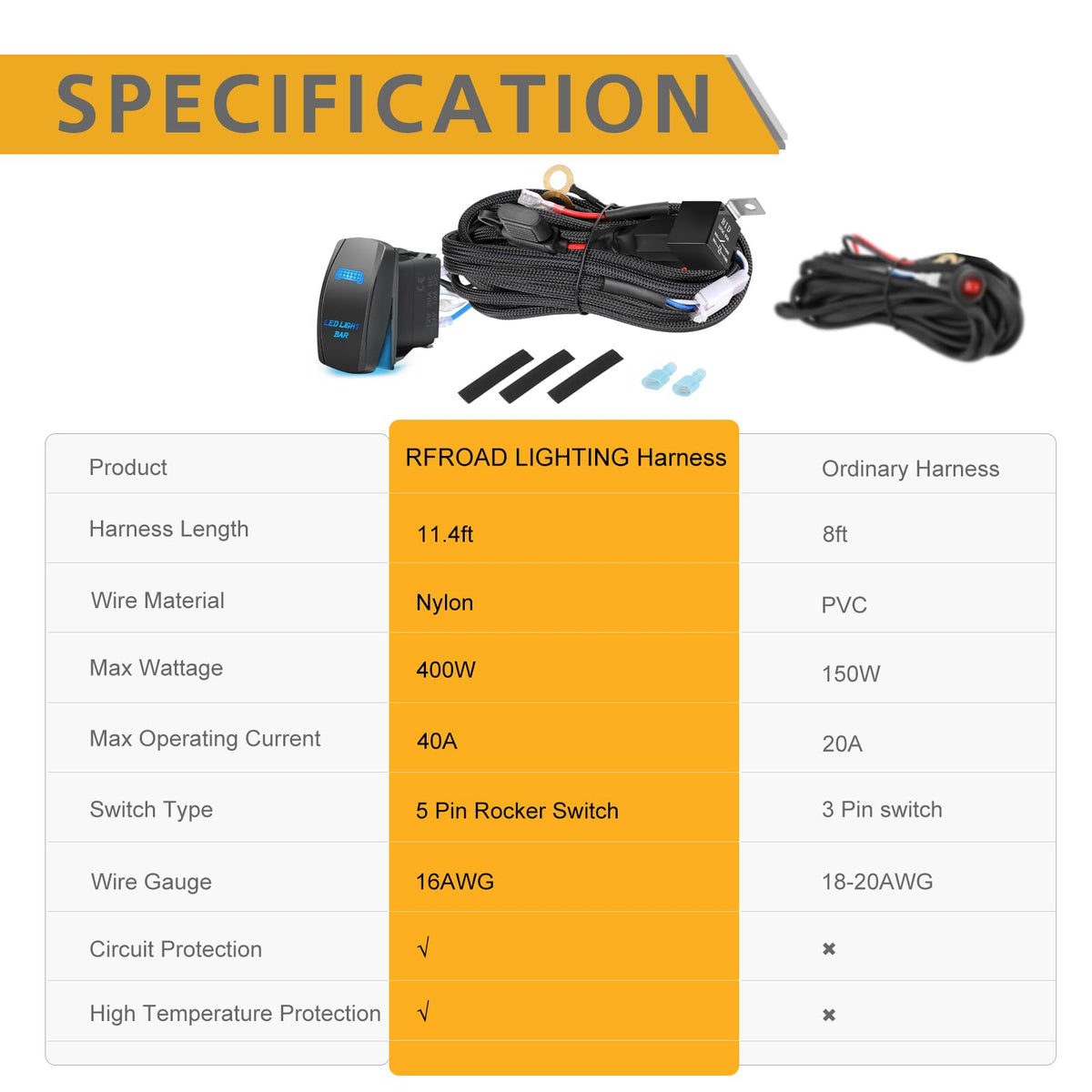

• Long 11.4 ft length eases routing to remote mounting locations.
• Included heat-shrink tubing improves seal and strain relief at joins.

How easy is the kit to install and operate?

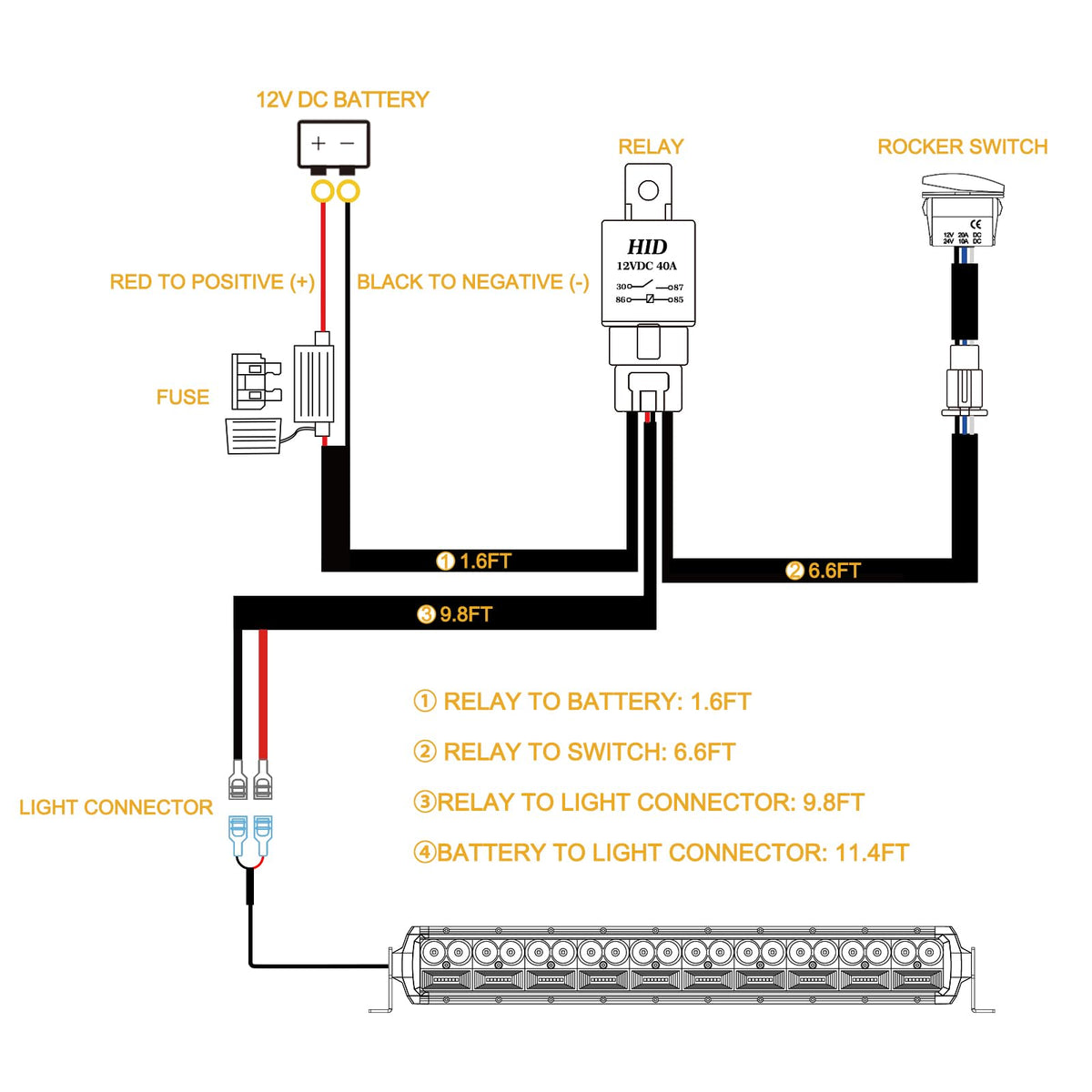

Installation is straightforward for anyone familiar with basic vehicle wiring. The harness includes a pre-wired rocker switch with a blue indicator light, all necessary connectors and clear segments for relay and fuse placement, so you can complete the job without fabricating custom parts.

• Pre-assembled relay and inline fuse reduce wiring steps.

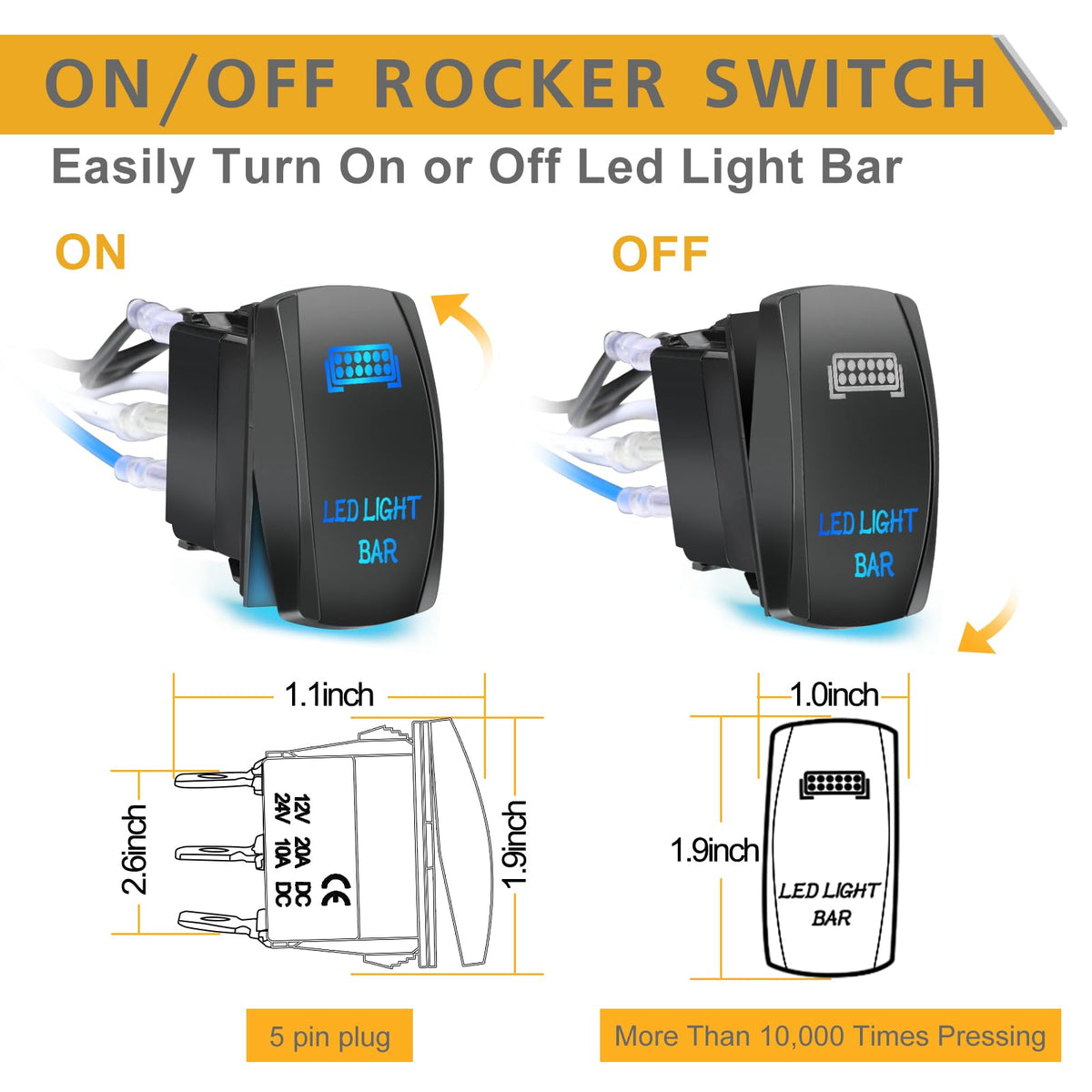

• 5-pin on/off rocker switch with indicator for nighttime use.
• Male/female insulated terminals for quick, secure connections.
• 11.4 ft cable allows flexible mounting positions for lights and switch.

What lights and vehicles will this harness work with?

The single-lead design supports one 12V LED light up to roughly 400W load capacity, making it compatible with a wide range of aftermarket light bars and fog lights. It fits trucks, SUVs, UTVs, ATVs, boats and other 12V systems where a single auxiliary light is being added.

• Compatible with 2"–30" LED light bars and many fog/work lights.
• Designed for standard 12V automotive electrical systems.
• Ideal for trucks, UTVs, ATVs, SUVs and marine 12V setups.
• Use within the specified amp limit to avoid overloading the circuit.

Who this is for: installers, DIY vehicle owners and off-road enthusiasts who want a reliable, single-light wiring solution with strong protection and durable materials. Choose this Rfroad Lighting 1-lead harness if you need a long, weather-resistant cable, a replaceable inline fuse, and an easy-to-mount illuminated rocker switch to control a single 12V LED light in demanding environments.
