RHINOVAL Winch Mounting Plate 10 x 4.5 in Raised Bolt Pattern — 15,000 lb Heavy Duty Steel with Fairlead Flange

RHINOVAL Universal Winch Mounting Plate is a heavy-duty steel plate with a raised 10" x 4.5" bolt pattern, rated for winches up to 15,000 lb and supplied with an integrated fairlead flange and hardware for trucks, SUVs, trailers, and ATVs.

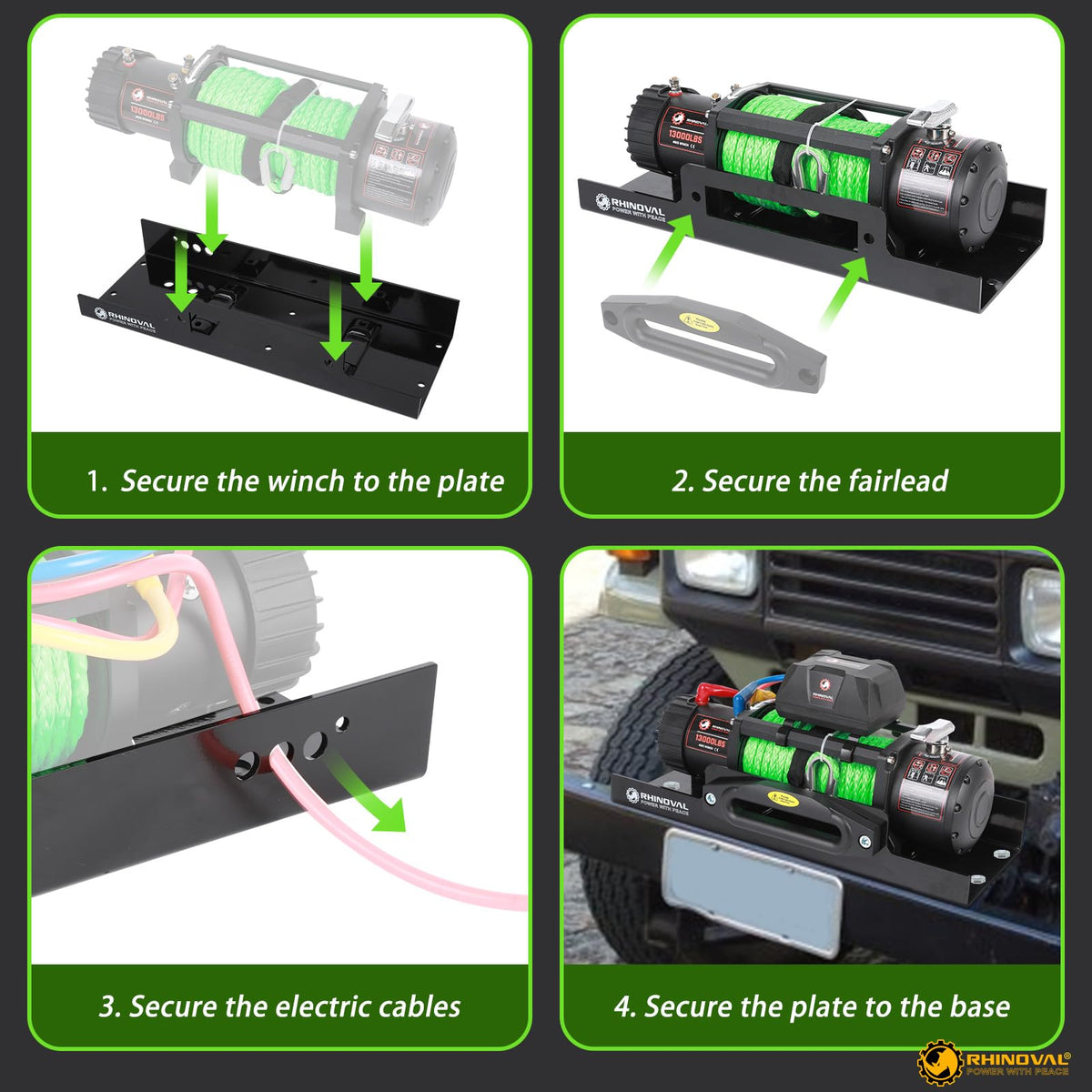

This universal winch mounting plate is built to accept a wide range of popular winches while minimizing fabrication work. Its raised bolt pattern gives the winch proper clearance without extra spacers, and pre-drilled cable pass-throughs plus drainage holes simplify wiring and moisture management. The kit includes the plate, fairlead flange, long bolts, nuts, and washers so you have the core parts needed for a straightforward install in many applications.

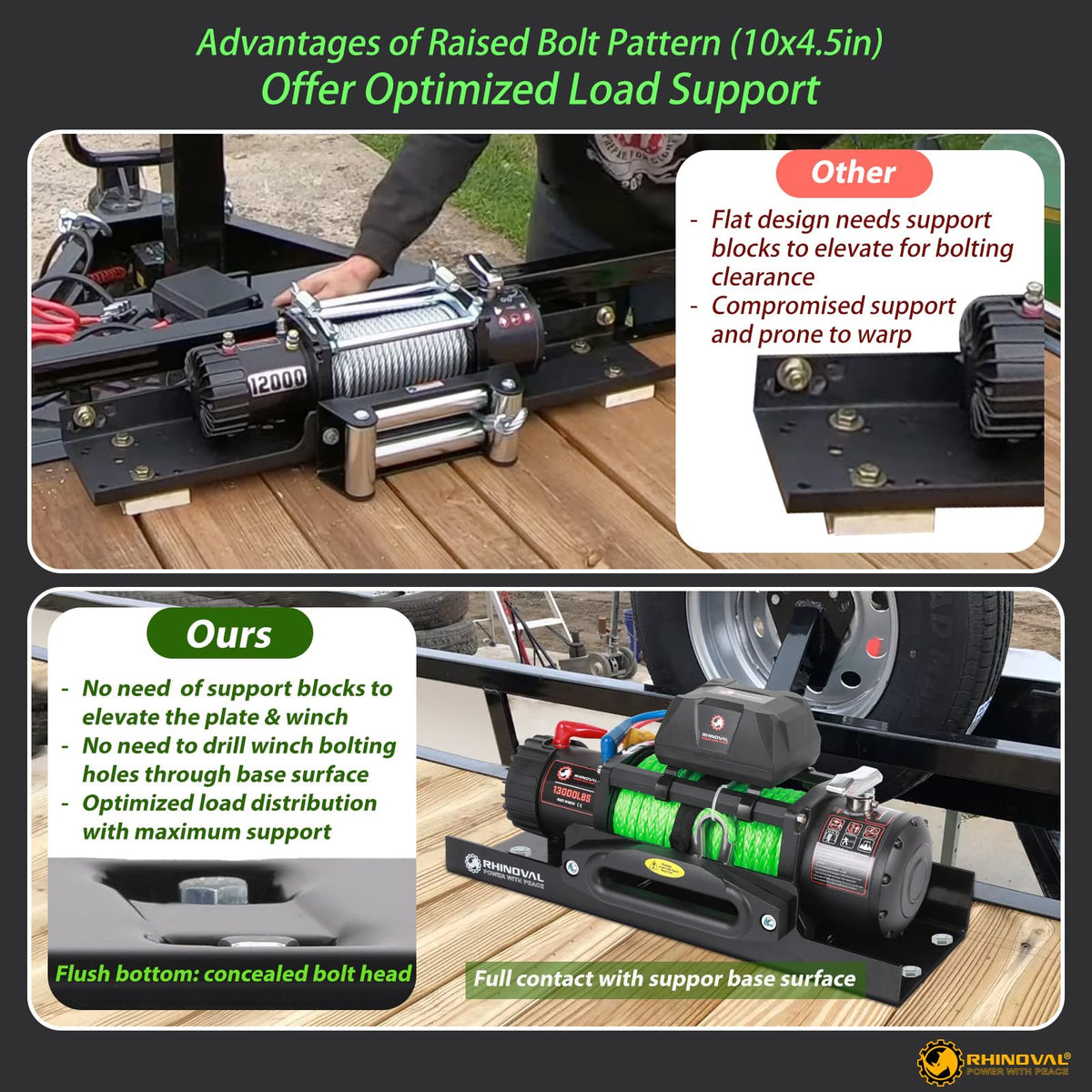

What makes the raised bolt pattern beneficial for installation?

The raised bolt pattern provides additional clearance for winch mounting bolts so you don’t need separate spacer blocks to achieve full contact between the winch base and the mounting plate. This design promotes stronger load transfer and keeps the assembly compact.

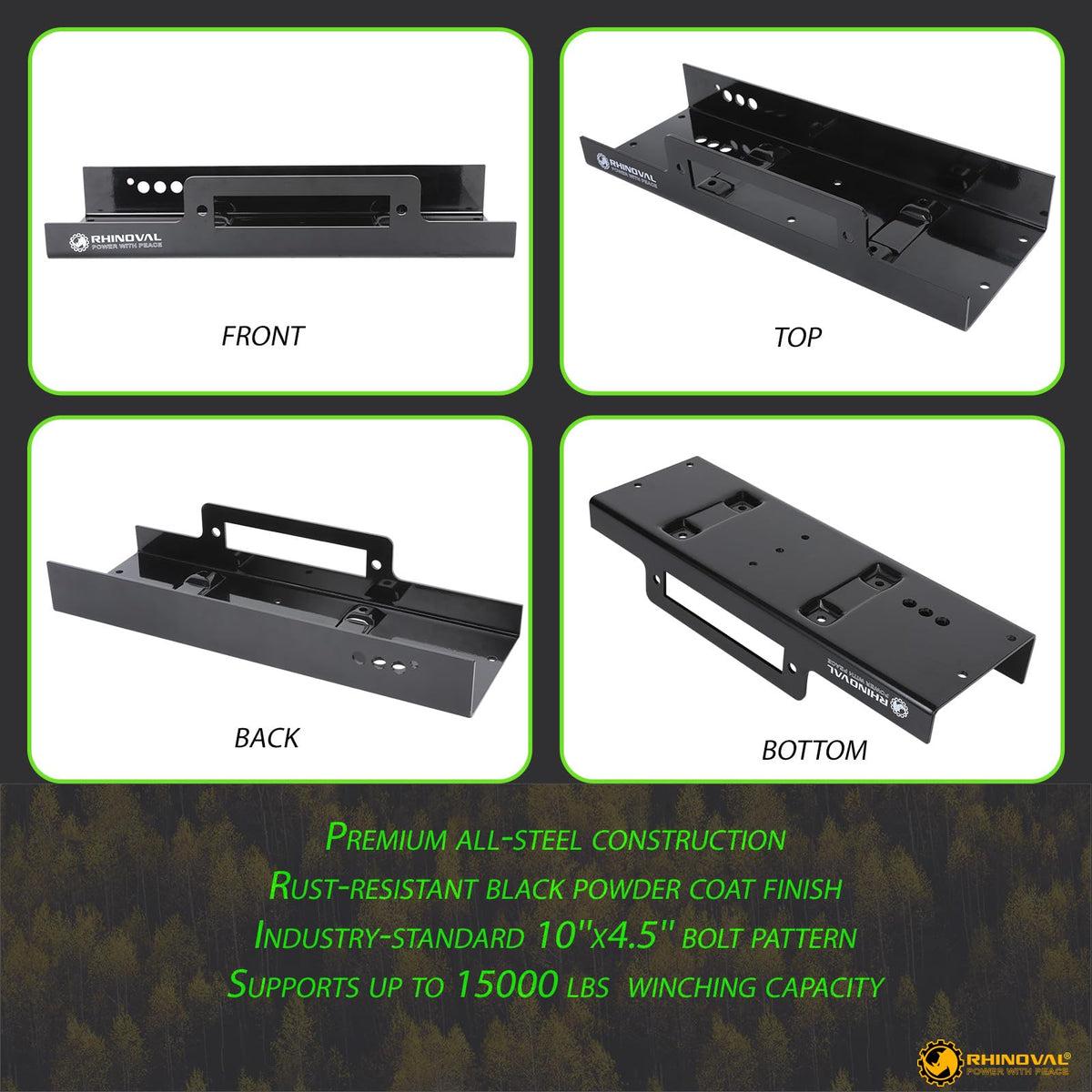

• 10" x 4.5" (254 mm x 114 mm) standard bolt footprint fits many winch models
• Raised section eliminates the common spacer requirement
• Full-strength plate-to-winch contact for better load distribution

How much cutting or drilling does this plate require?

The RHINOVAL plate minimizes drilling into the vehicle or bumper base. You only need to drill the four plate-to-base mounting holes; the center winch holes can remain un-drilled because the plate holds the winch above the base. Some applications—like custom Jeep bumpers—may still need additional modification.

• Only four base attachment holes required through the mounting surface

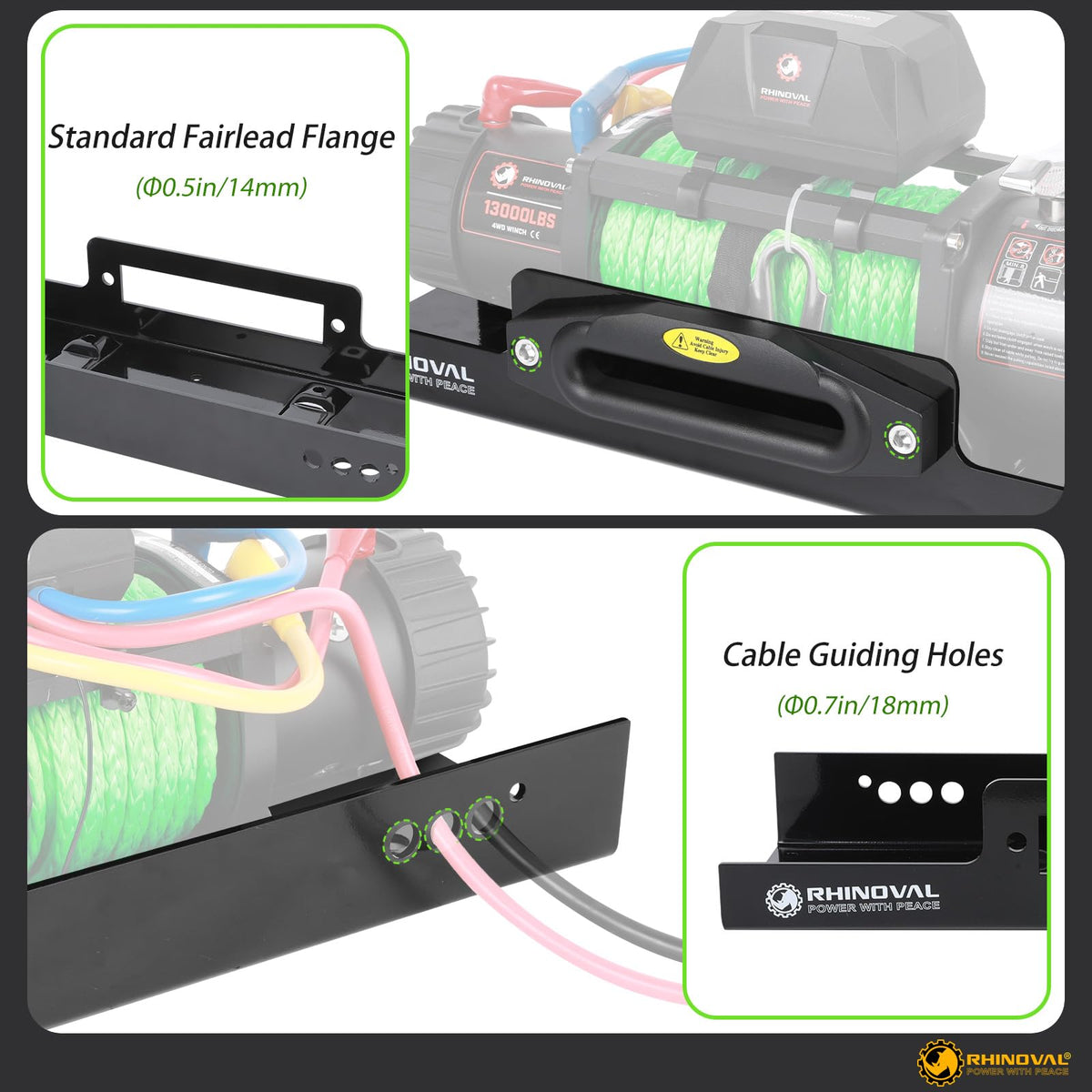

• Pre-drilled cable pass-throughs simplify routing without extra holes
• May require custom trimming or additional drilling for certain bumper styles

What are the dimensions, materials, and included hardware?

The plate is fabricated from heavy-duty steel with compact dimensions for flexible fitment. RHINOVAL supplies long bolts, nuts, and washers along with an integrated fairlead flange so you receive a ready-to-assemble kit for most truck, SUV, trailer, and large ATV/UTV installations.

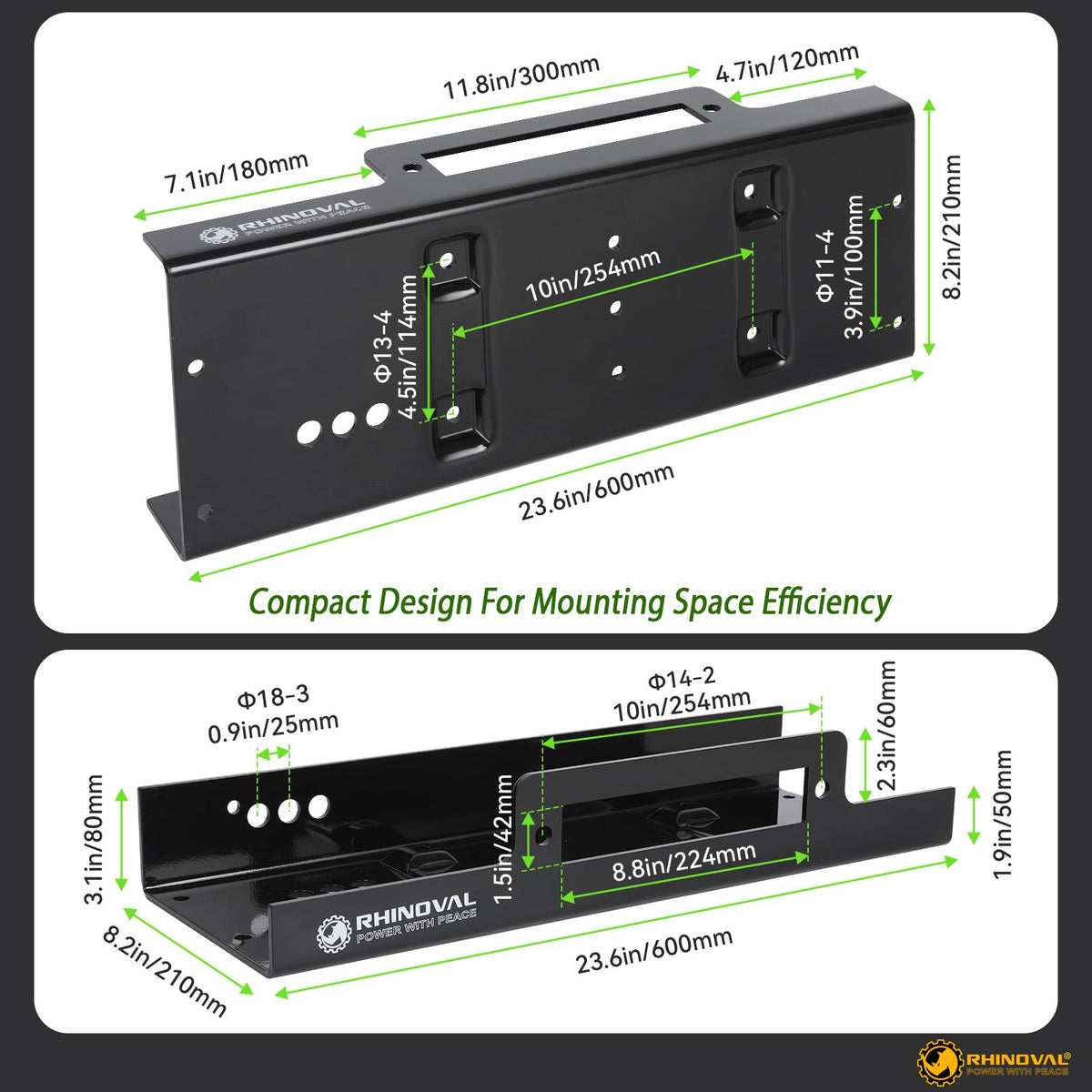

• Overall size: 23.6" L × 8.2" W (600 mm × 210 mm); thickness: 0.2" (5 mm)
• Steel construction rated for winches up to 15,000 lb working capacity

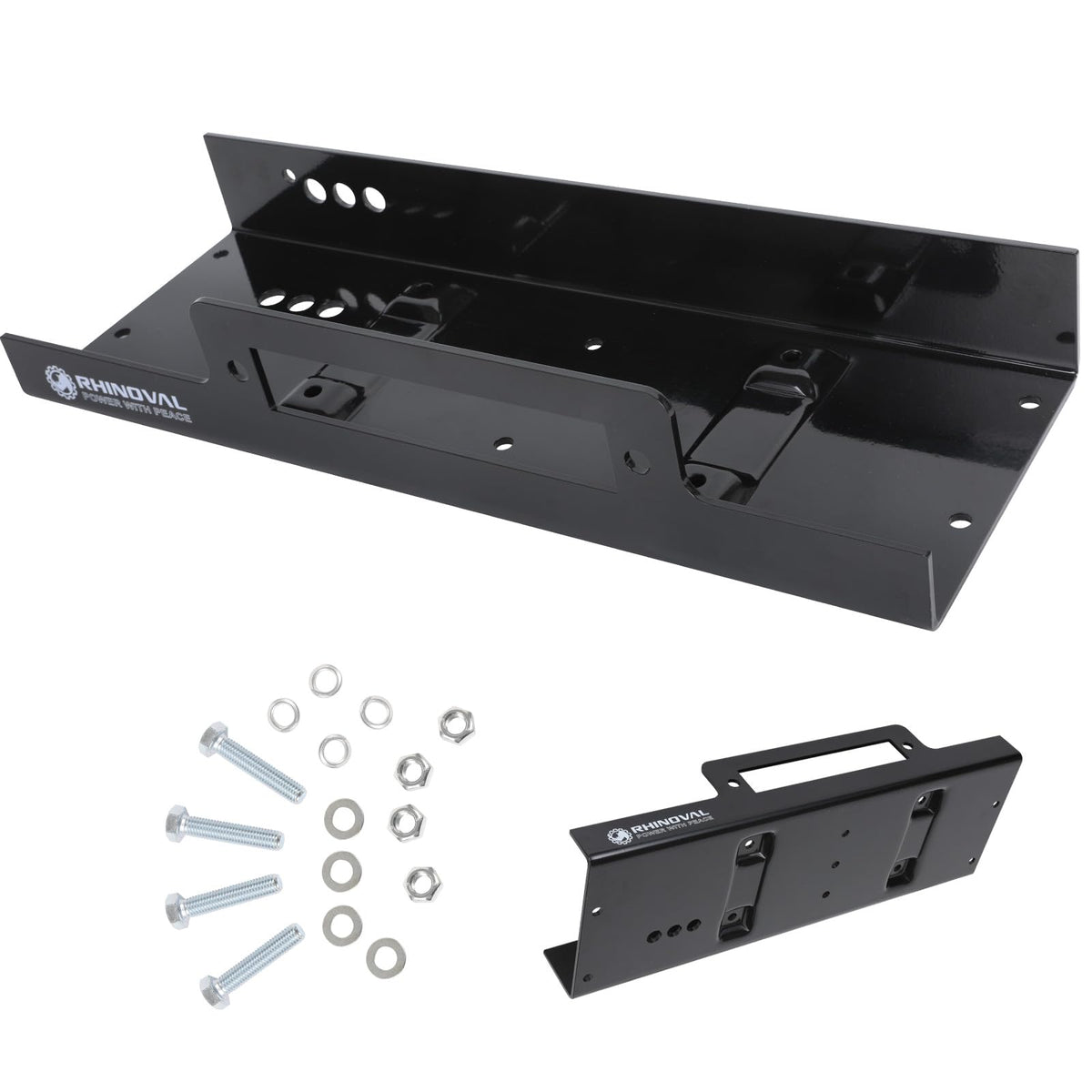

• Comes with long bolts, nuts, washers, and fairlead flange for assembly

Will this plate work for my vehicle or winch model?

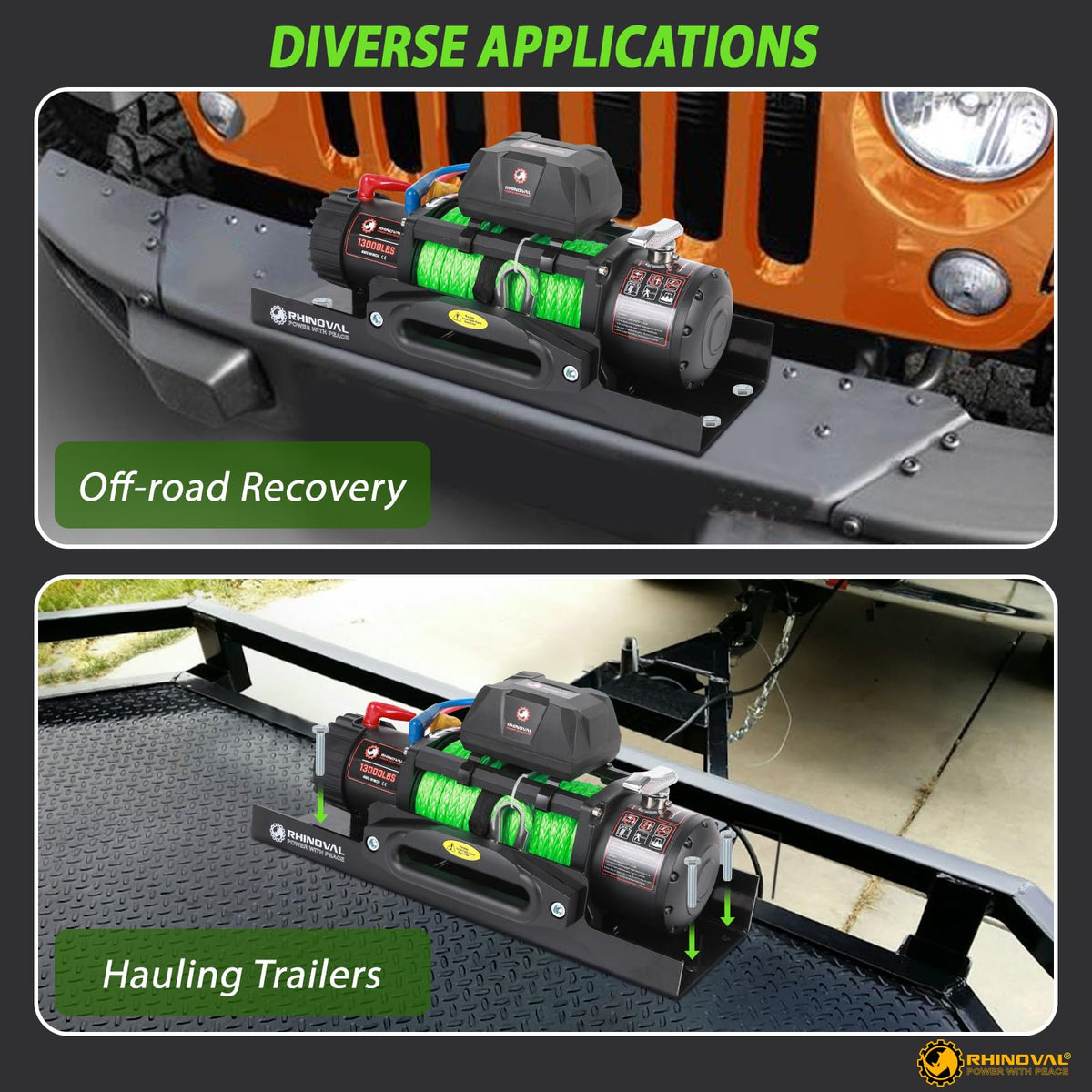

The plate fits winches with the common 10" x 4.5" bolt pattern and is intended for a broad set of vehicles including trucks, SUVs, trailers, and larger ATVs/UTVs. It is not a guaranteed direct bolt-on for all Jeeps or highly-specialized bumpers; confirm physical dimensions and clearance before purchase.

• Compatible with most winches using the 10" x 4.5" pattern
• Ideal for rebuilds, aftermarket bumpers, and custom mounts
• Check bumper thickness and surrounding components for fitment

Who is this for? The RHINOVAL Universal Winch Mounting Plate is aimed at do-it-yourself installers, fabricators, and vehicle owners upgrading winch capacity on trucks, SUVs, trailers, and larger off-road machines. It suits anyone who wants a low-profile, heavy-duty mounting solution that minimizes additional spacers and reduces drilling into the base surface. If you plan to fit a winch with a standard 10" x 4.5" bolt pattern and value a complete kit with a fairlead flange and hardware, this plate streamlines the installation process while preserving structural integrity.
