RJSPHH 65700 Broken Spark Plug Remover Kit for Ford Triton 5.4L — 3-Step extractor with porcelain pusher & left-hand thread tool

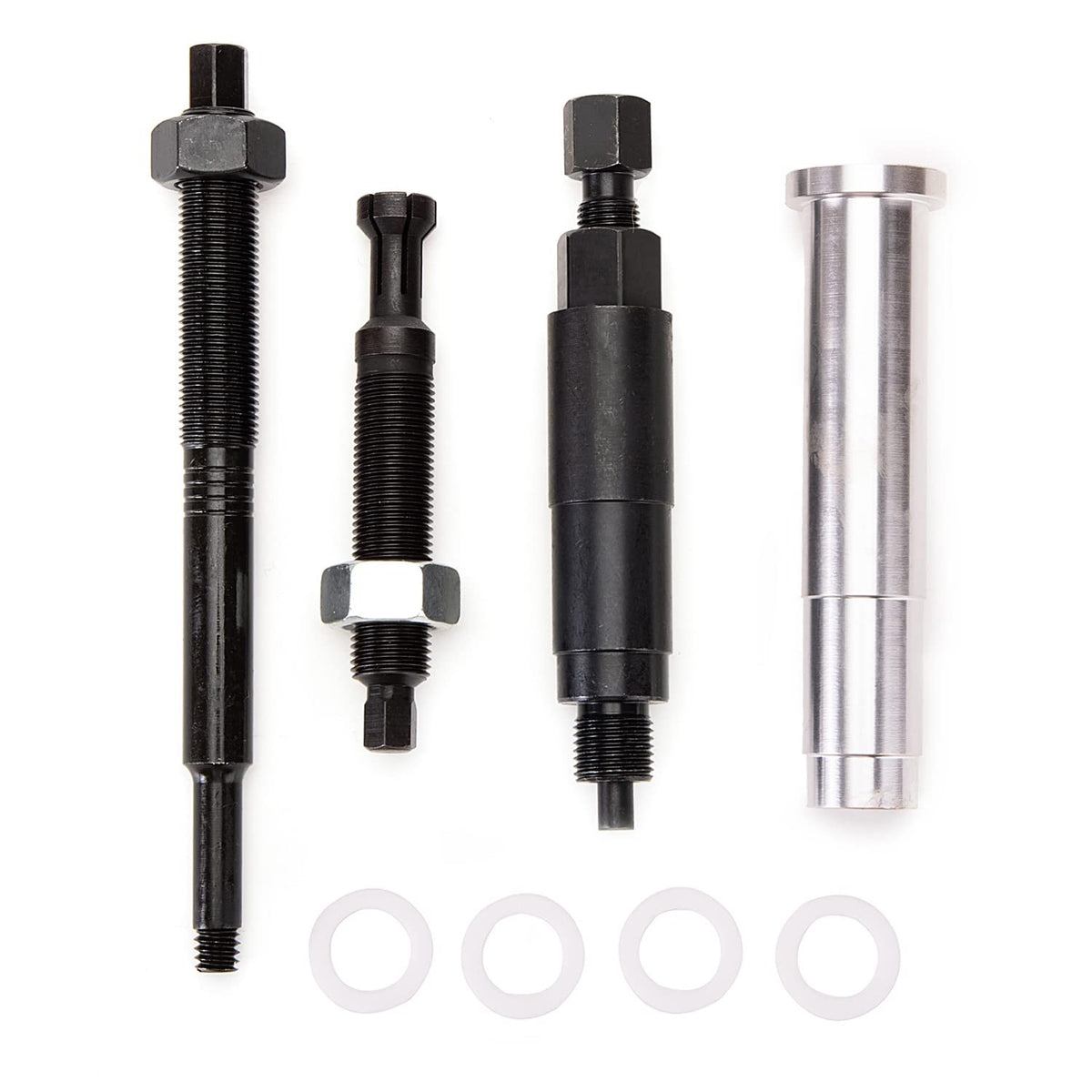

This kit combines purpose-built tools — a porcelain pusher, porcelain push rod and a left-hand thread extractor — to access, break, press and extract the remaining plug tip when a spark plug fractures inside the cylinder head. Designed specifically for Triton 3-valve-per-cylinder engines, the set helps technicians and DIYers reclaim stuck plug tips while minimizing additional damage when used correctly. Success depends on the state of the engine, but the kit includes parts sized and shaped for the common failure modes on 5.4L Triton heads.

How does the three-step system work to remove a broken spark plug?

The process separates into controlled stages: first the porcelain is managed, then the ceramic tip is pushed aside or broken cleanly, and finally a left-hand thread tool bites into the remaining metal so it can be extracted. Each tool is intended to reduce force on the cylinder head and create a predictable path for removal.

• Porcelain pusher presses the ceramic safely to expose the metal tip.
• Porcelain push rod breaks or moves the ceramic without shredding threads.

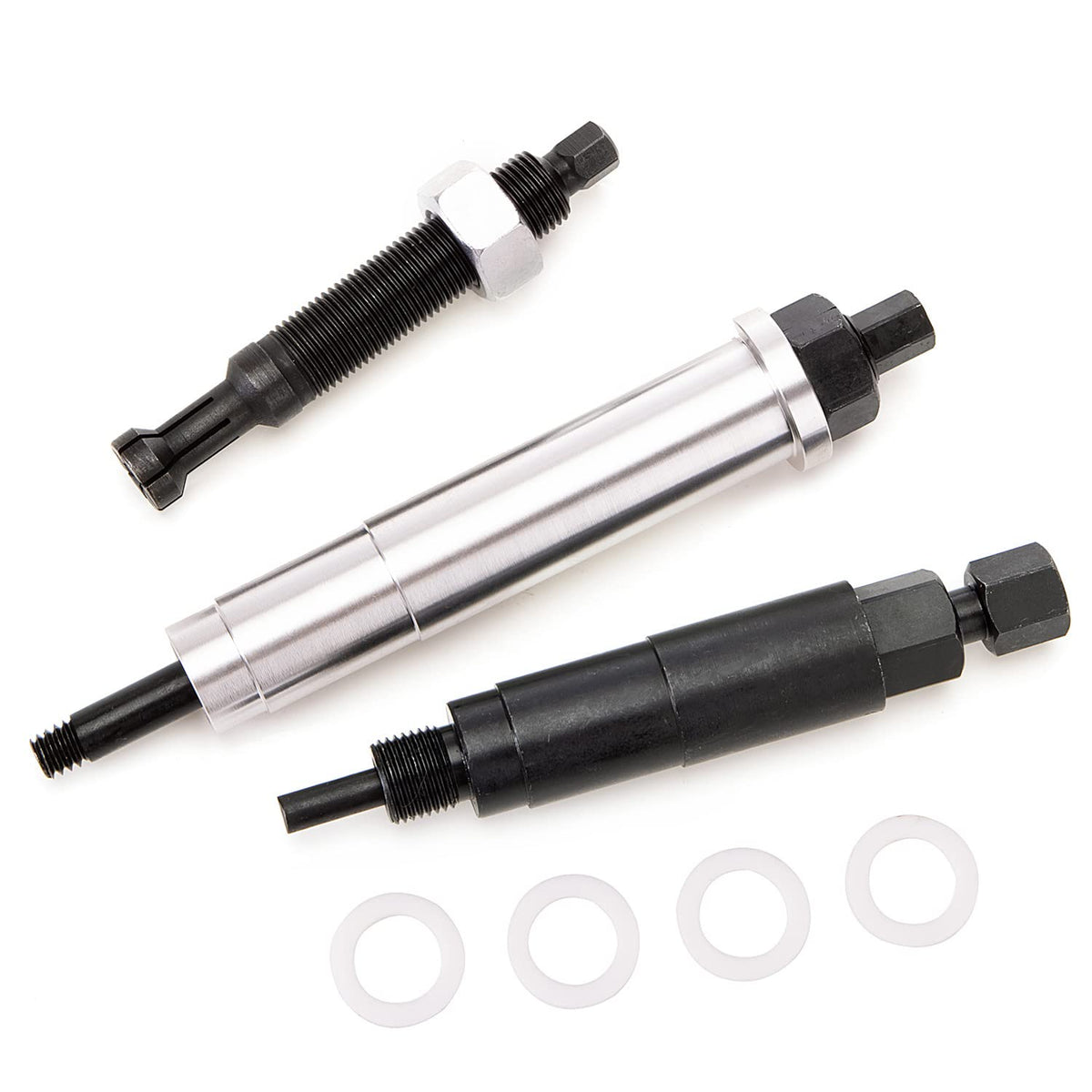

• Self-tapping left-hand thread remover bites the stainless tip for extraction.

Will this kit fit my vehicle and the common Triton plug failures?

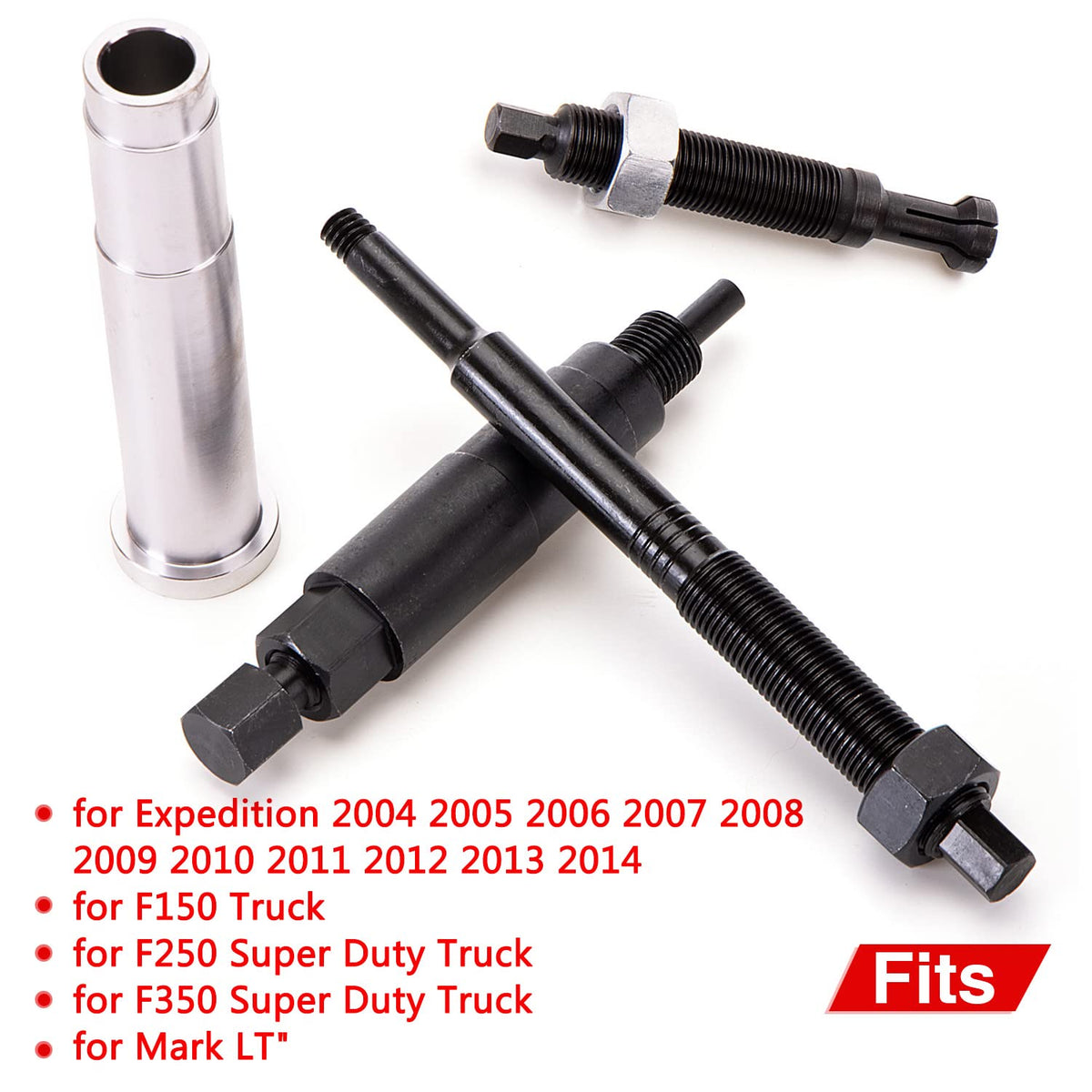

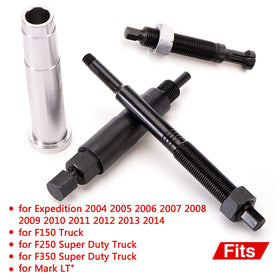

This RJSPHH set targets 2004 and newer Ford Triton 3-valve engines, especially the 5.4L where plugs often seize or fracture at the head. It matches the typical geometry and sizes encountered on these heads, but always verify your engine year and valve configuration before purchase.

• Made for Triton 3-valve-per-cylinder engines (common 5.4L application).
• Three-step approach tailored to common plug fracture points in these heads.
• Check engine model year and service history for best outcome.

What should I expect during removal and what are the limits?

While the kit is built to minimize extra damage, removal success can vary. Factors like pre-existing thread damage, seized corrosion, and how the plug initially fractured determine the result, so be prepared for potential follow-up repairs if conditions are severe.

• May not work if threads are severely stripped or head material is compromised.
• Extra caution needed to avoid further thread damage during tapping and extraction.
• Manufacturer offers a one-year quality guarantee for tool defects.

How should I use the kit safely to reduce risk of additional damage?

Use steady, controlled force and the correct sequence: press the porcelain, create space, then tap and extract with the left-hand thread tool. Work slowly, keep the work area clean, and consider using penetrating oil and heat where appropriate to loosen seized components before aggressive extraction.

• Follow the porcelain pusher then push rod sequence to avoid shredding threads.
• Use penetrating oil and gradual torque increases during tapping and extraction.
• Stop if thread stripping begins, then reassess or consult a professional.

Who is this for? The RJSPHH 65700 kit is aimed at professional mechanics, automotive shops, and experienced DIYers who routinely service Ford Triton 3-valve 5.4L engines and want a dedicated solution for seized or broken spark plugs. It’s particularly useful when a plug fractures at the head and standard sockets or extractors can’t gain purchase. If you lack experience with engine-thread repairs or encounter severe thread damage, consider professional help to avoid costly cylinder head repairs.
