Robinair LD7 Refrigerant Leak Detector — R‑134a/R‑1234yf Compatible, Color Display & UV Light

The Robinair LD7 is a portable, professional-grade refrigerant leak detector that combines a color graphical display, audible alerts, UV illumination and a long-life sensor to quickly locate leaks of R‑134a, R‑1234yf and other common refrigerants.

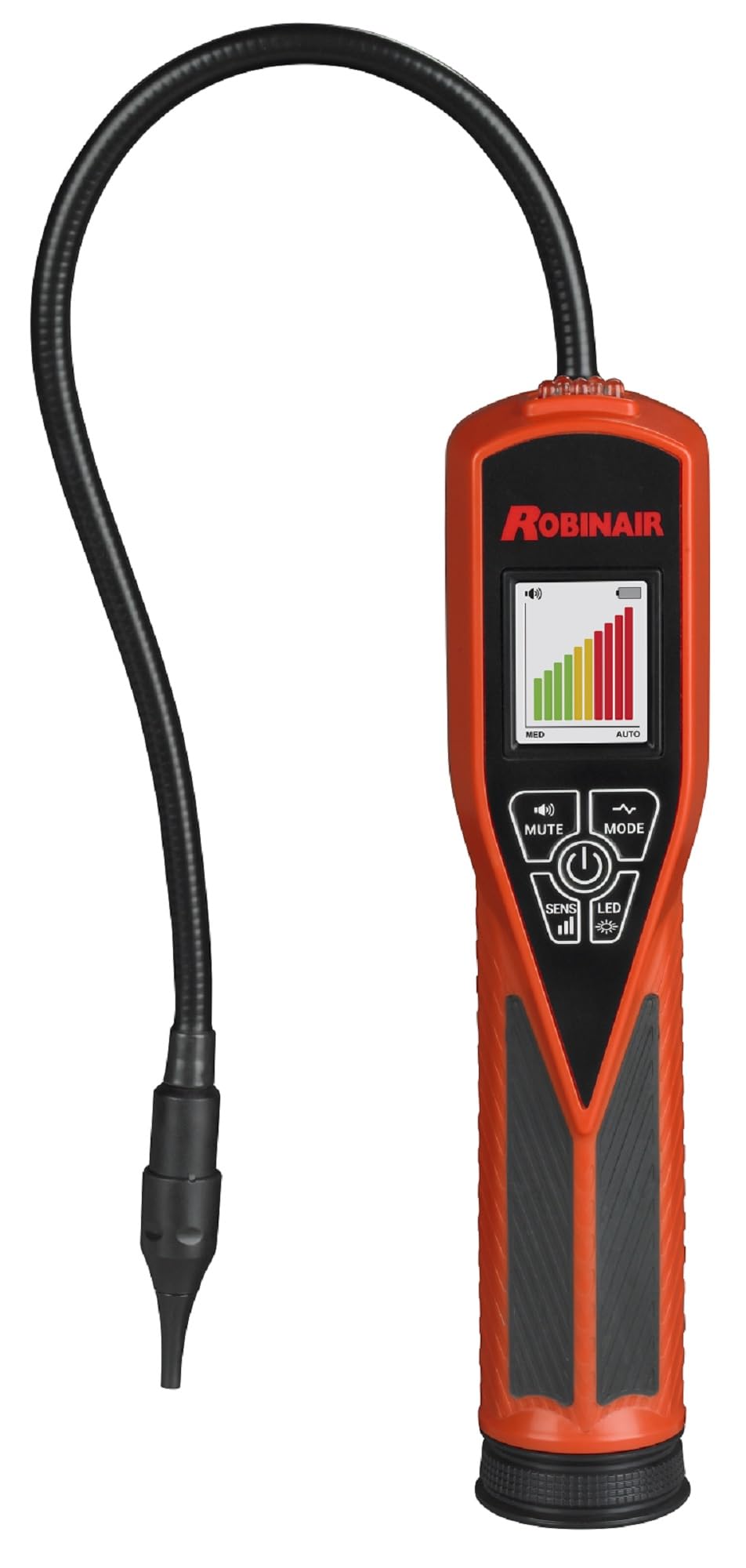

The LD7 is engineered for technicians who need fast, reliable leak detection with clear visual feedback. Its 128×160 color display offers two detection views — a changing bar graph and a sweep line graph — to help you gauge leak strength and trace the source. Lightweight and battery-powered, the LD7 also includes ultraviolet LEDs for dye inspection and an inspection lamp for low-light work.

How does the LD7 show leak size so I can find the source faster?

The LD7 offers two complementary display modes to communicate refrigerant levels instantly. Bar graph mode changes color as concentrations increase so you can see relative strength at a glance, while Sweep mode plots a line graph to help you follow peaks and move back and forth until the leak is pinpointed.

• Bar graph color transitions indicate increasing refrigerant concentration

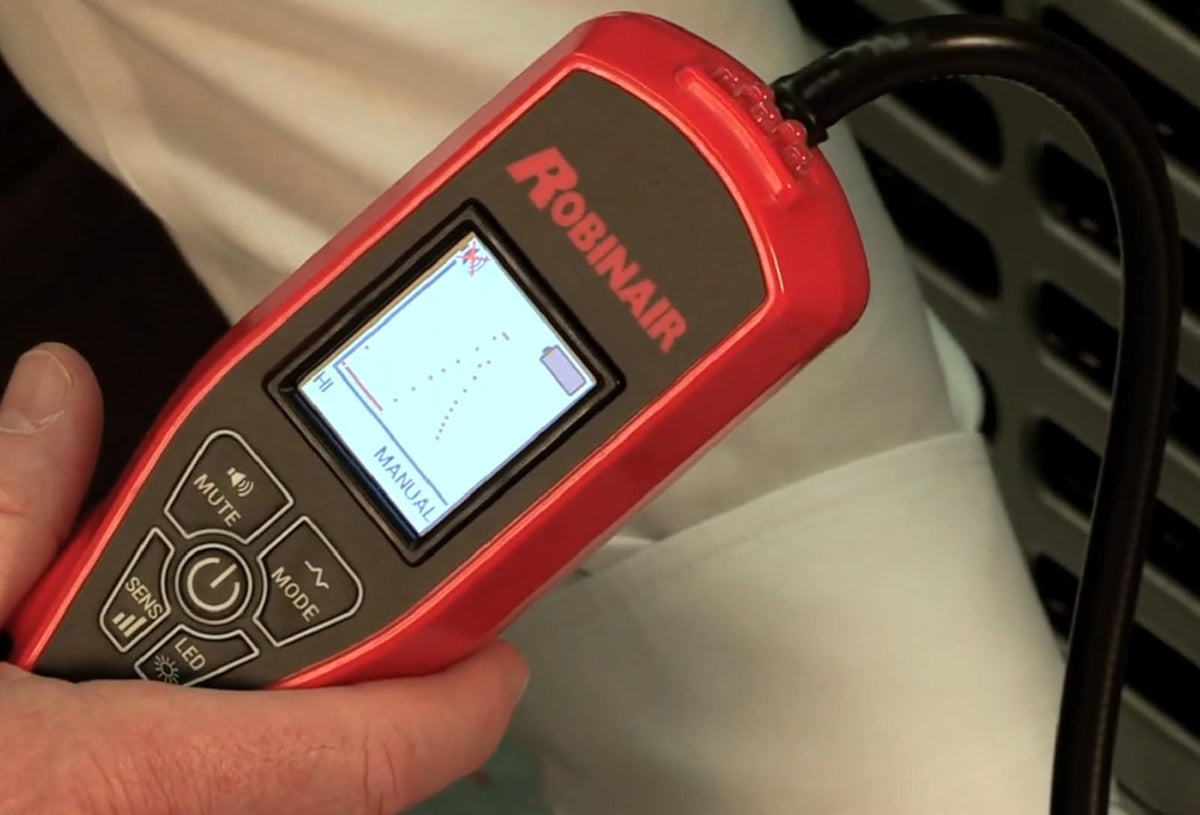

• Sweep line graph helps locate leak with back-and-forth tracing
• Audible alarm provides immediate notification when refrigerant is detected

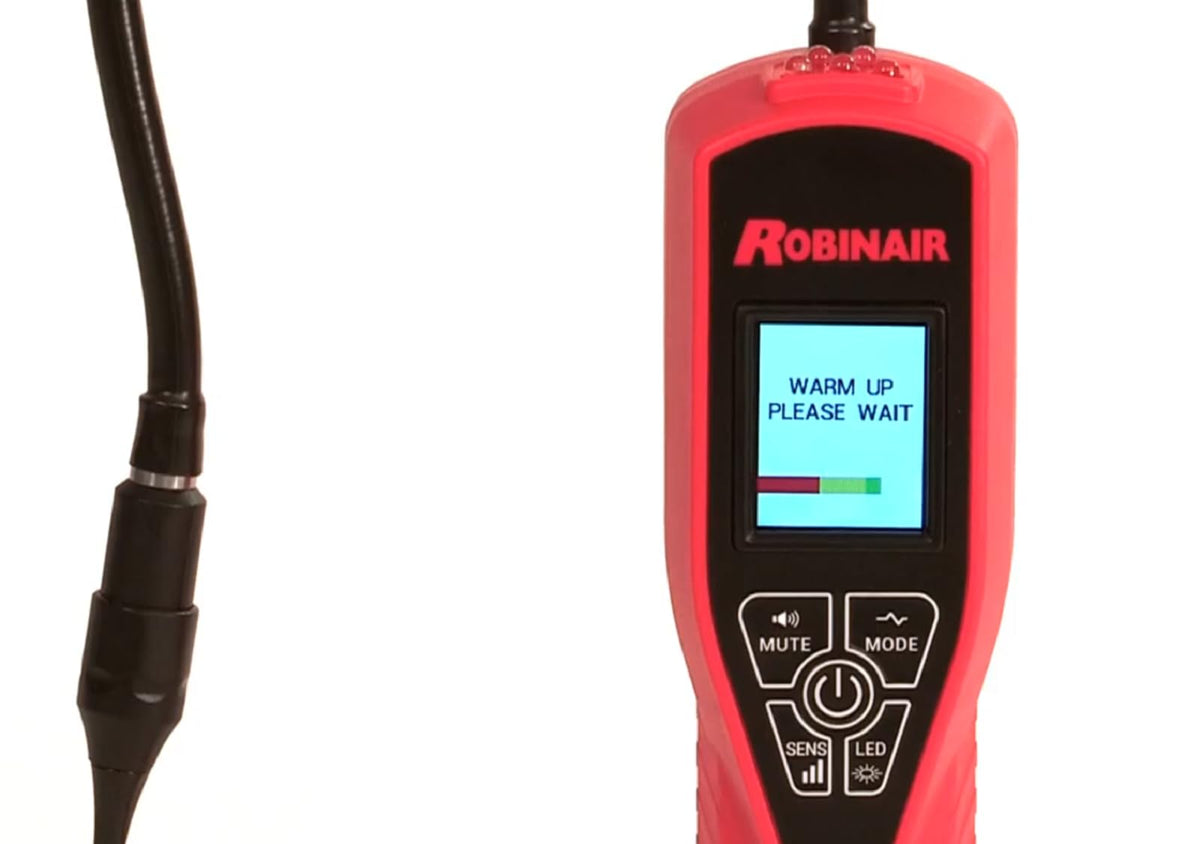

• Visual probe LED shows detection at the sensor tip for precision

What refrigerants and sensitivity levels does the LD7 support?

The LD7 is compatible with the most commonly used automotive and light‑commercial refrigerants, including R‑134a and R‑1234yf. Its sensitive sensor gives technicians minute detection capability so small leaks can be found before they grow into larger problems.

• Sensitivity: 0.05 oz/year for R‑134a, 0.0123 oz/year for R‑1234yf
• Compatible with current industry refrigerants and standards
• Instantaneous response time for rapid inspection cycles
• Sensor life rated up to 10 years for long-term reliability

What lighting and inspection aids are built into the tool?

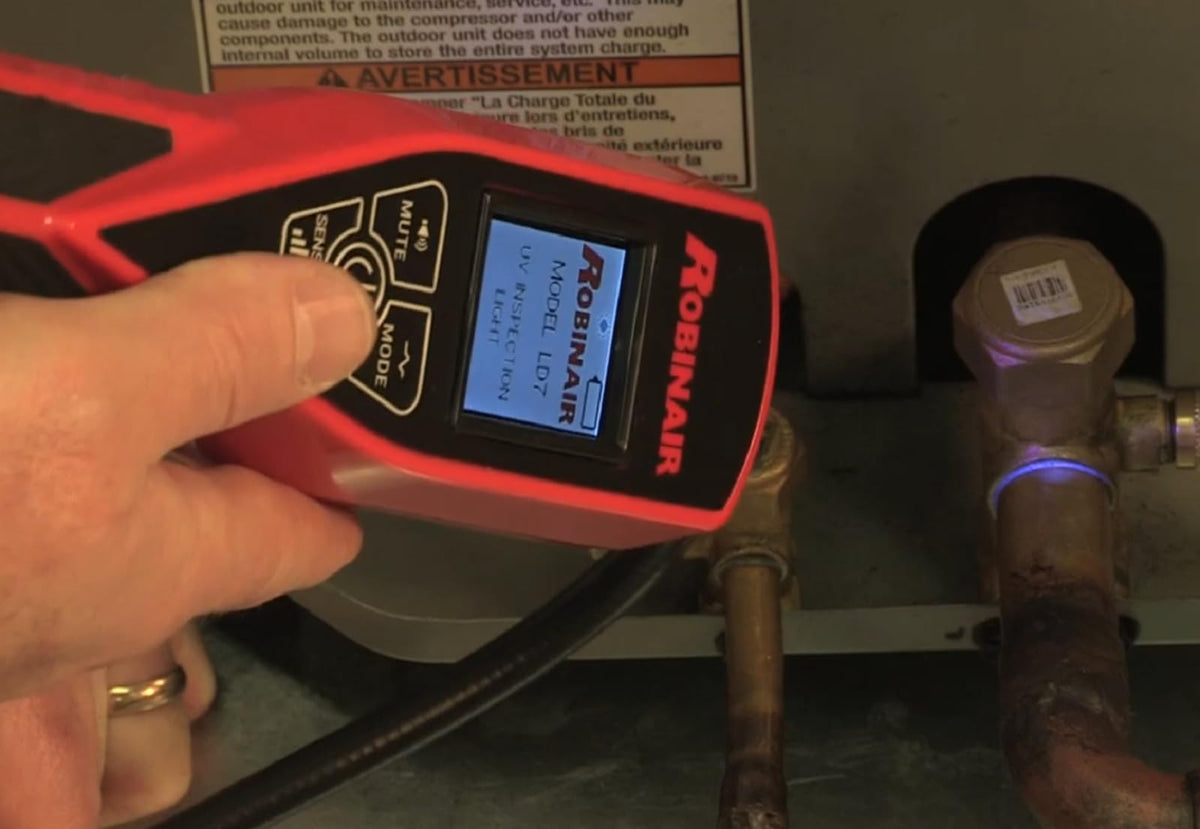

In addition to detection graphs and alarms, the LD7 includes two lighting systems to improve leak searches in different conditions. UV LEDs help reveal dye-based leaks, while a dedicated inspection lamp illuminates dark engine bays and confined equipment rooms.

• Three UV LEDs at 395–415 nm for dye activation and visual leak confirmation

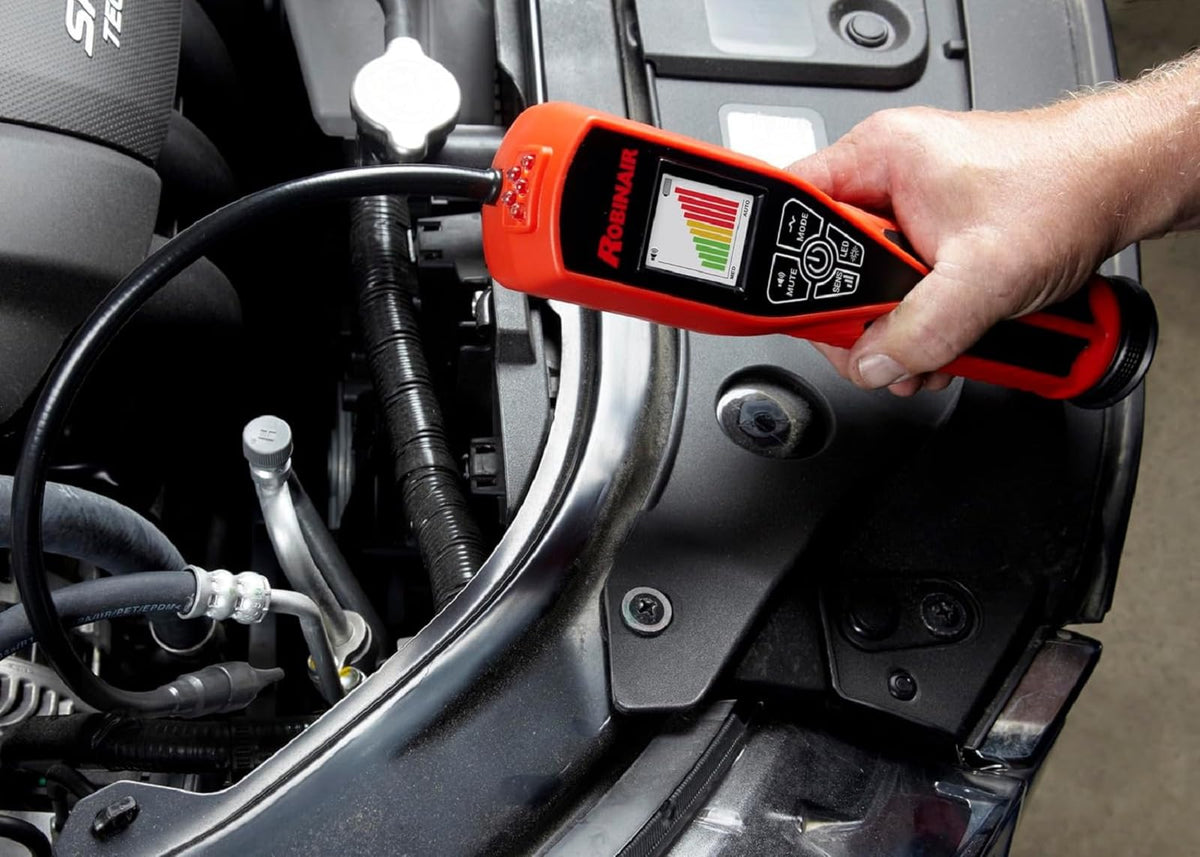

• Built-in inspection light for low-light or tight-space inspections
• Audible alarm plus visual probe LED near sensor for dual feedback
• Probe length: 17 inches to reach recessed components easily

What comes in the kit and what are the practical run-time details?

The LD7 ships as a ready-to-use kit with essential accessories and user documentation. It runs on four AA alkaline batteries for portability, warms up quickly and is compact enough to carry on service calls.

• Kit includes LD7 detector, 4 AA batteries, leak test vial, 5 sensor filters, molded carrying case and manual
• Warm-up time under 20 seconds; battery life approximately 4 hours continuous
• Lightweight at about 1.5 pounds for handheld comfort during extended use
• LCD: full color 128×160 display; response time: instantaneous

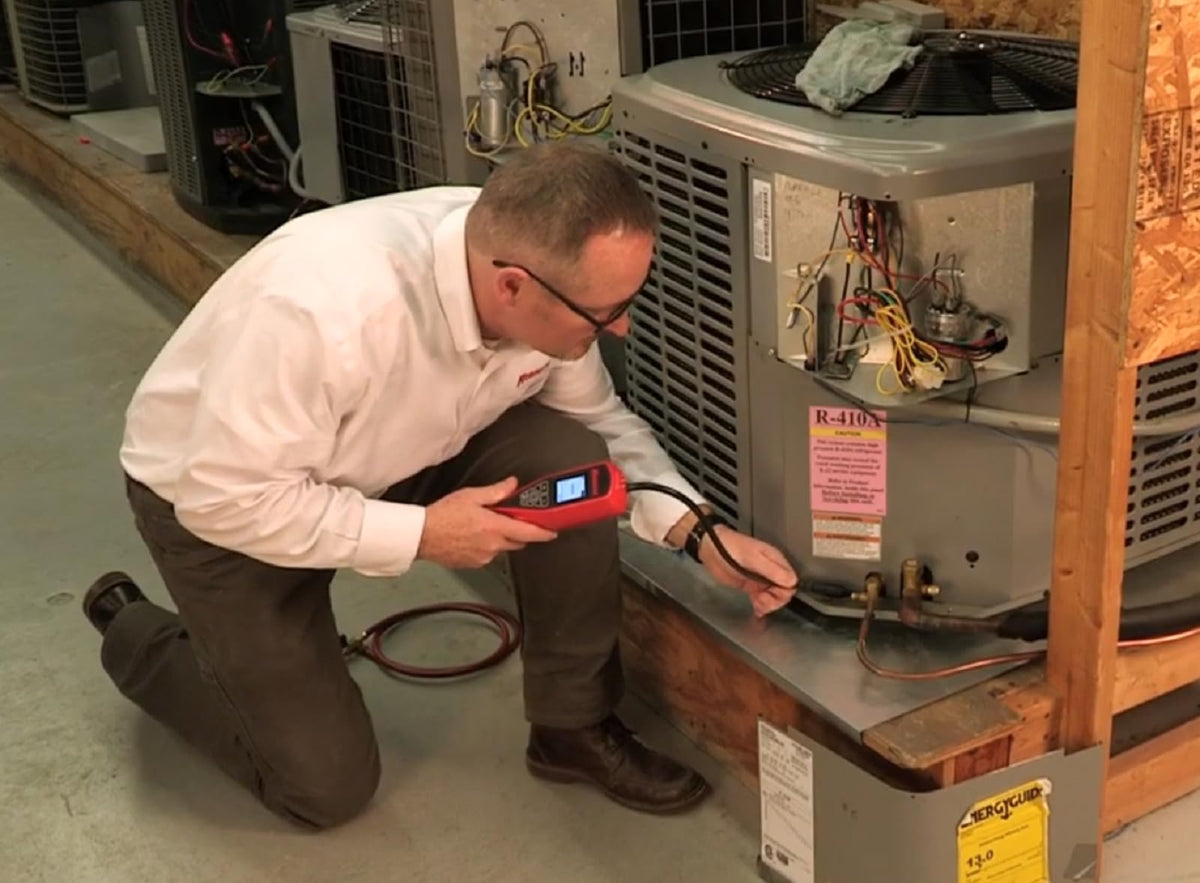

Who is this for? The Robinair LD7 is aimed at HVACR and automotive technicians, fleet maintenance teams and service shops that require a precise, durable leak detector for regular diagnostics. It suits professionals who need quick visual confirmation, dye-compatible UV inspection, portability for fieldwork, and a sensor designed for long service life without frequent replacement.
