RUIANOMG RV Power Converter WF-9865 65A Replacement for WF-9800 Series — 3-Stage Charging, Silent Fan

The RUIANOMG WF-9865 is a 65 amp, three-stage RV power converter replacement designed to deliver stable DC charging for WF-9800 series trailers, campers, and motorhomes.

Built as a direct replacement for WF-9800 series converters, the WF-9865 supplies three selectable charging stages (Float 13.2V, Absorption 13.6V, Bulk 14.4V) and includes multiple protections—overload, short-circuit, overvoltage, overcurrent, and high-temperature cutoff—to protect both the unit and vehicle electrical system. Its integrated silent fan and automatic three-stage charging make it suited for keeping house batteries charged while parked or stored.

How does the WF-9865 replace my original WF-9800 series converter?

The WF-9865 is engineered to match the WF-9800 series form, mounting and electrical outputs so installation is straightforward for most RVs that used the original model. It supports the common WF-9800 model numbers and wiring configurations to minimize modification.

• Direct compatibility with WF-9800 series replacement models (listed in specs).
• Same DC output profiles for seamless battery charging behavior.
• Mounting and terminal layout designed to fit original converter spaces.

What charging modes does this converter provide and why do they matter?

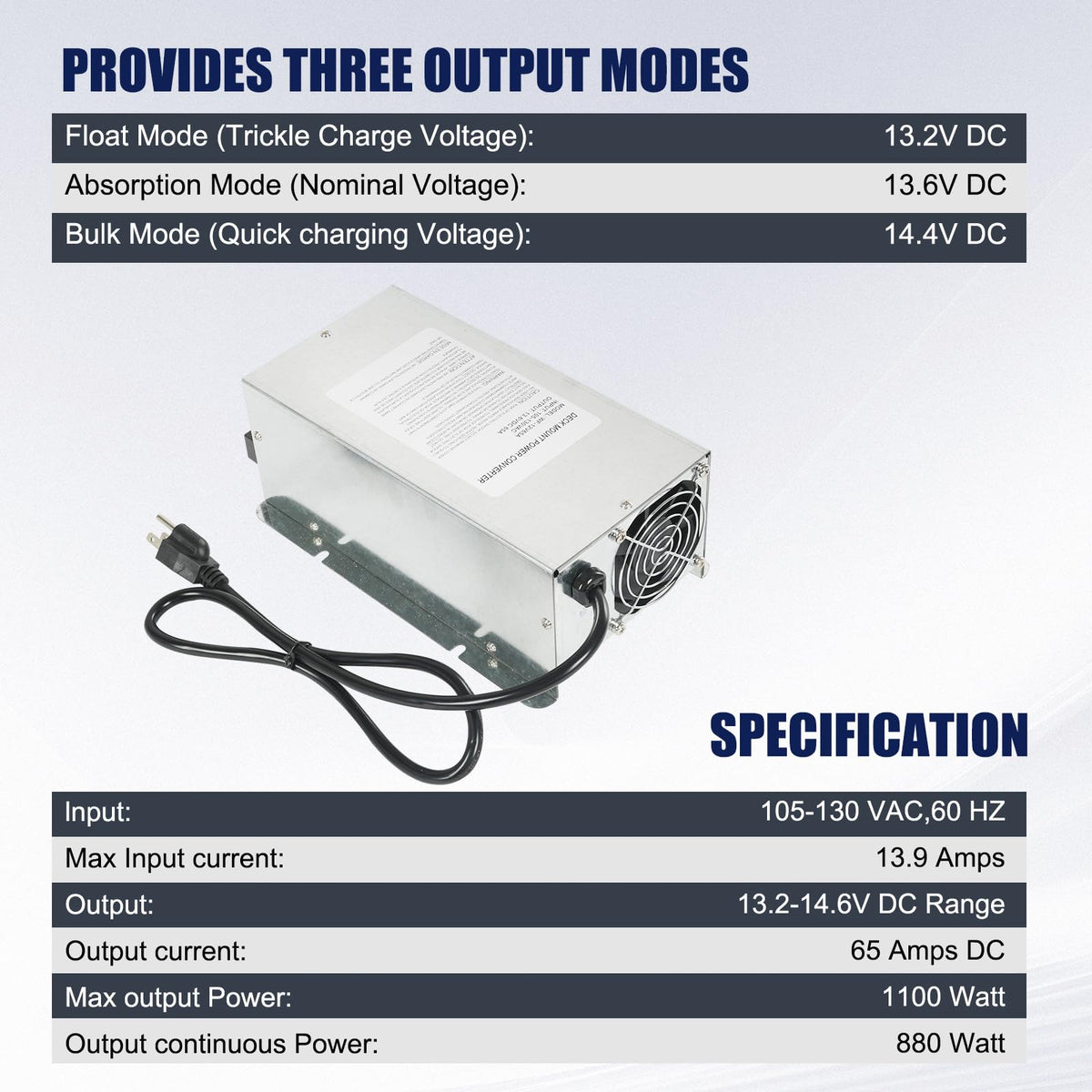

The unit offers three charging modes—Bulk (14.4V), Absorption (13.6V), and Float (13.2V)—that follow standard multi-stage battery charging practice. These stages help recharge batteries faster when needed, then taper charge to prevent overcharging and maintain a safe resting voltage.

• Bulk 14.4V for faster replenishing of depleted batteries.
• Absorption 13.6V to finish charging while reducing stress on cells.
• Float 13.2V to hold batteries at a safe standby voltage.

What safety and durability features does the WF-9865 include?

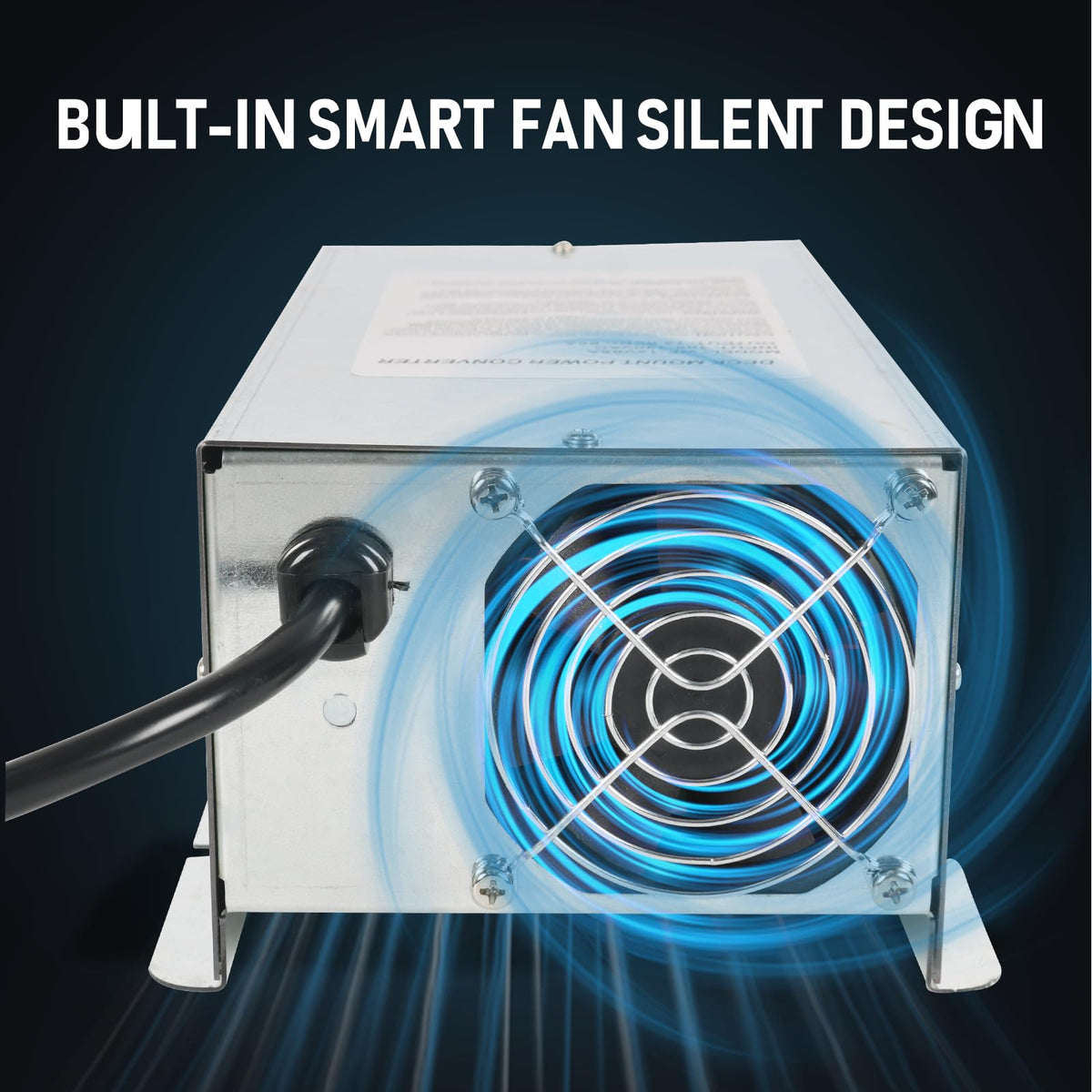

The converter integrates multiple protection circuits to automatically cut power or limit current if a fault occurs, helping prevent damage to wiring, batteries, or the converter itself. An internal fan provides cooling while using a low-noise design intended to keep the converter quiet inside an RV cabinet.

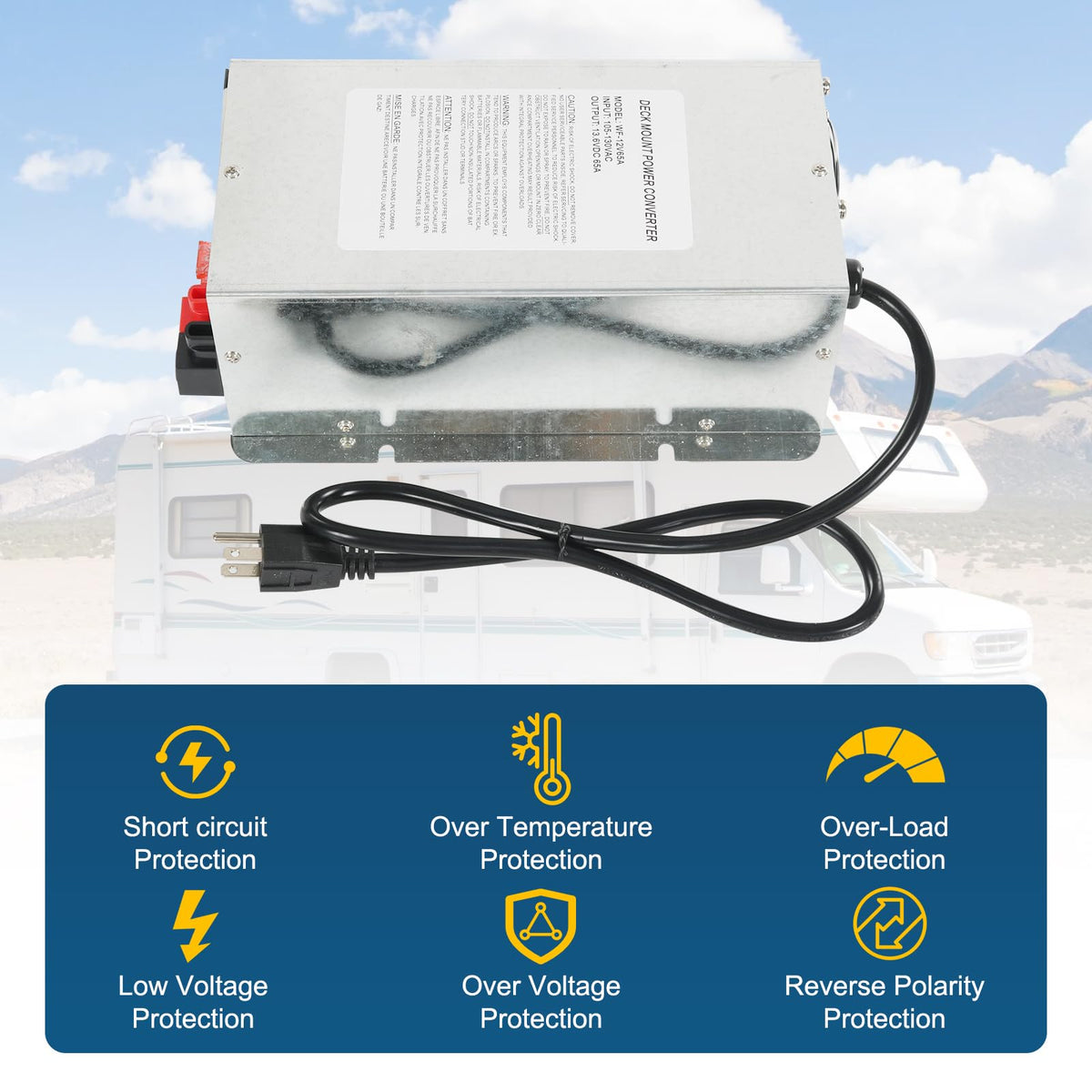

• Overload, short-circuit, overvoltage and overcurrent protection.
• High-temperature detection with automatic shutdown to avoid overheating.
• Silent fan design for quieter operation in living areas.

How simple is installation and what models does it replace?

Installation is intended to be simple for technicians or experienced DIYers familiar with RV electrical systems; it is offered as a drop-in replacement for multiple WF-9800 series variants. Refer to wiring diagrams and safety precautions before swapping converters, and confirm the specific model number to ensure compatibility.

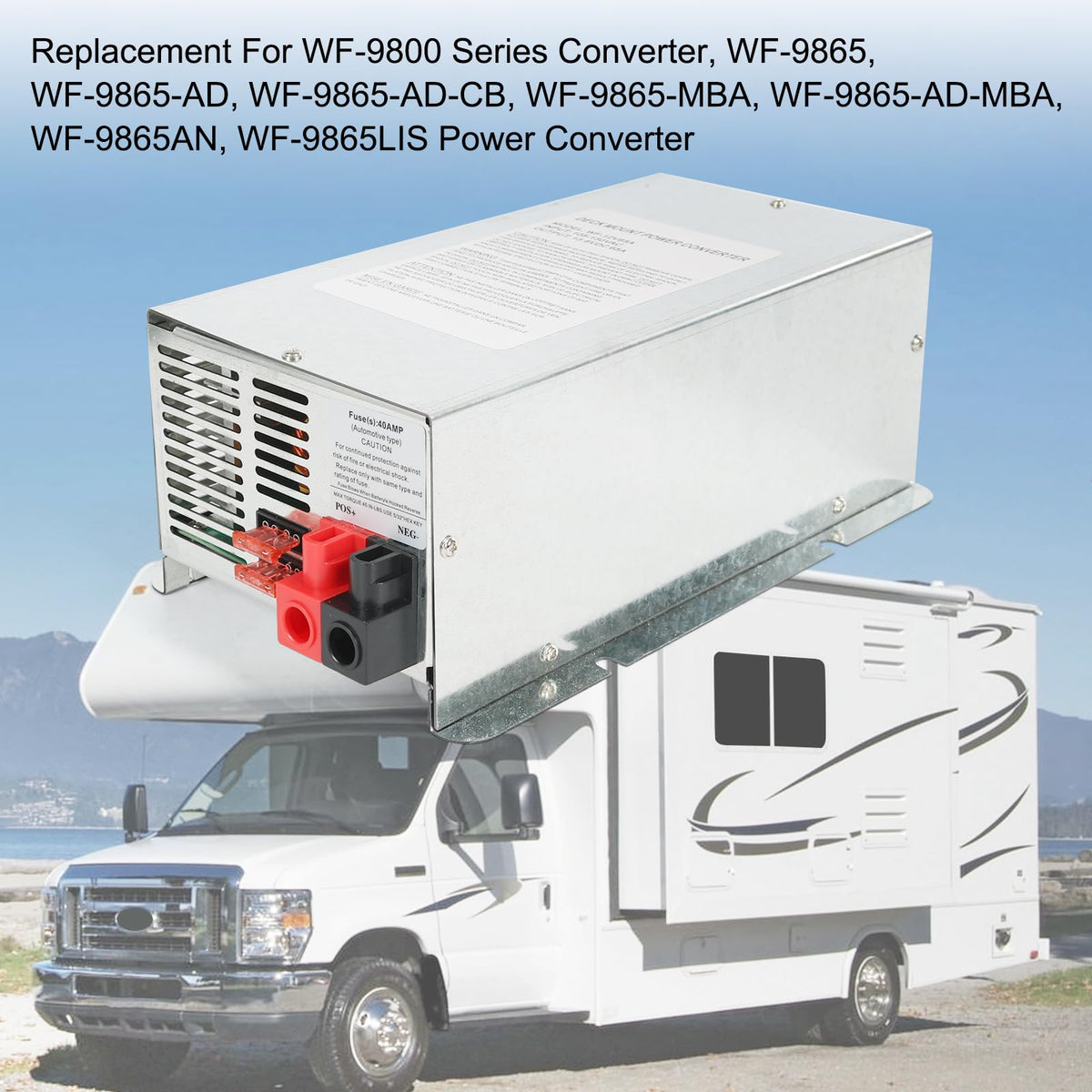

• Replacement for WF-9800 series variants including WF-9865, WF-9865-AD, WF-9865-MBA and others.

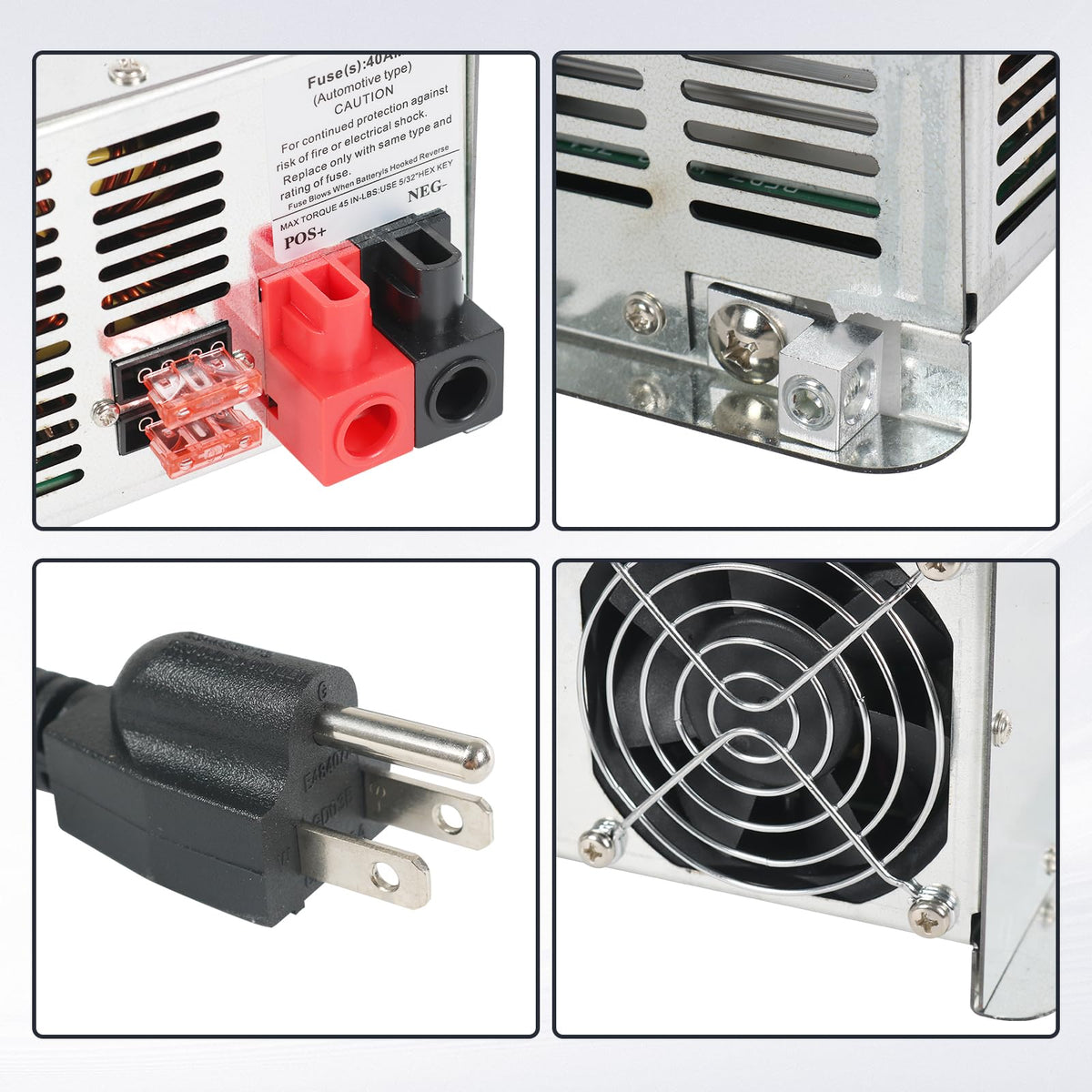

• Designed to match typical mounting points and terminal arrangements.
• Recommended to disconnect batteries and AC power before service.

Who is this for? The RUIANOMG WF-9865 is intended for RV and trailer owners, fleet maintainers, and repair shops that need a reliable direct replacement for worn or failed WF-9800 series power converters. Choose this unit if you require a 65 amp output with automatic three-stage charging, built-in protective circuitry, and a low-noise cooling fan to maintain battery health and provide steady DC power for onboard systems.
