Runleader Digital Hour Meter RL-HM038AG-H AC/DC 5–277V, IP68 Waterproof & Oil-Change Reminder

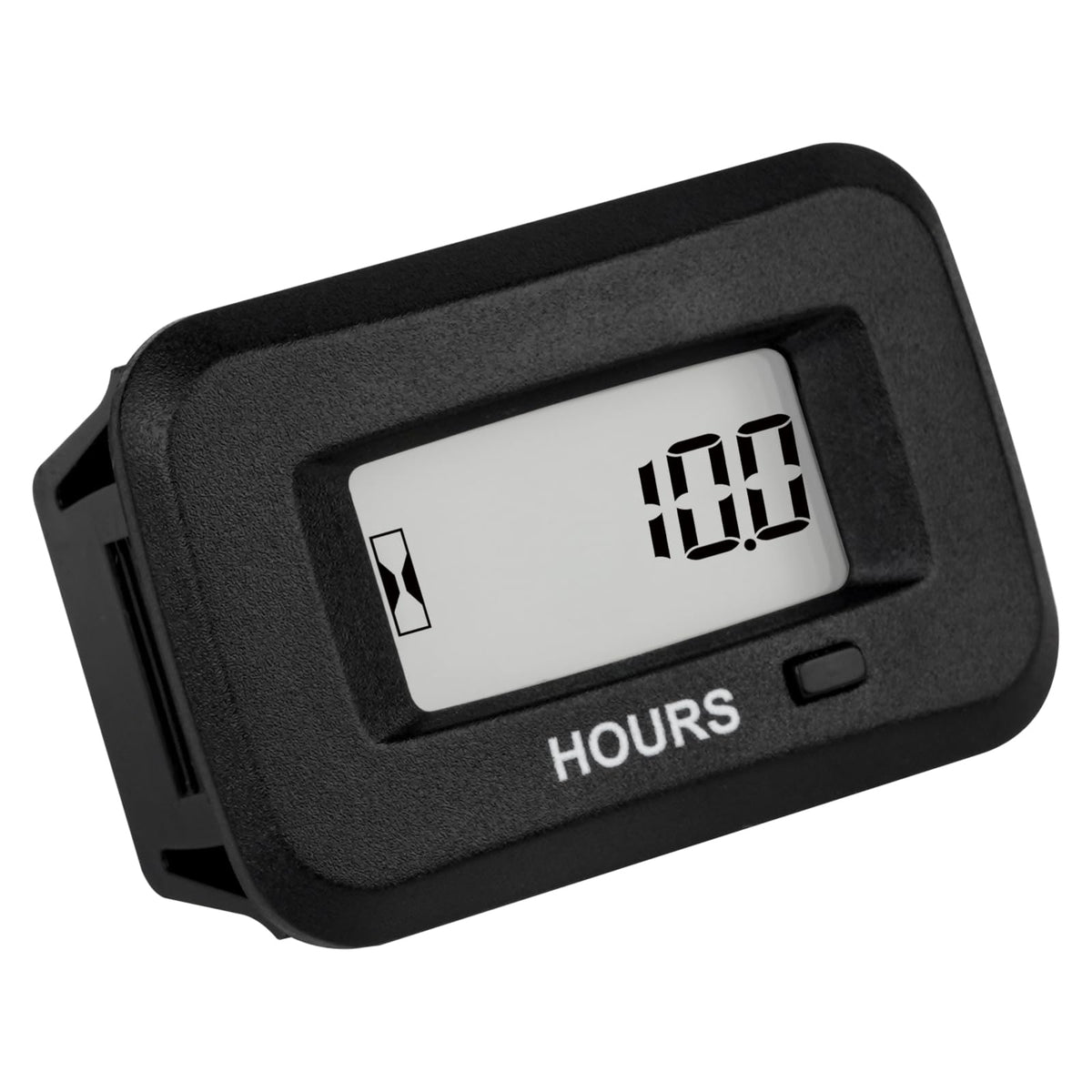

The Runleader RL-HM038AG-H is a rugged digital maintenance hour meter that counts operating hours, stores data, and triggers maintenance reminders while running on AC or DC from 5V to 277V.

This compact instrument keeps an accurate, always-visible record of machine runtime so you can plan service intervals without relying on memory. Built for outdoor equipment and power machines, the RL-HM038AG-H combines wide-voltage compatibility, waterproof construction, long data retention and a simple panel-mount installation for tractors, mowers, generators and other engines.

How does this hour meter help me schedule maintenance?

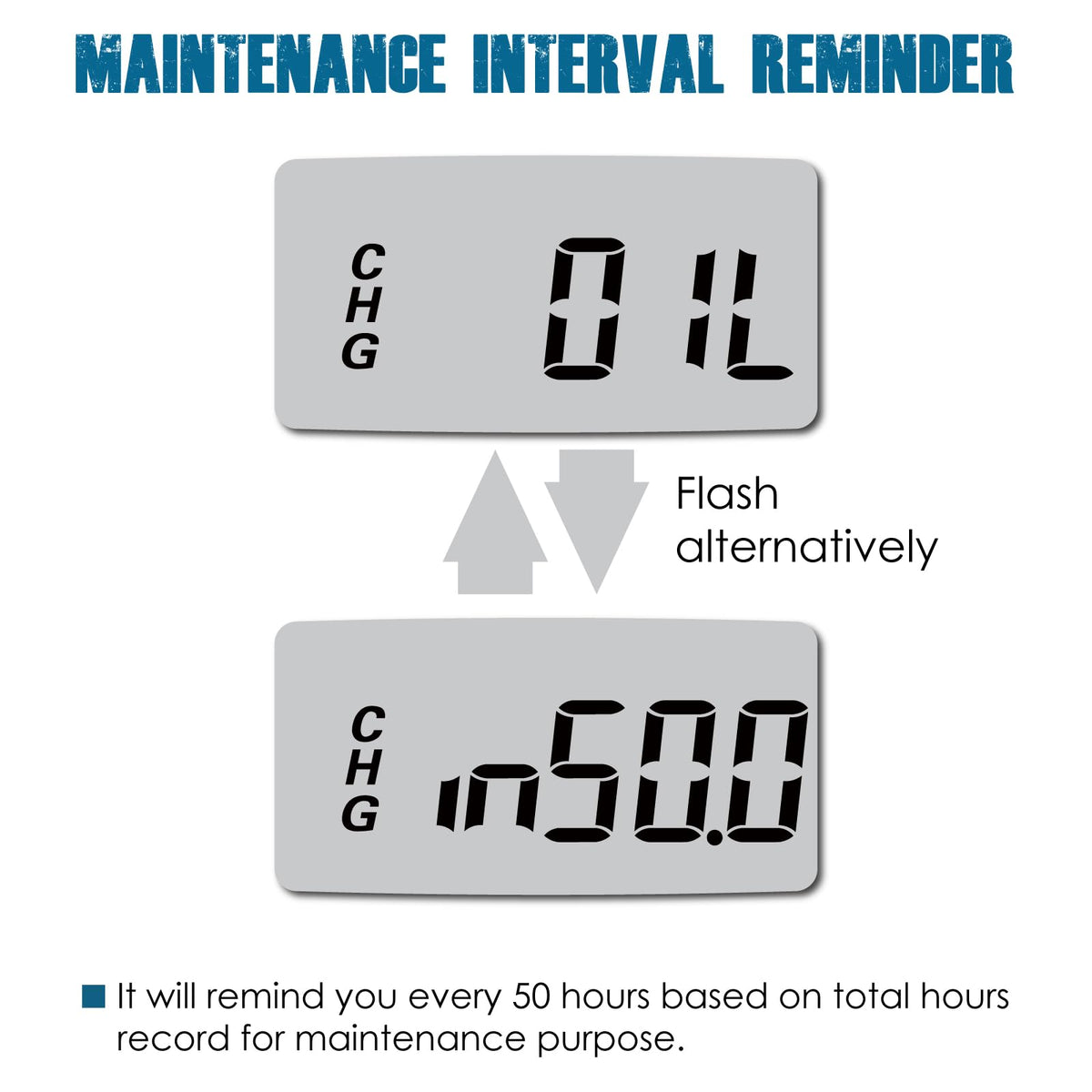

The meter continuously accumulates total run hours and can be set to prompt for oil changes at fixed intervals, making routine upkeep predictable. Its internal memory preserves the hour count even when power is removed.

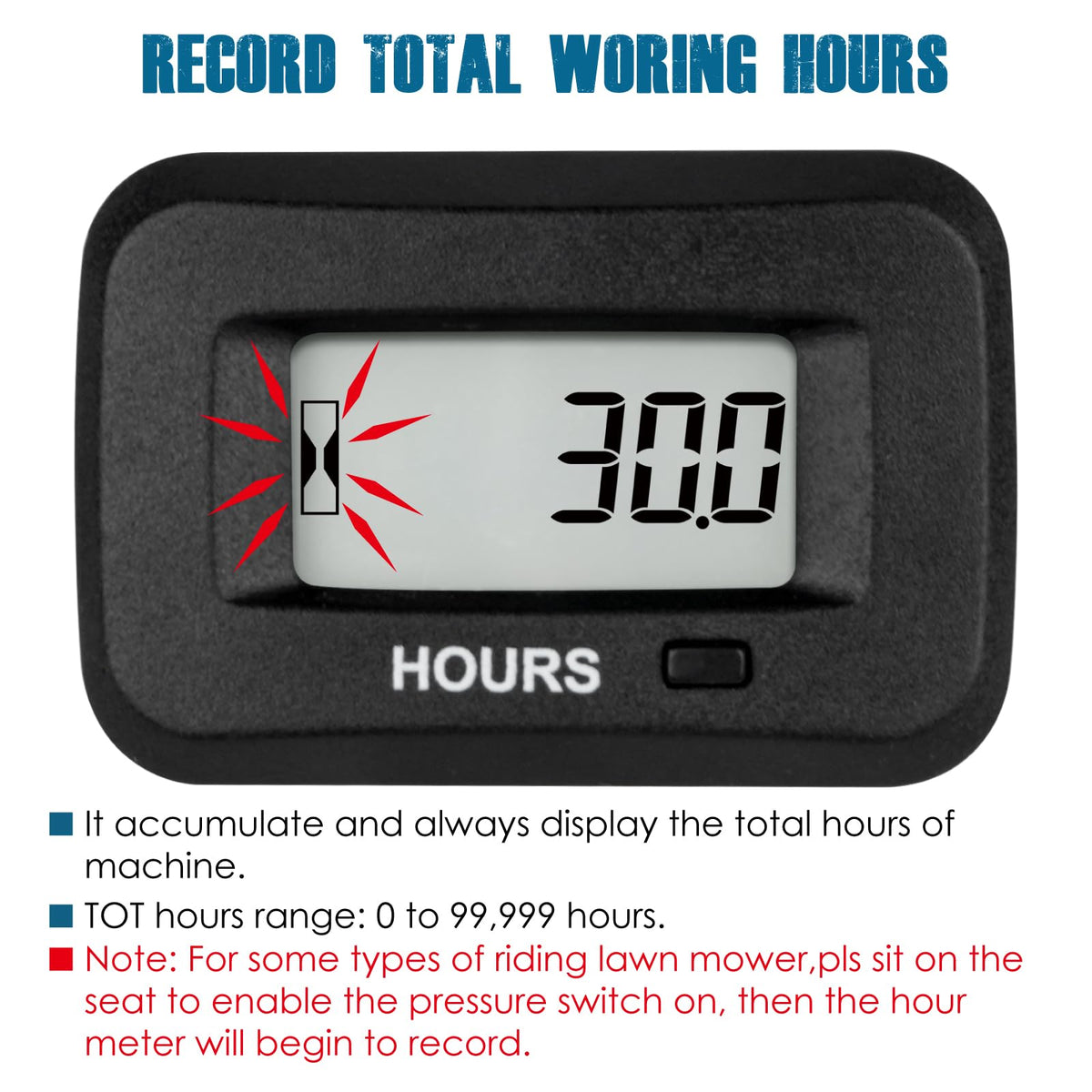

• Total hours displayed: 0 to 99,999 hours
• Oil-change reminder repeats every 50 hours (resettable)

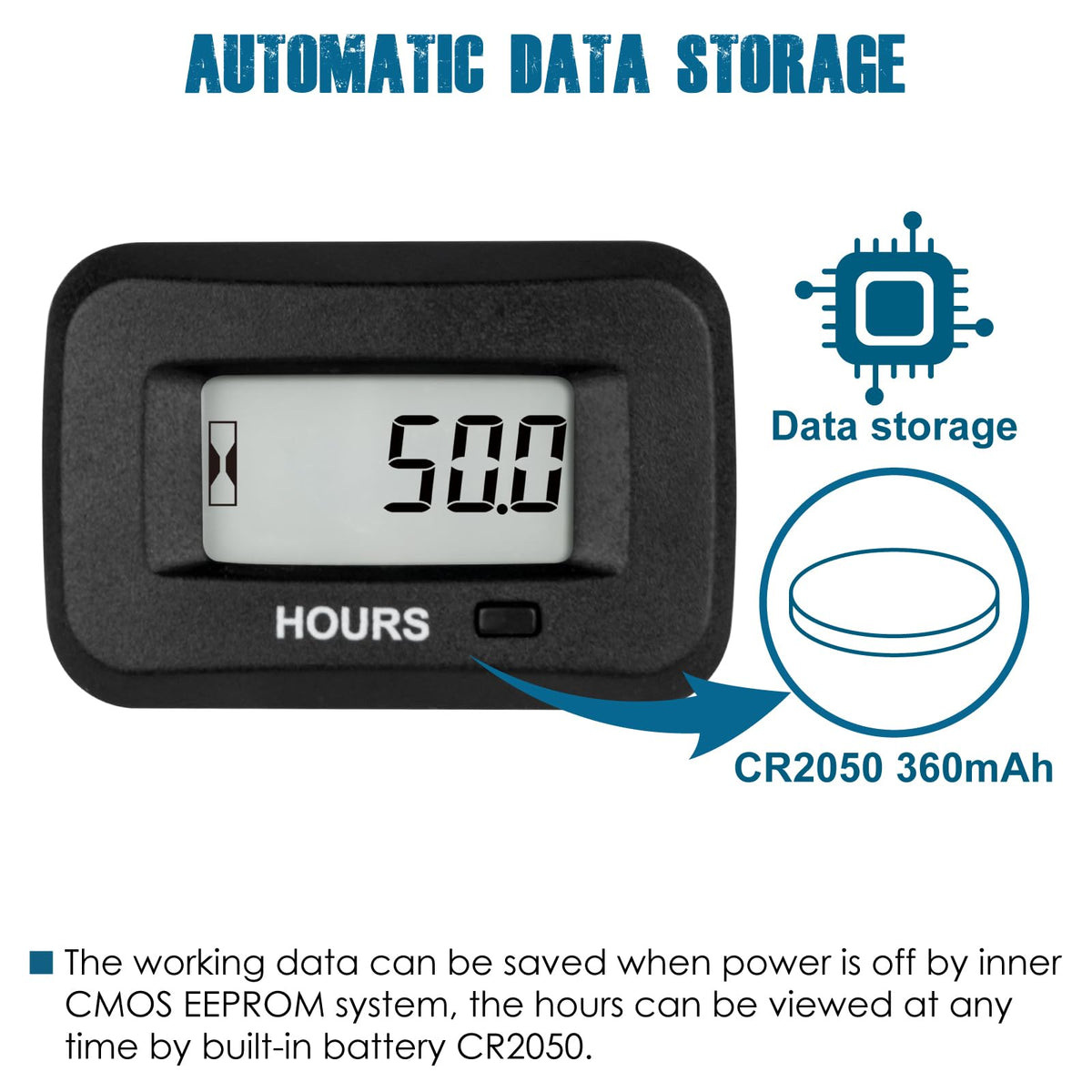

• EEPROM stores data so readings remain after power loss
• Built-in CR2050 battery (360 mAh) keeps display alive for viewing

Which machines and voltages does the RL-HM038AG-H support?

This model accepts a broad input range and works with many small-engine and equipment applications, either driven by machine power or ignition/spark signals. It’s suitable for lawn tractors, riding mowers, generators and similar machinery.

• Voltage compatibility: AC/DC 5V to 277V
• Common compatible machines: select lawn mowers, tractors and generators
• Can be triggered by power supply or spark-plug pulse on gasoline engines
• Examples: models like GP5500, WH7500E, YTH18542 and comparable units

Is the meter durable enough for outdoor and wet conditions?

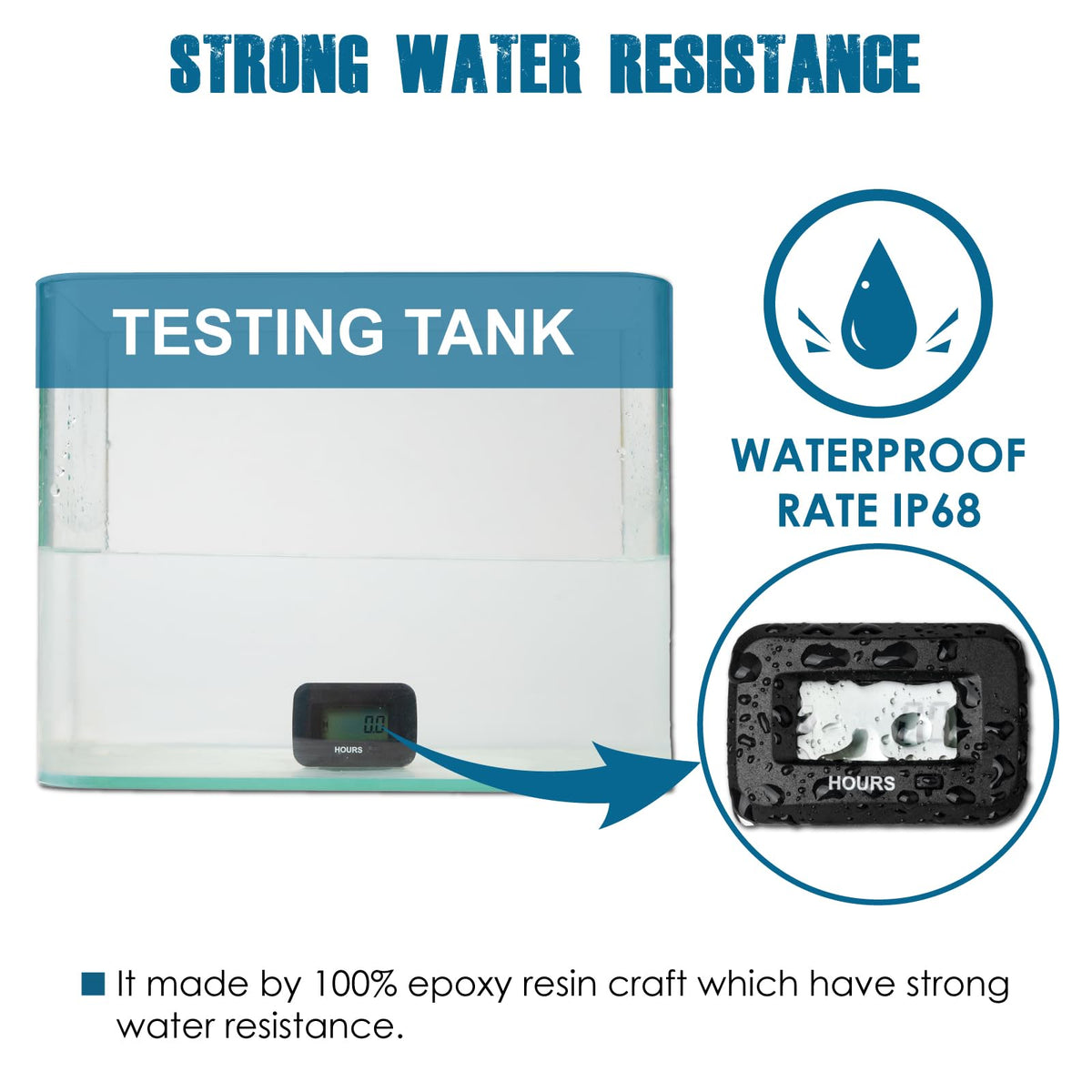

The housing is cast in 100% epoxy resin and tested to IP68 standards, so the device tolerates temporary immersion and resists moisture intrusion that would harm standard electronics. That makes it fit for equipment exposed to rain, mud, and washdowns.

• Construction: epoxy resin encapsulation for protection
• Ingress rating: IP68 — functions underwater to 10 meters for short periods
• Sealed design prevents corrosion from outdoor environments
• Suits equipment that sees wet or dirty conditions

How easy is installation and daily use?

Installation is straightforward: cut the panel opening, snap the meter into place, and connect to the machine’s power or signal source. The display remains readable while the machine is off, and the oil reminder and reset features are accessible without removing the unit.

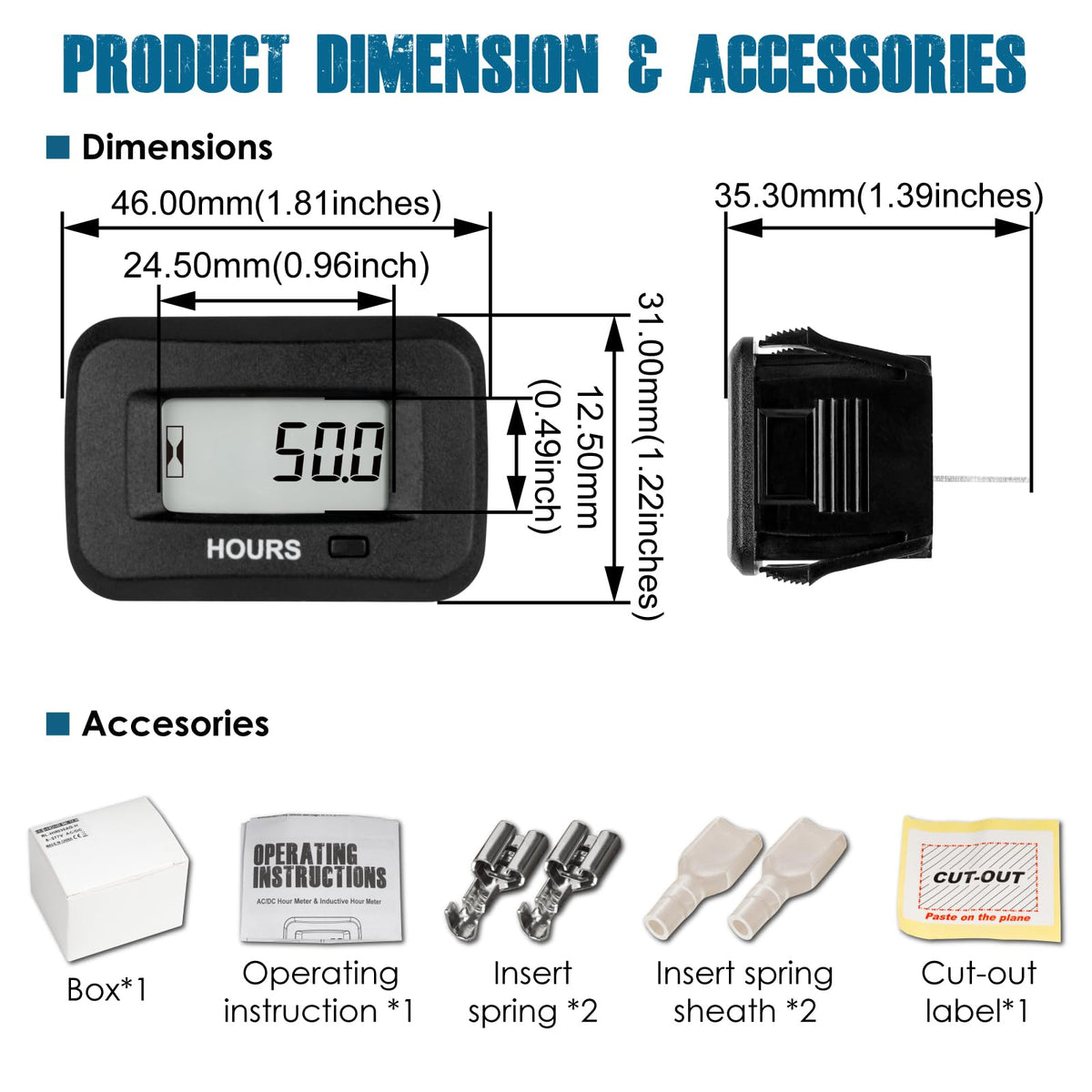

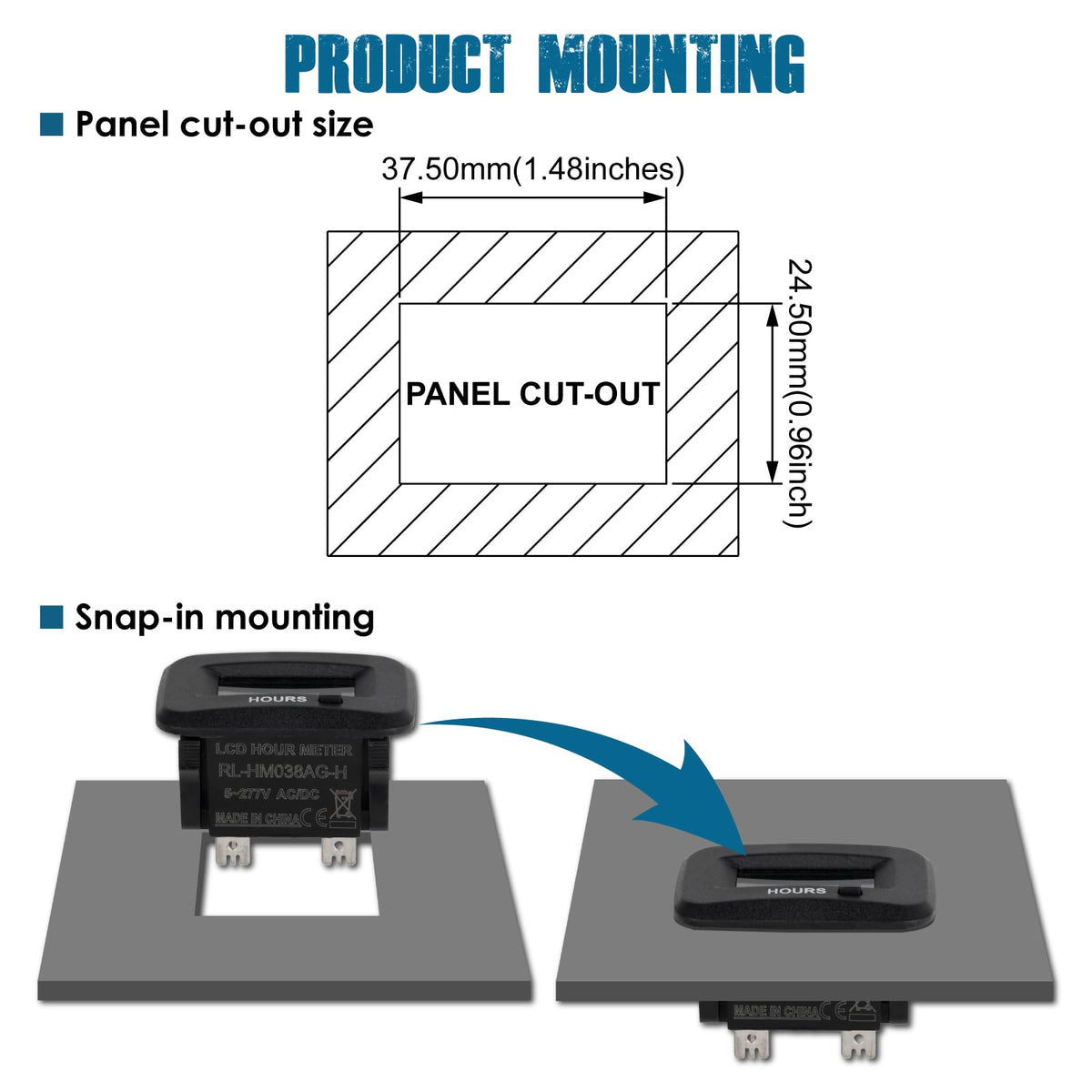

• Panel cut-out size: 37.5 mm × 24.5 mm (1.48" × 0.96")
• Mounting: drill-in and snap-in panel fit

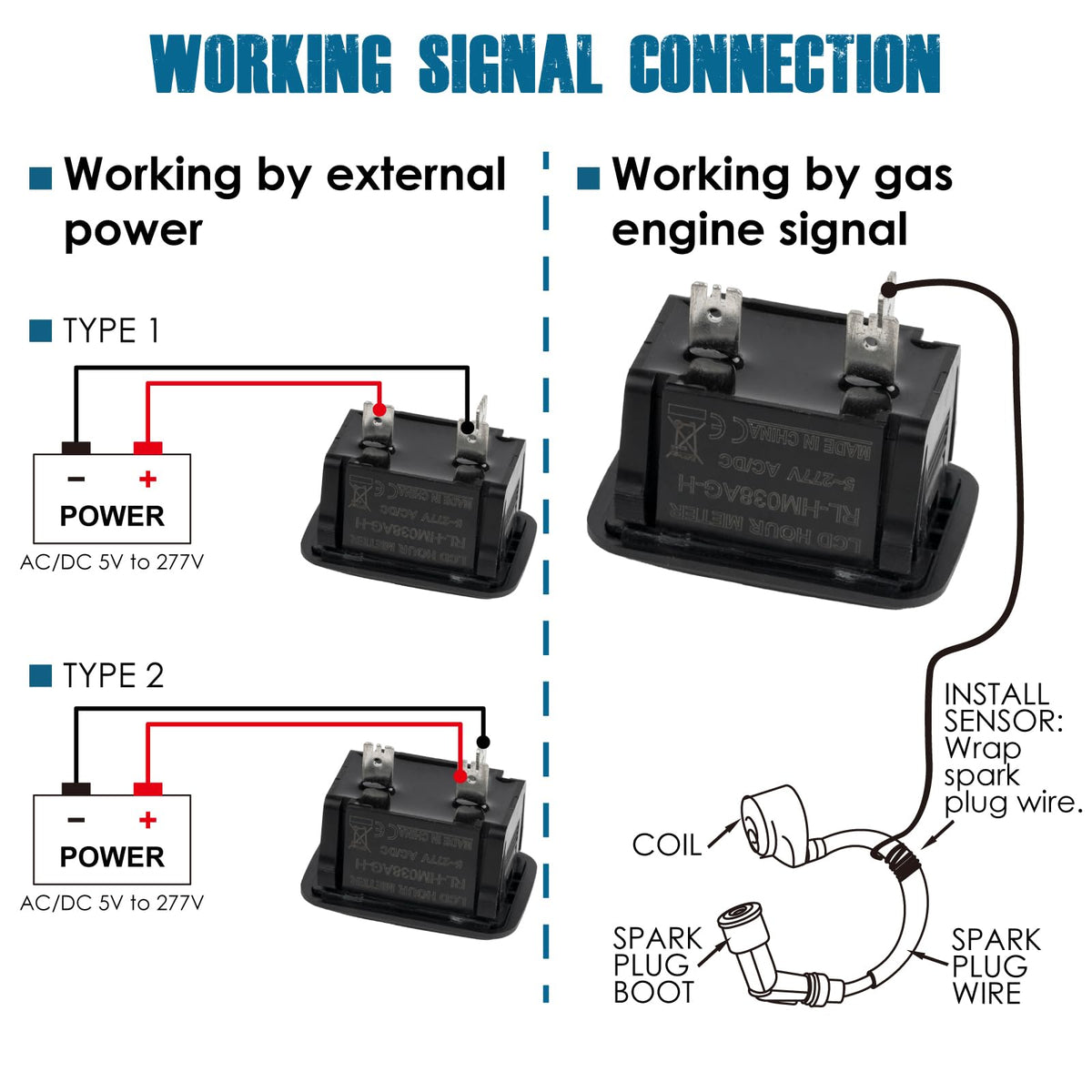

• Activation: powered by running machine or spark-plug signal
• No external batteries required for operation; internal CR2050 keeps data visible

Who is this for? The Runleader RL-HM038AG-H is designed for owners and service technicians of outdoor power equipment and portable engines who want a low-maintenance, reliable way to track runtime and schedule preventive service. It suits hobbyists who maintain their own mowers or generators as well as fleet managers who need consistent hour logs across multiple machines. If you want a waterproof, wide-voltage hour counter with persistent memory and a recurring oil-change reminder, this meter is a practical, easy-to-install choice.
