RV Designer 10A Illuminated Rocker Switch — Black with Red Actuator, 0.550x1.125 cutout, 3-terminal

RV Designer's 10A black illuminated rocker switch with a red actuator is a compact, universal-fit on/off control built for RV circuits and small appliances.

This illuminated rocker switch combines a clear on/off function with a visible red rocker and internal lamp so you can quickly locate and operate lights, pumps, and small heaters. Designed to fit a small rectangular panel cutout, it replaces common panel switches and offers three terminals for straightforward wiring. Its compact .550” x 1.125” cutout and 10-amp rating make it a practical choice for low-voltage DC applications in recreational vehicles, boats, and compact equipment.

How does this switch make locating and operating circuits easier?

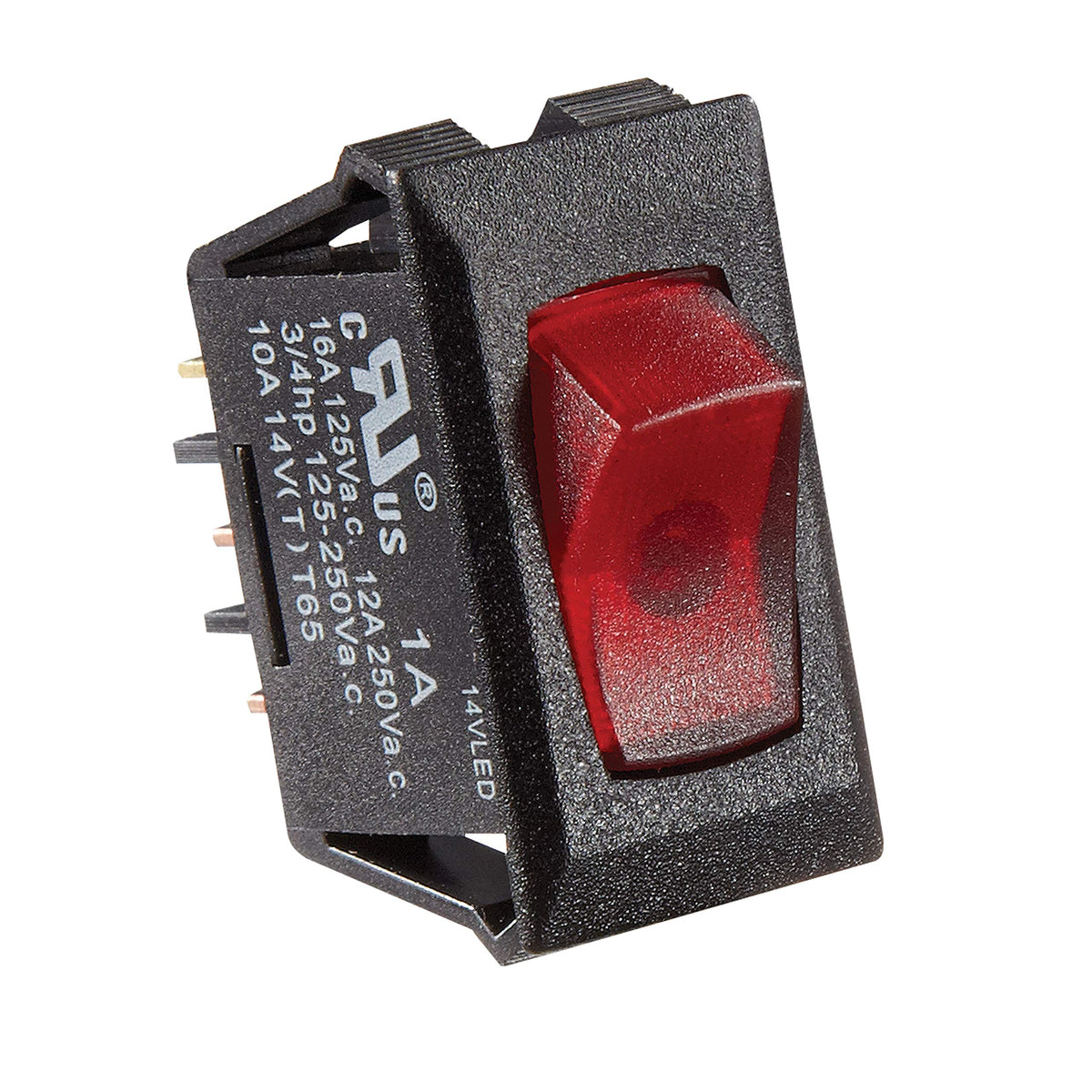

The built-in illumination around the rocker highlights the switch position in low light, so you can identify active circuits without fumbling. The red rocker provides immediate visual feedback when the switch is toggled, improving usability at night or in dim cabins.

• Illuminated rocker lamp for low-light visibility
• Red actuator for quick identification of the control
• Clear on/off positions reduce mis-switching in tight spaces

Will this switch fit my existing RV control panel cutout?

This switch is made for universal-fit installations that accept small rectangular rocker switches. Confirm the panel opening matches the specified cutout dimensions to ensure a snug, flush mount and avoid using adapters when possible.

• Required panel cutout: 0.550” x 1.125” (approximate)
• Snap-in or clip-style mounting suits common RV panels
• Compact footprint for tight or retrofitting applications

What electrical loads and wiring does the 10A rocker support?

The switch is rated for 10 amps, suitable for many lighting circuits and smaller appliance controls in DC systems. It includes three terminals to accommodate feed, load, and ground/illumination wiring, allowing a clean and functional installation.

• 10A maximum current rating for low-voltage circuits
• Three terminal connections for power, load, and lamp/ground
• Typical uses include lighting, water pump, water heater control, and other small appliances

How reliable is the switch for everyday RV or marine use?

Built with a simple rocker mechanism and an internal lamp, the switch offers dependable on/off performance under normal load conditions. Its straightforward design minimizes failure points, and the illuminated feature helps prevent accidental leave-on situations by showing circuit status at a glance.

• Durable rocker action for repeated cycles
• Illumination reduces accidental operation and helps troubleshooting
• Universal fit reduces need for custom panels or brackets

Who is this for: RV owners, boat builders, and DIYers who need an easy-to-install, visible on/off control for low-amp circuits will find this RV Designer 10A illuminated rocker switch ideal. It's intended for applications such as cabin and utility lighting, small water pumps, tank heaters, and other similar appliance-level controls where a compact, clearly visible switch and a simple three-terminal wiring layout are required. Verify the cutout size and amperage needs before installation to ensure safe, reliable operation.
