RVBOATPAT 120 Amp Flush-Mount Battery Quick Disconnect Kit — 2/4/6 AWG, 600V, Silver-Plated Copper Pins

RVBOATPAT's 120 Amp quick disconnect is a flush-mount battery cable connector kit that gives you a safe, high-current connection for 2/4/6 AWG cables with easy plug-and-play access.

Built for vehicles, boats, trailers and workshop panels, this kit includes everything required to install a reliable 120A service port: housings, covers, mounting plates, terminals and screws. The connector body is molded from flame-retardant PC, and the male/female terminals are copper with silver plating for improved conductivity and corrosion resistance. Designed for up to 600V and rated at 120 amps, it provides a convenient way to add a removable power access point for winches, battery chargers, inverter leads and seasonal accessories.

How does this connector make installing an external power port easier?

The RVBOATPAT kit arrives with preformed housings, a flush-mount panel and all necessary fasteners so you don’t need to hunt for parts. Terminals are crimpable and the mounting plate lets you secure the connector neatly into dashboards, lockers or boat transoms. The two protective covers keep the plug sealed when not in use.

• Includes 4 housings and 2 flush-mount panels for tidy installation
• Eight terminals and eight mounting screws for secure cable attachment
• Two protective covers to shield contacts from moisture and dirt

Will this work with my battery cables and accessories?

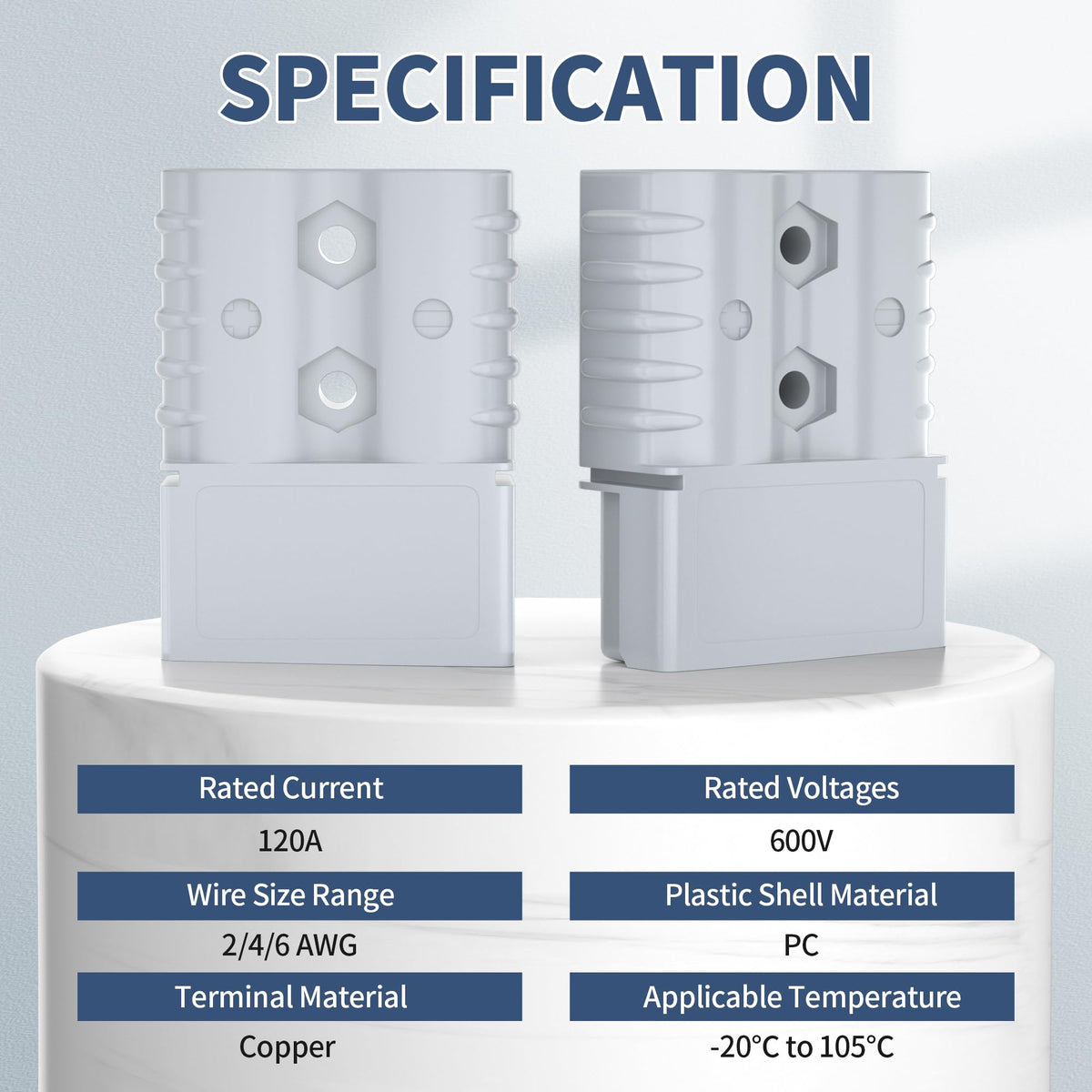

The connector is compatible with 2 AWG, 4 AWG and 6 AWG battery cables, making it suitable for most winch, inverter and auxiliary power runs. It’s rated to carry 120 amps continuous current and withstand up to 600 volts, so it suits a broad range of 12V and 24V systems when used within ratings. Proper crimping and correct cable sizing are recommended to maintain safe operation.

• Supports 2/4/6 AWG cable sizes for common vehicle and marine setups
• Rated 120A and up to 600V for versatile use cases
• Copper silver-plated terminals improve conductivity and durability

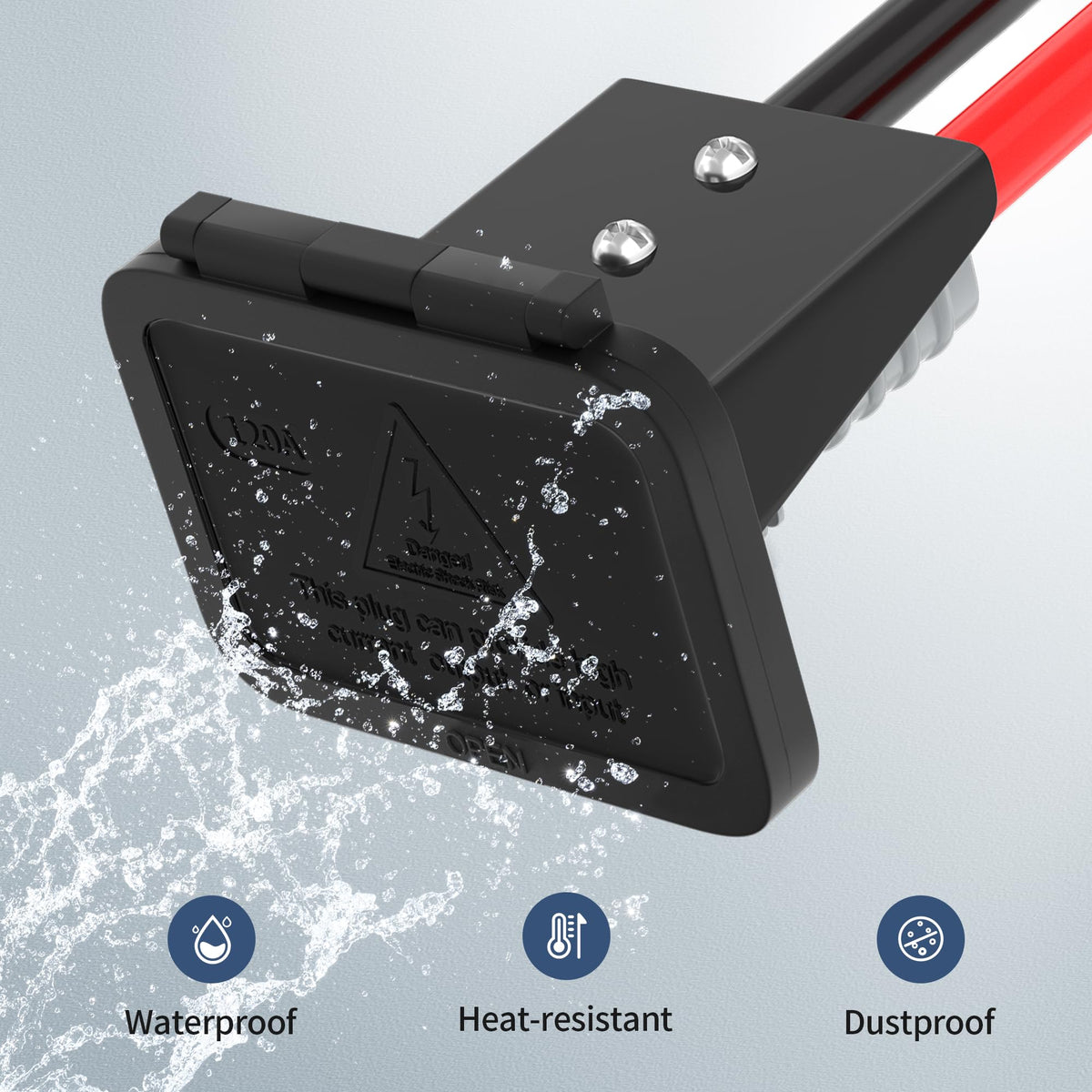

How durable and safe is the RVBOATPAT quick disconnect under real-world conditions?

Materials and plating were chosen for heat resistance and corrosion protection in harsh environments. The connector housing is made from flame-retardant polycarbonate, while the terminal pins use copper with a silver finish to reduce contact resistance and resist oxidation. When installed correctly and protected by the included covers, the assembly is suited for outdoor and mobile power applications.

• Flame-retardant PC housing for higher thermal safety
• Copper silver-plated pins for low resistance and corrosion resistance
• Protective covers and flush mount reduce exposure to contaminants

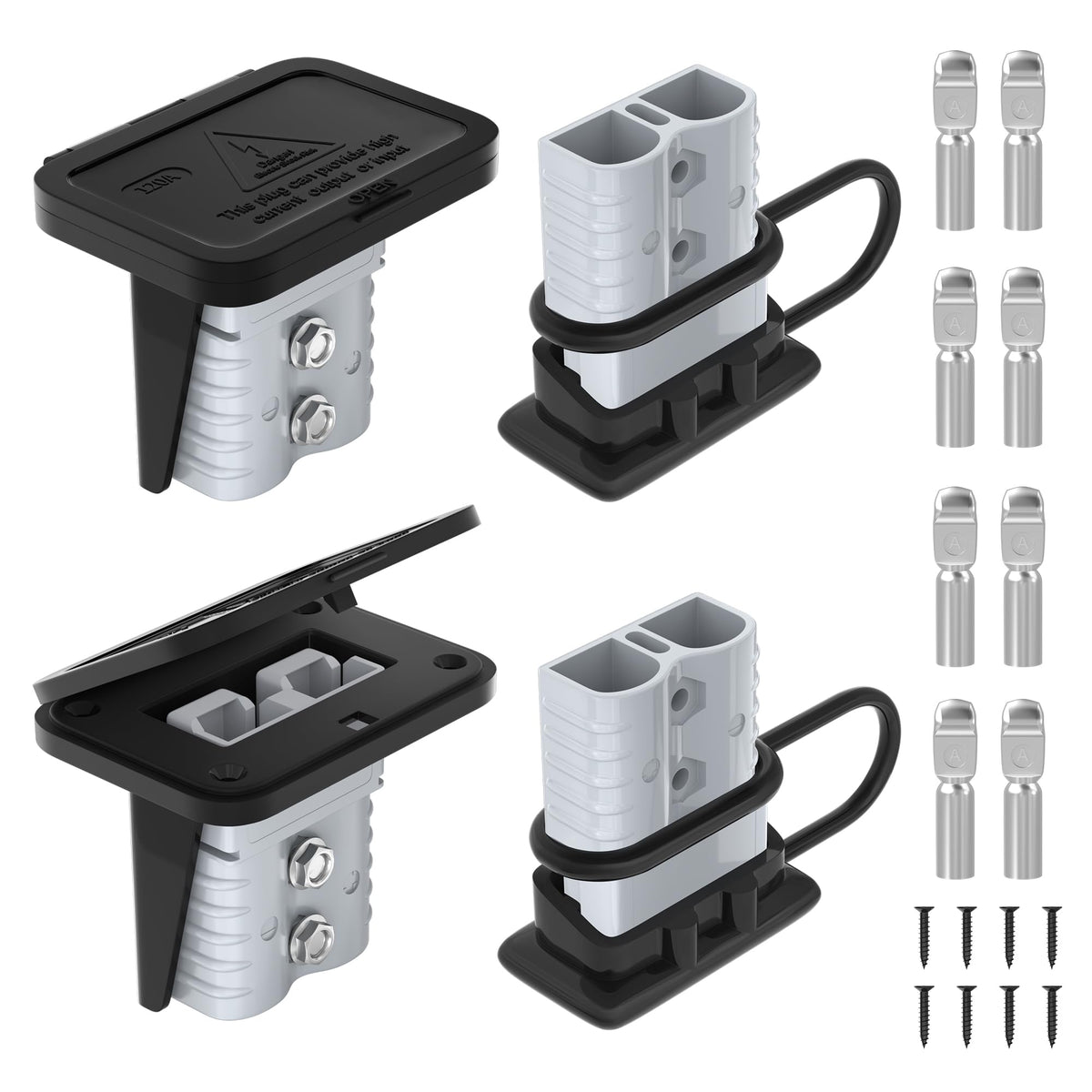

What comes in the box and what tools do I need to install it?

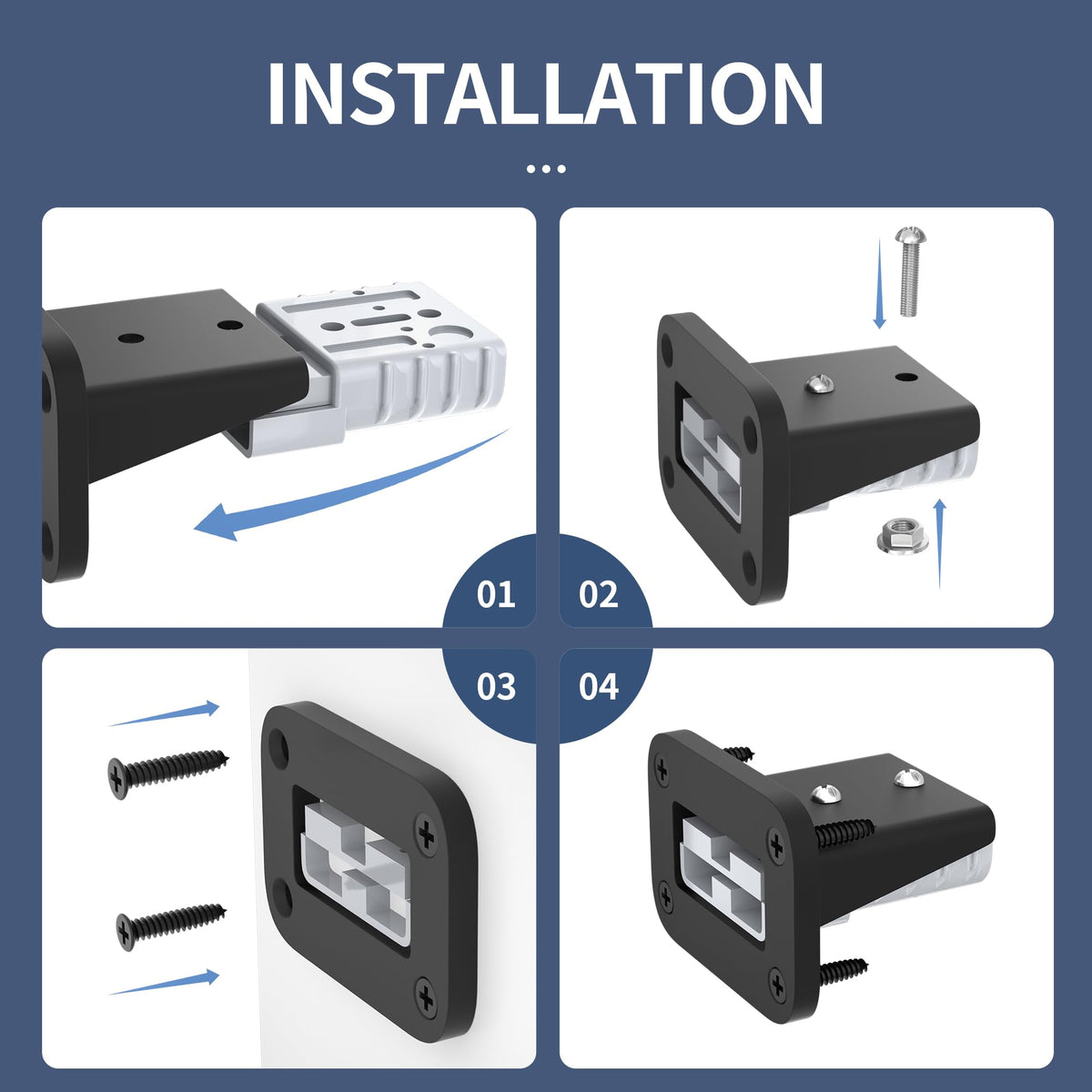

The set contains multiple housings, mounting panels, protective covers, terminals and all the fasteners required for installation. Basic tools—wire stripper, crimper and a screwdriver—are sufficient for most installs; if you’re mounting through metal you may need a hole saw or step drill for the flush plate opening.

• Included: 4 housings, 2 protect covers, 2 flush-mount panels, 8 terminals
• Also includes: 8 mounting screws and 4 fixing screws
• Recommended tools: wire stripper, crimper, screwdriver, drill for panel cutout

Who is this for: Installers, DIYers and fleet owners who need a compact, reliable high-current outlet for winches, battery chargers, inverters or seasonal accessories will find this kit useful. It’s particularly suited to RVs, boats, ATVs, trailers and work trucks where a removable, protected power connection simplifies maintenance and accessory hookup. If you require a higher amp rating, different mounting style, or professional-grade IP sealing, consider that when selecting components.
