RVBOATPAT Battery Quick Disconnect Connector 175A

RVBOATPAT 175A Battery Quick Disconnect Connector is a 4-pack of heavy-duty 12V quick-connect housings and terminals made to join 4–1/0 AWG cables safely and quickly for winches, boats, RVs, trucks and forklifts.

This kit includes four durable connector housings, protective covers, eight silver-plated copper terminals and rubber seals so you can make a high-current plug-and-play battery link without cutting into factory wiring. The components accept 4 AWG, 2 AWG and 1/0 AWG conductors and are rated for up to 175 A and 600 V, giving a robust option for power-hungry accessories where a reliable quick disconnect is needed.

How do I install the RVBOATPAT quick disconnect connector?

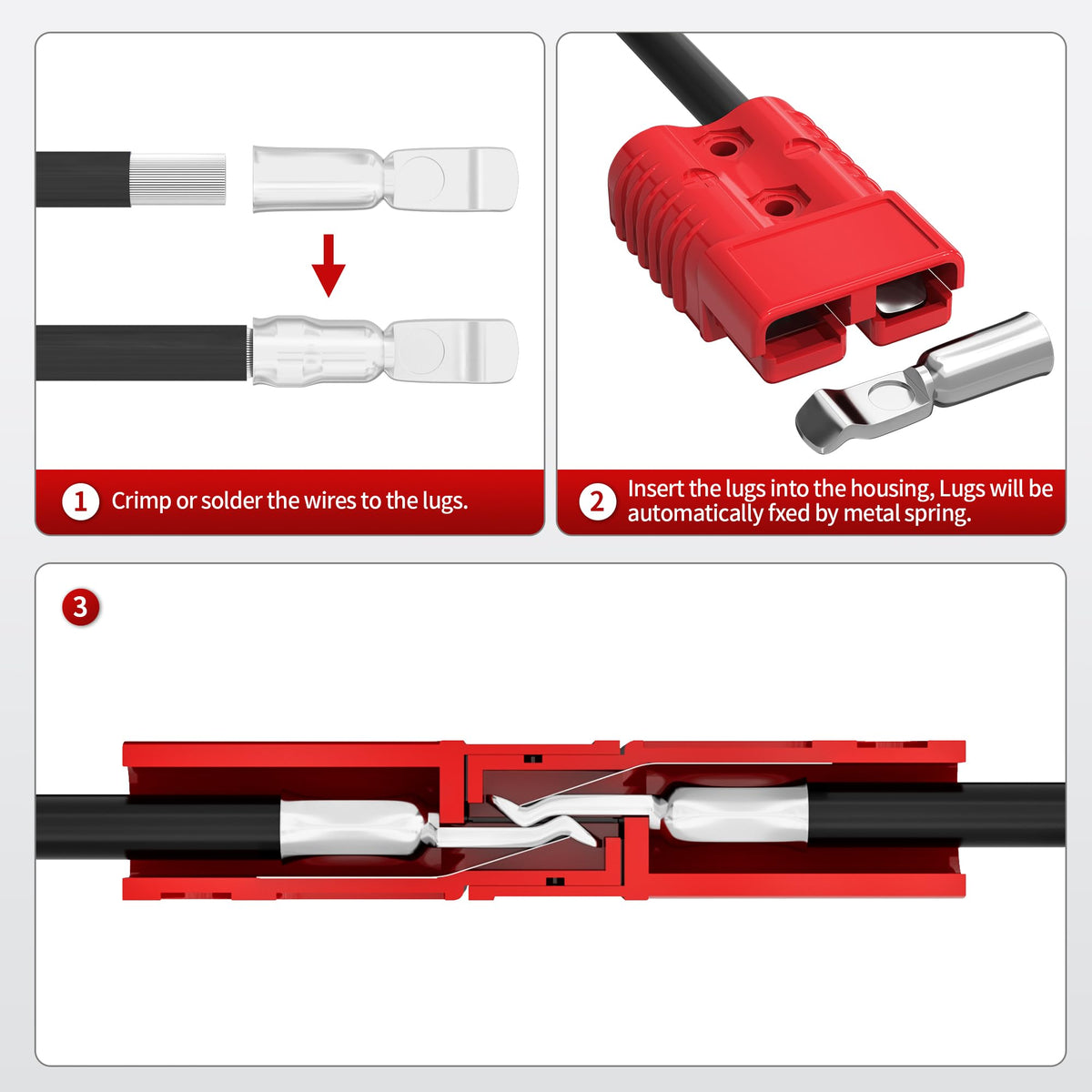

Installation is straightforward: strip the cable, attach the terminal by crimping or soldering, then seat the terminal into the housing and lock it in place. Finish by fitting the rubber seal and the protective cover for strain relief and weather protection.

• Strip cable to manufacturer-recommended length for secure contact
• Crimp or solder terminals (use proper tooling for 1/0 AWG)
• Push terminals into housing until they click and test pull force
• Fit rubber seals and protective covers to reduce corrosion

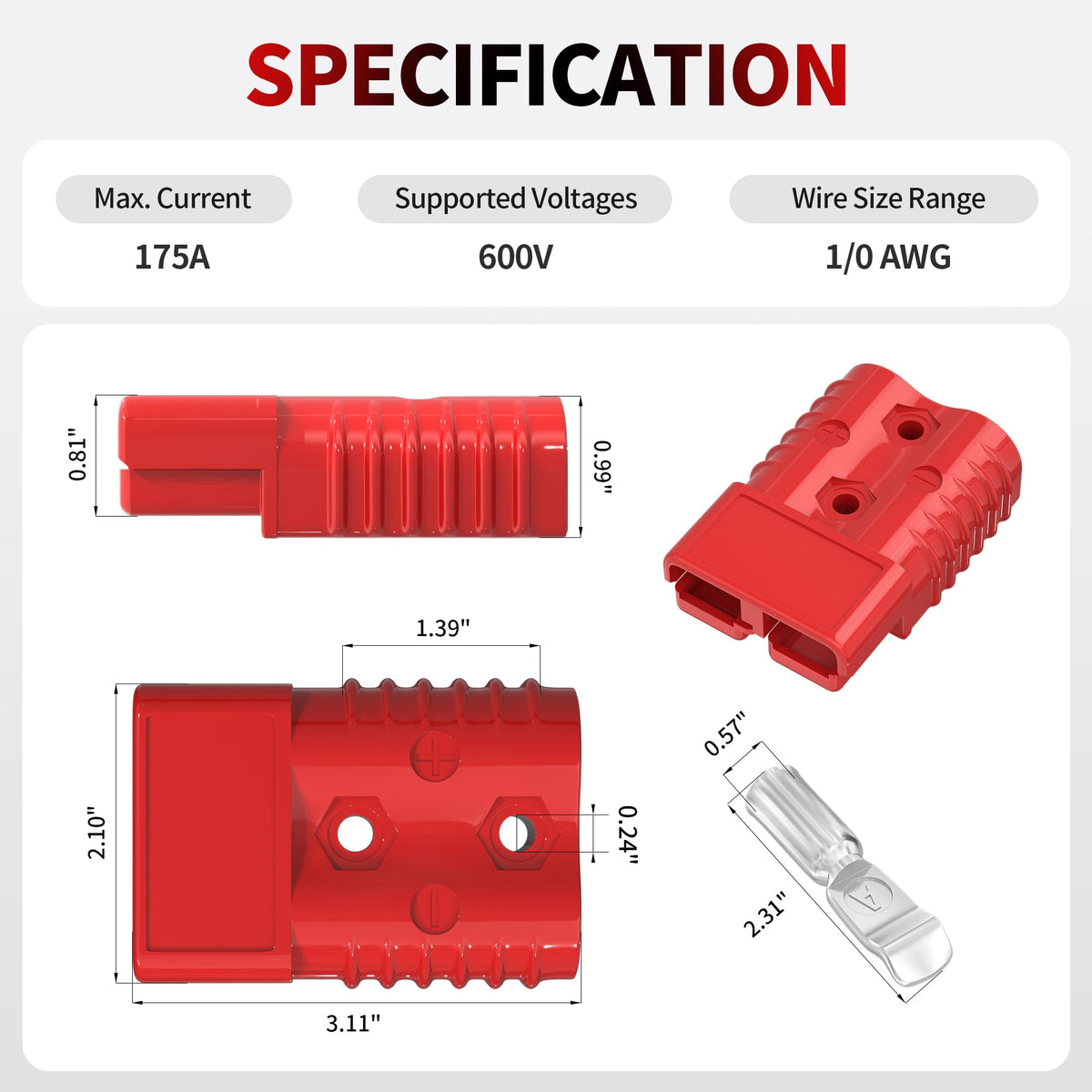

What cables and currents are compatible with this connector?

This connector set accepts 4 AWG, 2 AWG and 1/0 AWG conductors and is specified for up to 175 amps continuous current and a maximum voltage of 600 V. Those limits make it suitable for many 12V systems such as winches, boat battery banks and heavy-duty vehicle accessories.

• Compatible with 4 AWG, 2 AWG and 1/0 AWG battery cable
• Maximum continuous current: 175 A; maximum voltage: 600 V
• Silver-plated copper pins for improved conductivity
• PC flame-retardant housing for safety at elevated temperatures

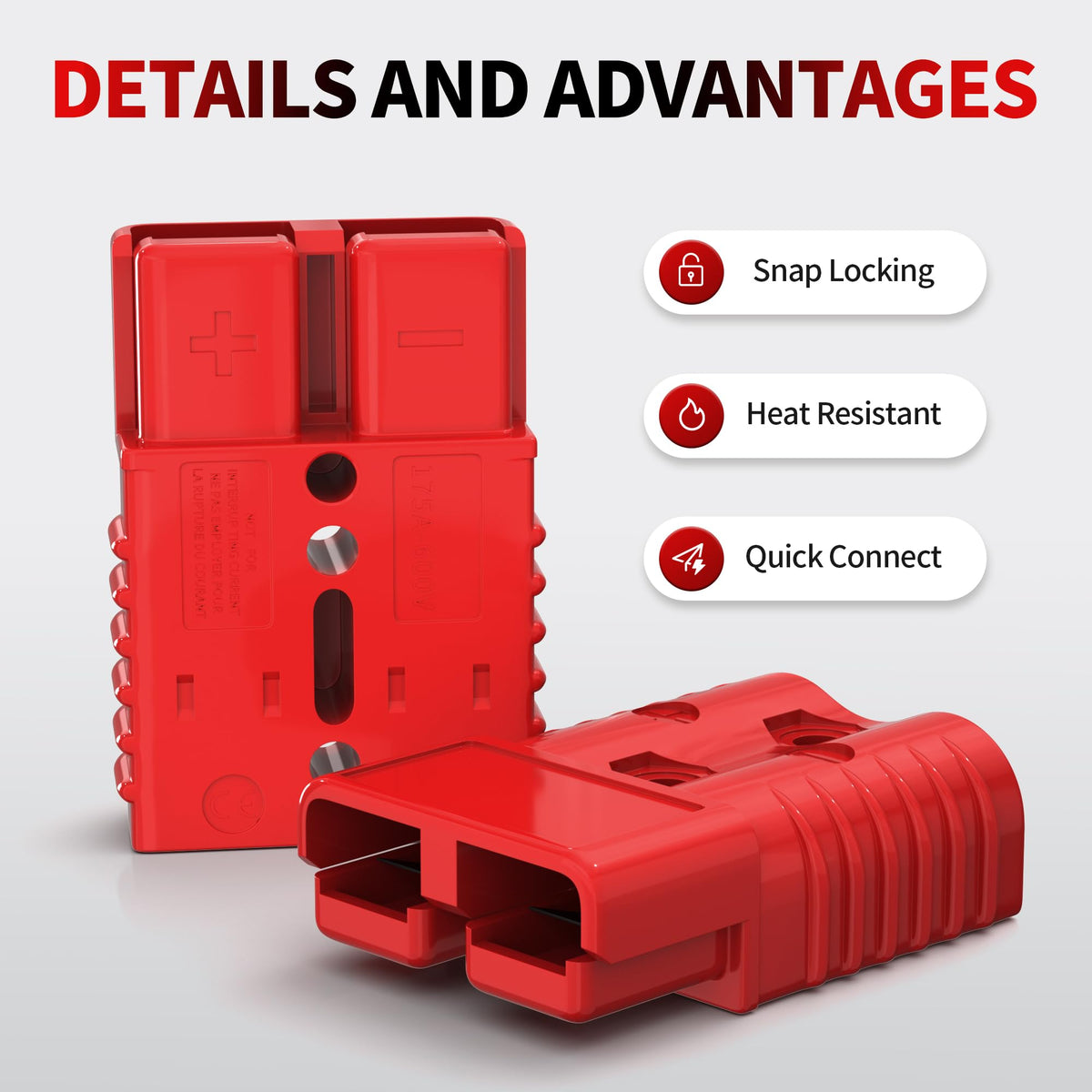

Will these connectors withstand outdoor and marine environments?

The housings are made from solid PC flame-retardant plastic and the terminal pins are silver-plated copper to resist corrosion while keeping conductivity high. Rubber seals and protective covers help keep moisture and contaminants away from the contact area, extending service life in harsher conditions.

• Flame-retardant PC housing reduces heat and fire risk
• Silver-plated copper terminals improve corrosion resistance
• Included rubber seals and covers add weather protection
• Suitable for use on boats, trailers, RVs and outdoor winches

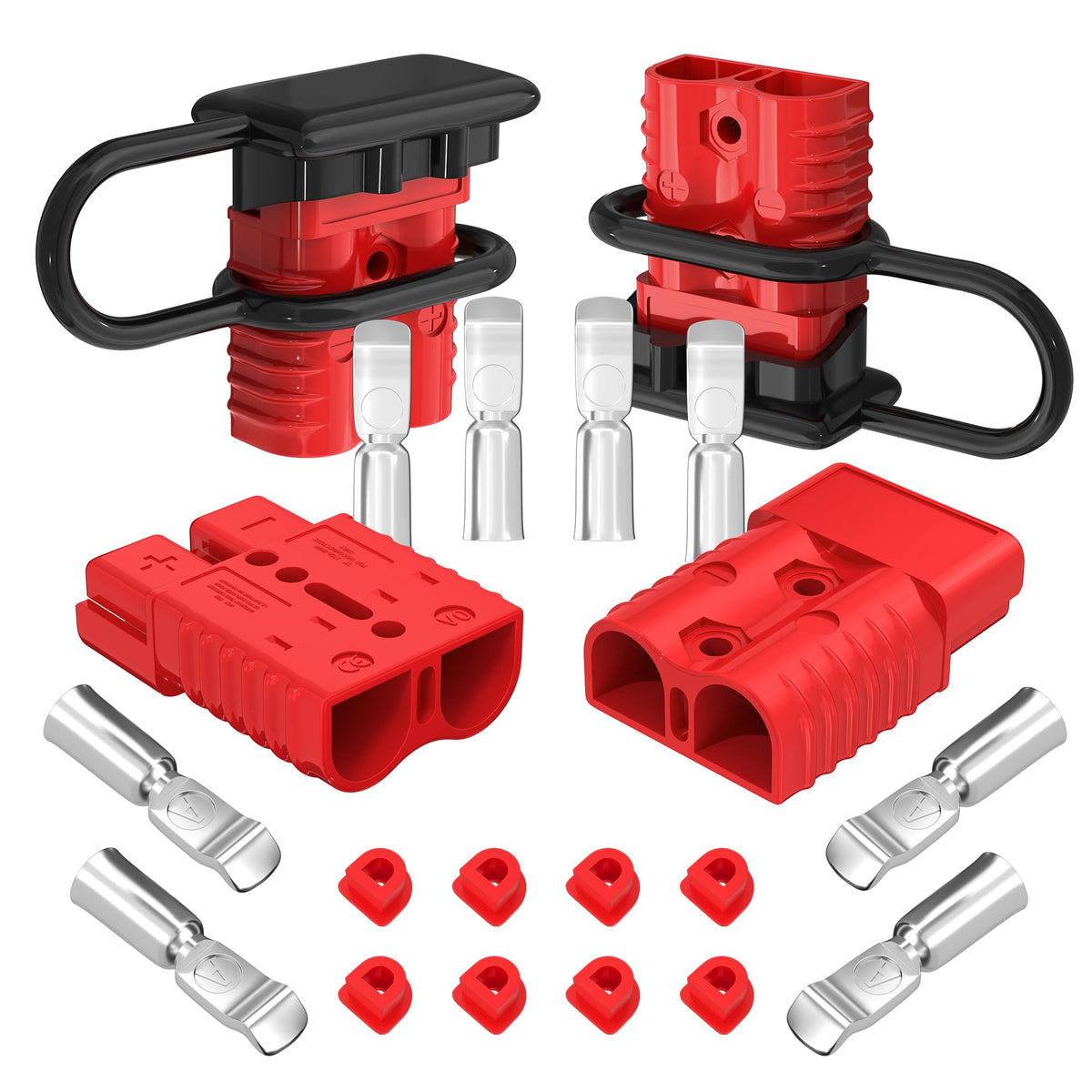

What comes in the RVBOATPAT 175A connector kit?

The 4-pack kit is supplied with everything needed to assemble four quick-disconnect plugs: housings, protective covers, terminals and sealed rubber grommets. That makes it easy to replace existing connectors or add serviceable disconnects to multiple circuits at once.

• 4 x RVBOATPAT connector housings
• 2 x protective covers to safeguard plugs when disconnected
• 8 x silver-plated copper terminals (male/female as required)
• 8 x sealed rubber grommets for moisture protection

Who is this for: Technicians, DIYers and vehicle owners who need a reliable, high-current quick disconnect for 12V systems will find this RVBOATPAT 175A connector set useful. It fits applications from winch installations and boat battery banks to RV power distribution and forklift or trailer setups that demand simple, high-capacity connections with weather sealing.
