RVMARINEPAT 100A Trolling Motor Plug and Receptacle Set - 2‑Pin Waterproof 6–4 AWG, Fast Locking

The RVMARINEPAT 100 Amp trolling motor plug and receptacle set is a heavy-duty, waterproof 2‑pin circular connector engineered to deliver up to 100A of continuous power for 12V–48V marine systems.

Designed for anglers, boat owners, and marine technicians who need a reliable power connection, this kit includes both the plug and panel receptacle plus terminals and mounting screws. It accepts 6–4 AWG wire, uses silver‑plated brass contacts for consistent conductivity, and features a fast locking, ergonomically contoured design for safe, splash‑resistant connections in harsh conditions.

How durable is this connector in saltwater and extreme temperatures?

The RVMARINEPAT set is built for marine exposure and long service life. Corrosion‑resistant silver‑plated brass contacts and rugged housing materials resist pitting and wear, while sealing gaskets maintain protection from water and debris.

• IP67 waterproof rating shields against immersion and high humidity
• Operates between -40°F and 220°F for wide temperature resilience
• Rated for 1,000+ plug/unplug cycles for long-term reliability

Will this work with my trolling motor and battery setup?

This connector supports 12V, 24V, 36V, and 48V systems and is rated to carry up to 100 amps continuously, making it compatible with most small and mid‑size trolling motors. The 2‑pin layout and acceptance of 6–4 AWG cable ensure a secure, low‑resistance path between battery and motor.

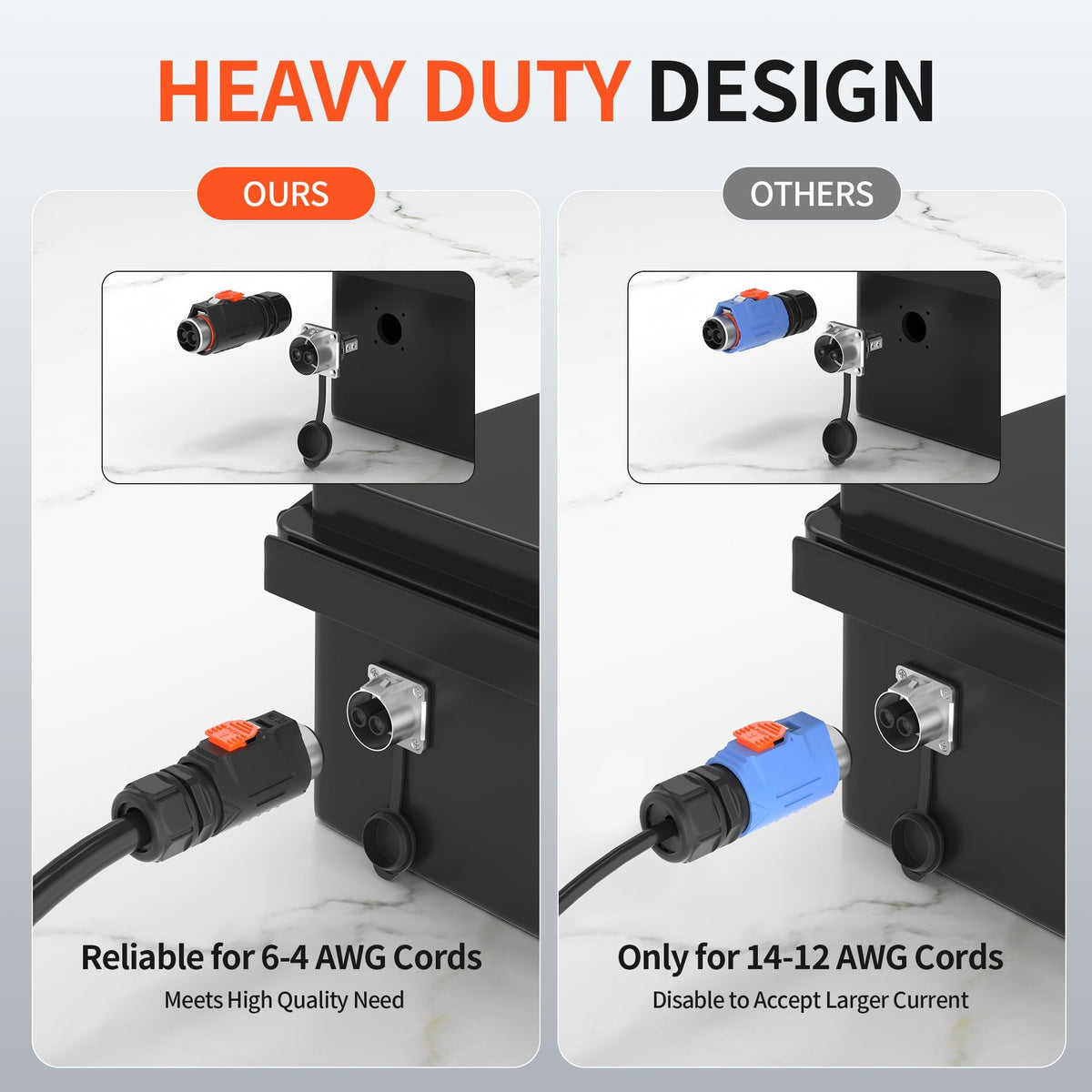

• Handles 6–4 AWG wire for minimal voltage drop
• 2‑pin circular design fits standard trolling motor wiring arrangements
• Suitable for lead‑acid and lithium battery systems within voltage range

How easy is installation and daily use?

Installation is straightforward: crimp or solder the supplied terminals to your cable, fasten the receptacle to the panel with included screws, and mate the plug for a self‑locking connection. The contoured handle helps maintain grip in wet or gloved hands for quick, safe hookups.

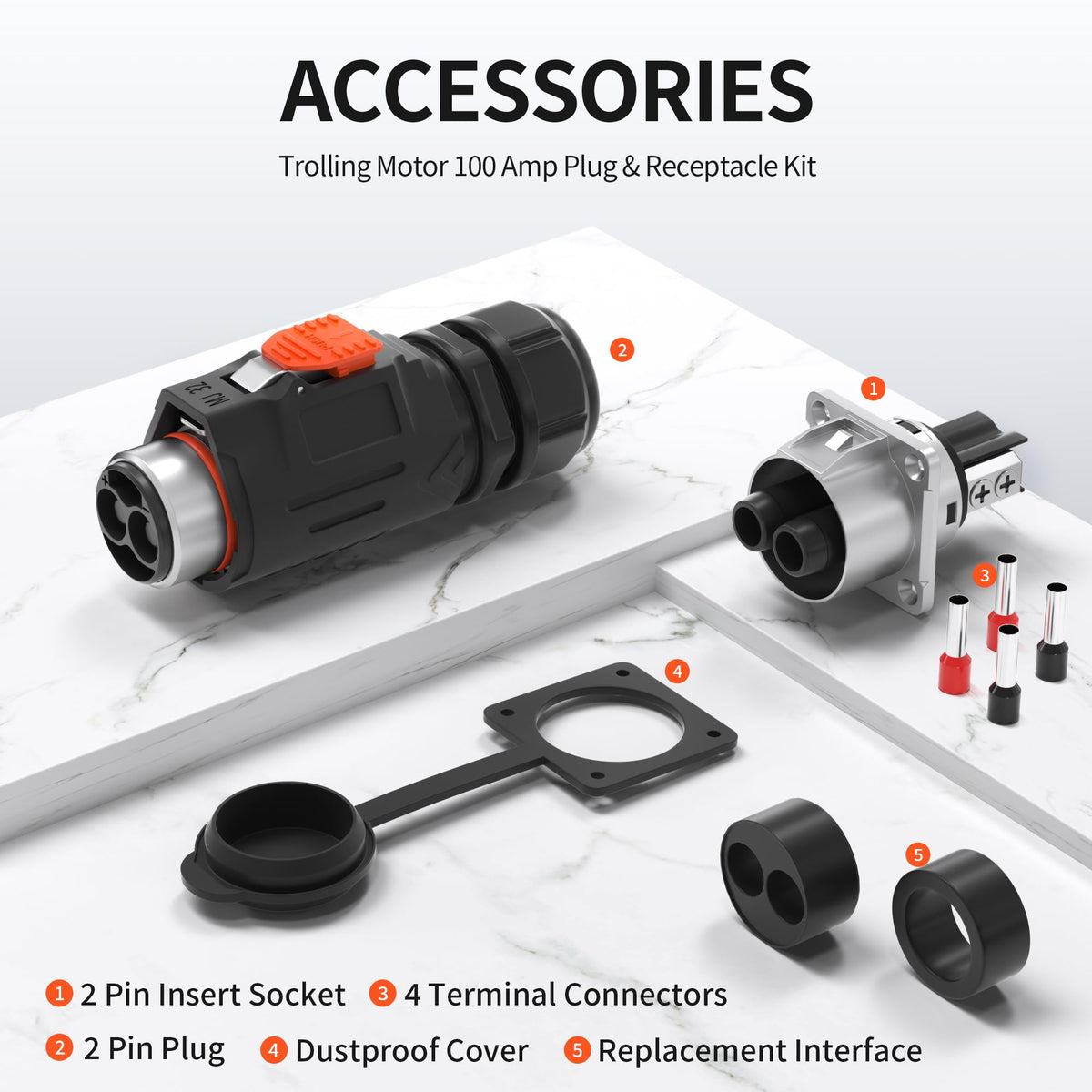

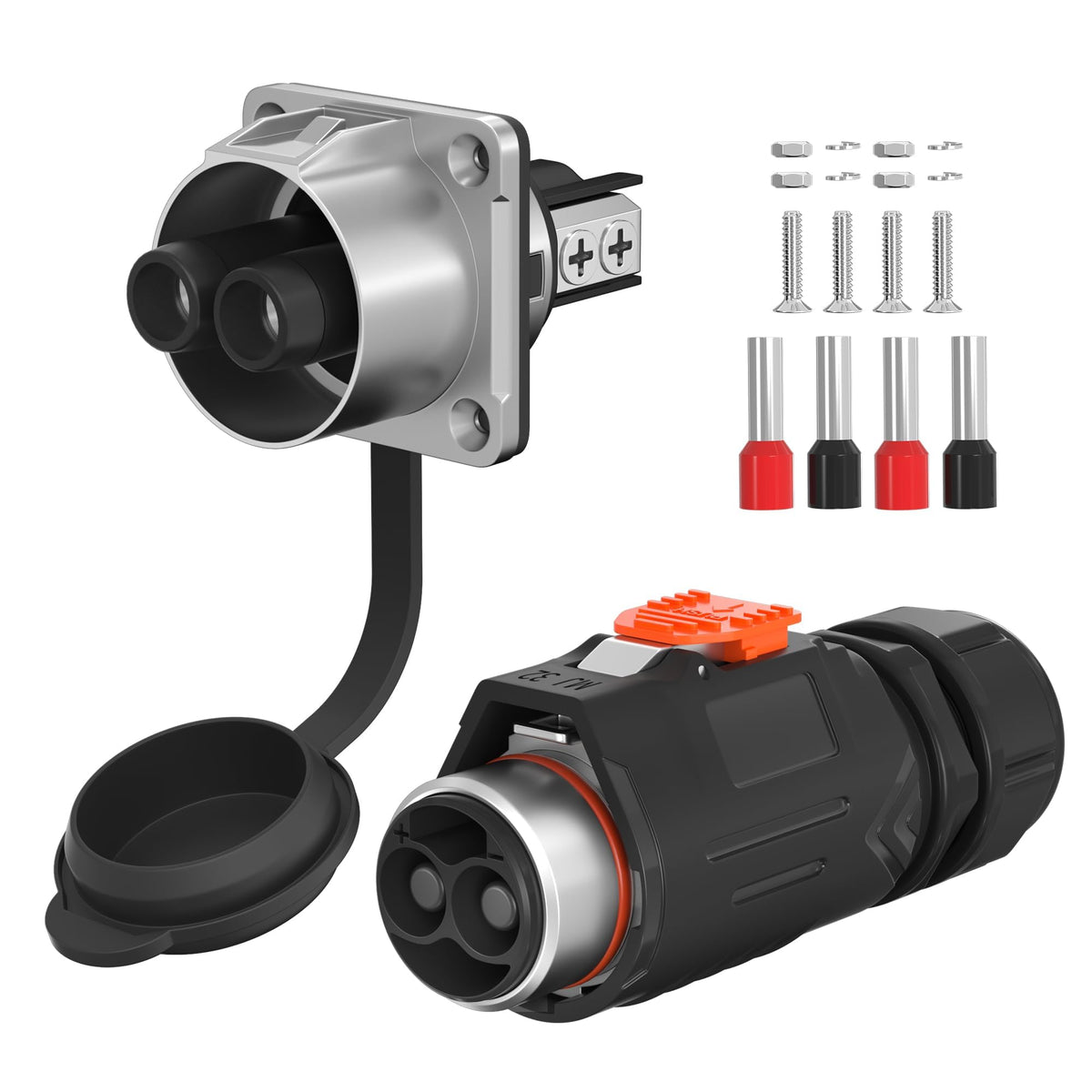

• Includes plug, panel receptacle, terminals, and mounting screws
• Self‑locking mechanism prevents accidental disconnection underway
• Ergonomic handle and clear orientation for fast, error‑free mating

What protection features keep the connection safe on the water?

Seals and caps protect internal contacts from spray, rain, and brief submersion, while silver‑plated contacts reduce oxidation that leads to heat and resistance. The design minimizes arcing during connection and disconnection to preserve both connector and electrical components.

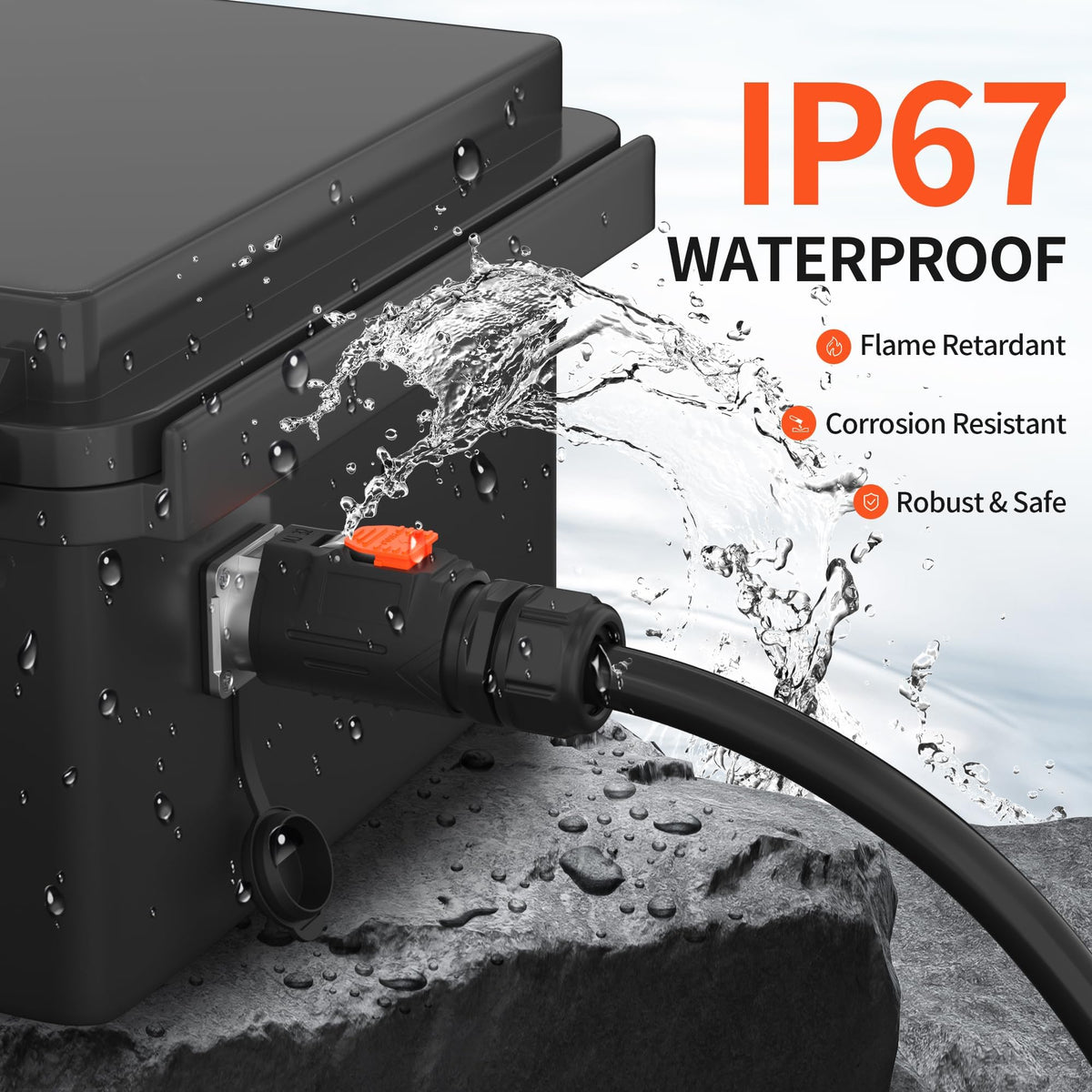

• IP67 seals against immersion and sand or salt intrusion
• Protective caps keep contacts clean when not in use
• Silver‑plated brass contacts ensure lasting conductivity

Who is this for? If you need a dependable, marine‑grade power connection for a trolling motor, battery bank, or auxiliary equipment, the RVMARINEPAT 100 Amp plug and receptacle kit offers a balance of high current capacity, corrosion resistance, and simple installation. It’s a good choice for recreational boaters, tournament anglers, and marine service technicians who require a compact, waterproof, and fast‑locking 2‑pin connector that performs in demanding environments.
