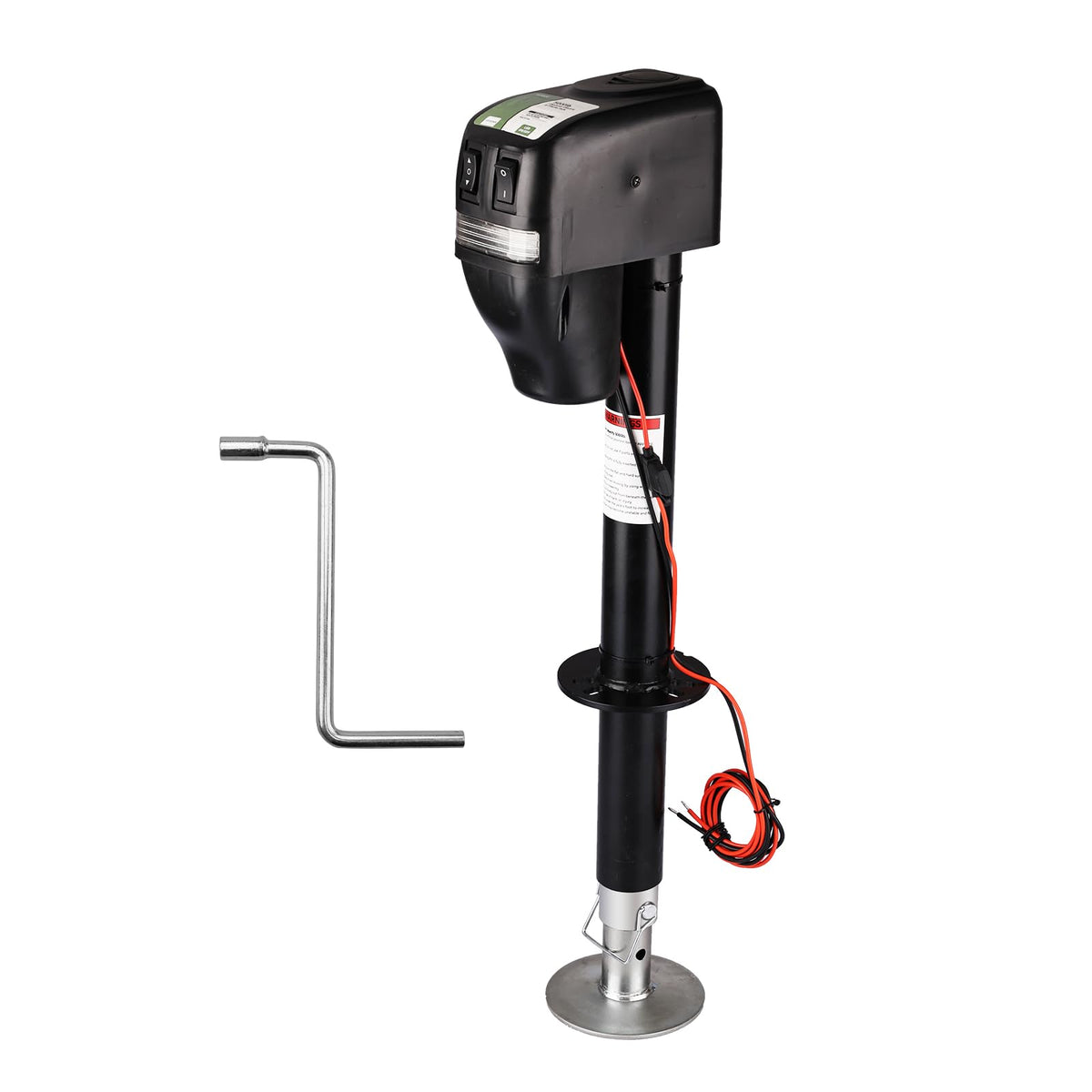

RVMATE Electric A-Frame Trailer Jack 12V, 5000–5500 lb Capacity, 18in Lift, LED Light

The RVMATE Electric A-Frame Trailer Jack is a 12V power tongue jack that raises and lowers A-frame trailers up to 5000–5500 pounds with an 18-inch travel for fast, hands-free hookup and leveling.

Built for heavier trailers, this electric jack replaces manual crank jacks with a motor-driven lift that simplifies coupling, uncoupling and leveling tasks. Constructed from heavy-duty steel, it combines a zinc inner tube and a black powder-coated outer tube for corrosion resistance, plus practical features like an LED light, a fuse for electrical protection, and a removable footplate for stable ground contact.

How much weight can this jack safely handle?

The RVMATE A-frame jack is rated for a lifting capacity in the 5000–5500 lb range, making it suitable for many medium to heavy-duty trailers. The design uses spur gears and a 12-volt motor to deliver reliable torque through the full travel range.

• Rated capacity: 5000–5500 pounds
• Motor type: 12V electric motor with spur gear drive
• Built to handle common utility, equipment, and travel trailer tongue loads

What are the lift range and dimensions I should expect?

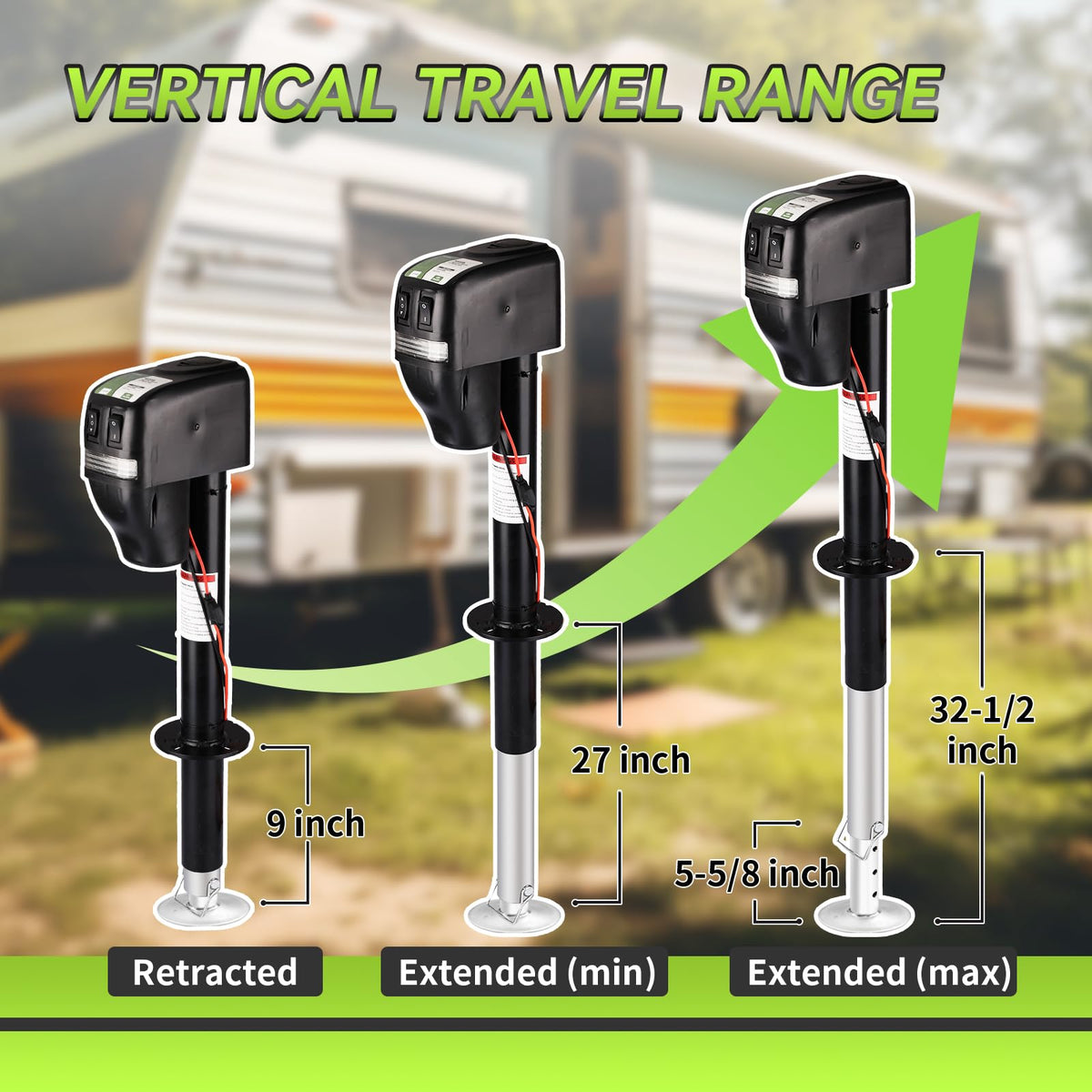

This jack extends from a fully retracted height of 9" to a maximum extended height of 32.5", giving a total travel of 18" to accommodate a wide variety of trailer heights. The standard tube diameter is 2-1/4", and the drop leg travel is 5-5/8", matching common A-frame jack mounting patterns.

• Fully retracted height: 9 inches
• Maximum extended height: 32.5 inches
• Total travel: 18 inches; tube diameter: 2-1/4"; drop leg travel: 5-5/8"

What safety and convenience features are included?

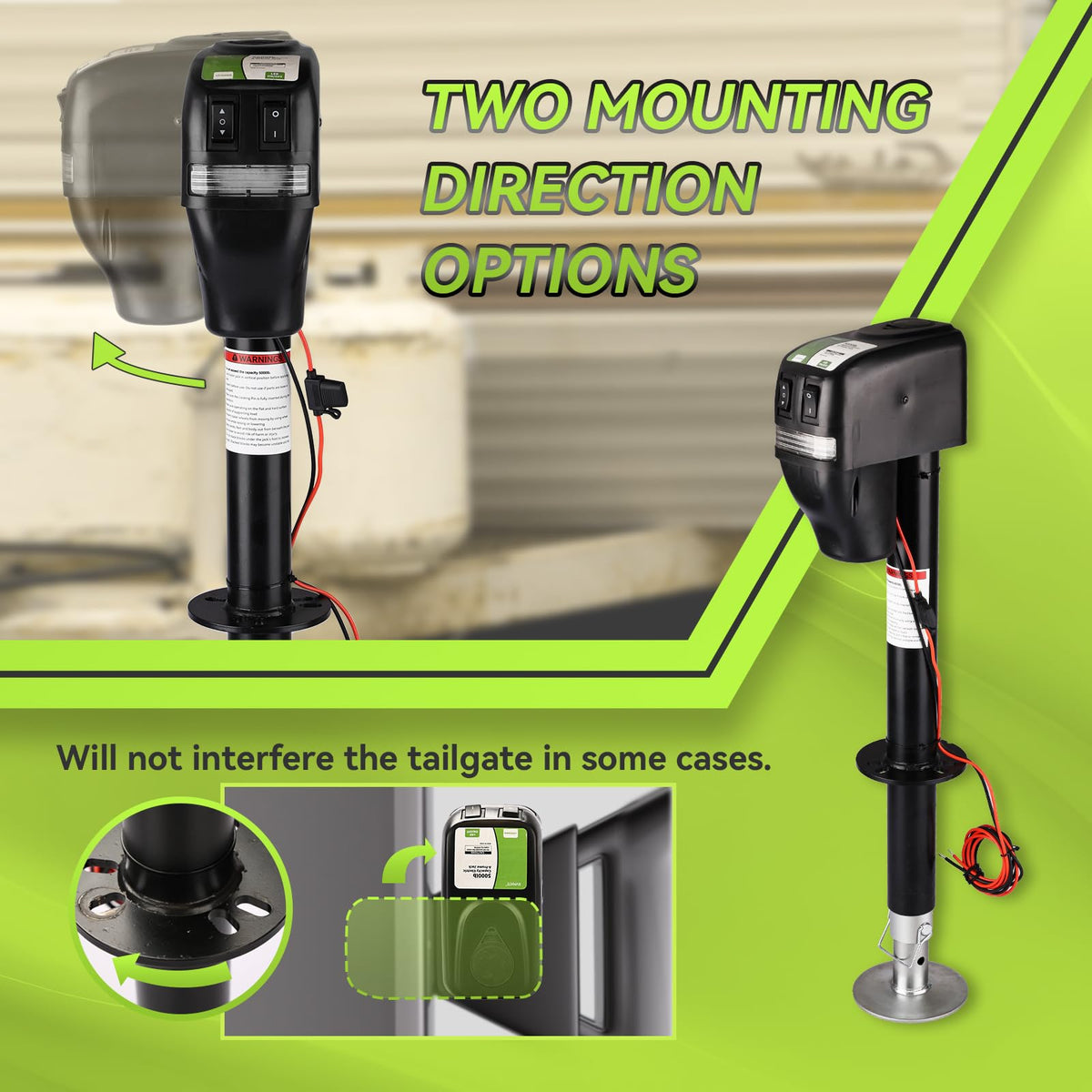

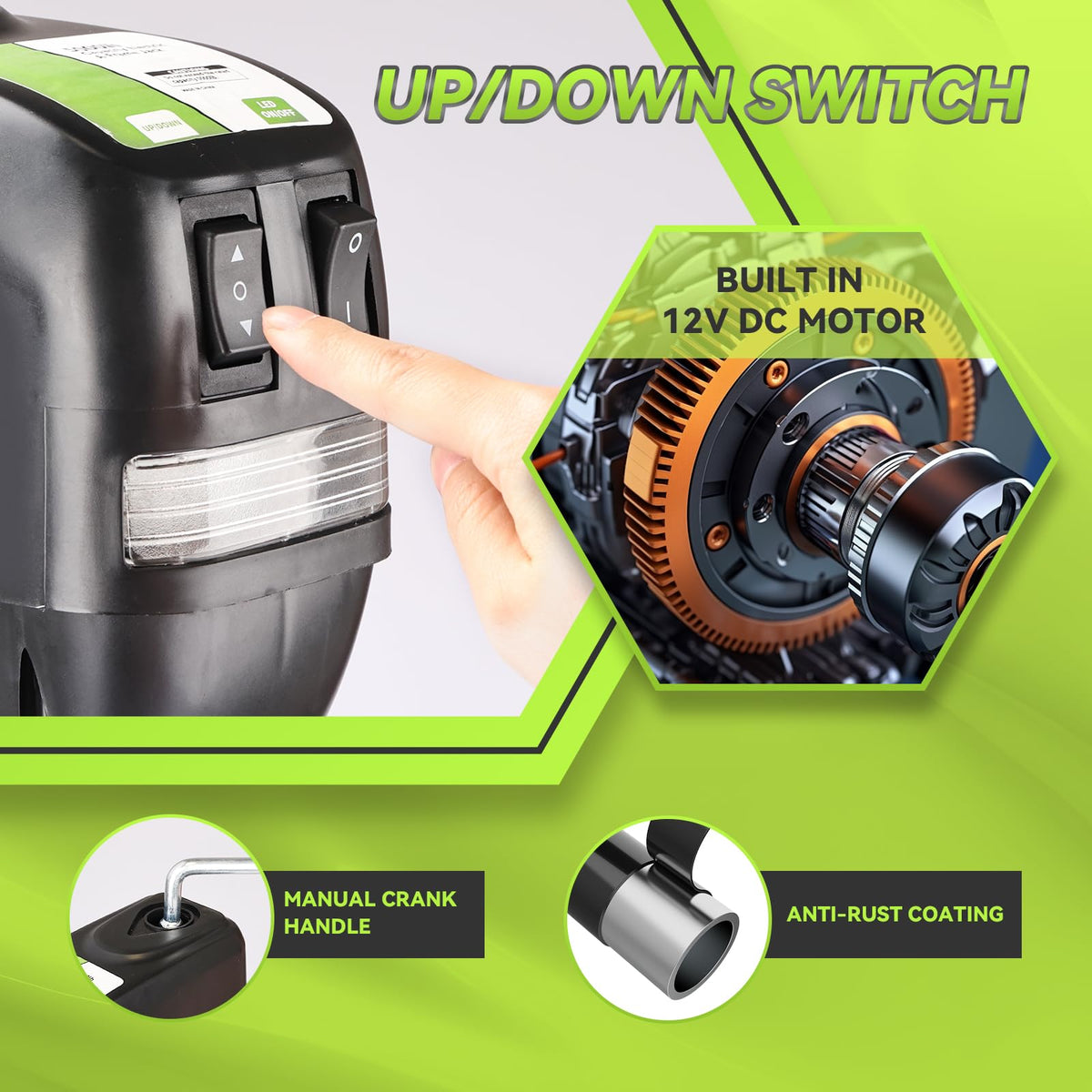

The jack includes an inline fuse to protect the electrical circuit and a manual crank handle so you can operate the jack if vehicle power is unavailable. Bright LED illumination aids nighttime hookups, and two mounting orientations help avoid interference with tailgates or accessories.

• Inline fuse for electrical protection
• Manual crank override for power-loss situations
• Integrated LED light for low-light use
• Two mounting directions to minimize tailgate or accessory interference

How durable is the finish and what mounting/connection details matter?

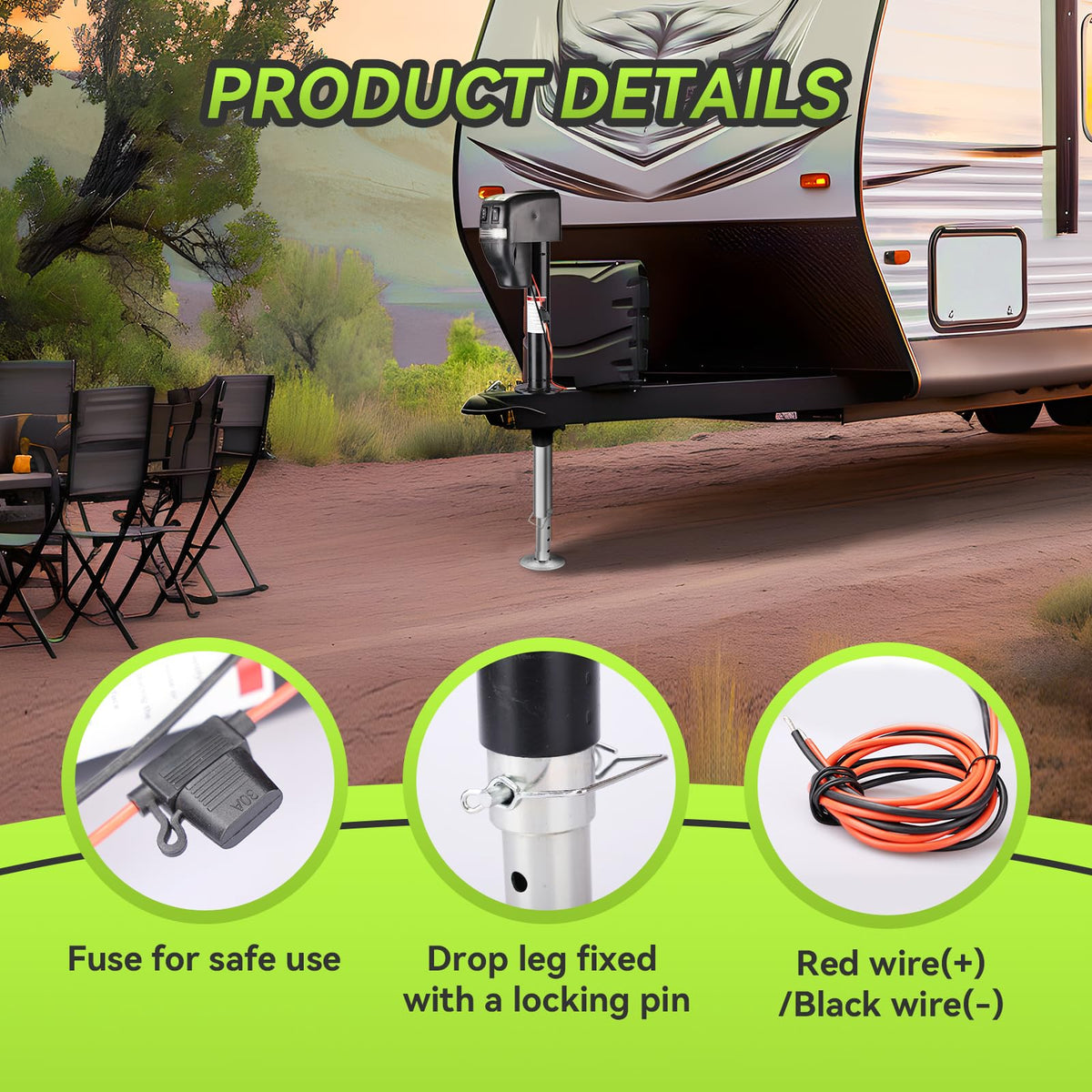

RVMATE uses a heavy-duty steel construction with a zinc inner tube finish and a black powder-coated outer tube that resists rust and wear. The removable footplate improves ground contact and transport clearance, while simple wiring (red = positive, black = negative) streamlines installation.

• Materials: heavy-duty steel with zinc and powder-coat protection
• Removable footplate reduces rust risk and eases stowage
• Electrical wiring: red wire (+), black wire (-)

Who is this for: The RVMATE Electric A-Frame Trailer Jack is aimed at trailer owners who want quicker, safer hookups and leveling without manual crank labor—especially those with utility trailers, travel trailers, or equipment trailers in the 5000–5500 lb class. It appeals to RV owners, contractors, landscapers, and anyone who frequently connects and disconnects trailers and values an LED light, electrical protection, and a robust finish for long-term outdoor use.
