RVMATE Electric A-Frame Trailer Jack 3500–4000 lb Capacity — 12V Motor & Manual Backup

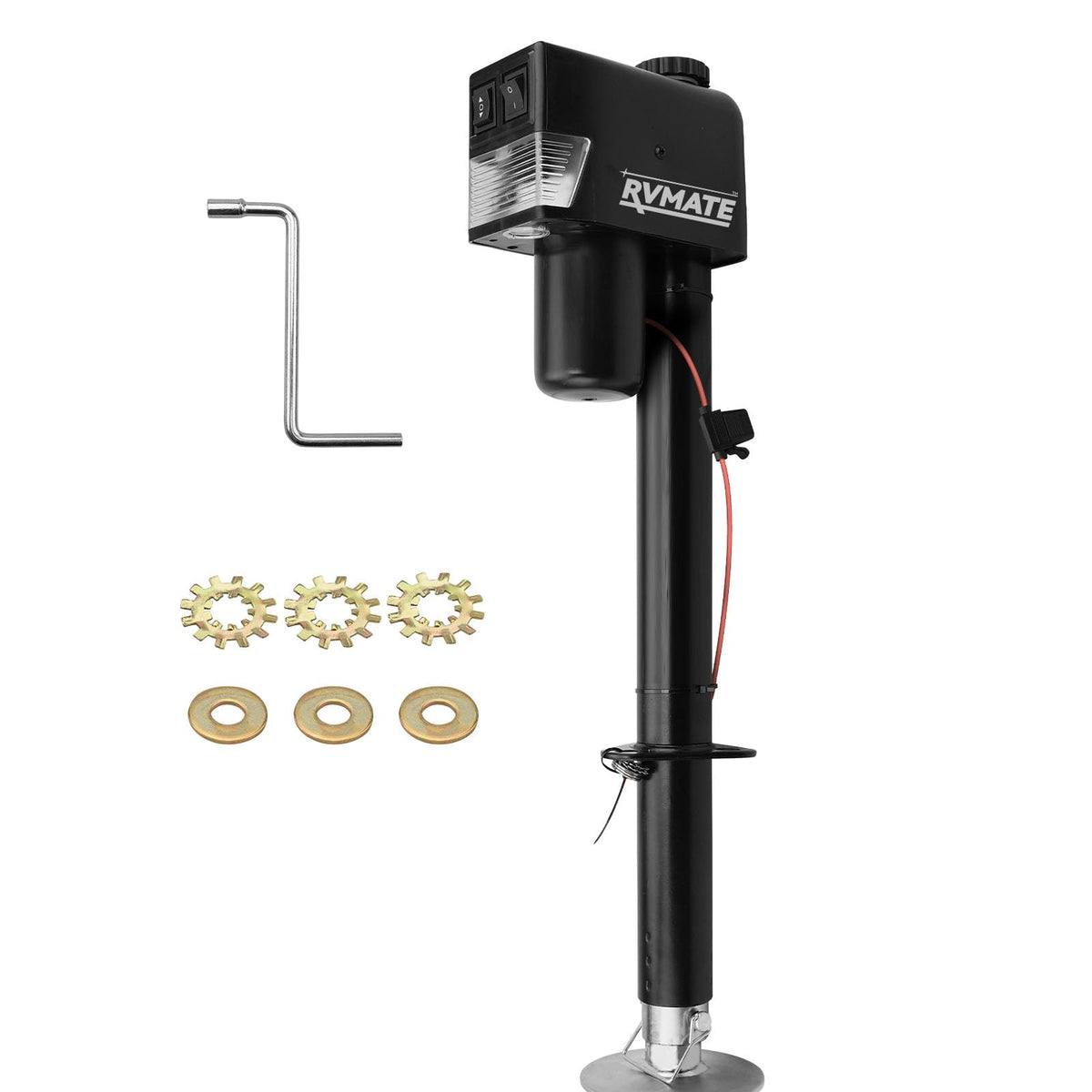

This heavy-duty electric jack replaces manual crank jacks for A-frame trailers, letting you raise or lower the tongue quickly using a 12V motor and push-button control. Finished in corrosion-resistant coatings with a removable footplate and a built-in fuse, the unit combines convenience with rugged construction for frequent towing tasks and seasonal storage.

How much weight can this jack safely lift?

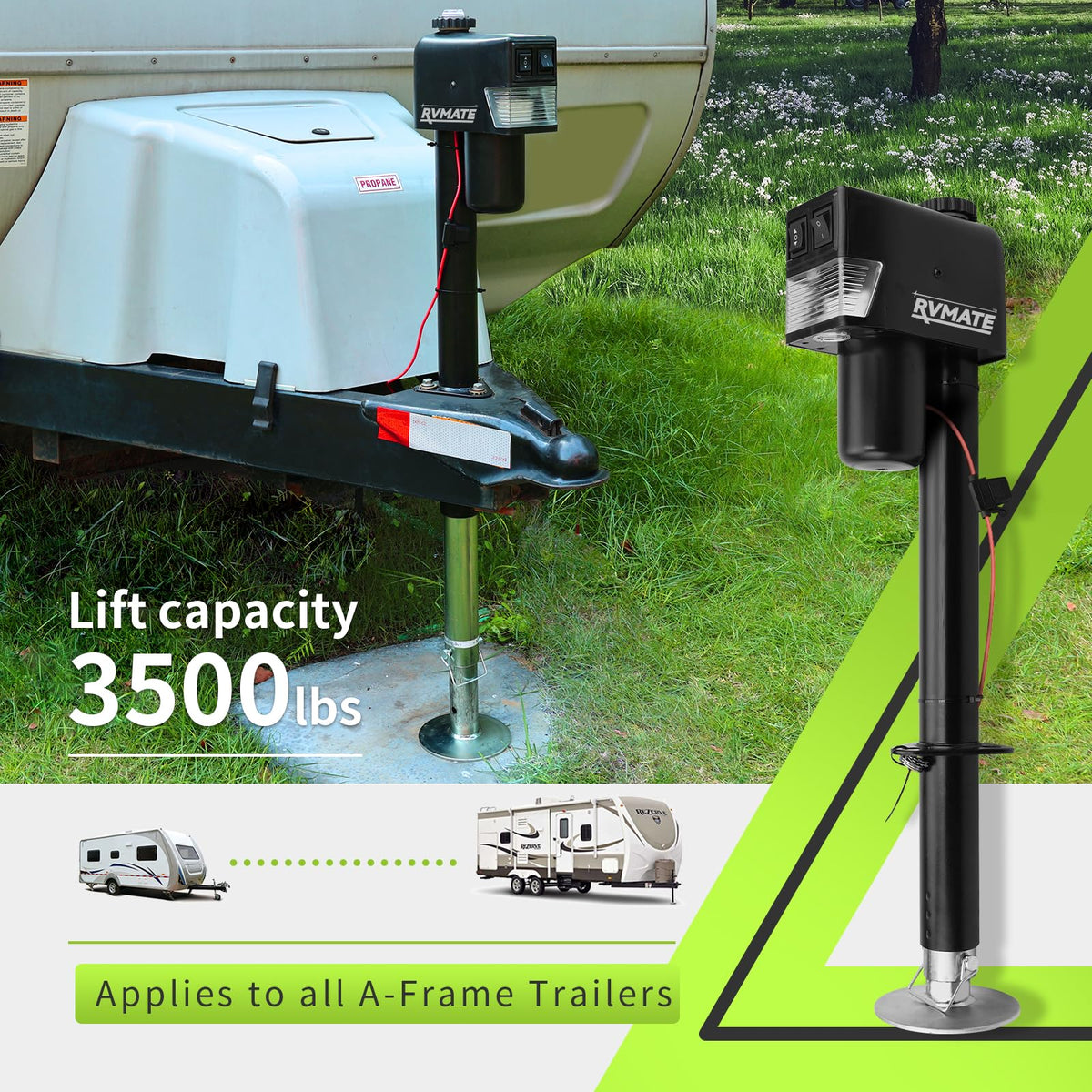

The RVMATE Power Tongue Jack is designed for demanding loads, rated to handle between 3500 and 4000 pounds. That capacity covers most single-axle and many light tandem-axle A-frame trailers when viewed as tongue load and overall tongue-lift requirements.

• Rated lifting capacity: 3500–4000 lbs

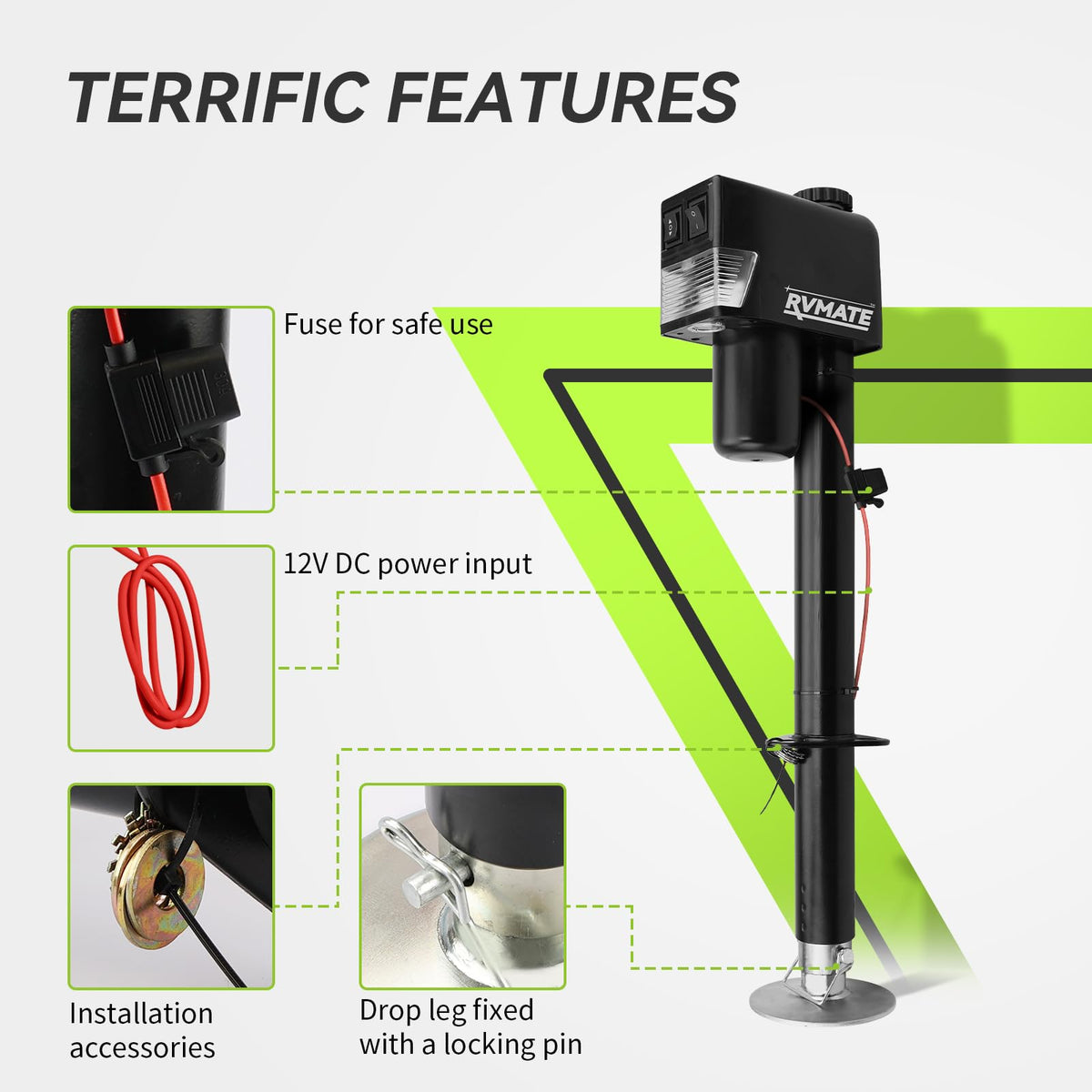

• 12V motor with spur-gear drive for steady torque
• Includes a fuse for electrical protection

What are the height and travel dimensions I should expect?

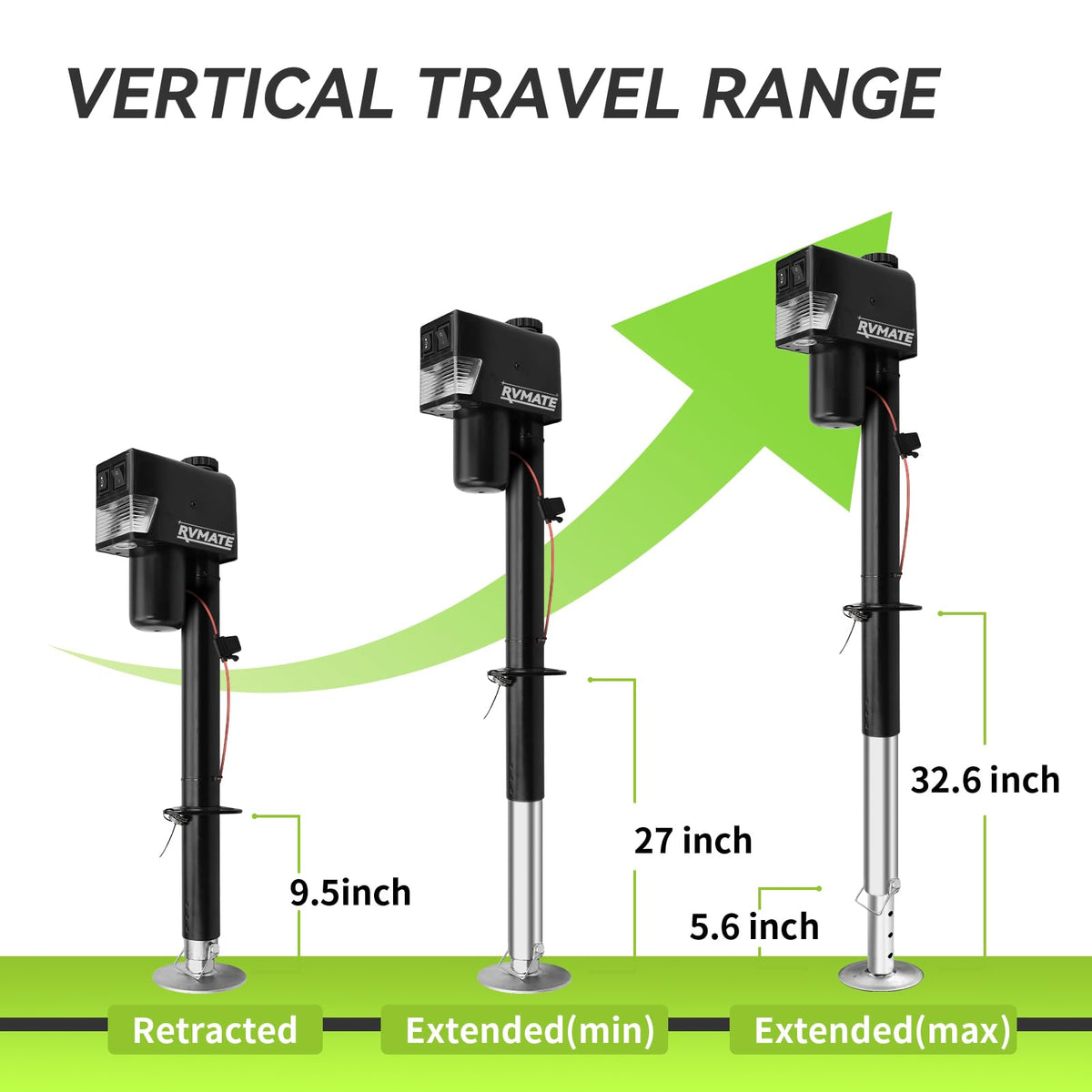

This jack provides significant vertical travel to assist hookup and leveling. The tube extends from a fully retracted height of 9" to a maximum extended lift of 32.6", giving about 18" of travel, and the drop leg offers an additional 5-5/8" of adjustment.

• Fully retracted height: 9"
• Max extended height: 32.6" (32-3/5")
• Max travel: 18" and drop leg travel: 5-5/8"

What durability and protection features does it include?

The jack is built from heavy-gauge steel with surface treatments to resist corrosion in outdoor and marine environments. The outer tube receives a black powder-coat finish while the inner tube is zinc plated; a removable footplate improves ground contact and reduces wear.

• Heavy-duty steel construction for structural strength
• Black powder-coat outer finish and zinc inner tube coating
• Removable footplate to spread load and prevent sinking

What safety or backup options are included if power is lost?

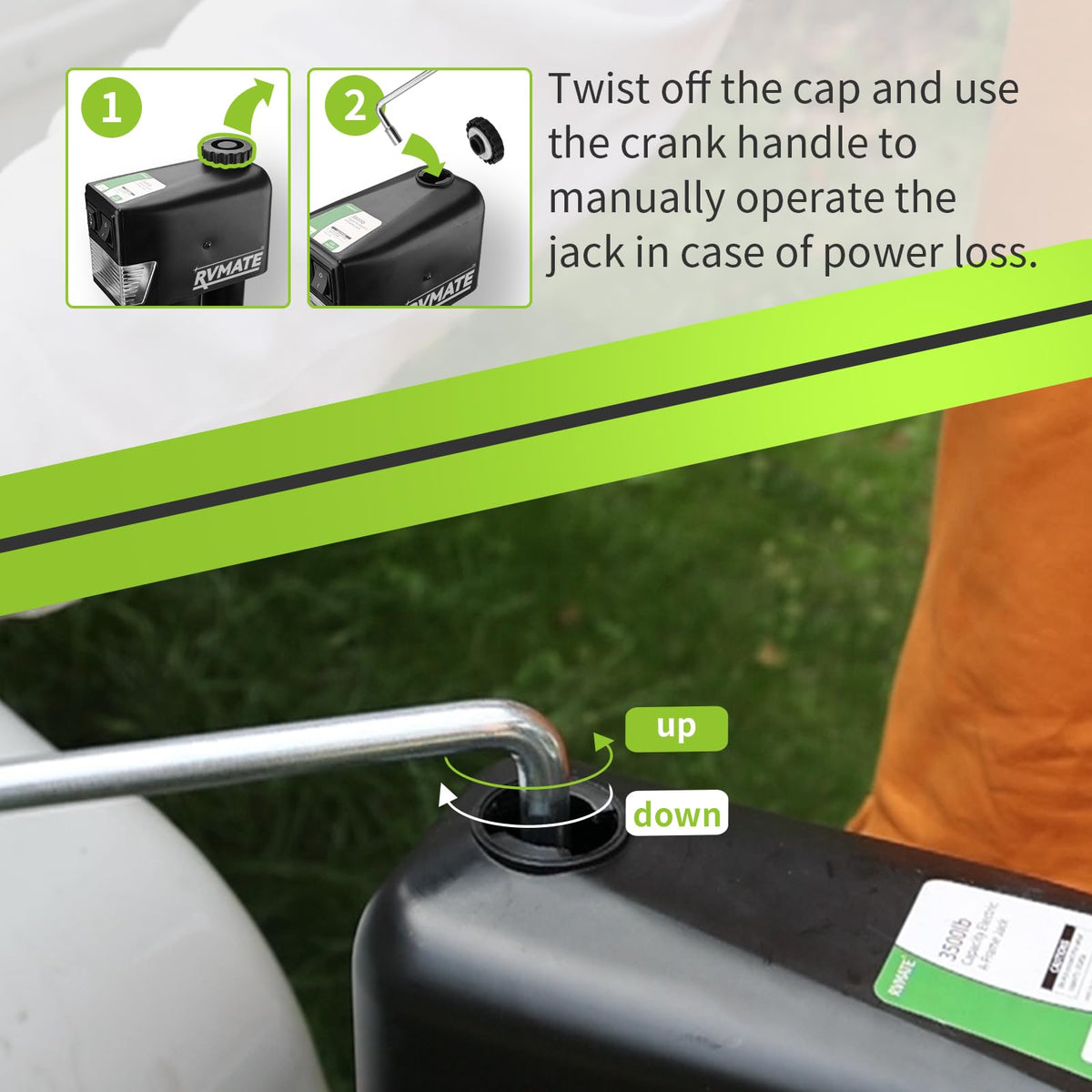

RVMATE equips the jack with a manual crank handle that lets you operate the lift if the 12V power is unavailable. An inline fuse protects the electrical circuit to reduce risk from shorts or overloads during use.

• Manual crank included for power outage situations
• Electrical fuse installed for protection
• Dust cap packed separately inside foam—inspect packaging fully

Who is this for: The RVMATE Electric A-Frame Trailer Jack is intended for trailer owners who want faster, safer hitching and leveling—especially RVers, boat trailer users, landscapers, and small haulers who need reliable electric lifting with a mechanical backup. It suits anyone upgrading from a manual jack or fitting a replacement on an A-frame with a 2-1/4" standard tube diameter seeking durable weather-resistant construction and a high-capacity lifting solution.
