RVZONE Trailer LED Light Kit 12V — 2-Piece Steel Housing with 4" Tail & 2" Side Lights, IP67 Waterproof

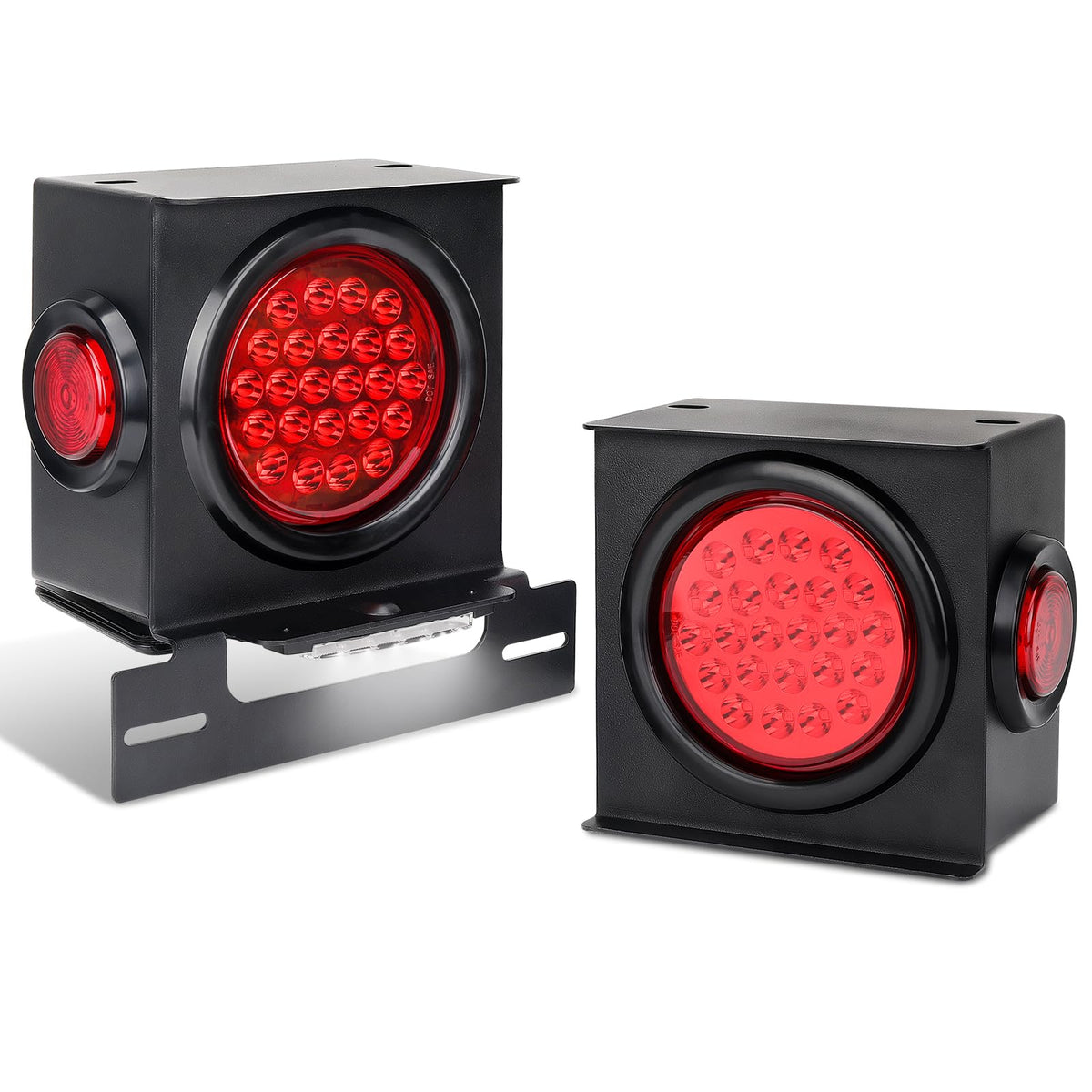

RVZONE 12V Square LED Trailer Light Steel Boxes Housing Kit is a complete 2-piece waterproof lighting set that supplies 4" round tail/stop/turn lights, 2" round side markers and license plate LEDs in durable steel housings.

This kit packages high-output LEDs, rugged steel enclosures and IP67 sealing to deliver visible, long-lasting trailer illumination. Designed for trailers, RVs, utility trucks and other tow applications, the set combines bright 24-LED 4" taillights, 9-LED 2" side markers and 6-LED license illumination with a heavy-duty, painted steel box that mounts by screws or welding. The lights use focused lenses and reflective cups to boost perceived brightness while limiting glare.

How does the RVZONE kit improve visibility on trailers?

The kit uses high-efficiency LED chips and optical lenses to produce clear stop, tail and turn signals that are easier for drivers behind you to see. LEDs respond faster than incandescent bulbs and maintain brightness at low current draw, improving safety without demanding extra power.

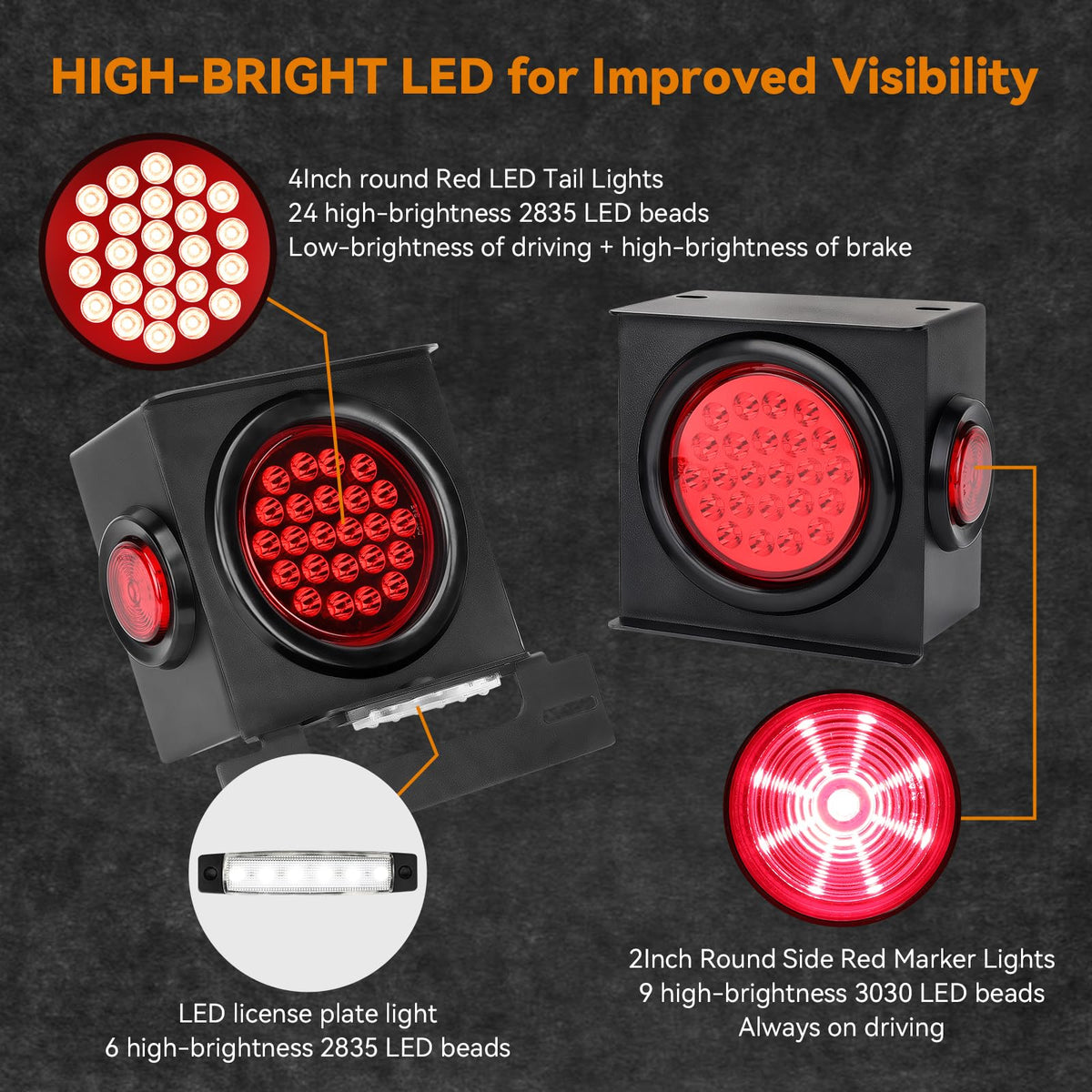

• 24 high-brightness 2835 LEDs in each 4" taillight for strong rear illumination
• 9 high-intensity 3030 LEDs in each 2" marker for clear side signaling
• 6 LEDs for license plate lighting to ensure plate legibility
• Lens and reflective cup optics to increase visible light without harsh spots

What makes the housings durable and weatherproof?

The enclosures are stamped from heavy-duty steel with a 2.0mm single-sided paint finish for impact resistance and corrosion control. IP67-rated sealing and ultrasonic bonding protect internal electronics from dust, rain and temporary immersion, so the lights withstand road grime and wet conditions.

• Heavy-gauge steel shell resists dents and deformation in towing environments
• Glossy painted surface helps prevent rust and chipping

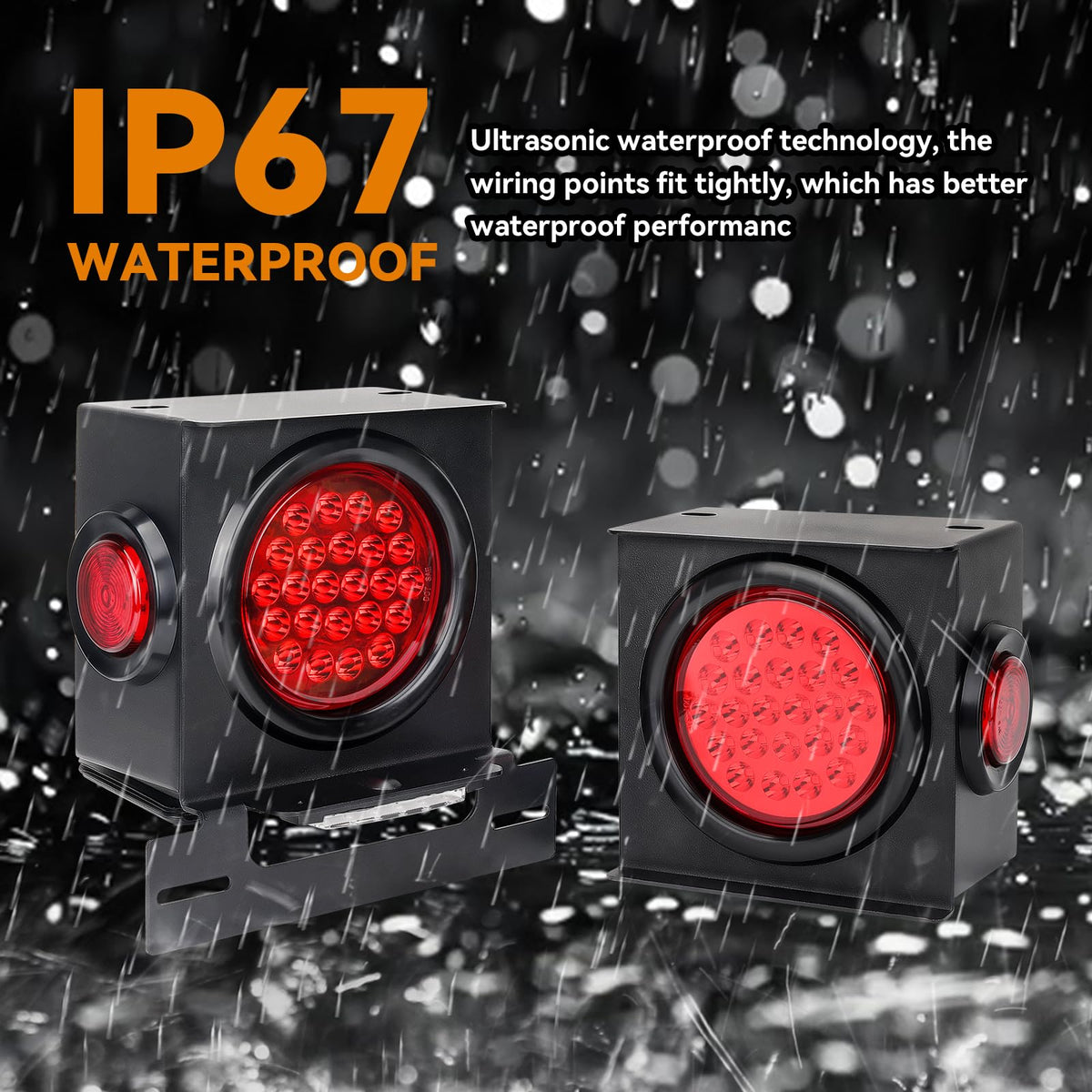

• Ultrasonic waterproof seams and tight wiring fit for reliable IP67 protection
• Designed to perform through rain, snow, sand and salt spray scenarios

How easy is installation and maintenance for these trailer lights?

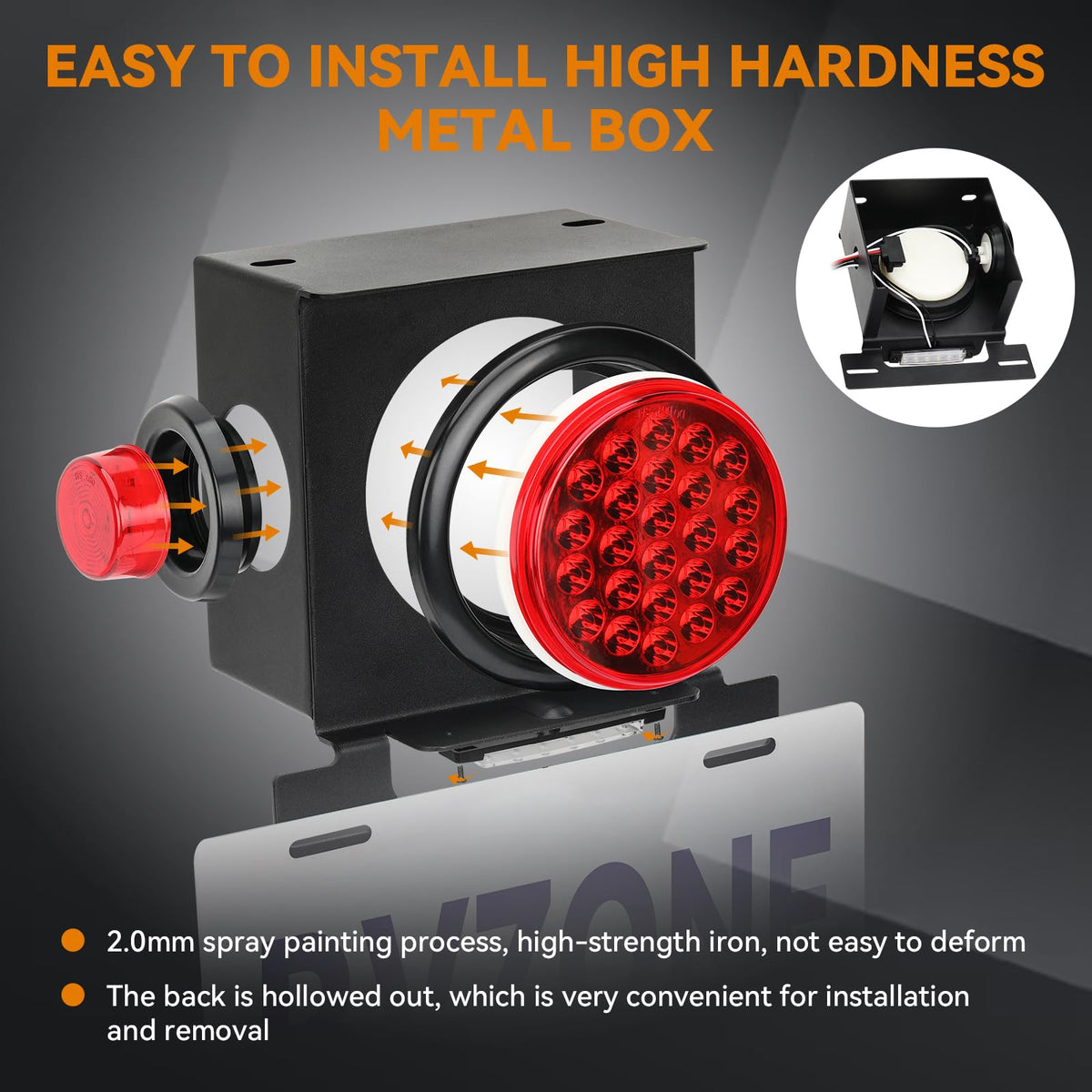

The kit is made for DIY fitment with two mounting options and a hollowed rear to simplify wiring access. You can fasten the steel boxes using screws through the top holes or weld them into place; the housings are designed for straightforward removal if service is ever needed.

• Rear hollow design provides easy access to wire connections
• Top screw holes allow bolt-on installation (screws not included)
• Weld-ready edges for permanent mounting when preferred
• Modular lamps make bulb replacement or electrical troubleshooting simple

Are these lights compatible with different vehicles and lighting systems?

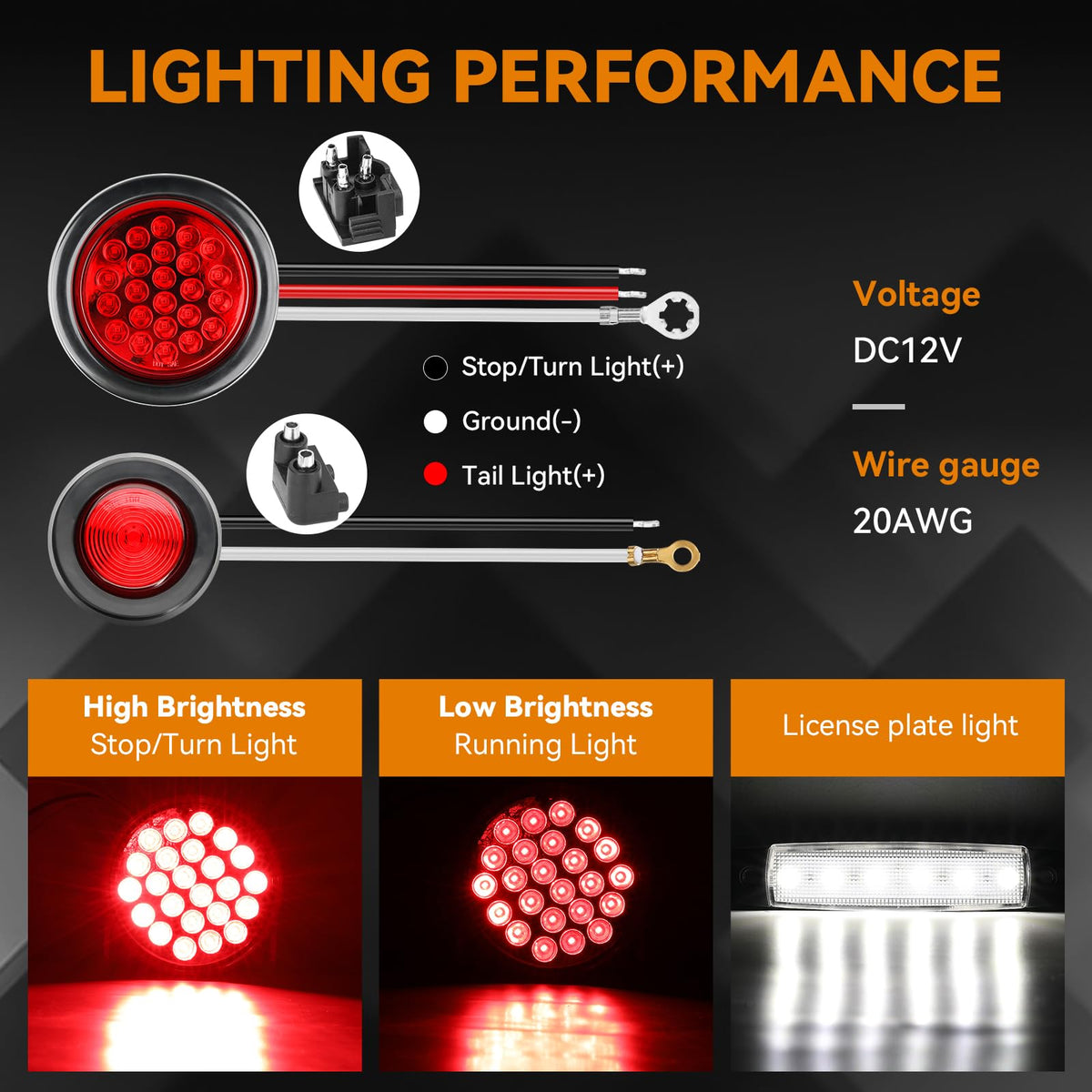

Yes — the RVZONE kit functions as tail, brake, turn, parking and marker lights and suits a wide range of trailers and commercial vehicles. The 12V design integrates with most trailer wiring harnesses; confirm connector types and polarity during installation to ensure correct operation.

• Intended for 12V systems common on trailers, RVs, trucks and campers
• Works as combined tail/stop/turn and separate side marker/plate lights

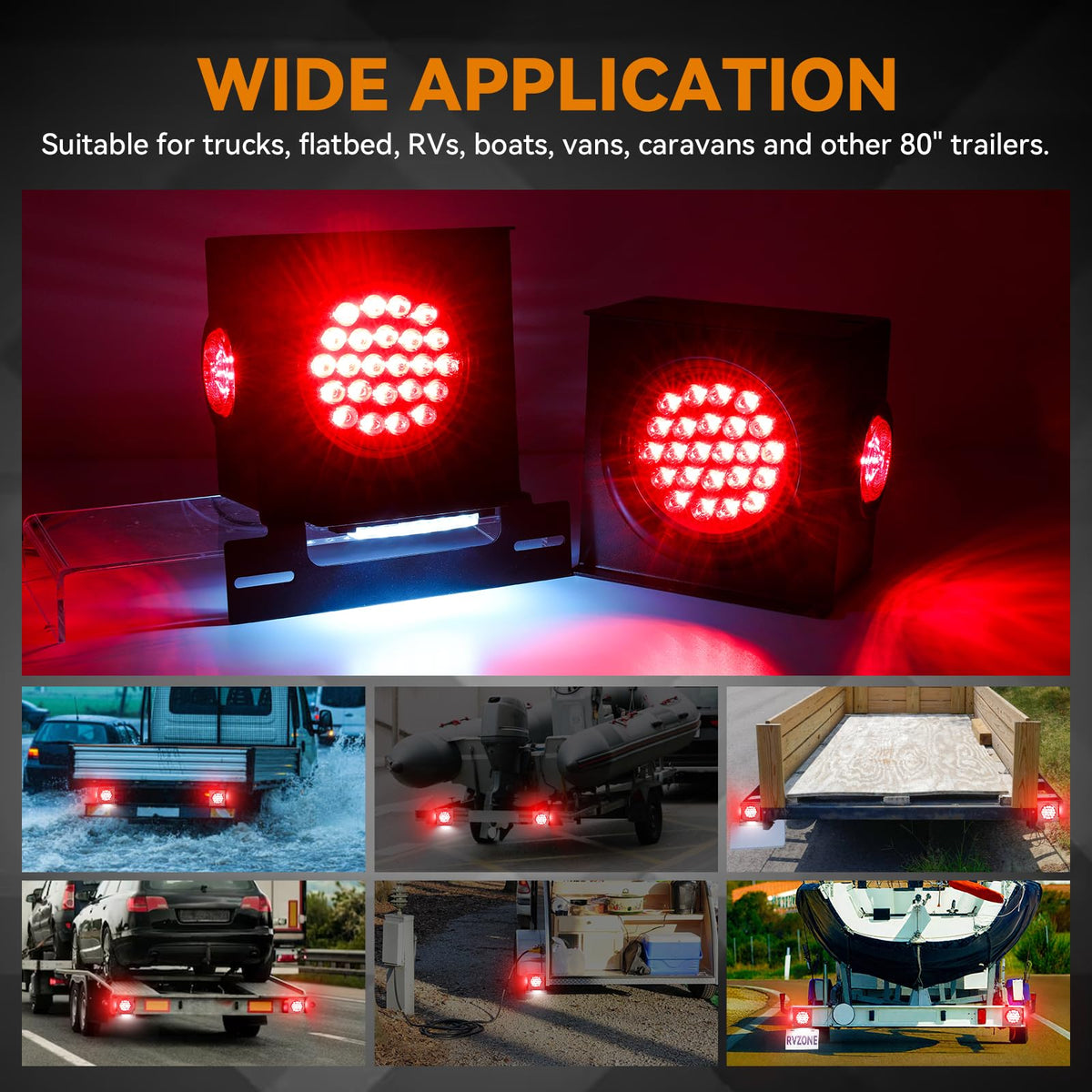

• Suitable for trailers, tractors, dump trucks, caravans, and RVs
• Wire access and mounting choices support varied vehicle configurations

Who is this for: This RVZONE lighting kit is aimed at owners and operators of trailers, campers, light commercial vehicles and DIY fleet managers who need dependable, high-visibility rear and side lighting in a rugged package. It suits shoppers wanting a durable steel-housed LED option with IP67 protection, straightforward mounting choices and optics engineered for clear signaling on busy roads.
