Ryukiro 7-Way Trailer Wire Harness 14-Gauge 50ft — SAE Color-Coded Automotive, Oil-Resistant

Ryukiro's 7-way, 14-gauge trailer wire harness is a 50-foot automotive-grade cable kit that supplies complete 12V wiring for trailers and towing electronics.

This harness is built to tie a vehicle’s seven-pin connector to trailer lights, brakes, reverse signals and auxiliary circuits. The cable uses standard SAE color coding so installation and troubleshooting are straightforward. The outer jacket is engineered for harsh environments—resisting oil, gasoline and a wide temperature range—so it holds up on the road and in storage.

How does this harness support common trailer wiring needs?

It provides dedicated conductors for the typical seven-pin trailer functions: running lights, tail lights, left and right turn signals, brake power, reverse or auxiliary feed, and a 12V supply. Each conductor is 14 AWG, balancing flexibility and current capacity for lighting and small auxiliary devices. The kit’s 50-foot length offers enough reach for most towing setups.

• Seven individual 14-gauge conductors for standard trailer signals.
• SAE color-matched wires (green, yellow, white, brown, blue, black, red) for easy identification.
• 50-foot span to accommodate truck-to-trailer distances and routing paths.
• Suitable for lighting circuits, electric brakes and 12V accessory lines.

What makes the cable durable for outdoor and automotive use?

The harness uses a rugged PVC outer jacket formulated for automotive applications, offering resistance to oils and gasoline that commonly damage lesser cables. The jacket is rated to remain functional in a broad temperature range from -5°F to 185°F, reducing the chance of cracking or softening in extreme conditions. Heavy-duty insulation also protects conductors from abrasion and moisture when routed along frames or through channels.

• Automotive-grade PVC outer jacket resists oil and gasoline exposure.
• Temperature resilience from -5°F to 185°F for year-round use.
• Robust insulation guards against chafing and environmental wear.

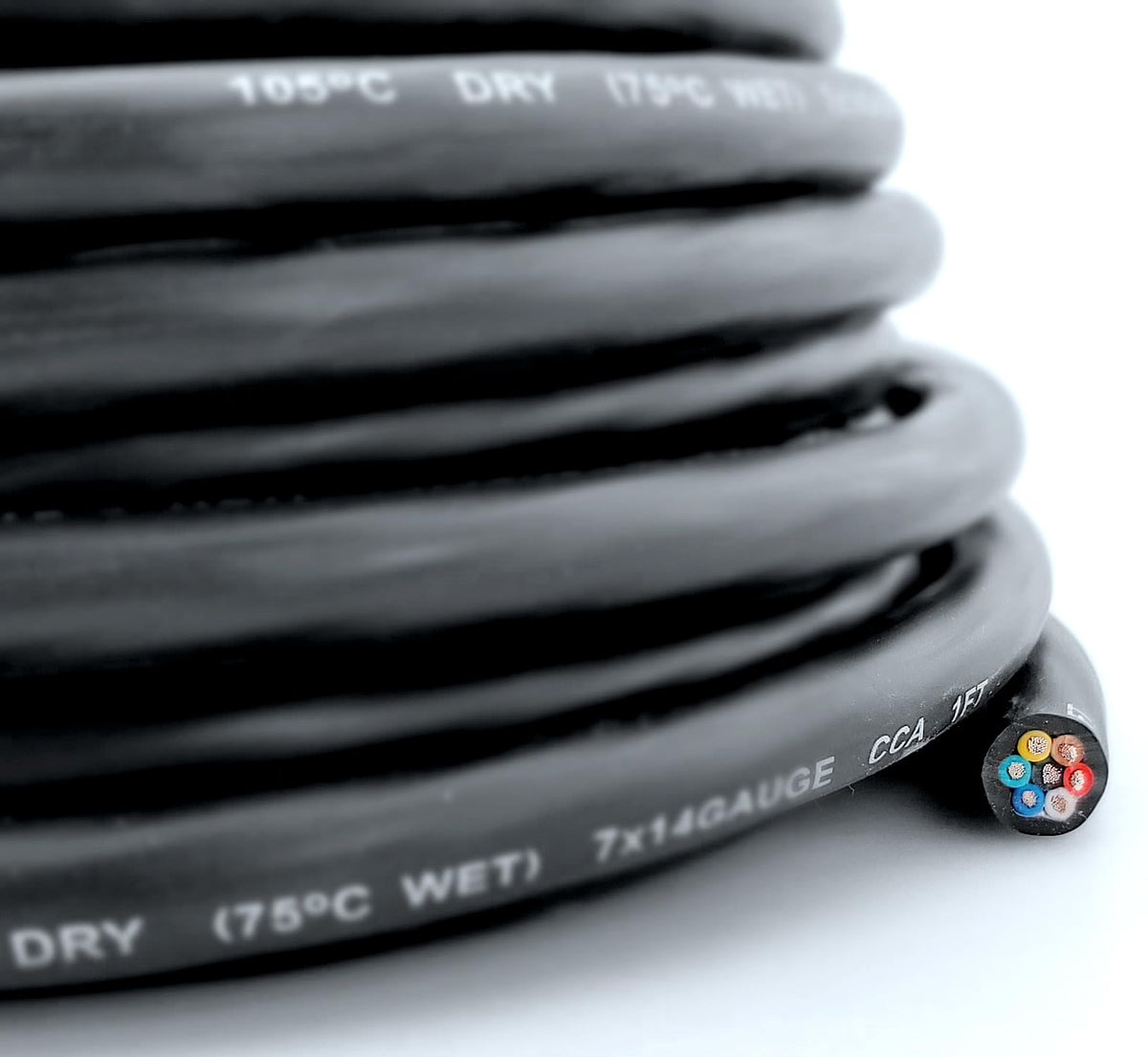

How will SAE color coding simplify installation and maintenance?

The harness follows SAE standard colors—green, yellow, white, brown, blue, black and red—so installers can match each conductor to existing vehicle or trailer terminals without guessing. Correct color matching speeds up initial hookup, reduces wiring errors, and makes future repairs easier. The consistent scheme is helpful whether you’re wiring a custom trailer or replacing a worn run of cable.

• SAE-standard colors for quick, accurate connection to 7-pin plugs and sockets.
• Less time spent tracing wires during installation or diagnostics.
• Clear color mapping supports both DIY and professional technicians.

Can this harness handle trailer brakes and accessories?

Yes — the 14 AWG conductors are suitable for lighting and many auxiliary loads such as small 12V accessories and electric brake signal feeds. For high-current devices (large brake controllers or heavy power accessories), confirm the device’s current draw and consider dedicated higher-gauge wiring or relays if required. The harness is ideal for the majority of lighting, signal and modest accessory needs on common trailers.

• Appropriate for running lights, turn signals, tail lights and smaller accessories.
• Check high-current brake controllers for compatibility; add relays if necessary.
• 50-foot length keeps wiring neat and allows flexible routing along the frame.

Who is this for: This 7-way, 14-gauge 50-foot harness is aimed at vehicle owners, trailer builders and repair shops that need a reliable, standardized wiring run for trailers, campers, utility trailers and small-to-medium towing setups. It’s a solid choice for DIY installers who want clear color coding, mechanics replacing worn harnesses, and fleets that require durable, automotive-grade cable for regular towing service.
