Samramra 7-Way Trailer Wire Harness 50ft 14 AWG, 7-Pin Color-Coded PVC Jacket Heavy-Duty

This heavy-duty 7-pin wiring harness combines flexible construction with color-coded conductors to simplify installation and long-term outdoor use. Built with stranded 14 AWG conductors and a rugged PVC jacket, the cable balances current capacity, flexibility in cold weather, and resistance to oil, abrasion and moisture. The seven individually insulated wires follow SAE color conventions so you can match tail lights, turn signals, brakes and reverse functions quickly and with confidence.

How does this harness simplify trailer wiring for DIY installs?

The Samramra kit reduces guesswork with clearly marked, SAE-standard colors and a full 50-foot length that reaches most tow setups without splicing. Its stranded CCA conductors are easier to route than solid core wire, and the outer jacket protects the inner insulation while remaining pliable during handling.

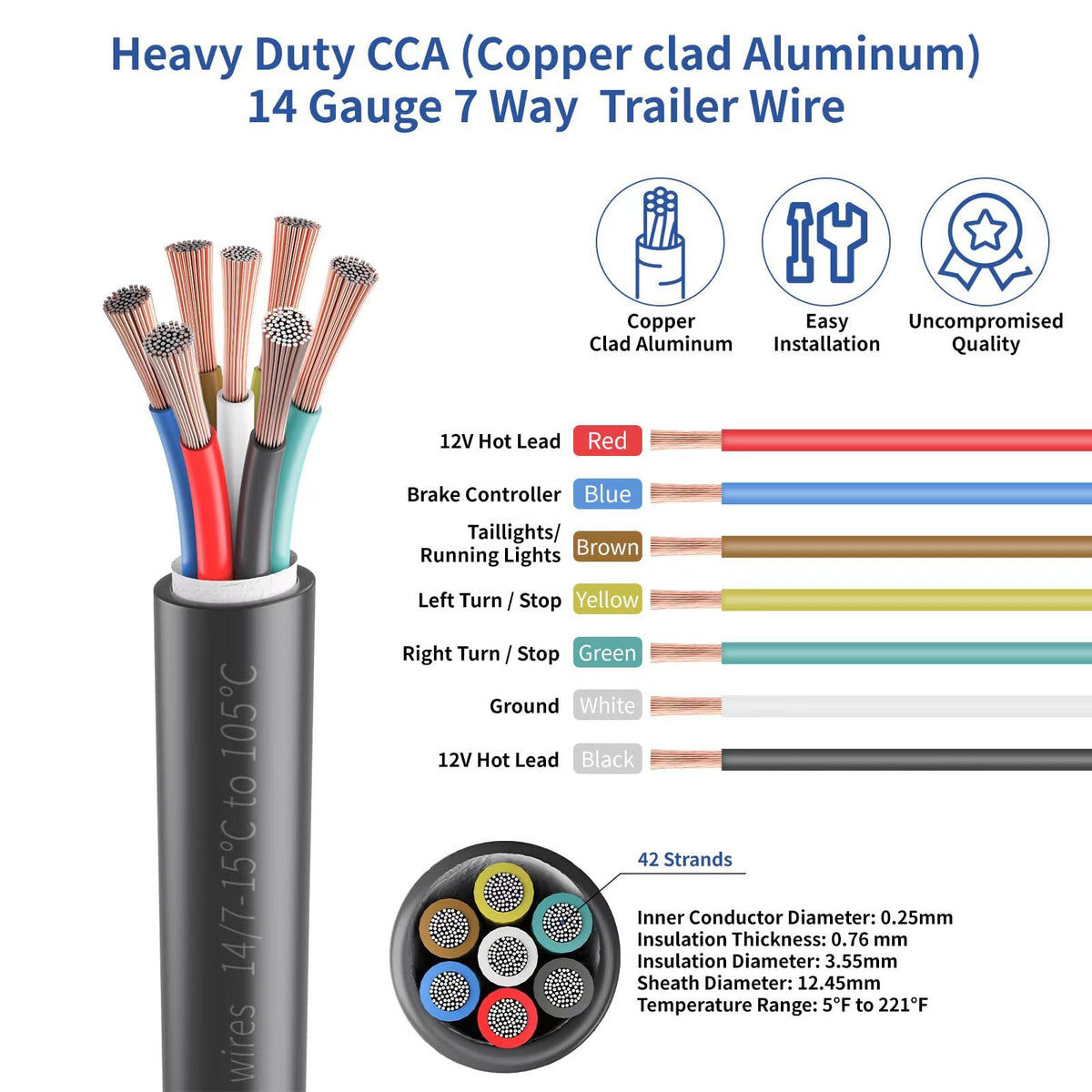

• Seven color-coded conductors (Black, Brown, Blue, Red, Green, Yellow, White) for immediate identification

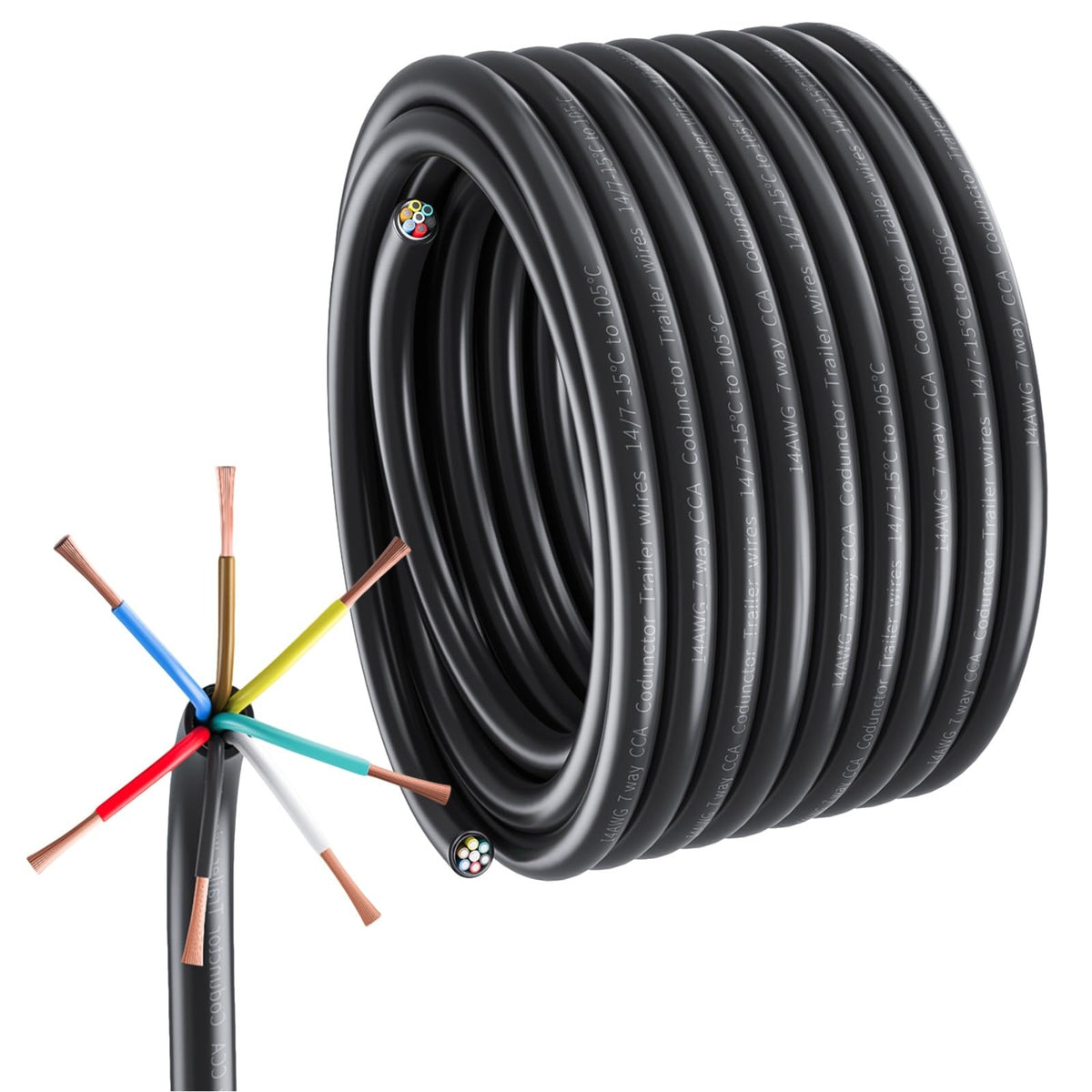

• 50 feet of continuous cable to cover common vehicle-to-trailer distances

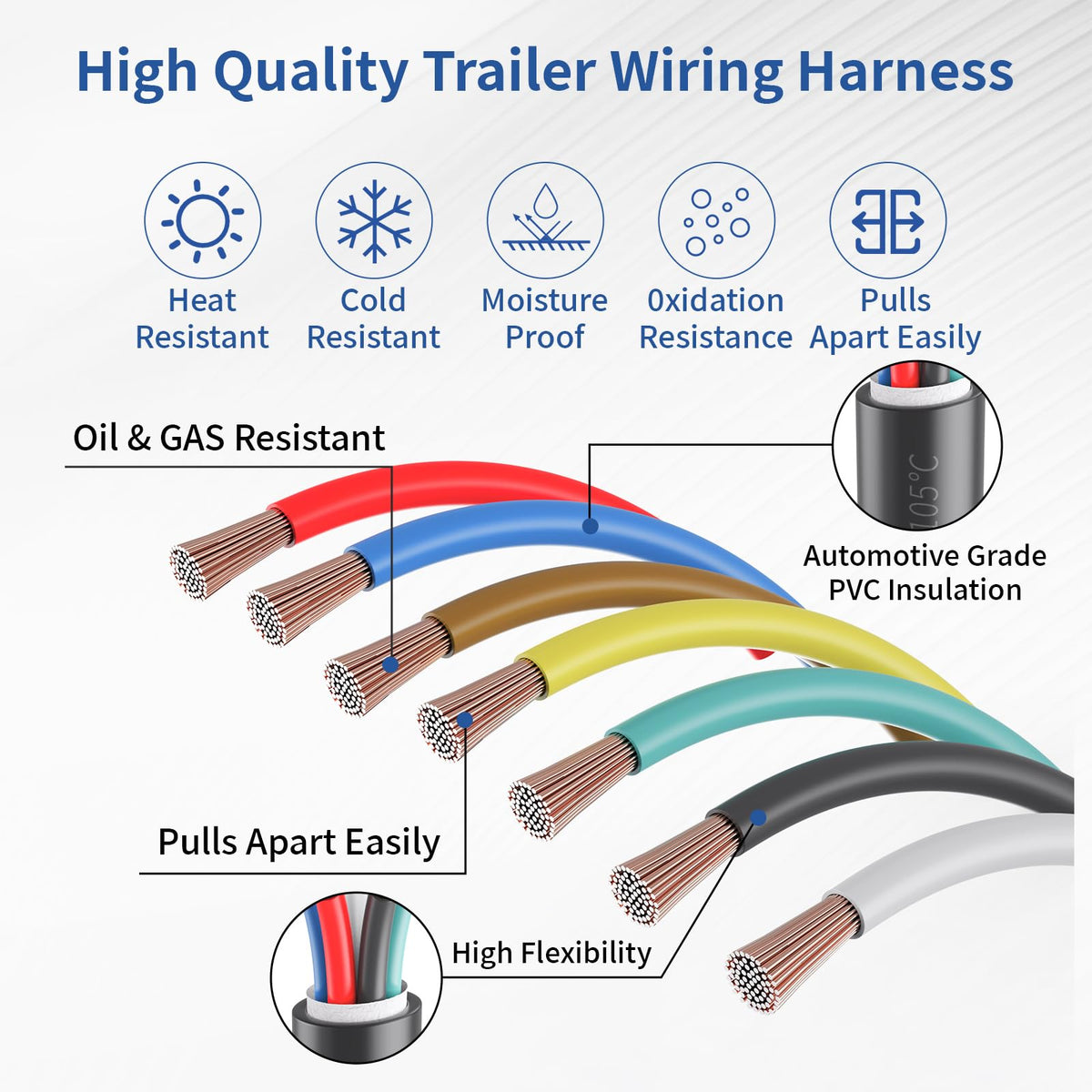

• Stranded 14 AWG conductors for easier bending and routing in tight spaces
• Durable jacket that stays flexible in heat and down to -15°C cold

What durability features protect the wiring outdoors?

The harness combines a tough PVC outer jacket with a fabric protective layer around each insulated conductor to reduce abrasion and prevent powder residue when stripping. These layers help the cable withstand exposure to road grime, oil, and moisture while preserving conductor integrity.

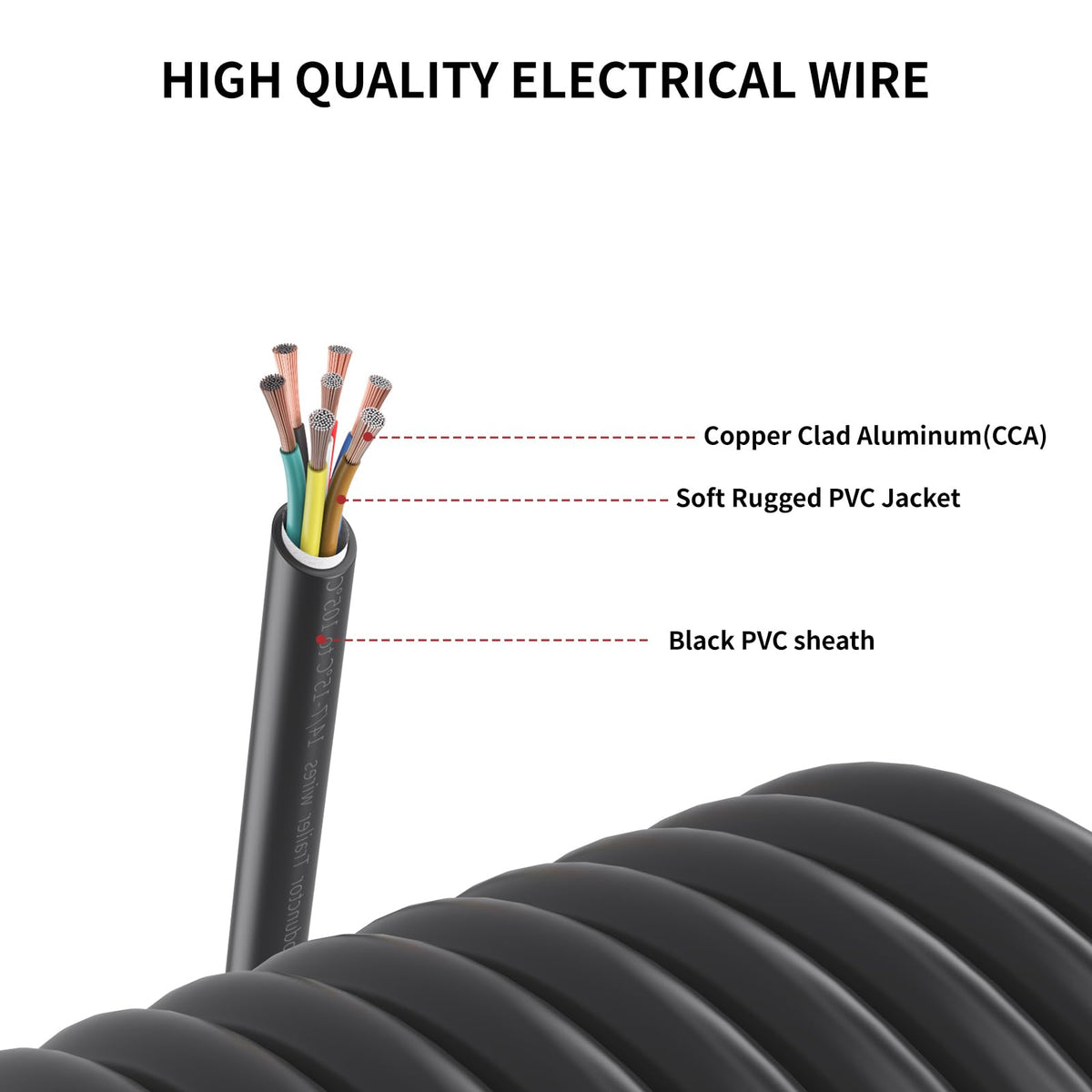

• Rugged PVC outer jacket resists oil, moisture, and abrasion
• Cloth protective insulation layer around conductors for cleaner stripping and extra mechanical protection
• Designed for repeated flexing without cracking or splitting
• Temperature-tolerant materials for hot summers and subzero conditions

Will this cable work with my vehicle and trailer electrical systems?

The Samramra 7-way harness is made for standard 12V trailer wiring with a 7-pin configuration and will fit common RV, camper, utility trailer and boat setups. Use it for lighting, brake signals and auxiliary circuits; always confirm compatibility with your trailer connector type and consult wiring diagrams as needed.

• Compatible with standard 7-pin trailer wiring systems in 12V vehicles and trailers
• Seven conductors support tail, brake, left/right turn, reverse, and auxiliary circuits
• Works for professional installations or DIY replacements
• Color coding matches SAE wiring conventions for easier cross-referencing

How do I install and maintain the harness for the longest service life?

Plan your routing to avoid sharp edges and heat sources, secure the cable with appropriate clips or ties, and use proper connectors for a solid electrical connection. Periodic inspection and keeping connectors free of corrosion will extend performance.

• Route away from exhaust, suspension parts, and sharp edges; secure with clamps or zip ties
• Use crimped or soldered connectors and dielectric grease on exposed terminals to prevent corrosion
• Inspect harness and connectors seasonally for wear, chafing, or moisture intrusion
• If cutting, keep ends sealed and perform neat, insulated splices to maintain protection

Who is this for: This Samramra 7-way, 50-foot 14 AWG harness is aimed at RV owners, camper and trailer DIYers, fleet maintainers, marine trailers and anyone needing a long, flexible, color-coded 7-pin cable for 12V lighting and auxiliary circuits. It suits both those doing their own wiring work and professionals who want a durable, straightforward cable for replacement or new installations.
