SEAFLO 300A 4-Position Battery Disconnect Switch – 12/24/48V Heavy-Duty, IP66 Waterproof, Tin-Plated Copper Studs

Built for marine, automotive, RV, off-grid and industrial setups, this selector switch (Model SFCBS-300-402) gives you secure, vibration-resistant power control. It handles continuous 300A and short-term peaks up to 900A cranking, uses tin-plated copper studs for improved conductivity and corrosion resistance, and meets common marine safety standards for reliable operation in demanding conditions.

How does this switch improve power control on a boat or RV?

The 4-position design lets you choose between isolating a bank, sending one battery to all loads, or paralleling batteries for combined power. That flexibility lets you preserve a starter battery, prioritize charging, or boost available current when needed.

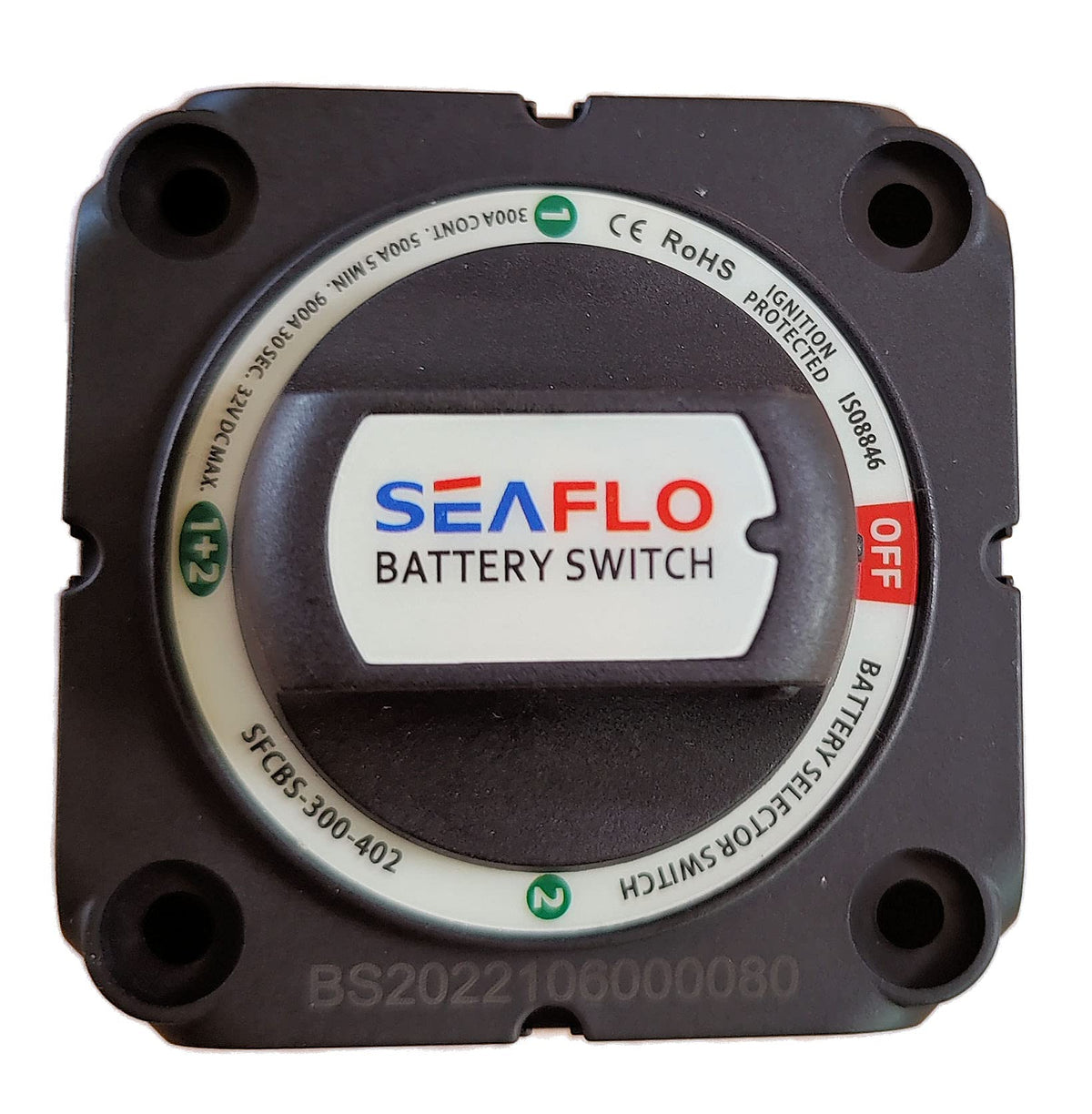

• Positions: OFF / 1 / 2 / 1+2 (combine)
• Use to isolate house and start batteries or tie them together for high-current needs
• Selectable operation simplifies maintenance and emergency starts

Will it withstand saltwater spray, vibration, and heavy use?

Yes — the switch is built with a durable one-piece terminal stud and tin-plated copper for long-term corrosion resistance. Its IP66 rating protects against powerful water jets and debris, while the robust construction resists loosening from vibration.

• IP66 waterproof enclosure for exposure to spray and washdowns

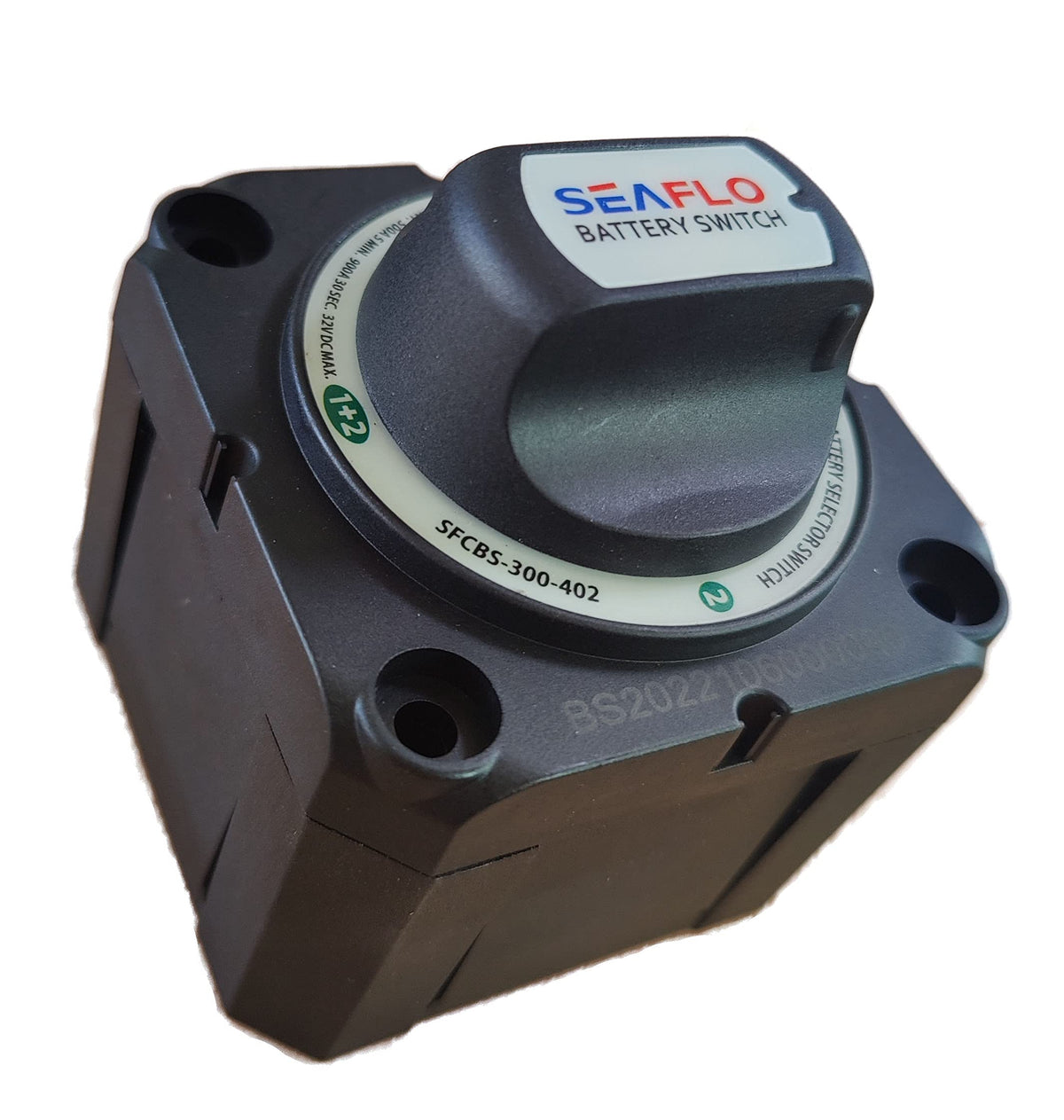

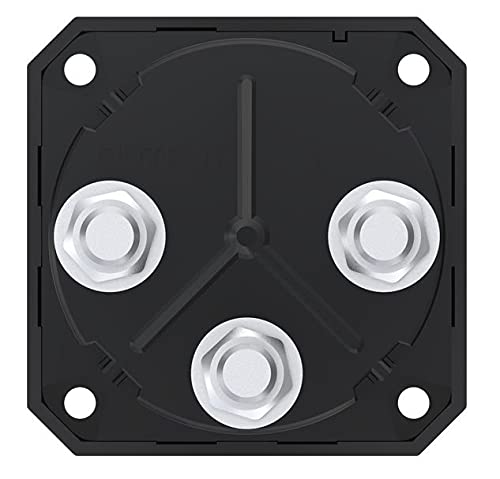

• Tinned copper studs resist corrosion in marine environments
• One-piece stud and rugged housing for vibration resistance

What electrical ratings and compatibility should I expect?

This selector supports 12V, 24V, and 48V DC systems, with a continuous rating of 300A and intermittent capacity up to 500A for five minutes. It also handles high cranking currents (900A for 30 seconds), making it suitable for engines, inverters, and heavy DC loads.

• Continuous: 300A; Intermittent: 500A (5 min); Cranking: 900A (30 sec)

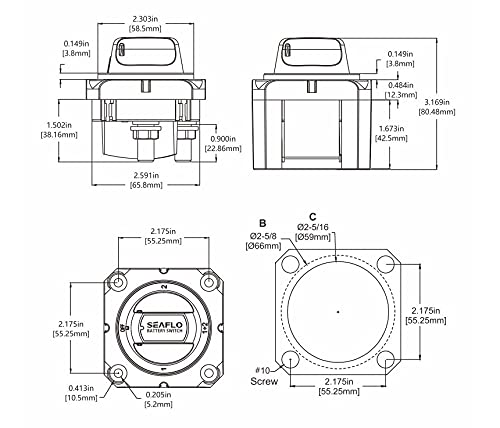

• Terminal studs: 3/8" - 16 (M10) for common battery cable fittings
• Compatible with 12V, 24V, and 48V battery systems

Does it meet safety and regulatory marine standards?

The SEAFLO selector is tested to relevant marine ignition protection and safety norms to ensure safer installation near engines and fuel systems. Certification alignment helps simplify compliance for boat and vehicle installations.

• Complies with ABYC marine guidelines
• Meets UL 1500 and SAE J1171 ignition protection standards
• Manufactured to reduce ignition risk in demanding environments

Who is this for? Technicians, boat owners, RVers, off-grid installers and fleet operators who need a durable, high-current battery selector that handles harsh conditions and offers flexible power management. Choose this SEAFLO 4-position switch when you require robust electrical performance, corrosion-resistant terminals, and certified safety for marine and mobile power systems.
