Seamaka 50ft 5 Wire 4Pin Trailer Wiring Harness,Extended

Seamaka's 50ft 5-wire, 4-way trailer wiring harness is an extended-length, corrosion-resistant cable kit that supplies tail lights, turn signals, brake lights and a dedicated ground for trailers, boats and RVs.

This wiring harness is built for towing situations where the factory cord is too short or you need a reliable replacement. With a full 50-foot length and a 4-way flat plug, the kit routes power to lighting circuits while keeping a separate ground to reduce corrosion-related failures. The 18 AWG color-coded wires and purpose-made connectors make it easy to install on marine trailers, utility trailers, motorcycle carriers, and most vehicles that accept a 4-way plug.

How does this harness make trailer lighting simpler?

The Seamaka 4-way harness groups all lighting circuits into a single, keyed flat plug that connects to standard 4-way sockets. It eliminates the need to splice or run separate wires between taillights on the trailer side, saving time and reducing potential failure points.

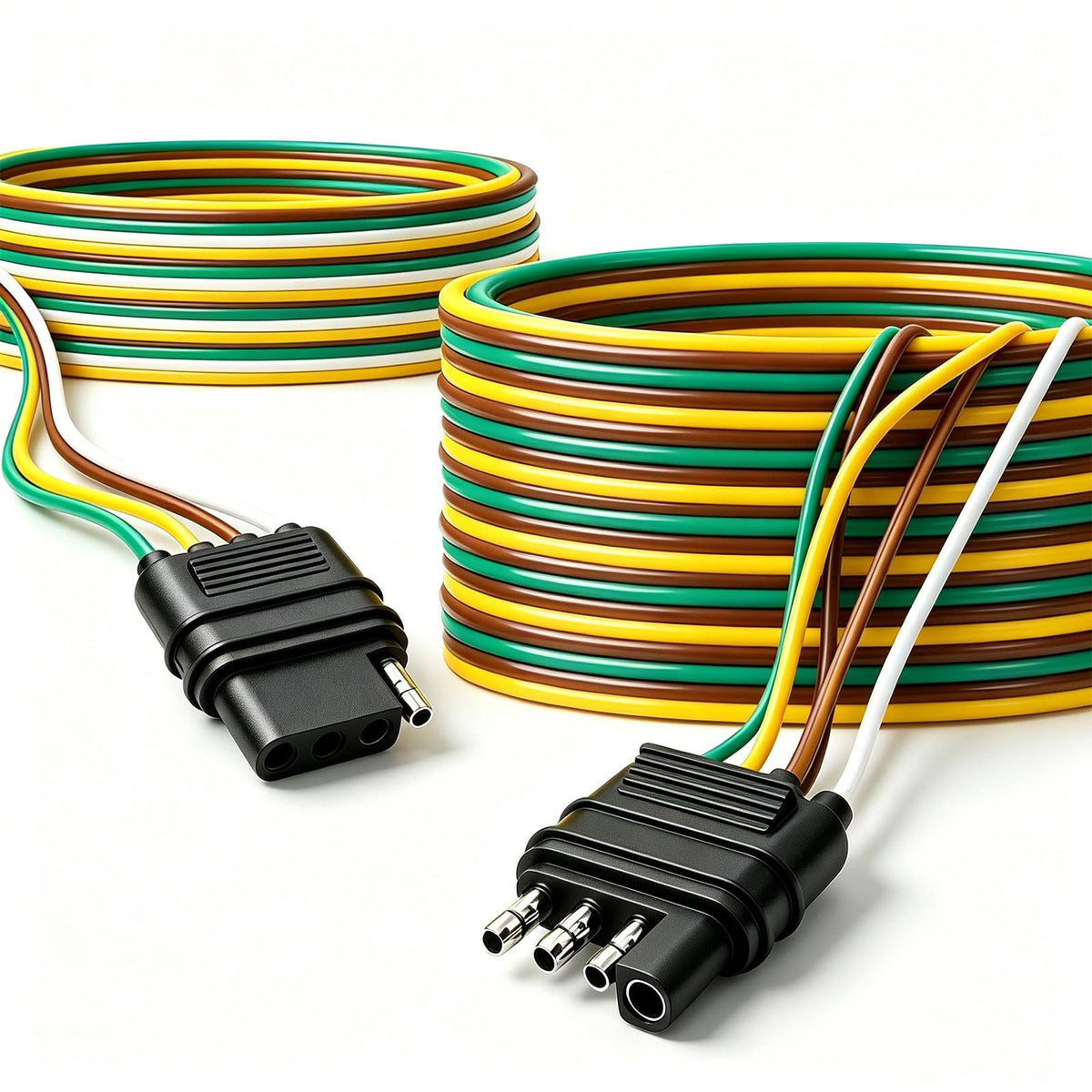

• One 4-way flat plug handles tail, left/right turn and brake signals.

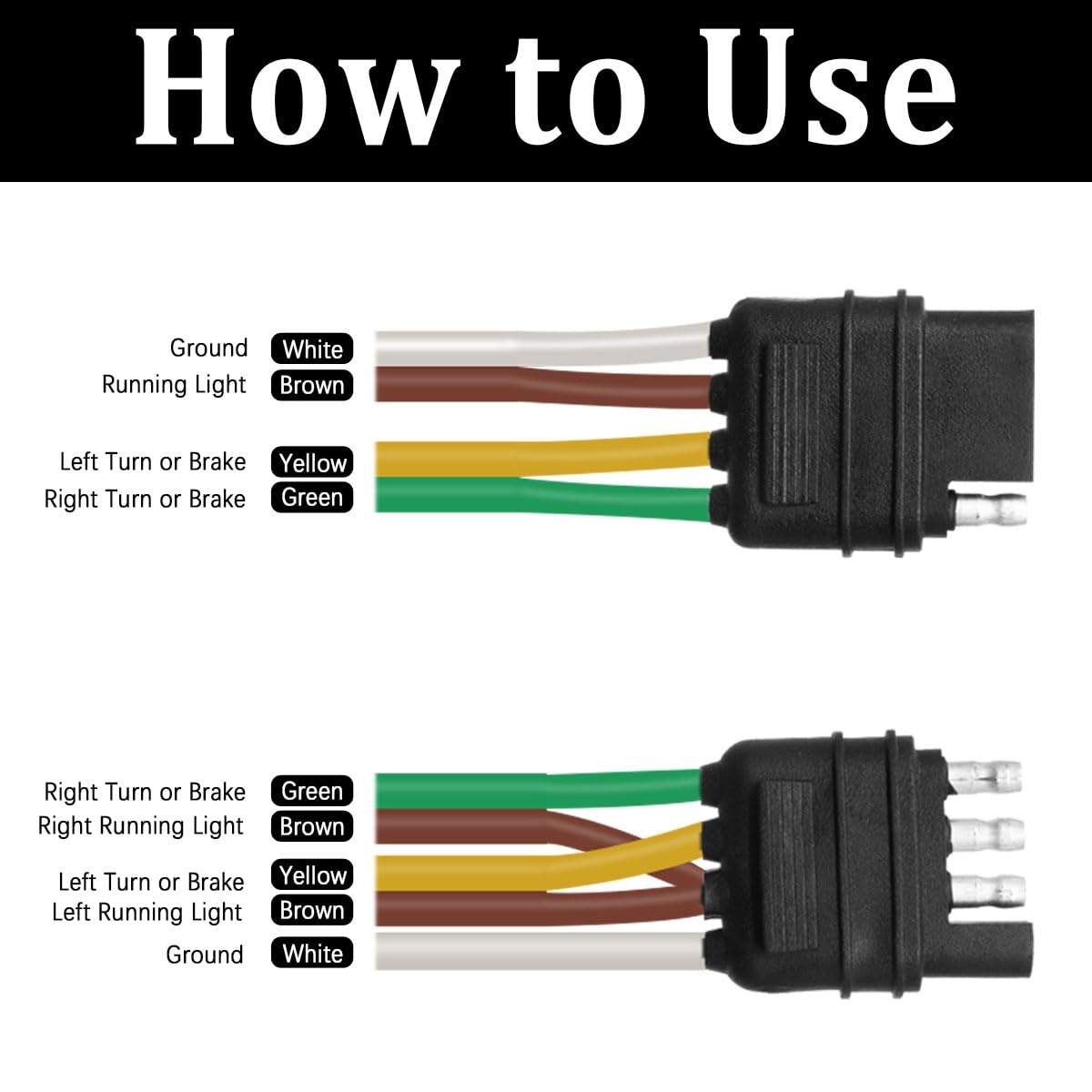

• Color-coded 18 AWG wires match common trailer wiring standards for easy identification.
• Separate white ground wire reduces the need to rely on frame grounding.
• Male lead and trunk sections let you route wire neatly along the trailer frame.

What are the key durability and material features?

Seamaka designed this harness for outdoor and marine environments where corrosion and abrasion are concerns. The materials and construction focus on long-term resistance to salt, moisture and road debris while maintaining electrical integrity.

• Corrosion-resistant terminals and connectors for extended life.

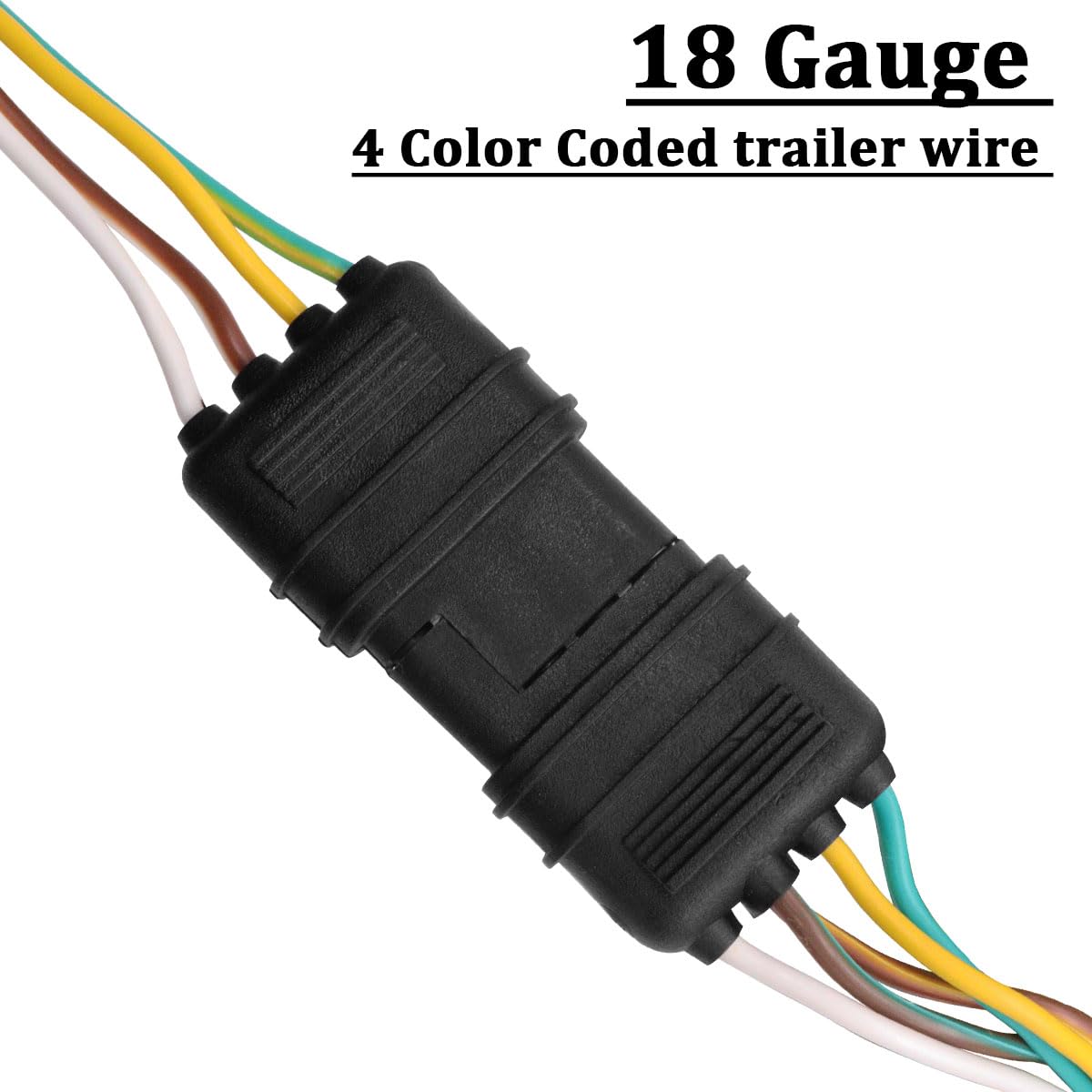

• 18 AWG conductors sized to carry standard lighting loads safely.
• Protective jacket and flexible cable for easy routing and kink resistance.
• White ground conductor built from heavier-gauge material to minimize corrosion.

How do the lengths and layout fit different trailer setups?

This kit supplies the proper lengths to reach all common trailer layouts without the need for extensions. The harness is split into a long male lead, a trunk section, and a short trailer-side ground so you can route wires from tow vehicle to rear lights neatly.

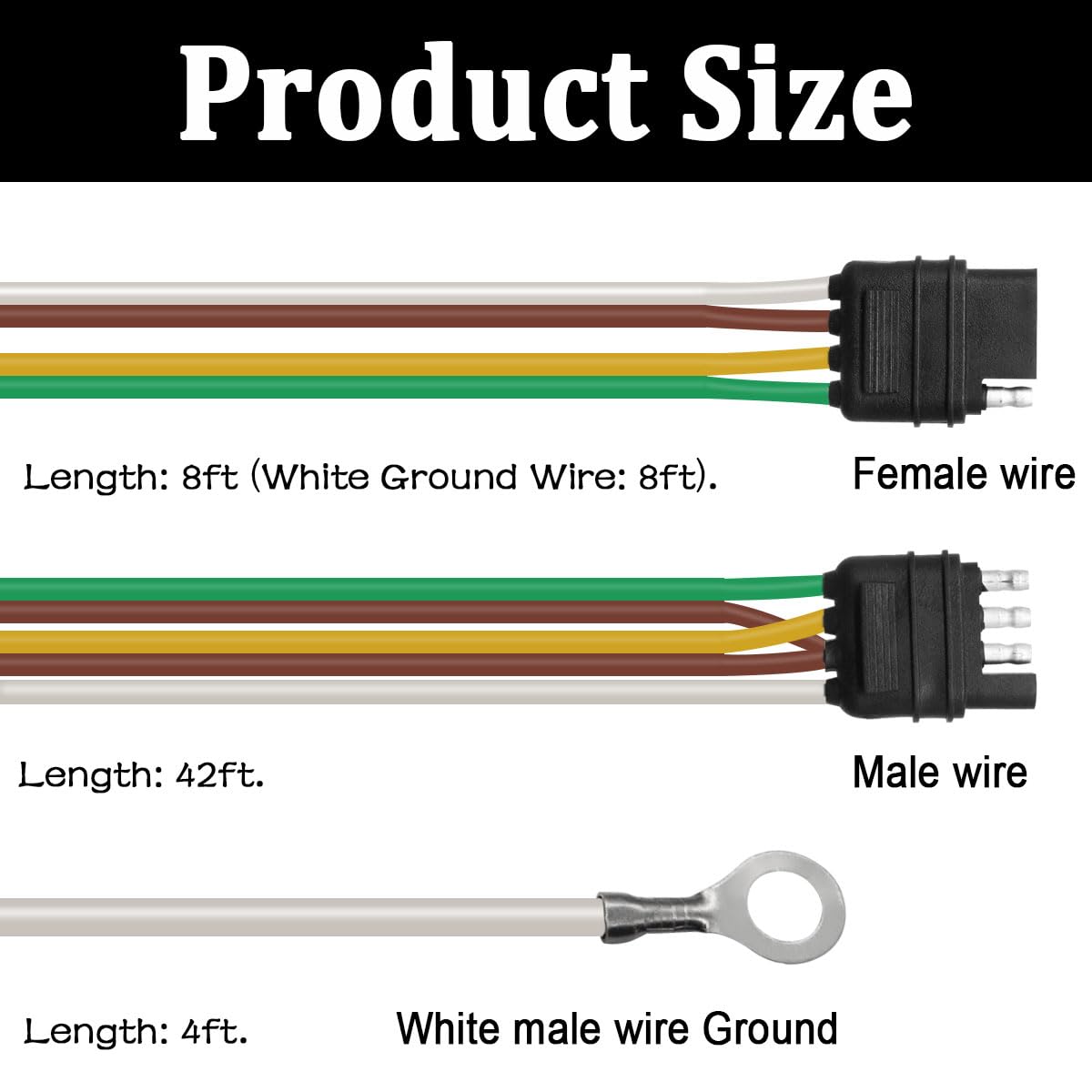

• Total harness length: 50 feet for long trailers and extended tow distances.

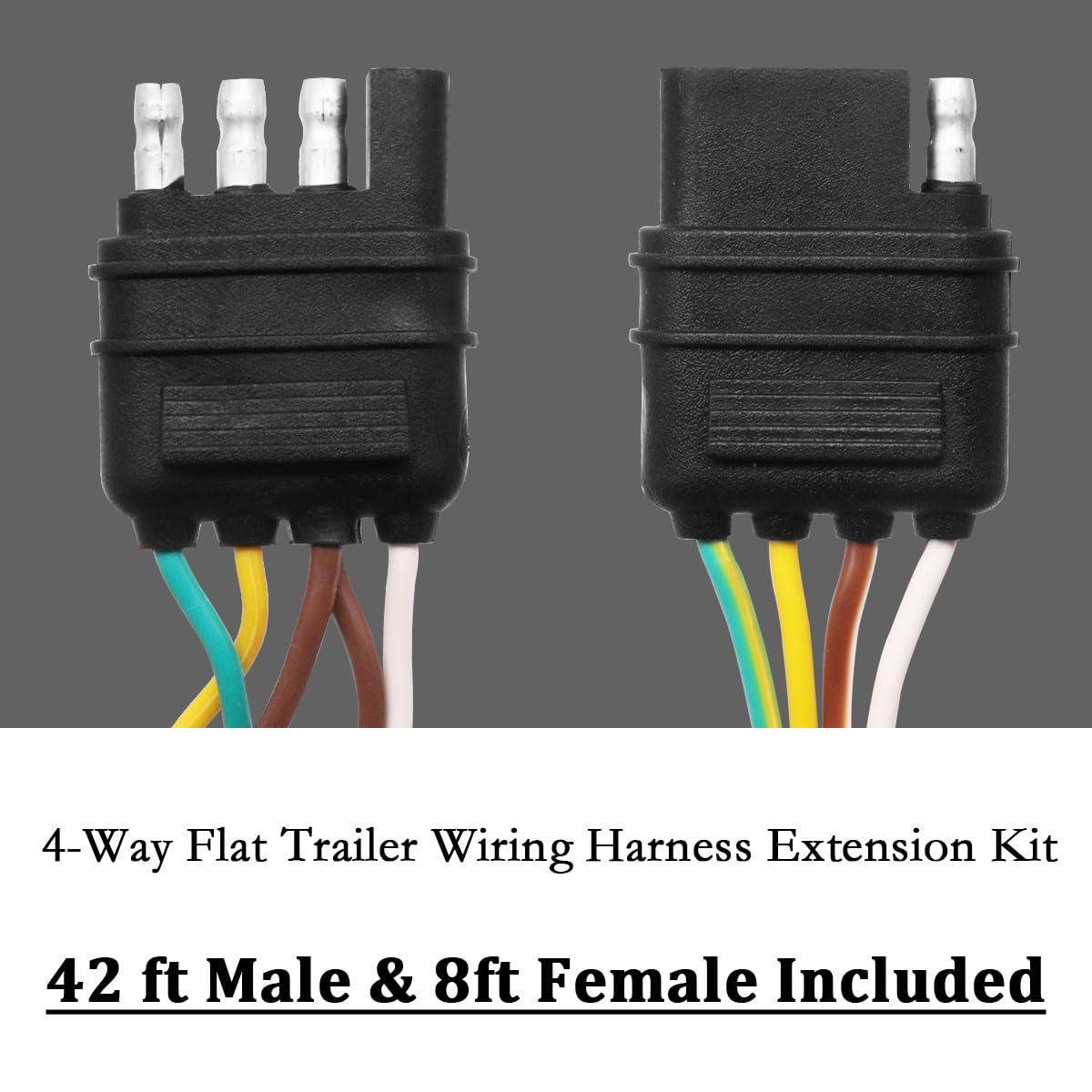

• Male lead: approximately 42 ft for the connection toward the tow vehicle.
• Trunk connector: about 8 ft to run along the trailer frame.
• Trailer-side ground: roughly 4 ft to reach grounding points on the trailer.

Is this harness easy to install and compatible with my trailer?

Installation is straightforward for anyone familiar with basic trailer wiring: plug the 4-way flat into the tow vehicle, secure the trunk along the frame, and attach the ground and lamp leads to the trailer lights. It works with any trailer or vehicle that uses a standard 4-way flat connector.

• Plug-and-play 4-way flat connector fits most modern tow vehicles.
• Color-coded wiring speeds identification and soldering or crimping work.
• Works on marine, horse, ATV, motorcycle, and utility trailers with 4-way sockets.
• No cross-wiring between tail lights required, simplifying hookups.

Who is this for: The Seamaka 50ft 5-wire 4-way trailer wiring harness is ideal for boat owners, RVers, landscapers, and trailer DIYers who need a longer, corrosion-resistant wiring solution. Choose this kit when you require extended reach, a dedicated ground to reduce electrical issues, and a simple-to-install 4-way connector that fits most towing setups.
