SENNMONN M6x1.0 Thread Repair Kit — 10pc Stainless-Steel Inserts with HSS Drill, Tap & Driver

SENNMONN's M6x1.0 Thread Repair Kit is a complete set for restoring stripped or damaged M6x1.0 threads using 10 stainless-steel inserts plus the HSS drill, tap and installation driver.

When a threaded hole in an engine block, bracket or component becomes rounded or damaged, a reliable repair kit keeps your part usable without costly replacements. This SENNMONN kit supplies the cutting tools and ten solid-steel inserts sized M6x1.0x9.4mm to rebuild internal threads to a stronger finish than many coil-style inserts. The kit also includes a specialized driver and a counterbore-style geometry that helps seat the insert flange for consistent alignment.

How do I use this kit to repair a stripped M6 thread?

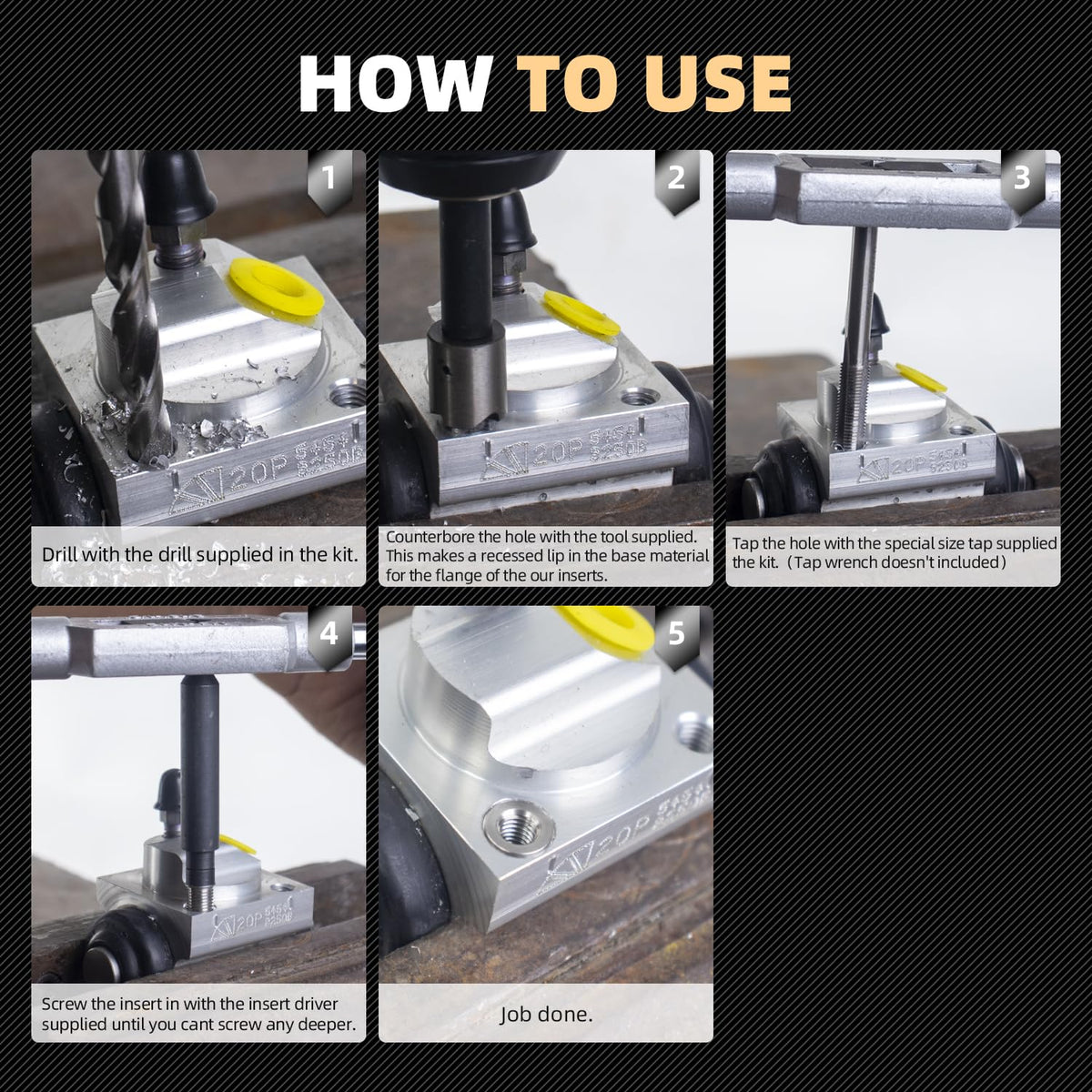

Start by drilling the damaged thread out with the supplied HSS drill, then tap the hole to the correct insert profile using the included tap. Seat an insert with the installation driver; the insert's recessed lip and flange design locate it flush for secure thread engagement. Finish by removing any setting mandrel if required and test-fit the fastener.

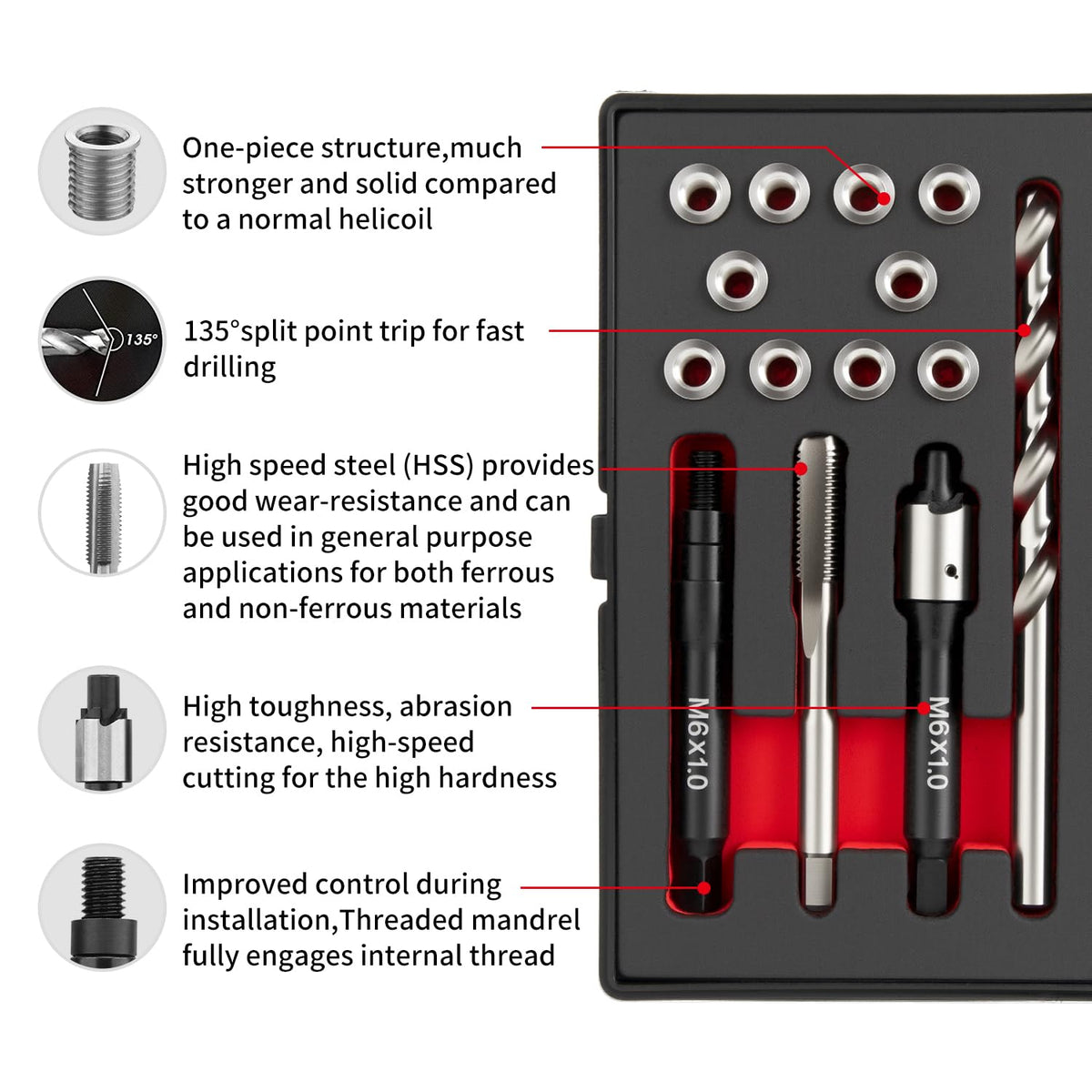

• Tools included: one HSS drill, one tap, one installation driver.

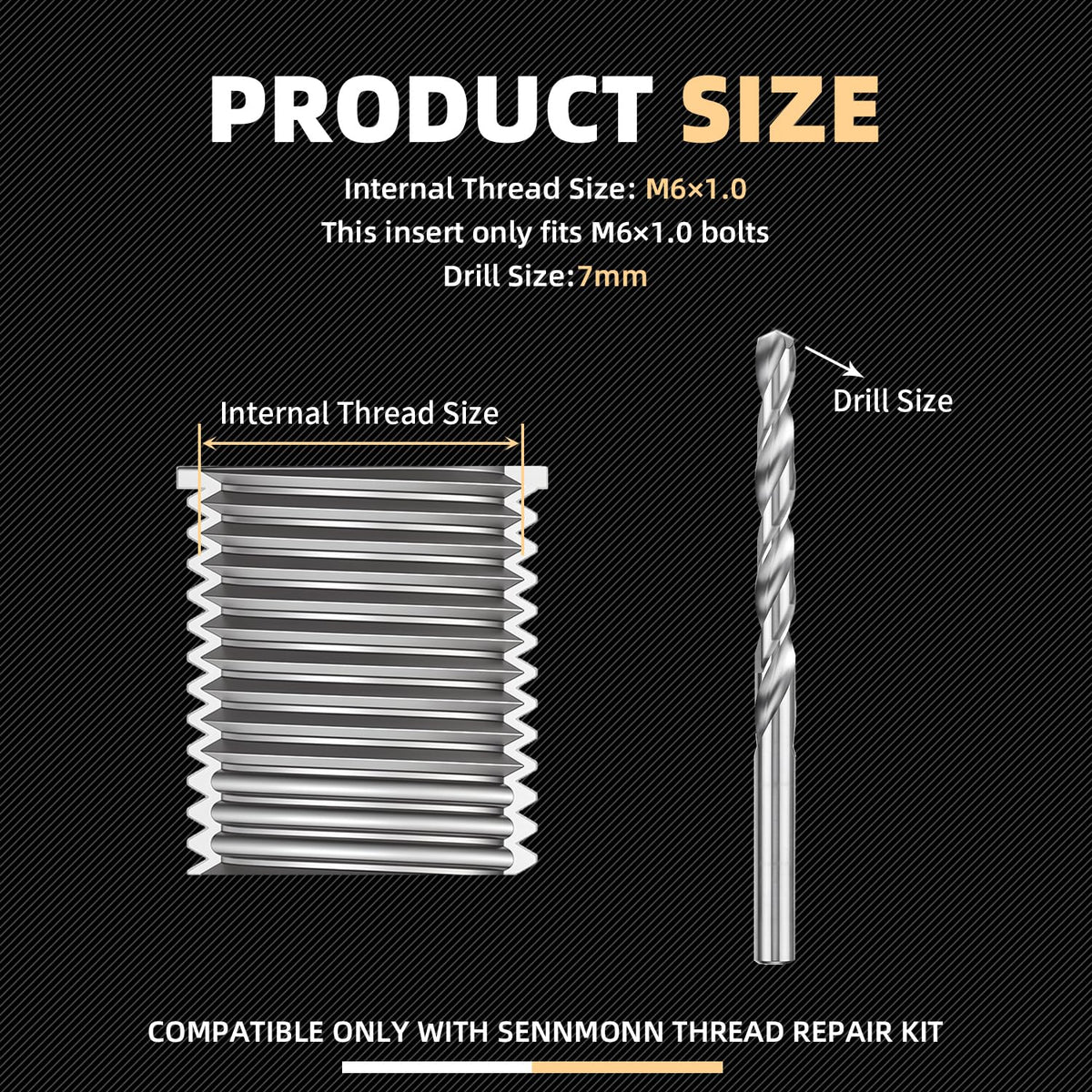

• Insert size: M6 x 1.0 x 9.4 mm; 10 pieces per kit.

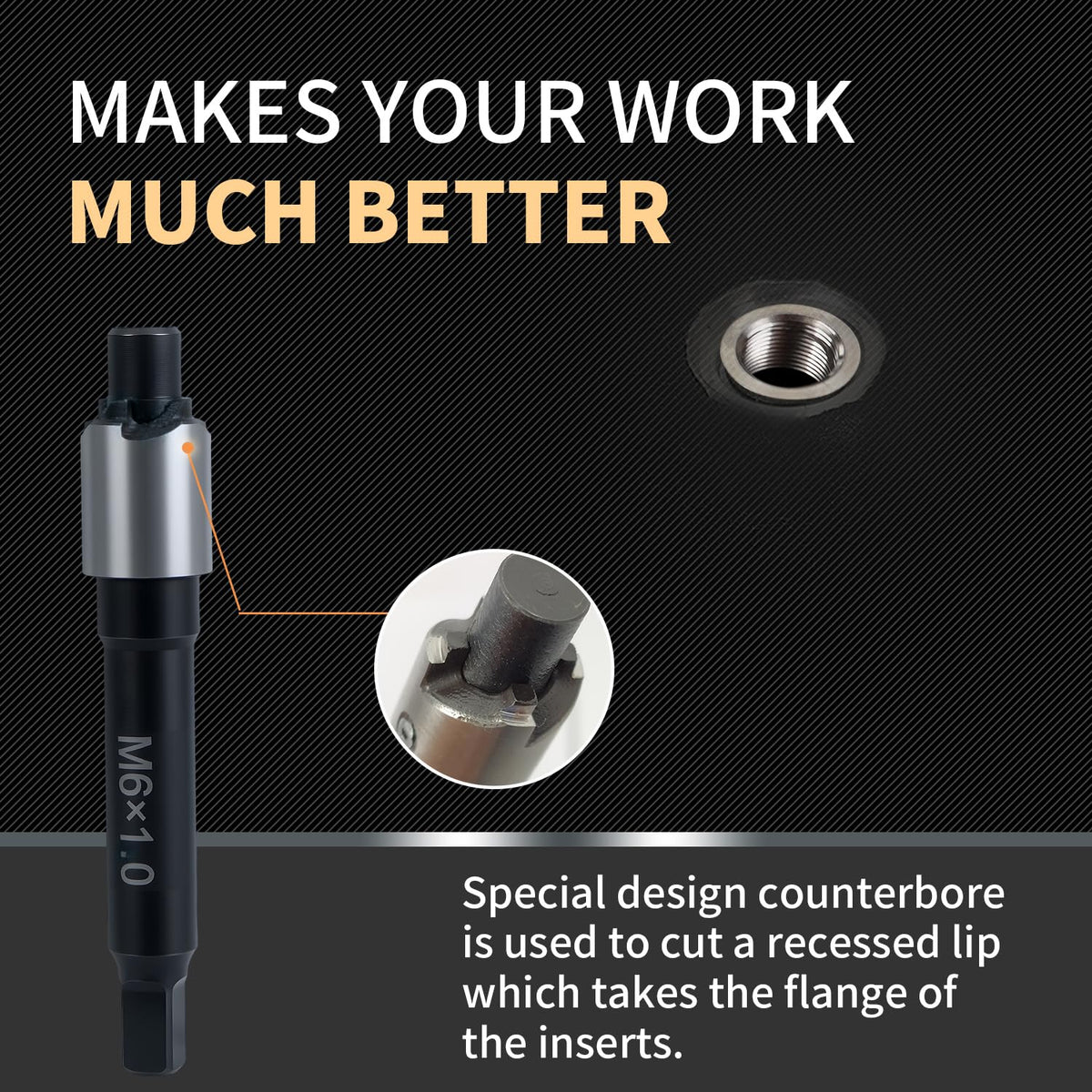

• Recessed lip and flange seating help align inserts precisely.
• Step sequence: drill → tap → install → verify fit.

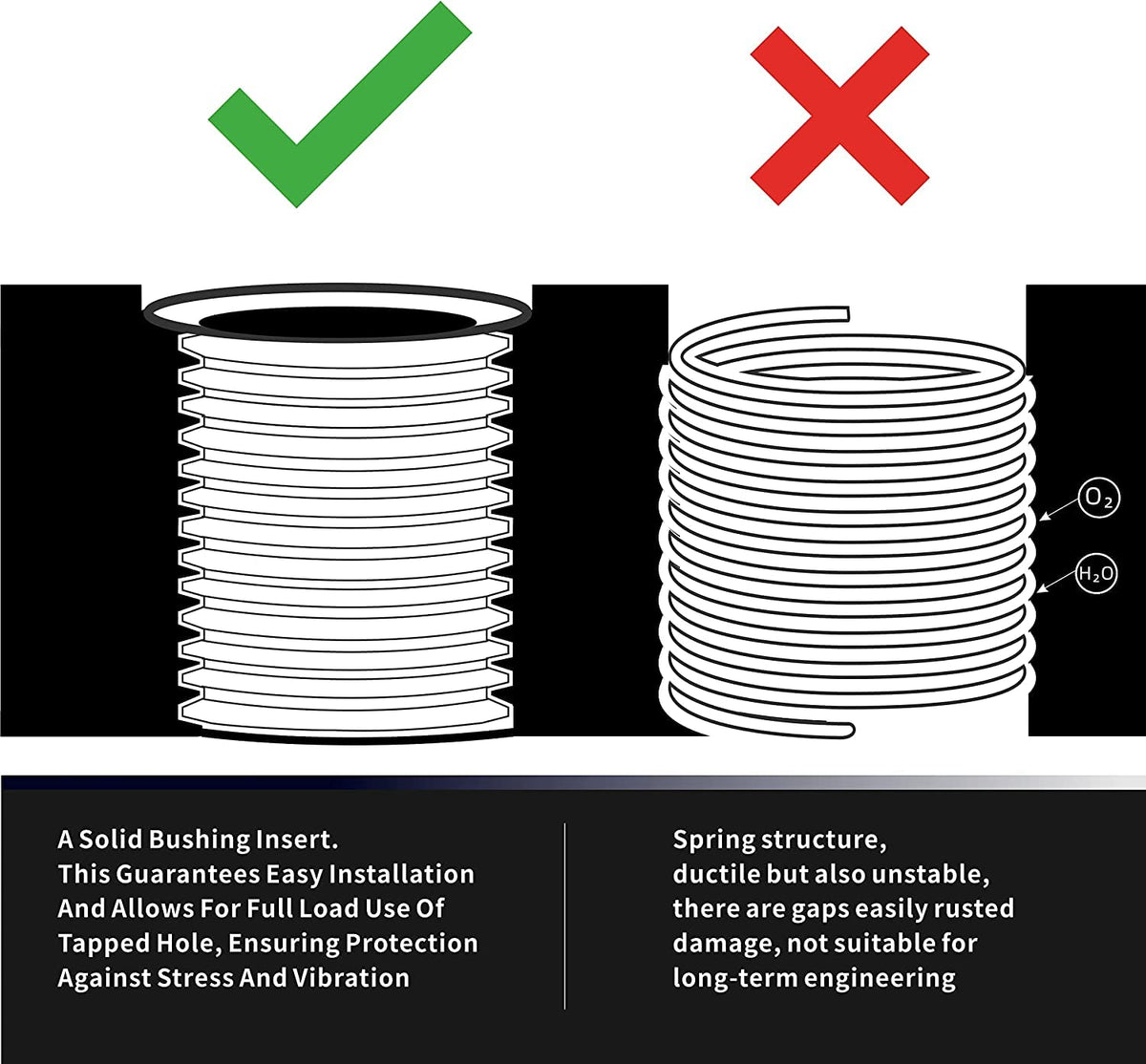

What makes the solid-steel inserts better than helicoil options?

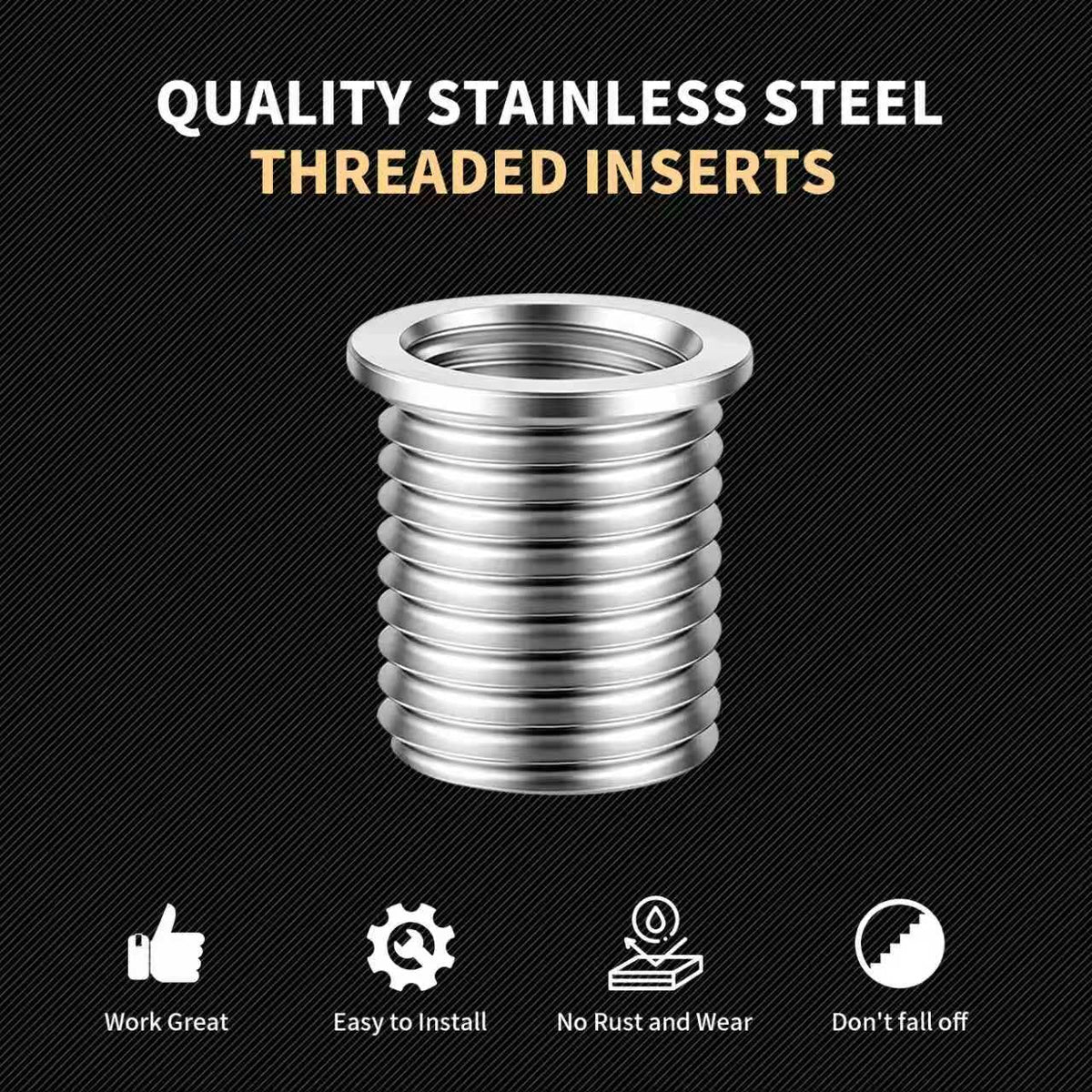

The inserts in this set are made from hardened stainless steel, offering a solid bore rather than a coiled wire structure. That solid construction delivers improved shear strength and wear resistance under repeated assembly cycles. The flange-plus-recess design also increases contact surface area for a more secure mechanical lock in softer base metals.

• Solid-steel insert for greater durability than wire coils.
• Flange and recessed lip for reliable seating and alignment.
• Designed to withstand repeated screw insertions and torque.
• Suitable for repairs where strength and longevity matter.

Which applications and materials are suitable for these inserts?

This repair kit is aimed at automotive and mechanical work: engine components, transmission housings, cylinder heads, intake manifolds, and other aluminum or softer metal parts. It's also useful for machinery housings or fixtures made from cast iron, aluminum alloys, and some steel grades. Avoid using in thin-sheet metal that cannot support the insert length or flange seat.

• Common uses: engine repair, automotive brackets, housings, and fixtures.
• Best base materials: aluminum alloys, cast iron, and some steels.
• Not recommended for very thin sheet metal without reinforcement.
• Insert length (9.4 mm) provides solid engagement depth.

What do I get in the box and what prep is required?

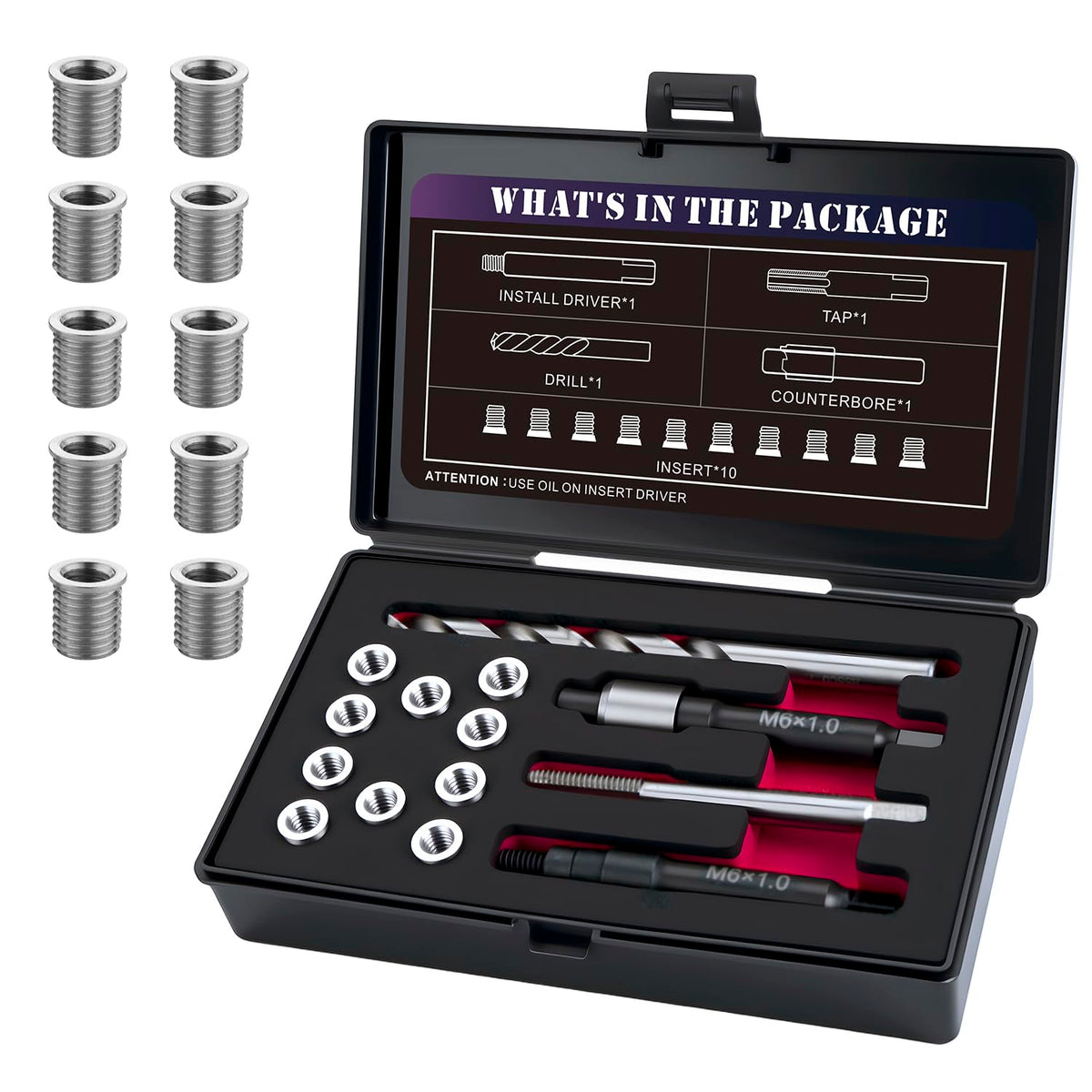

The kit ships with one HSS drill bit, one matching tap, an installation driver, and ten M6x1.0x9.4mm stainless steel inserts. Before starting, remove debris and assess the existing hole; secure the workpiece and use proper coolant/lubricant when drilling and tapping. Follow standard safety and torque recommendations when reinstalling fasteners into the repaired threads.

• Kit contents: drill, tap, installation driver, 10 inserts.
• Prep: clean, clamp the part, use cutting fluid for tapping/drilling.
• Use steady alignment to prevent cross-threading when seating inserts.
• Verify thread fit with a test bolt after installation.

Who is this for: The SENNMONN M6x1.0 Thread Repair Kit is for DIY mechanics, professional technicians and hobbyists who need a compact, dependable solution for restoring M6 threaded holes. Ideal for automotive engine and mechanical repairs where a long-lasting, strong internal thread is required without replacing the entire component.
