Sierra Marine Ignition Switch MP39770 — 12V 3-Position, Corrosion-Resistant for Boats

The Sierra MP39770 is a marine-grade, 3-position ignition switch engineered for reliable 12V engine and solenoid control in demanding saltwater environments.

Designed for boats and marine equipment, this ignition switch combines corrosion-resistant materials with a compact footprint to deliver dependable starting and accessory control. It fits a 7/8" panel hole and accepts up to a 1 1/8" thick panel, using marine-grade glass-filled polyester for the housing and a brass backup nut for secure mounting. Termination is via three blade terminals, and the switch is rated for 15 amps on the ignition circuit and 30 amps on the solenoid circuit at 12 volts DC.

How does this switch hold up in salty, wet conditions?

The MP39770 uses a non-conductive, glass-filled polyester housing and an inner seal between the cylinder and contact plate to reduce water ingress and oxidation. Brass hardware and a rubber-capped face nut further protect electrical connections and mounting points from corrosion. Together these features reduce the chance of shorts and maintain reliable performance in marine environments.

• Marine-grade glass-filled polyester housing prevents conductive failure.
• Inner seal minimizes water entry at the cylinder/contact interface.

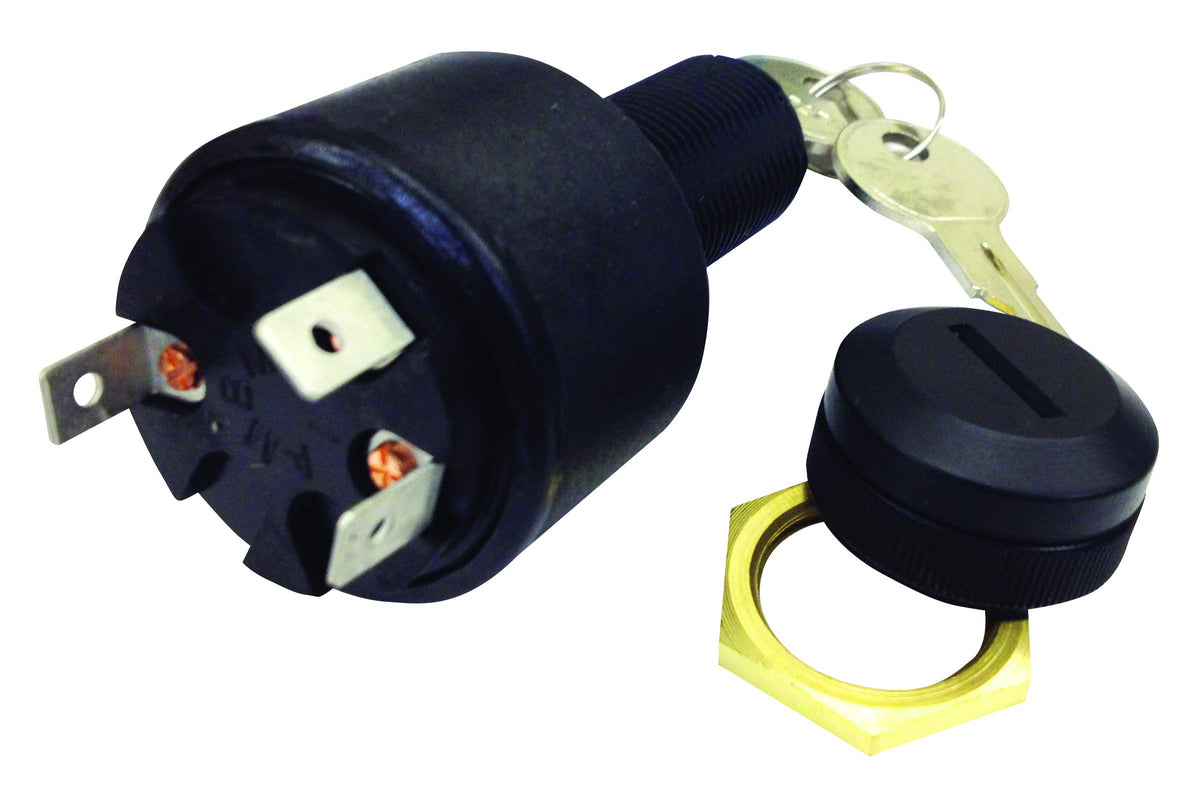

• Brass backup nut and knurled black plastic face nut with rubber cap resist corrosion.

Will it fit my dash and wiring setup?

The switch requires a 7/8" diameter mounting hole and supports a maximum panel thickness of 1 1/8" so it installs cleanly in most boat dashes. It uses three blade terminals for straightforward connection to ignition, accessory, and solenoid wiring. Check your harness for blade terminals or use compatible crimp connectors for a secure electrical connection.

• Mounting hole: 7/8" (standard dash size compatibility).
• Maximum panel thickness: 1 1/8" for secure fitting.
• Terminal type: three flat blade terminals for common marine wiring.

What electrical loads can this switch handle?

The MP39770 is rated at 15 amps for the ignition circuit and 30 amps for the solenoid circuit at 12 volts DC, making it suitable for many outboard or inboard engine start systems and accessory control. It is a conventional 3-position switch offering Off, On, and Start or similar positions depending on your wiring. If your system draws higher continuous current, use the switch to control a relay or solenoid rather than routing heavy current directly through the switch.

• Ignition rating: 15 A @ 12 V DC for running circuits.
• Solenoid rating: 30 A @ 12 V DC for starter engagement.
• 3-position conventional operation suitable for Off/On/Start wiring schemes.

How easy is it to install and maintain?

Installation is straightforward: cut a 7/8" mounting hole, insert the switch, and secure with the brass backup nut and knurled face nut. The rubber cap on the face nut helps keep moisture out when the switch is not in use. Routine maintenance is minimal—periodic inspection and cleaning of blade terminals and the rubber cap will preserve function and prevent oxidation.

• Simple panel mount with brass backup nut and knurled face nut.
• Three blade terminals for quick wiring or connector swaps.
• Low-maintenance design — inspect terminals and rubber cap occasionally.

Who is this for? The Sierra MP39770 is aimed at boat owners, marine electricians, and OEMs looking for a compact, corrosion-resistant ignition switch for 12V systems. It suits small to medium recreational boats, workboats, and any application needing a reliable 3-position control for ignition and starter solenoid duties. If you need a durable panel-mounted switch with straightforward wiring and marine-focused protection, this model is a practical choice.
