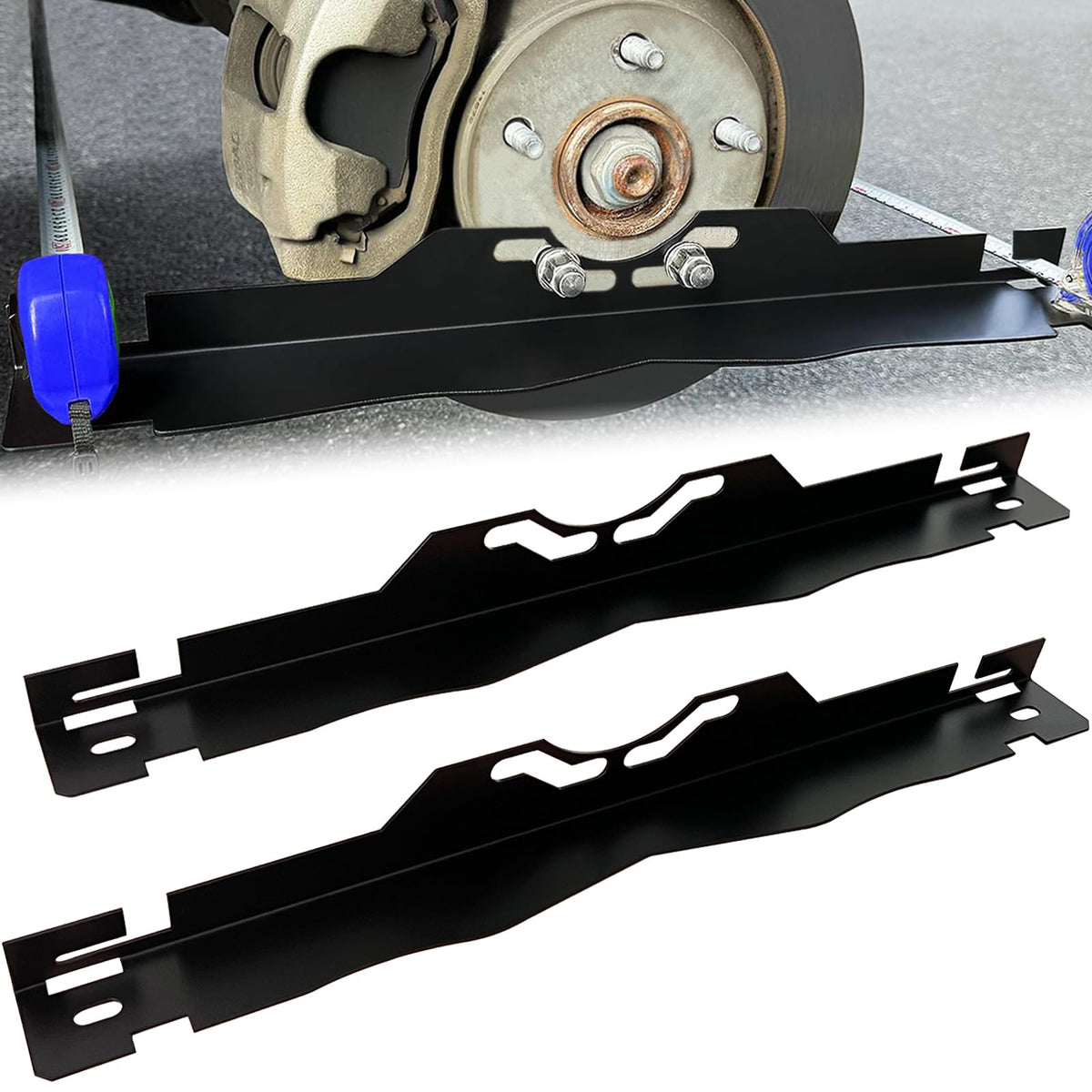

SmaringWing Wheel Alignment Toe Plates 2PCS – Stainless Steel DIY Camber/Toe Measurement Kit, Universal 14.5mm Lug Groove

SmaringWing 2PCS wheel alignment toe plates are a heavy‑duty stainless steel kit for accurate DIY toe and coaxial wheel measurements, designed for easy mounting, secure tape locking, and long service life.

Whether you're a home mechanic, fleet technician, or enthusiast who prefers to check alignment before a shop visit, this two‑piece toe alignment kit translates bolt‑pattern versatility and rugged construction into repeatable measurements. Made from thick stainless steel with a baked coating, each plate resists bending and corrosion while the rounded edges reduce the chance of handling nicks. The plates include tape‑holding grooves and oval hanging holes so one person can measure and store them conveniently.

How do these plates make at‑home toe measurements easier?

The plates create fixed reference points on the wheel studs so you avoid tape slippage and uneven readings from the tire sidewall. Use a tape measure between the plate grooves across the front and rear of the wheel to calculate toe; the grooves keep the tape head locked in place, which helps single‑operator measurement.

• Grooved ends secure the tape head for stable readings
• Rounded edges for safe, comfortable handling
• Attach to studs after removing tire—no extra brackets needed
• Simplifies repeat checks without a lift or professional rig

Will these toe plates fit my vehicle's bolt pattern?

SmaringWing designed the plates to accept a universal 14.5mm lug‑nut groove and a broad range of bolt patterns, covering many common cars, trucks, SUVs, and UTVs. They suit patterns such as 5x4.5, 5x5, 5x5.5, 6x5.5, 8x6.5, 8x170mm and certain UTV/ATV bolt layouts, but they are not intended for vehicles with very low ground clearance.

• 14.5mm universal lug groove for broad compatibility
• Works with many Jeep, VW, truck, and SUV bolt patterns
• Compatible with multiple 4‑ and 5‑ and 6‑lug configurations listed
• Not recommended for vehicles with very low chassis clearance

How durable and accurate are these stainless steel plates?

Constructed from heavy stainless steel with a protective baked finish, the plates resist deformation, rust, and corrosive environments that quickly wear thin aluminum tools. Their hardened body keeps the reference points stable over time, so measurements remain consistent and the tool sustains heavy use without warping.

• Thick stainless steel prevents bending under torque
• Baked coating adds corrosion resistance for long life
• High hardness keeps measurement geometry true over time
• Rounded edges and precise slots improve safety and repeatability

What accessories and steps are needed to use the kit effectively?

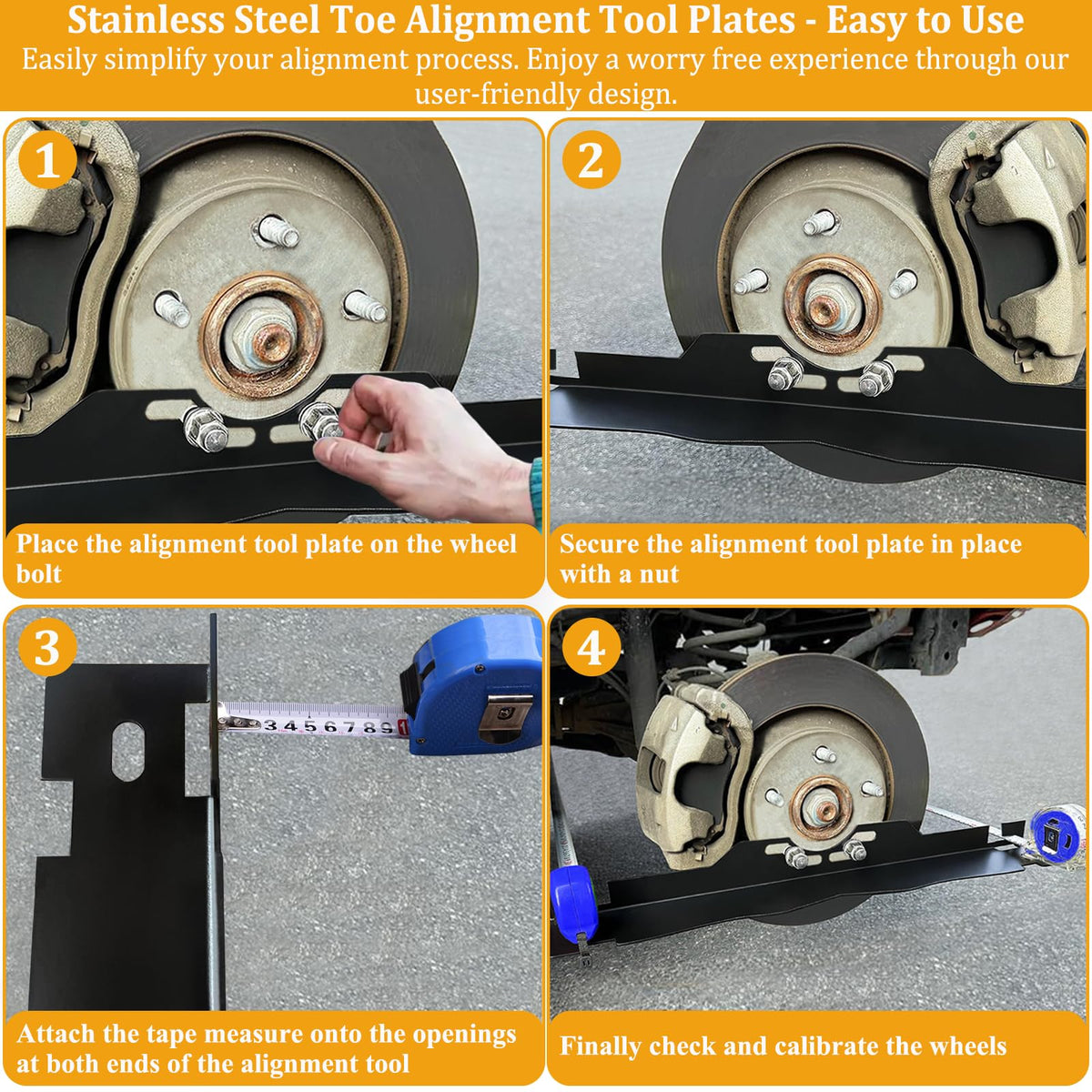

The kit ships with two toe plates; a tape measure and basic hand tools are required but not included. For reliable readings remove the wheel, fit the plate to the hub studs, lock the tape into the groove at both front and rear positions, and measure coaxial distance or calculate toe deviation from those values.

• Includes two stainless steel toe plates (tape measure not included)
• Remove wheel, mount plate on studs, lock tape into grooves
• Use measurements to determine toe in/toe out and guide adjustments

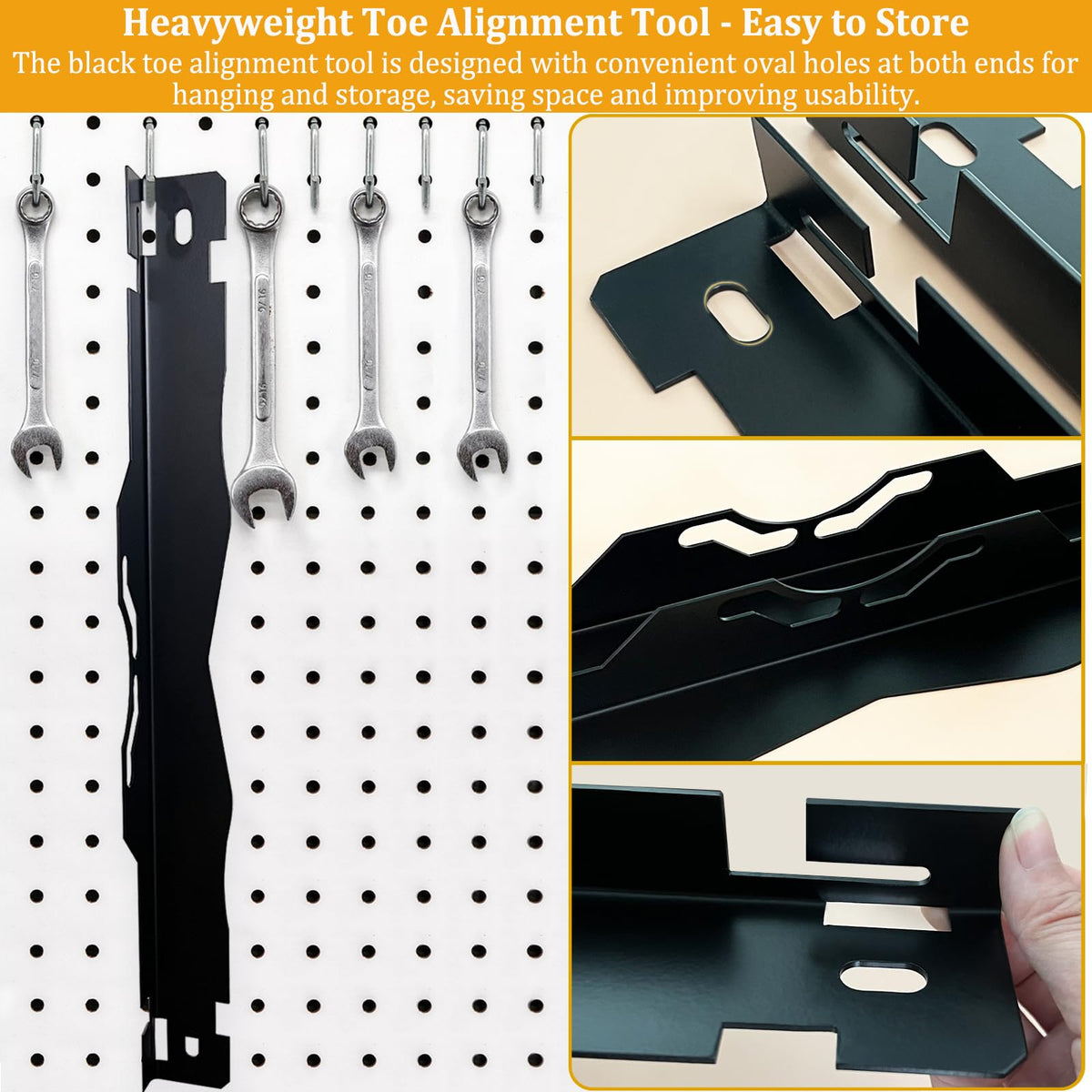

• Oval holes let you hang plates for compact storage between uses

Who this is for: the SmaringWing 2PCS wheel alignment plates suit DIYers, small shop mechanics, fleet maintainers, and owners who want fast, repeatable toe checks without specialist equipment. If you service multiple vehicle types and need a rust‑resistant, single‑operator solution for basic alignment checks, these plates offer a practical, low‑cost way to gather accurate measurement data before making adjustments or visiting a full alignment facility.
