Sonnax Pinless Accumulator Piston Kit for GM 4L60/4L60E/4L65-E/4L70-E — Dual-seal, pinless design

The Sonnax 77998-03K is a pinless accumulator piston kit engineered to stop pin-bore leakage and stabilize the piston in GM 4L60, 4L60E, 4L65-E and 4L70-E transmissions.

Many GM 4L60-series transmissions develop poor shift feel, burned clutches or bands when the traditional accumulator piston pin bore wears from repeated back-and-forth movement. Sonnax addresses that wear point with a patented pinless piston that replaces the pinned design, adds dual sealing, and plugs the old pin bore locations to restore sealing integrity and piston stability without increasing pump demand.

How does the pinless design reduce fluid loss at the piston bore?

The pinless piston removes the through-pin path that commonly leaks as the pin bore wears. With dual seals around the piston and steel balls to plug existing pin bores in the case or cover, the Sonnax kit restores a tight hydraulic seal and reduces internal fluid bypass that harms line pressure and shifts.

• Patented pinless geometry removes the leaking pin channel.
• Dual seals provide redundant sealing against bore leakage.
• Steel balls plug original pin bores in case or cover to prevent escape paths.
• Designed to work without increasing pump volume requirements.

Will this part stop piston cocking and galling in the accumulator bore?

The Sonnax piston adds axial length and a stabilized sealing surface to keep the piston centered during operation, reducing the likelihood of the piston tilting and scuffing the bore. Stabilization, combined with dual seals, limits eccentric wear that leads to galling and progressive seal failure.

• Longer piston profile helps keep piston aligned under spring load.
• Dual-seal arrangement maintains consistent sealing contact around the circumference.
• Reduced lateral movement lowers risk of piston-to-bore metal contact and damage.

What components are included and what does installation require?

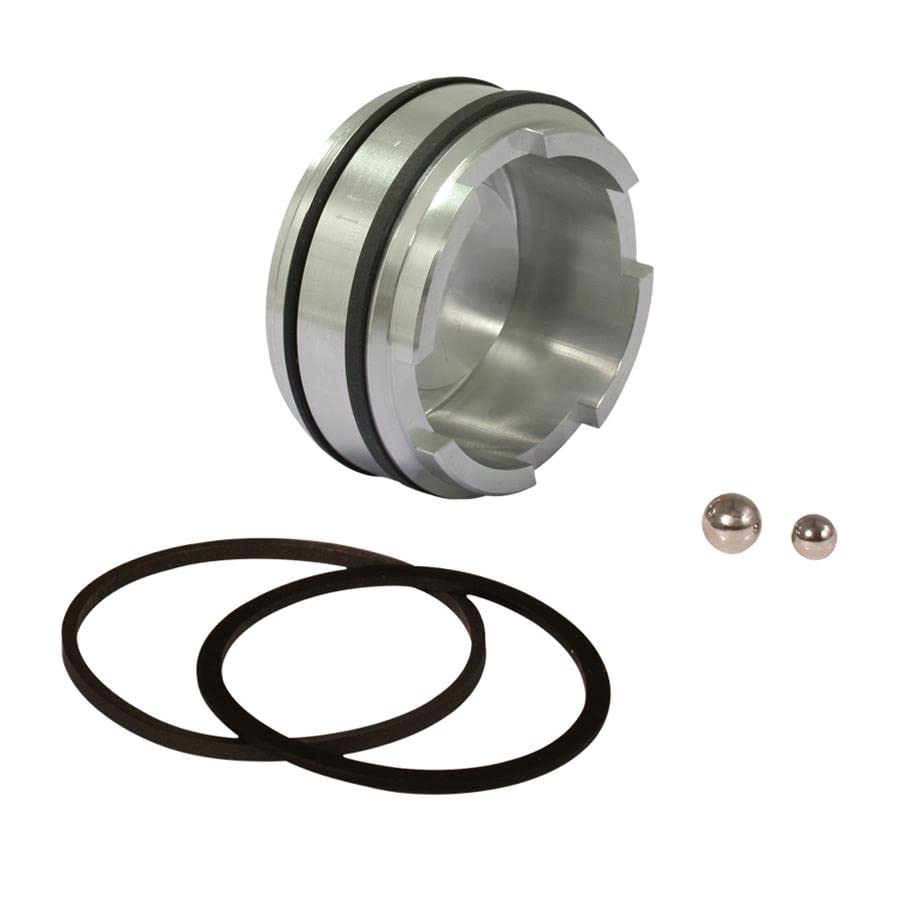

The kit contains a Sonnax pinless accumulator piston engineered for the specified GM units along with dual seals and steel balls to plug existing pin bores. Installation requires disassembly of the accumulator bore and basic transmission service skills; follow OEM procedures for safe removal, cleaning and reassembly.

• Pinless piston precision-machined for a close fit in accumulator bore.
• Two sealing rings supplied to create a durable, redundant seal.
• Steel balls to plug factory pin bores in case or cover.
• Standard tools and a clean work area recommended for installation.

How will this kit affect shift quality and service life?

By eliminating pin-bore leakage and stabilizing the piston, the Sonnax kit helps restore consistent hydraulic pressure to the accumulator circuit, which typically improves shift firmness and reduces conditions that burn bands or clutches. The design addresses a common wear failure mode without changing pump requirements.

• Improved sealing reduces pressure loss during shifts.
• Stabilized piston reduces uneven wear on the accumulator bore and piston.
• Less internal leakage lowers the chance of clutch or band overheating from poor apply pressure.

Who is this for: The Sonnax 77998-03K pinless accumulator piston kit is intended for technicians, rebuilders, and owners working on GM 4L60, 4L60E, 4L65-E and 4L70-E transmissions who are experiencing soft, inconsistent, or harsh shifts, or who find visible wear and leakage at the accumulator piston pin bore. It is a targeted service upgrade when the root cause is piston pin-bore wear; use alongside standard inspection and rebuild practices to ensure complete transmission restoration.
