Sound Troubleshooting 12V Handheld Relay Tester with Puller & Clips, Pocket Diagnostic Tool with LEDs

The Sound Troubleshooting Handheld 12V Relay Tester is a compact, patented diagnostic tool that quickly checks most automotive relays and indicates pass/fail with simple green/red LEDs.

This pocket-sized relay tester connects to a 12V car battery and cycles relays through their contacts to verify pin continuity, timing, and coil operation. Designed for technicians and DIYers, it couples fast, repeatable testing with an included relay puller so you can remove and inspect relays without prying or damaging sockets. Note: not intended for use with all BMW relays.

How do I run a relay test with this tool?

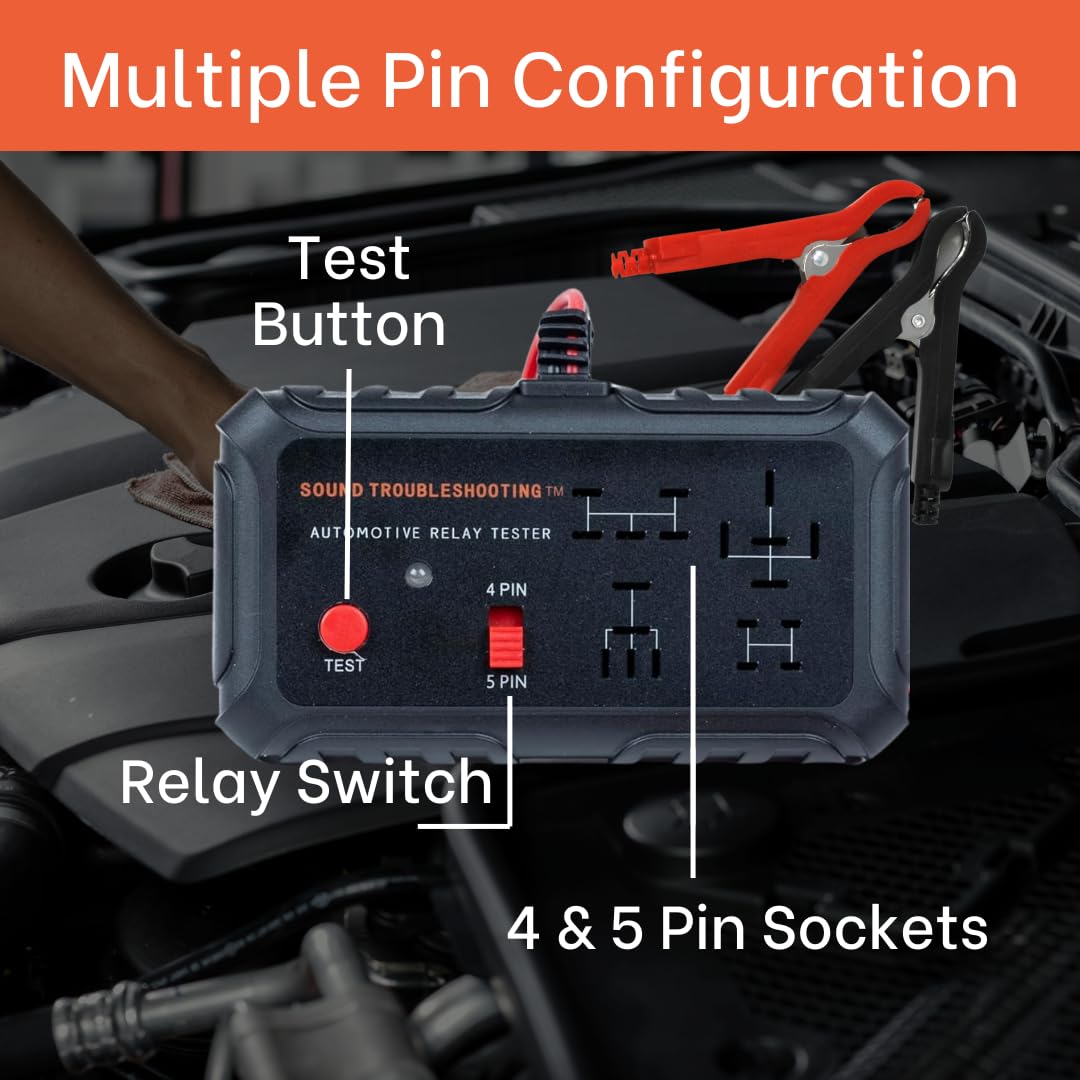

Testing is straightforward: clip the black and red alligator clips to the battery negative and positive terminals, select the correct 4-pin or 5-pin setting, insert the relay into the matching socket, and press Test. The unit automatically cycles the relay several times and evaluates contact switching, release timing, and coil consistency.

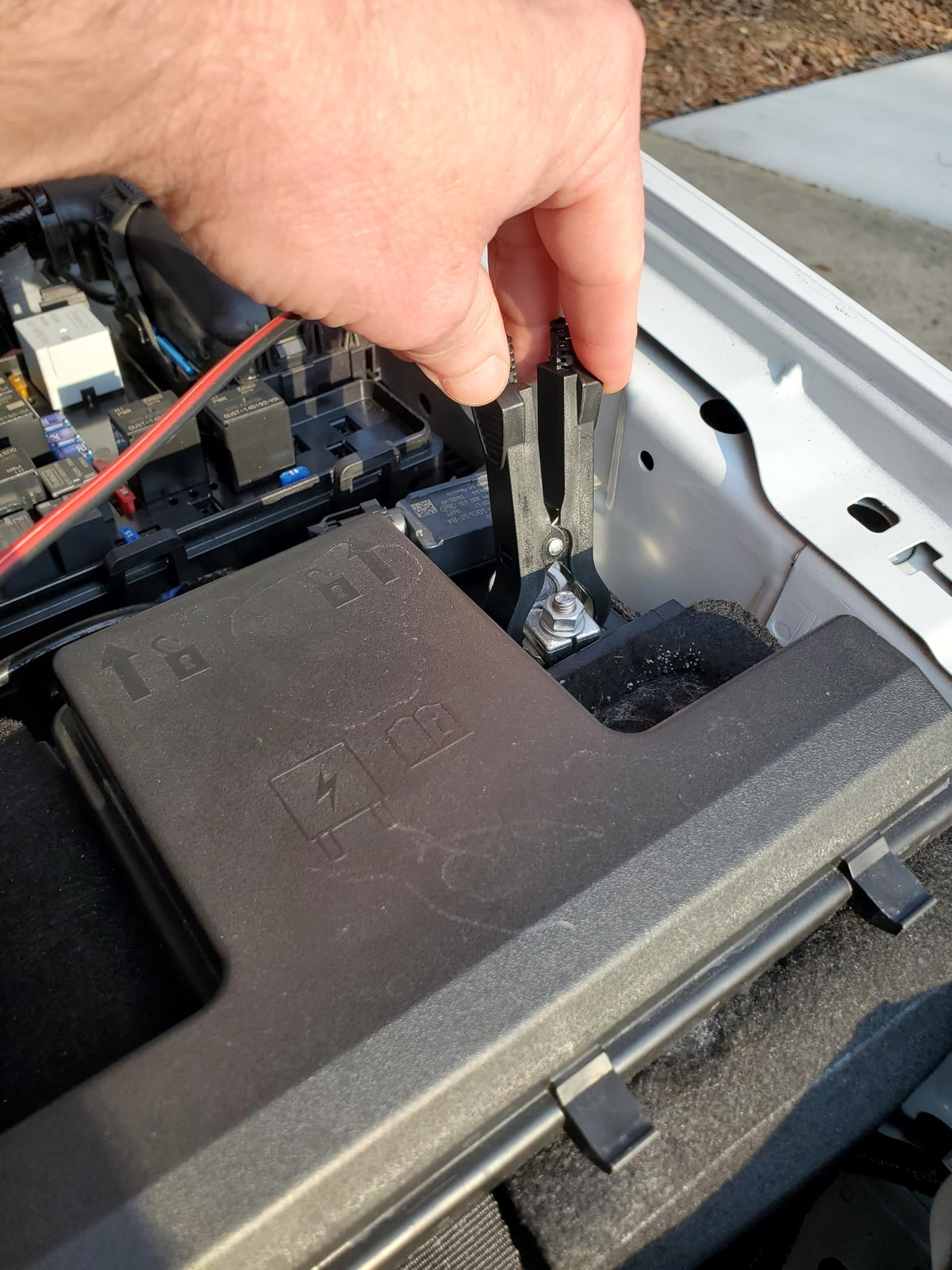

• Connect clips: red to positive, black to negative
• Select 4-pin/5-pin switch to match relay type
• Choose the appropriate socket for relay pin configuration
• Press Test — LEDs indicate pass (green) or fail (red)

What relays and battery conditions does it support?

The tester works with most general-purpose automotive relays whose coil resistance is ideally above 20 ohms and that operate on a 12V system. It requires a vehicle battery voltage between 11V and 15V for accurate operation; avoid connecting to non-12V systems.

• Compatible: common 4-pin and 5-pin automotive relays
• Battery requirement: 11V–15V (12V nominal)
• Recommended coil resistance: preferably >20 ohms
• Exception: not suitable for all BMW relay types

What diagnostic feedback does the tester provide?

The device analyzes each test cycle and reports results with a simple LED system: green shows the relay performed correctly during the automated cycles, red signals an internal fault or inconsistent operation. Because the tool repeats the switching sequence, it can reveal intermittent contact failures and slow-release faults that a single manual check might miss.

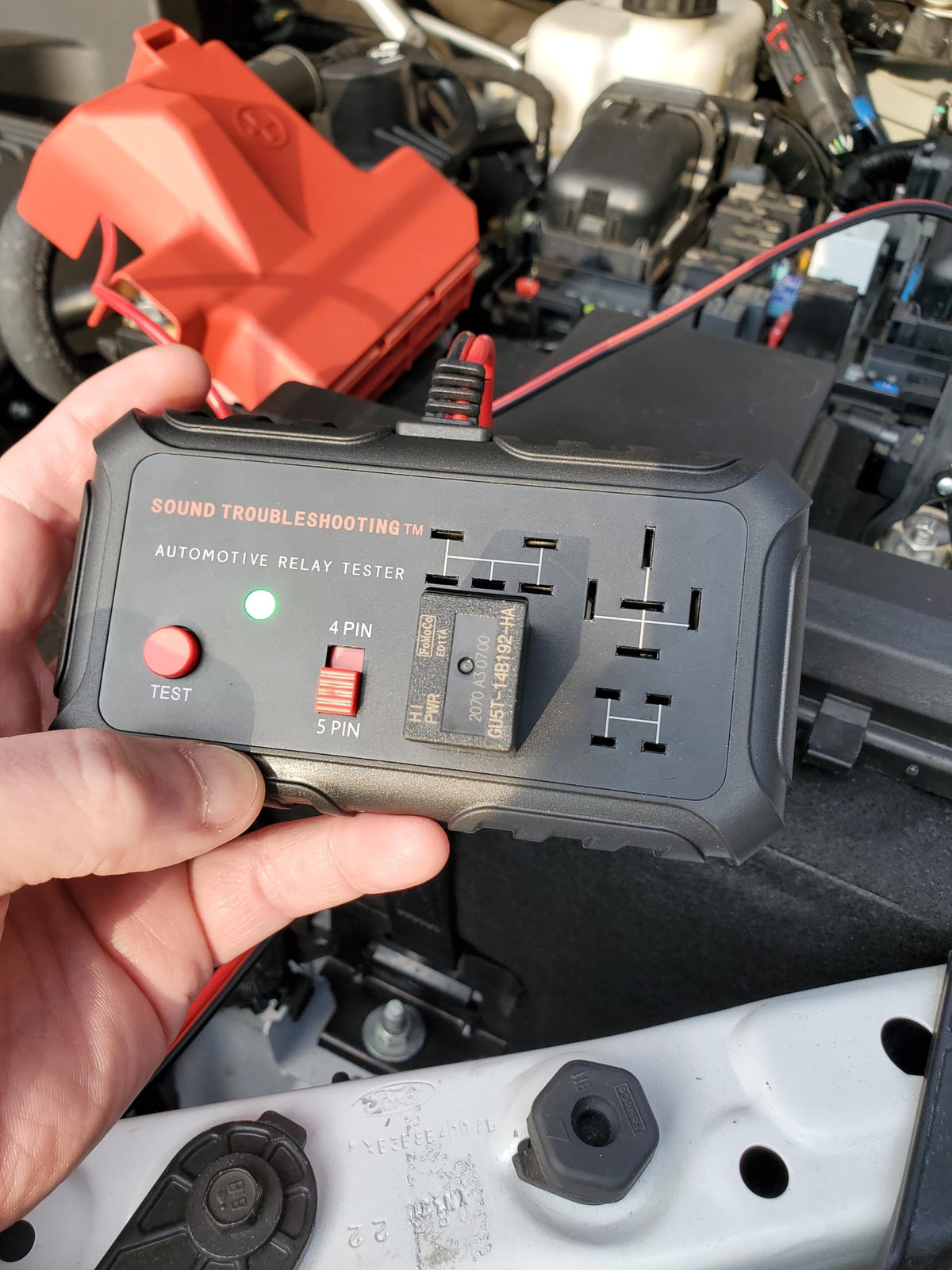

• Green LED: relay passed continuity and timing checks

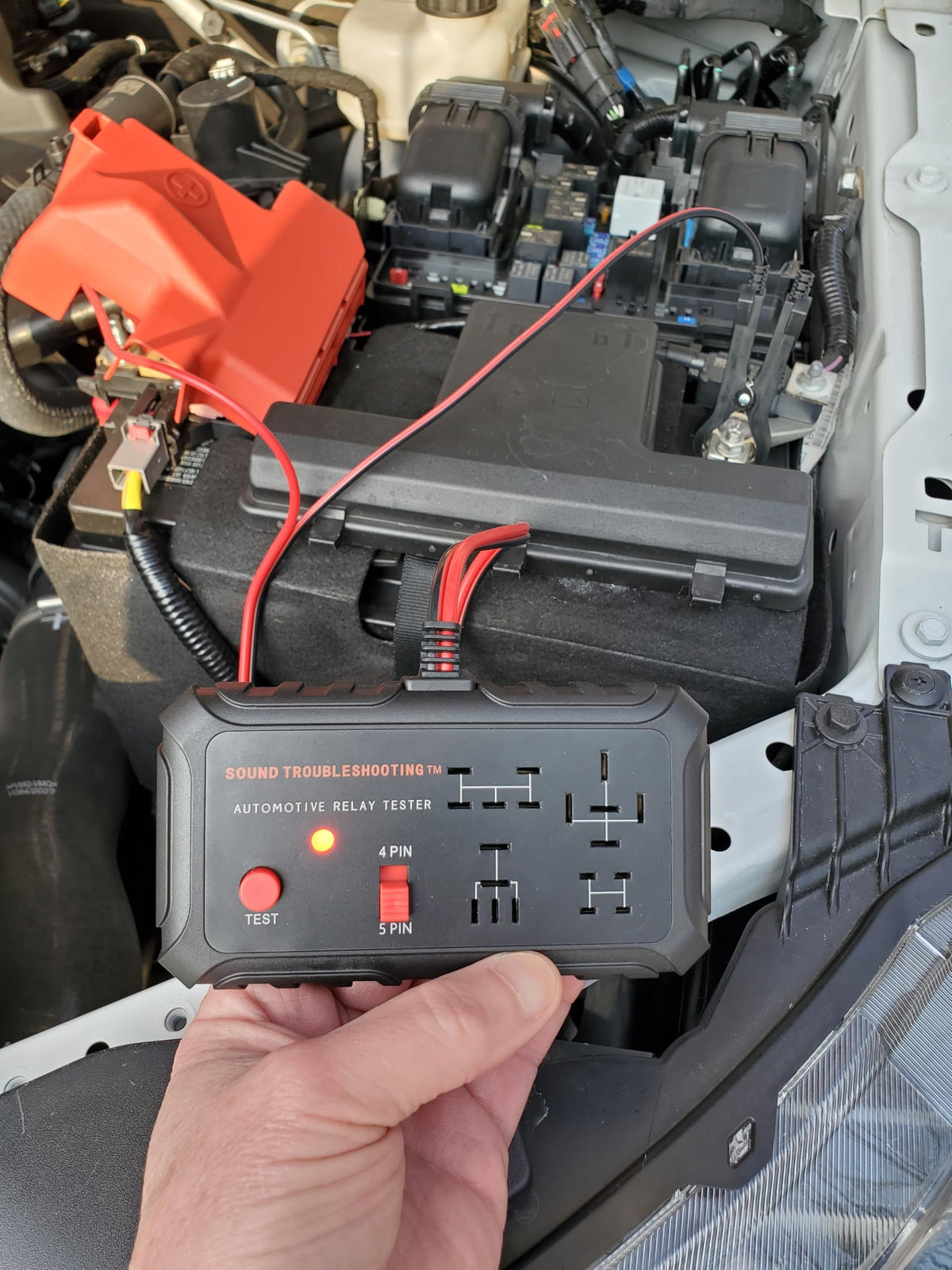

• Red LED: relay failed or operated inconsistently
• Automated cycling finds intermittent or timing problems
• Pin detection and test sequencing are automatic

How portable and durable is this testing kit?

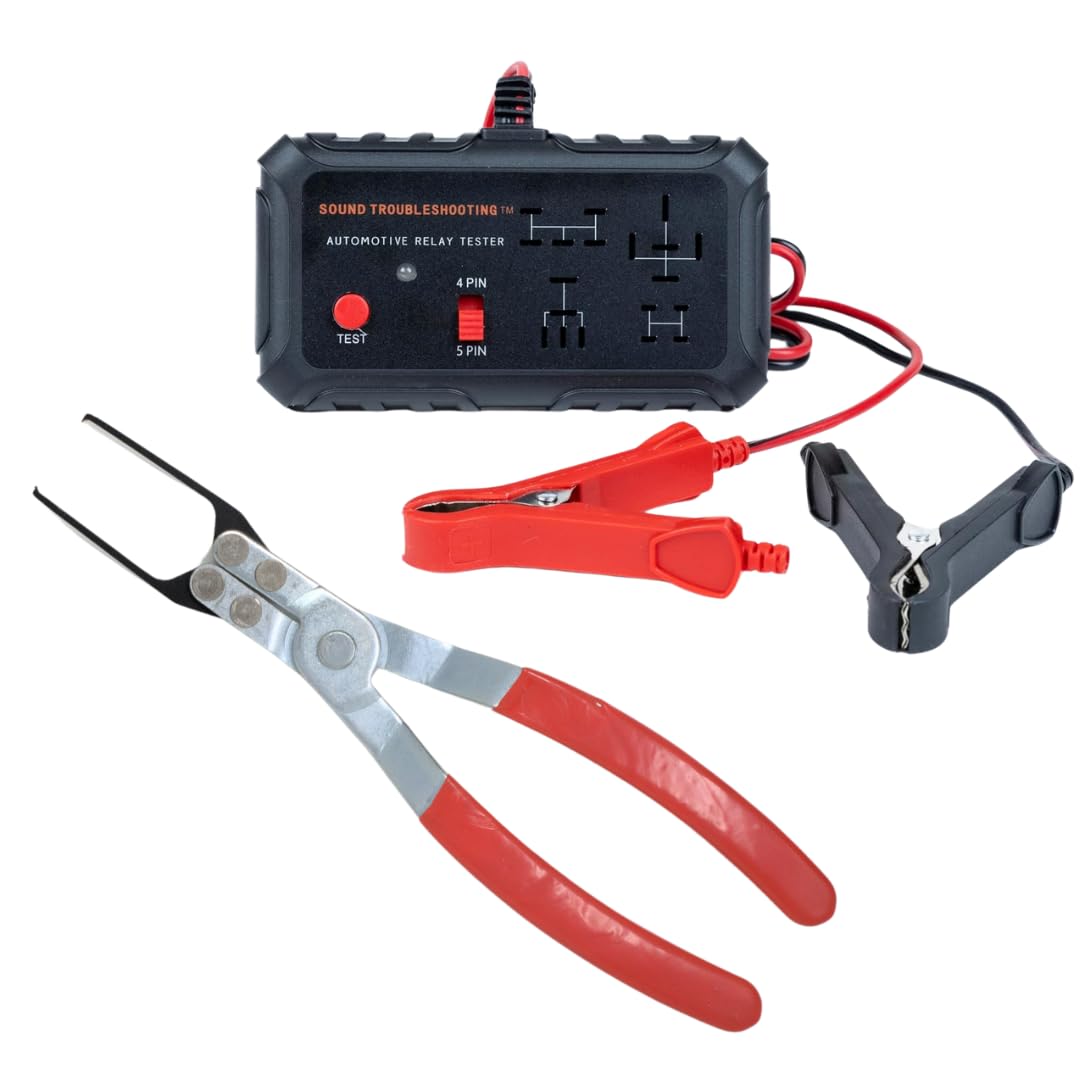

Its compact handheld design makes the tester easy to carry in a toolbox or glovebox so you can diagnose relays on the go. The kit includes a plastic relay puller for safe removal and rugged battery clips for reliable power connections during shop or roadside use.

• Small footprint for toolbox or pocket storage

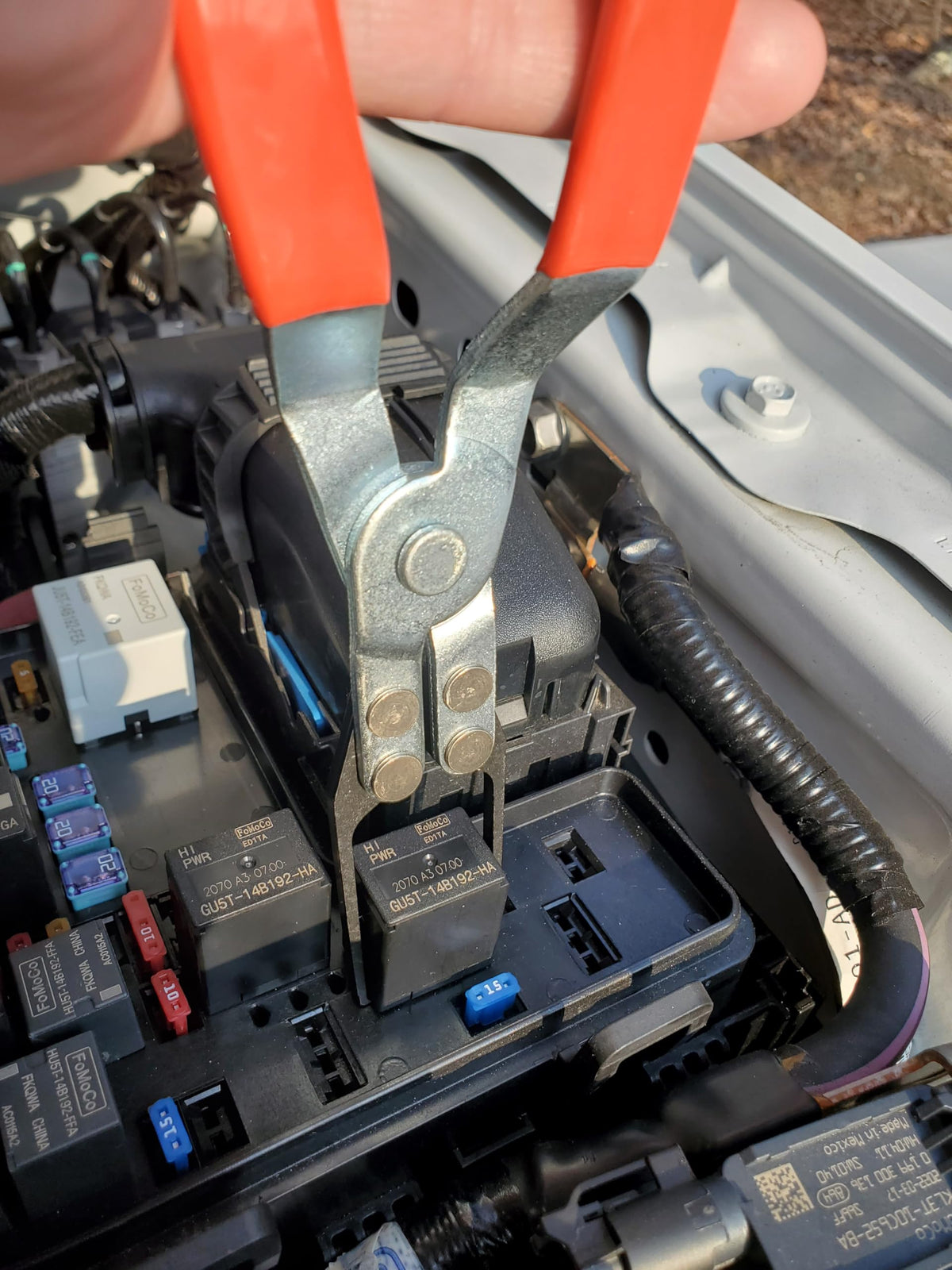

• Included relay puller protects socket and relay tabs
• Durable alligator clips for secure battery connection
• USA patented design ensures consistent operation

Who is this for: The Sound Troubleshooting 12V Relay Tester is built for auto mechanics, fleet technicians, and DIY vehicle owners who want a fast, repeatable way to vet electrical relays without guesswork. If you service 12V cars, trucks, or light equipment and need a portable, easy-to-use relay diagnostic that flags intermittent faults and timing issues, this kit provides a pragmatic, time-saving solution. Remember to verify relay compatibility and battery voltage before testing; some BMW relays may not be supported.
