Spal 12in High-Performance Puller Fan VA10-AP50/C-61A — 1226 CFM, IP68 Sealed Motor, Slim Profile

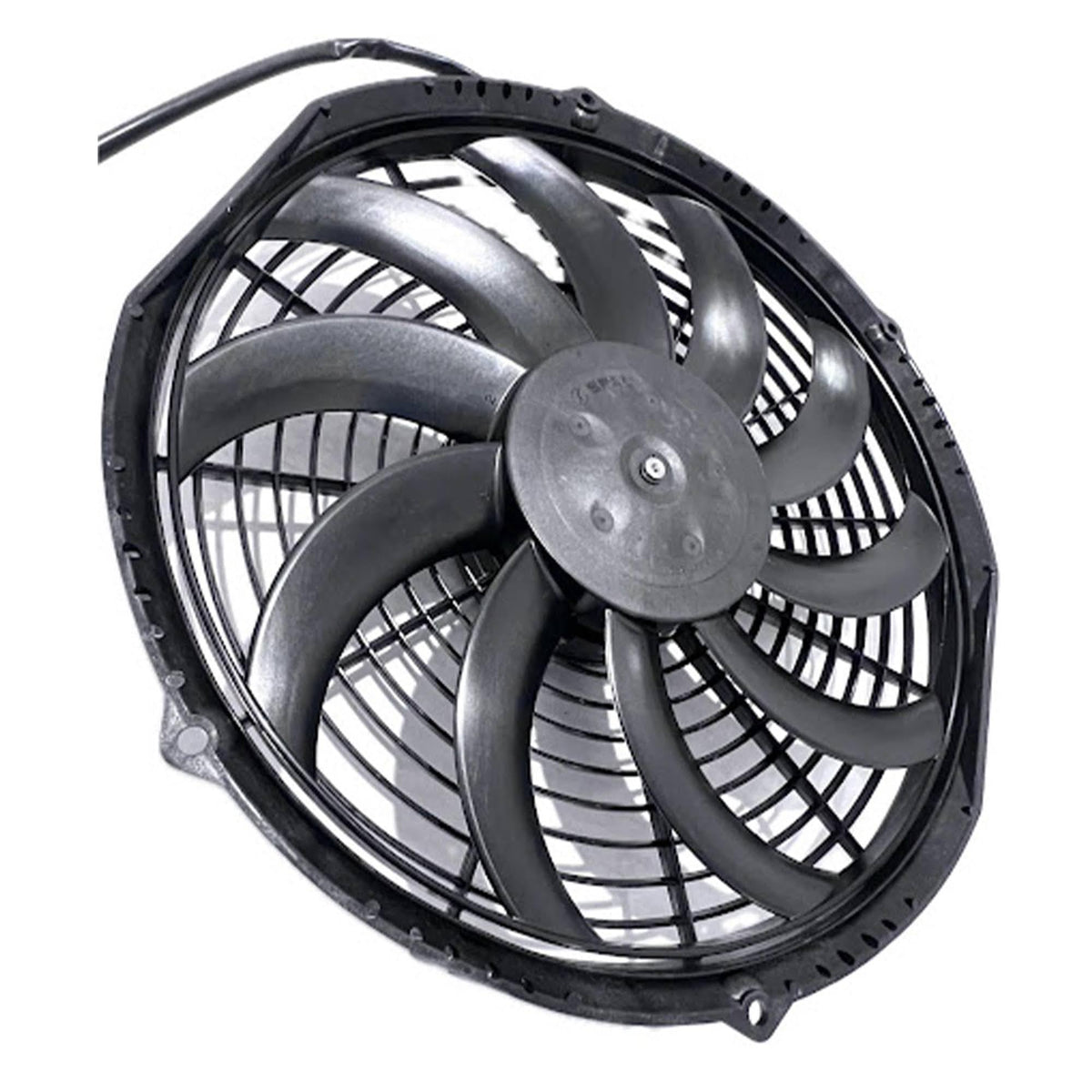

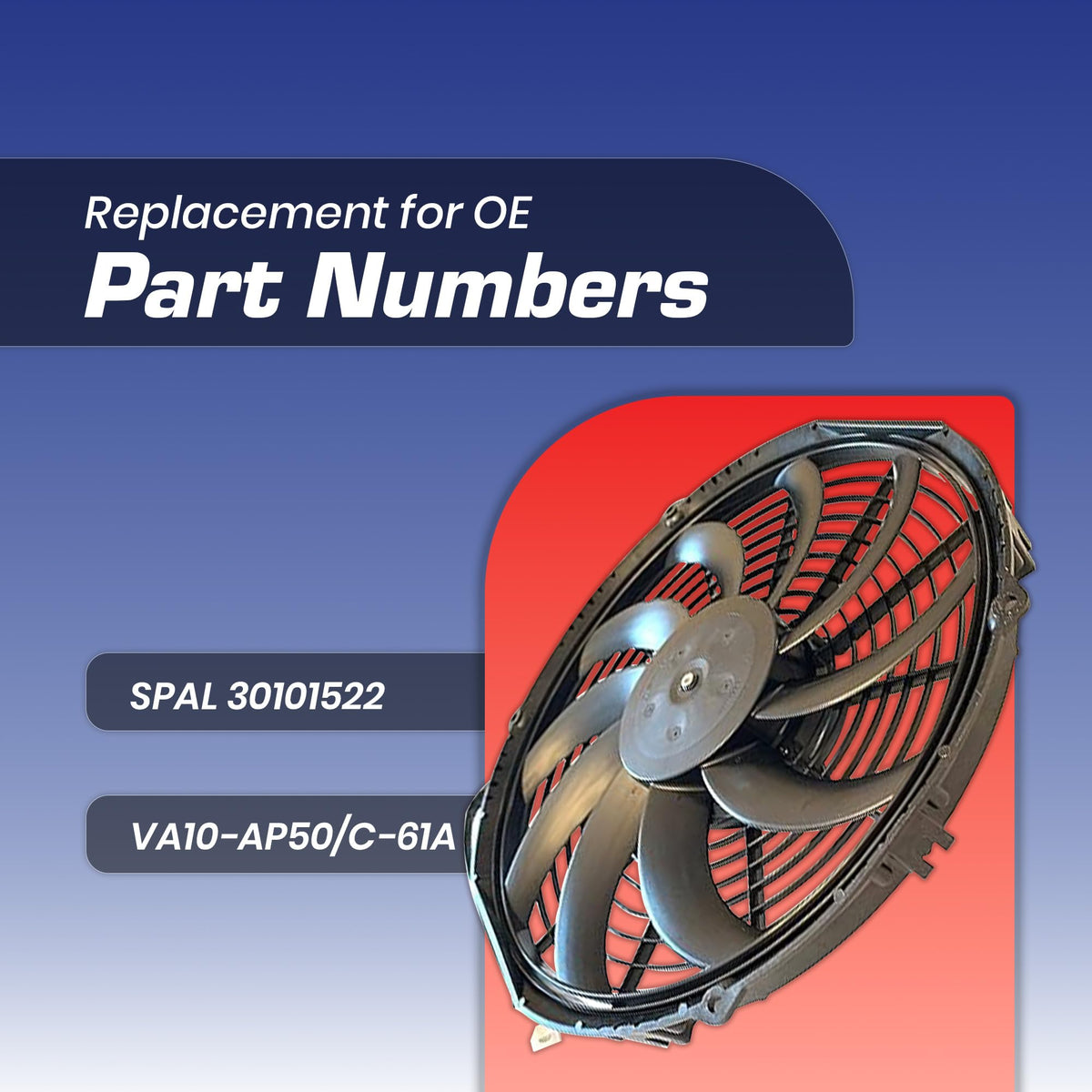

SPAL 30101522 is a 12" 12-volt high-performance puller fan with curved blades that delivers up to 1226 CFM in a compact, IP68-sealed package for demanding automotive and industrial cooling tasks.

This Italian-engineered SPAL VA10-AP50/C-61A fan combines a slim profile with a curved-puller blade layout to move large volumes of air where space is limited. Built with an IP68-rated sealed motor, it stands up to water, dust, and vibration, making it suitable for radiators, oil coolers, heat exchangers, and custom cooling installations in race cars, ATVs, motorcycles, and industrial equipment.

How does this fan improve cooling in tight engine bays?

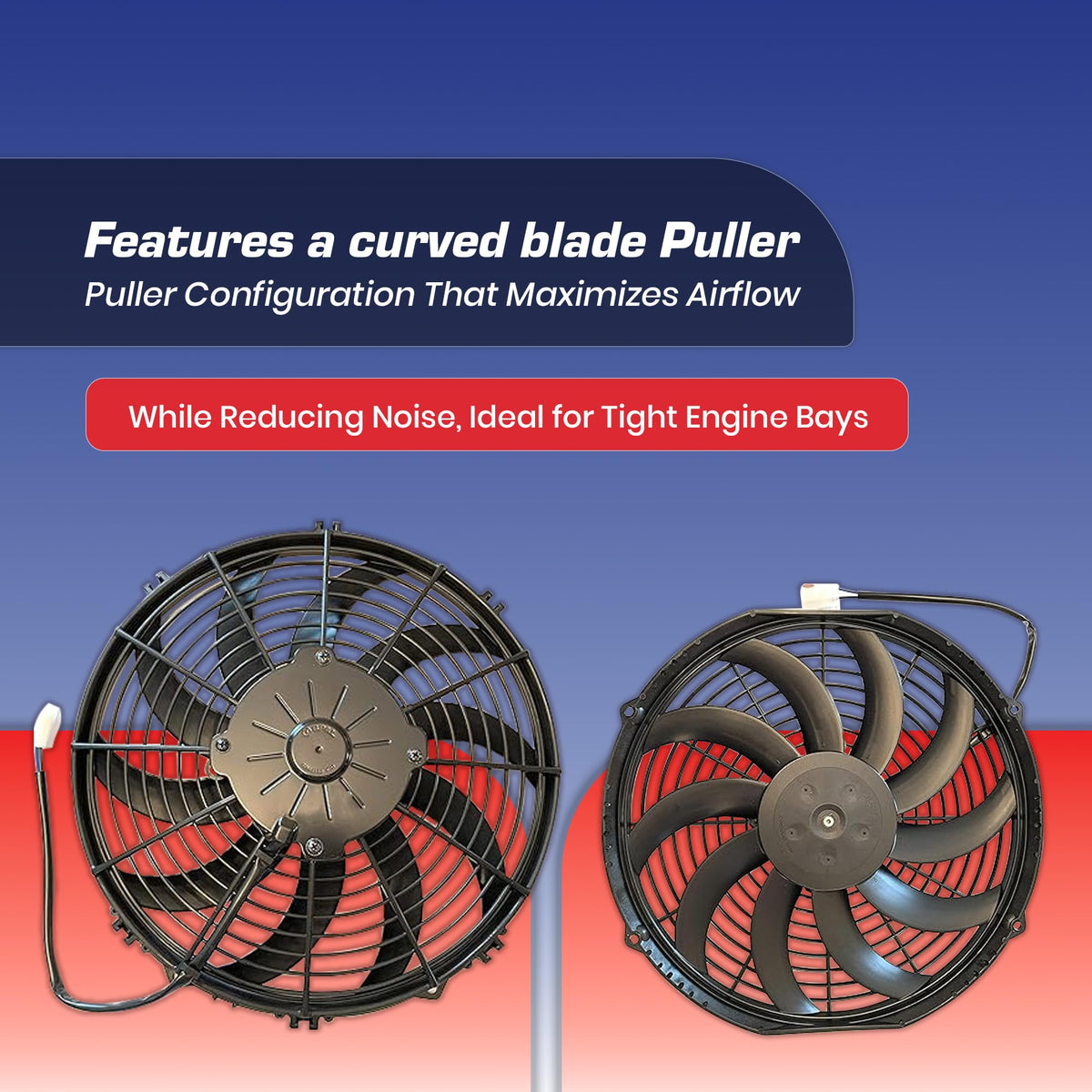

The curved puller blades are shaped to increase airflow while maintaining lower acoustic levels, so you get efficient extraction without a noisy tradeoff. The slim assembly allows mounting closer to the heat source and clears surrounding components where conventional fans won’t fit.

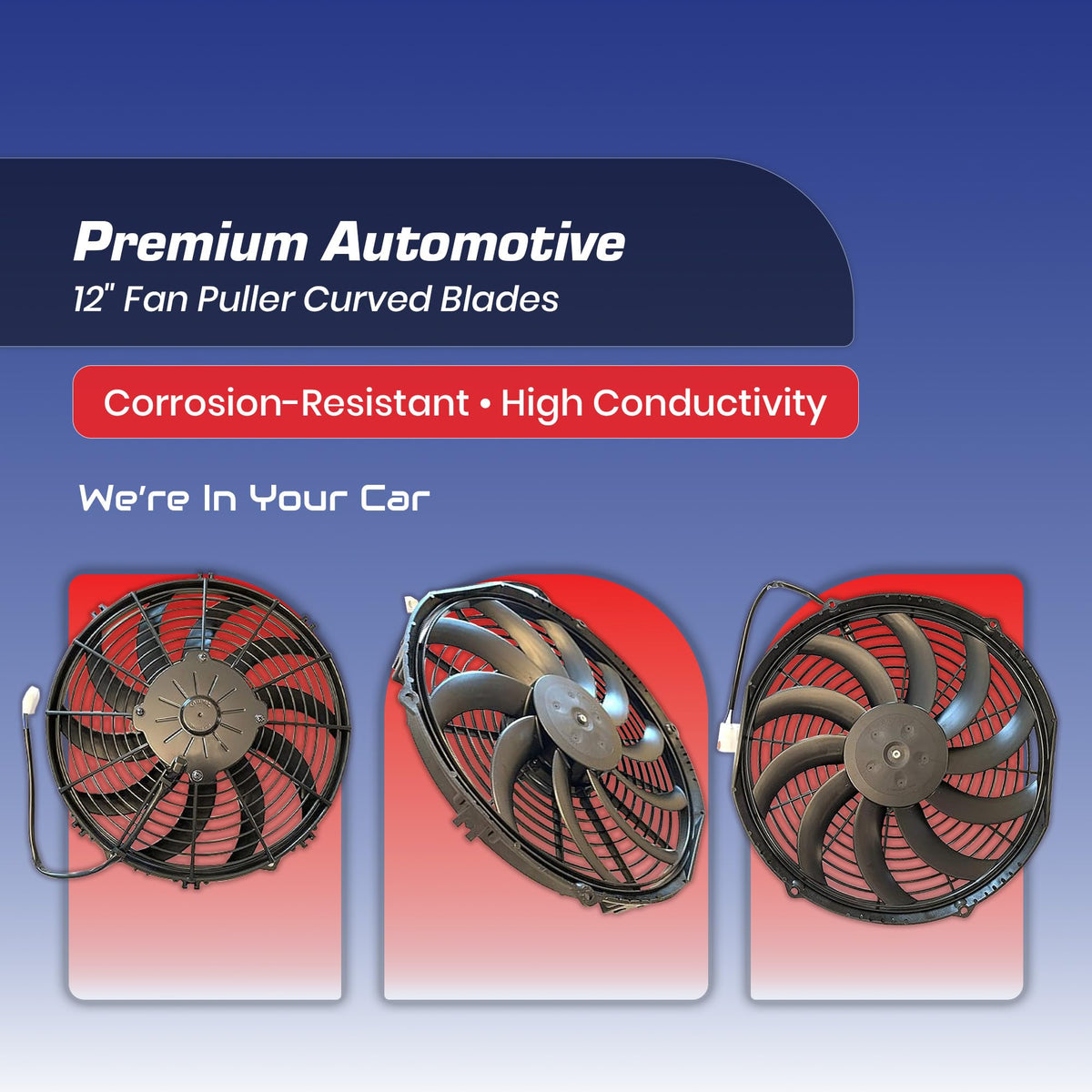

• High-efficiency curved blade geometry for strong, quiet airflow.
• 1226 CFM maximum airflow for rapid heat removal.

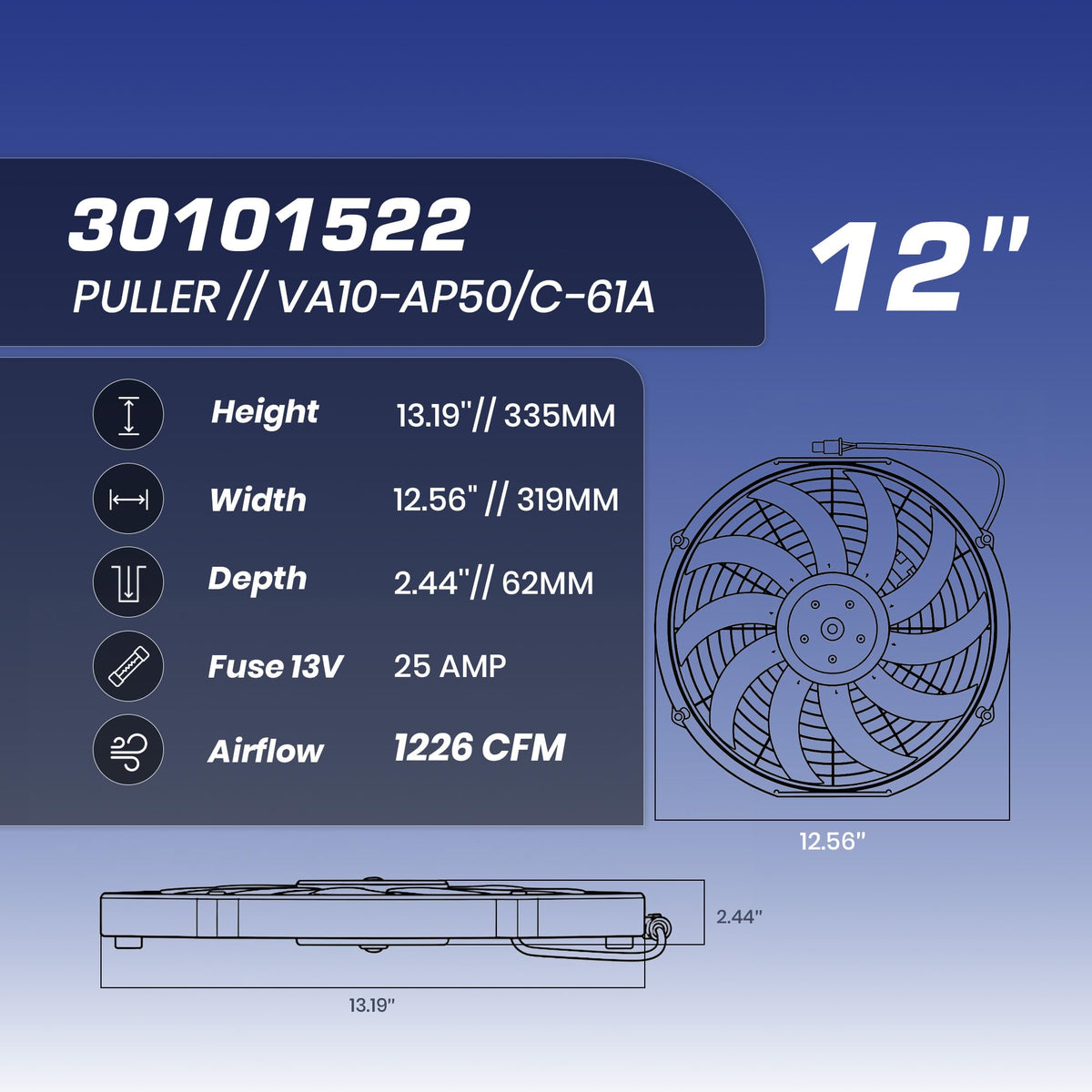

• Slim dimensions (approx. 13.19" x 12.56" x 2.44") for tight installations.
• Puller configuration draws hot air away from cores efficiently.

Is the motor durable enough for off-road and marine use?

Yes — SPAL’s sealed motor has an IP68 rating, meaning it is protected against dust ingress and continuous water immersion under specified conditions. That construction reduces failure risk in wet, dusty, or vibration-heavy environments common to off-road, marine, and industrial applications.

• IP68-rated waterproof and dustproof motor housing.
• Designed to resist corrosion and ingress in harsh settings.
• Long service life when mounted and wired to recommended electrical specs.

What electrical and installation recommendations should I follow?

This fan operates on 12 volts and draws up to 12.3 amps under load; SPAL recommends protecting the circuit with a 25 Amp fuse and controlling power through a 40 Amp relay. Use the specified jumper harness (FR-PT) for a reliable connection and follow vehicle wiring best practices for relay and fuse placement.

• 12 V operation, max current draw ~12.3 A — use a 25 A fuse.
• Always switch with a 40 A relay for safe control and longevity.

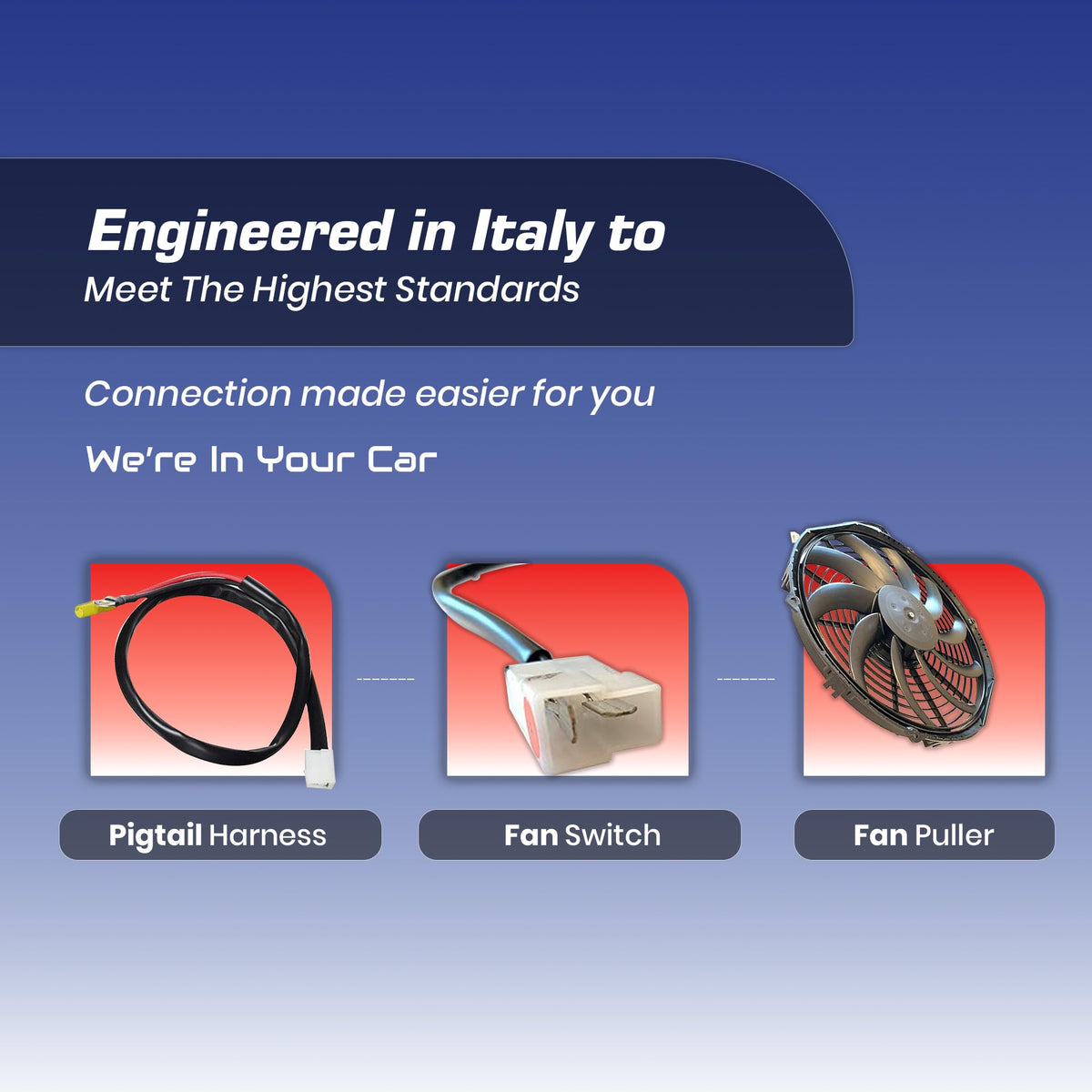

• Compatible jumper harness: FR-PT for straightforward wiring.
• Secure mounting near radiator or heat exchanger for optimal flow.

How does this fan compare to other aftermarket cooling options?

Compared with generic electric fans, the SPAL 30101522 emphasizes OEM-level engineering and a sealed motor for more reliable long-term performance. Its combination of curved puller blades, high CFM, and compact form factor often yields better airflow-per-width than many flat-blade designs.

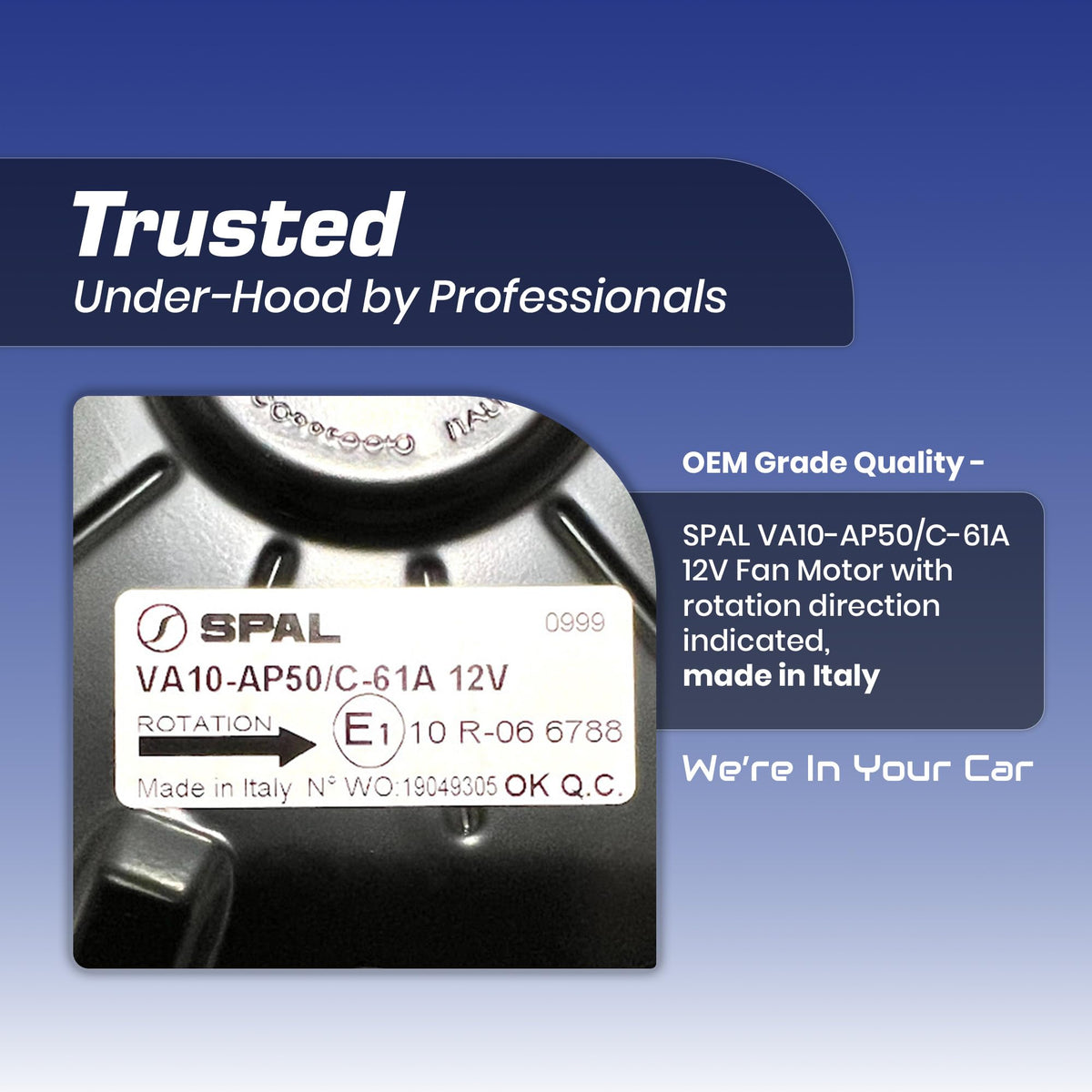

• OEM-grade construction and quality control from SPAL Italy.
• Higher airflow-to-size ratio because of blade geometry.
• Sealed motor reduces maintenance and failure rates in severe conditions.

Who is this for? This fan suits automotive builders, racers, mechanics, and fabricators who need powerful extraction in limited space and expect robust, weather-resistant performance. It’s a practical choice for custom cooling projects, high-performance street or track cars, off-road vehicles, marine applications, and equipment where reliable, compact forced-air cooling is required.
