SPELAB CP4 Disaster Prevention Kit for Ford 6.7L Powerstroke (2011–2025) — 9µm Spin-On Filter & Bypass

The SPELAB CP4 Disaster Prevention Kit is an inline bypass and filtration system engineered to protect Ford 6.7L Powerstroke Super Duty trucks from CP4 pump failures by capturing contaminants before they damage injectors, rails, and lines.

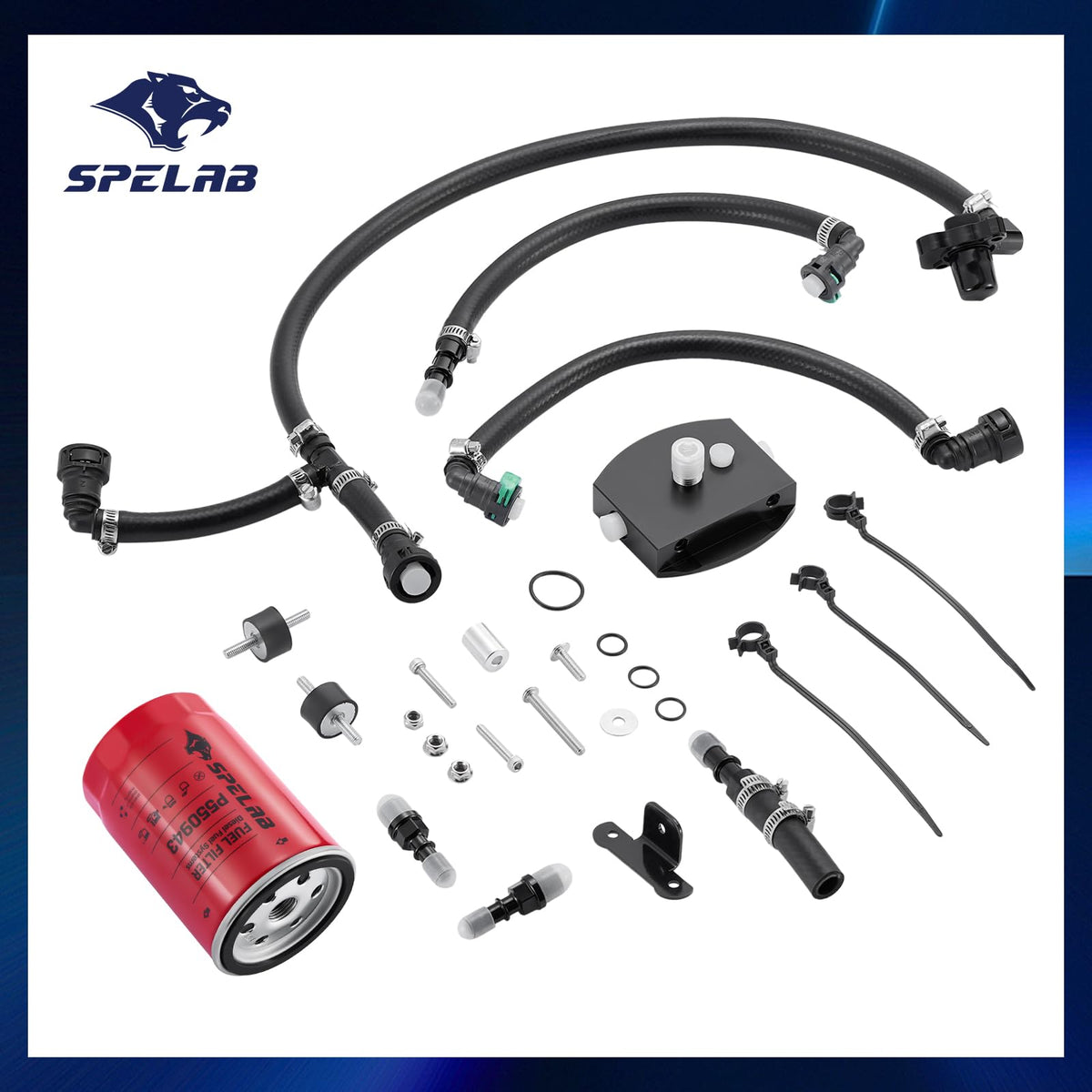

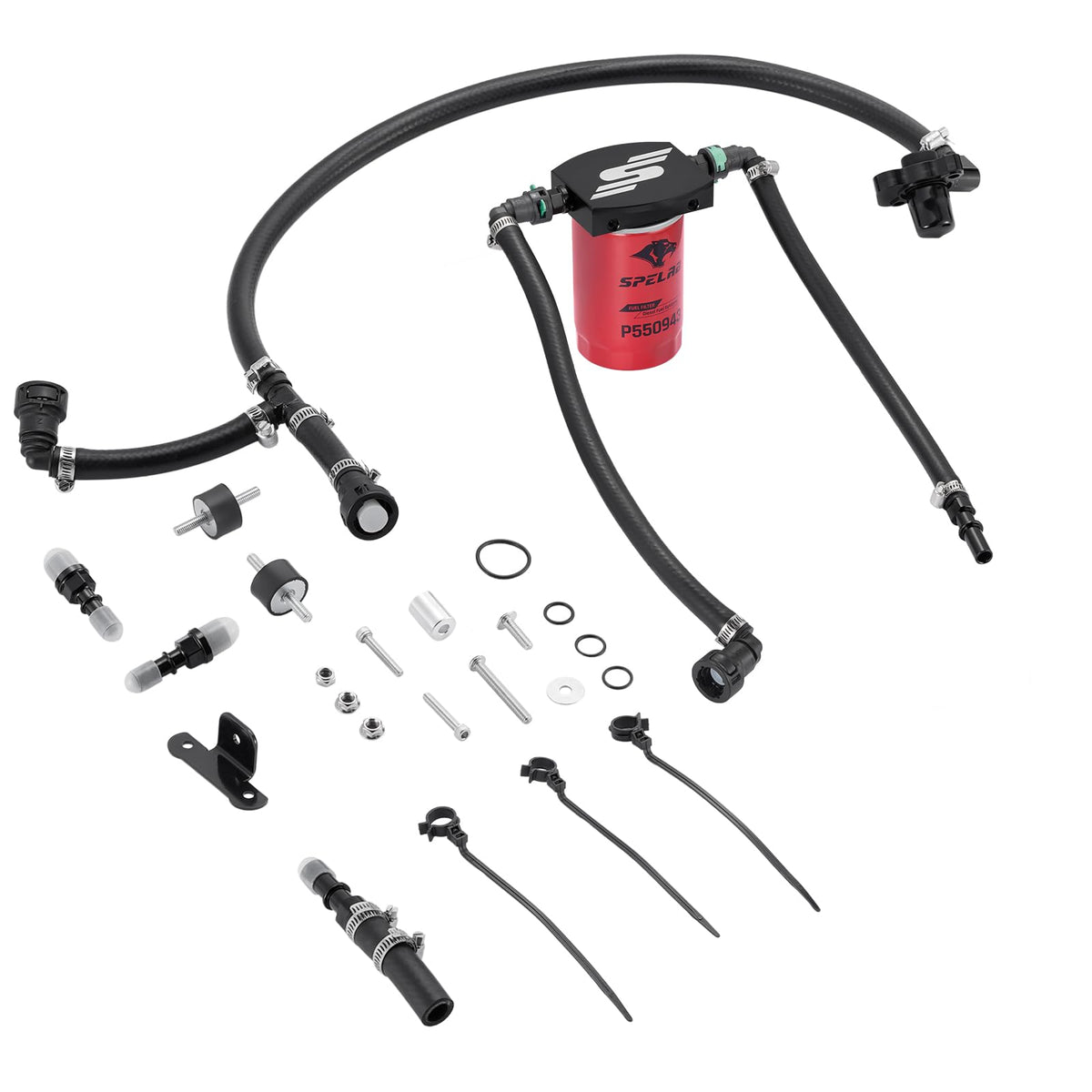

When a CP4 pump failure threatens expensive fuel-system components, preventive filtration and a bypass path can save thousands in repairs. This SPELAB kit is built specifically for 2011–2025 Ford F-250, F-350, F-450, and F-550 models with the 6.7L Powerstroke diesel, combining a high-efficiency 9-micron spin-on filter, robust bypass block, and quick-connect hoses so you can install a protective system without cutting factory lines.

How does this kit limit damage from a CP4 pump failure?

The system provides a dedicated bypass route for fuel if the CP4 pump begins to shear or ingest metal particles, preventing debris from circulating into injectors and rails. The 9-micron replaceable element traps most damaging particulates and the bypass block is designed to avoid generating metal shavings during operation.

• 9-micron spin-on filter captures up to 99% of contaminants.

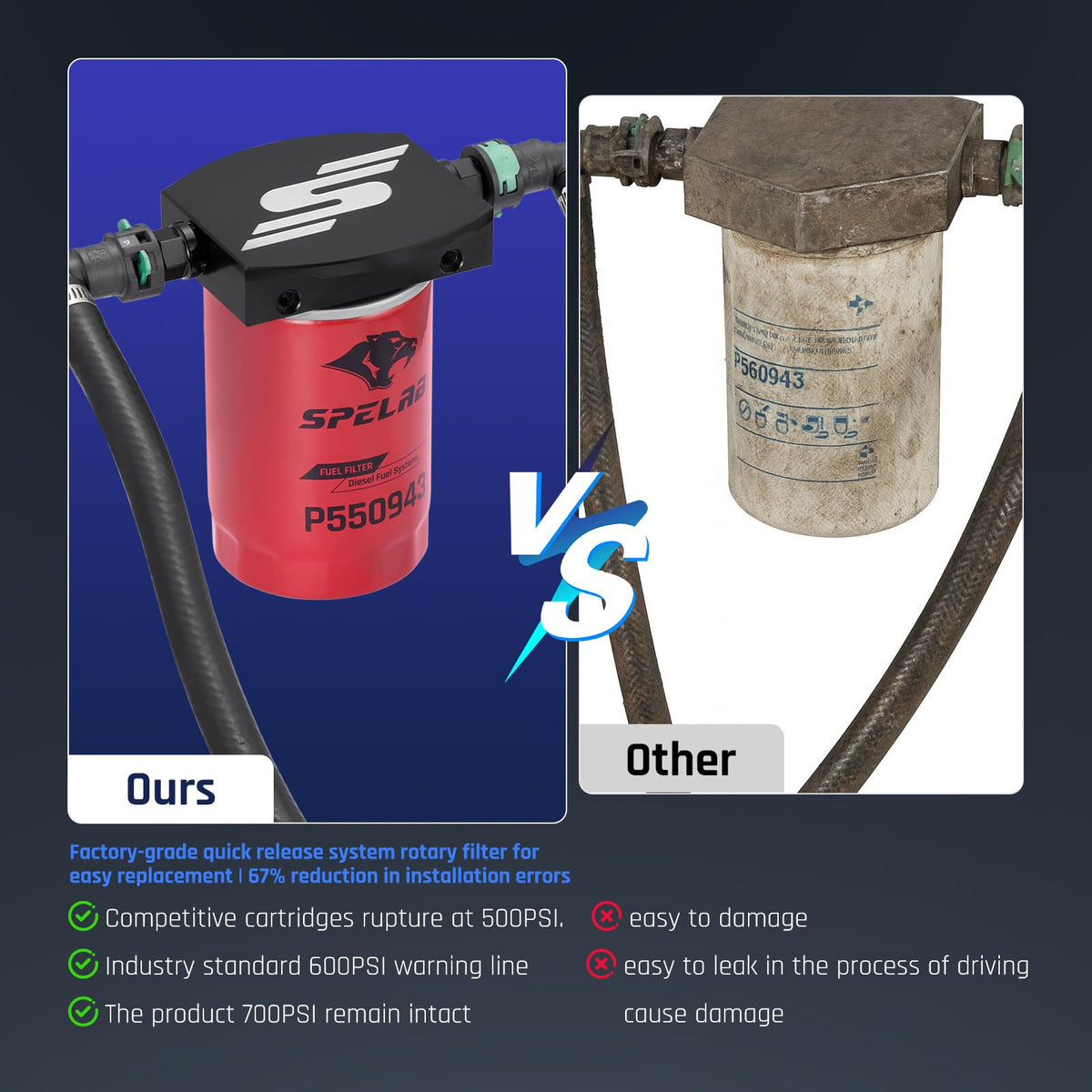

• Threadless metal ball-seal bypass block reduces shaving risk.
• Bypass pathway prevents debris from reaching high-pressure components.
• Corrosion-resistant materials withstand fuel-system stresses.

Will this kit fit my Ford Super Duty truck?

Yes — the SPELAB CP4 Disaster Prevention Kit is tailored to work with Ford Super Duty trucks equipped with the 6.7L Powerstroke diesel produced from 2011 through 2025. It aligns with factory fuel connections and offers a user-friendly installation that requires no permanent cutting of original fuel lines when using included quick-connect hose ends.

• Compatible with F-250, F-350, F-450, F-550 (2011–2025) 6.7L models.
• Quick-connect fuel lines minimize vehicle modification.
• Spin-on filter location designed for accessible service.
• Works with stock CP4 configuration without replacing pumps.

How durable and high-pressure capable is the SPELAB system?

The kit is engineered for the high pressures and RPMs typical of diesel powertrains, using wear-resistant, corrosion-proof components rated for demanding use. It maintains stable operation above 3000 RPM and is tested to withstand working pressures up to 350 PSI with a 700 PSI burst threshold for safety under extreme conditions.

• Rated 350 PSI working pressure and 700 PSI burst pressure.
• Materials selected for wear and corrosion resistance.
• Stable performance at high engine RPMs.
• Spin-on filter housing designed for repeated service cycles.

How easy is installation and future maintenance?

Installation is simplified with quick-connect hoses and a threadless bypass block that remove the need for cutting factory lines or creating metal shavings. The spin-on filter element is user-replaceable for straightforward routine service, and SPELAB offers after-sales support if you need guidance during installation or upkeep.

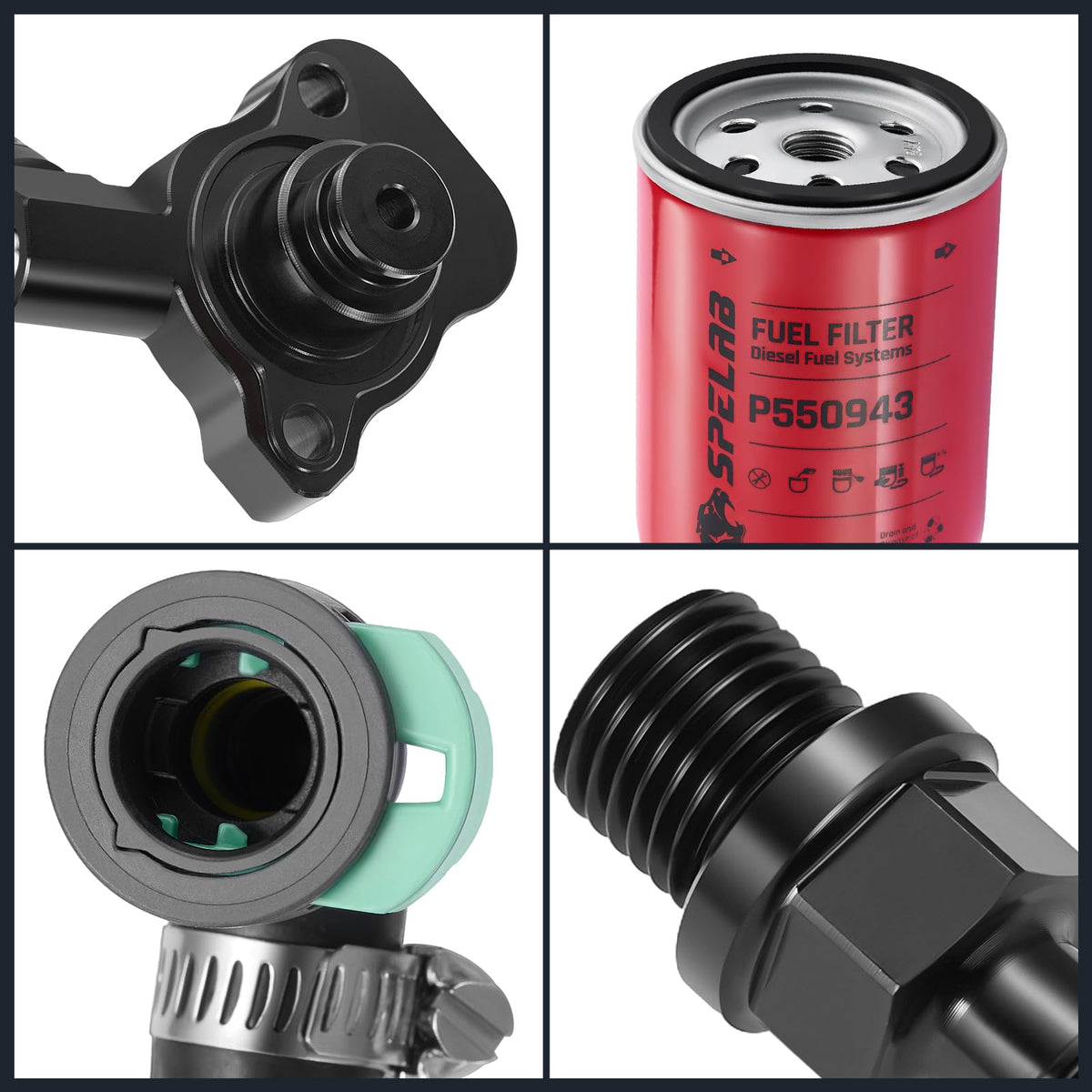

• Quick-connect fittings eliminate line cutting and speed install time.

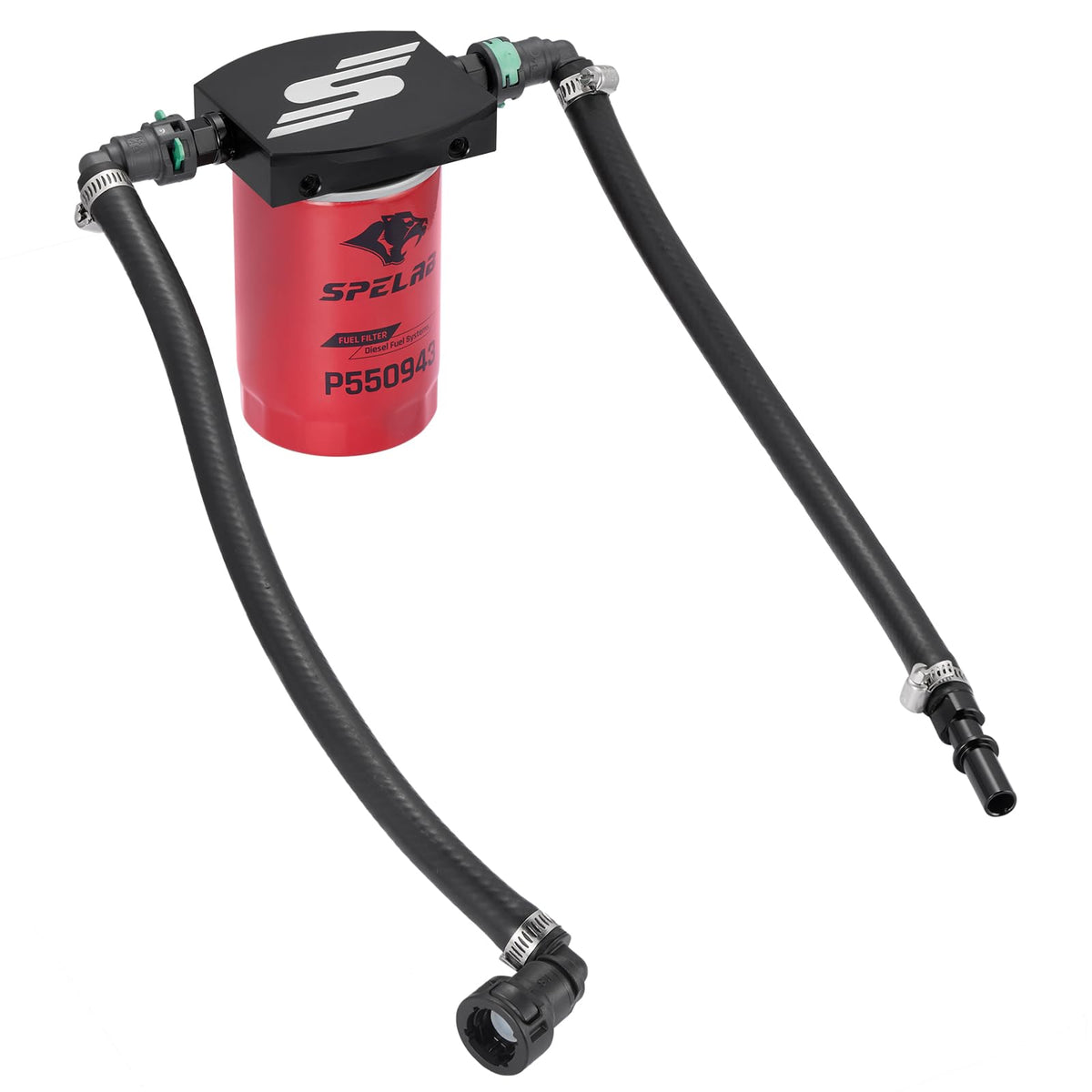

• Spin-on filter makes replacements fast and clean.
• Threadless components minimize installation-generated debris.
• SPELAB customer support available for technical help.

Who is this for: The SPELAB CP4 Disaster Prevention Kit is intended for owners and technicians of Ford Super Duty trucks (2011–2025) with the 6.7L Powerstroke who want proactive protection of high-pressure fuel components. It's a practical investment for fleet operators, off-road users, and any owner aiming to reduce the risk of costly CP4-related failures through improved filtration and a dependable bypass path.
