Sporthfish timing tools kit for Ford 4.6L/5.4L/6.8L 3V — heat-treated steel valve spring compressor & crankshaft positioning set

Sporthfish timing belt tools: a complete steel kit to lock, hold and compress components for Ford 4.6L/5.4L/6.8L 3V and related engines during timing, cam phaser, and valve work.

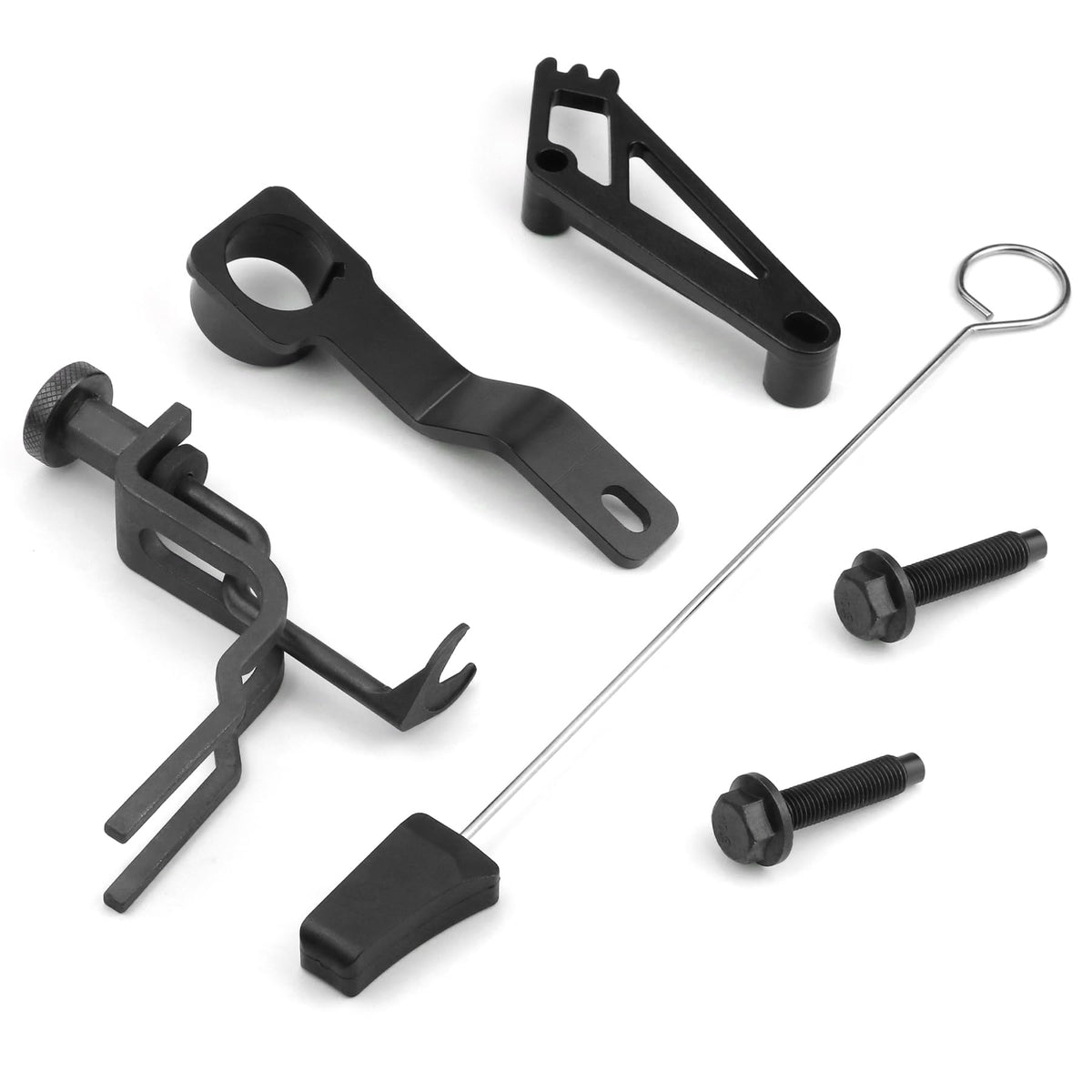

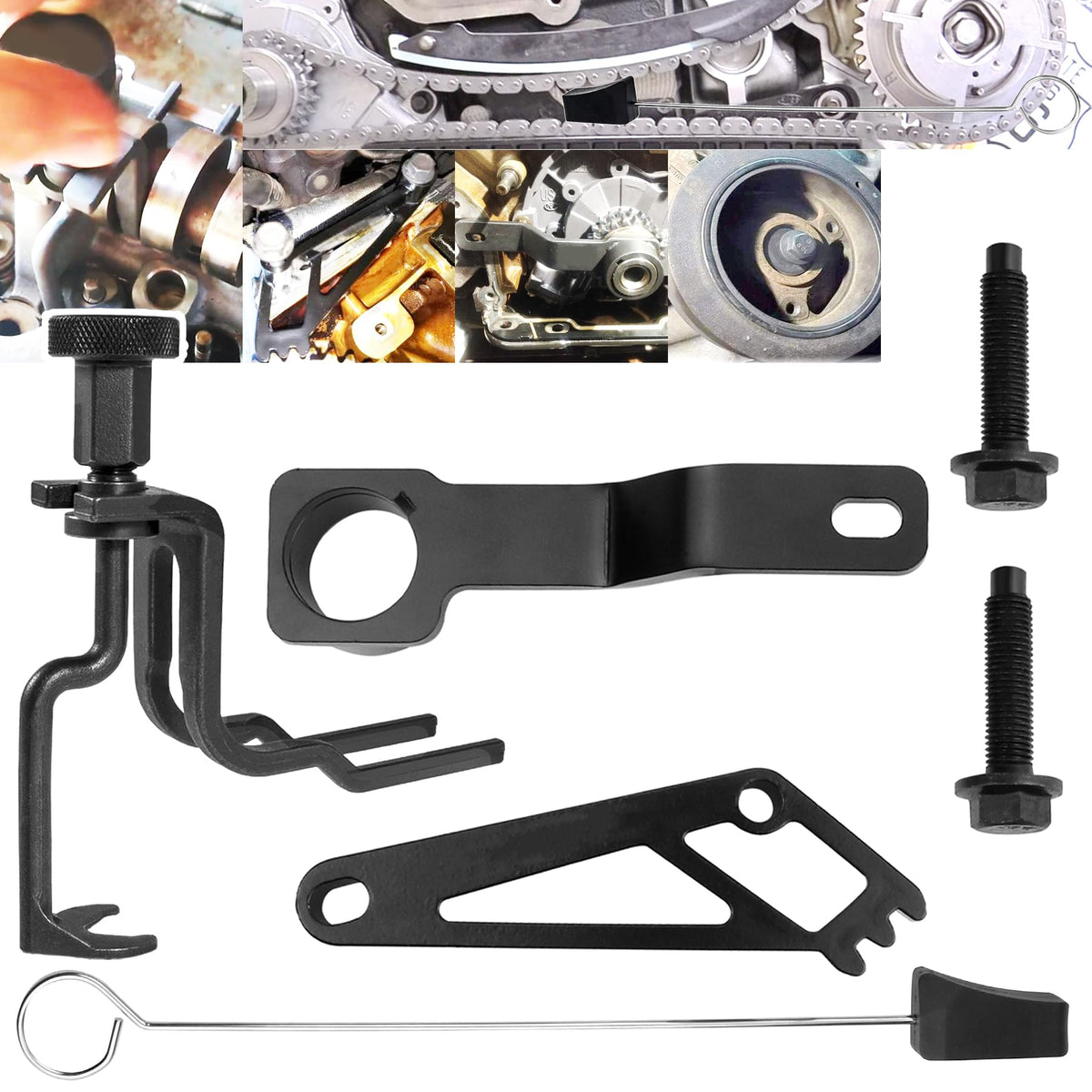

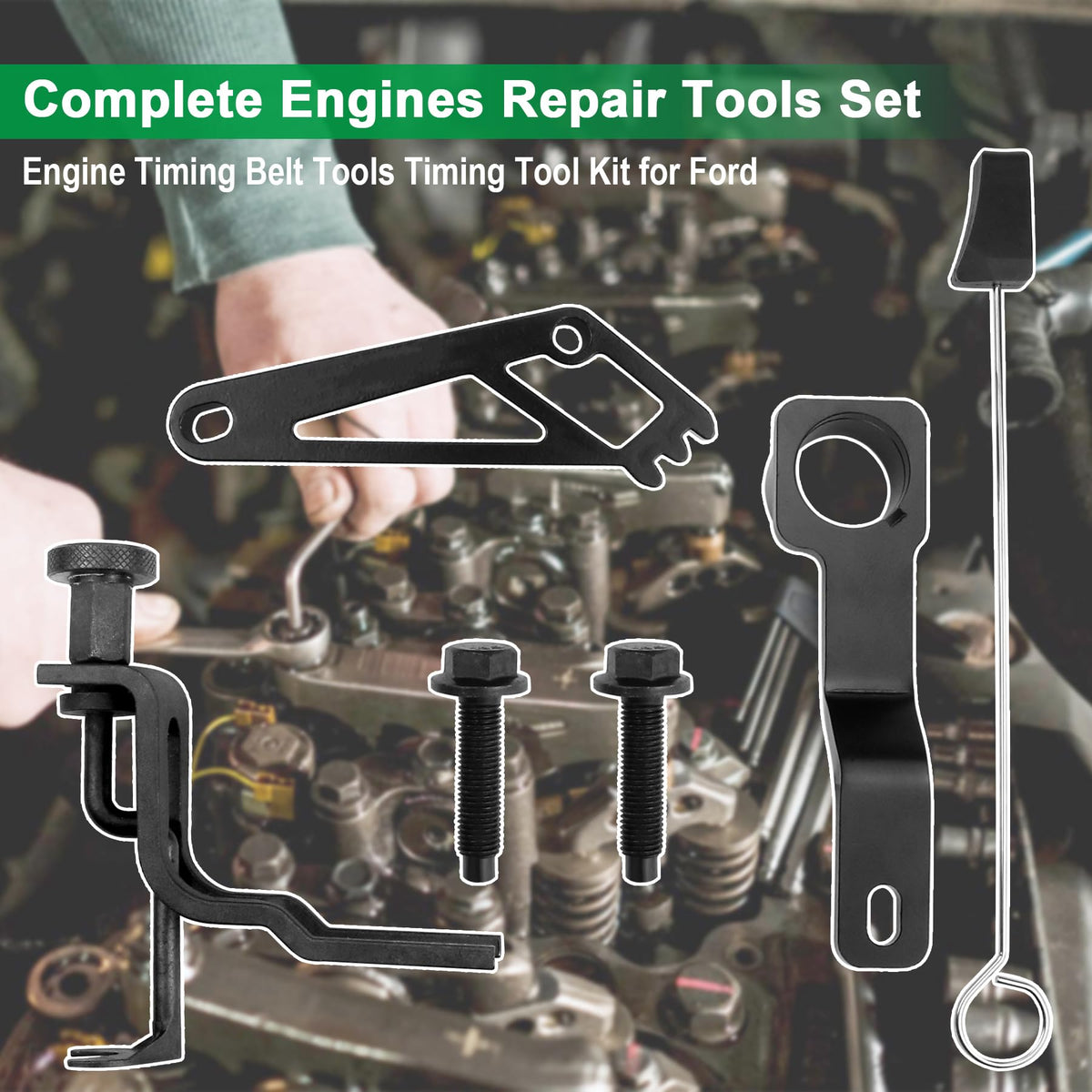

This Sporthfish set collects the specialized fixtures technicians need to service Ford 3-valve and related V8 engines without guessing alignment or removing major assemblies. Crafted from heat-treated steel with a black oxide finish, the kit groups a valve spring compressor, crankshaft positioning tool, cam phaser retention plate, timing chain wedge and two crankshaft pulley bolts so you can maintain chain tension, set top dead center, and secure phasers and pulleys during rebuild or repair tasks.

How does the valve spring compressor save time on a 3V Ford?

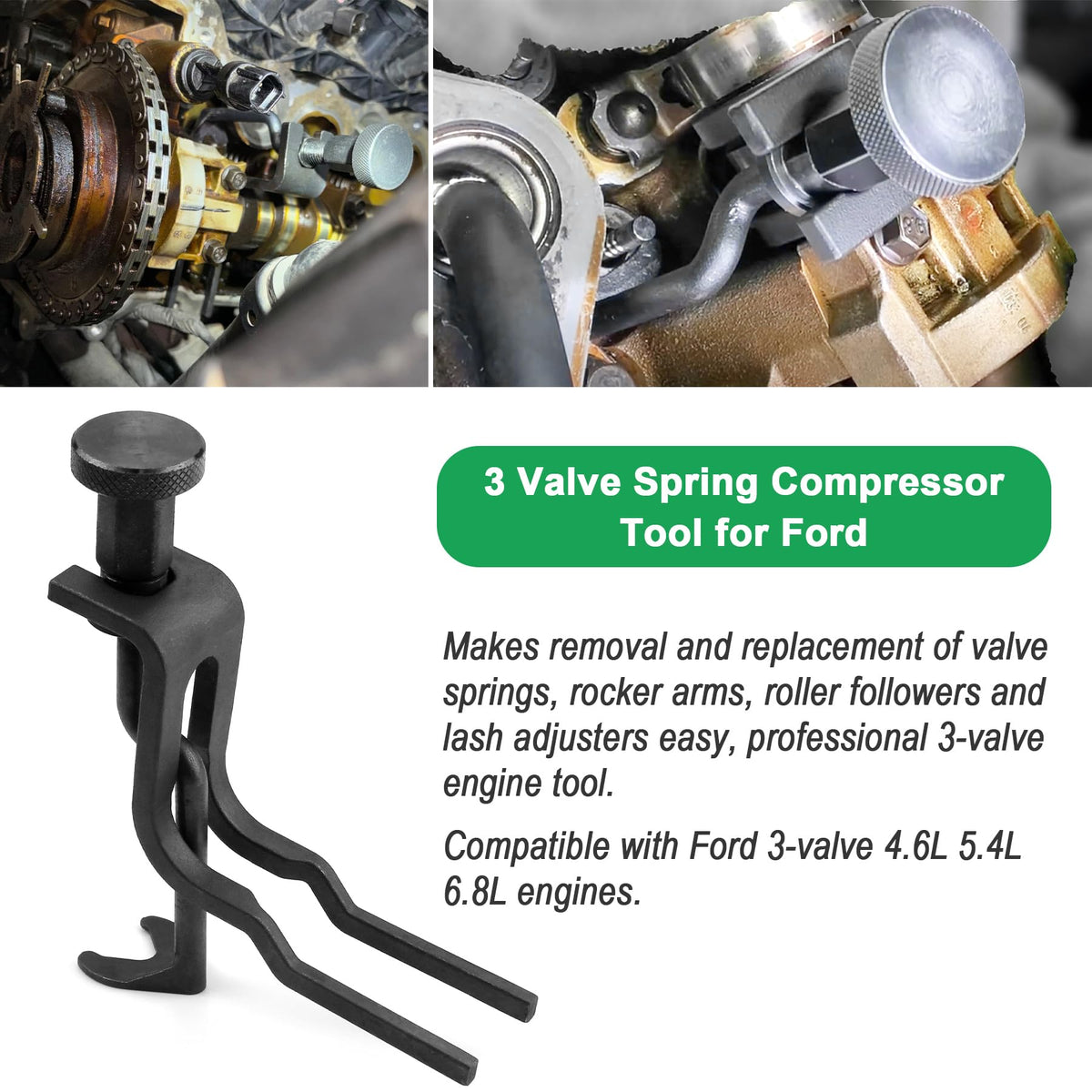

The Sporthfish valve spring compressor is designed to work in cramped heads so you can remove and replace valve springs, retainers, rocker arms and lash adjusters without pulling the camshaft. Its top-nut pressure design compresses springs downward and keeps components aligned for reassembly. This reduces disassembly steps and keeps valve train parts in place.

• Fits Ford 3V 4.6L, 5.4L and 6.8L engines
• Compresses springs without camshaft removal
• Works in tight engine bay and head pockets
• Durable steel construction with black oxide finish

What does the crankshaft positioning tool do for timing accuracy?

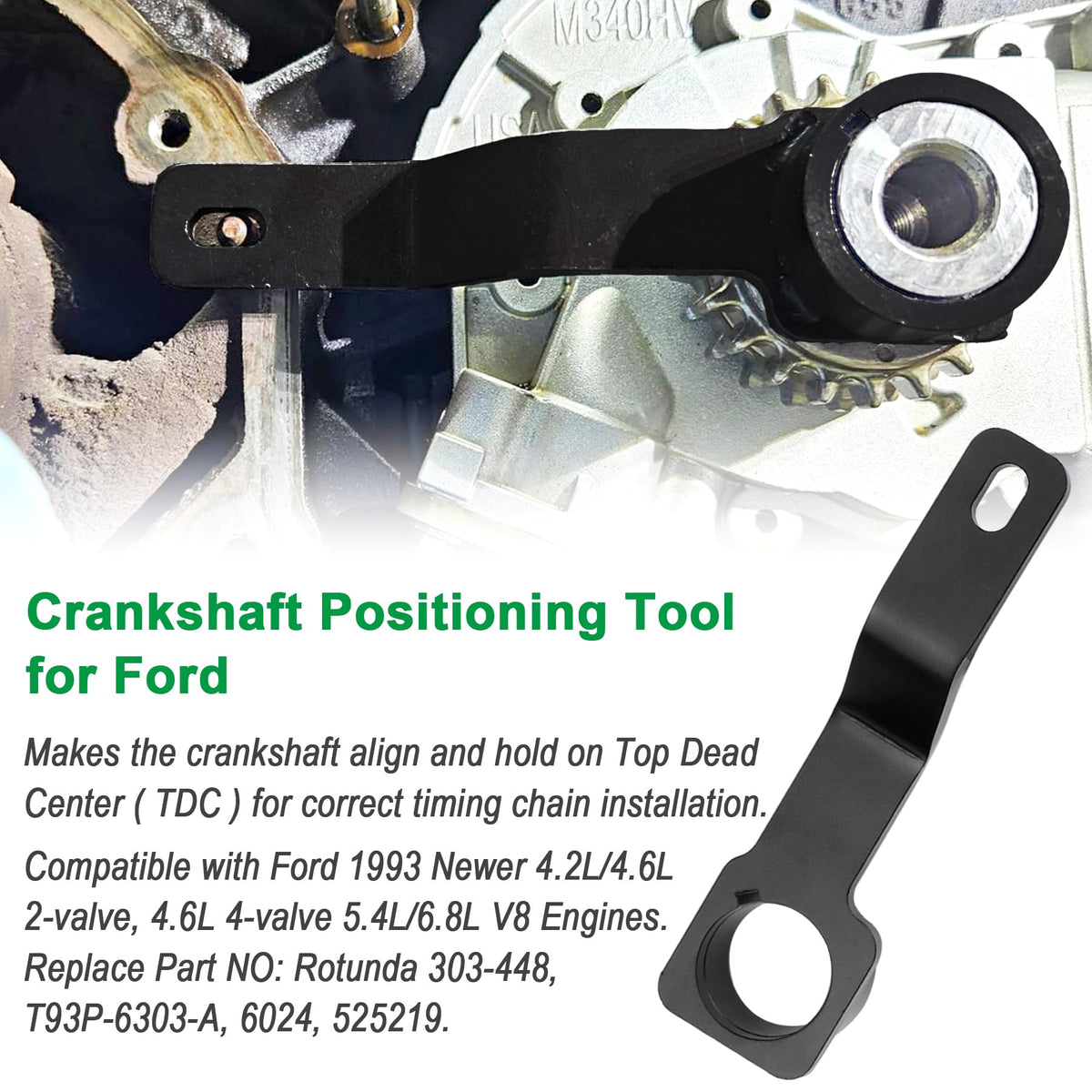

The crankshaft positioning tool secures the crank at top dead center so timing chains and gears align correctly during installation. It mounts to the crank and engine cover alignment pins to prevent rotation while you fit the chain and set the cam phasers. Using a dedicated positioning tool simplifies establishing true TDC compared with improvised methods.

• OEM equivalents: Rotunda 303-448, T93P-6303-A, 6024, 525219
• Compatible with Ford 1993–newer 4.2L/4.6L/5.4L and 6.8L where specified
• Keeps crank locked for reliable chain installation
• Prevents timing drift during reassembly

Why is a cam phaser holding tool necessary for 3V engines?

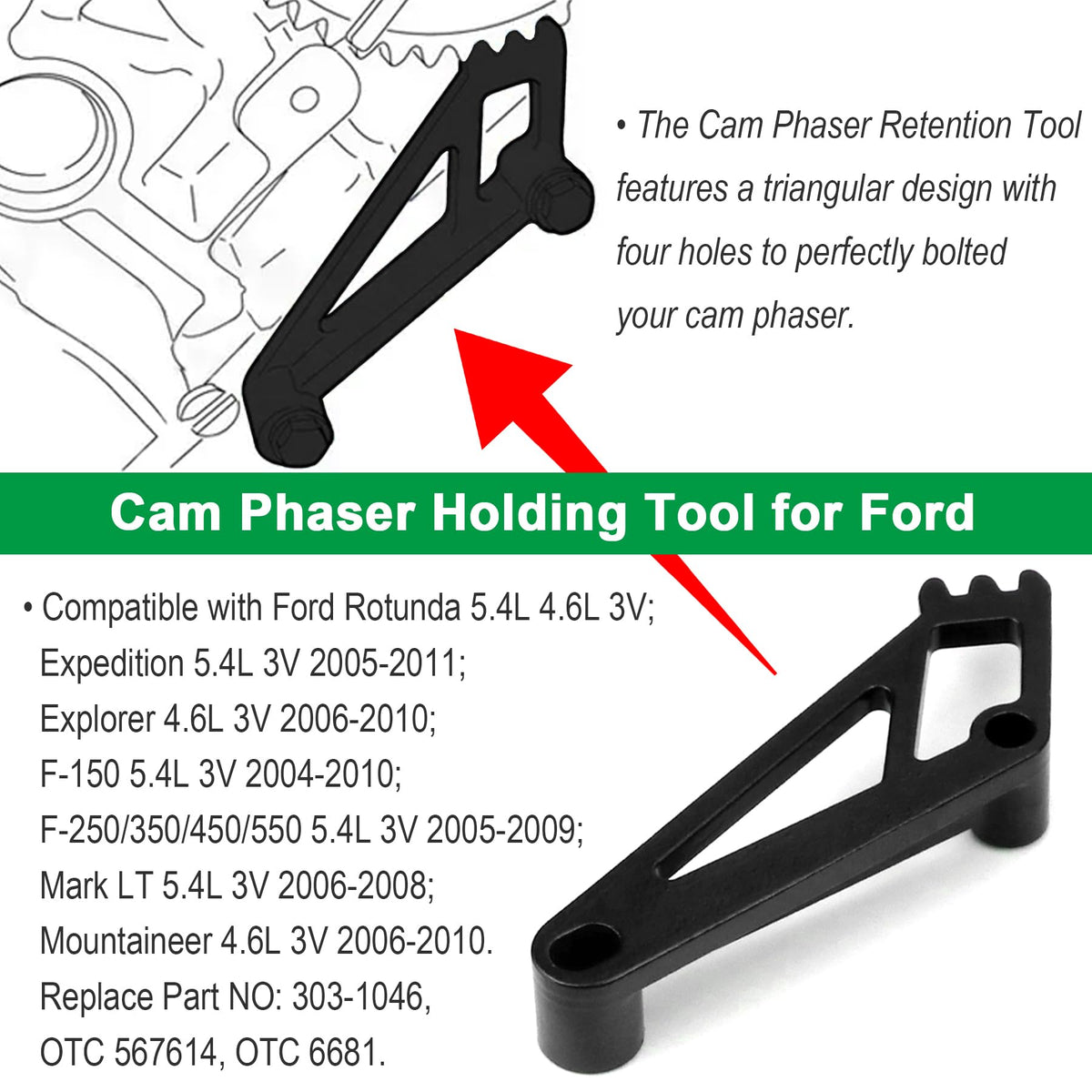

The triangular cam phaser holding plate secures the phaser to the camshaft so you can remove or install the cam phaser without losing chain tension or removing the timing cover. Its bolt-hole pattern matches OEM phasers and offers repeatable alignment. This makes phaser service faster and reduces the chance of timing misalignment during repairs.

• OEM cross-references: 303-1046, OTC 567614, OTC 6681
• Fits many Ford 3V applications (F-150, Expedition, Explorer, Super Duty, etc.)
• Triangle design with four-mount holes for secure locking
• Enables phaser swaps without losing chain tension

How does the timing chain wedge and pulley bolts improve safety and fitment?

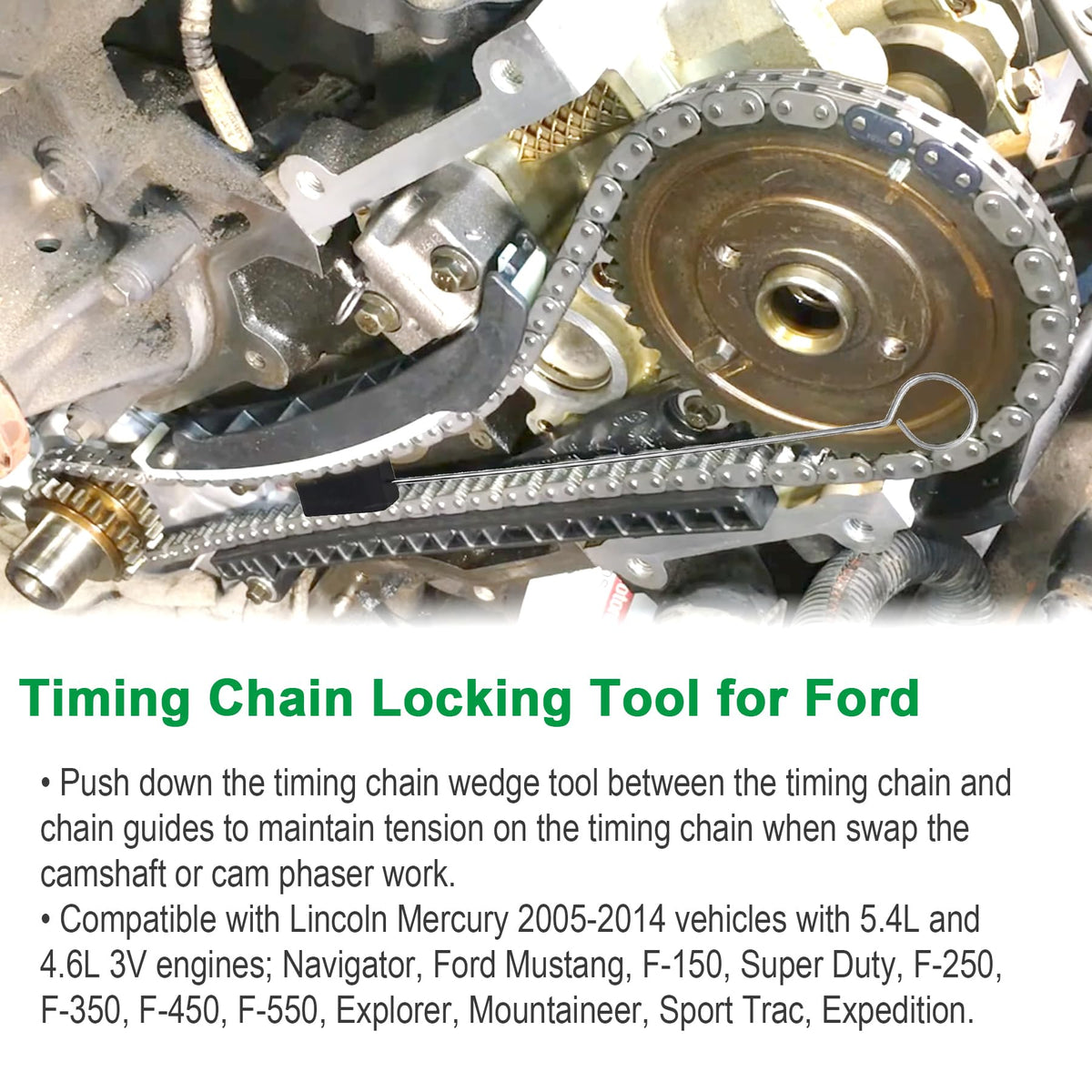

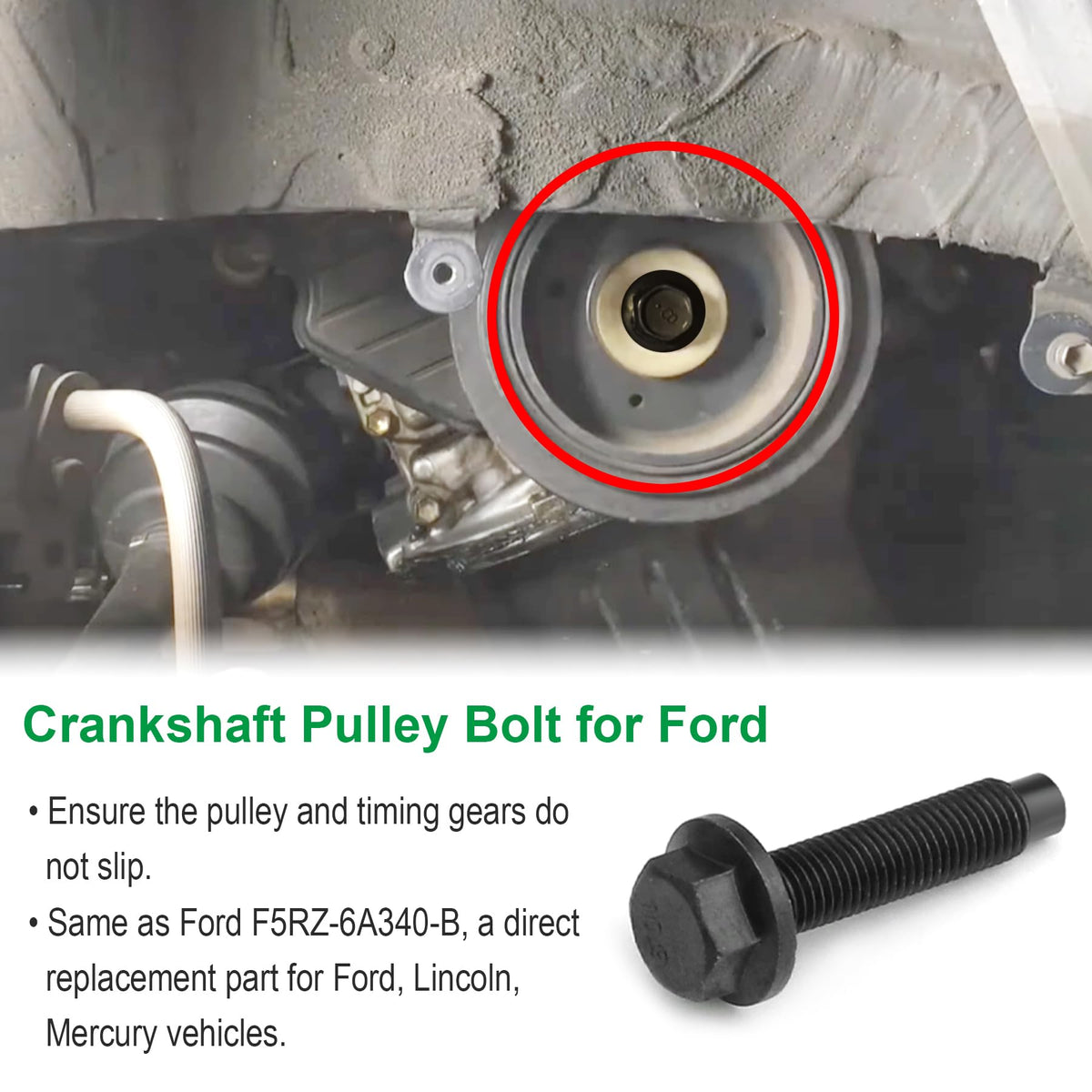

The timing chain wedge holds tension by wedging between chain and guide during cam or phaser swaps so the chain doesn’t skip teeth. Paired with the supplied crankshaft pulley bolts (OEM F5RZ-6A340-B equivalent), the kit prevents pulley and gear slippage when torquing or rotating the engine. Together they protect timing components and ensure correct reassembly.

• Timing wedge fits Lincoln/Mercury and Ford 4.6L/5.4L 3V models (2005–2014 ranges)
• Crankshaft pulley bolts are direct-fit replacements
• Maintains chain tension and prevents gear slip
• Ideal for cam swaps, phaser service and timing chain jobs

Who is this for: Professional mechanics, independent shops and experienced DIYers who service Ford 3-valve engines and related Ford/Lincoln/Mercury V8s will find this Sporthfish kit valuable. It consolidates the specific alignment and holding tools needed for timing, cam phaser replacement and valve train work into one durable, corrosion-resistant set—helpful for engine rebuilds, head work and accurate timing installations where OEM-style tooling speeds the job and reduces risk.
