SPWM Wiring Harness Connector Caps for Ford F-150 — Black 2-Pack (Driver & Passenger), OEM-fit Weatherproof Snap-On Protection

SPWM Wiring Harness Connector Caps are weatherproof snap-on covers that protect the exposed front bumper air-dam wiring connectors on compatible Ford F-150 trucks after air dam actuator removal.

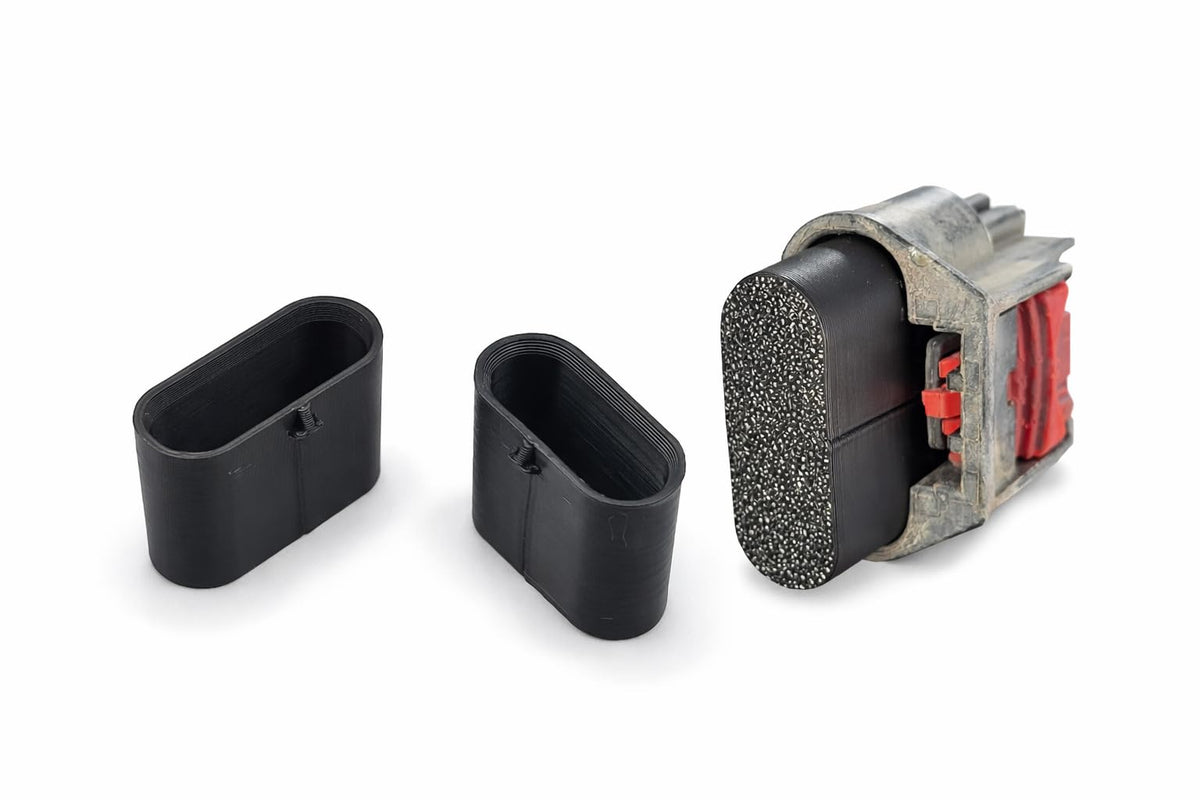

When an active air dam actuator is removed or serviced on 2021–2025 Ford F-150 trucks, the factory harness connectors beneath the front bumper can be left exposed to road spray, salt, and debris. These SPWM caps are engineered to mate with the OEM connector profile and engage the factory weatherproof gasket so you can seal the connection quickly and reliably without replacing the actuator immediately.

How do these caps protect my truck’s wiring after air dam removal?

The caps create a moisture-tight barrier by snapping into the original connector opening and compressing against the factory gasket. This reduces water intrusion, salt-induced corrosion, and contamination that can cause intermittent electrical faults over time.

• Exact-fit molding matches OEM connector geometry for a secure snap-lock.
• Seals with factory weatherproof gasket to block moisture and dirt.
• UV- and impact-resistant plastic resists road conditions and temperature swings.

Will installation require tools or vehicle modifications?

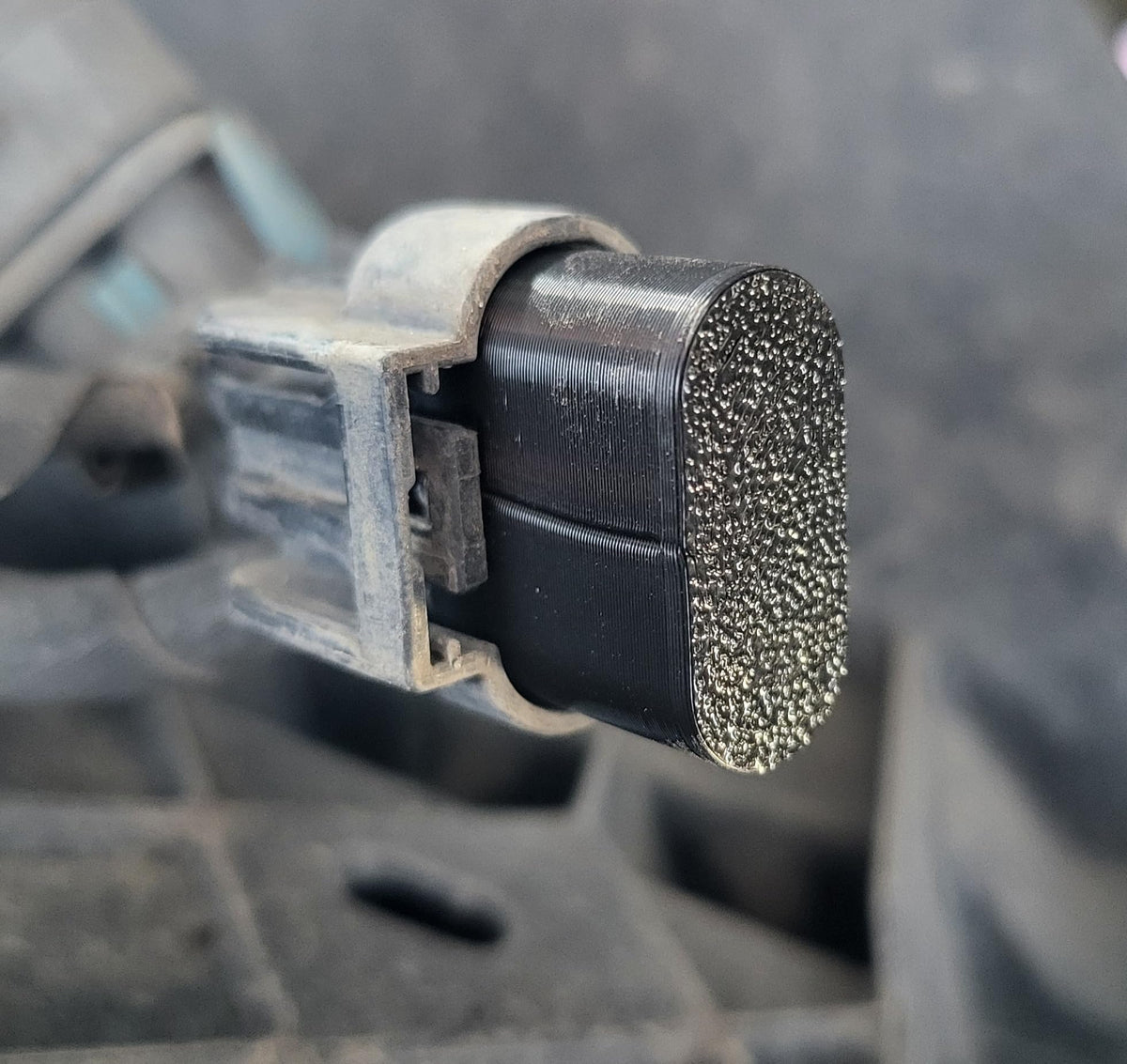

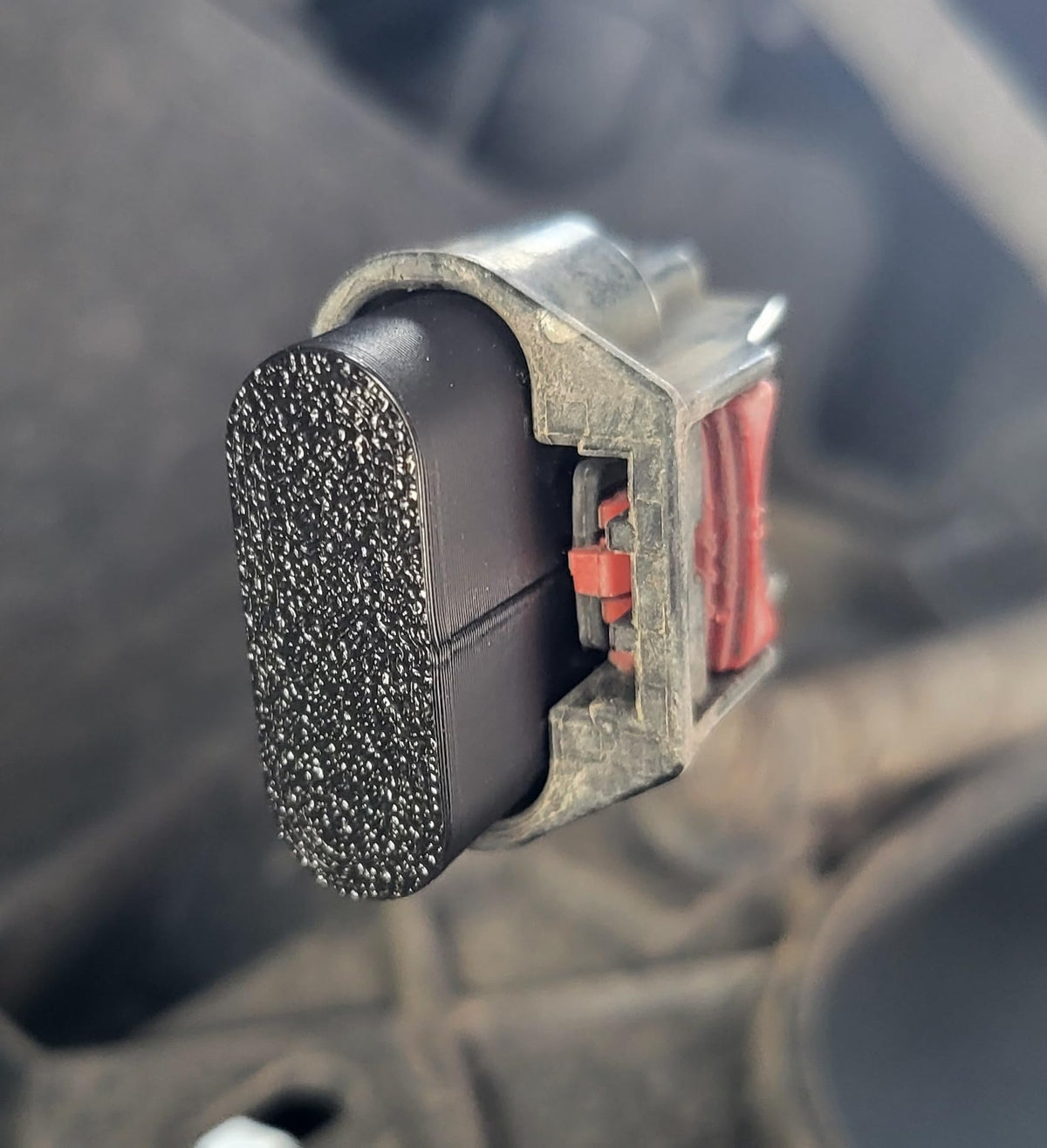

Installation is intentionally simple and designed for quick service access—no cutting, splicing, or permanent modifications are needed. The caps press into the exposed connectors and lock in place; verify seating visually to ensure a proper seal.

• No tools required for standard snap-in installation.
• Typical install time under five minutes per side when harness is accessible.
• Includes driver and passenger side caps plus printed installation instructions.

Do these caps clear dashboard warnings related to the air dam?

The caps provide physical protection only and do not clear existing diagnostic trouble codes. Any current dash messages remain until erased with an OBD2 scan tool; after codes are cleared, the protective caps help prevent reconnection-related warnings from returning.

• Covers do not interface with vehicle electronics—no code clearing function.
• Use an OBD2 tool or visit a parts shop to clear stored warnings after installation.
• Designed to prevent future connector-related faults that can trigger warnings.

Which Ford F-150 models are compatible and what’s excluded?

These SPWM connector caps fit 2021–2025 Ford F-150 models equipped with the active air dam system that uses separate actuator motors. They are not compatible with F-150 Lightning electric trucks or Raptor models, which use different connector designs.

• Compatible: 2021, 2022, 2023, 2024, 2025 F-150 with active air dam.
• Not compatible: F-150 Lightning and Raptor variants due to different connectors.
• Confirm your truck has the active air dam before ordering.

Who is this for: SPWM Wiring Harness Connector Caps are for owners and technicians who choose to remove or bypass malfunctioning air dam actuators and want a durable, OEM-matching solution to protect the exposed wiring. They suit DIYers wanting a quick, no-tool safeguard and professional shops seeking a clean, long-lasting sealing option during repairs or air dam decommissioning. Designed and manufactured in Seguin, Texas, these caps provide targeted protection without altering the vehicle’s wiring or appearance.
