SsllZdq Trailer Brake Wiring Harness 9U5Z-14489-MAA for Ford 2009–2023 — OEM-style 7-pin round/4-pin flat, corrosion-resistant

The SsllZdq 9U5Z-14489-MAA trailer brake wiring harness links your Ford truck’s brake controller to a trailer’s 7-pin round and 4-pin flat connectors for synchronized, reliable towing signals.

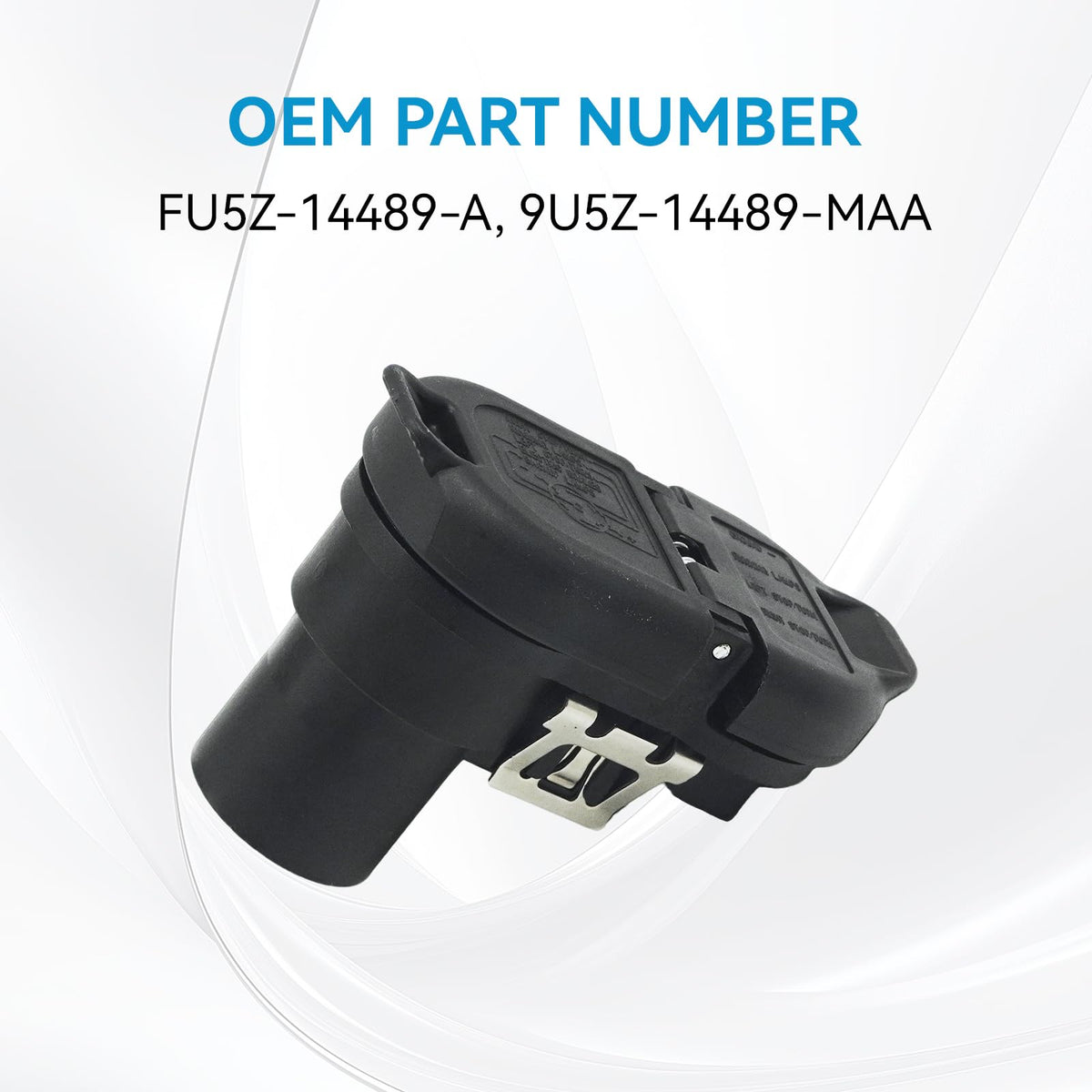

This factory-style harness replaces OEM part numbers FU5Z-14489-A and 9U5Z-14489-MAA and is built to fit a broad range of Ford and Lincoln models from 2009 through 2023. Designed for durability and stable electrical transmission, it routes brake and auxiliary signals from the tow vehicle to trailers equipped with standard 7-pin round or 4-pin flat plugs. The harness aims to preserve factory-fit routing and connector compatibility so installation is straightforward and vehicle systems remain intact.

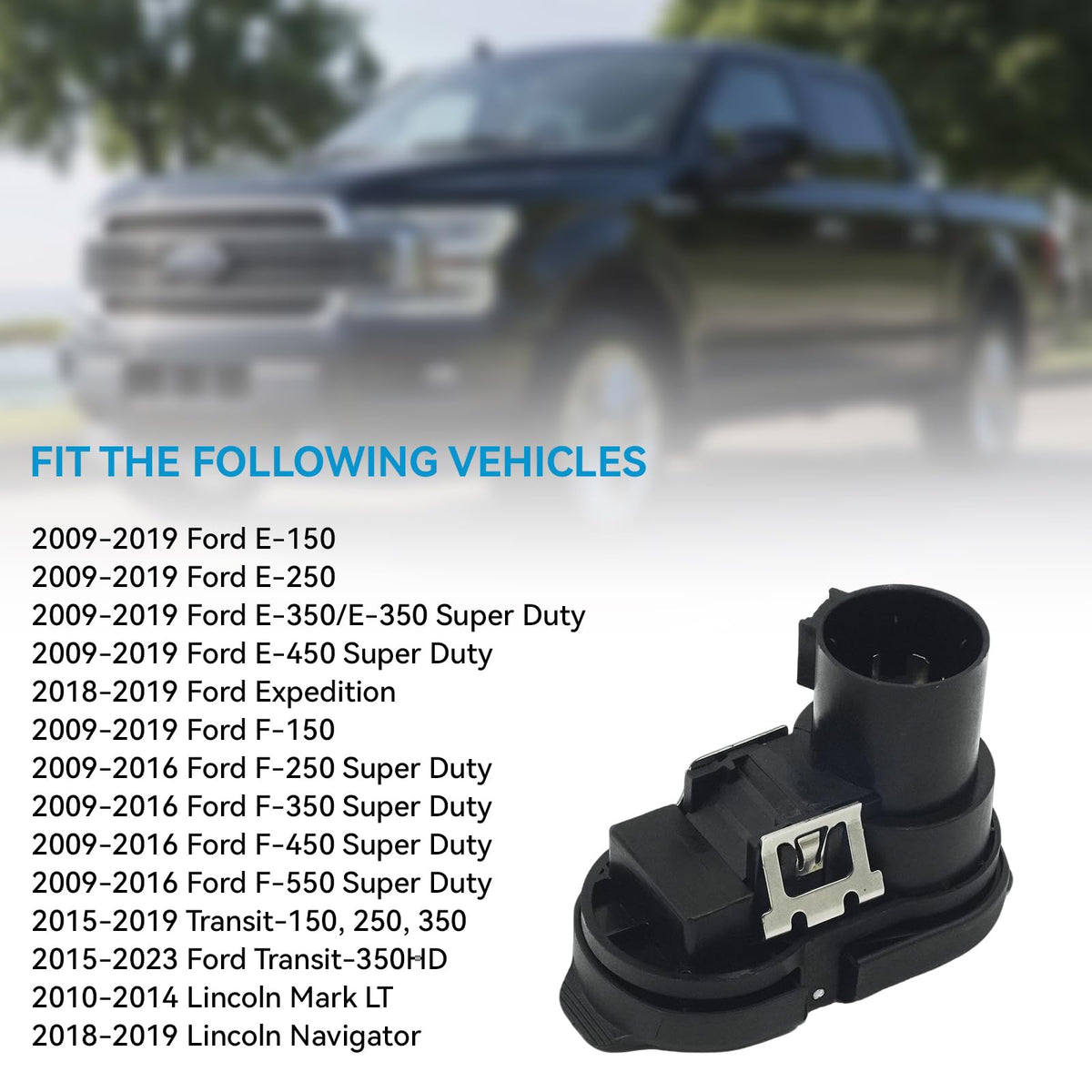

Which vehicles and years will this harness fit?

The harness covers many Ford vans, trucks, and a few Lincoln models spanning model years 2009–2023. Compatibility is split into series groups, including full-size trucks and Super Duty models as specified by manufacturer fitment lists.

• 2009–2019 E-Series (E150, E250, E350, E350 Super Duty, E450 Super Duty)
• 2018–2019 Expedition and 2018–2019 Lincoln Navigator
• 2009–2019 F-150 and 2009–2016 Super Duty F-250/F-350/F-450/F-550
• 2015–2023 Transit variants (Transit-150/250/350, Transit-350HD) and 2010–2014 Lincoln Mark LT

How does this harness improve towing safety?

The harness transmits brake controller outputs and vehicle brake signals quickly and accurately to the trailer, ensuring braking events are synchronized. Proper signal transmission helps reduce trailer sway and the risk of asynchronous braking during abrupt stops.

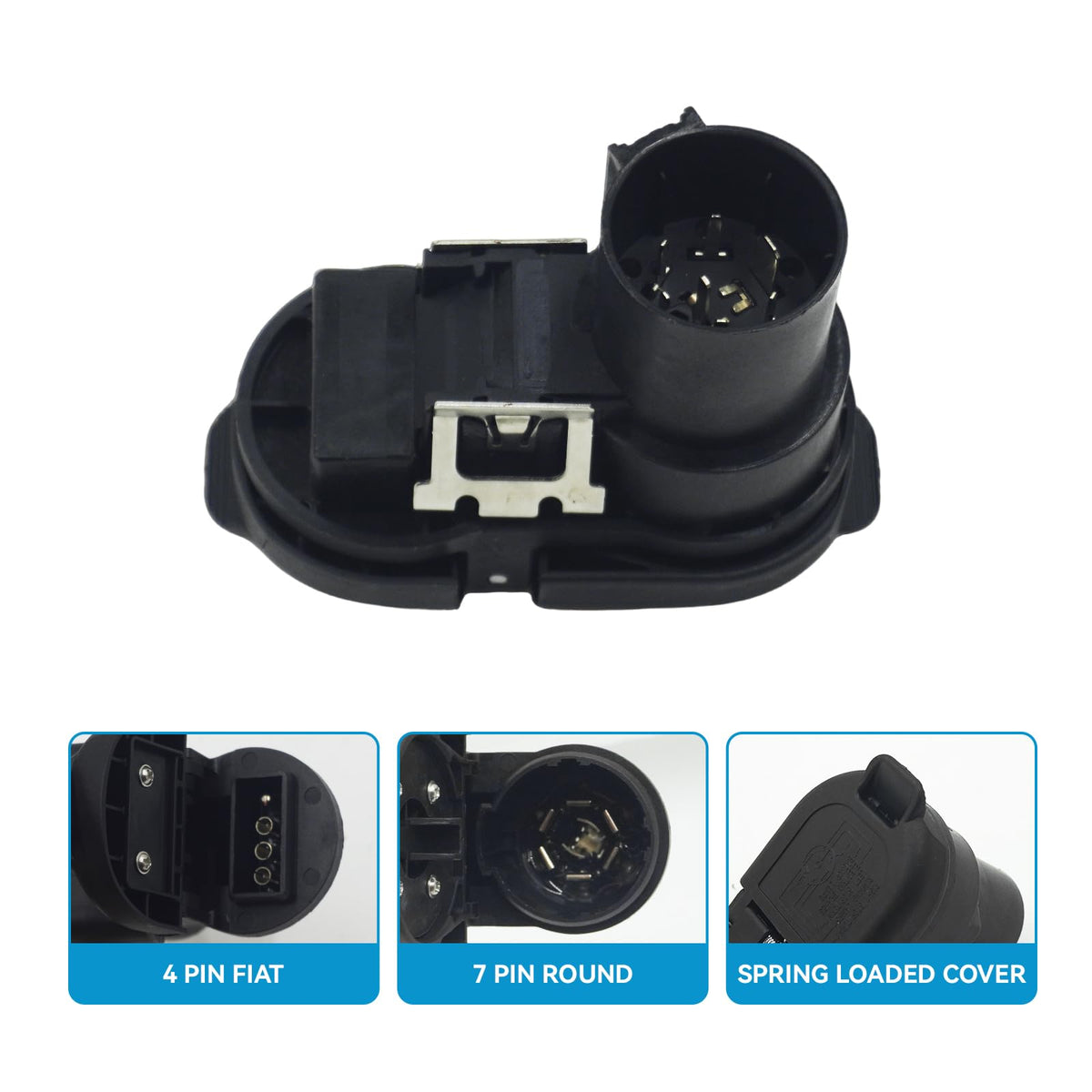

• Sends brake and auxiliary signals to 7-pin round and 4-pin flat trailer connectors
• Reduces delay between vehicle and trailer braking for coordinated stopping
• Improved anti-interference design minimizes signal loss on rough roads
• Corrosion-resistant construction extends service life in wet conditions

What are the construction and durability features?

Manufactured with quality materials and modern assembly methods, the harness provides abrasion resistance and protection against corrosion and electrical interference. Those features help maintain consistent signal quality and reduce harness-related failures over time.

• Heavy-duty insulation resists chafing and road debris damage
• Corrosion-resistant terminals for reliable long-term connections
• Shielding and routing to limit electromagnetic interference
• OEM-style connectors for plug-and-play compatibility

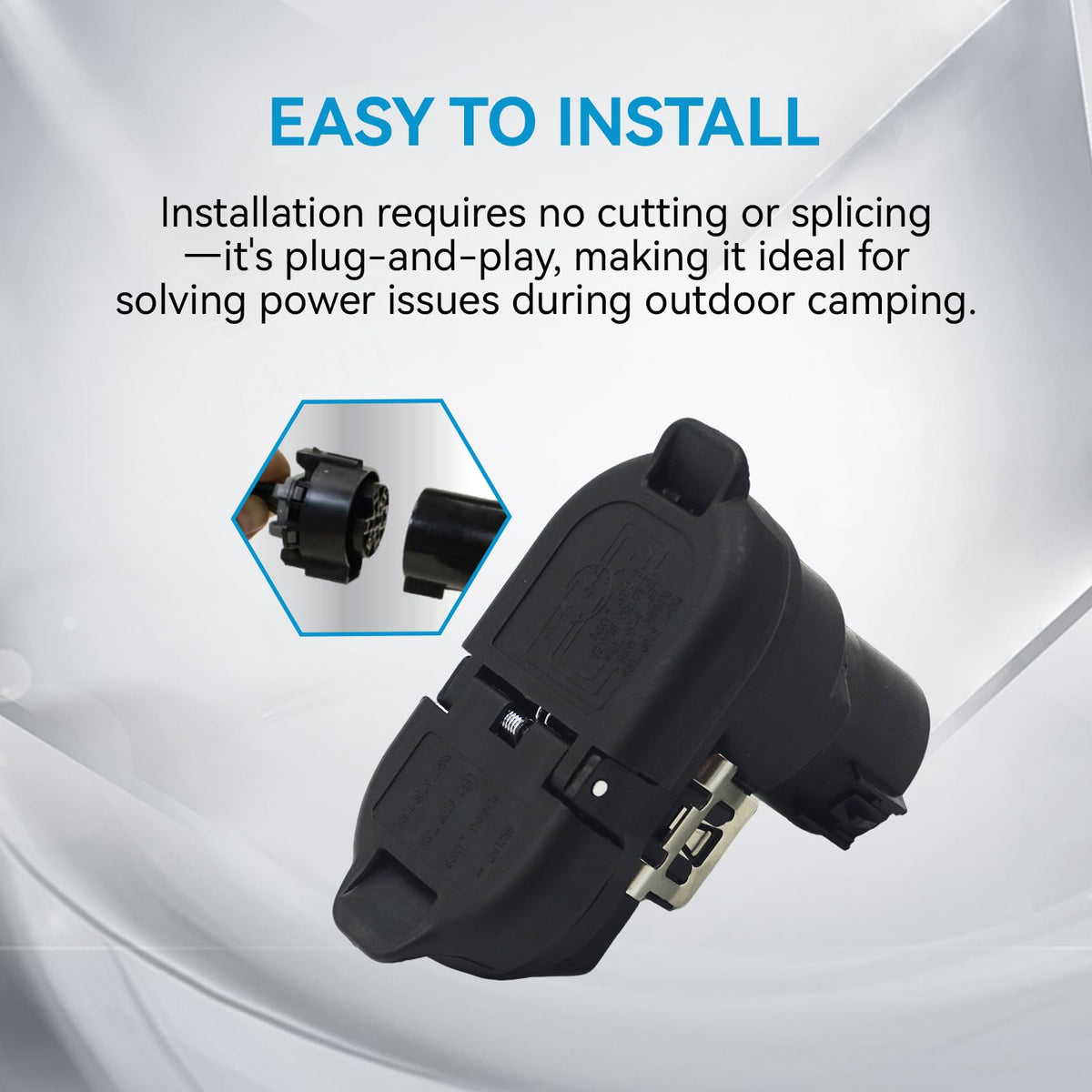

How easy is installation and what should I expect?

Installation is intended to match factory routing and connector types to minimize splicing or modifications. Technically competent DIYers can install it with basic tools, but professional installation ensures correct grounding and connector seating.

• Direct-fit connectors that match original factory plugs
• Minimal cutting or modification when matched to listed vehicle models
• Check vehicle wiring diagrams and mounting points before fitting
• If unsure, have a qualified technician verify compatibility and install

Who is this for: Drivers who tow trailers regularly with compatible Ford or Lincoln vehicles and need a reliable, OEM-style replacement harness to maintain factory connector types and improve brake-signal reliability. It’s suited to truck and van owners who prioritize safe, synchronized braking between towing vehicle and trailer and want a durable, corrosion-resistant harness built to original equipment specifications.
