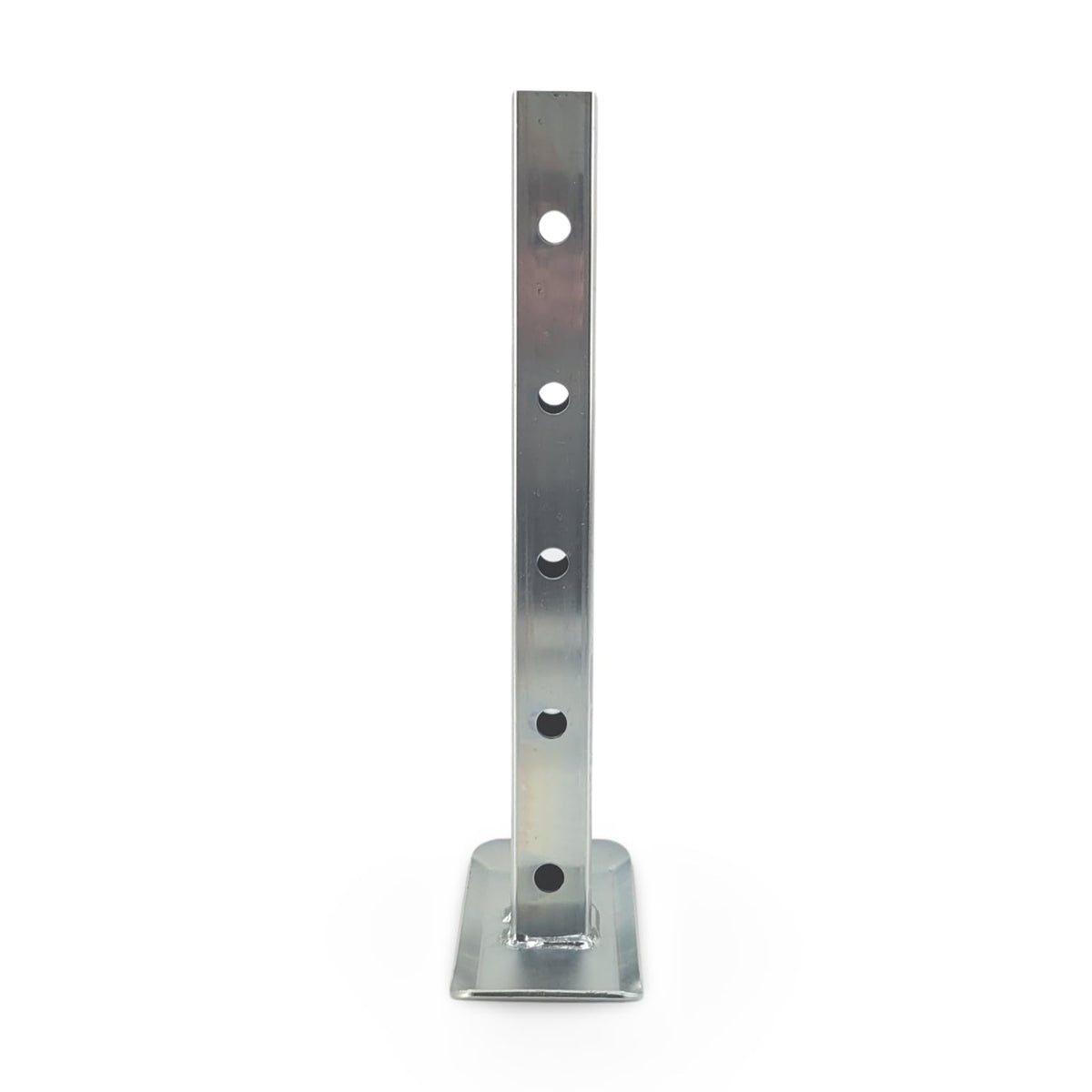

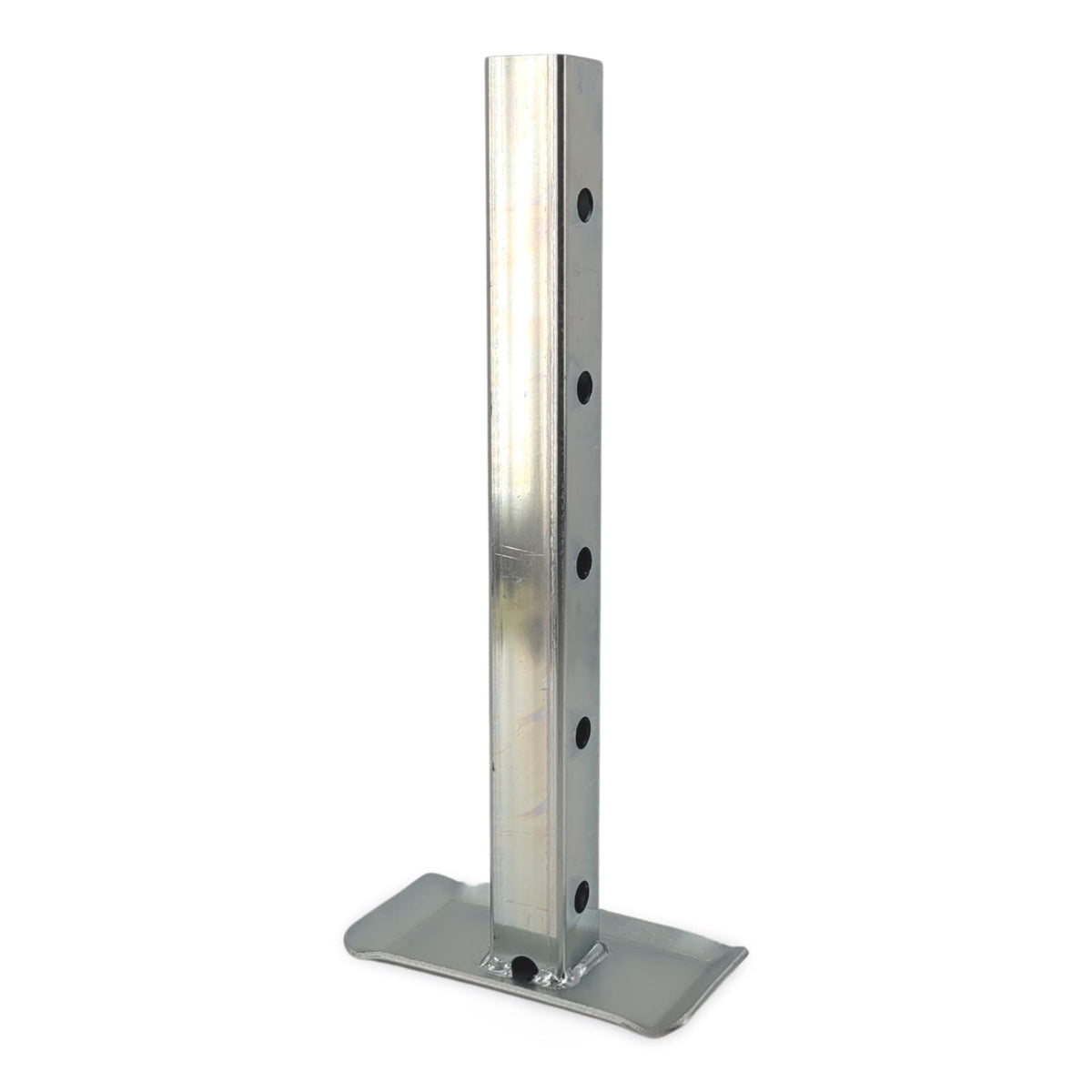

Sturdy Built Replacement Drop Foot for Trailer Jacks 1 3/4" Square — Zinc‑Coated, Fits 2,500 lb Jacks, 5-Position

The Sturdy Built Replacement Drop Foot is a zinc‑coated 1 3/4" square replacement foot for most 2,500 lb capacity square trailer jacks, offering five height positions to restore stability and corrosion resistance.

If the drop foot on your square trailer jack has worn through rust, bent, or cracked, you don’t need to replace the entire jack. This replacement drop foot is designed to slip into most standard 2,500 lb capacity square trailer jacks and restore a secure contact point between the jack and the ground. It’s zinc‑coated to help resist corrosion and to visually match many zinc‑plated jacks in common use.

Will this drop foot fit my trailer jack?

Most importantly, check the land measurement and capacity: this part is made to fit 1 3/4" square inner tubes used by many 2,500 lb capacity jacks. It accepts a cotter pin in one of five height positions to lock it at the right level. If your jack tube is a different size or the insertion style differs, this foot may not be compatible.

• Inner tube size: 1 3/4" square standard fit
• Rated compatibility: intended for 2,500 lb capacity square jacks
• Height options: five pin positions to match your preferred setting
• Fastening: secures with jack’s existing cotter pin (not included)

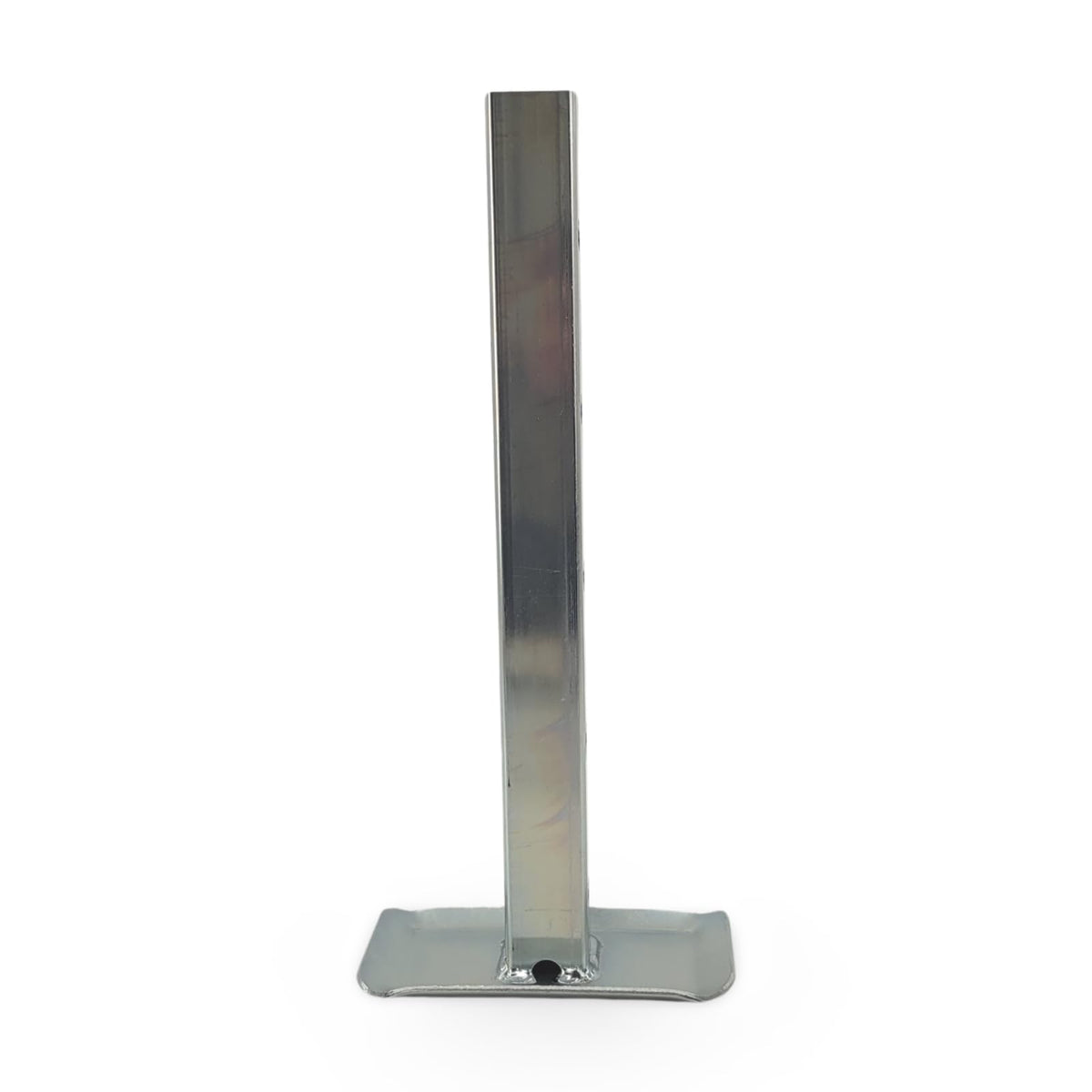

How does the zinc coating help outdoors?

The zinc plating provides a protective barrier that slows oxidation and corrosion compared with raw steel. While it doesn’t make the part impervious to weather, it extends service life and keeps the finish consistent with many zinc‑plated jacks. Regular cleaning and inspection will still prolong performance in wet or salty conditions.

• Corrosion resistance: zinc slows rust formation
• Visual match: blends with common zinc‑plated jacks
• Maintenance: wipe clean and inspect periodically
• Longevity: reduces need for premature replacements

How do I install the replacement drop foot?

Installation is straightforward: remove the damaged foot, slide this replacement into the jack’s inner tube, align the desired height hole, and secure with the jack’s cotter pin. No special tools are required beyond standard pliers for the cotter pin. Always support the trailer and follow safe lifting procedures before working on the jack.

• Remove: lower or raise jack to remove old foot
• Insert: slide replacement into 1 3/4" square tube
• Align: choose one of five height positions
• Secure: insert cotter pin (not included) to lock in place

What are the practical benefits of replacing only the drop foot?

Swapping the foot instead of the whole jack saves money and time while reducing waste. You restore a stable base that protects the jack tube from further damage and preserves the jack’s lifting mechanism. It’s a fast repair that gets your trailer back in service with minimal downtime.

• Cost‑effective: cheaper than a full jack replacement
• Quick fix: minimal disassembly and fast reinstall
• Parts preservation: keeps the main jack intact
• Environmental: generates less metal waste

Who is this for: this Sturdy Built replacement drop foot is for trailer owners, DIYers, and fleet managers who have a square 2,500 lb capacity jack and need a reliable, low‑cost repair option. It’s ideal when the jack body is sound but the ground contact portion is corroded, bent, or lost; anyone comfortable with simple hand tools can perform the swap safely. If you’re unsure about dimensions or load requirements, confirm your jack’s specifications before ordering to ensure proper fit and safe operation.
