STZJAYE Vapor Canister Purge Valve 90910-12276 Compatible with Toyota/Scion — Direct-Fit OEM Replacement, Heat-Resistant ABS

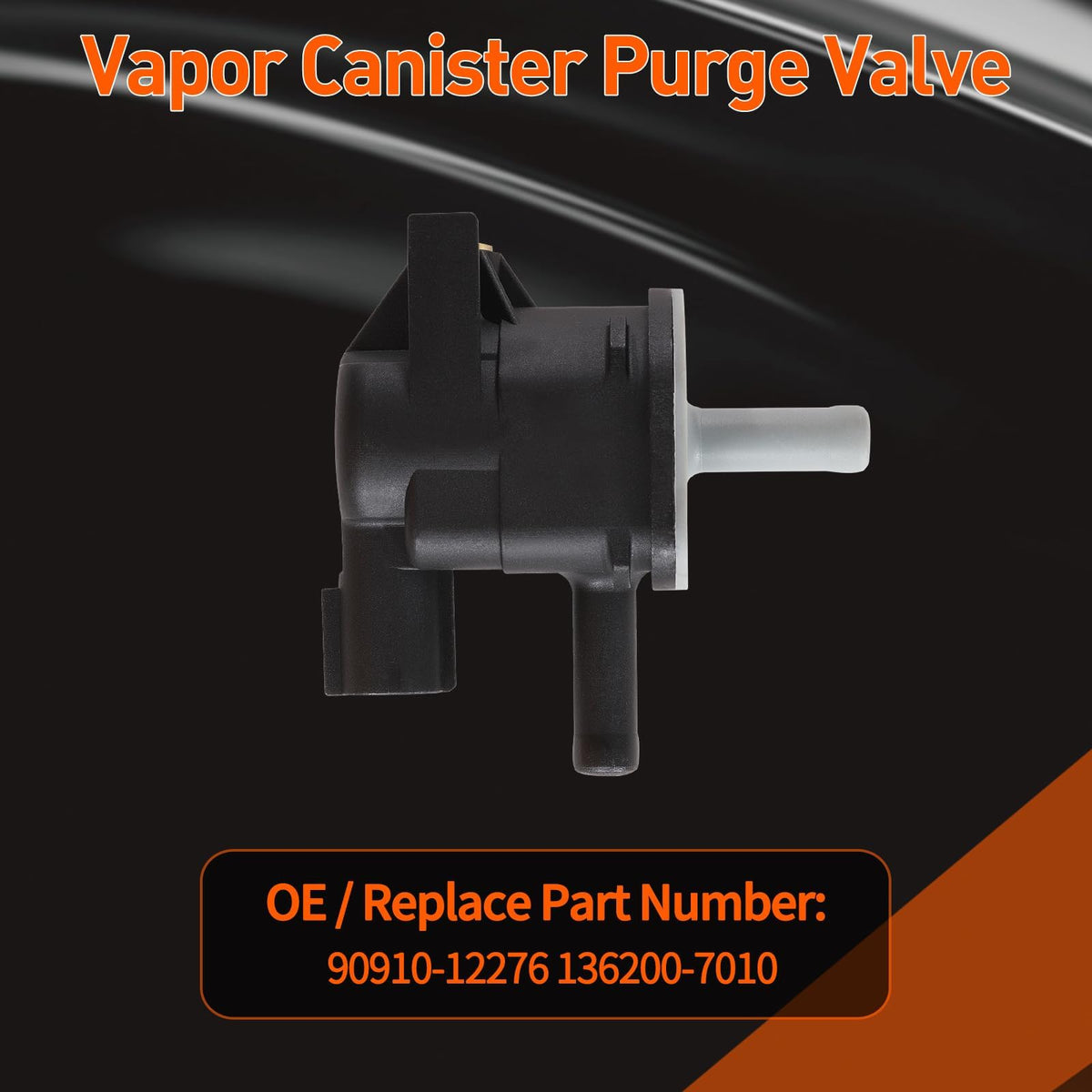

STZJAYE 90910-12276 is a direct-fit vapor canister purge valve solenoid built to replace part numbers 136200-7010, 90910-12276, and 90910-TC001 for many Toyota and Scion vehicles.

This replacement purge valve controls when stored fuel vapors go from the charcoal canister into the engine to be burned. Built from heat-resistant ABS and designed to match OEM form and function, the STZJAYE unit is intended as a straightforward swap for worn or failing OEM purge valves. Before ordering, confirm the part numbers and vehicle compatibility listed below to ensure a proper fit.

Which vehicles will this STZJAYE purge valve fit?

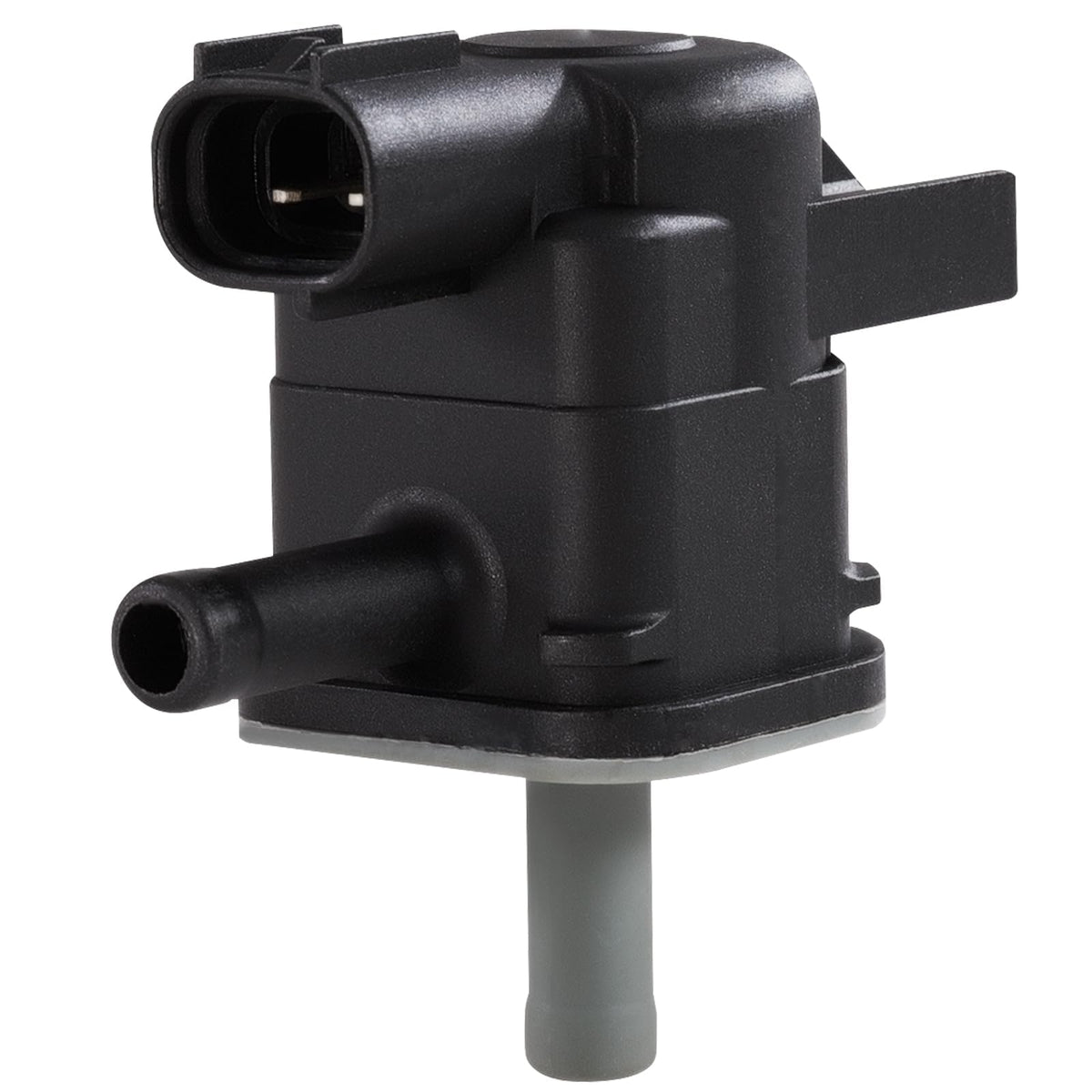

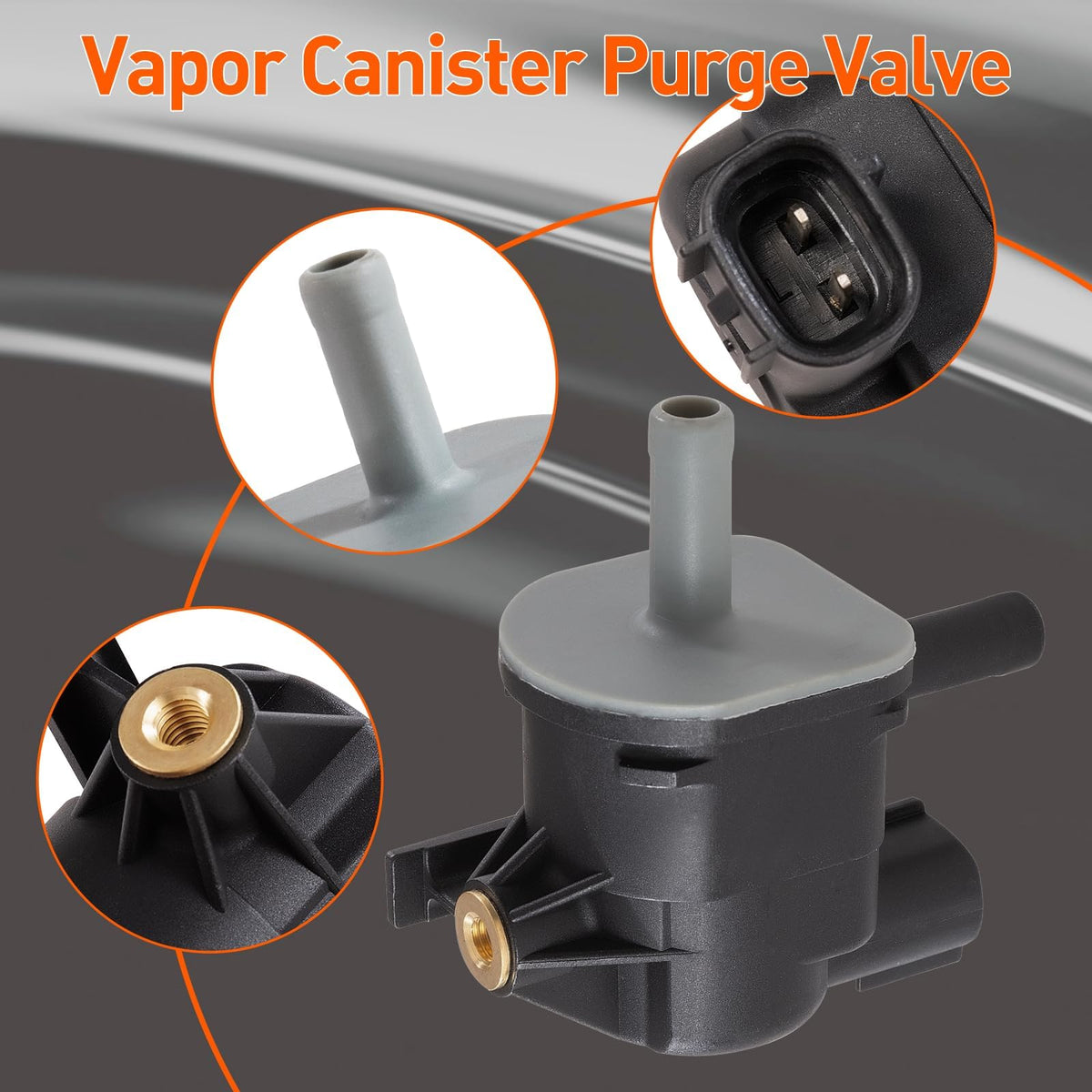

The STZJAYE purge valve covers a wide range of Toyota and Scion model years. It is manufactured to align with the original mounting points and electrical connectors for direct replacement on supported vehicles.

• Scion XA (2005–2006), XB (2005–2006), XD (2008–2014)
• Toyota 4Runner (2010–2016), Camry LE/XLE (2009–2011), Corolla (2009–2013)
• FJ Cruiser (2009–2014), Highlander (2008–2016 depending on trim), Matrix (2009–2014)
• Prius (2016 base/ECO/L/S), Tacoma (2011, 2013–2016 base), Tundra SR5 (2010–2015)

How does this purge valve affect vehicle performance?

A properly working purge valve helps manage evaporative emissions and controls fuel vapor flow into the intake. When it malfunctions, drivers may notice rough idle, difficulty starting, or erratic engine behavior; replacing the valve can restore correct vapor routing and stabilize engine operation.

• Helps reduce evaporative emissions by controlling vapor purge timing
• Prevents excess pressure build-up in the fuel tank and canister
• Restores consistent idle and reduces stalling or hesitation caused by vapor leaks

What are the signs a vapor canister purge valve needs replacement?

Several common symptoms point to a failing purge valve, from fuel smell to drivability issues. If you observe one or more of these signs, inspect the valve and associated hoses, and consider this OE-spec replacement if diagnostics indicate valve failure.

• Strong gasoline odor near the fuel tank or engine bay
• Check Engine Light related to EVAP system codes
• Fuel vapor or oil drips at the canister outlet and poor idle, stalling, or starting problems
• Irregular engine RPM, rough running, or hesitation under load

What should I expect when installing the STZJAYE purge valve?

Installation is typically straightforward for technicians or experienced DIYers: unplug the electrical connector, remove the vacuum hoses, and replace the old valve with the new unit using the same mounting points. Verify hose condition and connectors for an optimal, leak-free installation.

• Direct-fit replacement for matched part numbers—no modifications required
• Heat-resistant ABS construction for long-term durability
• Inspect hoses and clamps; replace any brittle lines to prevent future leaks

Who is this for: The STZJAYE 90910-12276 purge valve is aimed at vehicle owners, independent mechanics, and repair shops seeking a reliable, OEM-standard replacement for EVAP purge issues on compatible Toyota and Scion models. Choose this unit if your diagnostics show EVAP-related trouble codes, you experience fuel vapor symptoms, or you want an affordable, ready-to-install solenoid that matches original specifications.
