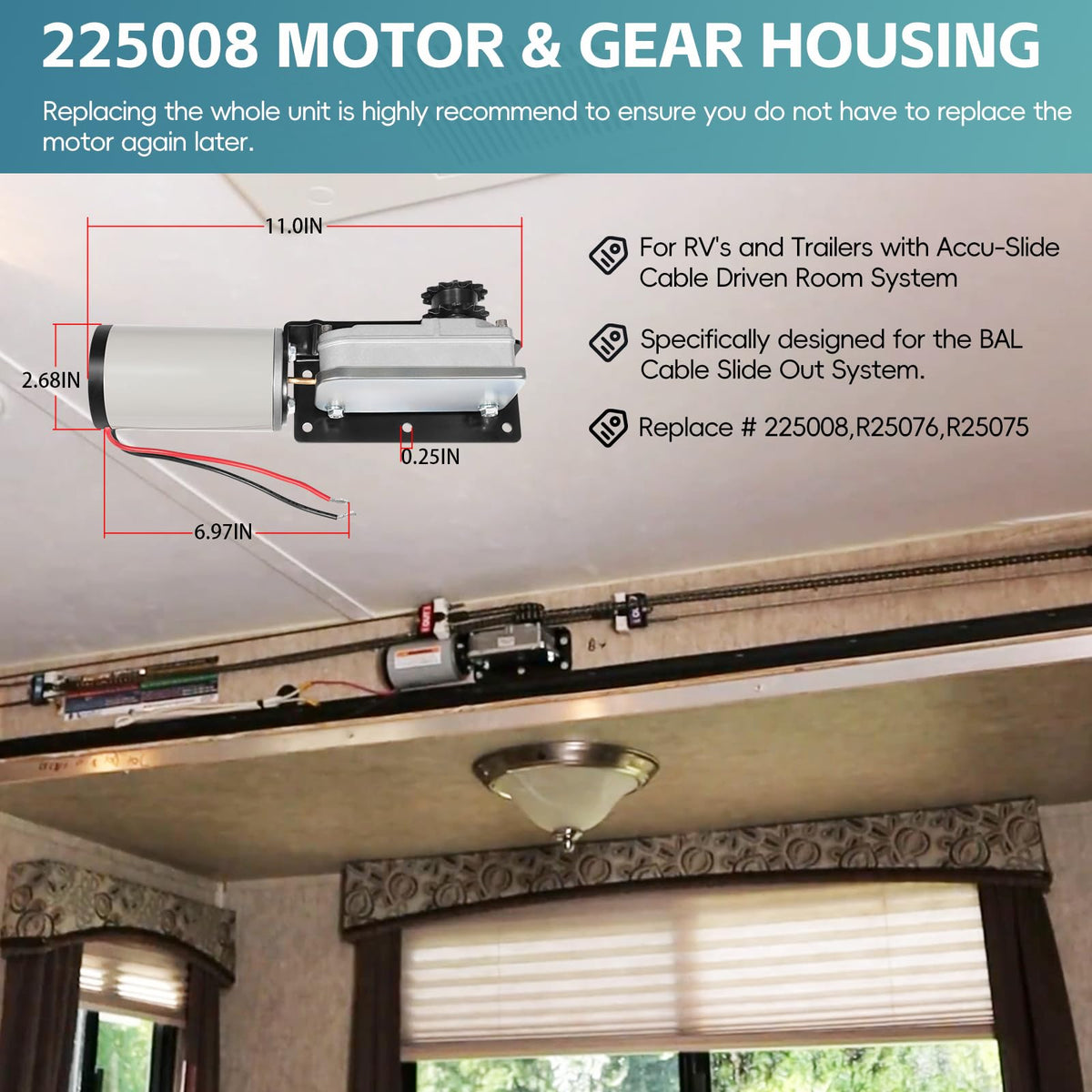

Sunluway RV Slide-Out Motor & Gear Housing 225008 — Direct Replace for BAL R25075/R25076, 12V 15A with 13‑Tooth Sprocket

If your RV or travel trailer uses the BAL Accu-Slide cable slide-out system and the room won't extend or retract smoothly, this Sunluway 225008 motor and gear housing kit provides a full replacement solution. The assembly combines a higher-output 12 V motor with a matched gearbox and mounting bracket so you replace the entire drive unit at once—reducing return trips and avoiding repeated motor swaps.

How does this unit restore a stuck or noisy slide-out?

The 225008 kit replaces the motor, gearbox and mounting hardware in one go, addressing worn gears, a failing motor, and misaligned chain attachments that commonly cause sticking or noise. Upgrading to the higher-output motor improves torque while the precision 13-tooth sprocket ensures smoother chain engagement.

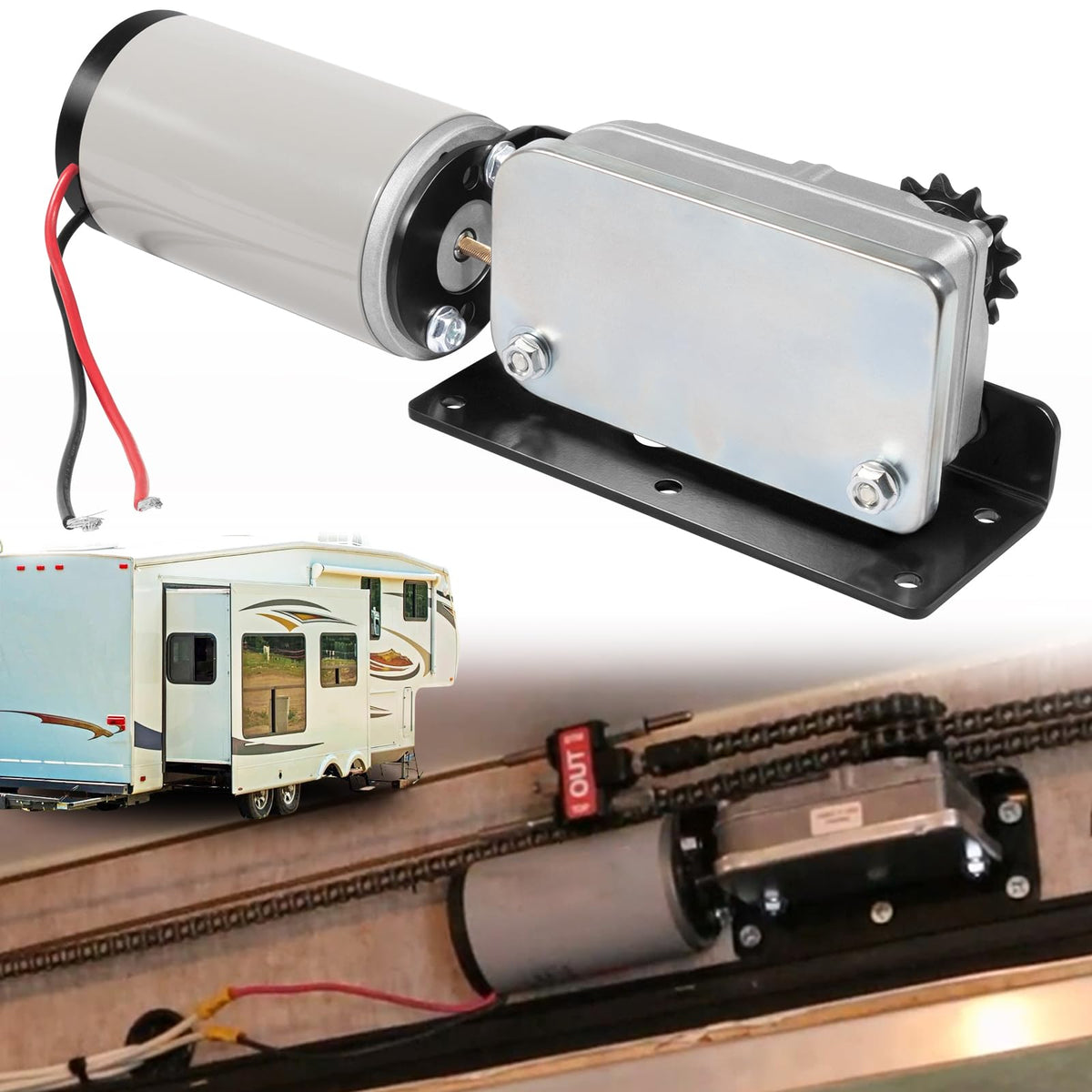

• Complete motor and gear housing assembly—no piecemeal parts needed
• High-output 12 V motor rated at 15 A for steadier power delivery

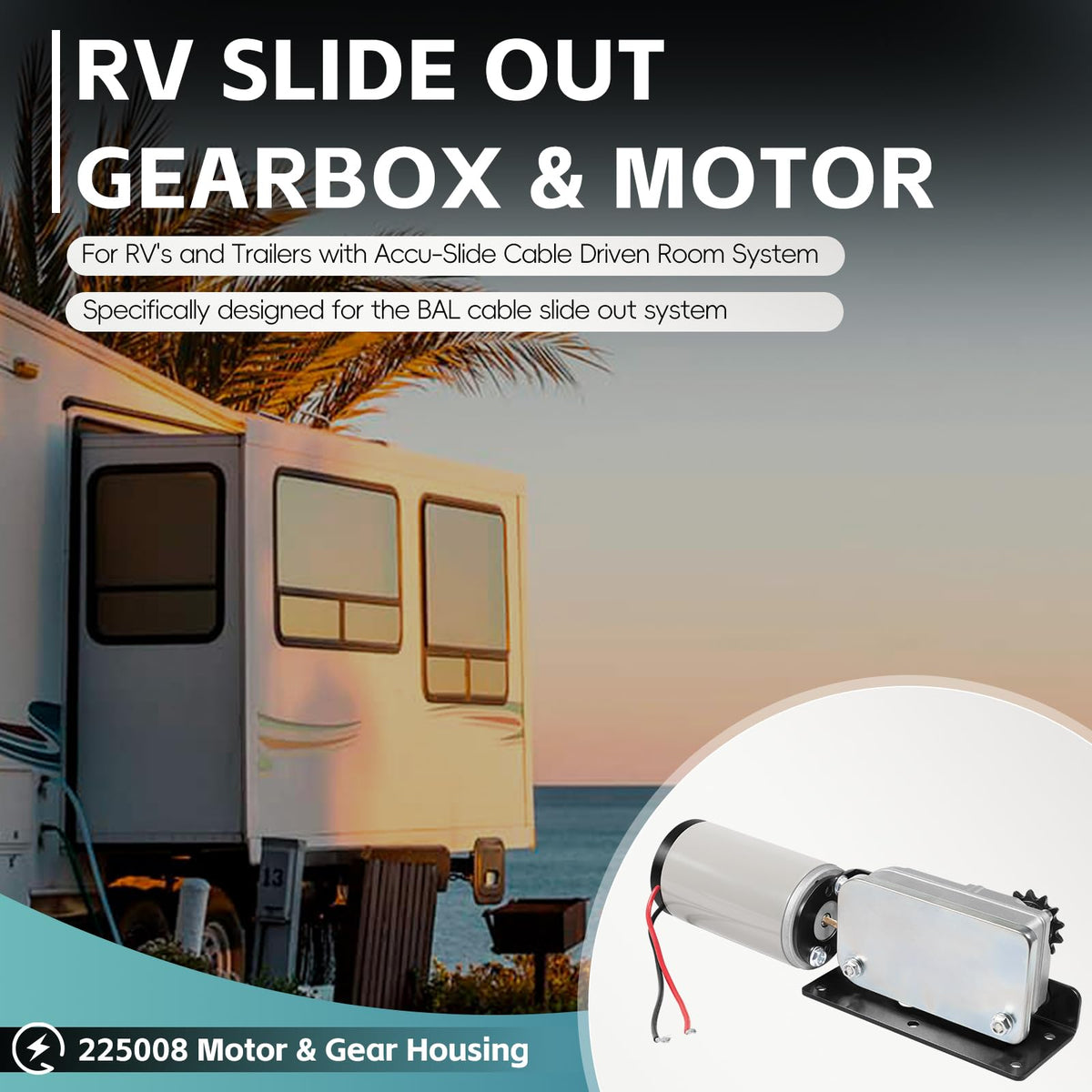

• 13-tooth sprocket engineered for accurate chain fit and less slippage
• Mounting bracket included for correct alignment and reduced vibrations

Will this fit my BAL Accu-Slide R25075 or R25076 system?

Yes—the Sunluway 225008 is designed as a direct replacement for BAL R25075 motors and R25076/R25076-1 gearboxes used in BAL Accu-Slide cable slide-out systems. The housing, shaft size and sprocket position follow the original dimensions for a straightforward swap.

• Compatible with BAL R25075 motor assemblies
• Fits BAL R25076 and R25076-1 gearbox configurations
• Shaft specification: single output, 3/16" diameter for matching chain attachments
• Intended for cable-driven Accu-Slide RV room systems

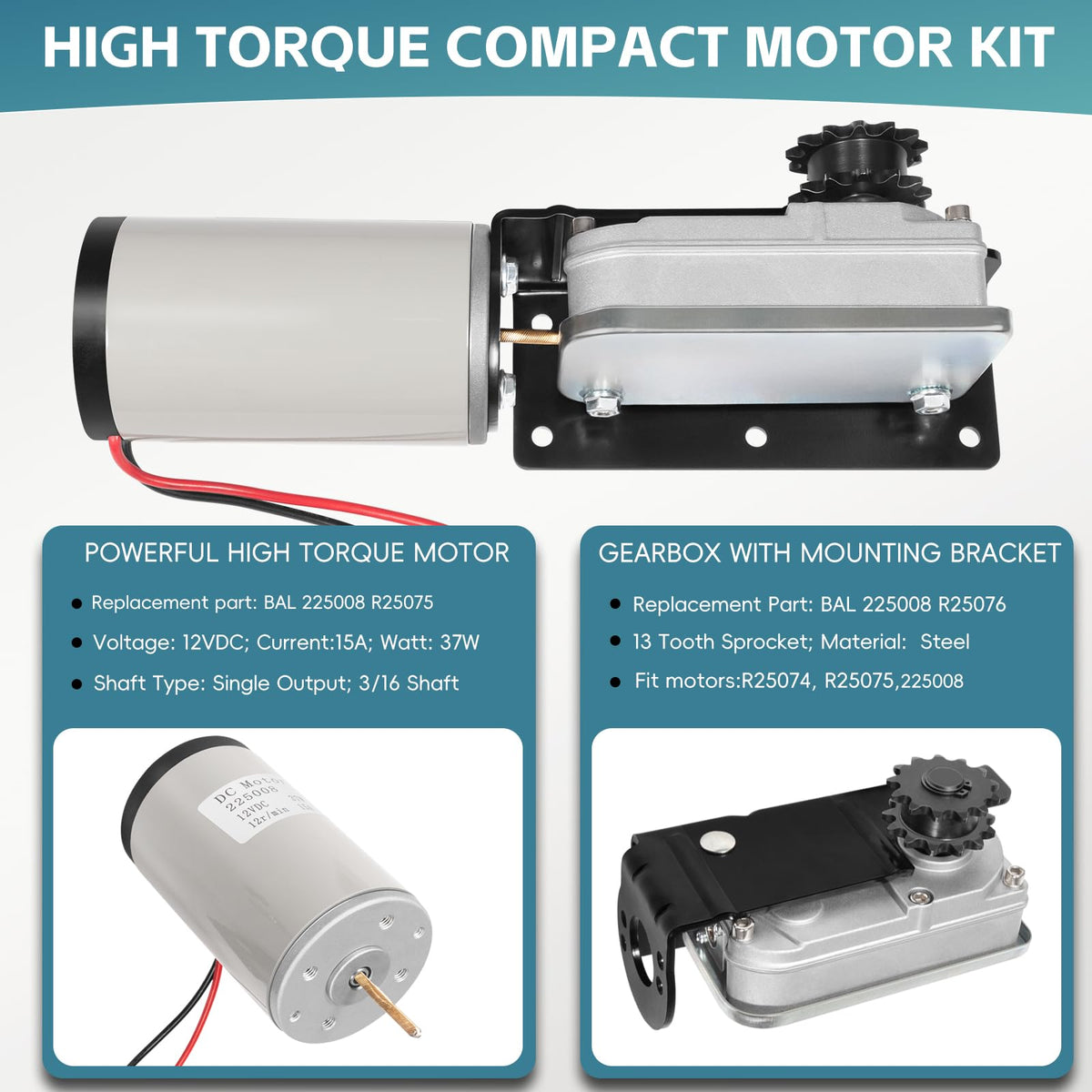

What are the electrical and mechanical specifications I should know?

The motor operates on a standard 12 V DC supply and draws up to 15 A under load. Mechanically, it uses a single-output shaft of 3/16" and a professionally manufactured gearbox with a 13-tooth sprocket for reliable chain engagement and long-term use.

• Voltage rating: 12 V DC—compatible with typical RV house batteries
• Current draw: 15 A maximum—check wiring and fuse ratings before installation
• Shaft: single output, 3/16" for direct chain sprocket connection
• 13-tooth sprocket supplied and pre-aligned on gearbox mounting bracket

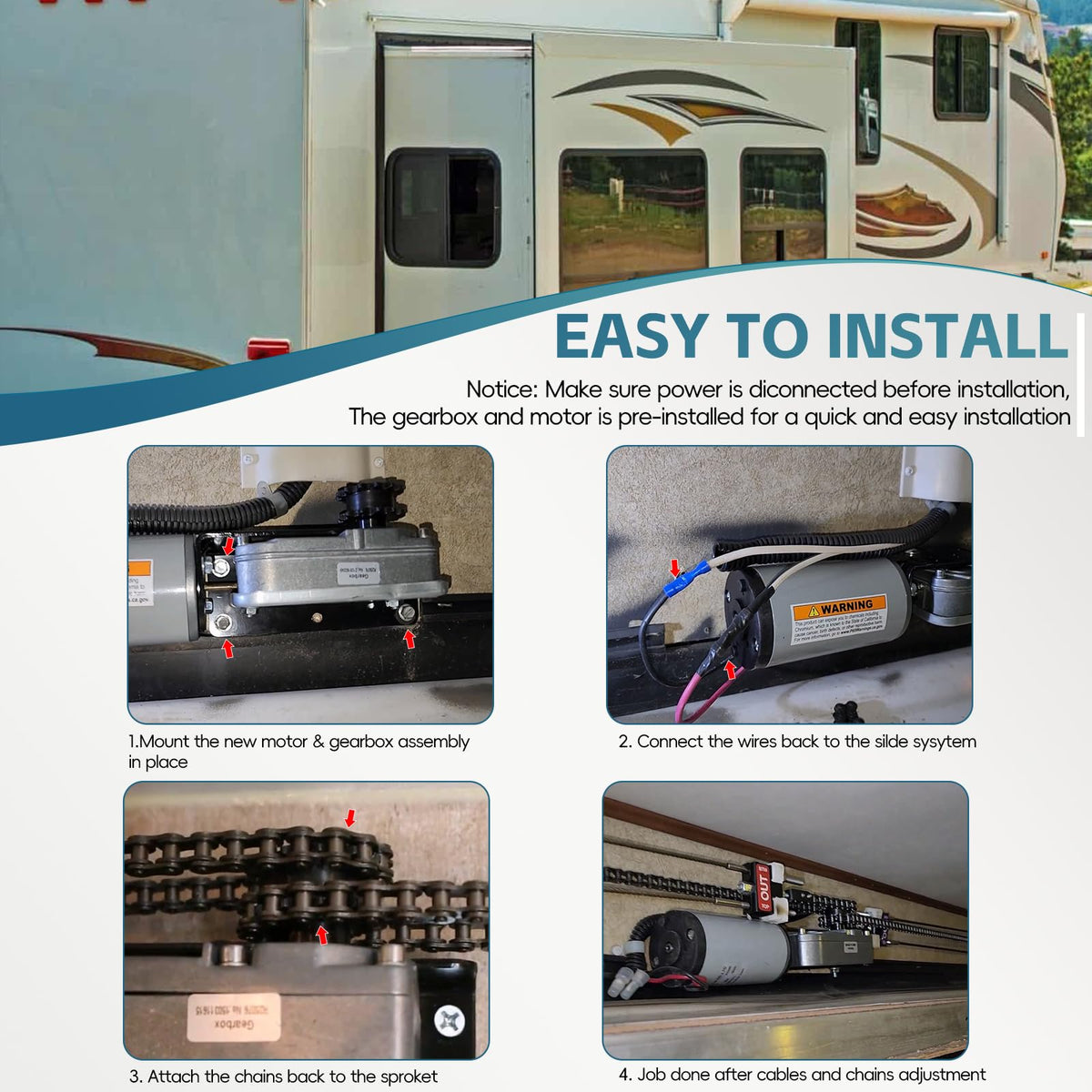

How easy is installation and what tools or prep are required?

Installation is simplified by supplying the complete motor plus gearbox and mounting bracket so you replace the whole assembly instead of individual internal parts. Basic hand tools, correct torqueing, and verifying battery voltage and fuse protection are the main preparatory steps.

• Swap-out design—remove old unit and bolt in the replacement assembly
• Includes mounting bracket to align sprocket and chain attachment points
• Recommended tools: socket set, screwdrivers, voltmeter and basic wrenches
• Confirm 12 V supply and appropriate fuse/circuit protection before test operation

Who is this for: The Sunluway 225008 motor and gear housing is aimed at RV owners, service technicians and restoration shops working on BAL Accu-Slide cable-driven slide-outs that need a dependable, direct-fit replacement. Choose this kit if you prefer to swap the entire drive assembly for a lasting repair, require compatibility with BAL R25075/R25076 part numbers, and want a quieter, higher-output motor with a properly sized sprocket and mounting bracket included.
