Swagman Pick Up Truck Bed Bike Rack — Fork-Mount for 9mm Quick-Release Bikes, No-Drill Compression Fit

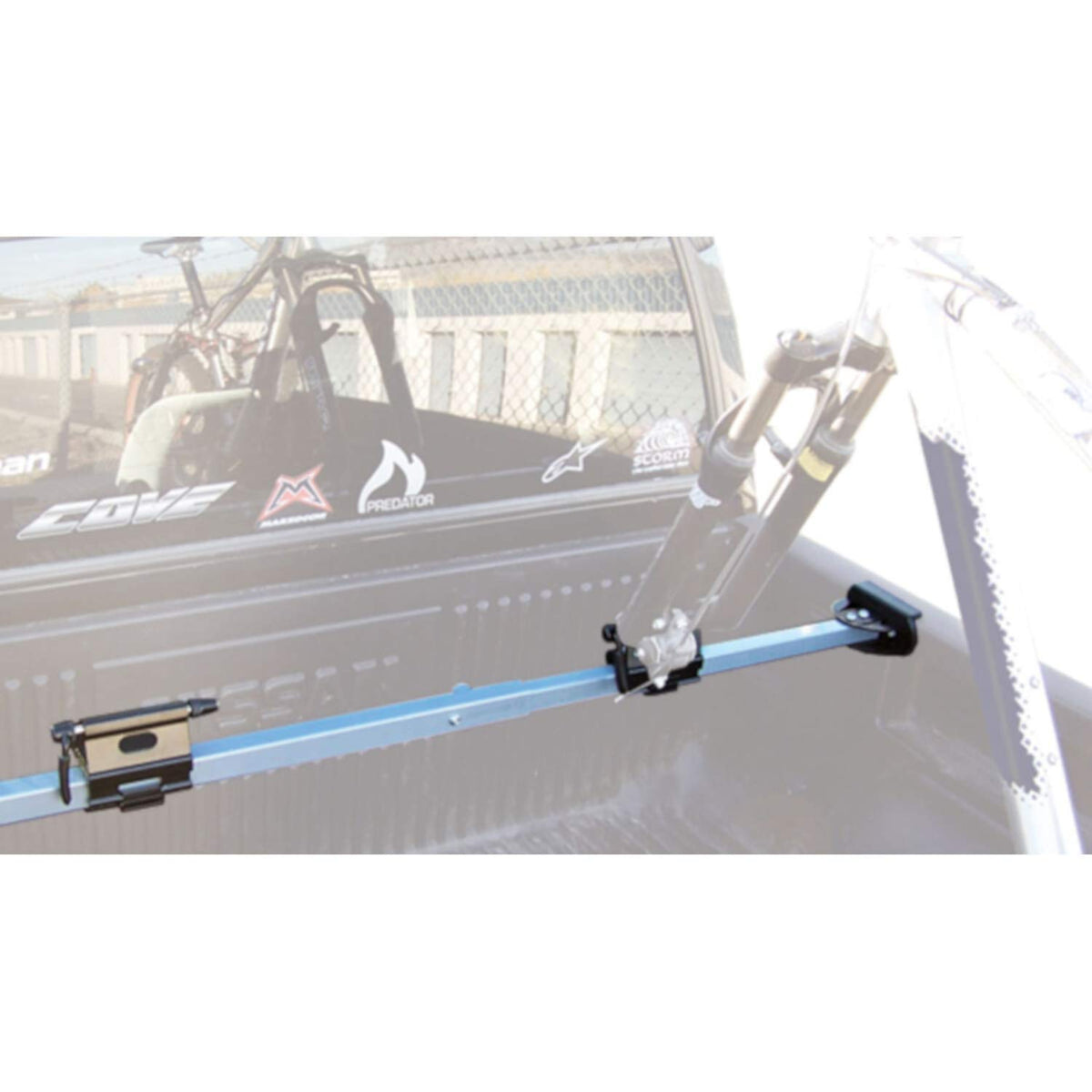

The Swagman Pick Up Truck Bed Bike Rack is a simple telescoping fork-mount carrier that secures up to two 9mm quick-release bikes to most mid-size and full-size pickup truck beds without drilling.

Designed for truck owners who want a low-cost, no-drill way to haul bicycles, this Swagman PICKUP fork-mount system uses a press-fit telescoping bar and rubber end pads to wedge across pickup bed rails. A locking push-button and integrated 9mm quick-release skewers hold bikes by the front fork for steady transport. The rack is stainless steel for corrosion resistance and longevity, and you can add an extra fork mount (sold separately) if you need room for a third bike.

How does the rack attach to my truck without drilling?

The PICKUP rack uses a telescoping main bar that compresses between the bed rails and locks in place, avoiding permanent modifications. Rubber end pads protect the rails from scratches and improve grip, while a locking push-button keeps the bar from collapsing during travel.

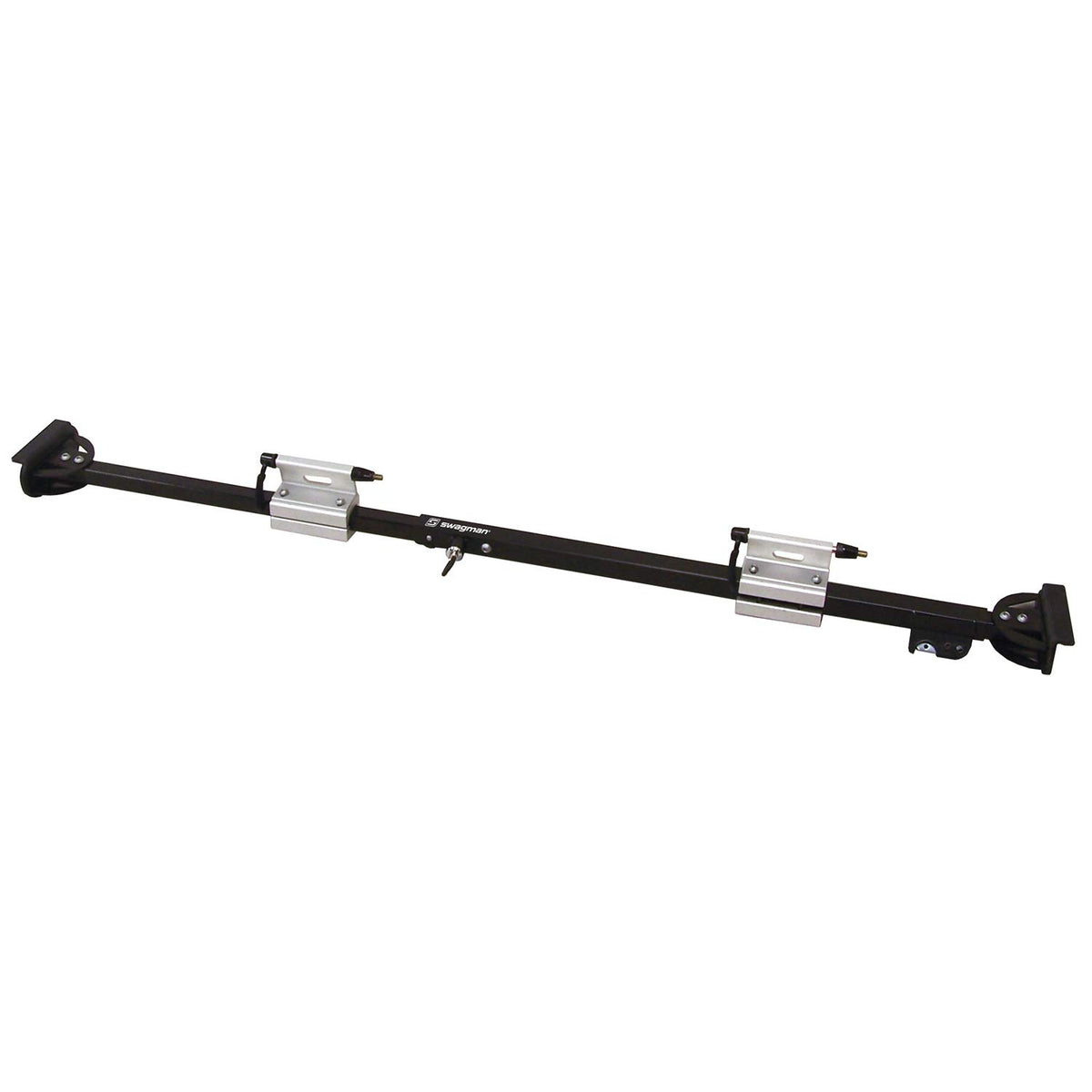

• Telescoping steel bar adjusts to fit many mid-size and full-size beds
• Rubber end pads cushion and protect truck rail finishes
• Locking push-button secures the press-fit position
• No drilling, bolts, or permanent hardware required

Which bikes will this fork-mount carrier accept?

This rack is built specifically for bicycles with 9mm quick-release front skewers; the included fork-mount blocks and skewers anchor the wheel fork for safe transport. It does not support thru-axle wheels—if your bike uses a thru-axle, consider Swagman's Patrol model instead.

• Fits bikes equipped with 9mm quick-release front skewers only
• Not compatible with thru-axle front wheels

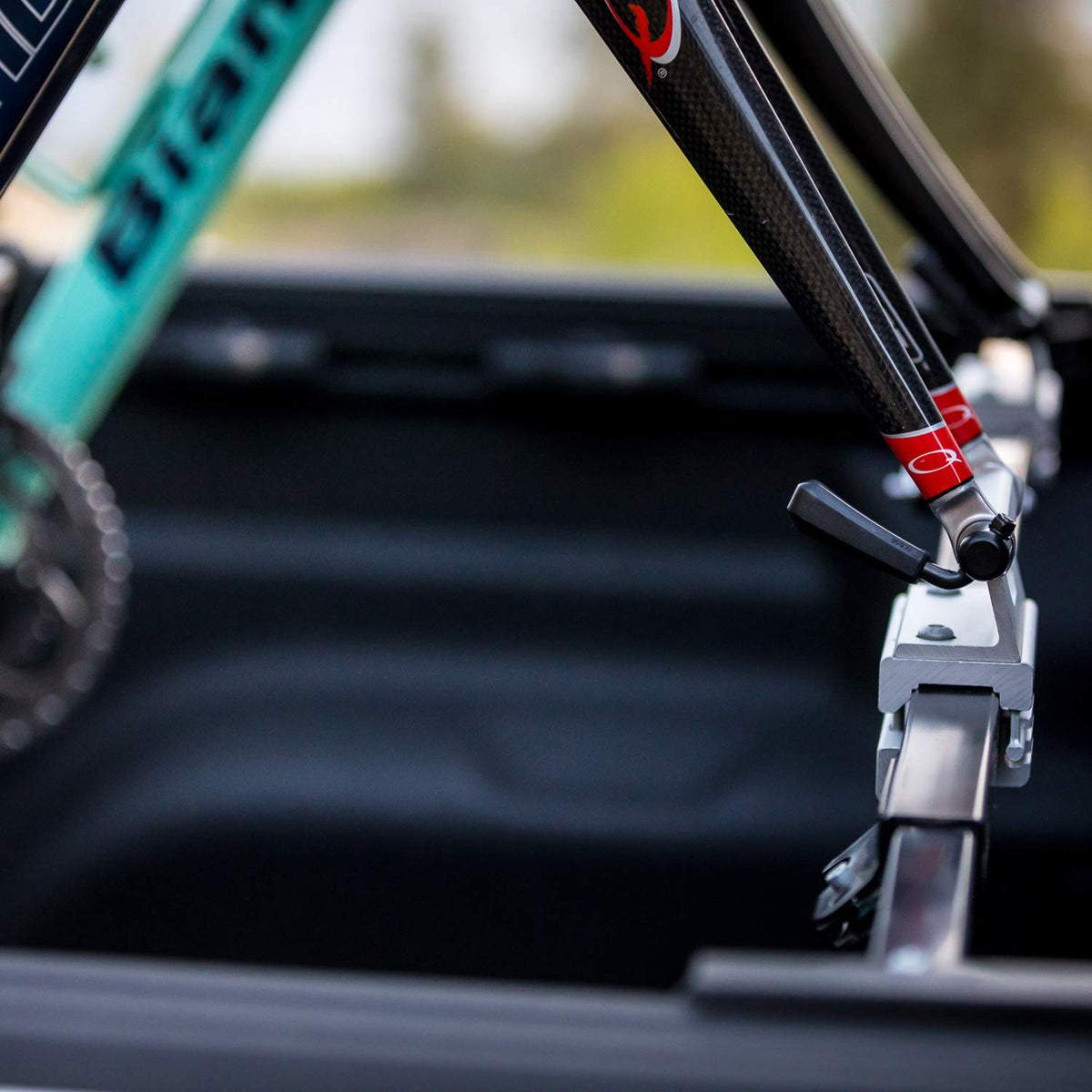

• Each fork mount includes a 9mm quick-release head for secure fastening
• Extra fork mounts available separately to increase capacity

How many bikes and what weight can the rack carry?

The standard configuration carries up to two bikes, with a maximum recommended weight of 35 pounds per bike. Fork-mount blocks slide along the main bar so you can space bikes to avoid handlebar or pedal contact and balance load distribution across the bed.

• Standard capacity: 2 bikes
• Weight limit: 35 lbs (15.9 kg) per bike
• Fork blocks are repositionable for optimal spacing
• Optional extra fork mount lets you expand capacity to three bikes

What should I watch for when installing and using the rack?

Install carefully and avoid overtightening the telescoping bar between the bed walls; excessive compression can interfere with the locking mechanism. Regularly check the quick-release skewers, fork mounts, and the press-fit lock before each trip to ensure the rack and bikes remain secure.

• Do not overtighten the telescoping bar; it may prevent the lock from functioning
• Verify quick-release skewers are tightened and locked each use
• Inspect rubber end pads and frame for wear periodically
• Follow local load and visibility regulations when transporting bikes

Who is this for: The Swagman Pick Up Truck Bed Bike Rack is ideal for pickup owners who need an affordable, non-permanent solution to transport one to two traditional quick-release bicycles. It suits recreational cyclists, weekend riders, and anyone who prefers a fork-mounted, low-profile option over hanging or tailgate-style carriers—provided their bikes use 9mm quick releases.
