Switch-Pros SP-9100 8-Switch Panel with Concealed 125A Solid-State Power Module, RGB Backlight & App Control

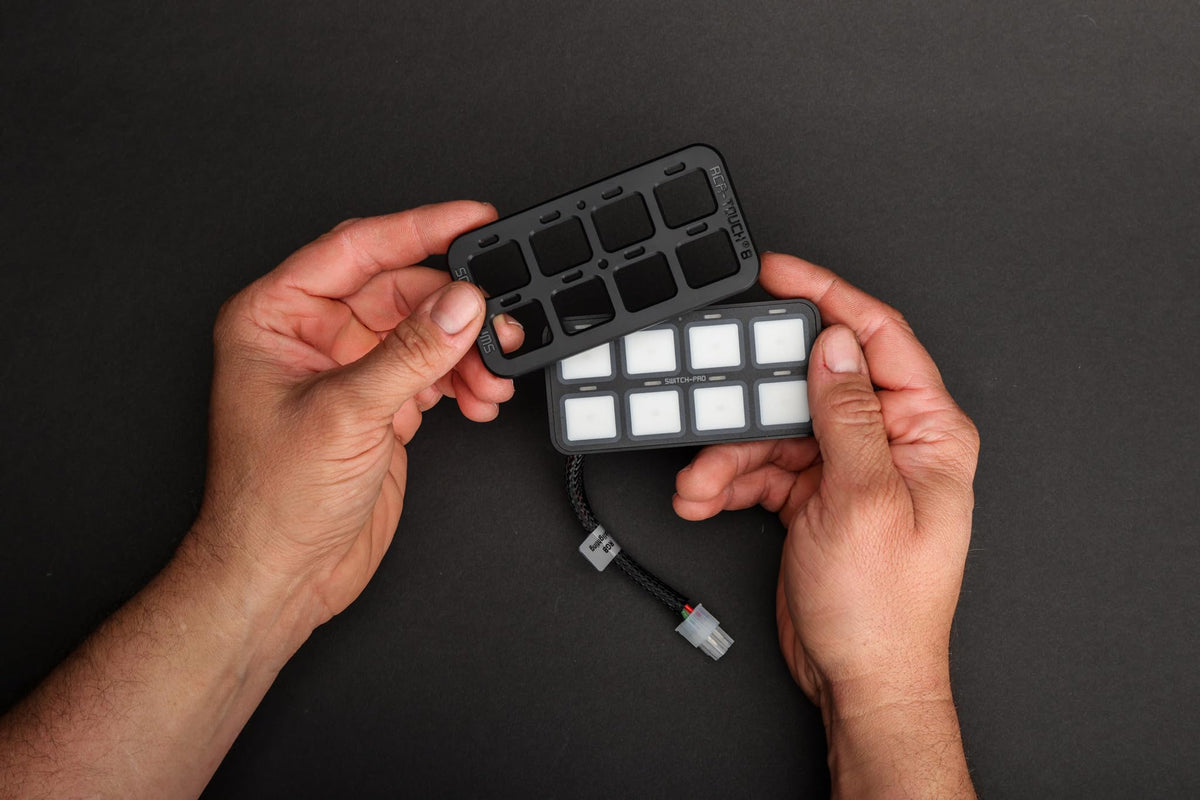

The Switch-Pros SP-9100 is a compact, bezel-style 8-switch control panel paired with a concealed 125A solid-state power module that gives you fully programmable circuits, RGB backlighting, and smartphone app control.

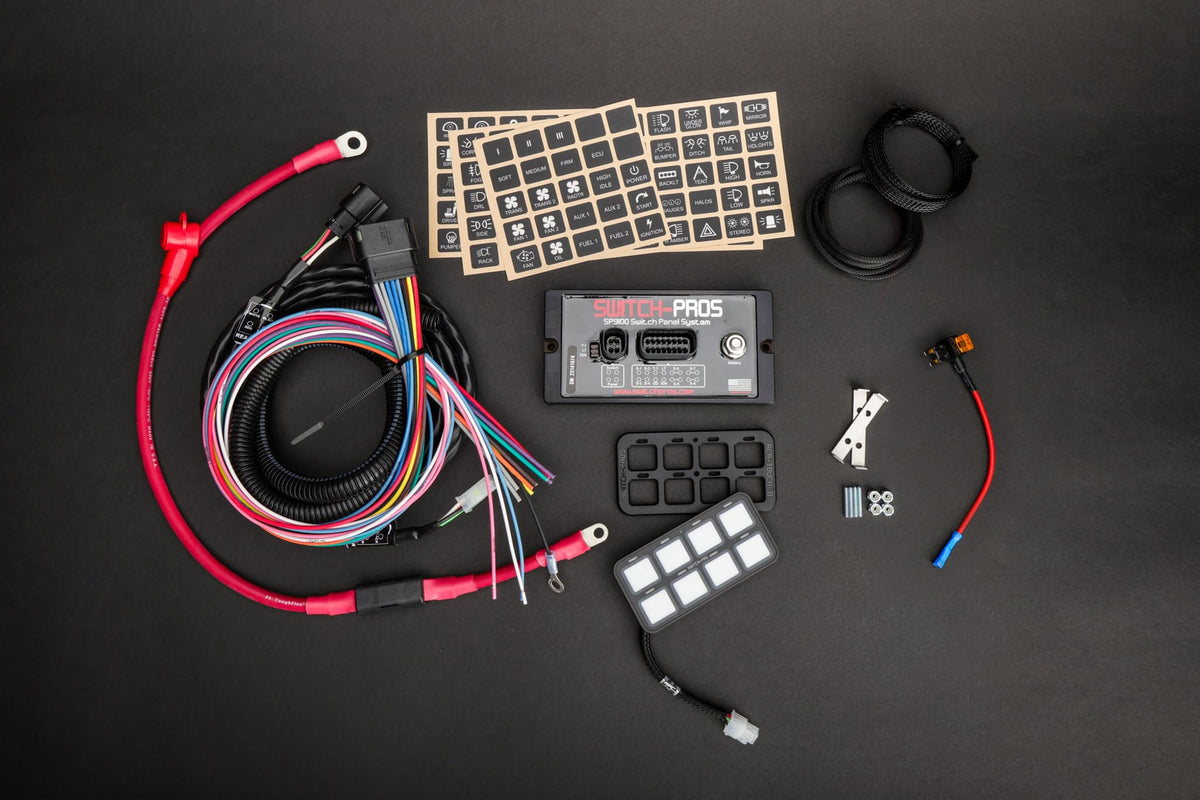

This all-in-one system replaces bulky relay boxes with a waterproof, concealed power module and an attractive polycarbonate bezel panel designed to match factory dash lighting. The SP-9100 combines eight user-programmable switches with four high-current (35A) outputs and four medium-current (18A) outputs, offering dimming, strobe patterns, automatic power-up, and two external triggers — all configurable from the panel or via the free Bluetooth app for iOS and Android.

How do I customize lighting and match my dash illumination?

You can pick any color using the app’s color picker and set individual switch backlighting to blend with factory or aftermarket lighting. RGB LEDs let you match hues precisely and save configurations to the panel’s memory for instant recall.

• Unlimited RGB color selection via smartphone app
• Individual switch backlight control and presets
• Memory function stores your color and mode choices

What switching modes and patterns can I program?

Each switch is user-programmable for steady On/Off, momentary output, ignition- or battery-fed input, and selectable flash or strobe effects. Strobe modes offer multiple user-selectable patterns, and Master Mode lets one switch toggle multiple outputs simultaneously for simplified operation.

• On/Off and momentary modes for each switch
• Multiple strobe/flash patterns with one-touch activation
• Master Mode to turn groups of outputs On or Off together

How does the power module handle high loads and wiring?

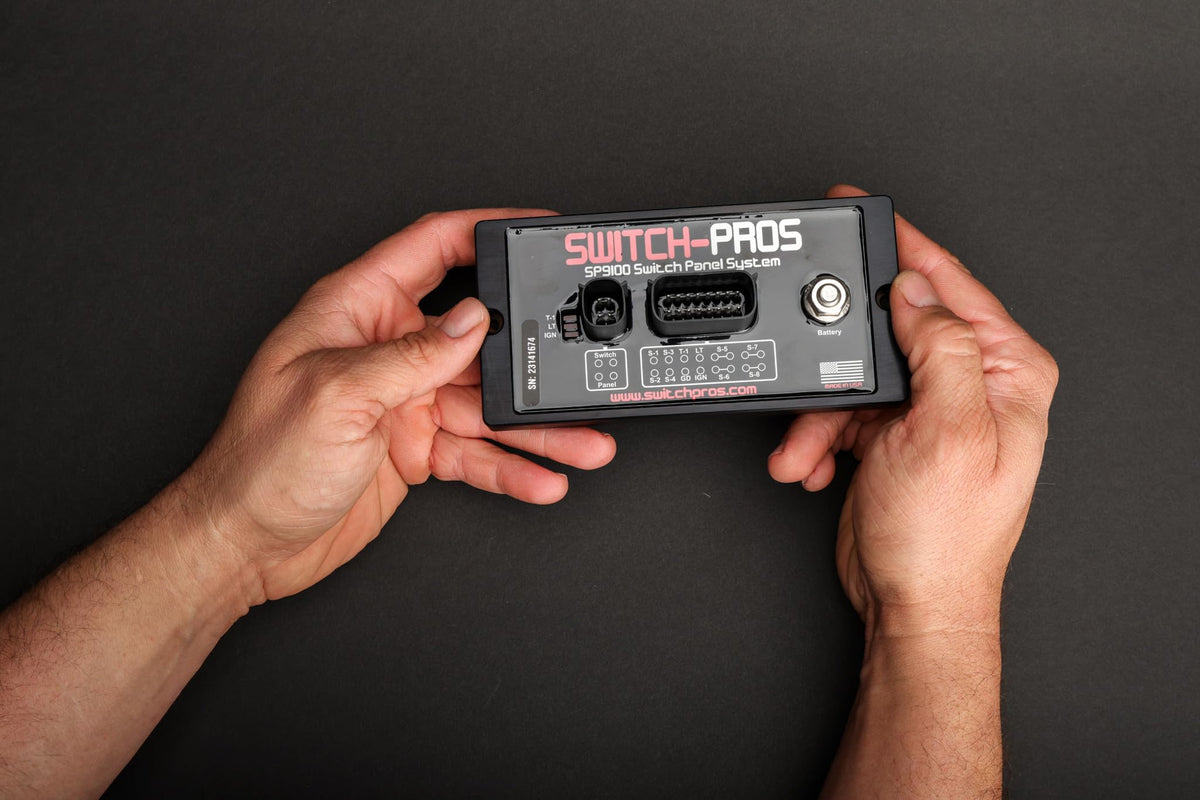

The concealed solid-state power module replaces fuses and large relay boxes with a waterproof, compact unit rated to 125A maximum and providing dedicated 35A and 18A outputs. Color-coded wires and LED input status indicators streamline installation and troubleshooting, while solid-state design improves durability in harsh conditions.

• Four 35A and four 18A outputs for mixed-load support
• 125A maximum capacity in a waterproof, solid-state enclosure
• Color-coded wiring and LED indicators for easy diagnostics

Can I control the system remotely or set automatic behaviors?

Yes — built-in Bluetooth and a free app enable full configuration and live control from your phone, including battery-voltage monitoring on the app screen. The SP-9100 also supports automatic power-up when the vehicle starts, two external trigger inputs, sleep mode for low current draw, and configurable time-delay shutoff on any circuit.

• Built-in Bluetooth module with app-based control and monitoring
• Automatic Power-Up and Sleep Mode for efficient operation
• Two external trigger inputs to activate outputs (active hi/low)

Who is this for: The SP-9100 suits vehicle owners, fleet technicians, and upfitters who want a sleek dashboard switch interface with a hidden, high-capacity power distribution module. It’s ideal for off-road rigs, service trucks, emergency vehicles, and custom builds that require flexible switching modes, reliable high-current handling, and neat factory-like integration without bulky relays or fuses.
