TadaMark A/C Compressor with Clutch for Ford Explorer 3.5L 2011–2015 — Manual Control Valve, Prefilled PAG 46

TadaMark A/C Air Conditioner Compressor with Clutch replaces the factory unit for select Ford Explorer 3.5L (2011–2015) and Police Interceptor Utility 3.7L (2013–2015), providing a complete, prefilled compressor assembly ready for refrigerant charging. This direct-fit compressor is designed as a like-for-like replacement for manual control valve systems used in specific Ford models. It arrives prefilled with PAG 46 oil (180±10 ml), includes the clutch assembly, and carries cross-reference part numbers to help you confirm compatibility. Note: this unit is NOT compatible with Ford Explorers 2013–2019 that have the turbocharged 3.5L engine.

Which vehicles and engine types does this compressor fit?

This compressor fits Ford Explorer models with the naturally aspirated 3.5L engine produced between 2011 and 2015 and Police Interceptor Utility 3.7L models from 2013 to 2015 that use a manual control valve A/C system. It will not work with turbocharged 3.5L Explorers from 2013–2019. Use the vehicle fit tool or compare part numbers to be certain.

• Compatible: Ford Explorer 3.5L 2011–2015 (manual control valve)
• Compatible: Police Interceptor Utility 3.7L 2013–2015
• Not compatible: Ford Explorer 2013–2019 turbocharged 3.5L
• Cross-reference part numbers included for verification

What are the technical specifications and included components?

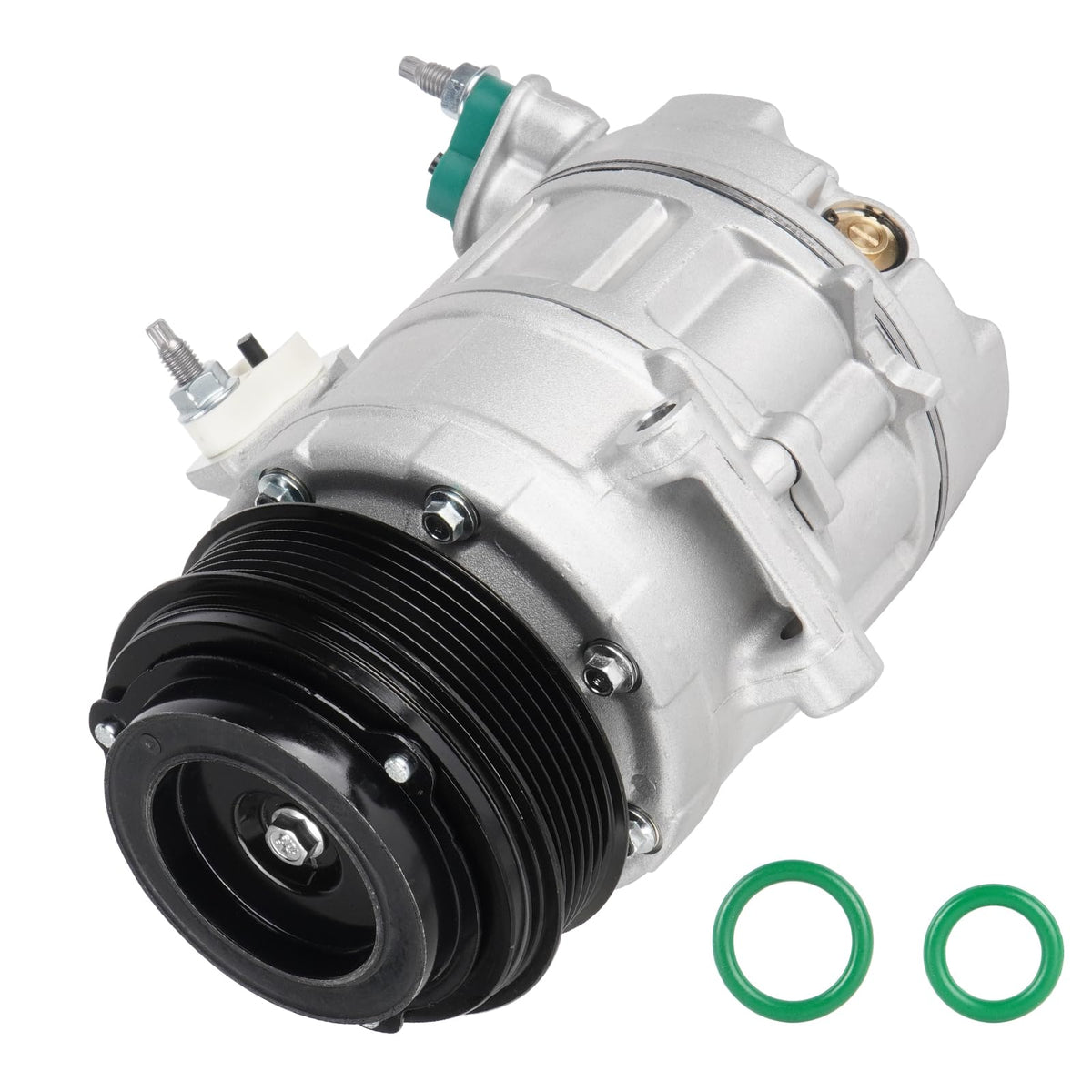

The unit is a 7SBH17C compressor with a six-groove pulley and a 110 mm pulley diameter, supplied with the clutch assembly already mounted. It is prefilled with PAG 46 oil (approx. 180±10 ml) to simplify installation; refrigerant must be added after the system is service-validated and evacuated. Multiple OEM and aftermarket references are provided for accurate matching.

• Compressor model: 7SBH17C
• Pulley grooves: 6 • Pulley diameter: 110 mm
• Oil type: PAG 46 • Prefilled: 180±10 ml
• Includes clutch; ready for refrigerant charging after system cleaning

How should the system be prepared and installed?

Before installing this compressor, thoroughly clean and inspect the entire A/C system—receiver/dryer, expansion valve/orifice tube, lines and condenser—to avoid contamination and premature failure. Each compressor contains refrigerant oil, so after install you will evacuate and recharge the system to manufacturer specifications. If you’re not confident in diagnostics or evacuation, have a certified A/C technician complete the service.

• Flush lines and replace receiver/drier or orifice as required
• Confirm no metal debris or moisture before installation
• Evacuate, leak-test, then charge with proper refrigerant amount
• Follow torque and electrical connector procedures for clutch hookup

Which part numbers and cross-references should I check?

This compressor lists several cross-reference numbers to help match your original part. Use the provided references against your vehicle’s OE stamp or parts lookup to ensure correct fitment before purchasing. If unsure, consult the vehicle fitment tool or contact customer support with your VIN.

• Common references: 2877291, 2877322, 2877352
• Additional refs: BB5Z19703B, YCC269, 140879NC and 140878 series
• Also listed: YCC310, YCC358, C2585R, TEM276047, EB5Z19703B
• Verify with vehicle VIN or fitment tool prior to purchase

This TadaMark compressor comes with a one-year guarantee and seller support to assist with fitment questions or installation concerns. It’s engineered as a direct replacement for compatible vehicles, delivering a ready-to-install unit when the A/C system has been properly serviced and cleaned. Who is this for: Experienced DIY mechanics and professional technicians seeking a direct-fit replacement compressor for select Ford Explorers and Police Interceptor Utility vehicles that use a manual control valve A/C system. Choose this unit if you need a complete compressor and clutch assembly prefilled with PAG 46 oil and backed by cross-reference part numbers and a one-year warranty.

FAQ

Q: Is this compressor compatible with turbocharged Ford Explorer 3.5L models?

A: No. This compressor is not compatible with 2013–2019 Ford Explorer turbocharged 3.5L engines.

Q: Does the compressor come prefilled with oil and include a warranty?

A: Yes. It is prefilled with PAG 46 oil (180±10 ml) and includes a one-year guarantee.
