TAINECTC Remote Battery Disconnect Switch 12V/24V 140A with LED Voltmeter — Auto/Manual, Low-Standby

The TAINECTC Remote Battery Disconnect Switch is a 12V/24V 140A kill switch with an integrated LED voltage readout and remote/manual control to prevent battery drain and extend service life.

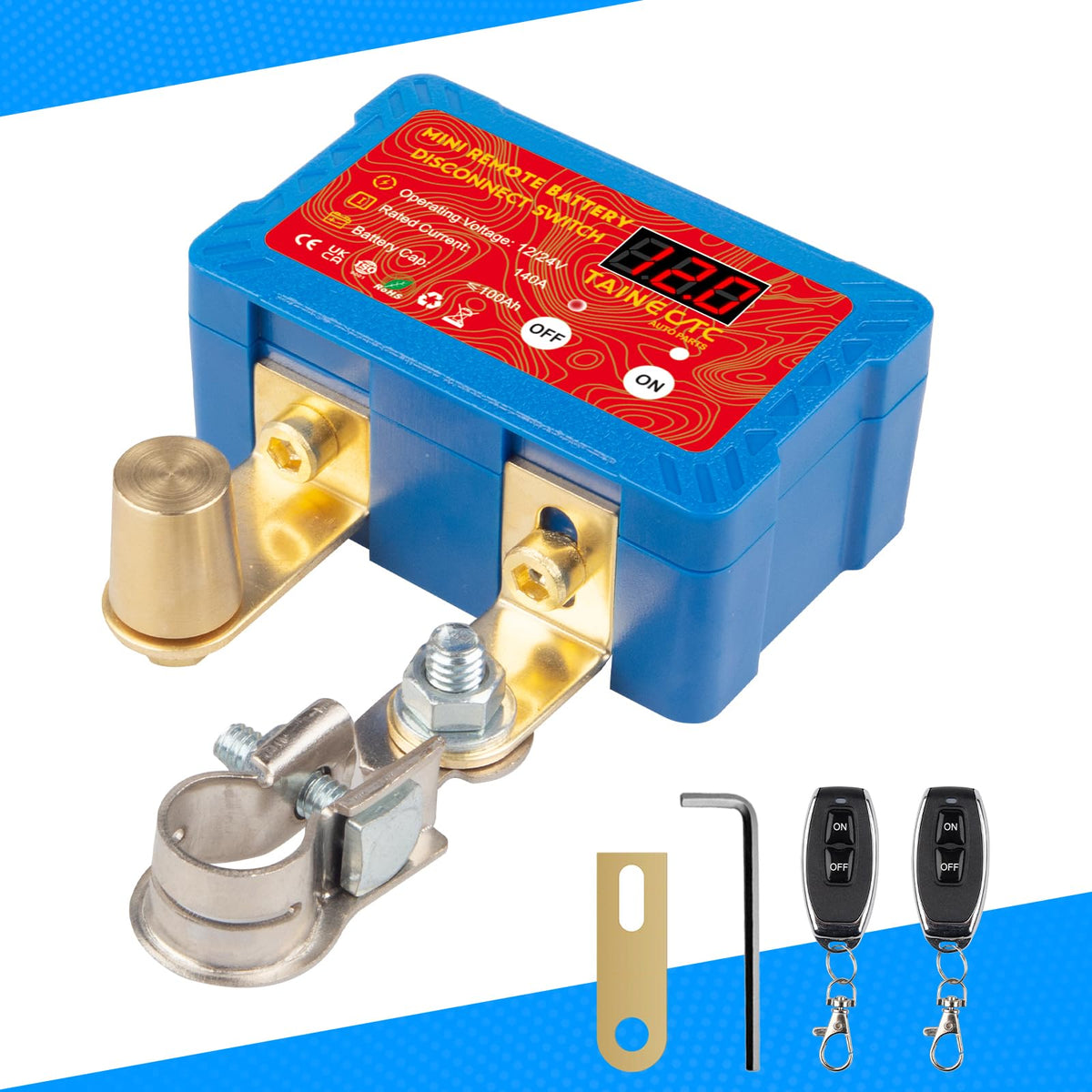

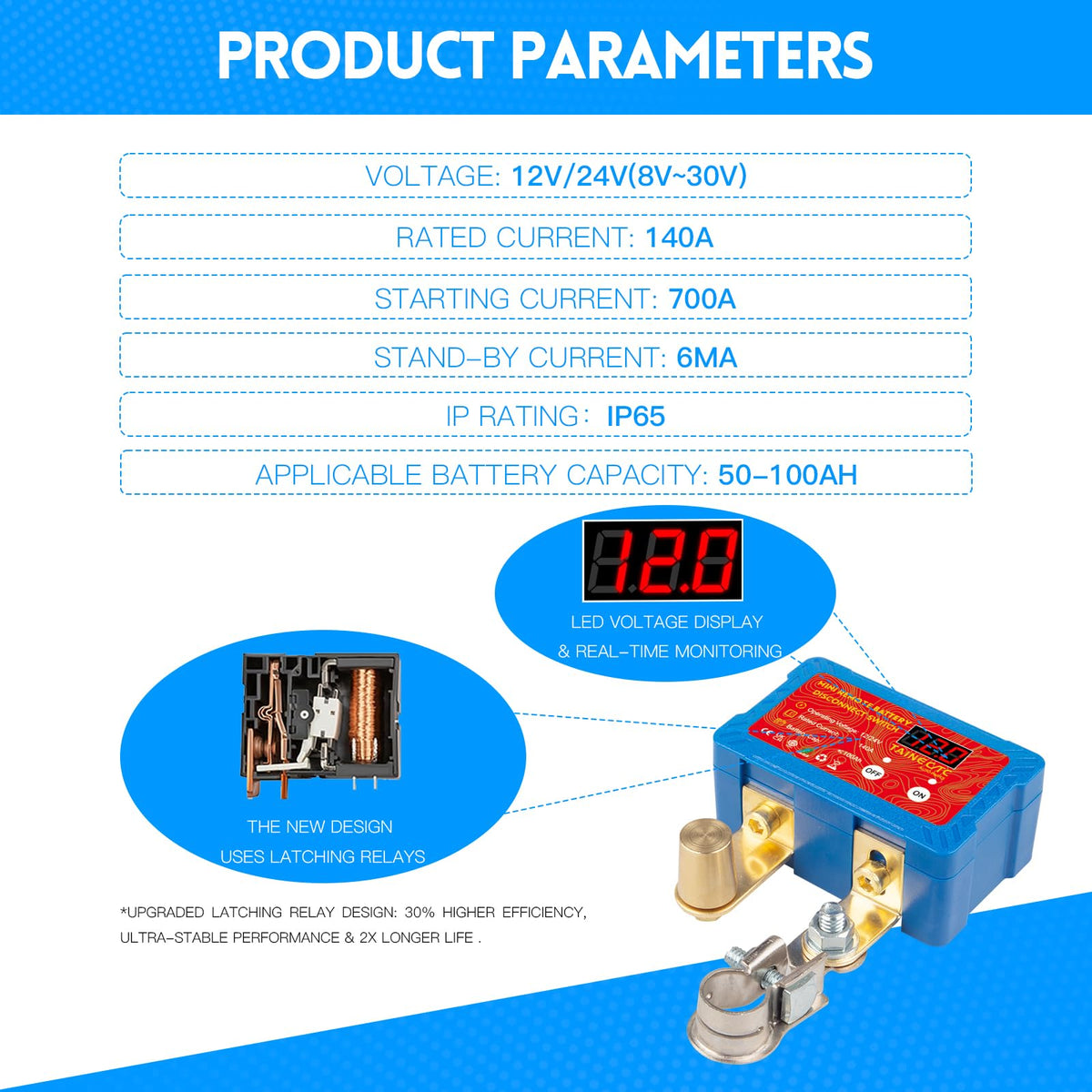

This compact battery disconnect unit combines a latching relay, automatic voltage protection and a clear LED voltmeter to give vehicles and stored equipment smarter battery management. Designed for use on conventional lead-acid systems from 8V–30V and battery capacities of roughly 50–100Ah, the TAINECTC switch cuts parasitic draw during long-term parking, protects against deep discharge and provides simple manual override when needed.

How does this switch protect my battery during storage?

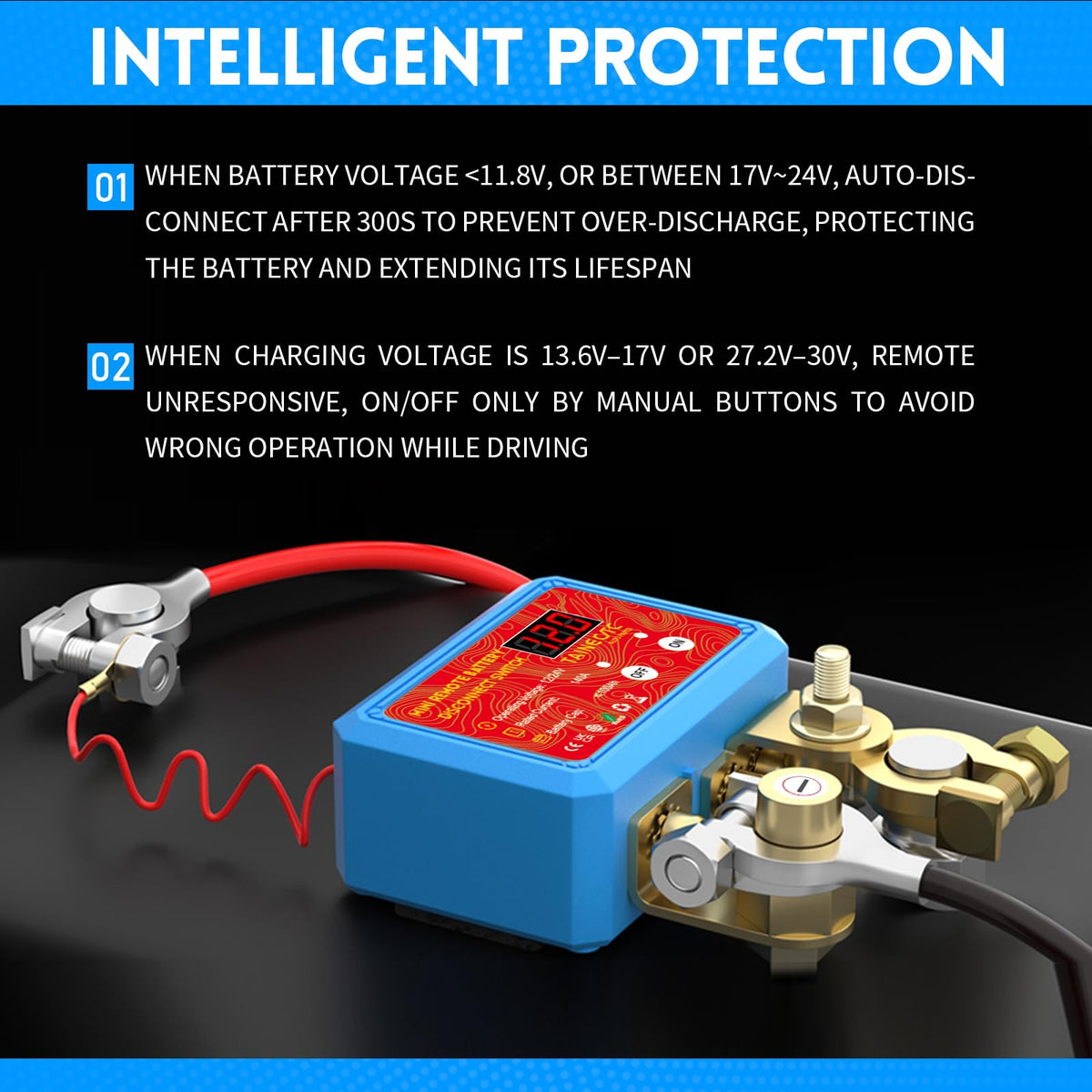

The unit monitors battery voltage and will automatically disconnect the battery when voltages fall into a predefined low or unsafe range, stopping continued self-discharge from electronics. This conserves remaining charge and reduces the risk of a battery becoming fully discharged over long idle periods.

• Auto-disconnect when voltage drops below 11.8V.
• Timed delay to avoid false trips from brief dips (300 seconds).
• Low standby current to preserve battery while connected.
• Manual override available if you need to force connect.

What safety features prevent incorrect operation while charging or driving?

The TAINECTC switch senses charging voltages and locks out remote commands in higher voltage ranges, ensuring the system won’t be accidentally toggled during charging or driving. When charging voltage reaches defined thresholds, on/off control is limited to the panel buttons to prevent unintended open circuits on a live charging system.

• Remote disabled when charging voltage is 13.6V–17V or 27.2V–30V.
• Manual button control remains available for safe operation.
• Voltage ranges tailored for both 12V and 24V systems.
• Built-in logic protects against disconnection during alternator output peaks.

How do I install the TAINECTC disconnect switch?

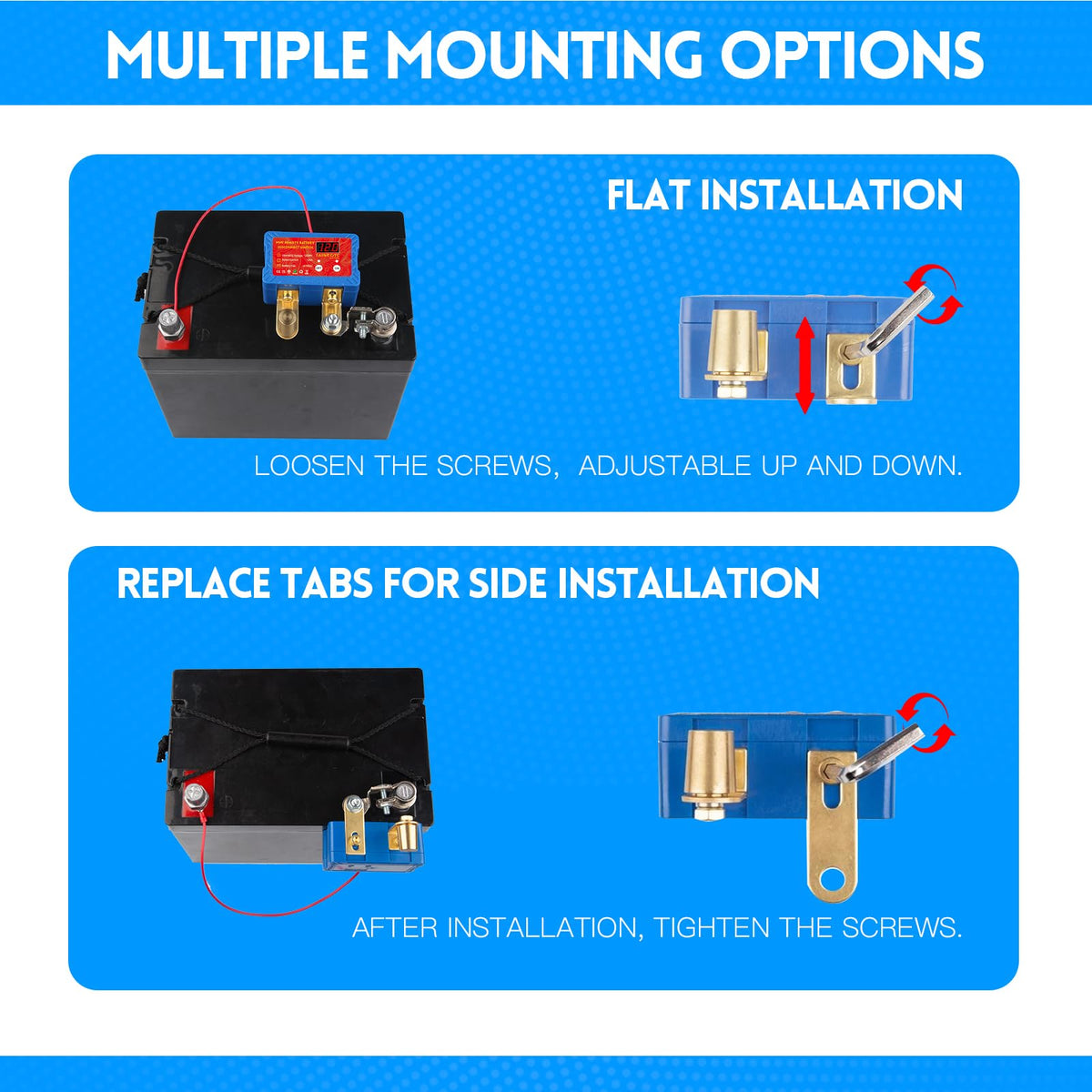

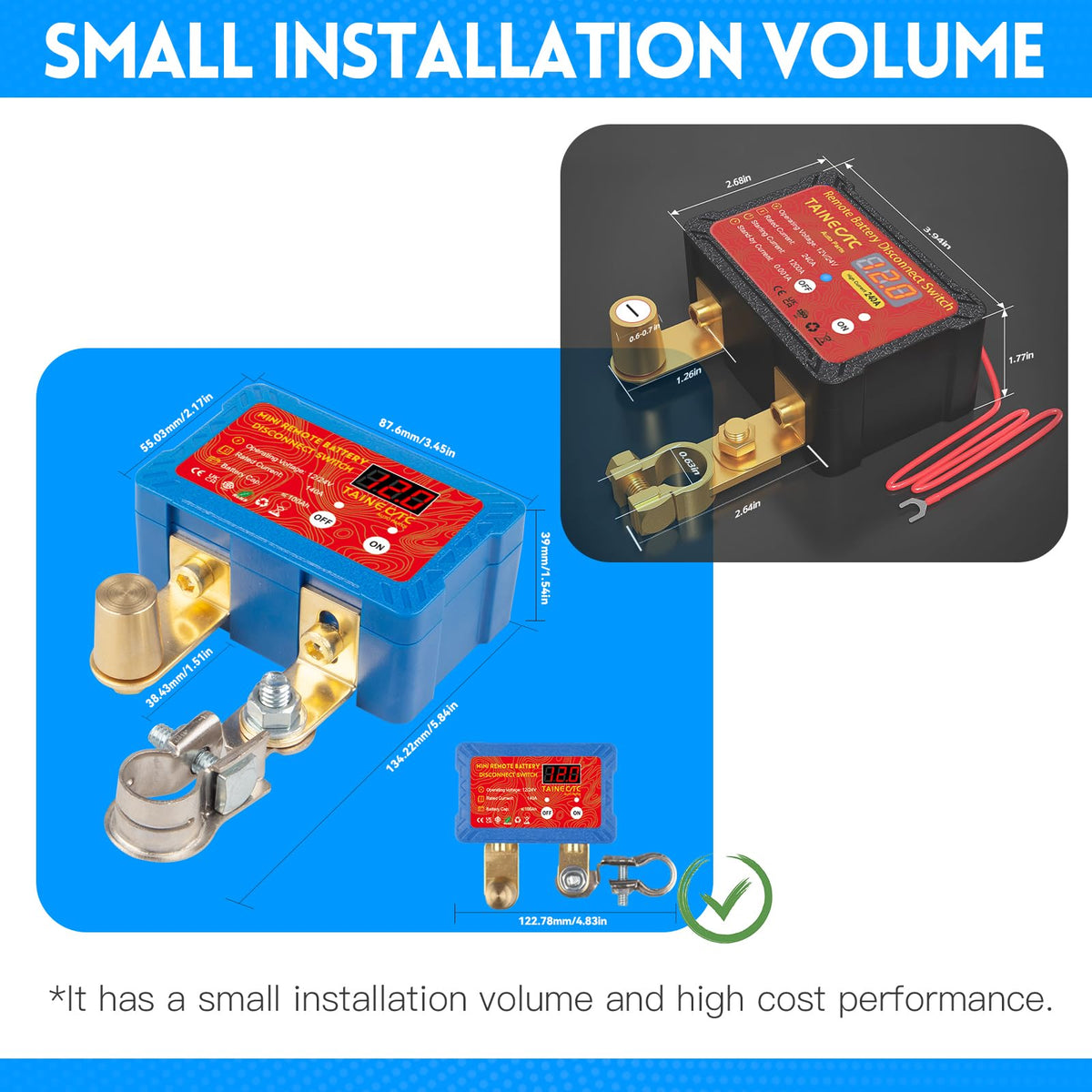

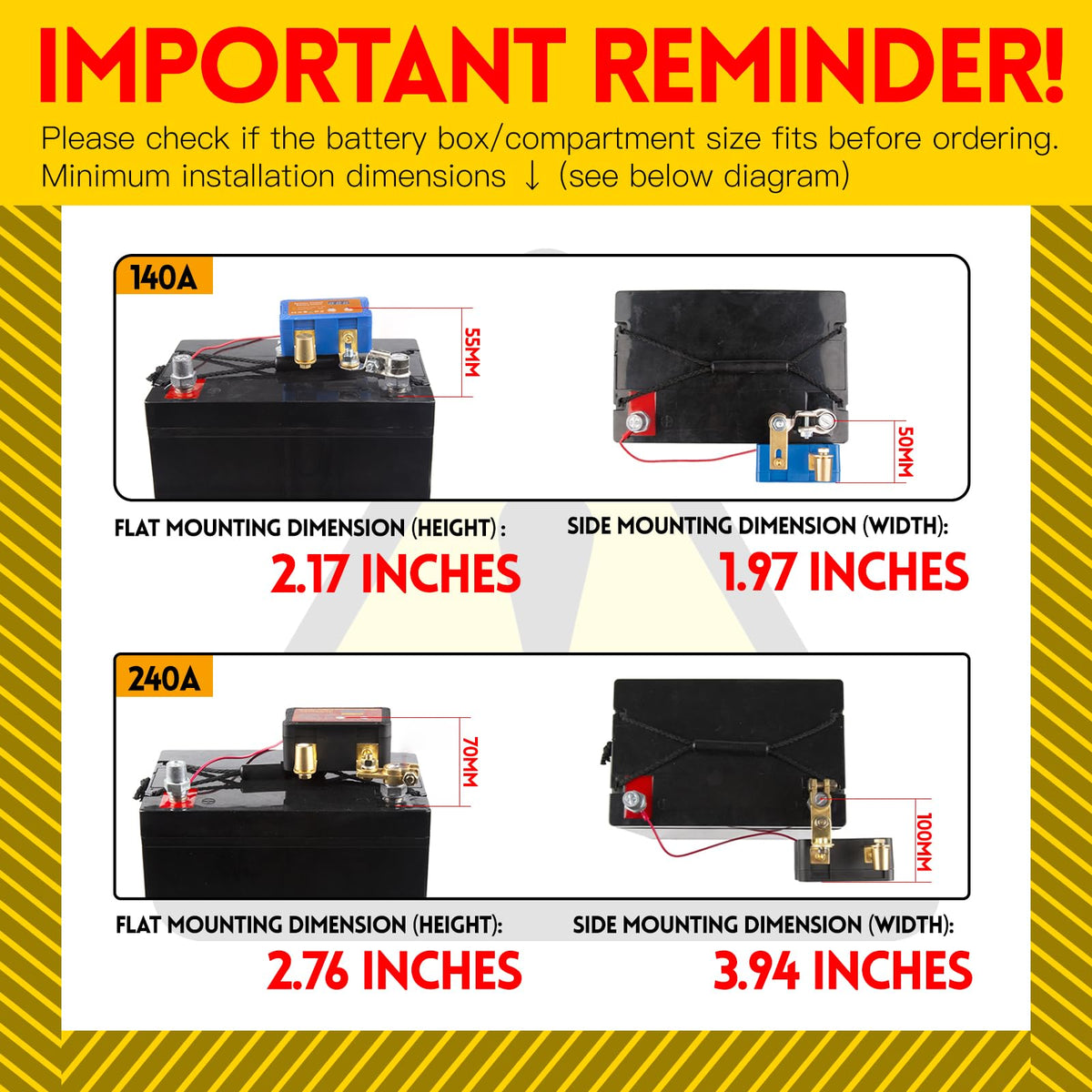

Installation is intended on the battery negative cable and includes mounting options to fit different battery tray layouts. The switch offers slotted terminals and adjustable shims so you can side-mount or flat-mount depending on space, and standard automotive wiring practices apply for secure, low-resistance connections.

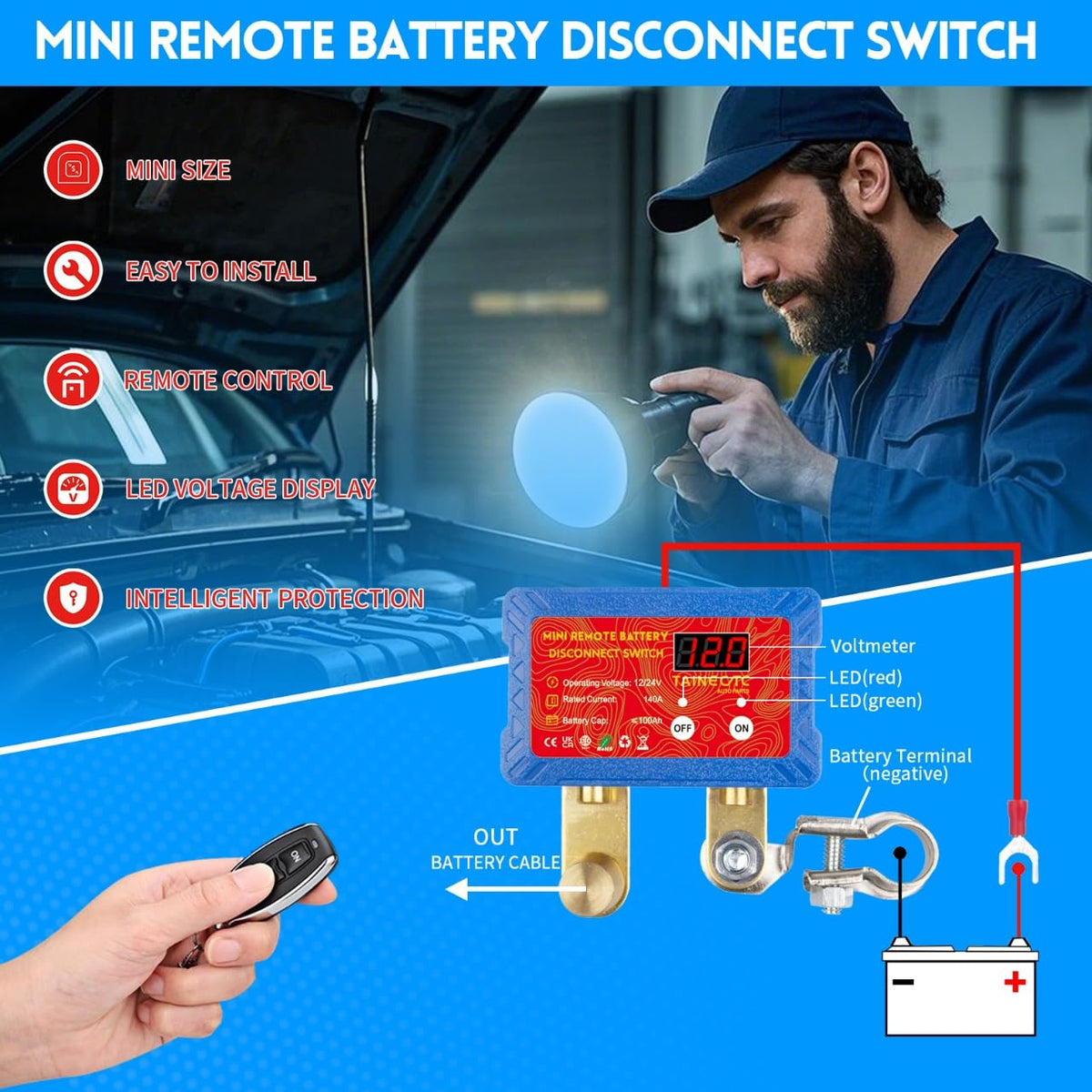

• Connects to the battery negative terminal (recommended).
• Includes transfer shims for side-mount placement.
• Slotted tabs allow vertical height adjustment for clearance.
• Suitable for typical automotive wiring gauges up to the rated current.

Which vehicles and batteries are compatible?

This switch supports a broad range of 8V–30V lead-acid systems and is rated for continuous currents up to 140A, making it suitable for many cars, trucks, RVs, boats and off-road machines. However, it is not recommended for modern lithium chemistries or valve-regulated sealed batteries that require different charging and protection profiles.

• Compatible: cars, trucks, trailers, boats, RVs, ATVs, UTVs, tractors, forklifts.
• Voltage range: 8V–30V (12V and 24V systems supported).
• Battery capacity guideline: roughly 50–100Ah.
• Not compatible with lithium or valve-regulated lead-acid batteries.

Who is this for: The TAINECTC Remote Battery Disconnect Switch is aimed at vehicle owners, fleet managers and recreational vehicle enthusiasts who need dependable battery protection during long storage periods or intermittent use. If you want a straightforward way to prevent parasitic drain, extend the usable life of conventional lead-acid batteries, and add a visible voltage indicator with both remote and manual control, this unit provides a practical, cost-effective solution. Consider alternate products if your setup uses lithium batteries or requires higher continuous current capacity.
